High Quality 2/3 Axis DRO Set Digital Readou Kit Grating Ruler Linear Scale 5U Length 120mm To 1020mm For Lathe Mill CNC Machine

4.9 (144 votes) | 273 orders
Price: US $289.09 - 1608.66 / piece
Discount Price:
US $ 129.48 - 739.98 / piece
-55%
Ships From
Color

Sorry! This item is out of stock

The two rulers of the two-axis group can be matched arbitrarily within the stroke range (KA-300: 70--1020mm; KA-500: 70--520mm) For example: 220*420 / 320*520 / 470*970 / 570*1020 ... ..

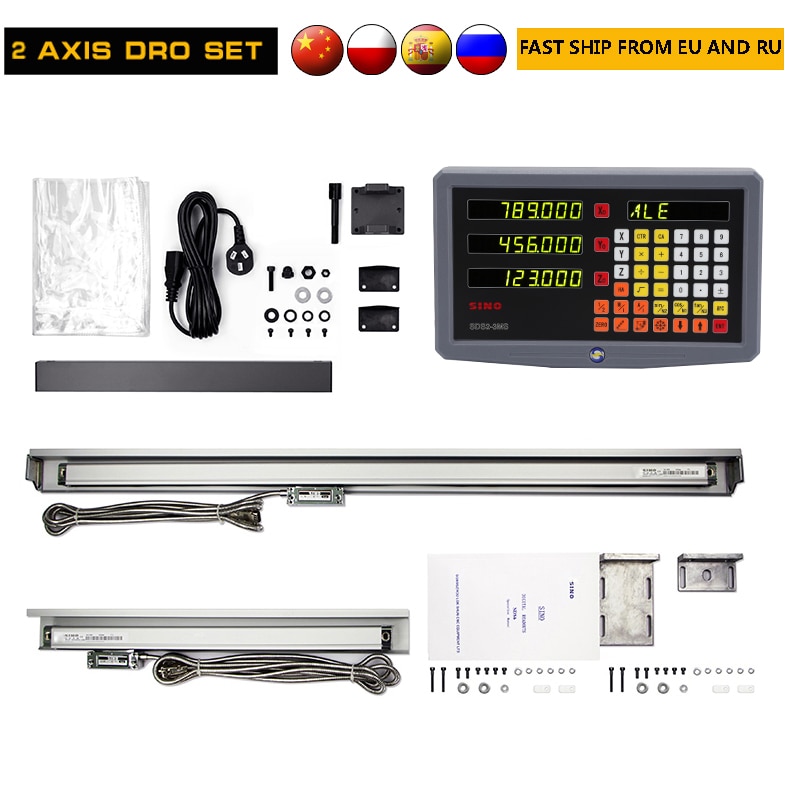

The package includes:

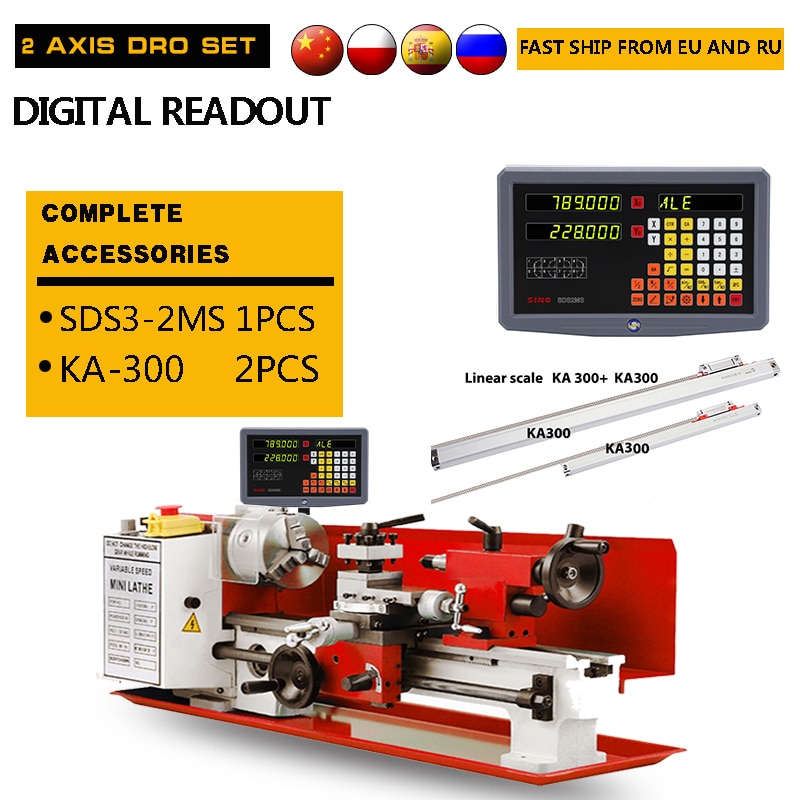

0.005mm complete kit (pack one) 1. 1 piece of Sino SDS2MS-2 2-axis monitor (including user manual, mounting arm, screw bag, power cord); 2. 2 pieces of Sino KA-300 linear scale reading resolution 0.005mm linear Ruler (with cover, mounting bracket, screw pocket)
0.005mm complete kit (pack of two) 1. 1 piece of Sino SDS2MS-2 2-axis monitor (including user manual, mounting arm, screw bag, power cord); 2. 1 piece of Sino KA-300 linear scale and 1 piece of Sino KA- 500 reading resolution 0.005mm linear scale (with cover, mounting bracket, screw pocket)

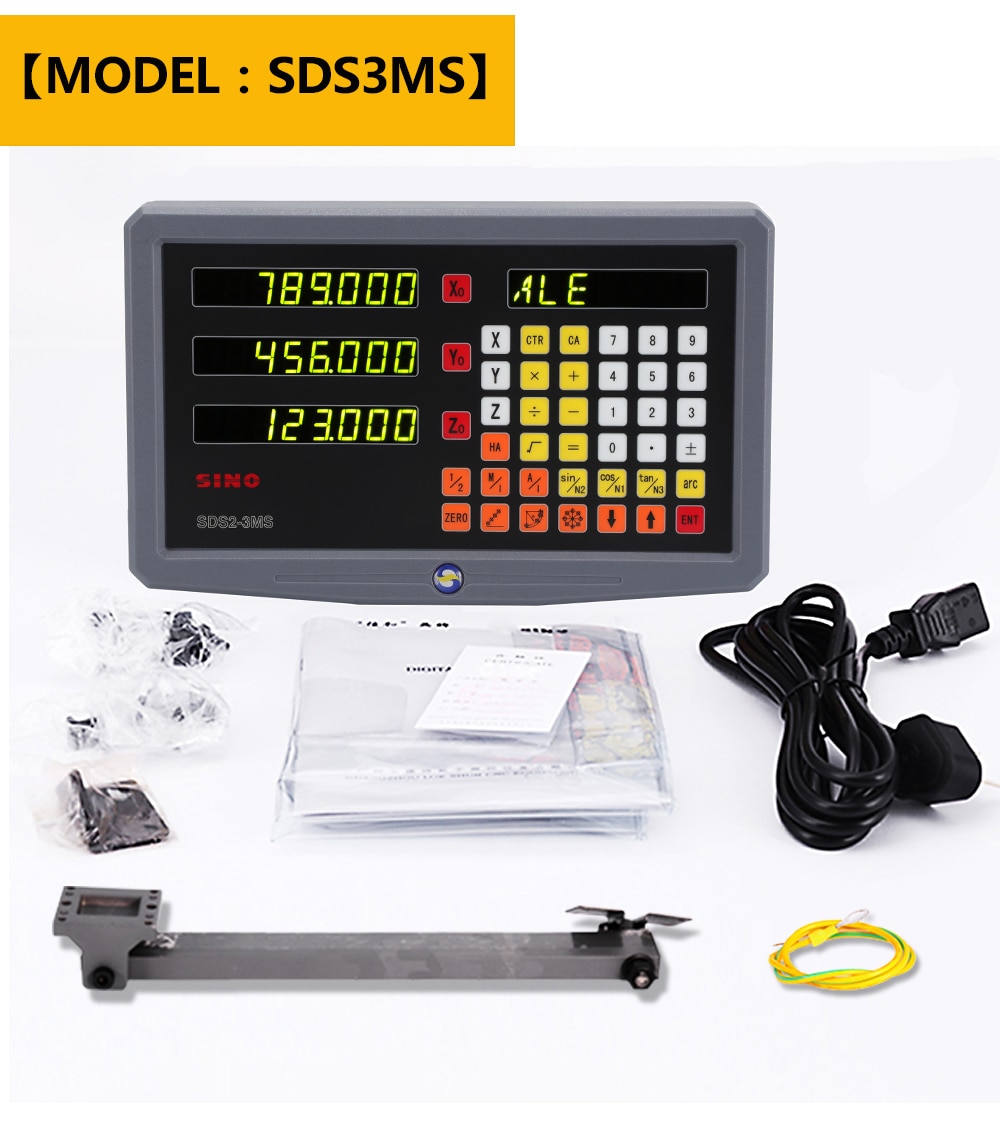

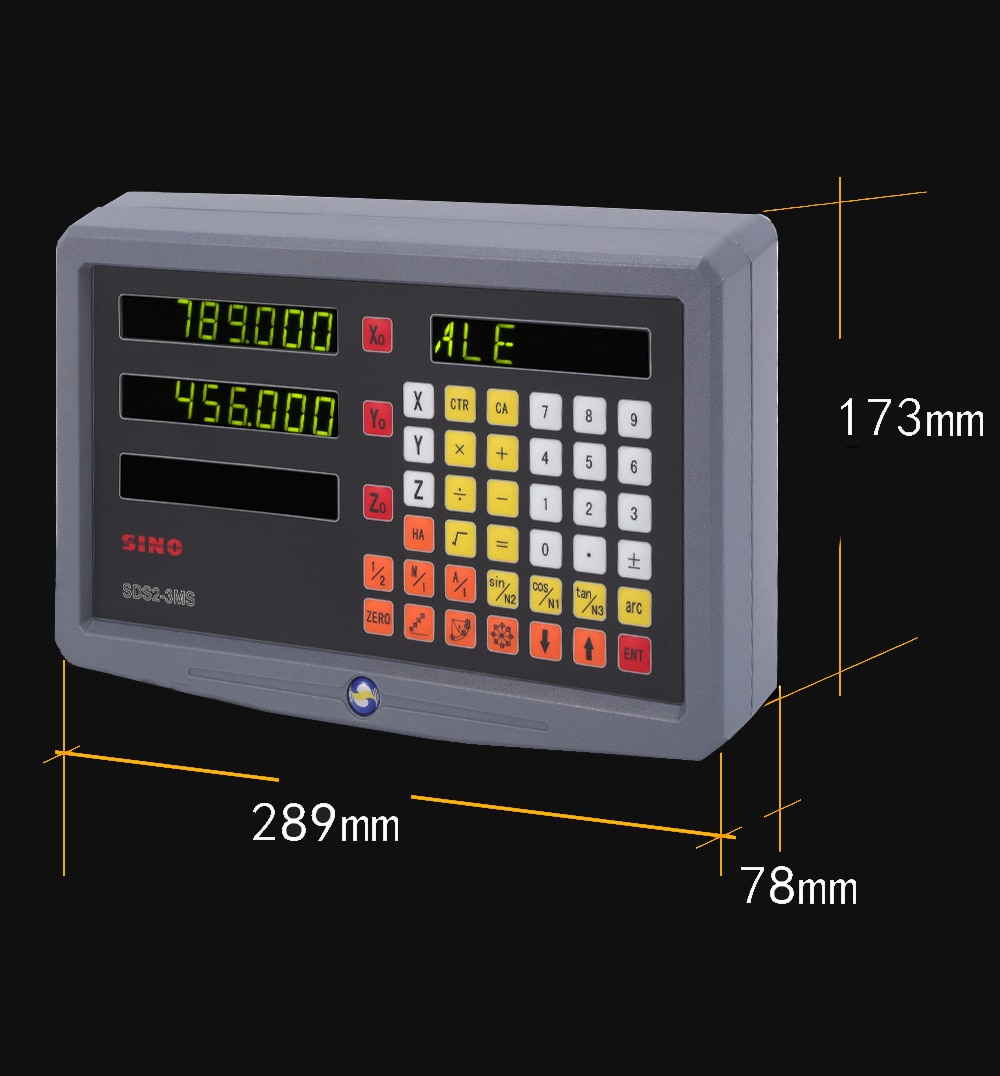

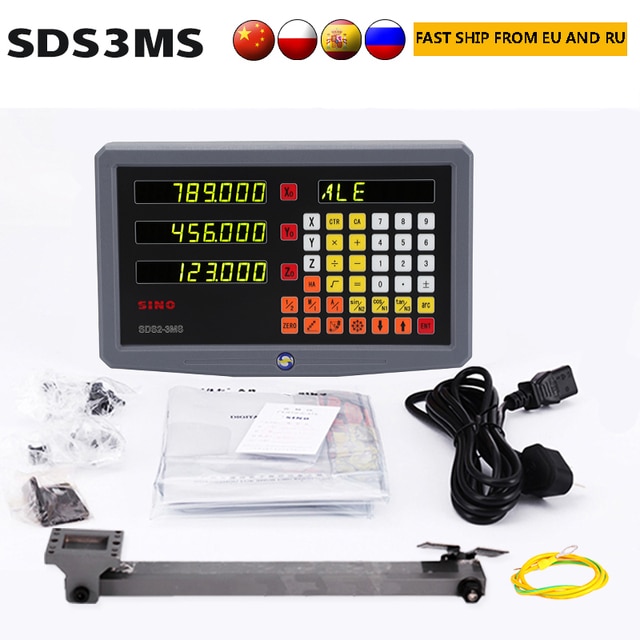

Sino SDS2MS-2 digital display parameters
1. Voltage range: AC100 v ~ 240 v / 50 Hz ~ 60 Hz; 2. Power consumption: 25 VA; 3. Coordinate number: two coordinates; Word display characters; 5. Input signal: TTL; 6. Allowable input signal frequency: >100 KHz; 7. Resolution: 10 microns, 5 microns, 2 microns, 1 microns, 0.5 microns, 0.2 microns, 0.1 microns
Advantages of digital display:
1. Humanized design experience, different users have different requirements for display brightness, hereby added 7-level brightness adjustment function, users can adjust the brightness independently to adapt to the use environment; the button shape of the panel is designed to be square, combined with ergonomics, convex The height is more reasonable, making the hand feel better, the operation more efficient and comfortable; 2. The chip adopts the main chip with low power consumption, high sampling rate and high precision, the performance is more powerful, and the stability of the program operation is greatly improved, which provides powerful data processing for the main board. 3. The digital tube is driven by bus technology, which is more reliable than the old version using discrete components such as triodes, and greatly optimizes the consistency of the display brightness of the digital tube; 4. The panel, the panel window is adjusted to a more suitable perspective Light rate, enable more vivid and outstanding color division function of key area, higher appearance, bring higher efficiency to work on the basis of relieving visual fatigue; 5. Watch box, ABS high-strength material, through strengthening mechanical connection The base is firmer to adjust the tilt angle of the digital display for better viewing angles and smoother control.
basic skills
mm/inch conversion, absolute/relative conversion, 200-point auxiliary zero function, function calculator, R arc function, bisecting circle function, slope machining function, etc.


Option three:

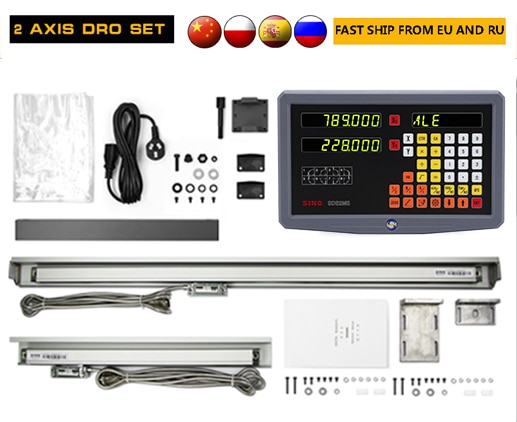

Two-axis display accessories are:
Stand rod/screws/user manual/stand holder/power cord/protective cover

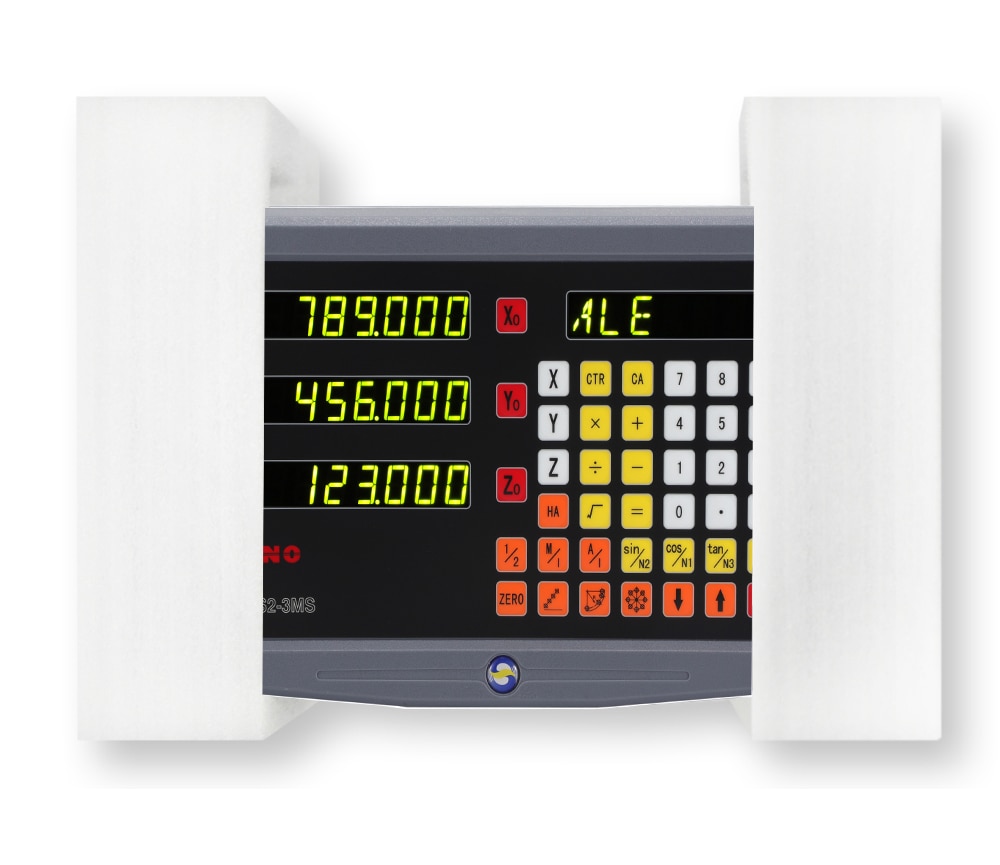

Professional packaging
Long-distance shipping ensures product is not harmed
Let you buy with confidence

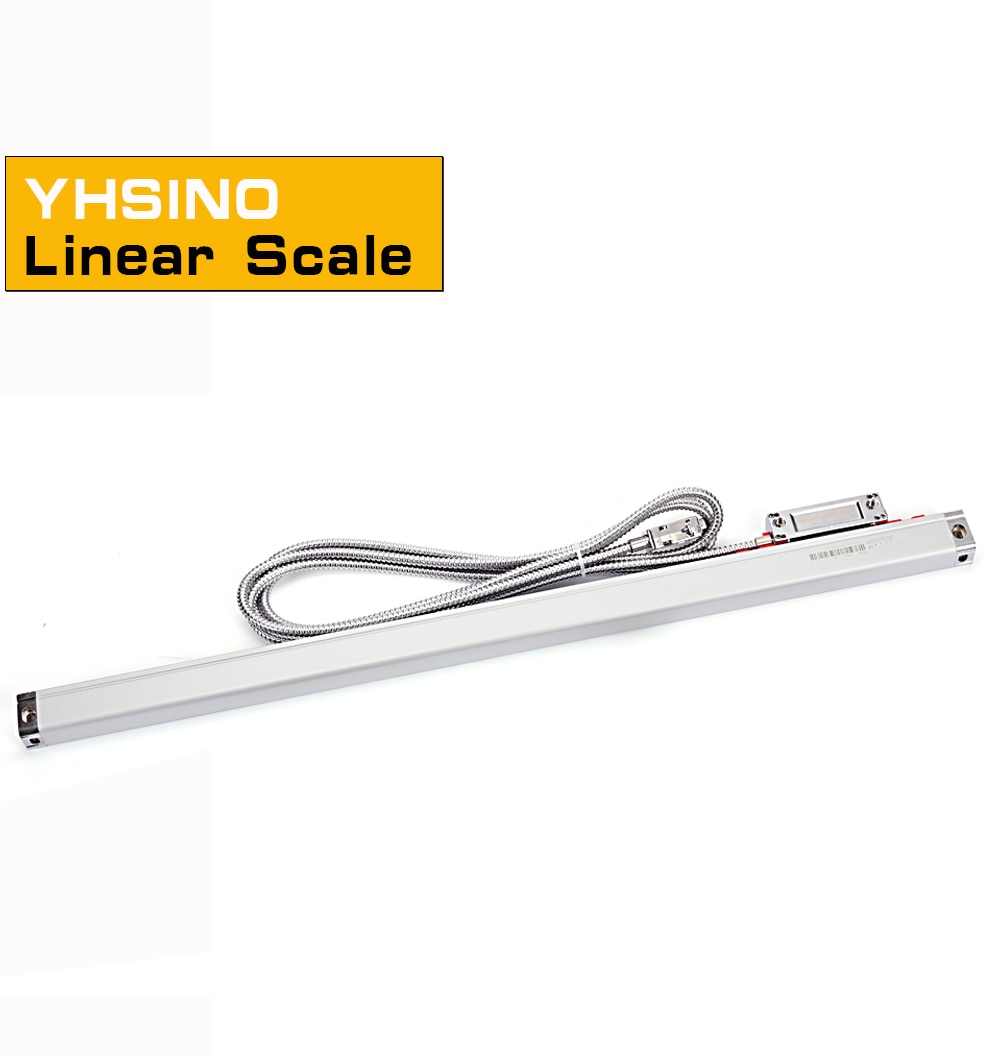

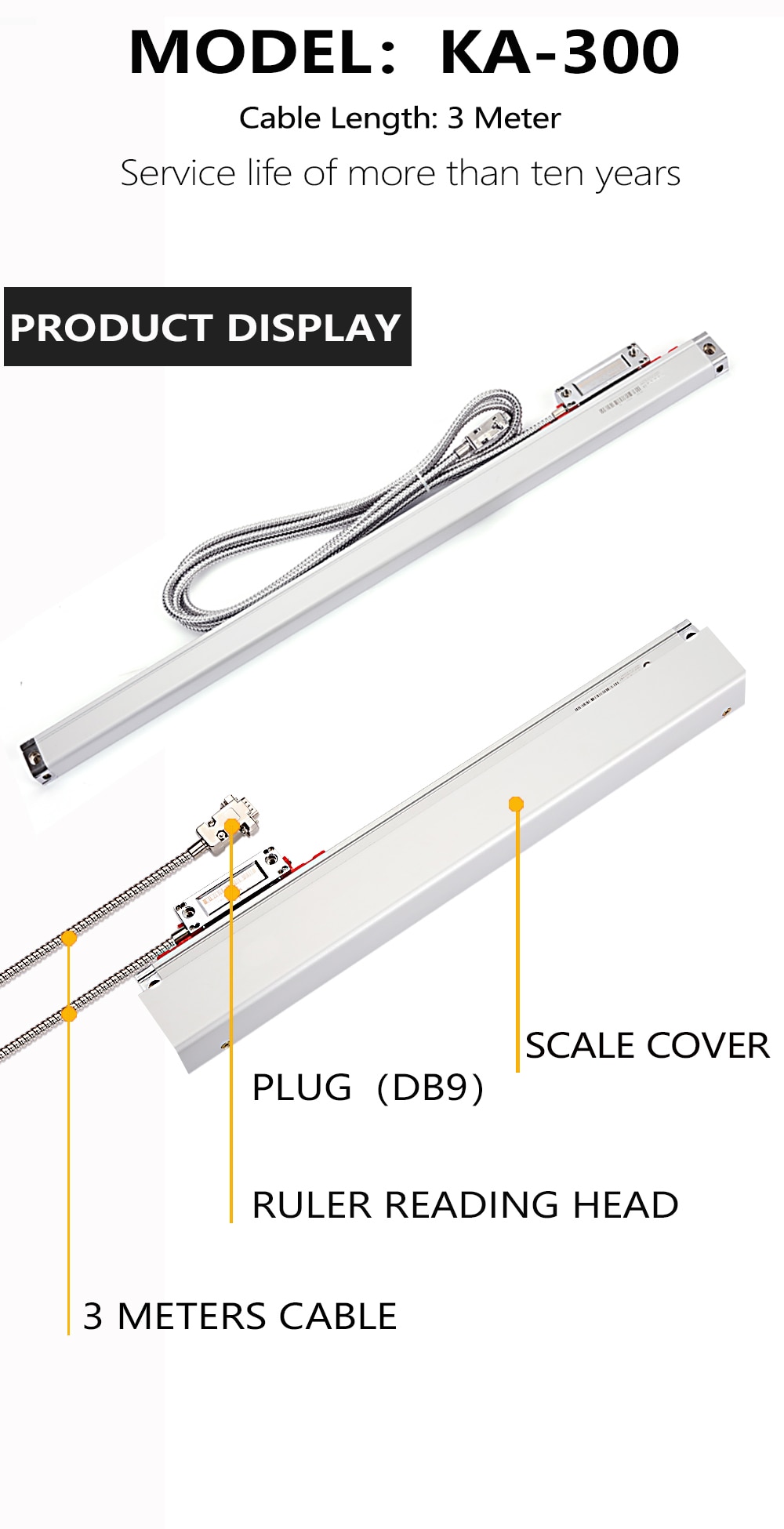

YHSINO: KA-300 and KA-500 series:


Linear scale of other brands

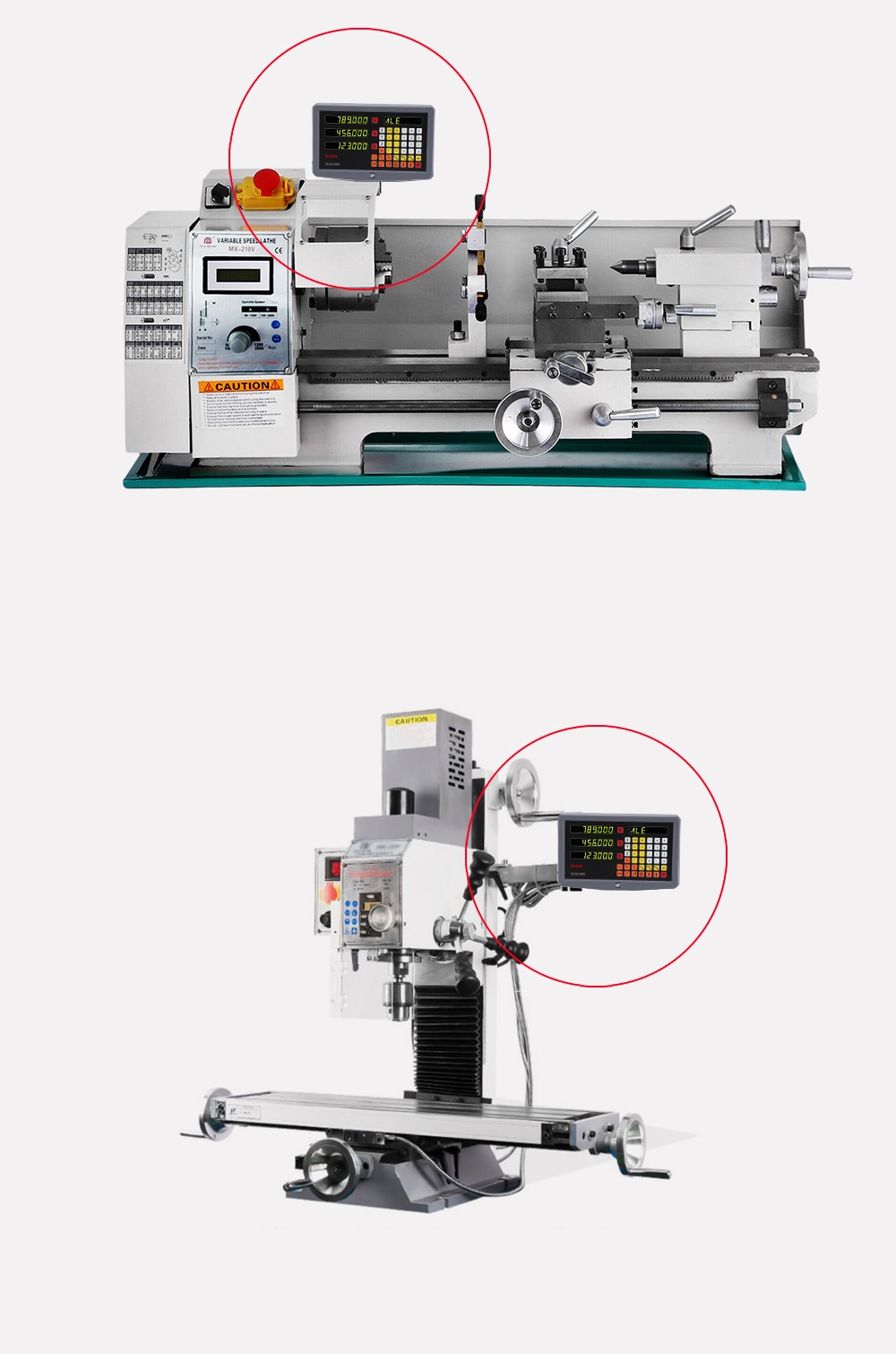

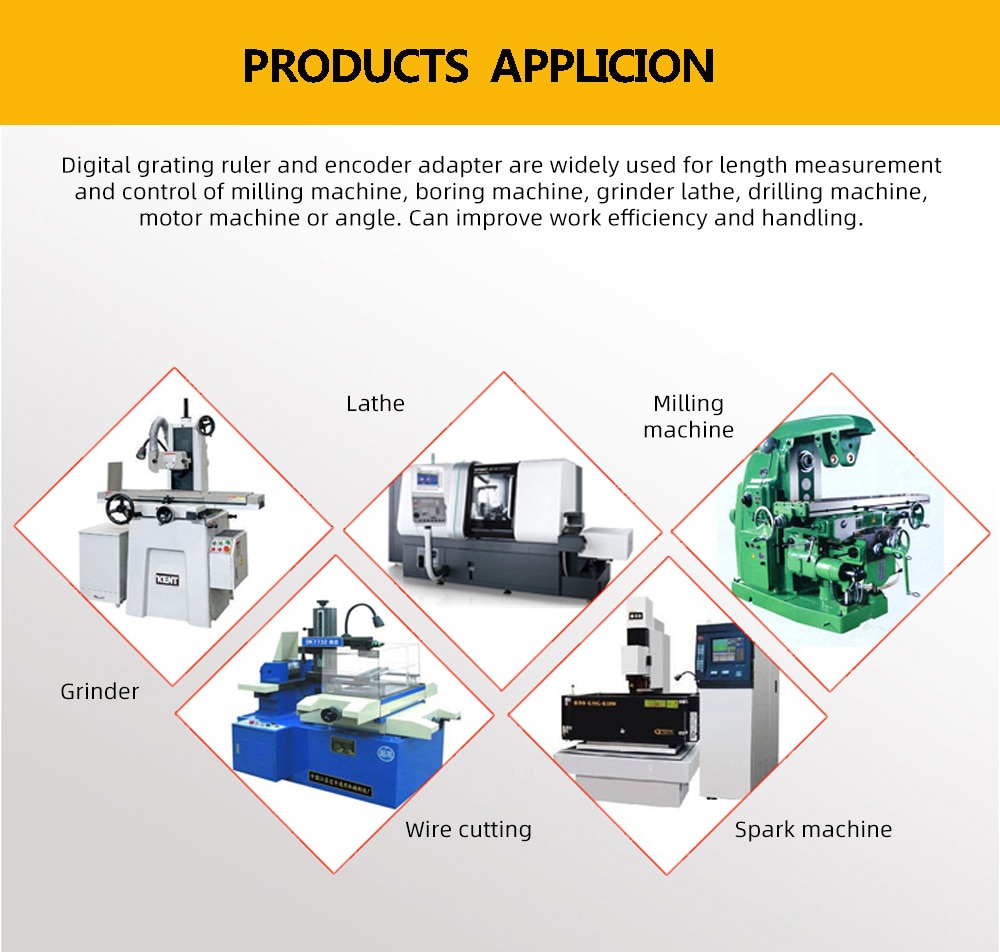

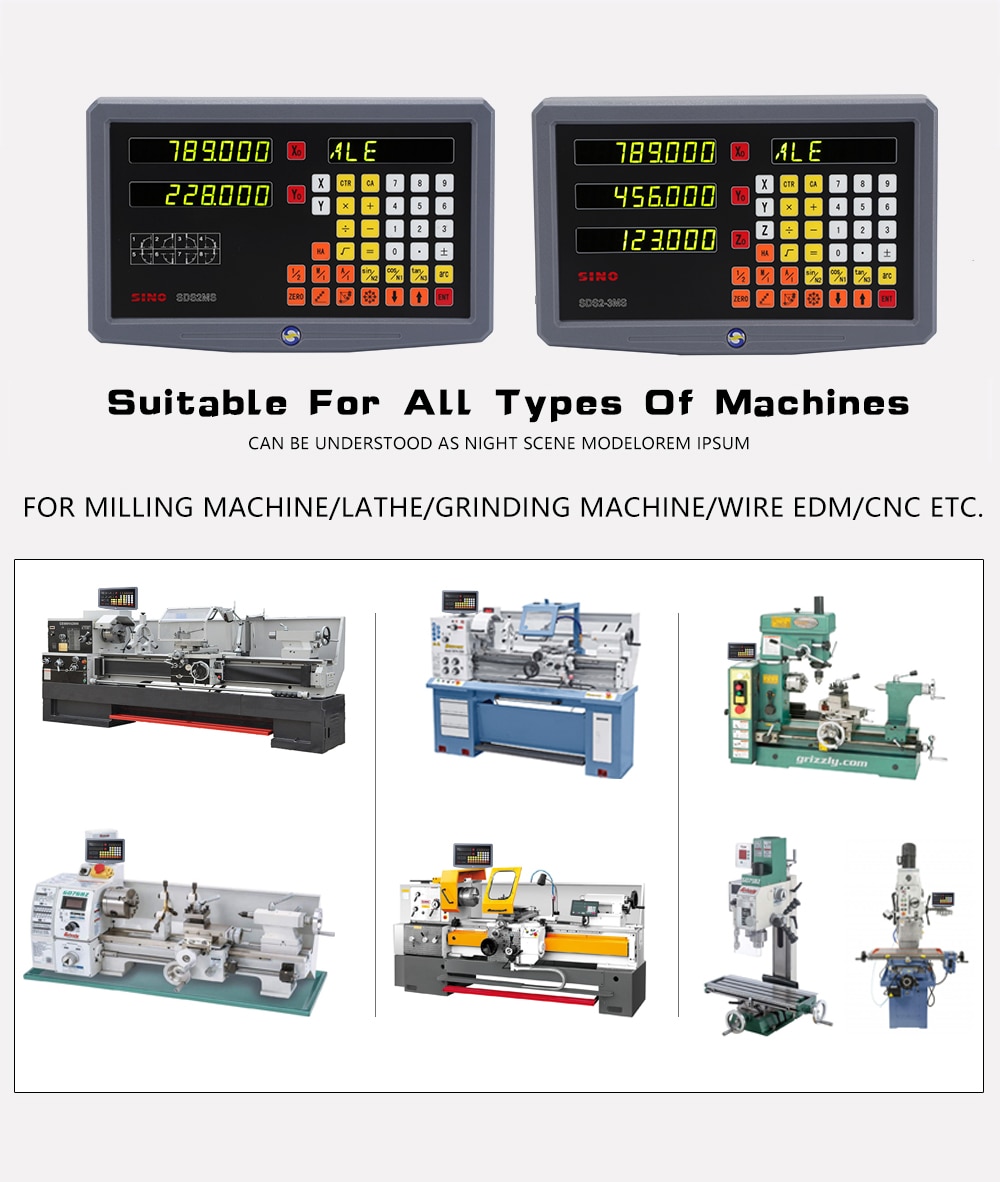

●Suitable for many kinds of machines!

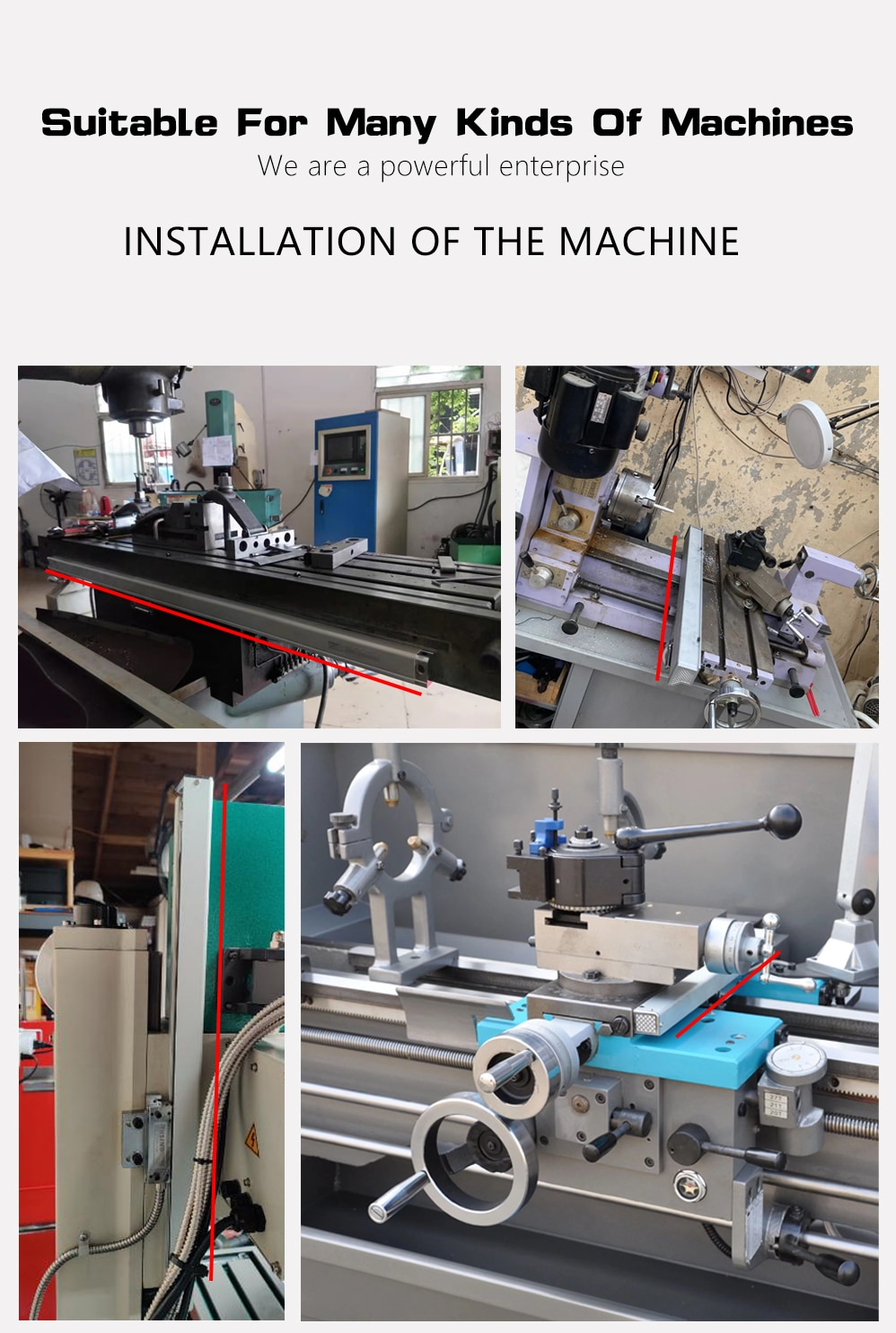

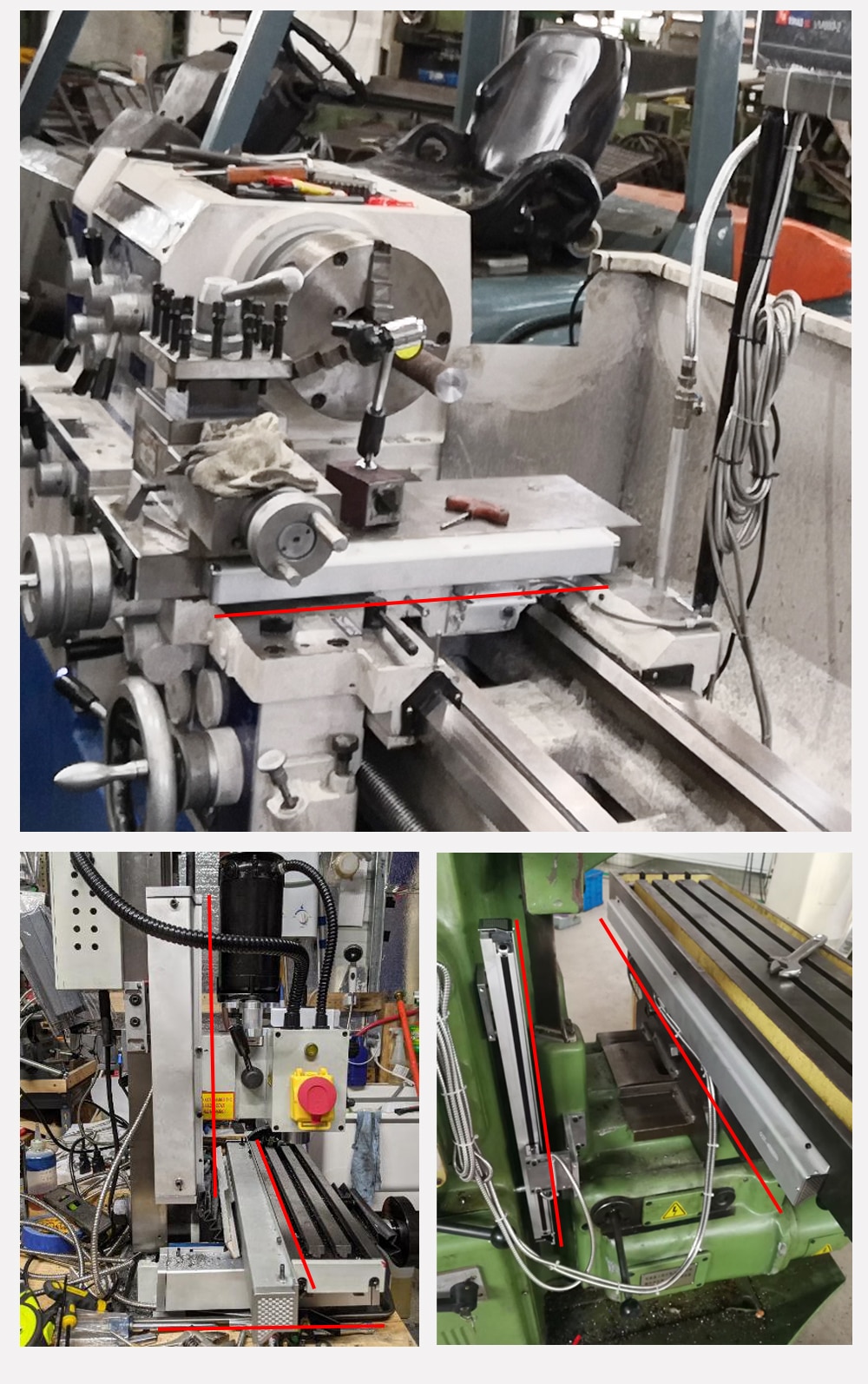

Installation of the machine
Option three:

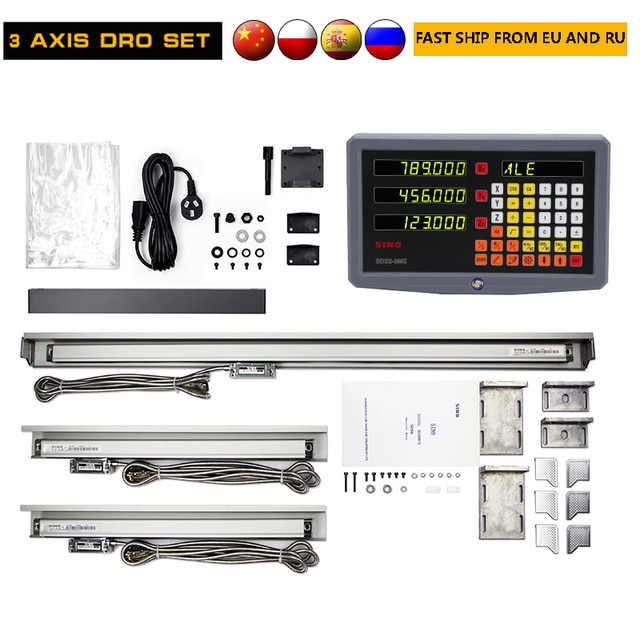

The 2/3-axis display accessories are:


Bracket rod/screw/user manual/holder/powercord/protective cover



Professional packaging


Long-distance transportation ensures that the product is not harmed


Let you buy at ease



Use a very good power board


Longer service life


Advantage

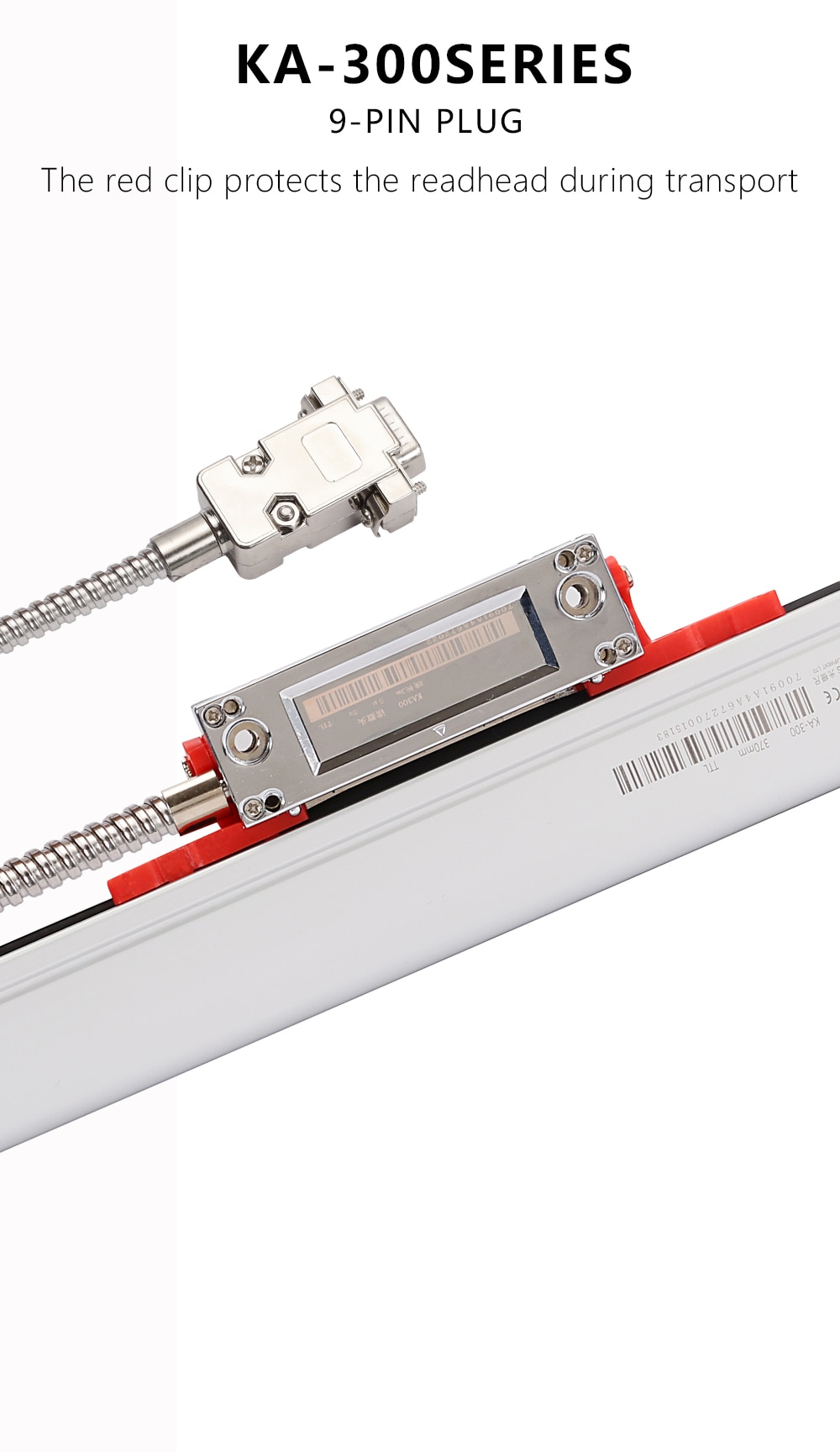

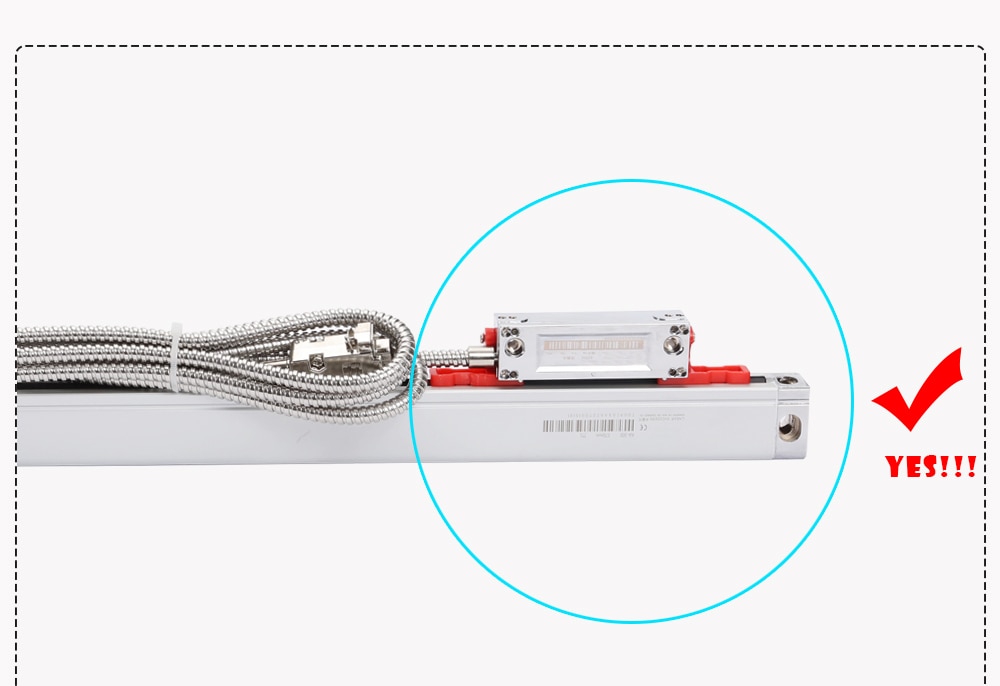

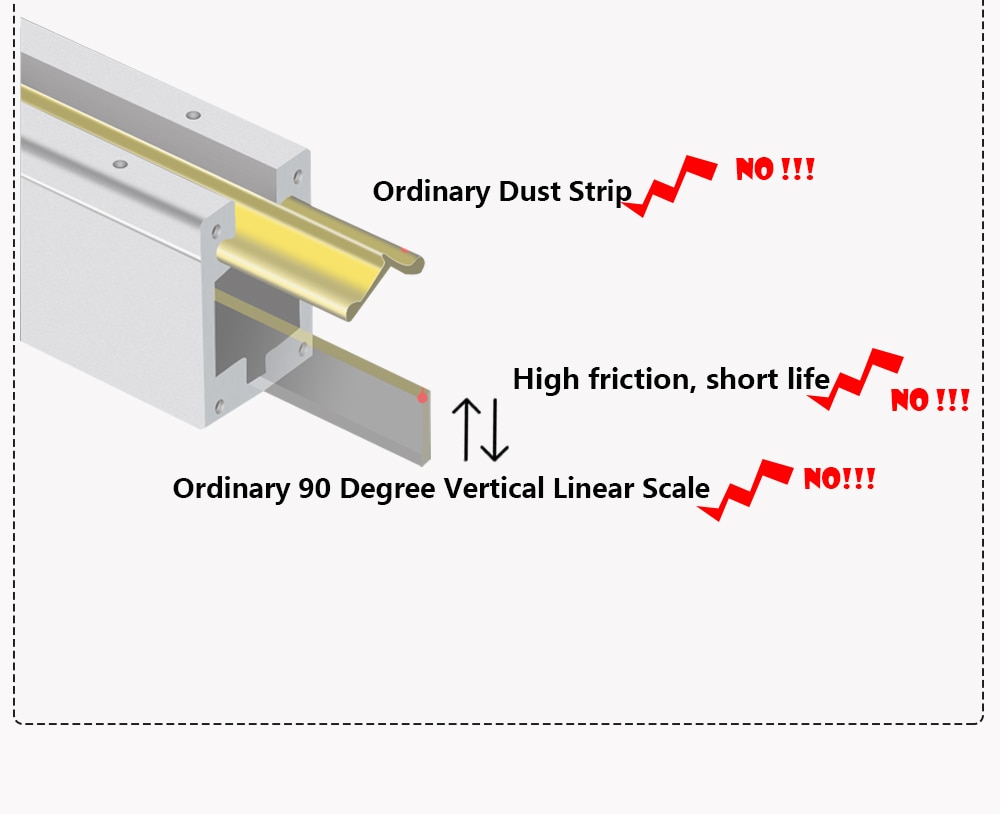

1.The reading head for the design of five bearing system

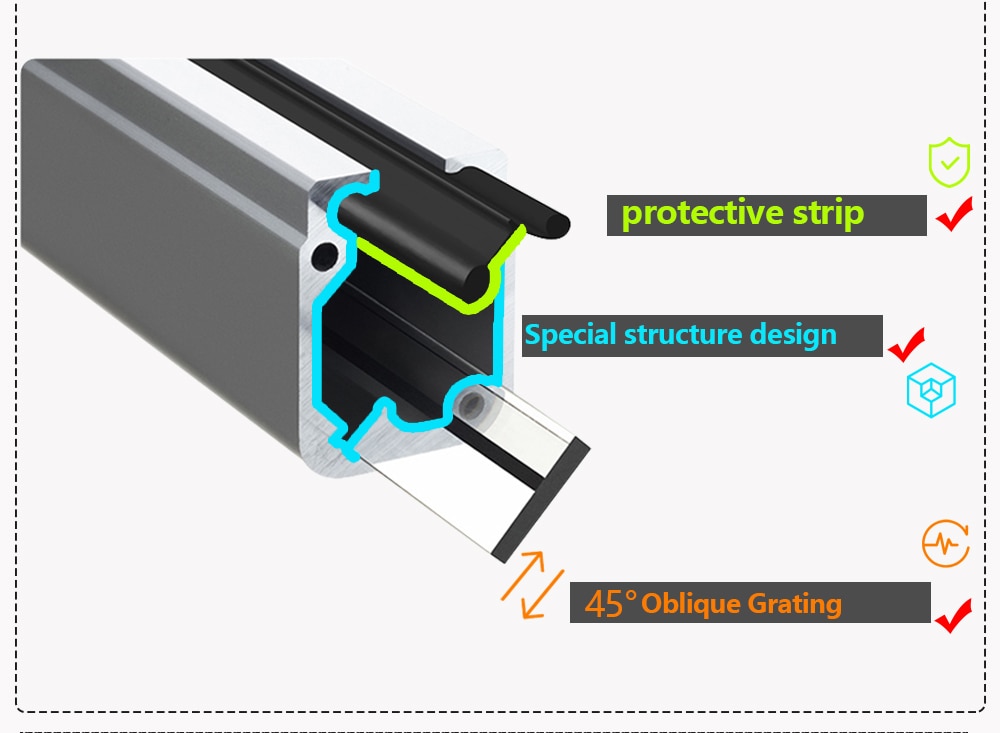

2.grating sensor is closed type


3.the signal line is coverred by the nets of multilayer isolatio ,So waterproof, rust protection


4.the light source adopts imported infrared leds


5.special oil resistance, corrosion resistant


6.with high level of anti-interference ability, high stability, high speed, vibration resistance

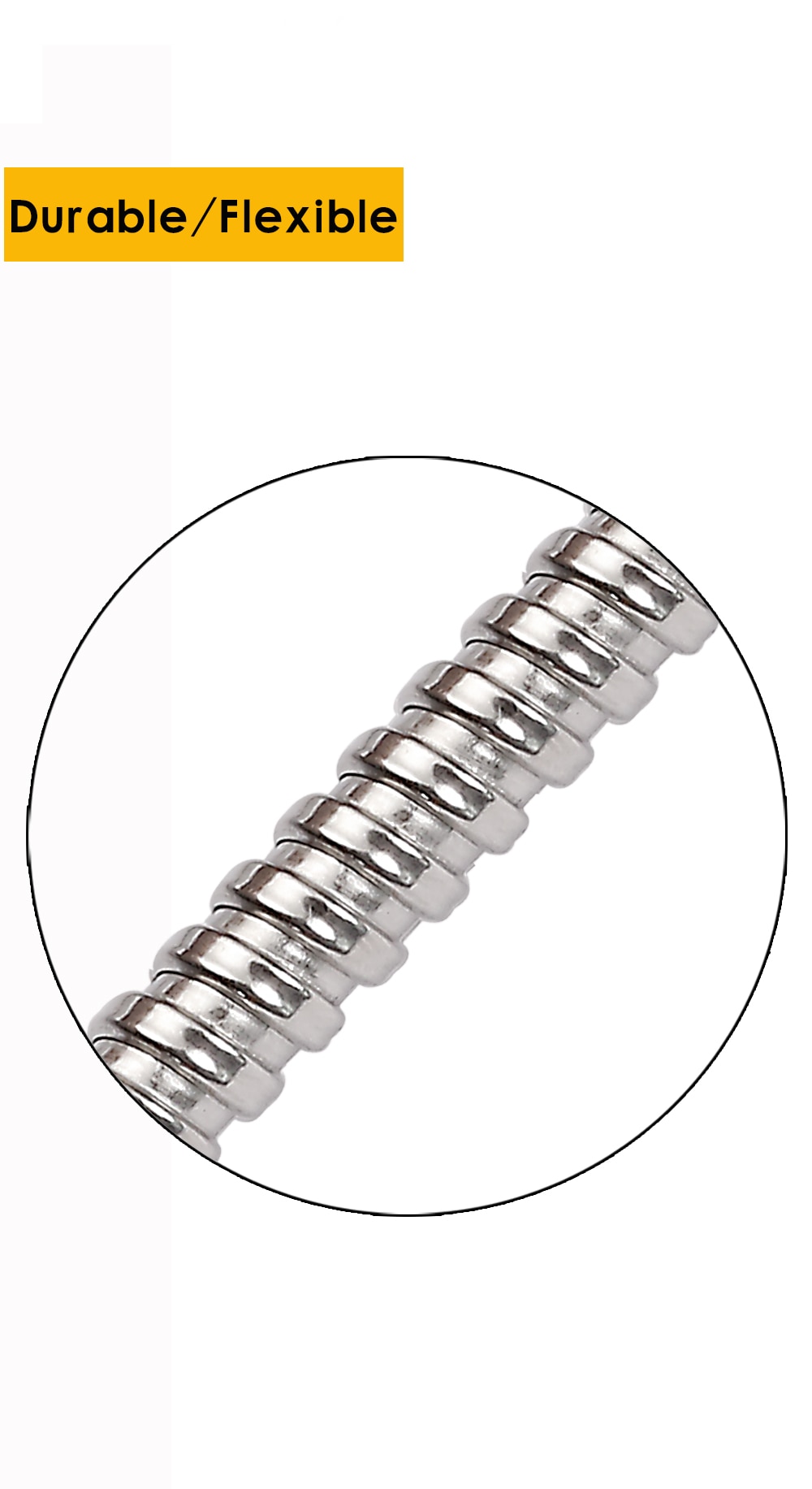

Metal shielded wire


1.Anti-interference

2.long lasting

3.Oil resistant

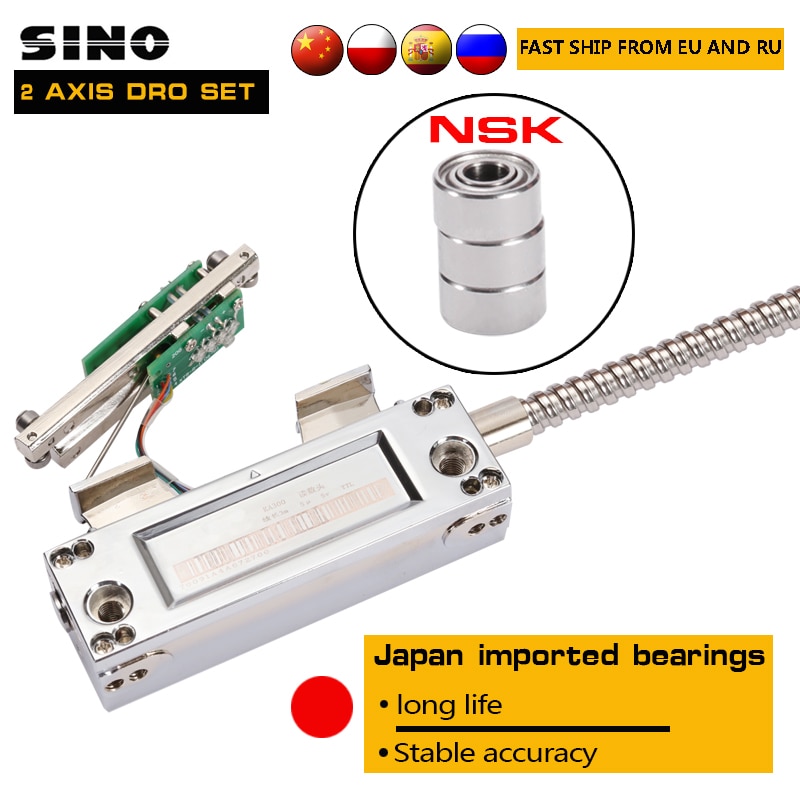

【NSK】

World famous brand


Longer life
































  • Brand Name: YQLILGEN
  • Certification: CE
  • Origin: Mainland China
  • Model Number: SDS2MS DRO Set
  • Model Number: SDS2MS/SDS3MS
  • Operating temperature: 0-50°c

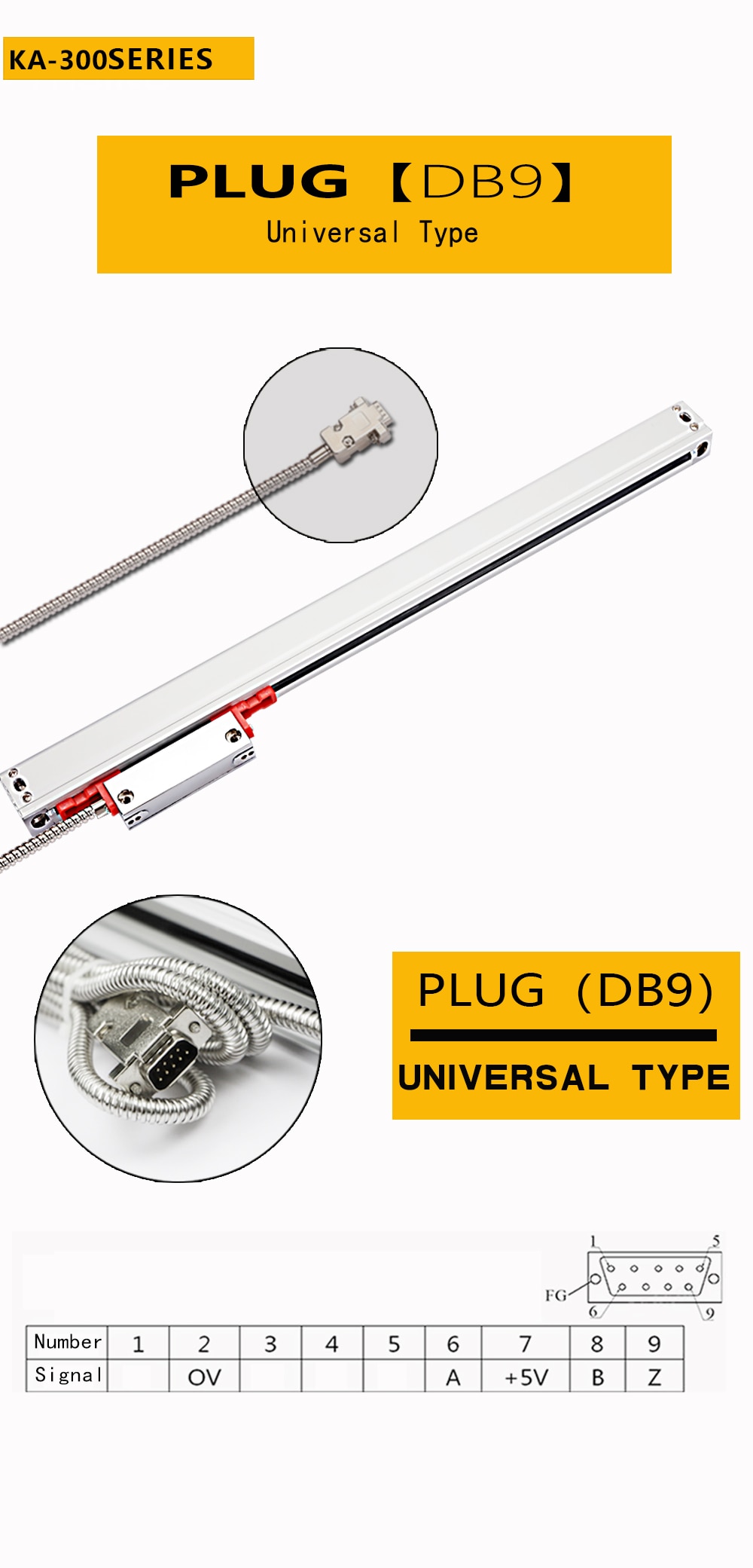

  • Interface Typ: 20um,DB9
  • Output mode: TTL
  • Protection grade: IP54
  • Resolution: 5μm/0.005mm

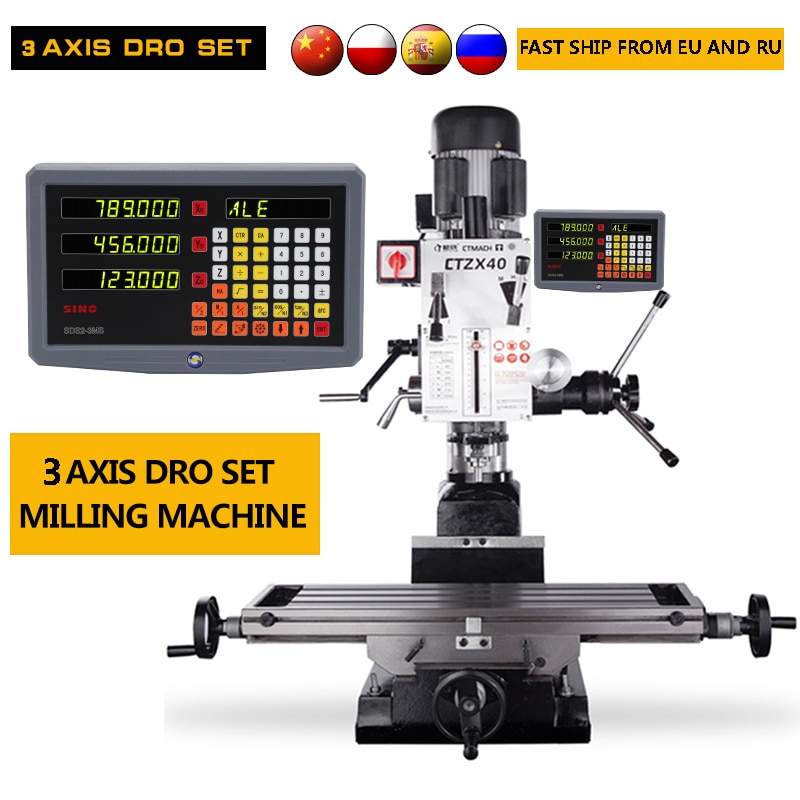

  • Application: Mill, Lathe, Grinder, CNC etc.
  • Max of Measuring speed: 60m/min
  • Input voltage: 5VDC
  • Cross Section Dimension: 25mm* 34mm
  • Matchable DRO: All China DRO
  • Scale overall length: Travel+106mm
  • Installation holes distance: Travel+90mm
  • Cable length: 3 meters
  • Procut name: DRO linear scale
  • Warranty: 1 year
