EPTTECH TLC2326LS WL Wifi Tank Level Monitor Tuya Smart Life Water Oil Level Sensor 433MHz LCD Display Mobile Indicator Alarm
ID: 153250

EPTTECH TLC2326LS WL Wifi Tank Level Monitor Tuya Smart Life Water Oil Level Sensor 433MHz LCD Display Mobile Indicator Alarm

4.3 (23 votes) | 155 orders
Price:
US $ 146.08 - 148.96
Quantity

Buy Now
Add to Cart
Product Description

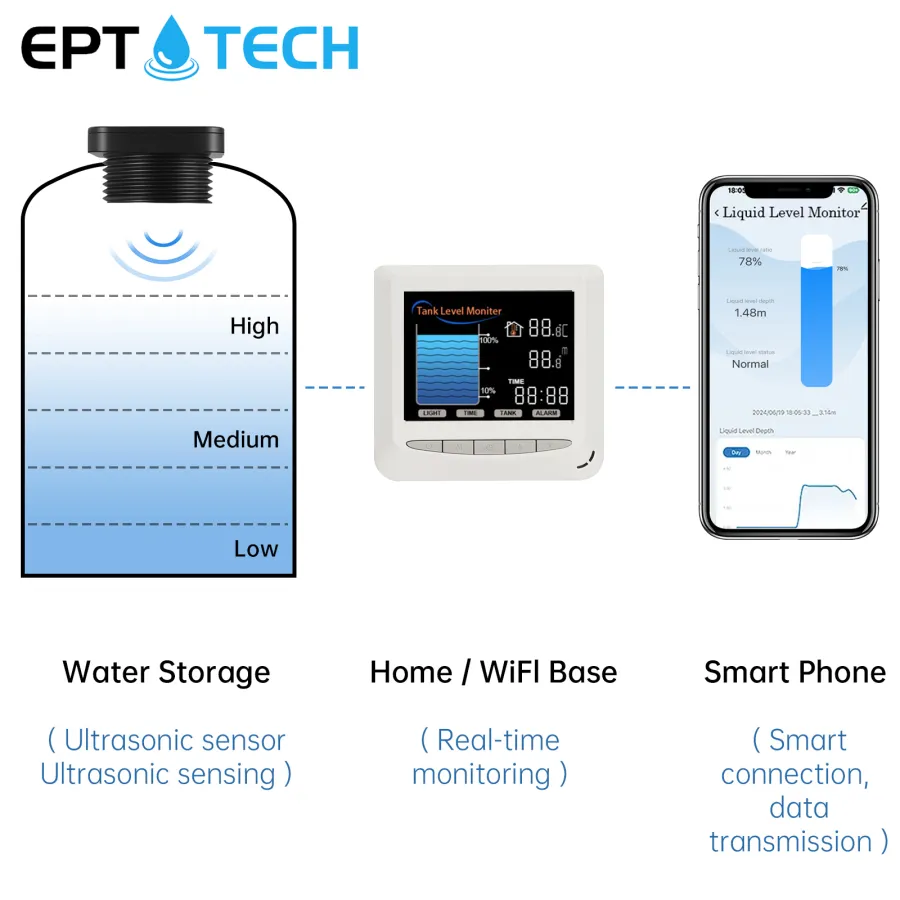

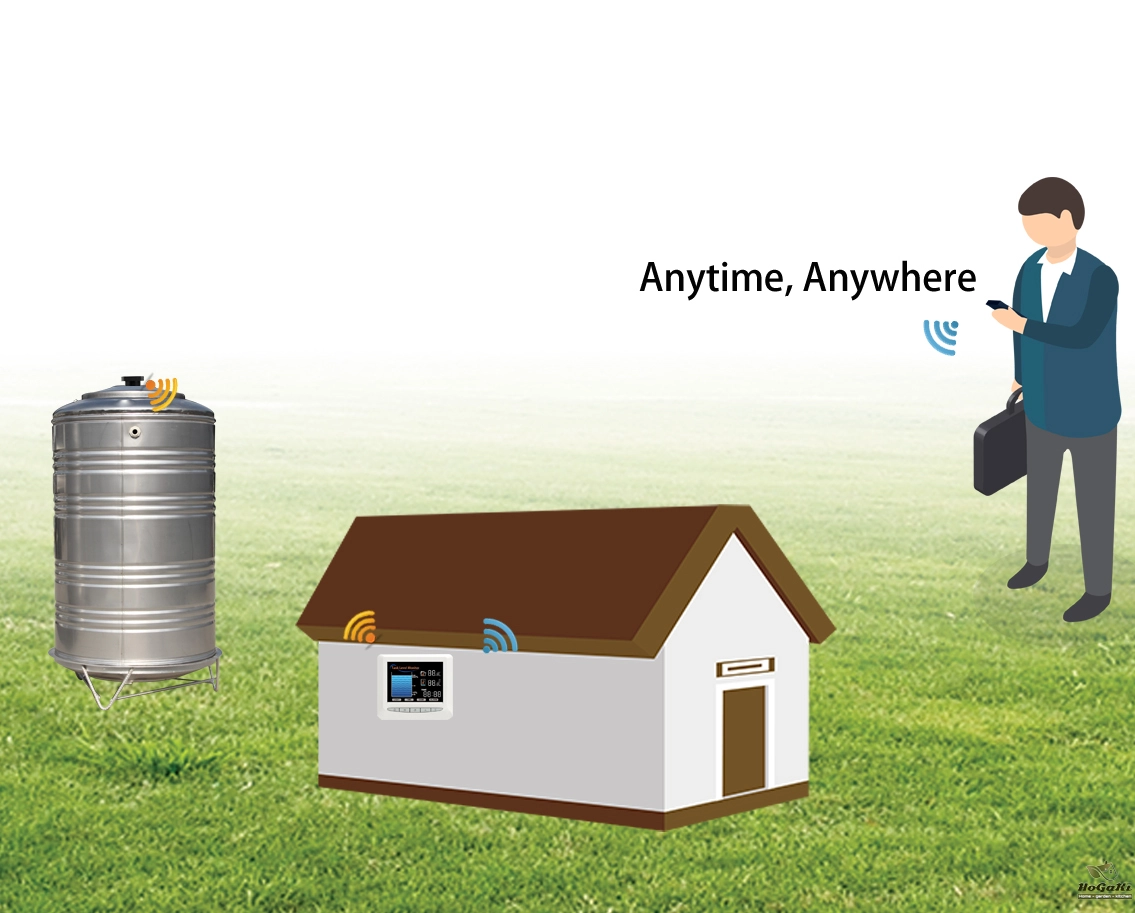

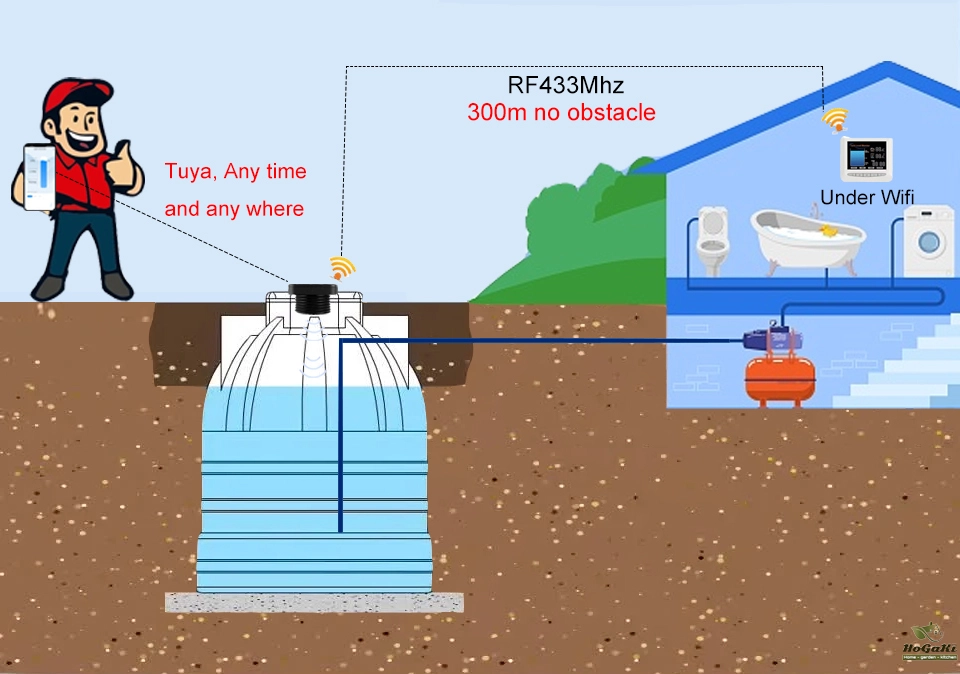

The communication between the sensor and the electronic display screen is 433Mhz, and the distance between them can reach 300 meters in open space.

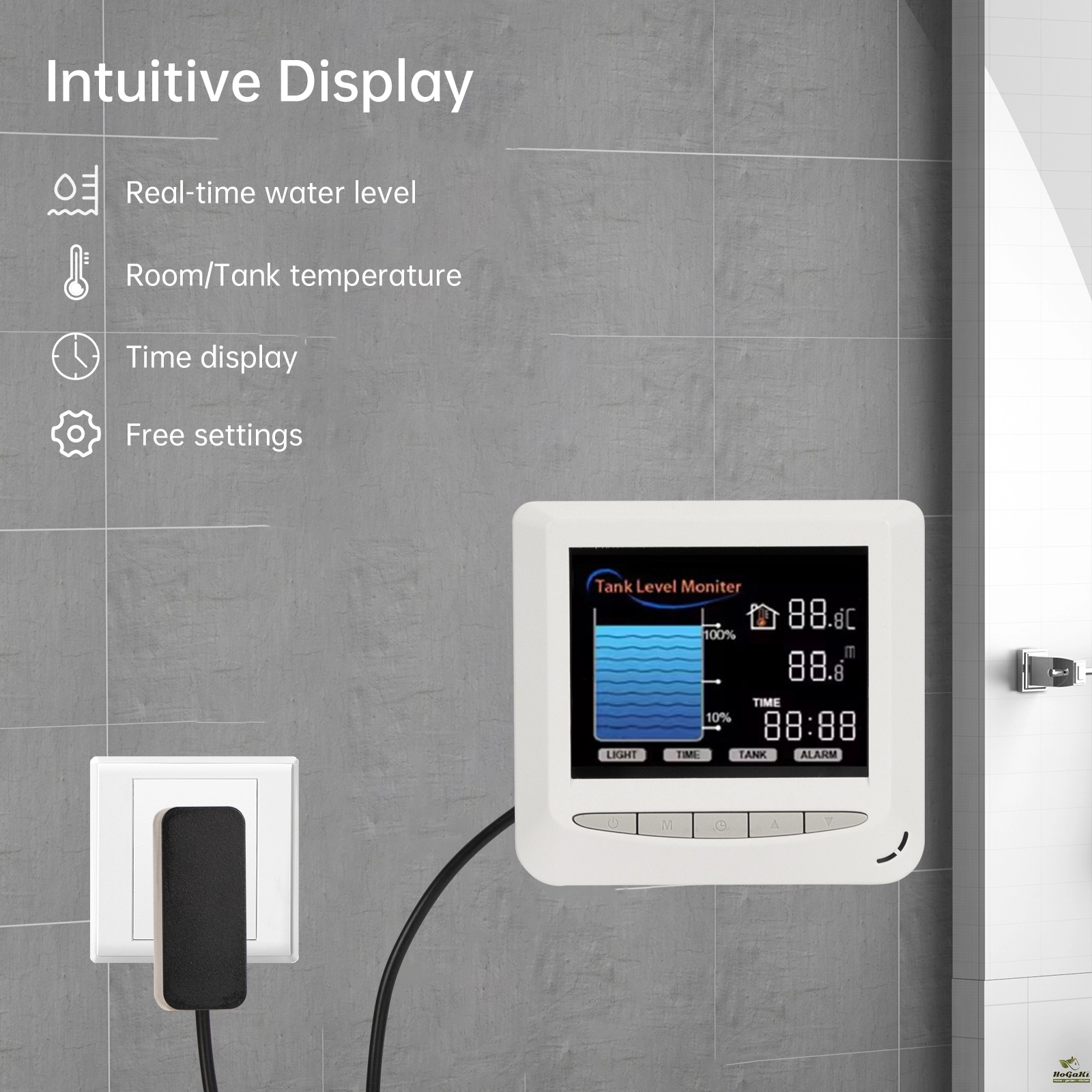

The display screen communicates with the mobile phone through WIFI.
You can see the real-time liquid level at any time at home and outside
If installed on a pipe, the pipe must be one-piece, not spliced, and no debris is allowed on the inner wall of the pipe.

The detection height of the sensor is 10 cm to 300 cm.

The transmission distance of the sensor through 433MHz communication is longer than that using WIFI, and it has better wall penetration, so it is suitable for places where WiFi cannot be spread or weak.



Product Settings
1. Download "TUYA Smart APP"or “Smart Life app”

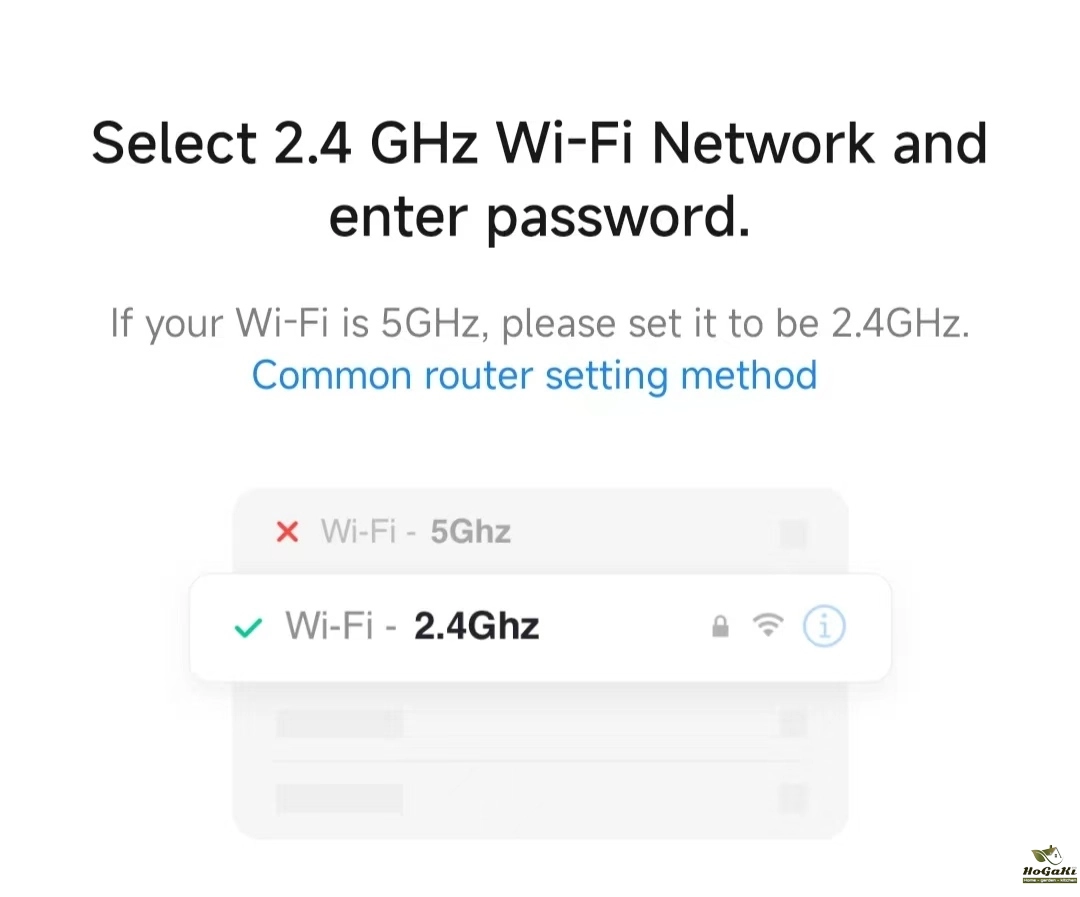

2.Turn on bluetooth and connect 2.4Gwifi.

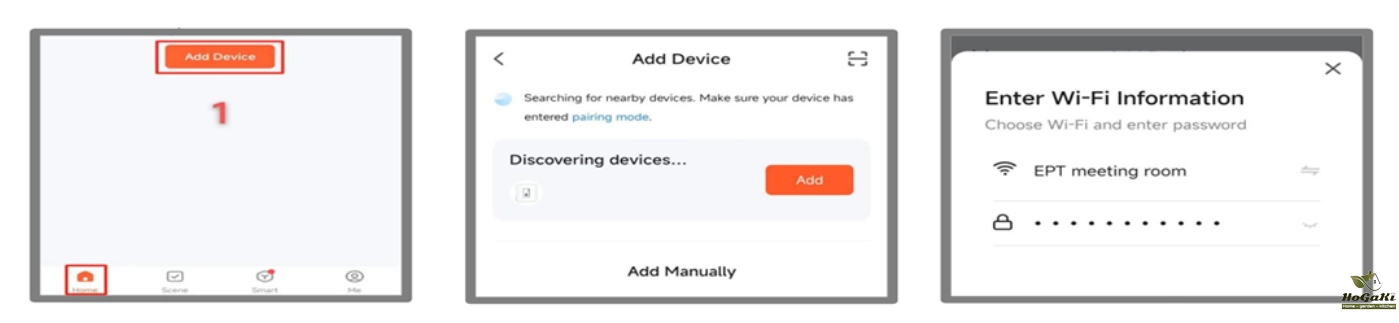

3.Add device

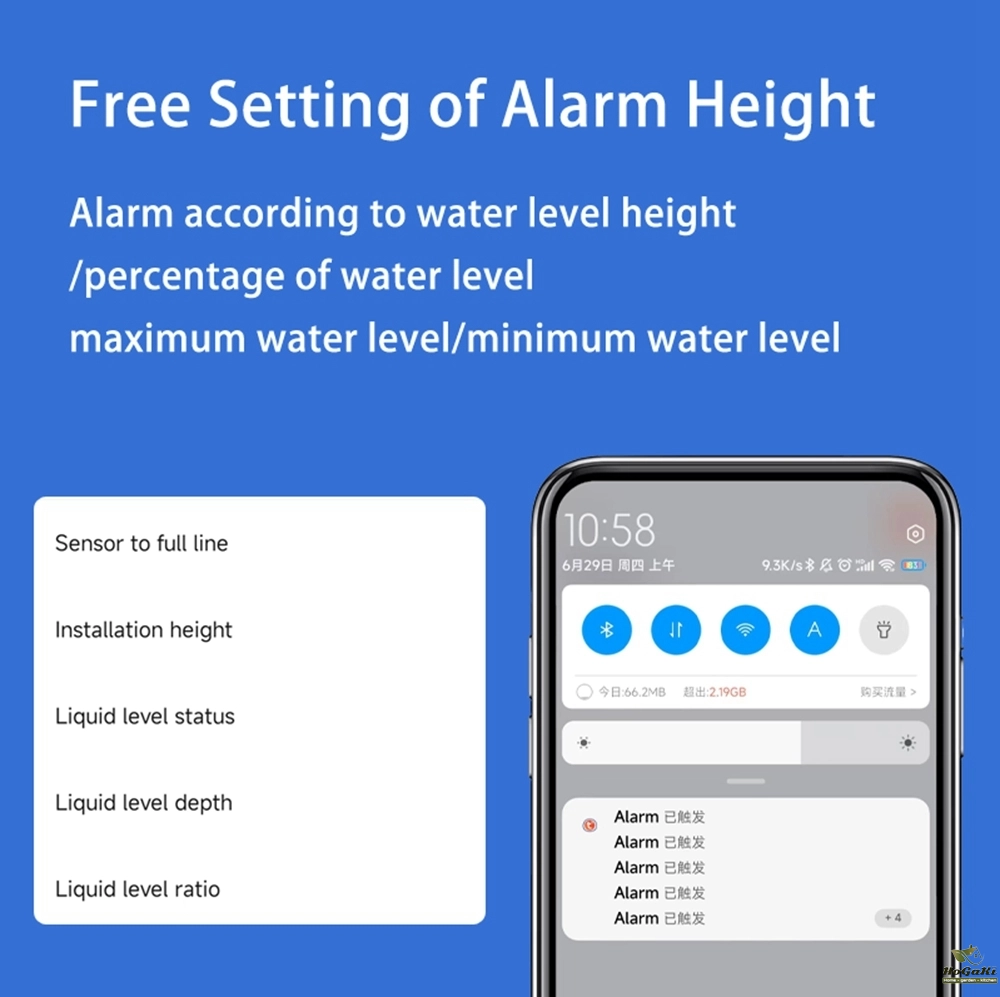

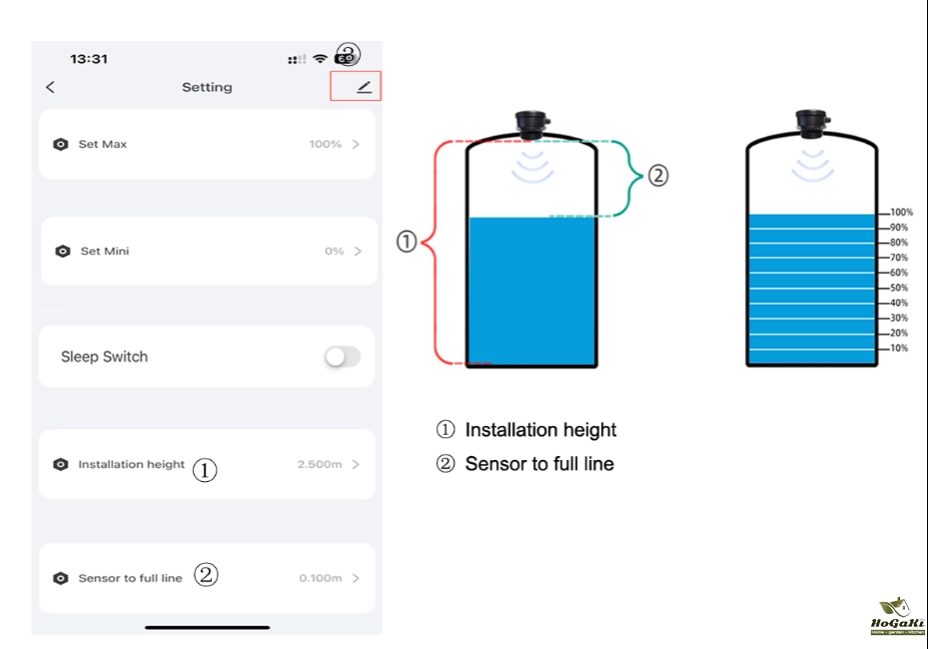

4.Setting data

5.Be able to connect max 200 sensors to one app;One sensor is able to connect many apps together

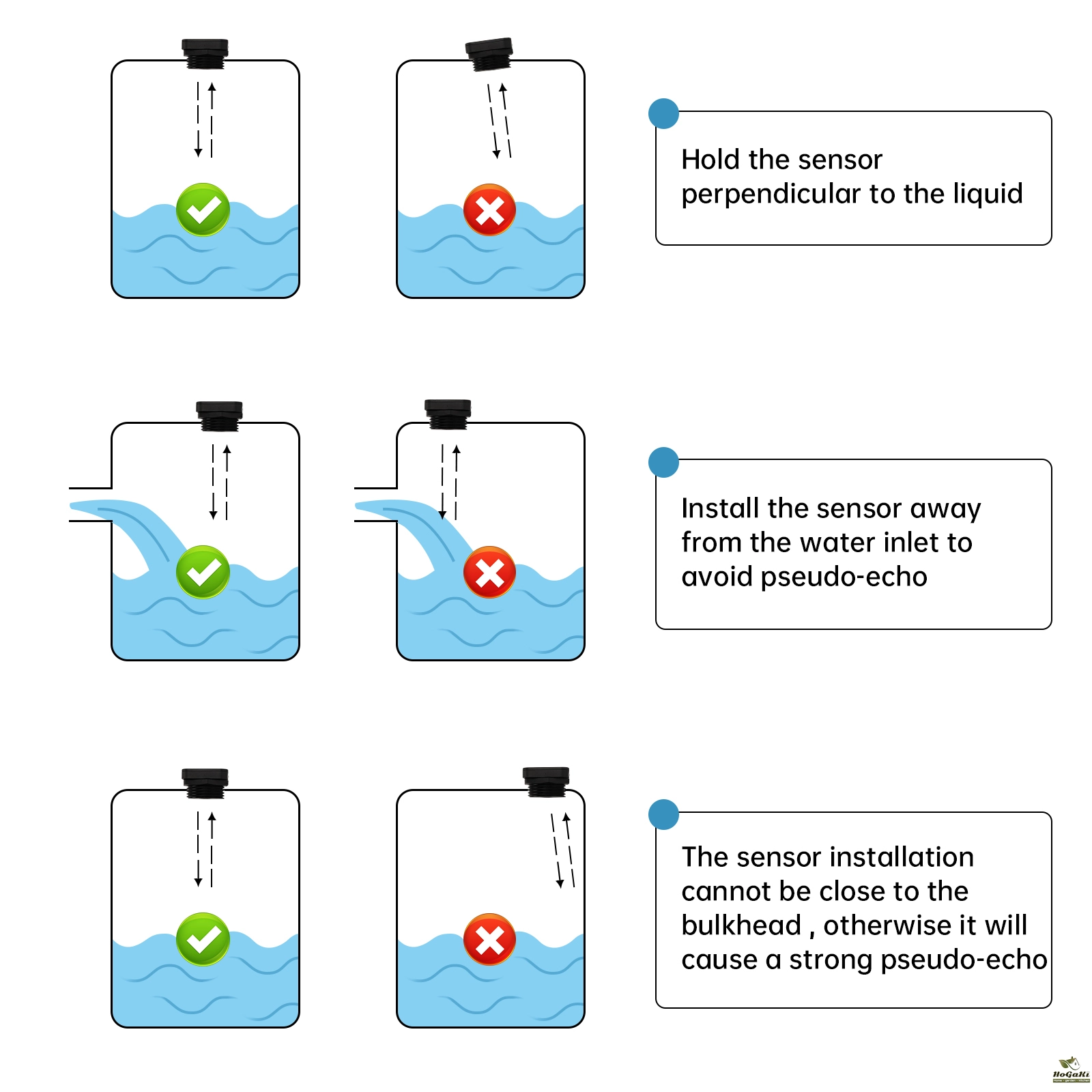

MOUNT THE SENSOR ON THE TANK

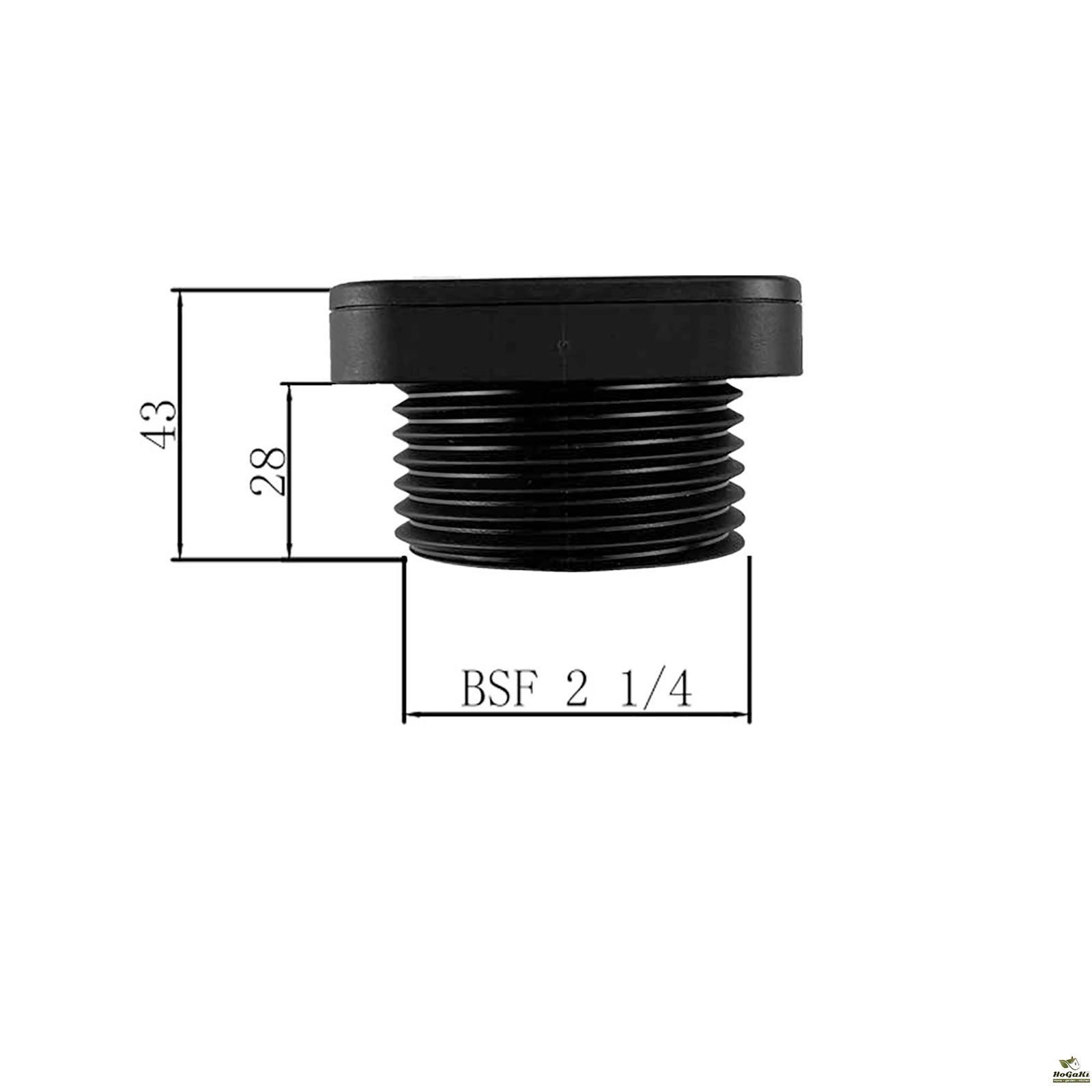

The sensor should be in the middle of the tank and not on a liquid inlet. This can falsify the measurement result. Please refer to the following pictures for the best installation positions. The hole should be 58mm
Unit:mm

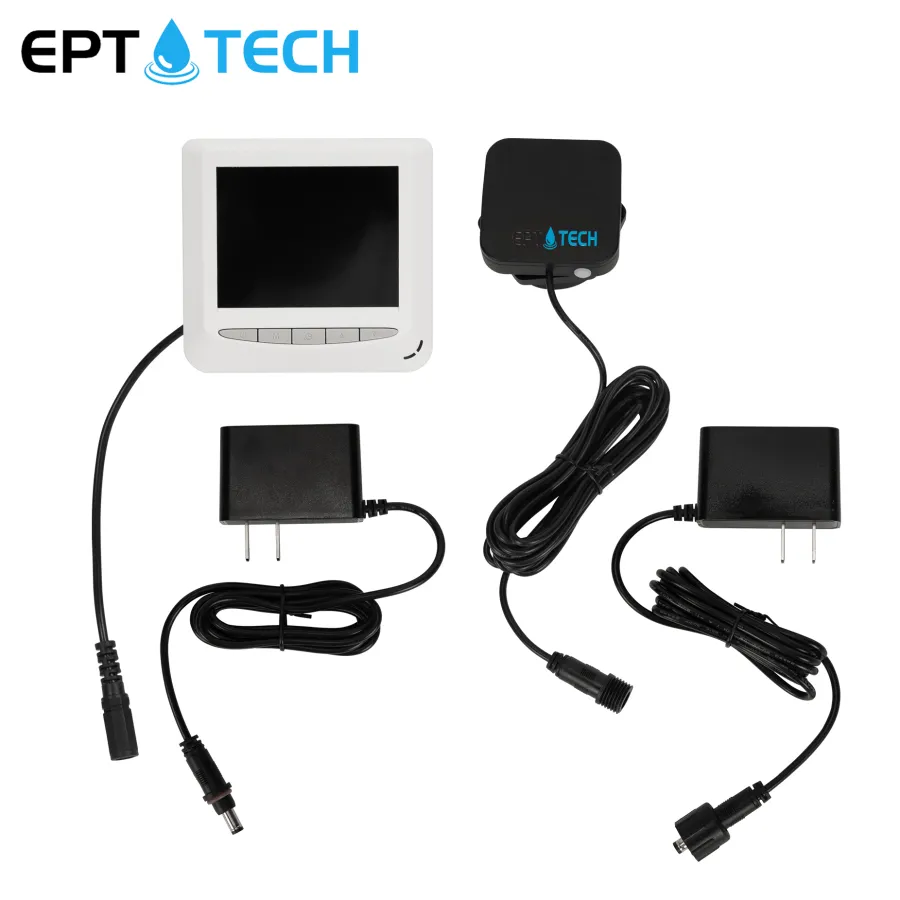

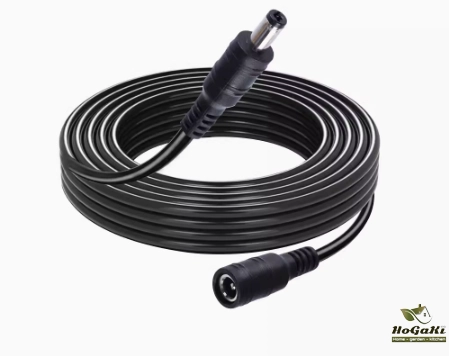

Extension cord for power adapter

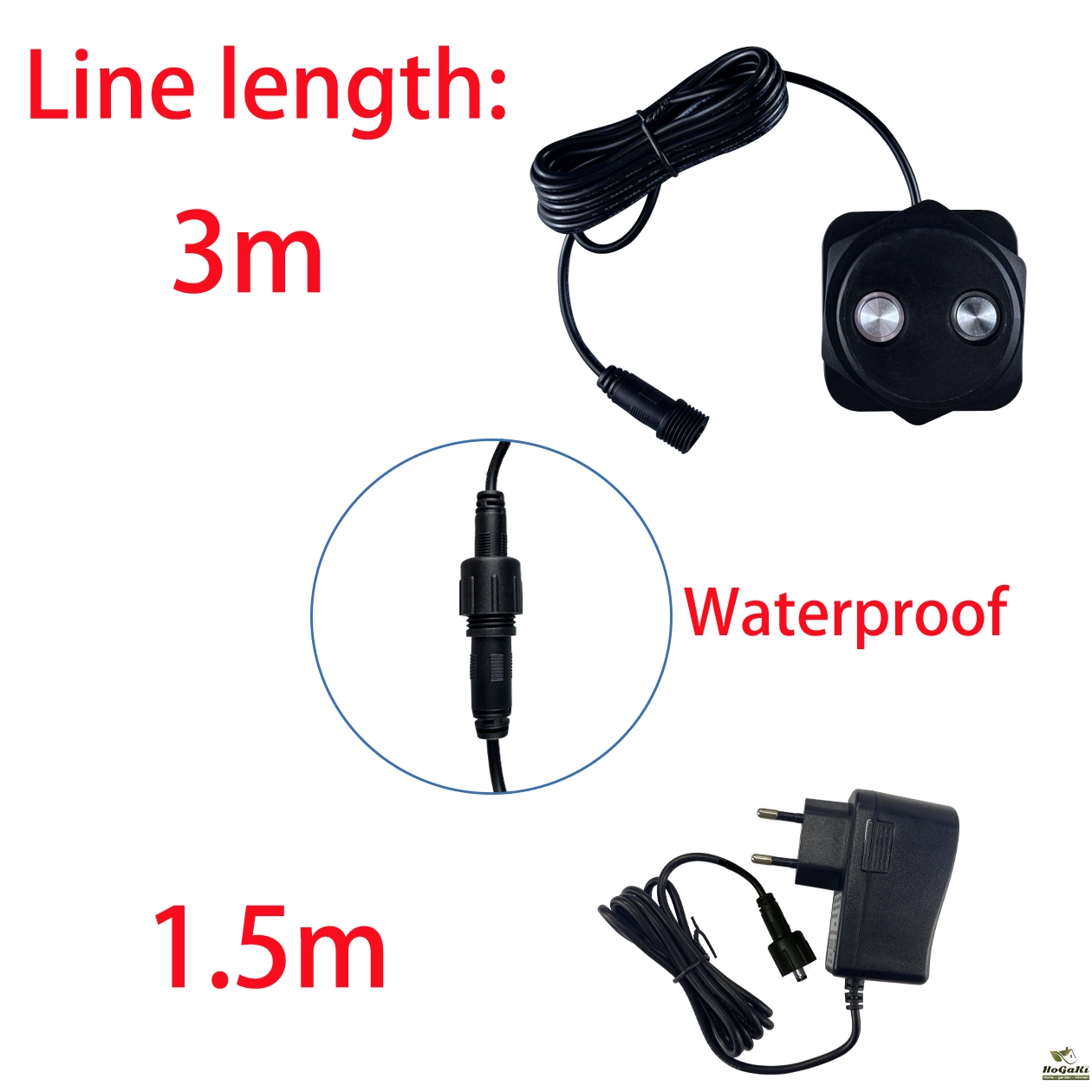

The standard length of the power adapter is 1.5 meters, you can choose an extension cable according to your own application.
If necessary, you can click on the link below to buy together.

If the use environment is outdoors and power cannot be provided, you can refer to the solar cell sensor.

If you have a water pump to control, you can buy a smart plug to use together.

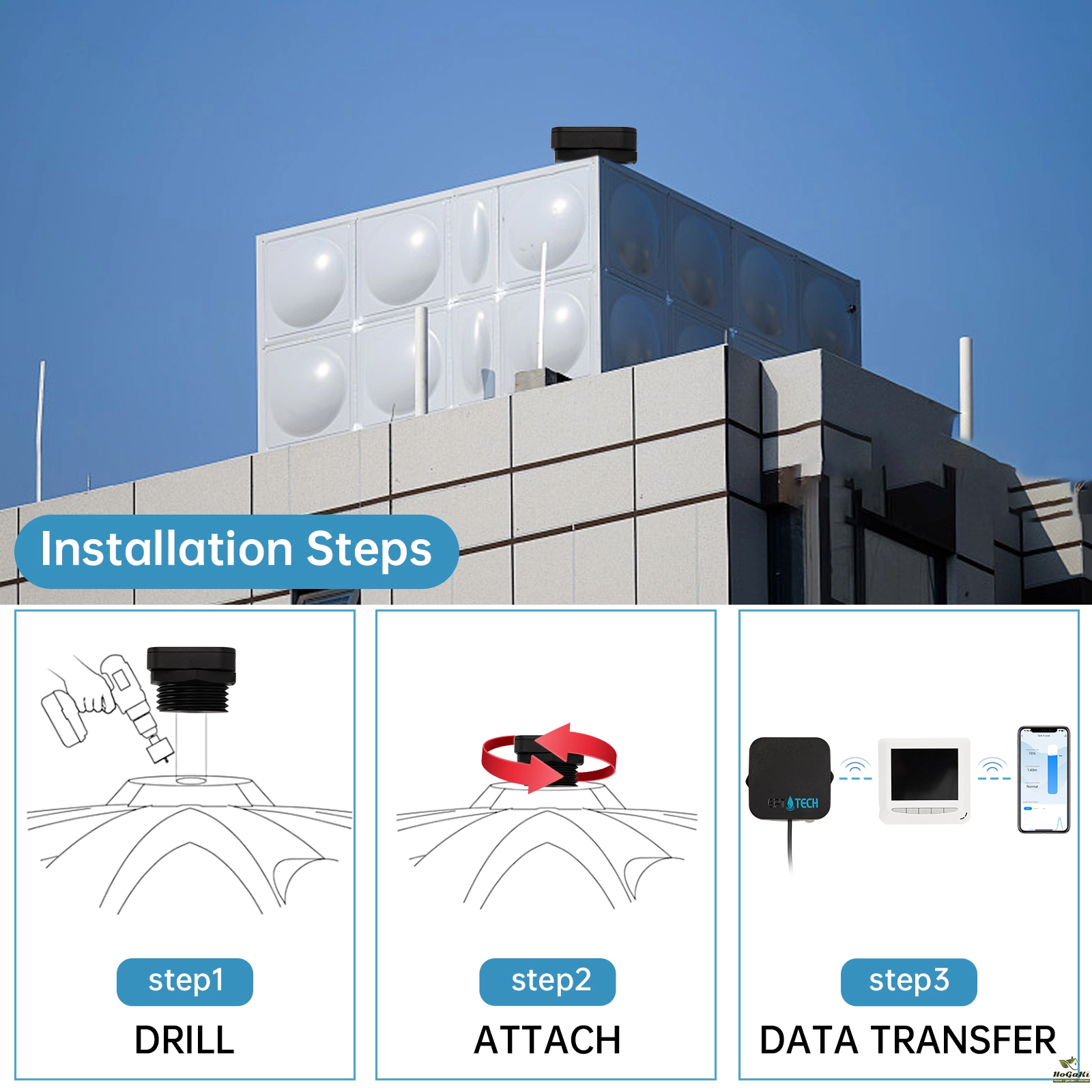

Product Installation
Product Installation
Product Installation

Company

Shenzhen EPT TECHNOLOGY CO.,LYD

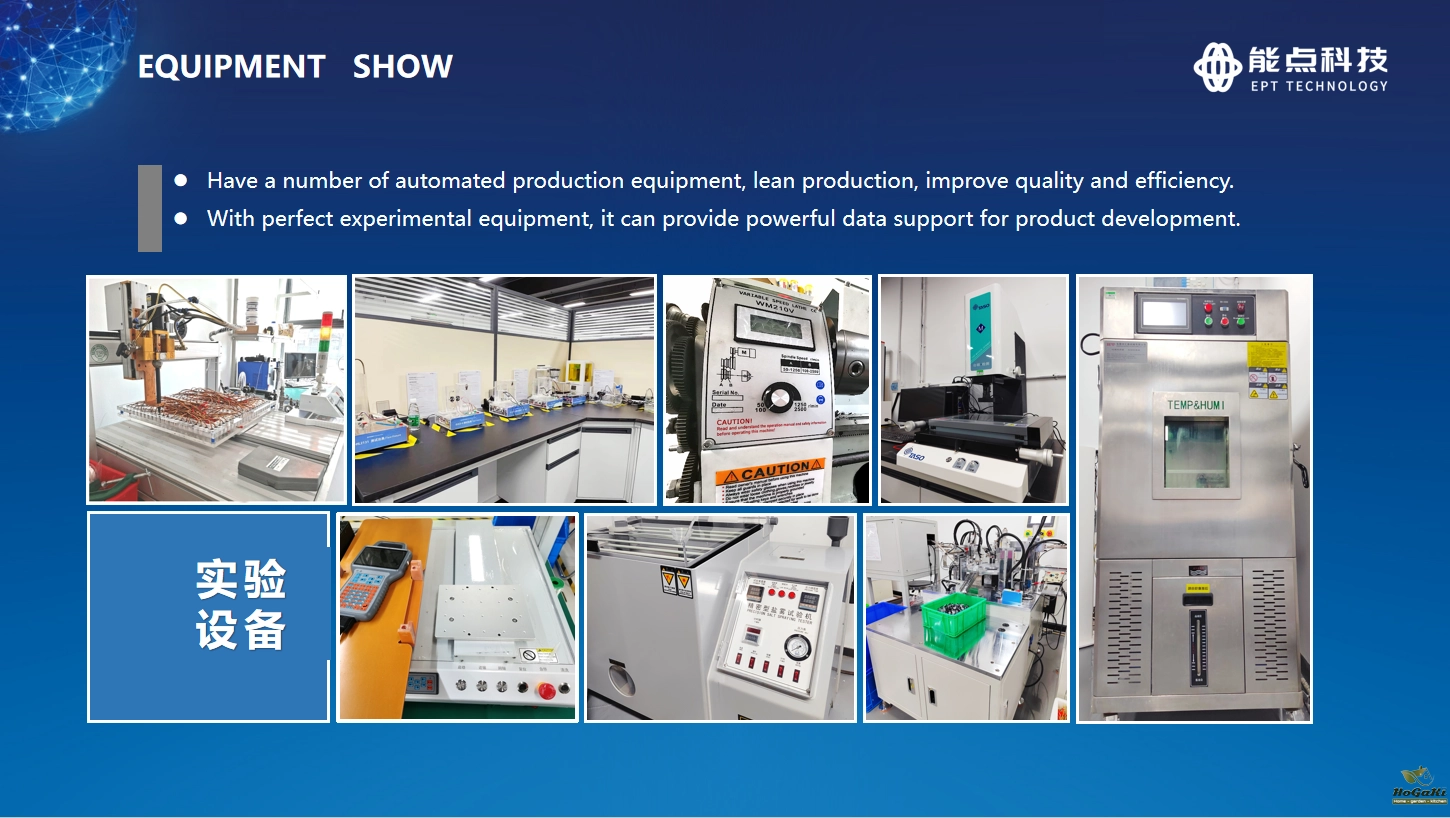

locates in Baoneng science park. Founded in 2003,the company is a high-tech company focusing on R&D producing and sales of all kinds of liquid level sensors,flowmenter,photo interrupter and so on.

Our products sold all over the world and cooperate with many 500 fortune enterprise.
To provide quality and fast service, our company sets up offices in Sichuan,Shanghai,Yuyao and so on. Meanwhile,Xingxing Electric company was established in Hong Kong,It  is responsible for the company's new product and global market development and services.


The company branch factory is located in the beautiful Yanydong mountain of economic development zon in Yueqing city ,the factory covers an area of 7800m2,plants space is 20%,which has a specious and bright workshop and garden style work environment.








Packaging Details

  • Unit Type:
  • Package Weight: 0.600
  • Package Size: 12x9x16

  • Brand Name: EPTTECH
  • Origin: Mainland China
  • Hign-concerned Chemical: None
  • DIY Supplies: Plumbing
  • Battery Included: No
  • Warranty: 1.5 years
