EPTTECH TLC2206-ZB ZigBee3.0 APP Tank level Monitor Real-time Reminder Contactless Waterproof IP67 Household Industrial Alarm
4.5 (34 votes) | 361 orders
Price:
US $
86.76 -
92.57
- Voltage
This product requires a Zigbee gateway to use. If you mind, buy another WiFi one.
Product Description

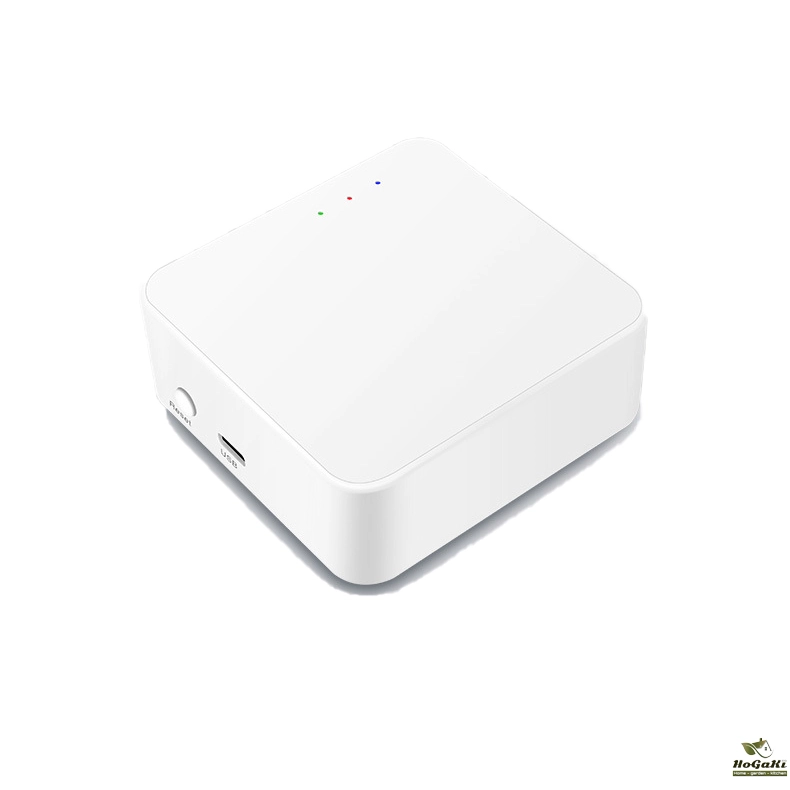

Notice:The gateway is not included in the package.If necessary, please click on the link below to buy.
The detection height of the sensor is 10 cm to 250 cm.
ZigBee sensor can realize low power consumption.

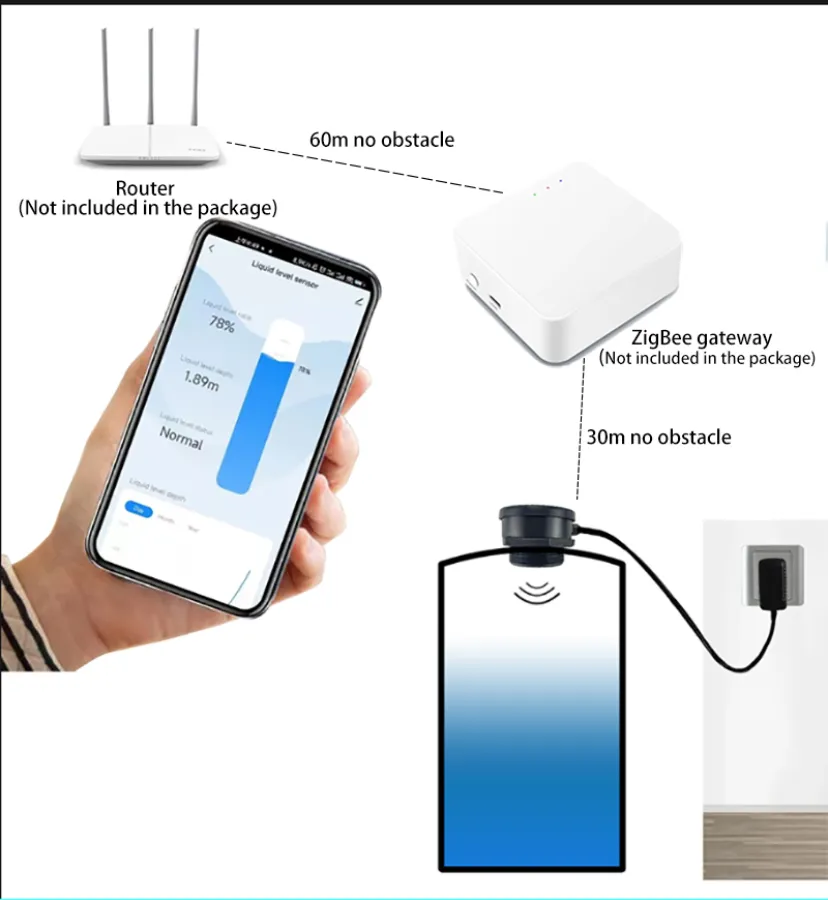

The distance between the sensor and the gateway can reach 30 meters (no obstacle).
The distance between the router and the gateway can reach 60 meters (no obstacle).
If installed on a pipe, the pipe must be one-piece, not spliced, and no debris is allowed on the inner wall of the pipe.
The detection height of the sensor is 10 cm to 250 cm.
ZigBee sensor can realize low power consumption.
The distance between the sensor and the gateway can reach 30 meters (no obstacle).
The distance between the router and the gateway can reach 60 meters (no obstacle).
If installed on a pipe, the pipe must be one-piece, not spliced, and no debris is allowed on the inner wall of the pipe.
The detection height of the sensor is 10 cm to 250 cm.
ZigBee sensor can realize low power consumption.
The distance between the sensor and the gateway can reach 30 meters (no obstacle).
The distance between the router and the gateway can reach 60 meters (no obstacle).
If installed on a pipe, the pipe must be one-piece, not spliced, and no debris is allowed on the inner wall of the pipe.

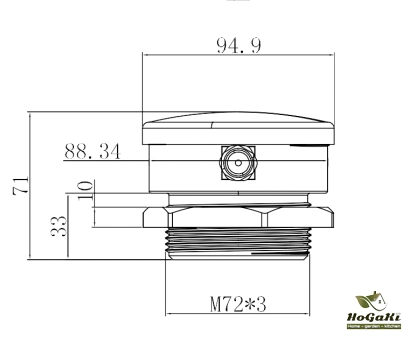

Unit:mm
Notice:

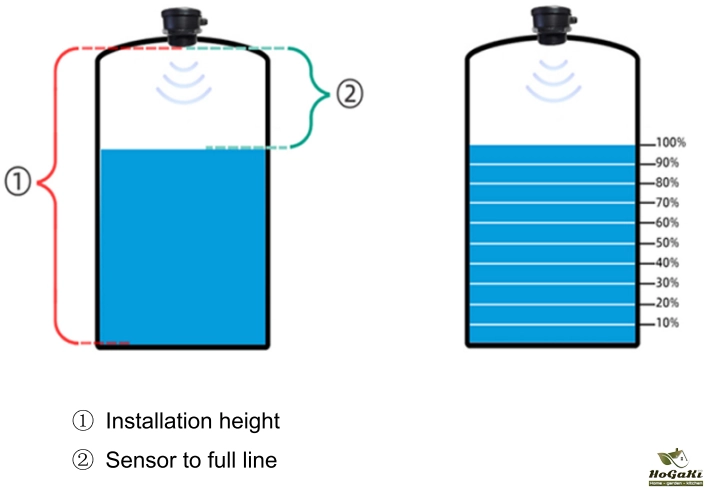

1) Set Installation height ①
It is distance from sensor to tank bottom.
Note:The installation height is different with tank height because the sensor may be install over the tank height.
The max installation is 2.5 meters.If more than 2.5meters,it is not suitable for this sensor.
2)Set sensor to liquid full line ②
It is distance from sensor to full line.
Note:The blind zone is 0.1meter.It can't be smaller than 0.1meter.
The closed water tank needs to be installed with holes.
If your water tank is underground and the WiFi signal is weak or even absent, it is recommended to use another product.

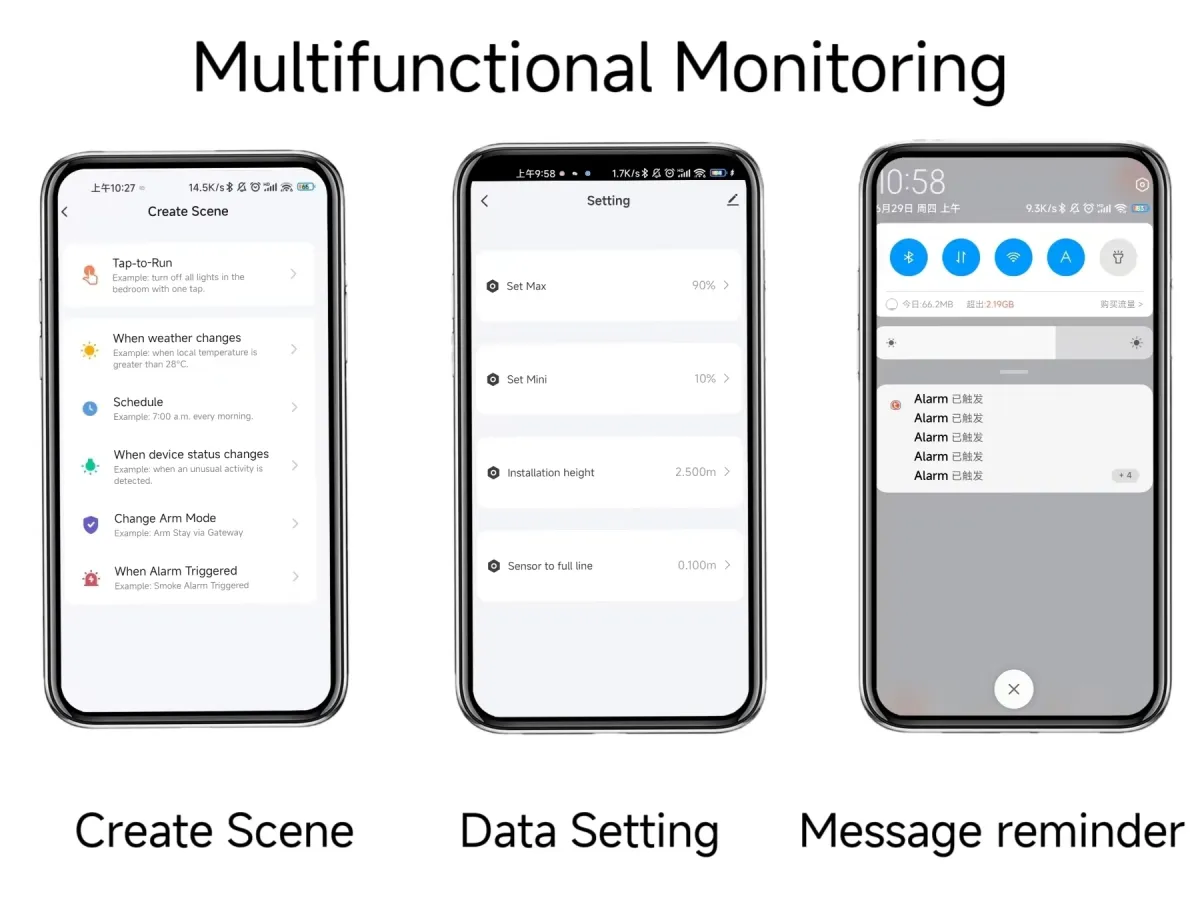

Product Settings1. Search "TUYA Smart APP"or “Smart Life app”on APP Store,support both Android and IOS system(Note: WIFI frequency band can only be 2.4GHz, not 5GHz；2.Set tank size:Max 2.5 meters height 3.Set alarm level:Low level alarm and full alarm4.Be able to connect max 200 sensors to one app;One sensor is able to connect many apps together
If your water tank is underground and the WiFi signal is weak or even absent, it is recommended to use another product.
Product Settings
1. Search "TUYA Smart APP"or “Smart Life app”on APP Store,support both Android and IOS system
(Note: WIFI frequency band can only be 2.4GHz, not 5GHz；
2.Set tank size:Max 2.5 meters height

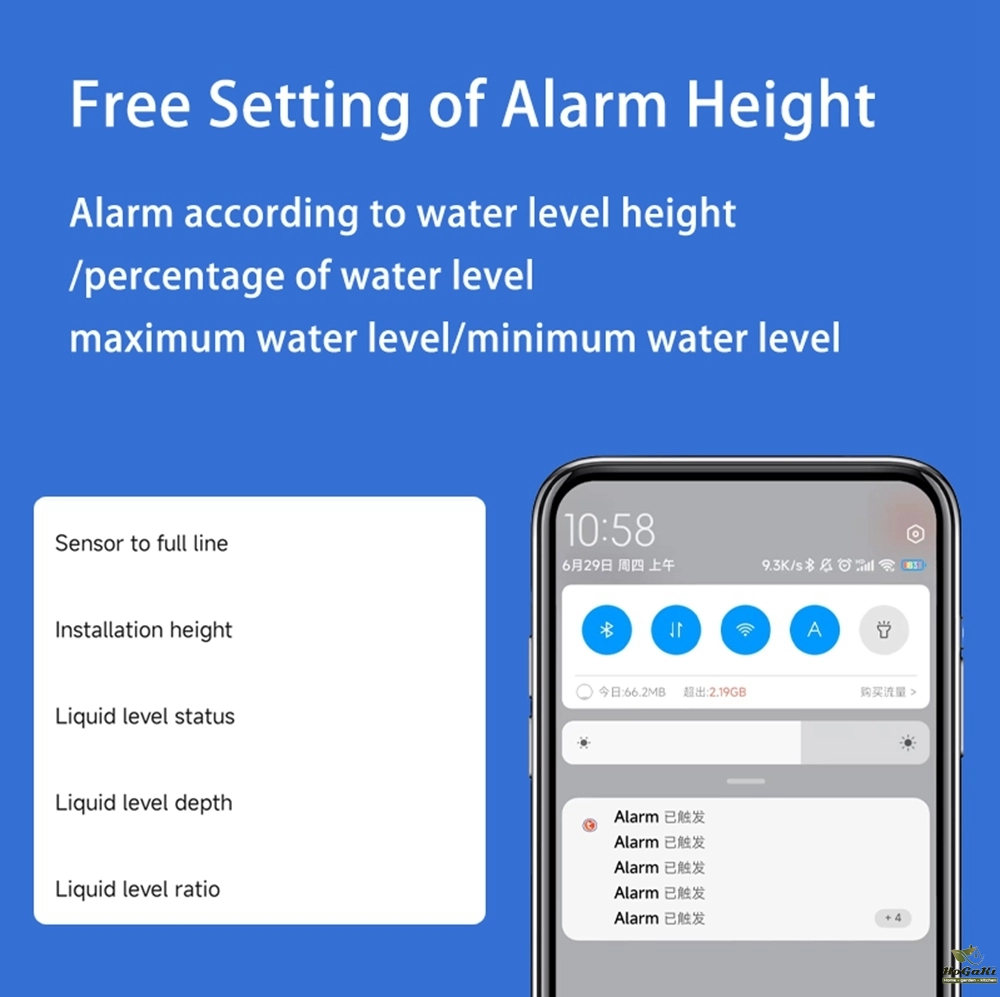

3.Set alarm level:Low level alarm and full alarm
4.Be able to connect max 200 sensors to one app;One sensor is able to connect many apps together

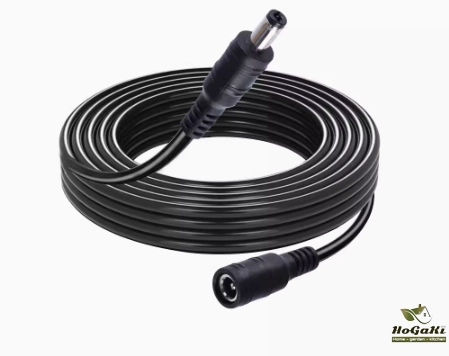

Extension cord for power adapter

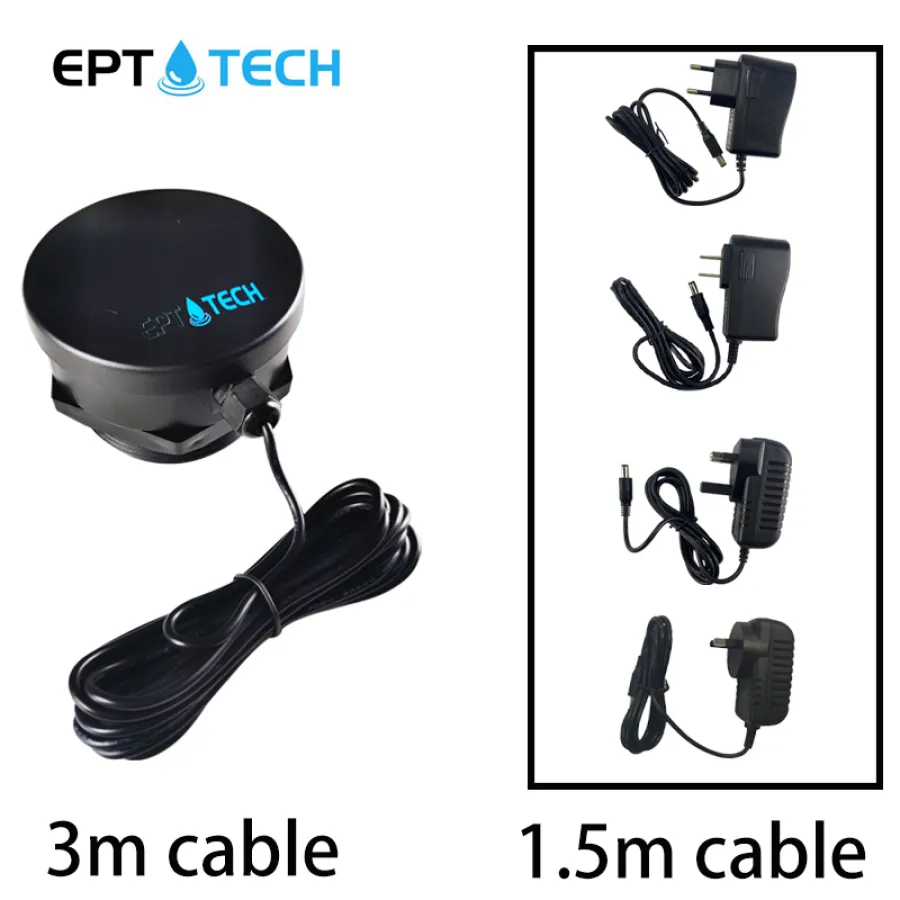

The standard length of the power adapter is 1.5 meters, you can choose an extension cable according to your own application.
If necessary, you can click on the link below to buy together.

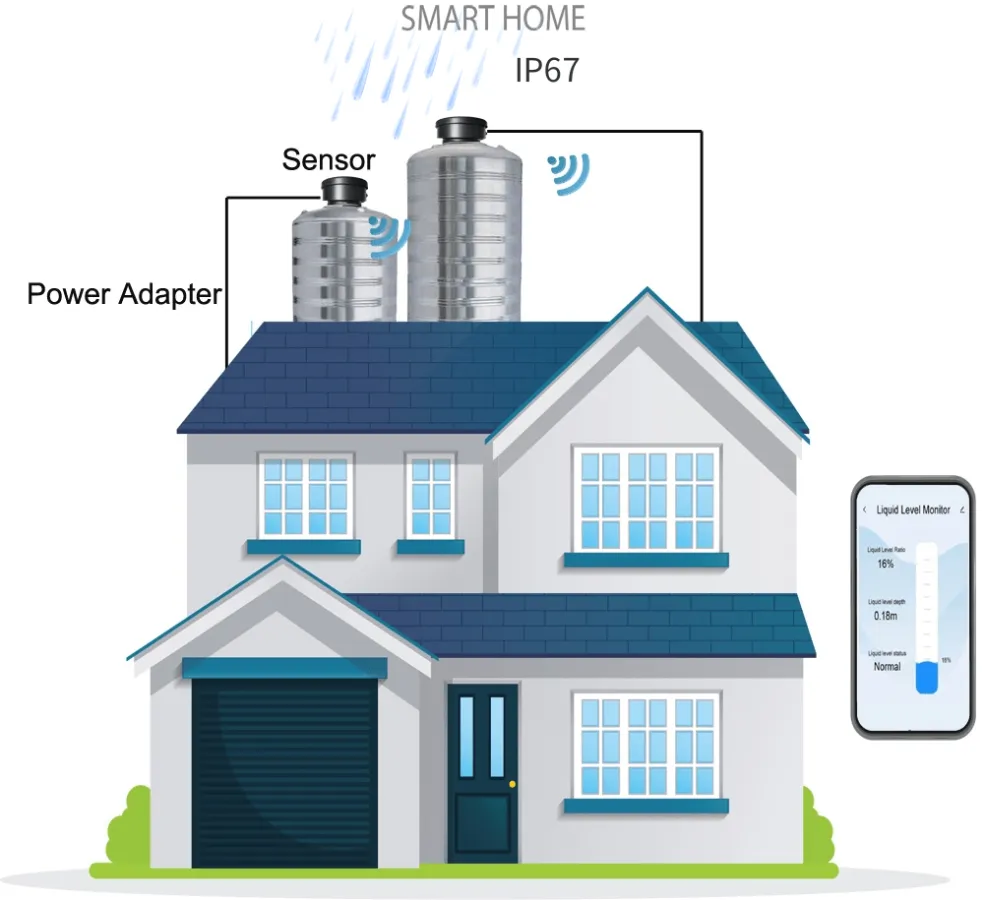

If the use environment is outdoors and power cannot be provided, you can refer to the solar cell sensor.
Product Installation

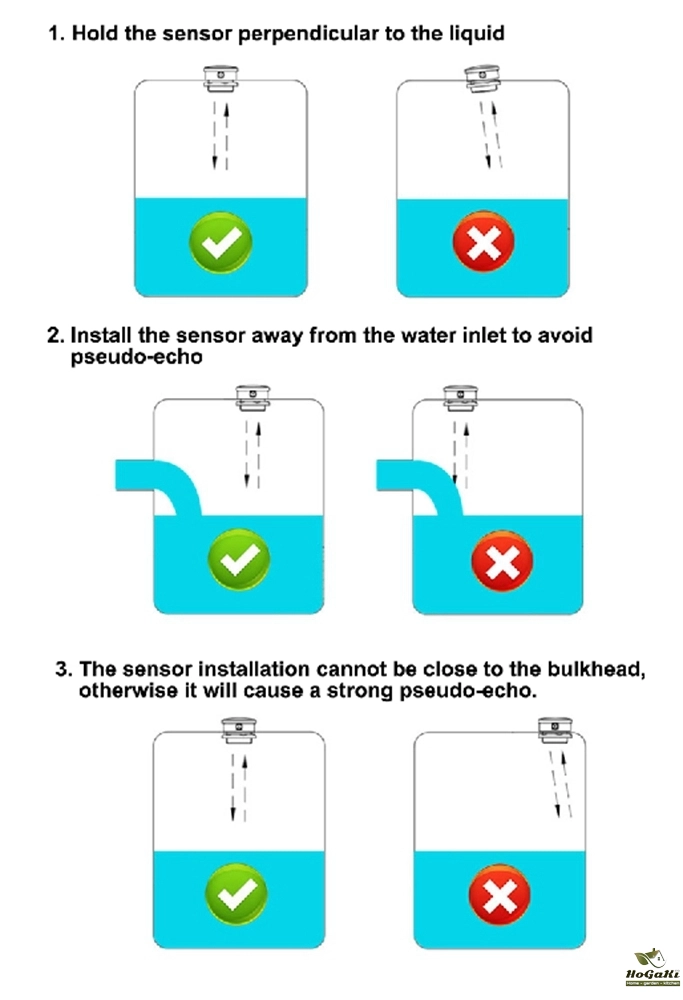

MOUNT THE SENSOR ON THE TANK
The sensor should be in the middle of the tank and not on a liquid inlet. This can falsify the measurement result. Please refer to the following pictures for the best installation positions. The hole should be 72mm
Company
Shenzhen EPT TECHNOLOGY CO.,LYD
locates in Baoneng science park. Founded in 2003,the company is a high-tech company focusing on R&D producing and sales of all kinds of liquid level sensors,flowmenter,photo interrupter and so on.
Our products sold all over the world and cooperate with many 500 fortune enterprise.
To provide quality and fast service, our company sets up offices in Sichuan,Shanghai,Yuyao and so on. Meanwhile,Xingxing Electric company was established in Hong Kong,It is responsible for the company's new product and global market development and services.

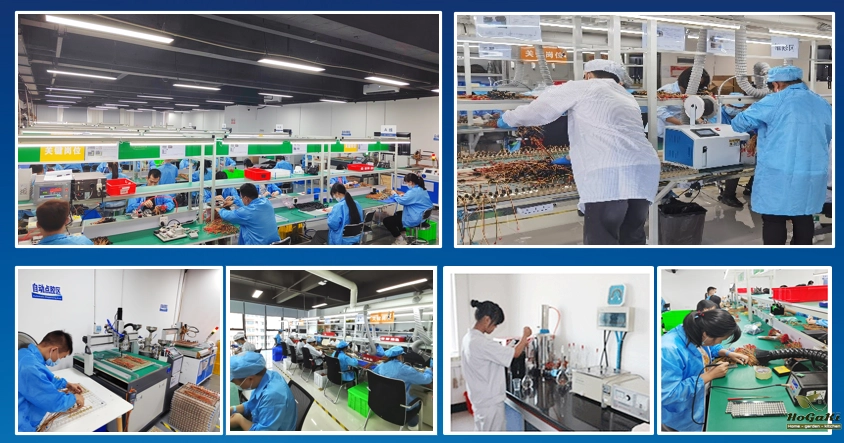

The company branch factory is located in the beautiful Yanydong mountain of economic development zon in Yueqing city ,the factory covers an area of 7800m2,plants space is 20%,which has a specious and bright workshop and garden style work environment.
Packaging Details
- Unit Type:
- Package Weight: 0.370
- Package Size: 12x8x16
- Brand Name: EPTTECH
- Origin: Mainland China
- Hign-concerned Chemical: None
- DIY Supplies: Plumbing
- Battery Included: No
- Warranty: 1.5 years
