New 5A 12V Waterproof Charge Controller IP67 for Small Solar Home Use Mini Size Solar Charge Controller Load Working 24 hours
43.61 25.19 $
Note:
There are accessory links and collocations at the bottom,
which can be combined and matched freely ☟☟☟☟☟☟☟
Feature:
Advanced Maximum Power Point Tracking (MPPT) technology, with efficiency no less than 99.5%.
High quality components, perfecting system performance, with maximum conversion efficiency of 98%.
Ultra-fast tracking speed and guaranteed tracking efficiency.
Accurately recognizing and tracking of multiple power points.
Reliable automatic limit function of maximum PV input power, ensuring no overload under any circumstance.
Wide MPP operating voltage range.
12/24VDC automatically identifying system voltage.
LCD panel display design, dynamically displaying tool’s operating data and working condition.
Multiple load control modes: manual control, light ON/OFF, light On+Timer and test mode.
Support 3 charging preprogram options: Sealed, Gel, Flooded.
Battery temperature compensation function.
Real-time energy statistics function.
With RS-485 communication bus interface and Modbus communication protocol, it is available to meet various communication requirements in different situations.
Available for EPsolar network module (eBox--01)with protocol TCP/UDP/SNMP, to realize connection to internet.
Available for PC monitoring and external display unit connecting like MT50 and so on, realizing real-time data checking and parameters setting.
Support software upgrade.

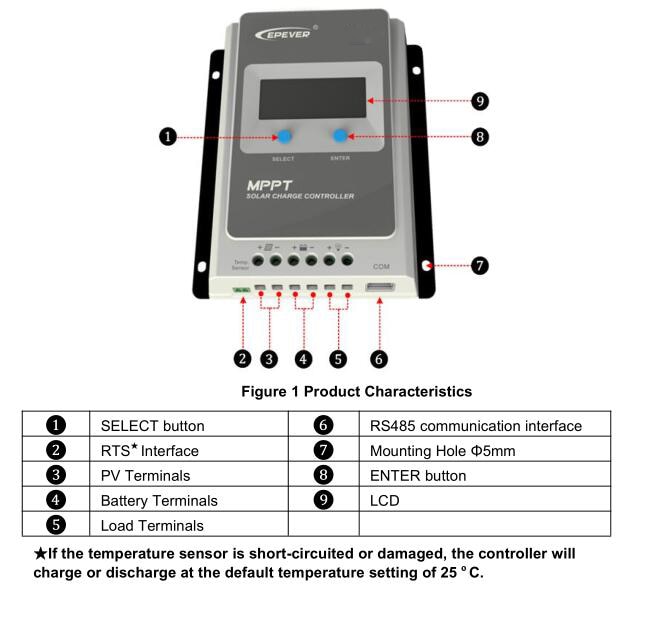

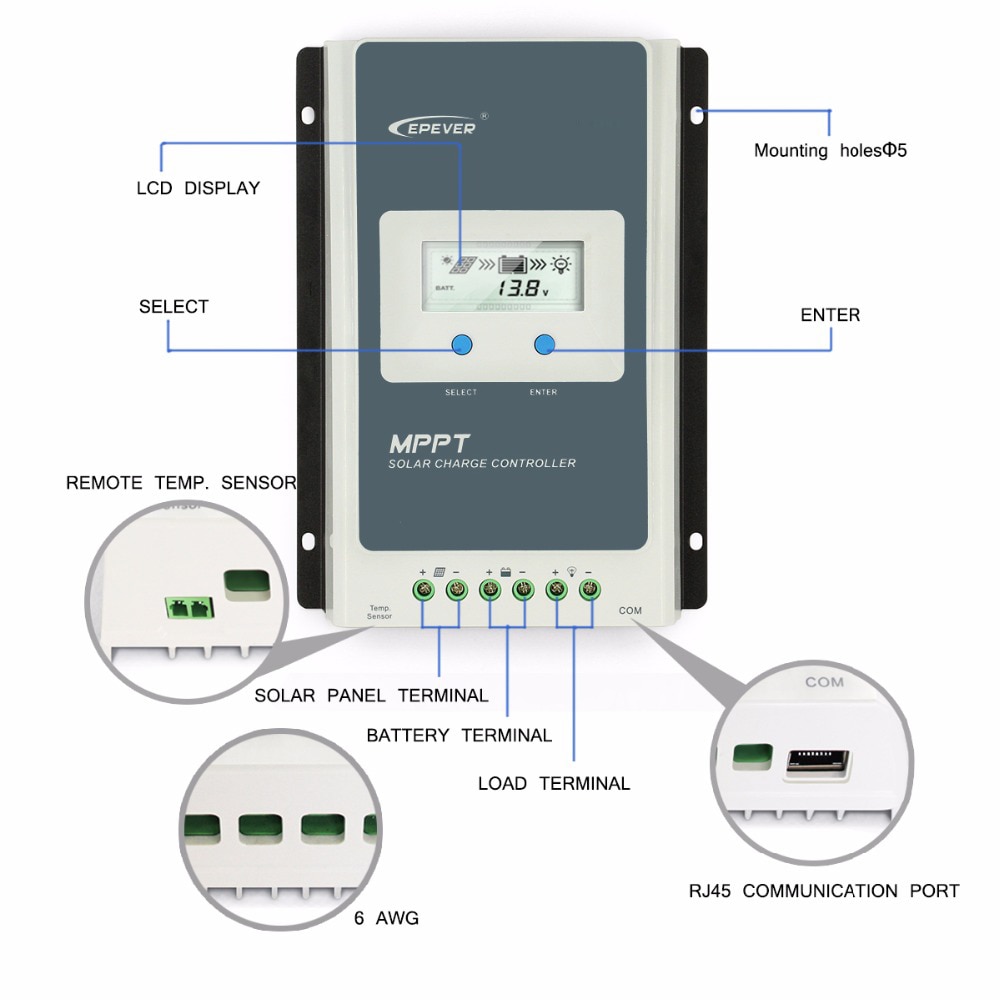

Characteristics:
Explanation:
Connection for a RTS (Remote Temperature Sensor) to remotely detect battery temperature.
Monitor controller by PC and update controller software via RS485 (RJ45 interface)
Package Listing:
Technical Specifications:
Item |
Tracer 1210A |
Tracer 2210A |
Tracer 3210AN |
Tracer 4210A |
Nominal system voltage |
Nominal system voltage |
|||
Nominal system voltage |
10A
|
20A
|
30A
|
40A
|
Rated discharge current |
10A
|
20A
|
30A
|
40A
|
Battery voltage range |
9V~32V |
|||
MPP Voltage range |
VBAT +2V~90V |
|||
Max. PV VOC |
100V |
|||
Max. PV input power |
130W/12V 260W/24V |
260W/12V 520W/24V |
390W/12V 800W/24V |
520W/12V 1040W/24V |
Self-consumption |
<20mA(12V) <16mA(24V) |
|||
Temperature compensate coefficient |
-3mV/°C/2V(Default) |
|||
Communication |
RS485(RJ45 interface) |
|||
LCD temperature range |
-20°C~+70°C |
|||
Ambient temperature range |
-25°C~+45°C |
|||
Storage temperature range |
-35°C~+80°C |
|||
Humidity range |
≤95% (N.C.) |
|||
Enclosure |
IP30 |
|||
Dimension |
172mmx139mmx44mm |
172mmx139mmx44mm |
228mmx164mmx55mm |
252mmx180mmx63mm |
Mounting dimension |
130mmx130mm |
130mmx130mm |
170mmx164mm |
210mmx171mm |
Power cable |
4mm2 |
10mm2 |
10mm2 |
10mm2 |
Weight |
0.6kg |
1.1kg |
1.2kg |
1.9kg |
Picture |
||||
Buy Now |
Battery Voltage Parameters (parameters is in 12V system at 25 °C, please use double value in 24V.)
Battery charging setting |
Sealed |
Gel |
Flooded |
User |
Over Voltage Disconnect Voltage |
16.0V |
16.0V |
16.0V |
9~17V |
Charging Limit Voltage |
15.0V |
15.0V |
15.0V |
9~17V |
Over Voltage Reconnect Voltage |
15.0V |
15.0V |
15.0V |
9~17V |
Equalize Charging Voltage |
14.6V |
—— |
14.8V |
9~17V |
Boost Charging Voltage |
14.4V |
14.2V |
14.6V |
9~17V |
Float Charging Voltage |
13.8V |
13.8V |
13.8V |
9~17V |
Boost Reconnect Charging Voltage |
13.2V |
13.2V |
13.2V |
9~17V |
Low Voltage Reconnect Voltage |
12.6V |
12.6V |
12.6V |
9~17V |
Under Voltage Warning Reconnect Voltage |
12.2V |
12.2V |
12.2V |
9~17V |
Under Volt. Warning Volt. |
12.0V |
12.0V |
12.0V |
9~17V |
Low Volt. Disconnect Volt. |
11.1V |
11.1V |
11.1V |
9~17V |
Discharging Limit Voltage |
10.6V |
10.6V |
10.6V |
9~17V |
Equalize Duration (min.) |
120 |
—— |
120 |
0~180 |
Boost Duration (min.) |
120 |
120 |
120 |
10~180 |
Accessories (optional):
Remote Temperature Sensor (RTS300R47K3.81A) |
Acquisition of battery temperature for undertaking temperature compensation of controlparameters, the standard length of the cable is 3m (length can be customized). The RTS300R47K3.81A connects to the port (4th) on the controller. NOTE: The temperature sensor short-circuited or damaged, the controller will be charging or discharging at the default temperature 25°C |
||
USB to RS485 cable CC-USB-RS485-150U |
USB to RS-485 converter is used to monitor each controller on the network using Solar Station PC software. The length of cable is 1.5m. TheCC-USB-RS485-150U connects to the RS-485 Port on the controller. |
||

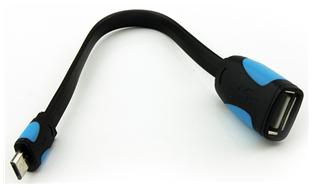

OTG cable OTG-12CM |
Used to connect a mobile communication cable and able to achieve real-time monitoring of the controller and modification of the parameters by using mobile APP software. |
||

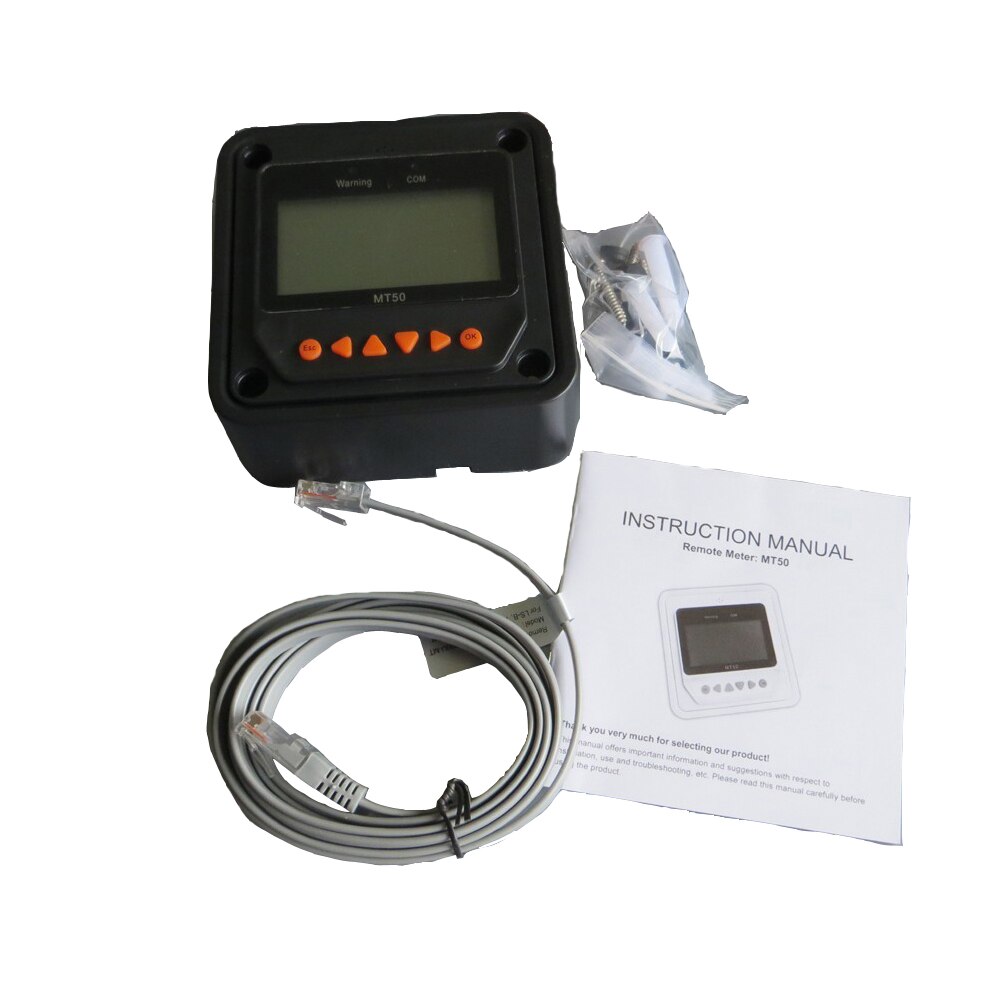

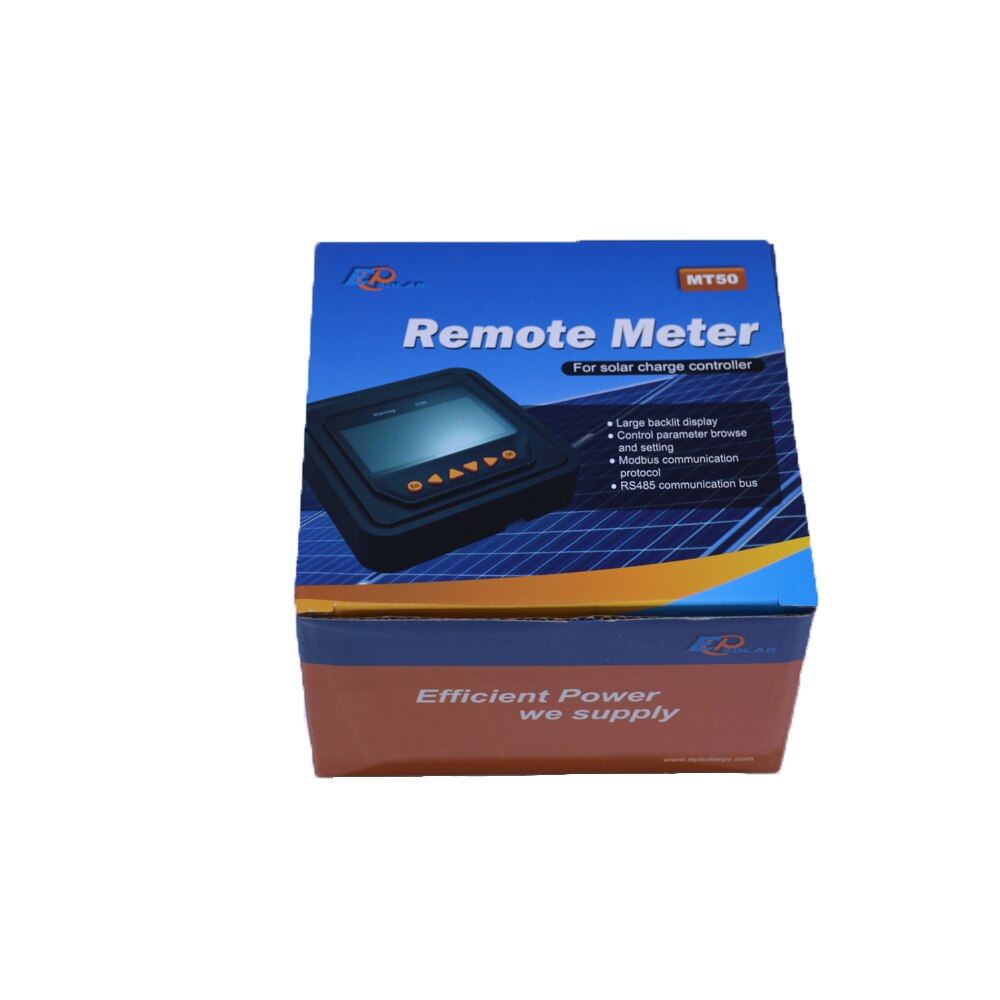

Remote Meter MT50 |
MT50 can display various operating data and fault of the system. The information can be displayed on a backlit LCD screen, the buttons are easy-to-operate, and the numeric display is readable. |
||
WIFI Serial Adapter eBox-WIFI-01 |
After the controller is connected with the eBox-WIFI-01 through the standard Ethernet cable (parallel cable), the operating status and related parameters of the controller can be monitored by the mobile APP software through WIFI signals. |
||

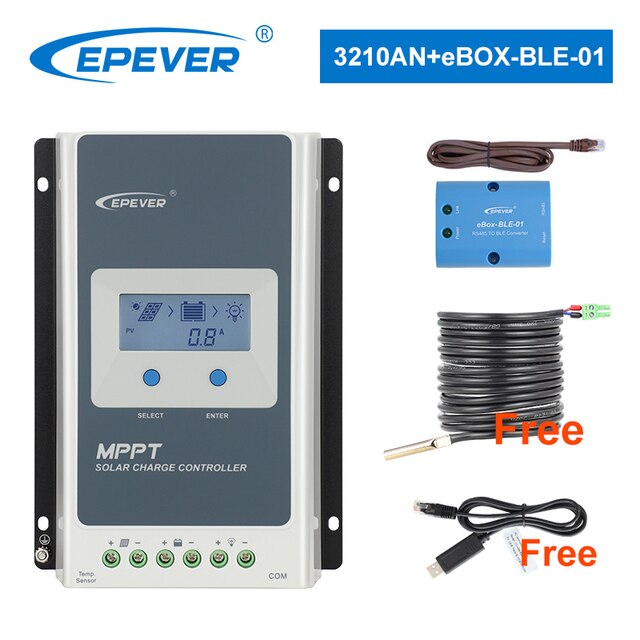

RS485 to Bluetooth Adapter eBox-BLE-01 |
After the controller is connected with the eBox-BLE-01 through the standard Ethernet cable (parallel cable), the operating status and related parameters of the controller can be monitored by the mobile APP software through Bluetooth signals. |
|
