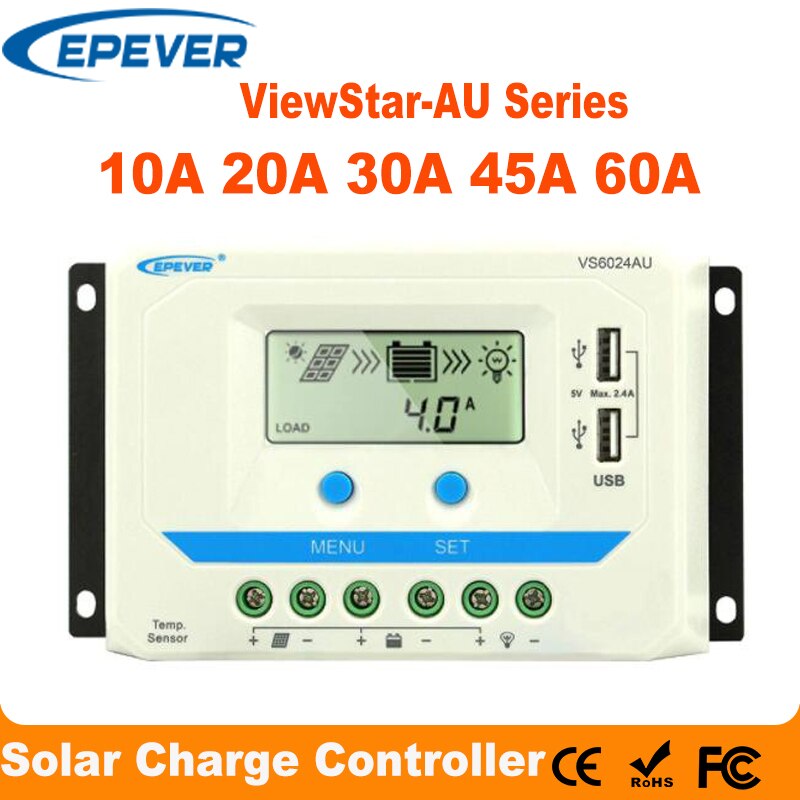

EPever 60A 45A 30A 20A 10A Solar Charger Controller 12V 24V Auto Backlight LCD Solar Panel Regulator Dual USB ViewStar-AU Series
5.0 (3 votes) | 38 orders
Price:
US $111.00 - 228.00
/ piece
Discount Price:
US $
61.56 -
126.54
/ piece
-45%
- Rated Voltage
EPever 60A 45A 30A 20A 10A Solar Charger Controller 12V 24V Auto Backlight LCD Solar Panel Regulator Dual USB ViewStar-AU Series
Overview:

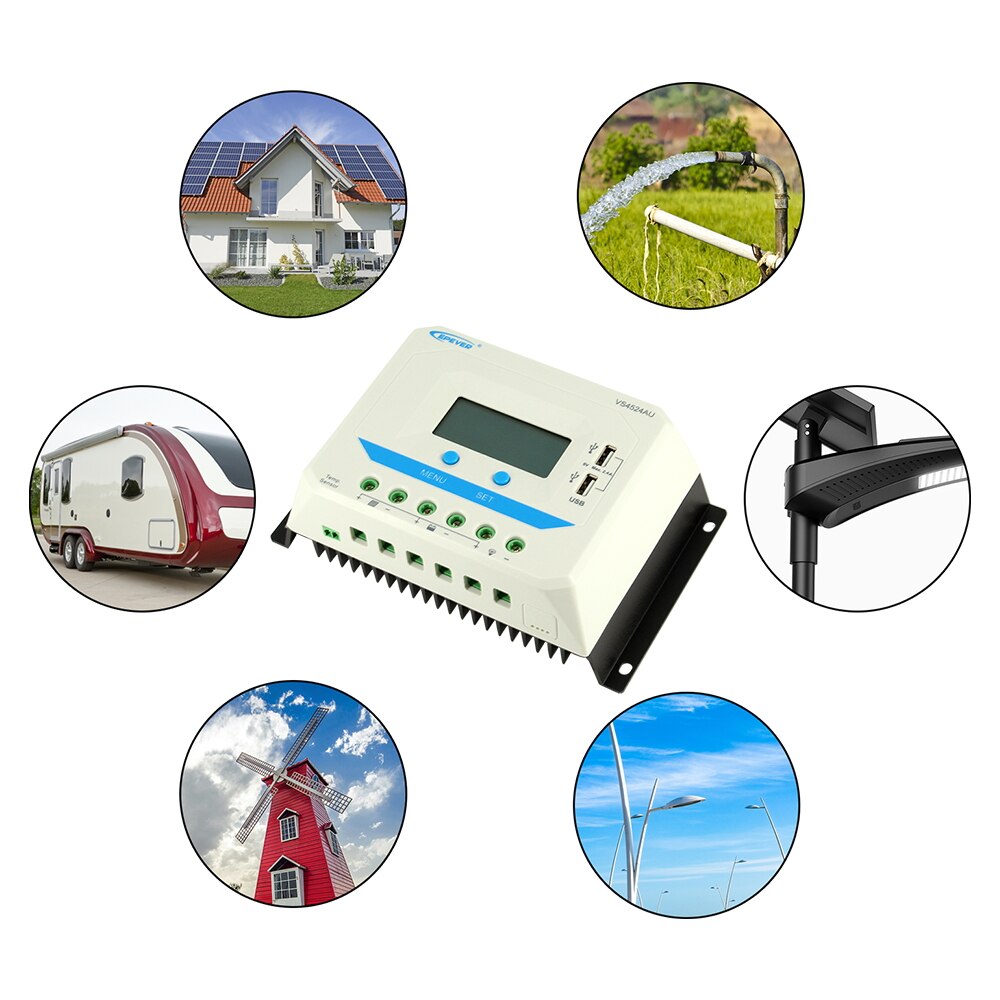

The VS-AU charge controller is a PWM charge controller with built in LCD display that adopts the most advanced digital technique. The multiple load control modes enable it can be widely used on solar home system, traffic signal, solar street light, solar garden lamp, etc.

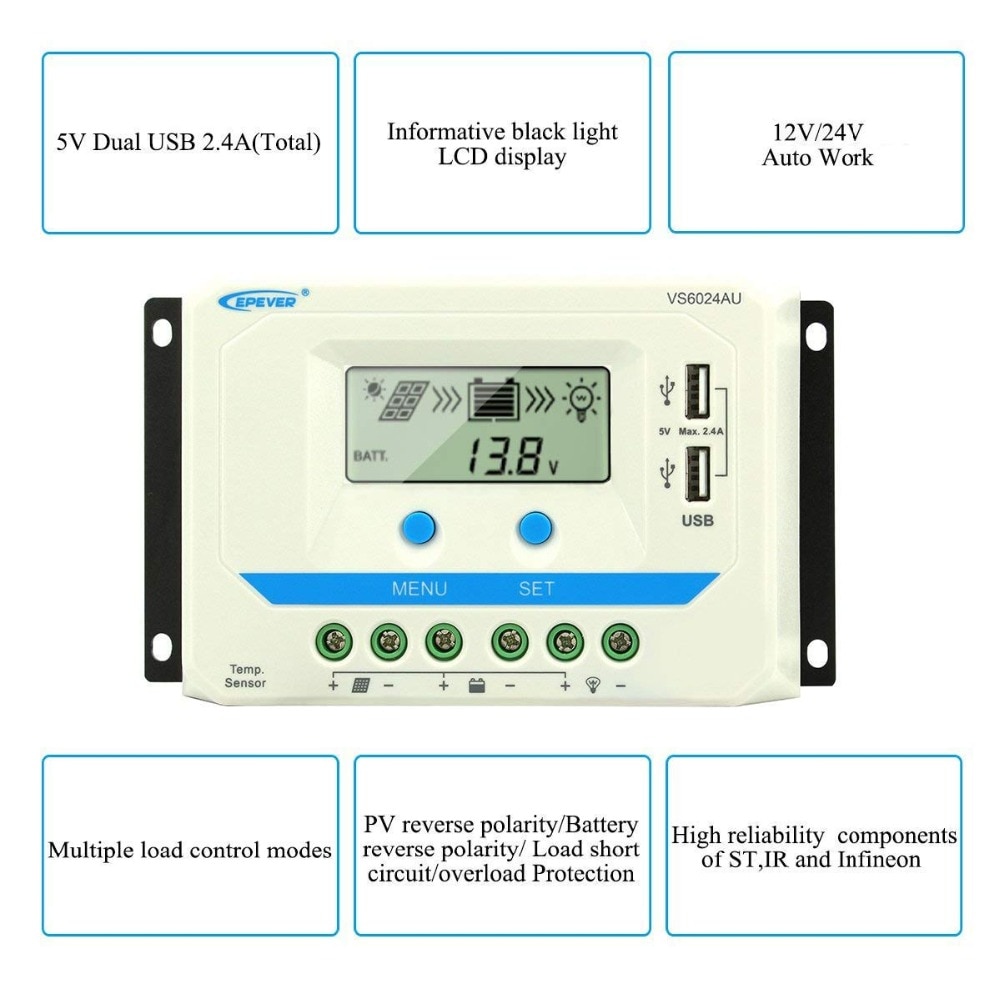

Feature:
Adopt high quality components of ST,IR and Infineon, make sure product using lifespan - 3-Stage intelligent PWM charging：Bulk, Boost/Equalize, Float
LCD display design, dynamically displaying device’s operating data and working condition
Multiple load control modes: Manual mode, Light control
Battery temperature compensation function(NOTE: Unplug the RTS, the temperature of battery will be set to a fixed
value 25ºC.)
Extensive Electronic protection
Energy statistics function

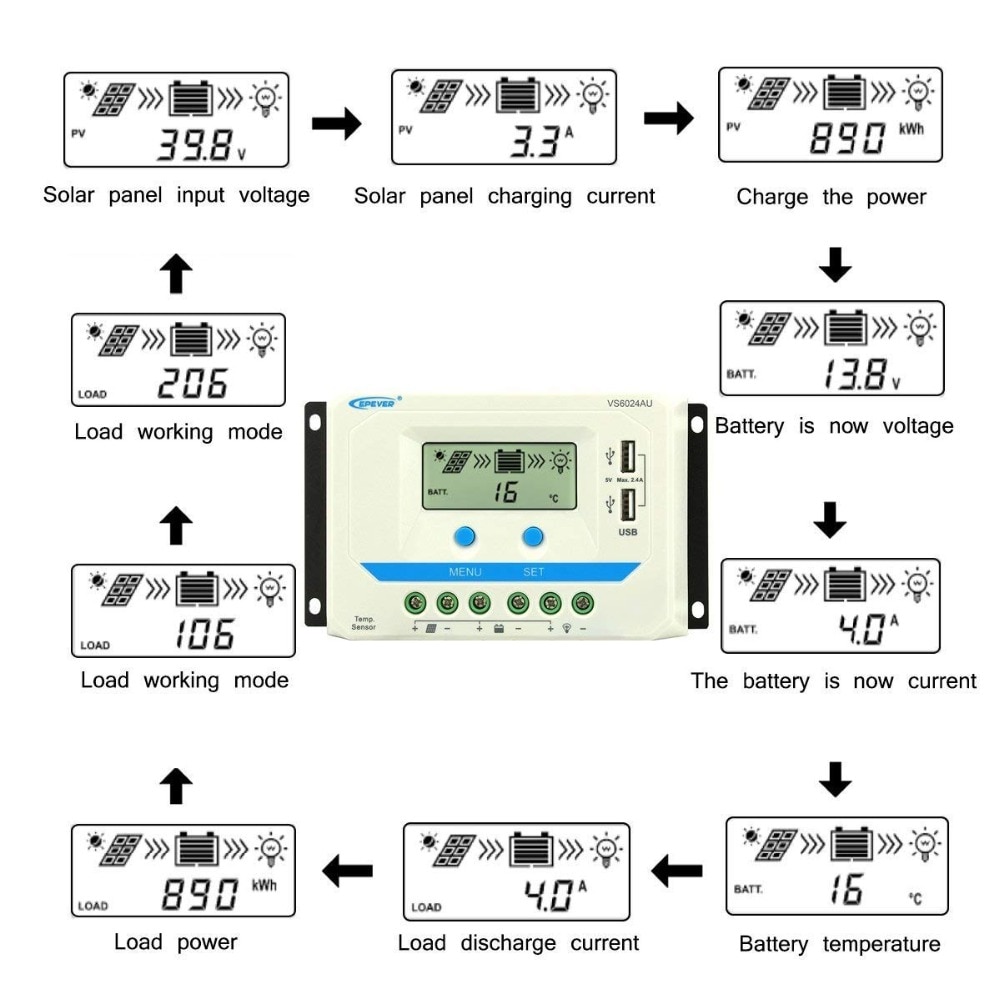

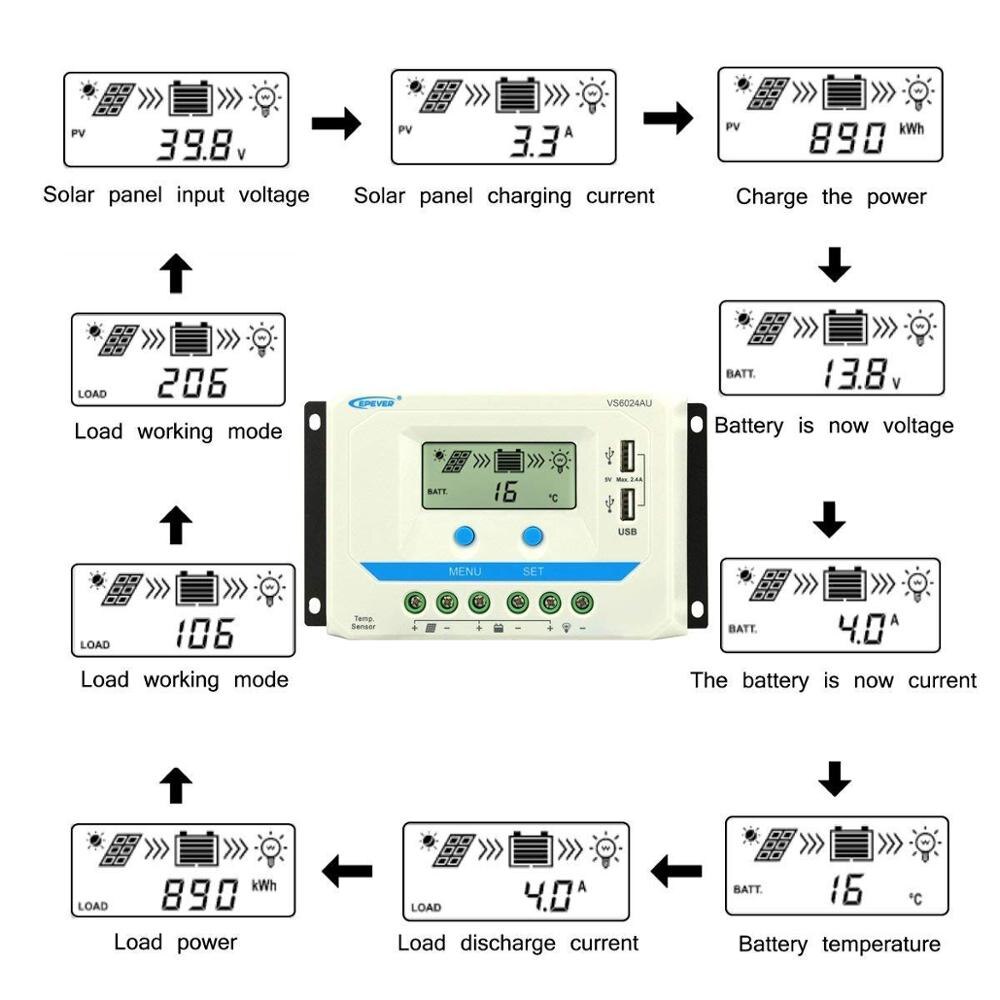

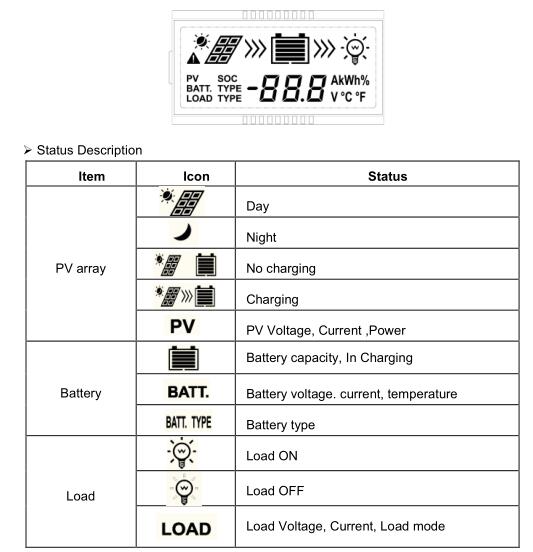

Display:
Parameter:
Model | VS1024AU | VS2024AU | VS3024AU | VS4524AU | VS6024AU |
Nominal system voltage | 12/24VDC Auto | ||||
Battery input voltage range | 9V~32V | ||||
Rated charge current | 10A | 20A | 30A | 45A | 60A |
Rated discharge current | 10A | 20A | 30A | 45A | 60A |
Max. PV open circuit voltage | 50V(24V System) 25V(12V System) | ||||
Max. PV open circuit power | 240W(24V System) 120W(12V System) | ||||
Battery type | Sealed(Default) / Gel / Flooded | ||||
Equalize Charging Voltage | Sealed:14.6V/ Gel: No/ Flooded:14.8V | ||||
Boost Charging Voltage | Sealed:14.4V/ Gel:14.2V/ Flooded:14.6V | ||||
Float Charging Voltage | Sealed/Gel/Flooded:13.8V | ||||
Low Voltage Reconnect Voltage | Sealed/Gel/Flooded:12.6V | ||||
Low Voltage Disconnect Voltage | Sealed/Gel/Flooded:11.1V | ||||
Self-consumption | ≤9.2mA/12V;≤11.7mA/24V | ||||
Temperature compensation | -3mV/°C/2V（25°C） | ||||
Charge circuit voltage drop | ≤0.29V | ||||
Discharge circuit voltage drop | ≤0.16V | ||||
Working environment temperature | -25°C~+55°C | ||||
Relative humidity | ≤95%, N.C. | ||||
Enclosure | IP30 | ||||
Grounding | Common Positive | ||||
USB output | 5VDC/2.4A(Total) | ||||
Overall dimension(mm) | 142x85x41.5 | 160x94.9x49.3 | 181x100.9x59.8 | 194x118.4x63.8 | 214x128.7x72.2 |
Mounting dimension | 130x60mm | 148x70mm | 172x80mm | 185x90mm | 205x100mm |
Mounting hole size | Φ4.5mm | Φ5mm | |||
Terminals | 4mm /12AWG | 10mm /8AWG | 16mm /6AWG | 25mm2/4AWG | |
Note | Please contact the seller if you want to buy many | ||||

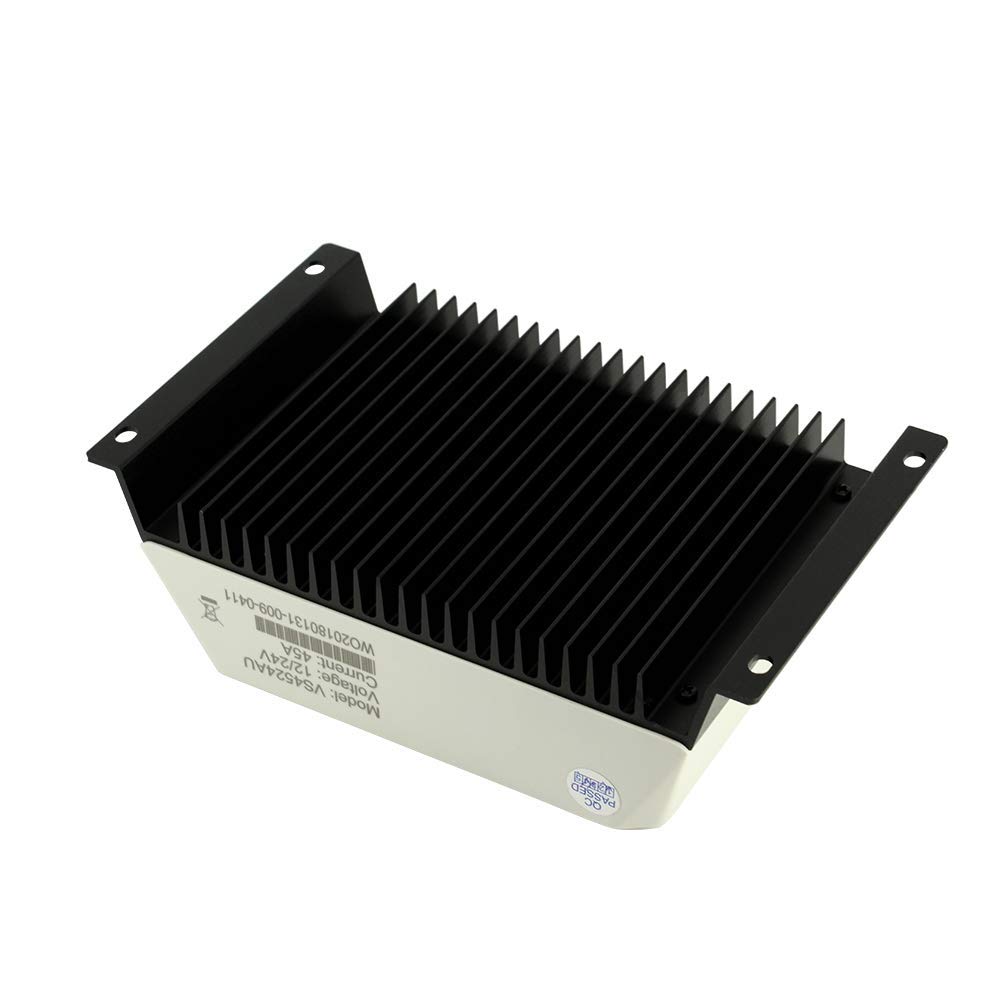

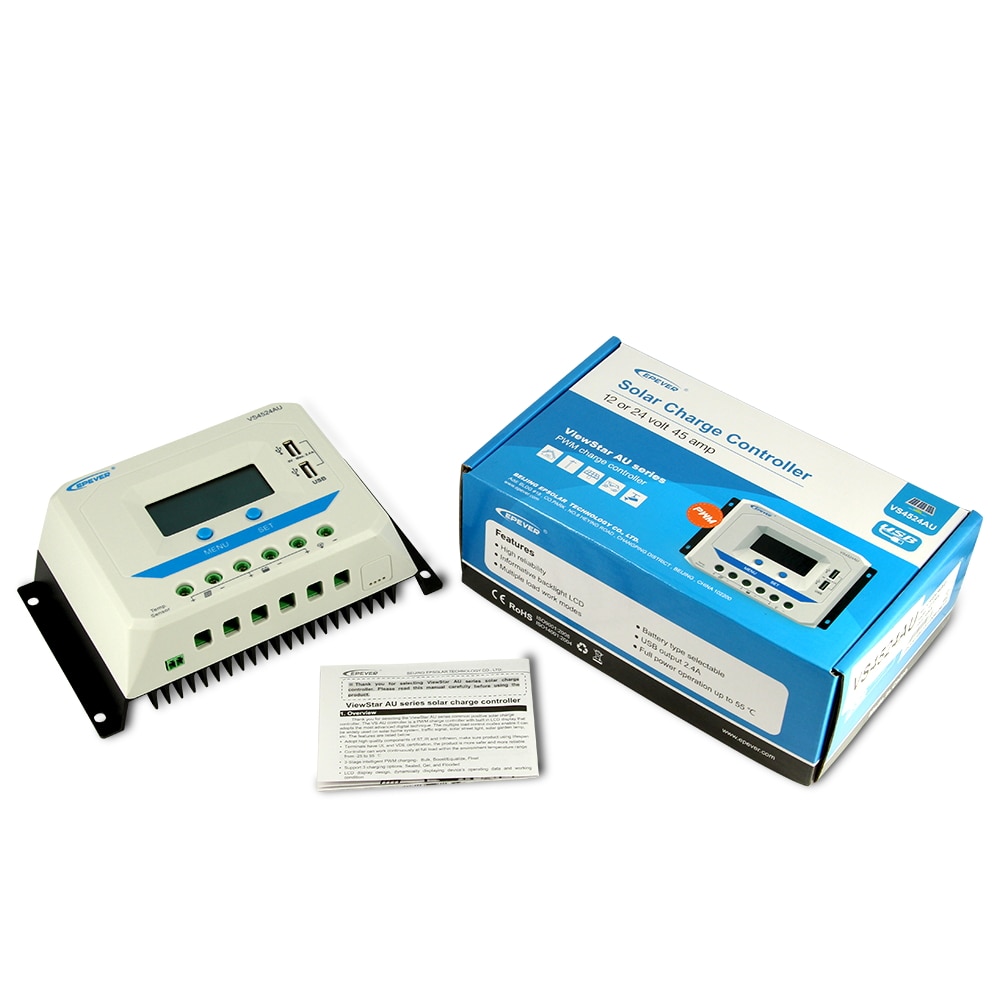

Photo:
- is_customized: Yes
- Maximum Current: 60A 45A 30A 20A 10A Solar Charger Controller
- Model Number: VS1024AU VS2024AU VS3024AU VS4524AU VS6024AU
- Application: Thermal Controller,Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station
- Brand Name: PowMr
- Origin: Mainland China
- Certification: CE
- Nominal system voltage: 12/24VDC Auto
- Battery input voltage range: 9V~32V
- Max. PV open circuit voltage: 50V(24V System);25V(12V System)
- Battery type: Sealed/ Gel / Flooded/AGM
- Grounding: Common Positive
- Dual USB output Charger: 5VDC/2.4A(Total)
- LCD Control: backlight
- Item: EPever Solar Panel Regulator
