Electronic Lock Door Locks Electric lock Brushing and Magnetic Card Brushing Lock for Household Rental House Smart Lock
5.0 (1 votes) | 39 orders
Price:
US $87.35 - 106.43
/ piece
Discount Price:
US $
74.75 -
85.28
/ piece
-14%
- Color
-
-

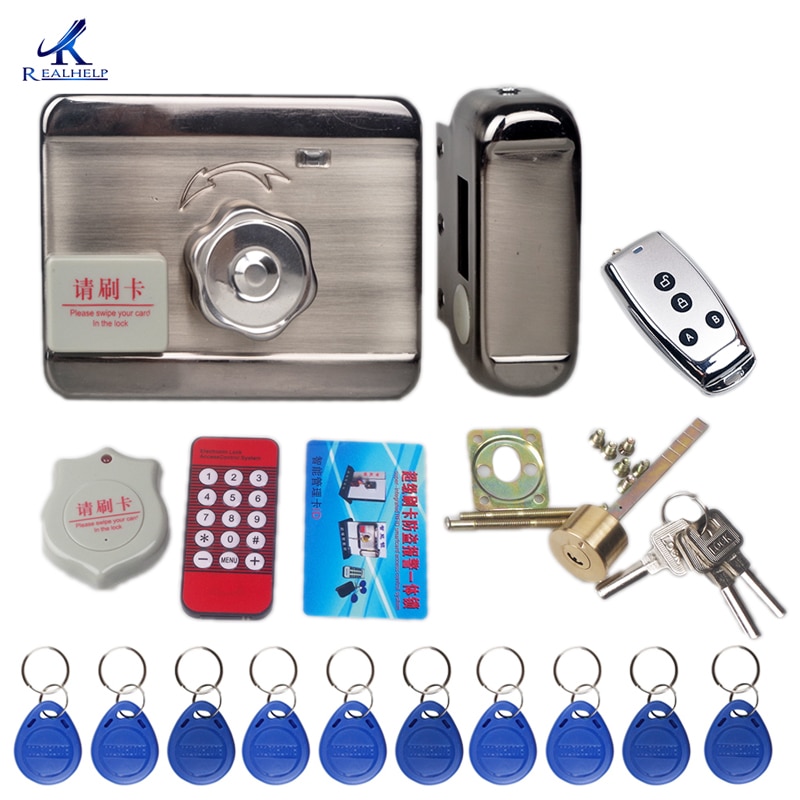

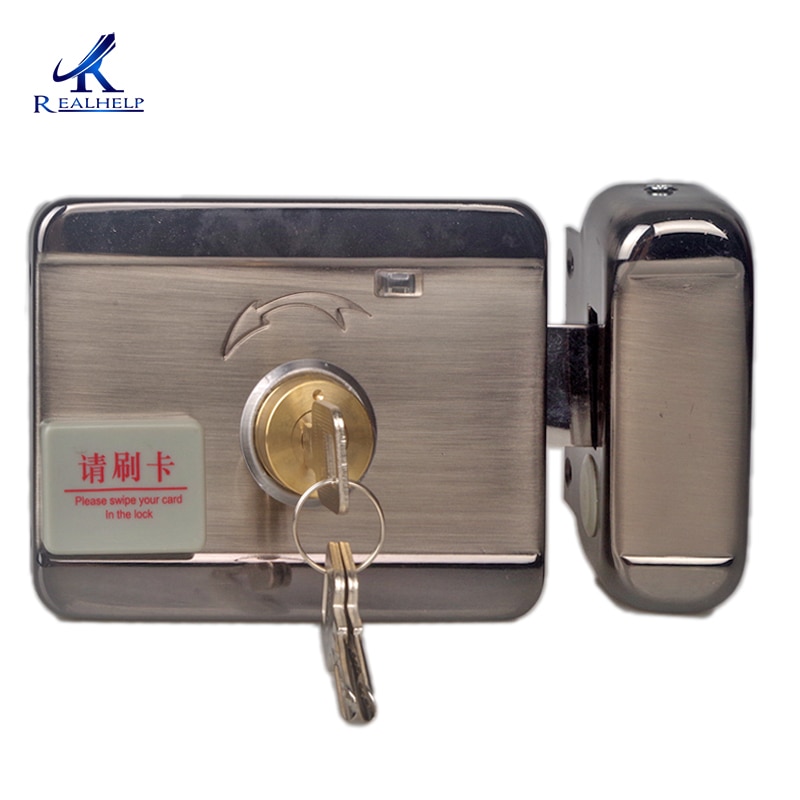

Electronically Controlled Unit Door Lock Induction Card Brushing and Magnetic Card Brushing Lock for Household Rental House
I.Advantage
The length of the lock tongue＞20mm，meet GA/T73-94 5.1.6B standard

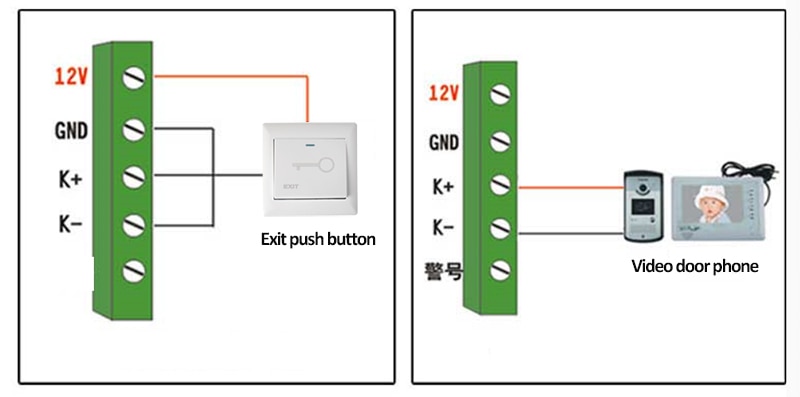

Can be compatible with building system of entrance guard system, etc

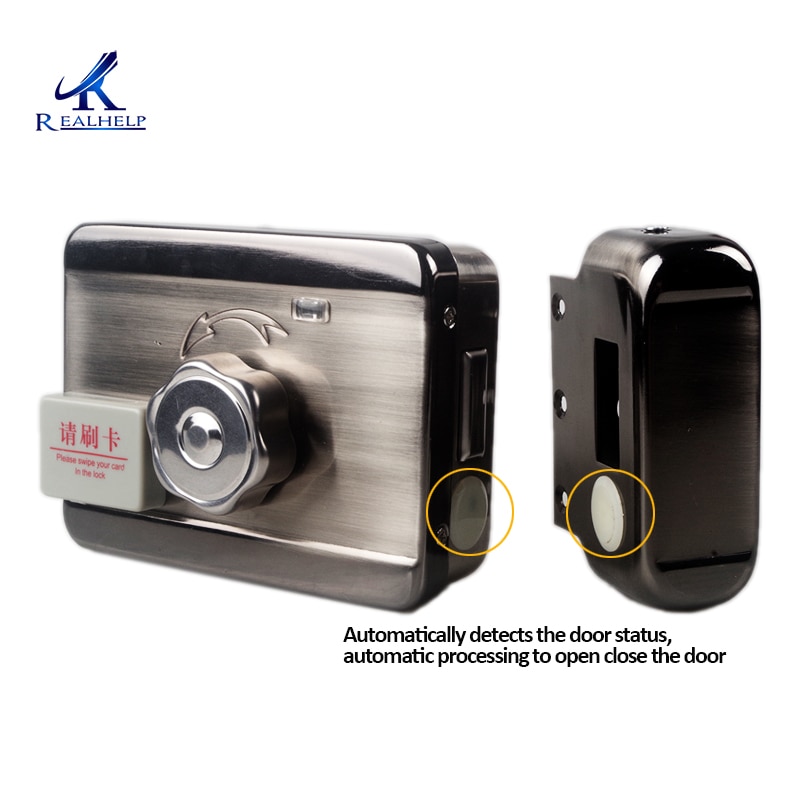

Automatically detects the door status, automatic processing to open close the door
Can be installed on the left door, right door, interior door, outside the door and other doors
Mistakenly lock or unlock after no entry, the door automatically locked in around 8 seconds

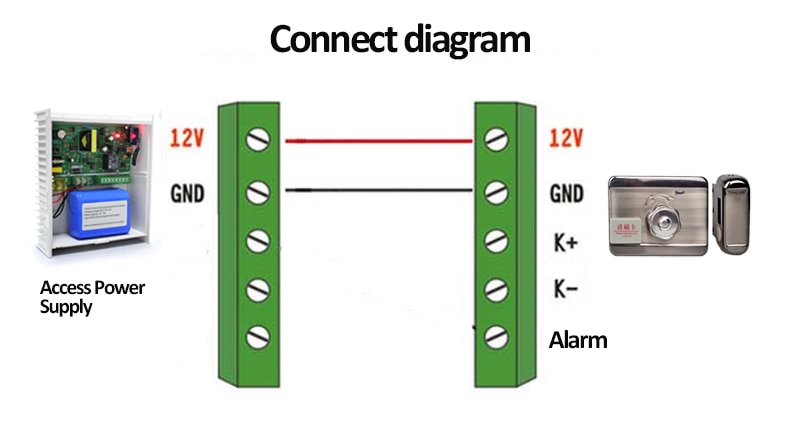

Voltage DC12V, current <350mA, unlock time 1S
Working temperature range -40℃--60℃
Long life (more than 500,000), on / off, high sensitivity about ON/OFF, low power consumption

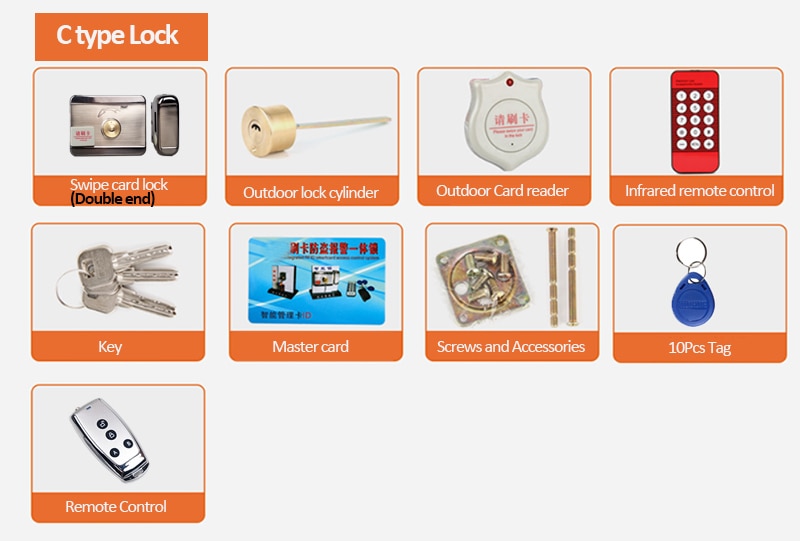

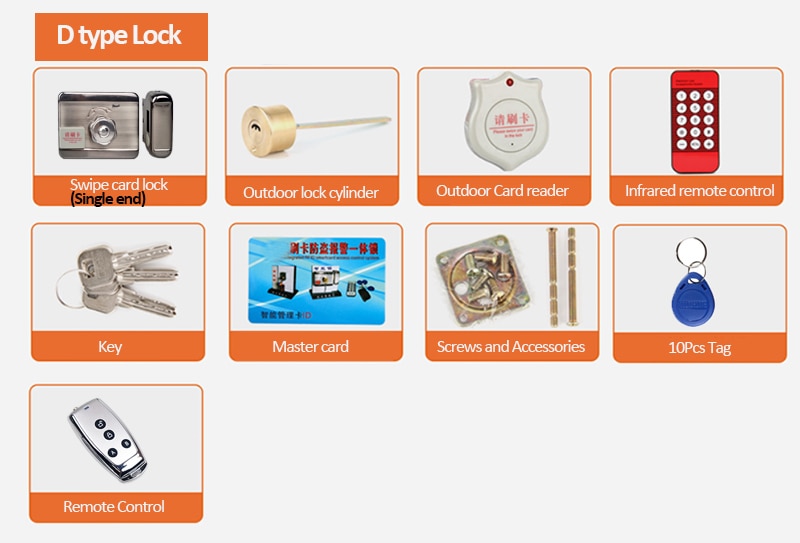

II.Single end and double end for your choose

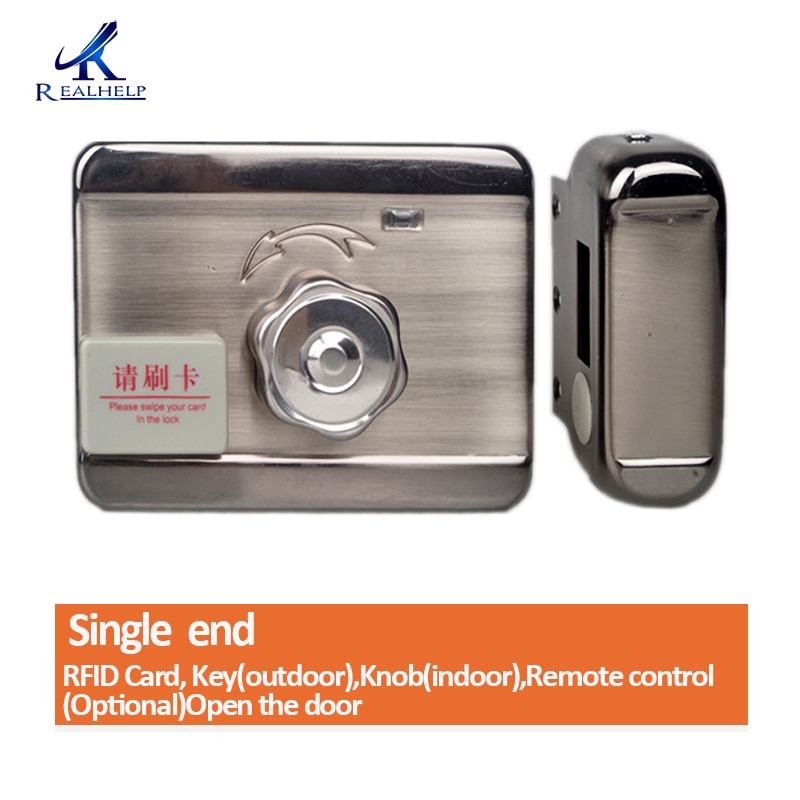

Single end:Exit the door by knob/Card,Enter the door by key/Card make you fell convenient

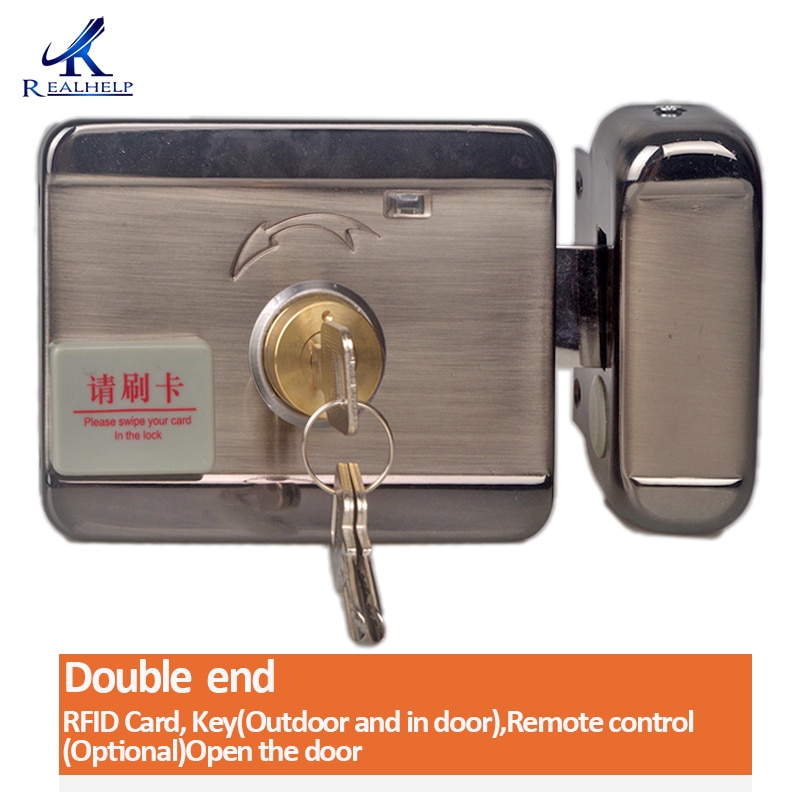

Double end: Exit/enter the door all by key/Card make you feel safety
I.Program lock
1.Program password *9999# , Open the door password #8888# , Press * to exit
2.Modify Program Password: *9999 # 0 # New Password # New Password # (any number for 4-6number)
3.Modify Open the door Password: *9999#92#New Password#New password#(any number for 4-6 number)
4.Add Master Card:*9999 # 80 # Swipe master card. Master card only can change,can not delete.
5.Add Users card:*9999#1# Swipe the card you want to add.Press * to exit
6.Master card add Users: Swipe master card for 1.5s the led light flash,swipe the card you want to add or the remote control you want to add, swipe master card to exit.
7.Master card swipe three times can open the door.
8.Faster way to delete card: *9999#4#, swipe the card you want to delete.
9.Encode delete card: *9999#5#enter the cardLast ten number.
10.Delete all card: *9999#90#90#
11.Master card delete card: Swipe master card for 1.5s the led light flash,swipe the card you want to delete or the remote control, swipe master card to exit.
12.Open the lock remote control : *9999#3#Press remote control A it will beep then Press any 2 encode number (01-20) # (can add the next remote control directly) (when the encode number is the same,it can be replaced ). ABCD button all can open the door
13.Manage the remote control: AB--Program/lock card(75#) DC---Exit/unlock(76#) When it alarm,Only can press DC or 76# to unlock
14.Single delete: *9999#7#enter the remote control encode #
15.Delete all:*9999#91#91#
16.Turn on anti-prizing alarm function: 85#000-254# (000# or 0# close ) (001-254s)# set input time, it will success after 5s(negative pole signal output) (when it alarm swipe user card or use remote control clear)
17.Turn on/off Alarm for not closing the door on time: 95#(000# or 0# Turn off) (001-254s) # set not close the door on time output time(factory default 5s, 245s is the max time) (When it alarm swipe card or lock remote control cancel alarm signal)
18.Not closing the door on time alarm time set : 73# set alarm time (001-254s) # (factory default 5s, 254 is the max time)
19.Signal output on and off: 81#000# or 0# close program/(001-254s) 254s is the max output time (Negative signal/it will have Signal after 2s) , 1 swipe user card/2 press lock remote control/3 lock-cancel)
20.Beeper:65# turn on, not close door after 5s it will ring continuously.(66# close)
21.Dead lock: 75# dead lock ,card and remote control can not open the door , key open the door will alarm (85# not change)
22.Unlock: 76# unlocked(only cancel 75#)
23.Noted: Restore factory defaults : Power off ,Pin Header short circuit ,Power on after 2s will hear di di remote control/Users/Master card all not be clear
II.Remote control
1. Remote control lock the card: Press A and C, it will ring di after 3s it will ring di di, then you can loosen the button, All card can not open the door.
2. Cancel lock card function: Press B and D. It will ring di after 3s it will ring di di. Now the card can open the door.
1. 12 months Manufacturer’s warranty for defective items(excluding items damaged and/or misused after
receipt).Accessories come with a 3-month warranty.
2. Defective items MUST BE reported and return to us within the warranty period(and in the original
packaging,IF possible)You must tell us what the defect is and give us your Hogaki ID,WE DO NOT REPAIR
OR REPLACE ITEMS WITH AN EXPIRED WARRANTY!
3.Negative feedback or Low DSR does not resolve any underlying issues.If you have any problems with our items or services,please feel free to contact us fst before you leave negative feedirback. We will do our best to solve any problems and provide you with the best customer services.

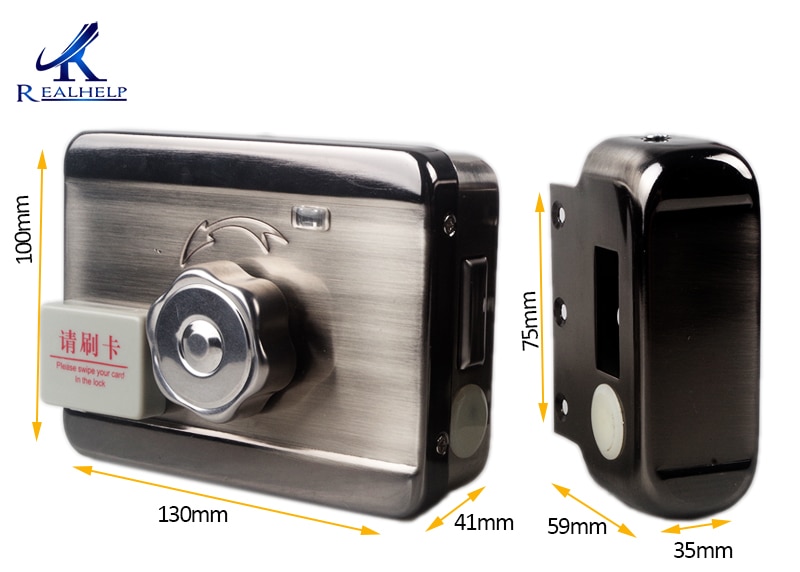

- Model Number: 2202
- Brand Name: Realhelp
- Certification: NONE
- Origin: Mainland China
- Fail Safe: Locked when energized
- Power supply: 12V/350mA
- Read card distance: 0-6cm
- Open the lock time: <1s, (Key,remote control,Knob,ID Card)
- Card capacity: 1000
- Card frequency: 125KHZ RFID
- work temperature: -40 to 60degree
- Suitable for door type: Wooden door, Iron door,anti-theft door
- The length of the lock tongue: >20mm
- automatically locked: around 8 seconds
- Weight: 1.25KG
