Electric Waterproof Power 12v Led Light Momentary Short Mini Push Button Switch 12/16/19/22/25/30 mm Pressure Switches 220v 24v
4.9 (42 votes) | 261 orders
Price:
US $11.44 - 13.65
/ piece
Discount Price:
US $
9.95 -
12.81
/ piece
-13%
- Color
-
-
If you want more item, please click on the below photo,price is cheap
The button only have the momentary(like Car or Computer), don't have the lacthing (like the lamp), and don't have the Suitable connector,please think carefully before you buy.
Operation Type :Momentary
After pressing the button ,press-key will return automatically If you don't continue to press the button。Self-reset.
Specification
The button don't have suitable connector,only buy the single connector.
If you need special specifications, please feel free to contact customer service,we can customize it .
Contact:sterling silver
Material: Nickel Brass Or aluminium oxide
Color: Silver Or Black

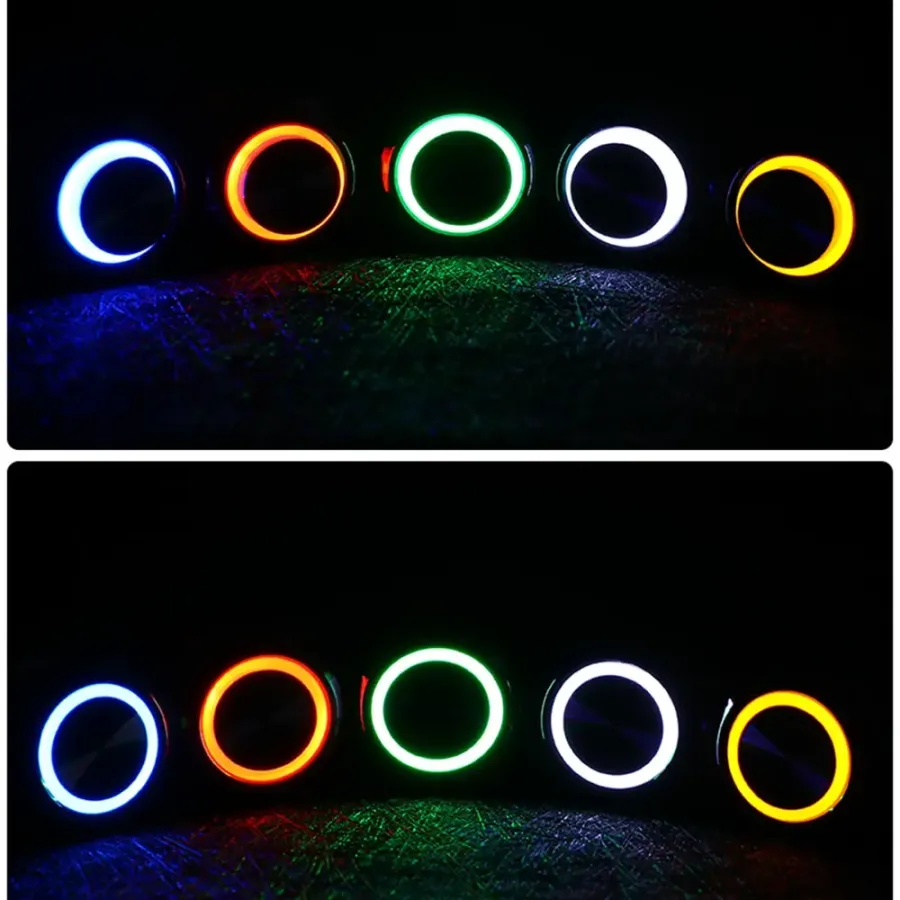

LED color: White Yellow Red Green Blue
Switch Rating: 2A /250VAC
Press distance : ≤0.5mm
Waterproof Grade: IP65
LED Voltage: 3-6V,12V,24V,220V
Operation Type: Momentary （like the button of Car or Computer）

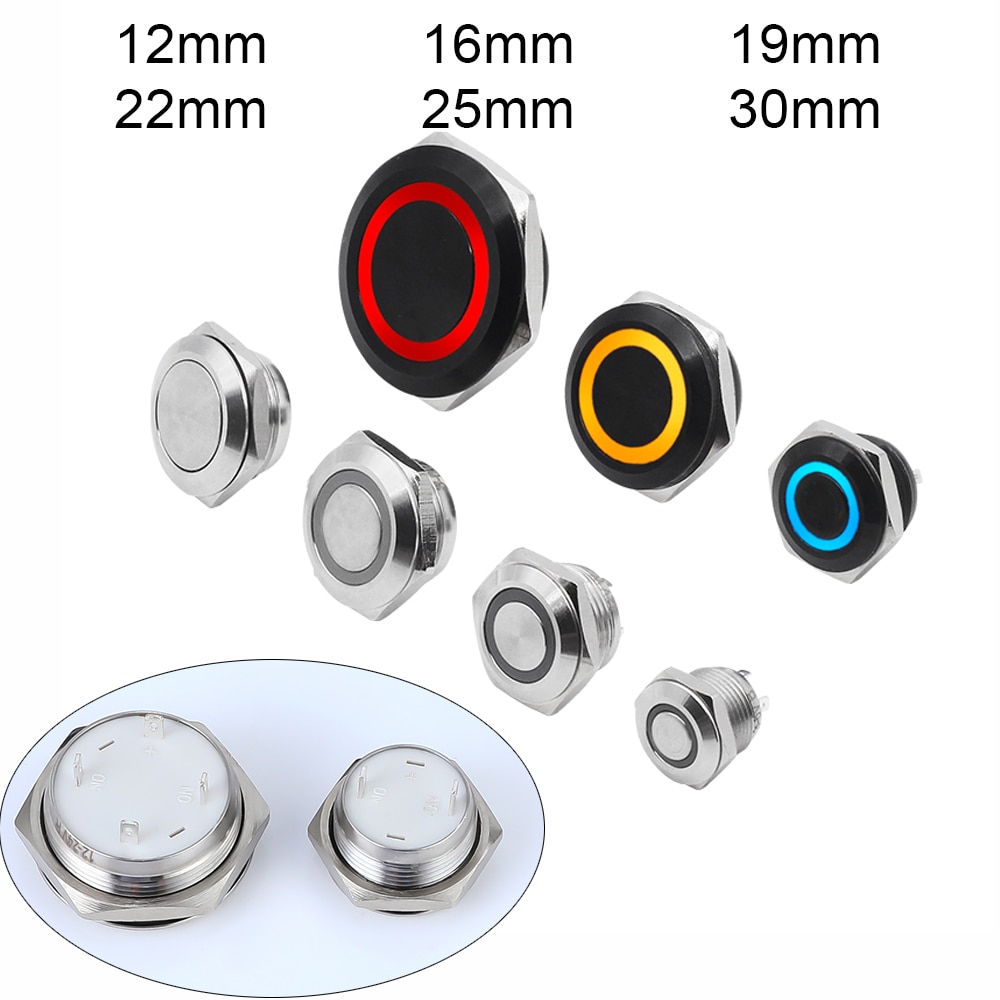

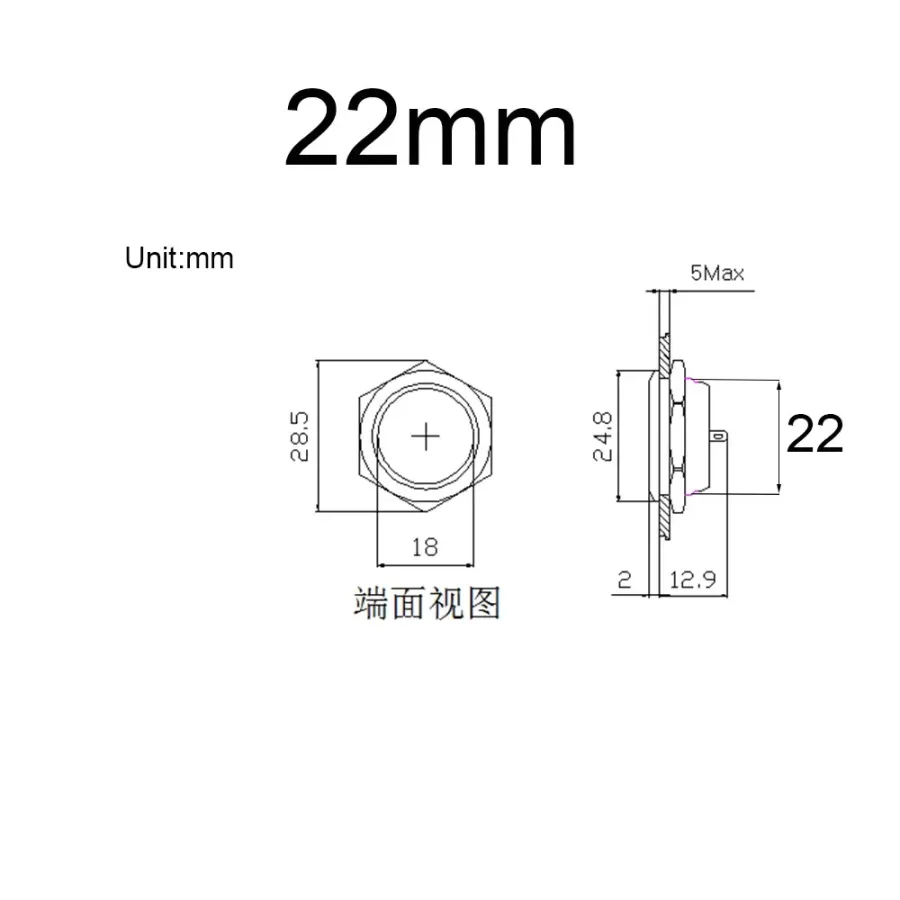

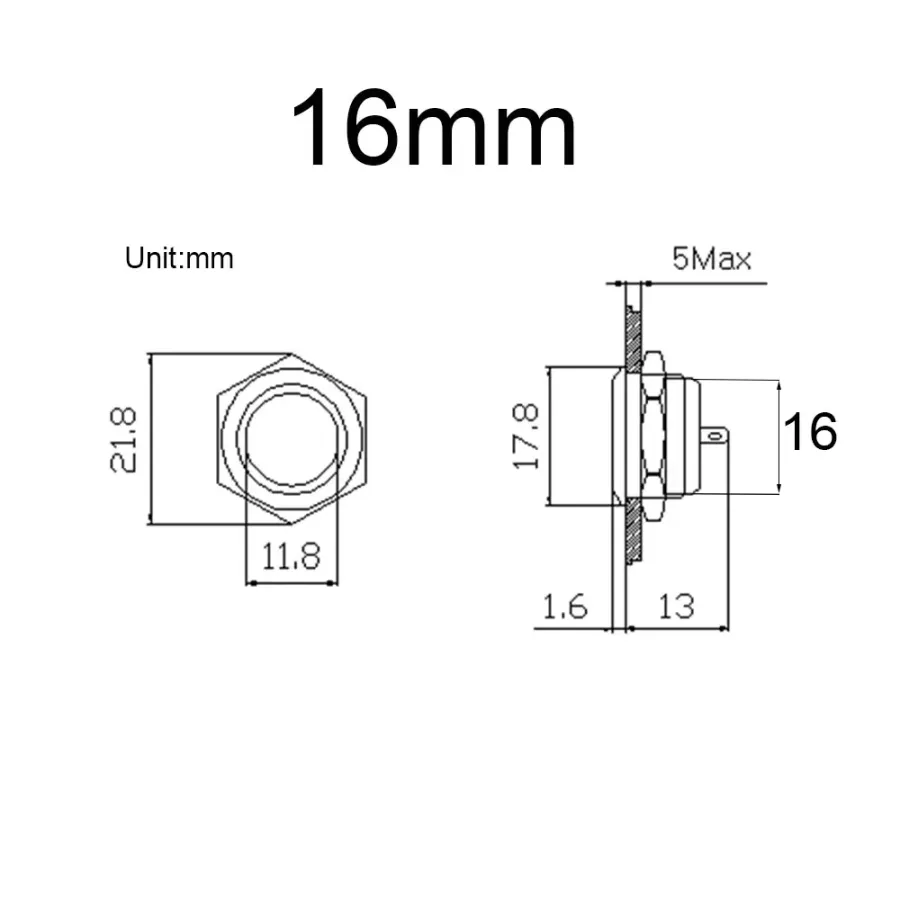

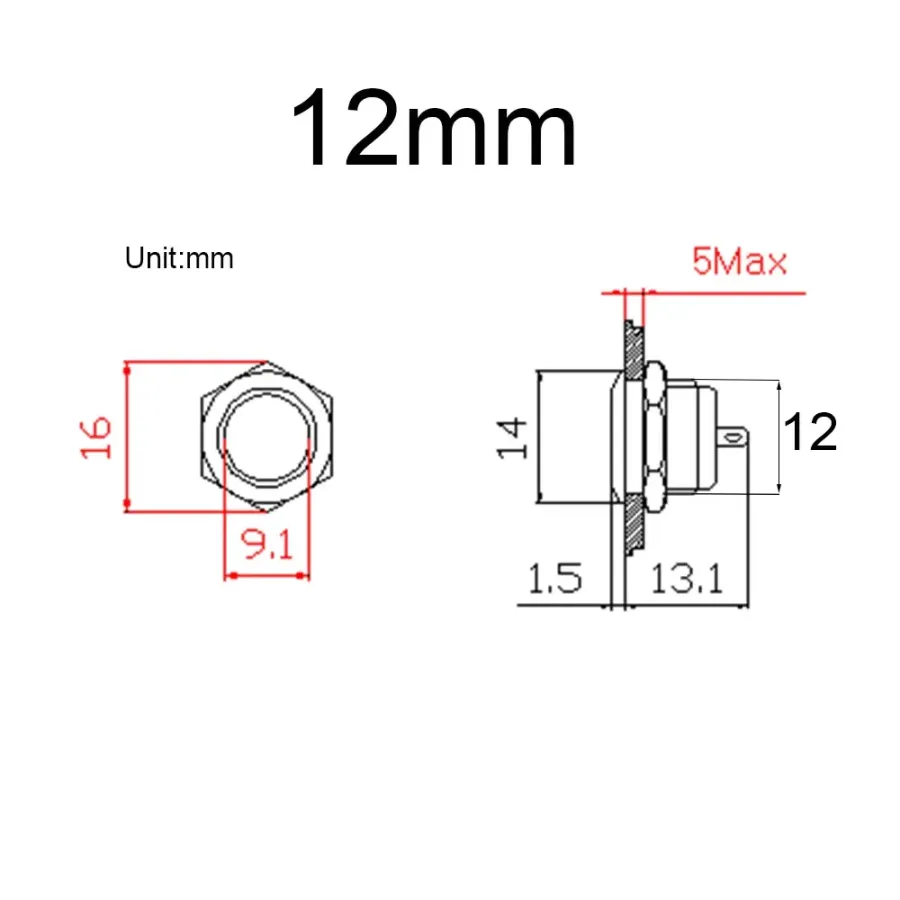

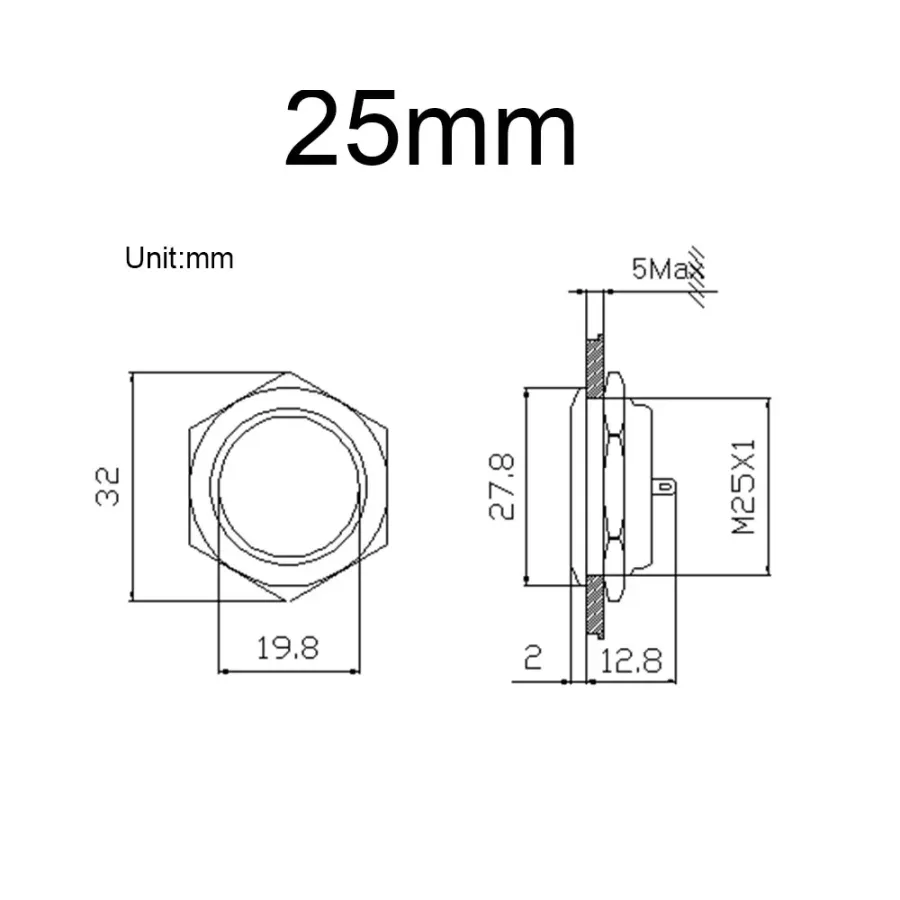

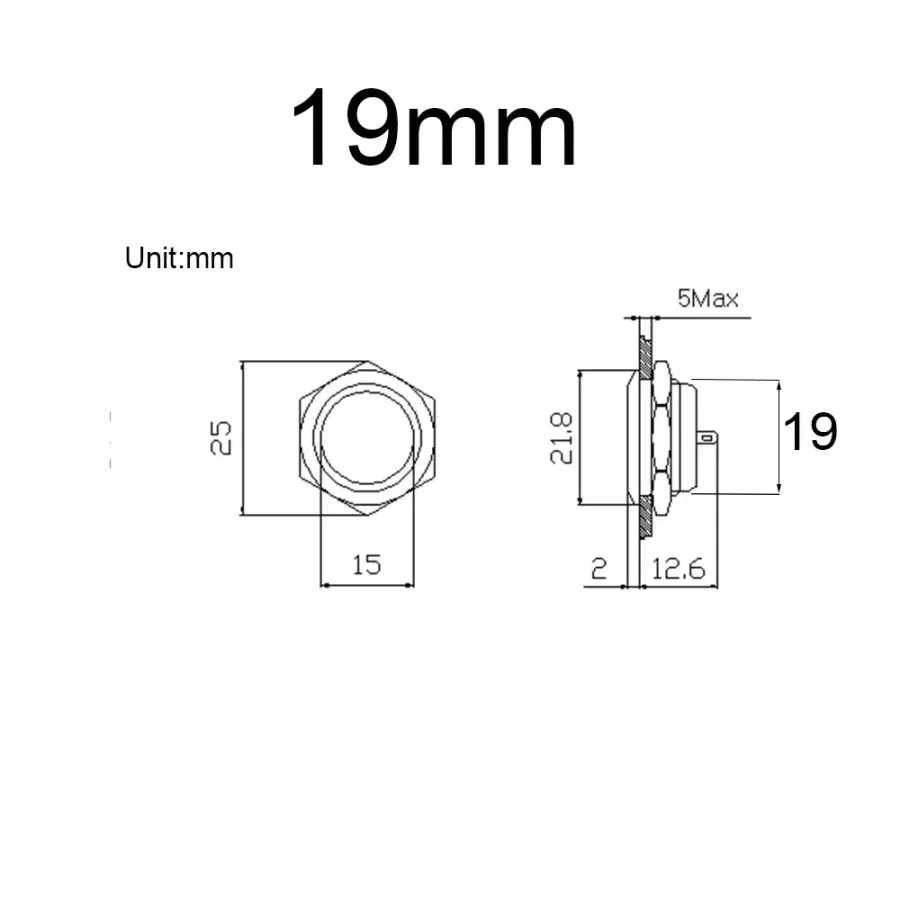

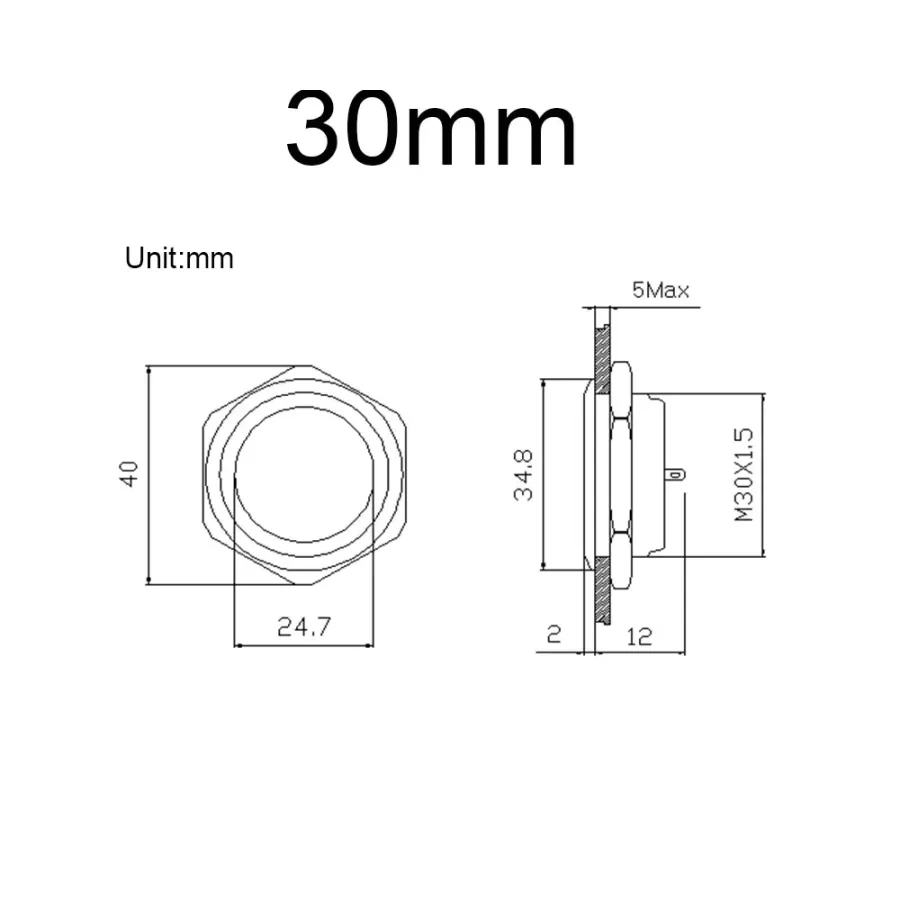

Hole size: 12/16/19/22/25/30mm
Voltage Selection
3V-6V :3V 5V 6V
12V-24V: 12V 24V
220V: 220V 230V
Other voltages are required. Please contact customer service
No led switch button can be applied to 2-250V.

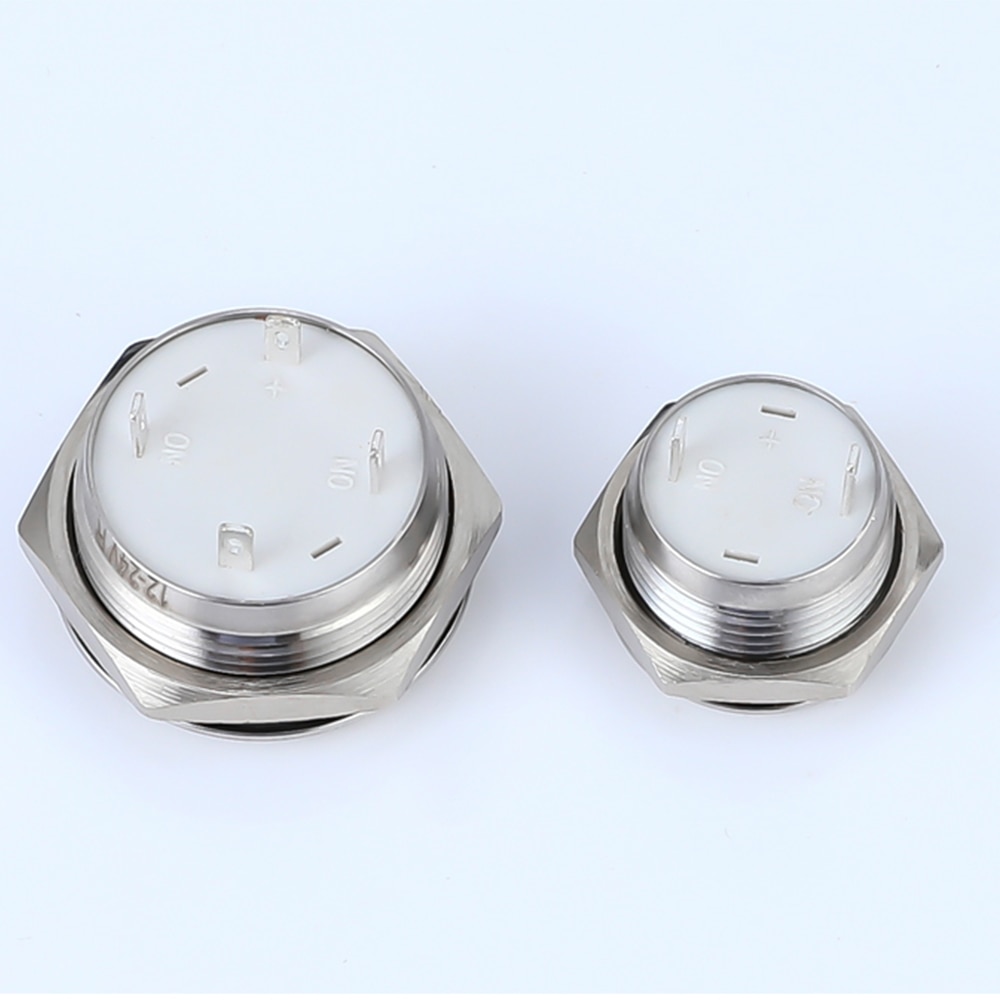

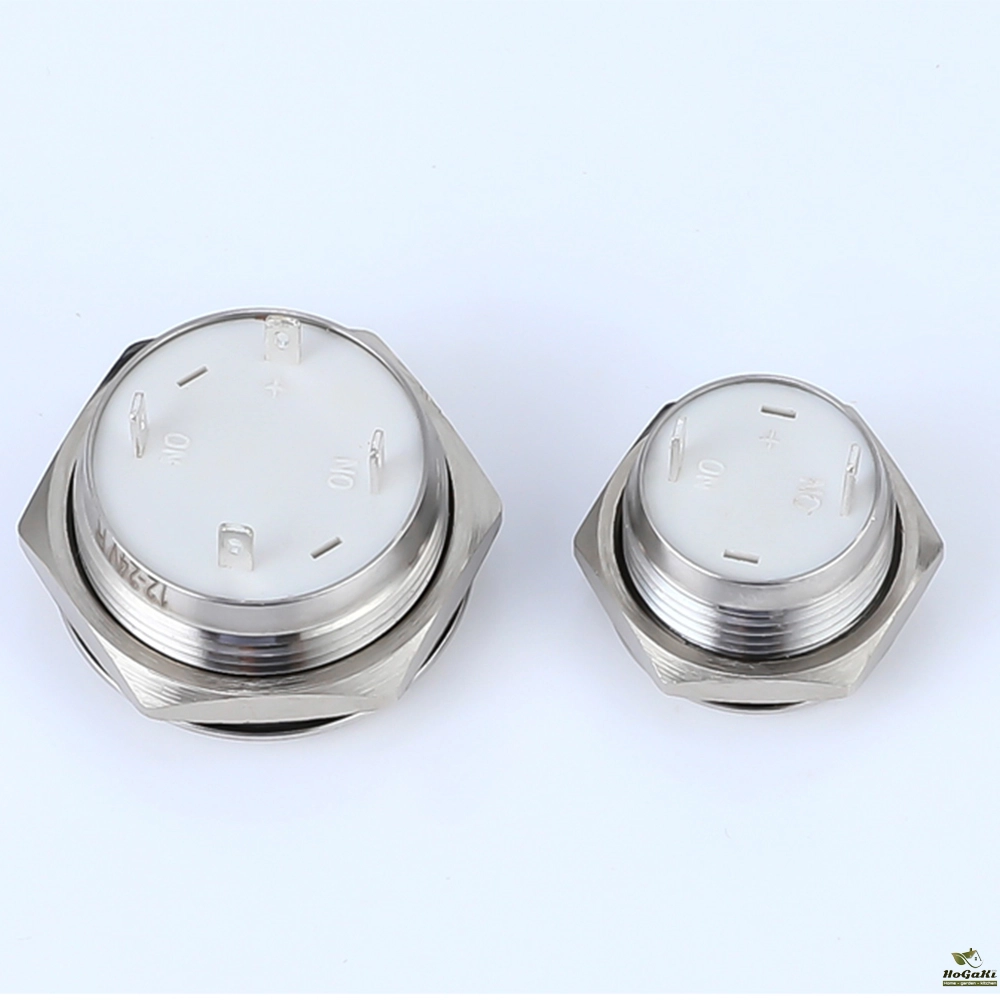

Pin Terminal Introduction
"+": positive pole of the led
" - ": negative pole of the led
" NO ": Normal Open
" C " : Common
Connect " NO " and " C " : The circuit is alway open unless press the button.

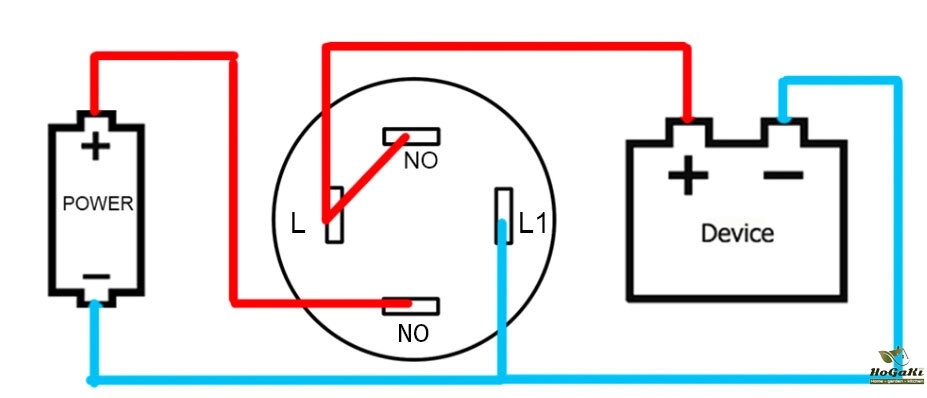

Wiring Diagram
There are many wiring method, the picture below is just for reference
Wiring Diagram of Normal Open
When the switch is pressed, the LED lights up and the load is energized. After press-key return, the load is de-energized, and the light is off.
Features

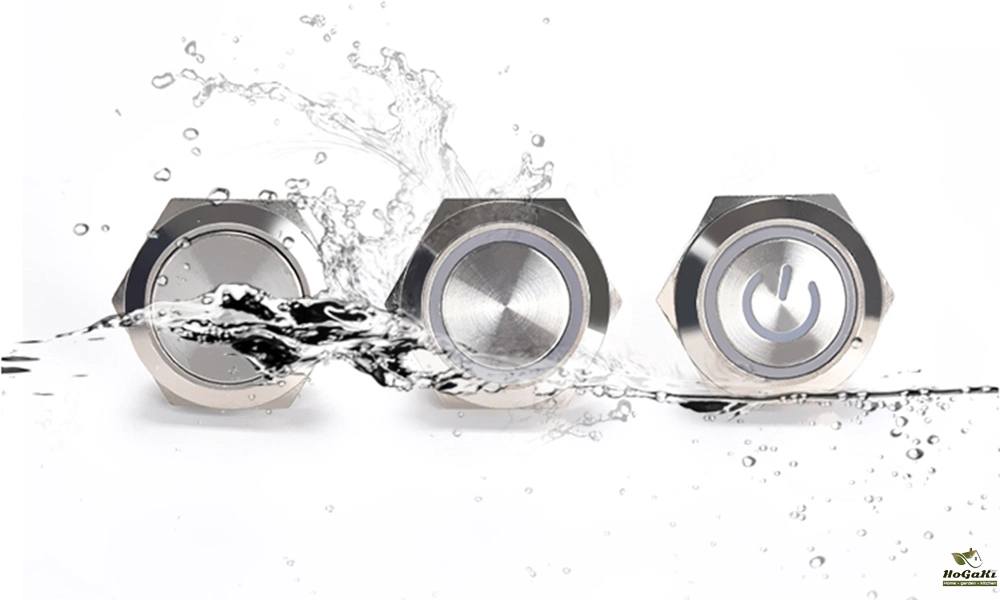

Made of metal material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.
Packaging Details
- Unit Type: piece
- Package Weight: 0.020
- Package Size: 1x1x1
- Brand Name: NoEnName_Null
- Material: Copper
- Origin: Mainland China
- Hign-concerned Chemical: None
- Current: 2A
- Item Type: SWITCHES
- Switch Type: Pressure Switch
- Certification: CCC
- Certification: ce
- Choice: yes
- semi_Choice: yes
