Electronic Door Lock Electric Magnetic Lock Gate Opener Suction Holding Force Electromagnetic for Access Control System Various
4.8 (53 votes) | 234 orders
Price:
US $27.73 - 245.01
/ piece
Discount Price:
US $
24.94 -
220.51
/ piece
-10%
- Ships From
- Color
-
-
Magnetic Locks (Various options for choosing)

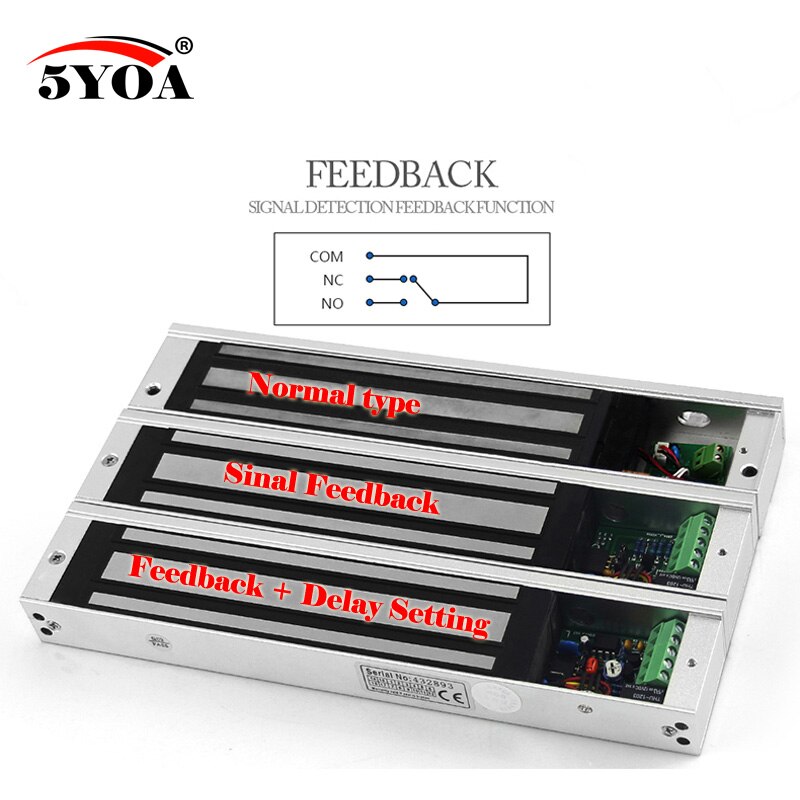

What is Feedback function?

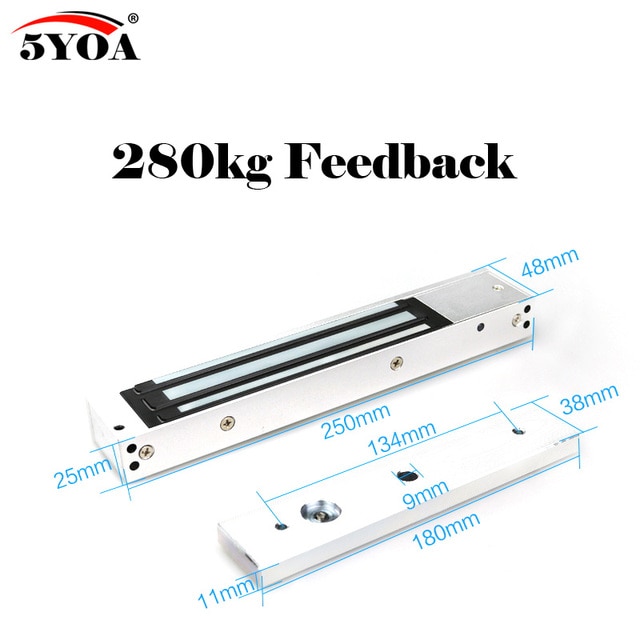

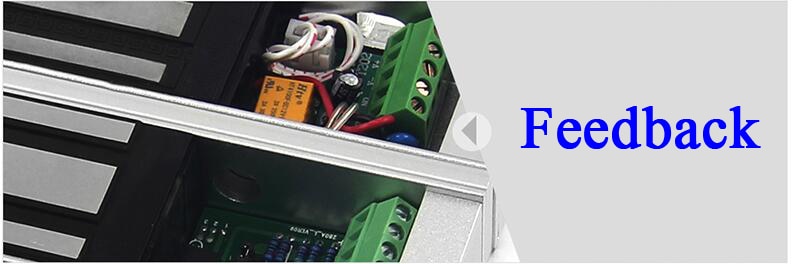

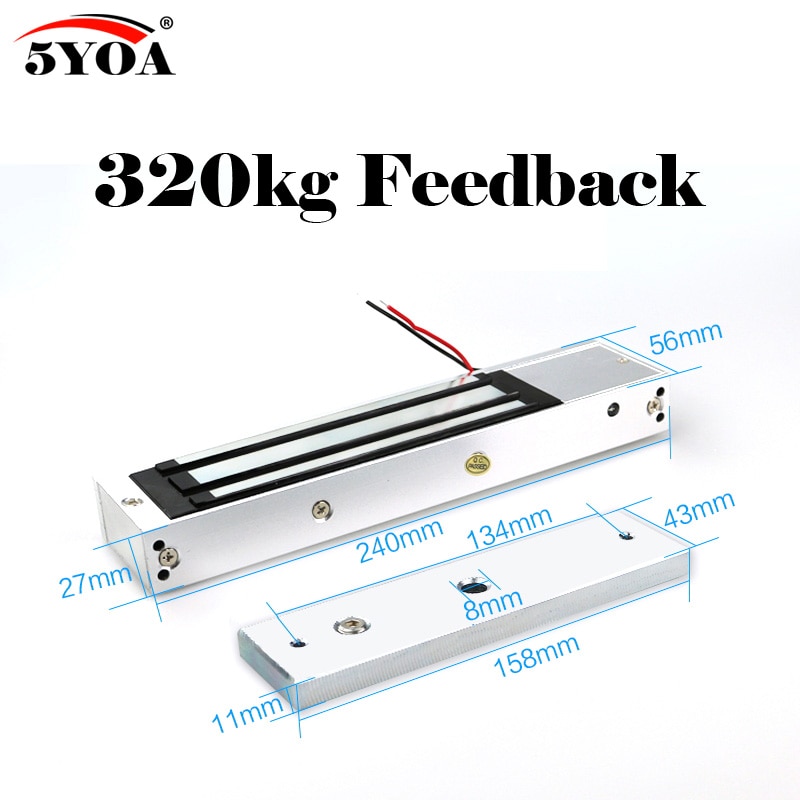

Magnetic lock with Feedback function means it can give back signal for additional function, for example : work with alarm system

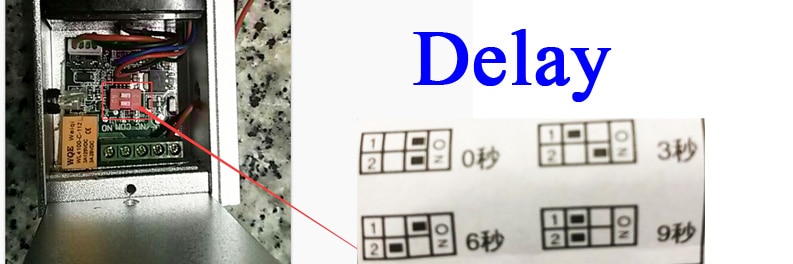

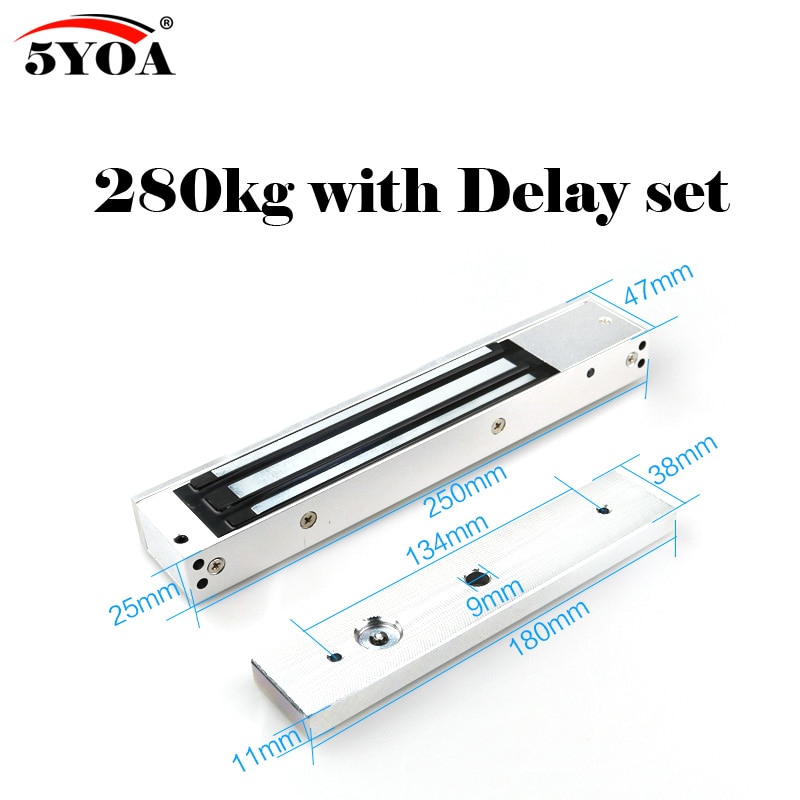

What is Delay function?
Magnetic lock with Delay function means that it can set the delay time from the open status to close status (normally set as 0 second or 3 seconds or 6 seconds or 9 seconds)

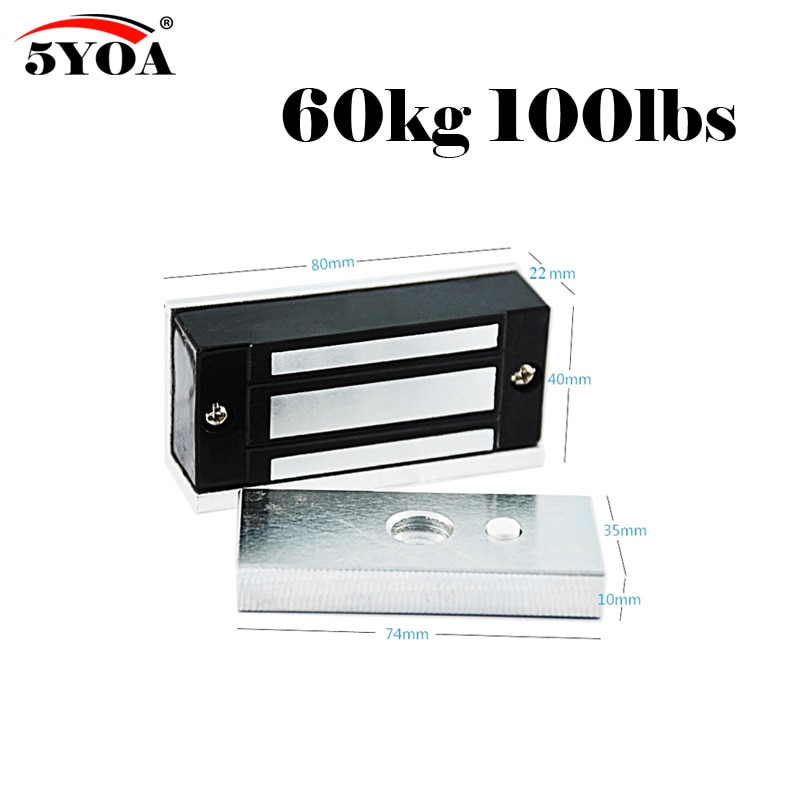

60kg Magnetic Lock
Product details
Lock dimensions: 80 x 40 x 22 mm
Armature plate: 74 x 35 x 10 mm
Maximum tension: 60 kg (100 lbs)
Input voltage: DC12V +10%
Operating current: 12V/300mA
Surface temperature: Within + 20 degree below ambient temperature
Suitable temperature: -10 to 55 + degrees (14-131F)
Suitable humidity: 0 to 90% relative humidity
Shell: Anodized plating processing
Lock and suction plate processing: Environmentally friendly zinc plating processing
Weight: 0.55kg
Suitable for file cabinets, small doors, and more.

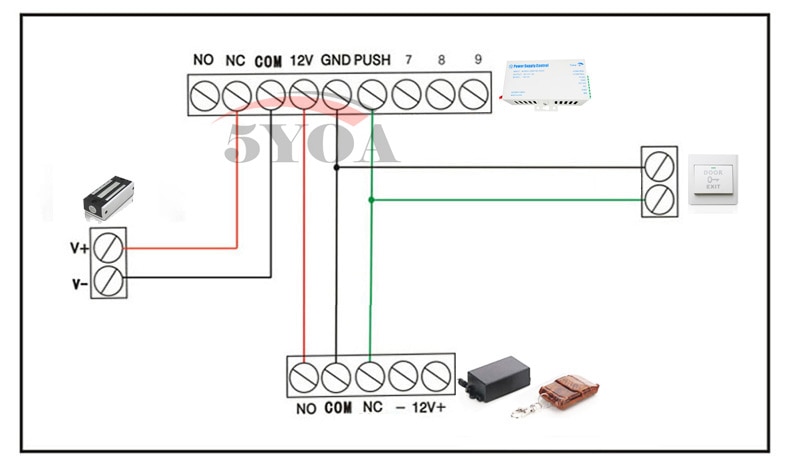

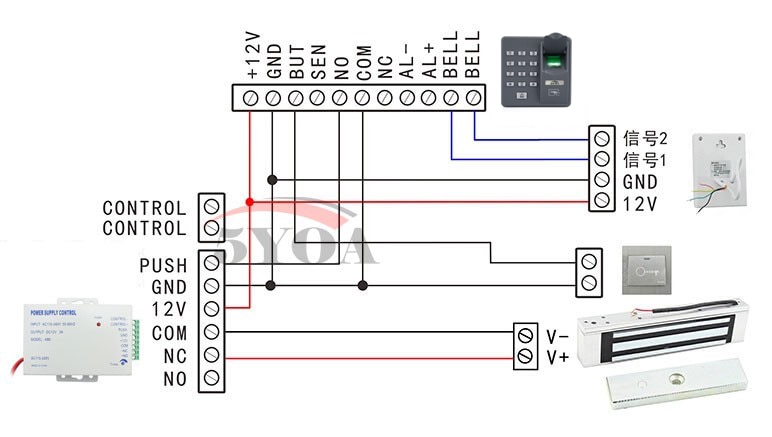

Connection diagram with access control device
Diagram with remote control
Using Example

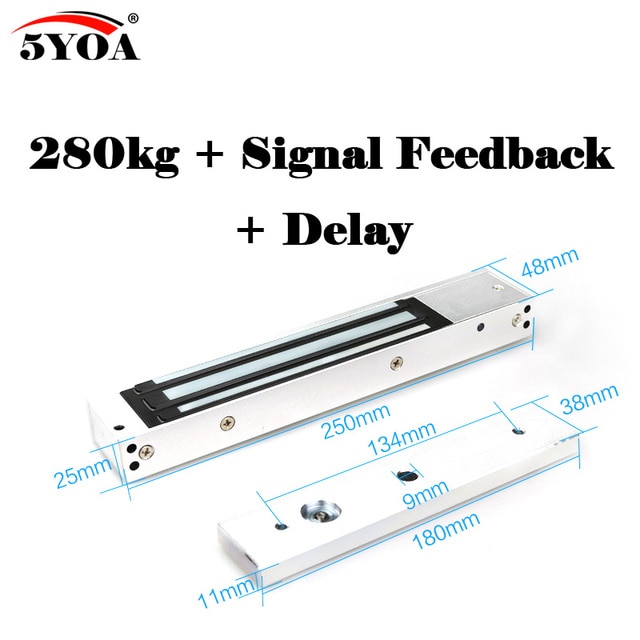

Other Magnetic Locks
Features:

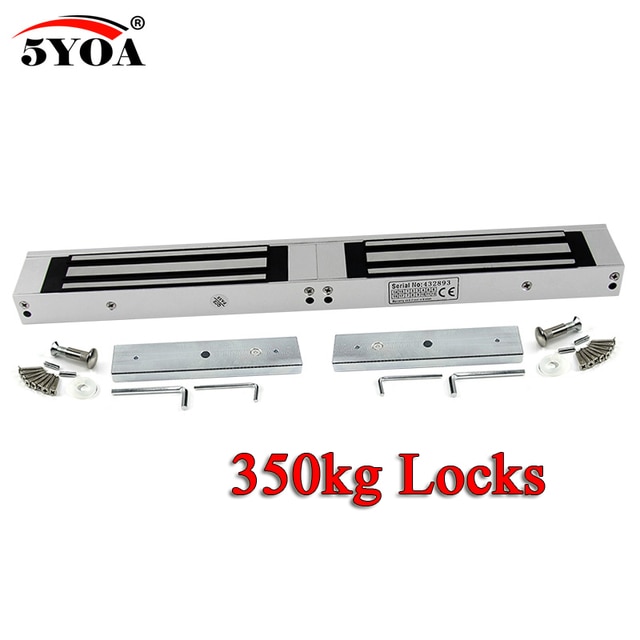

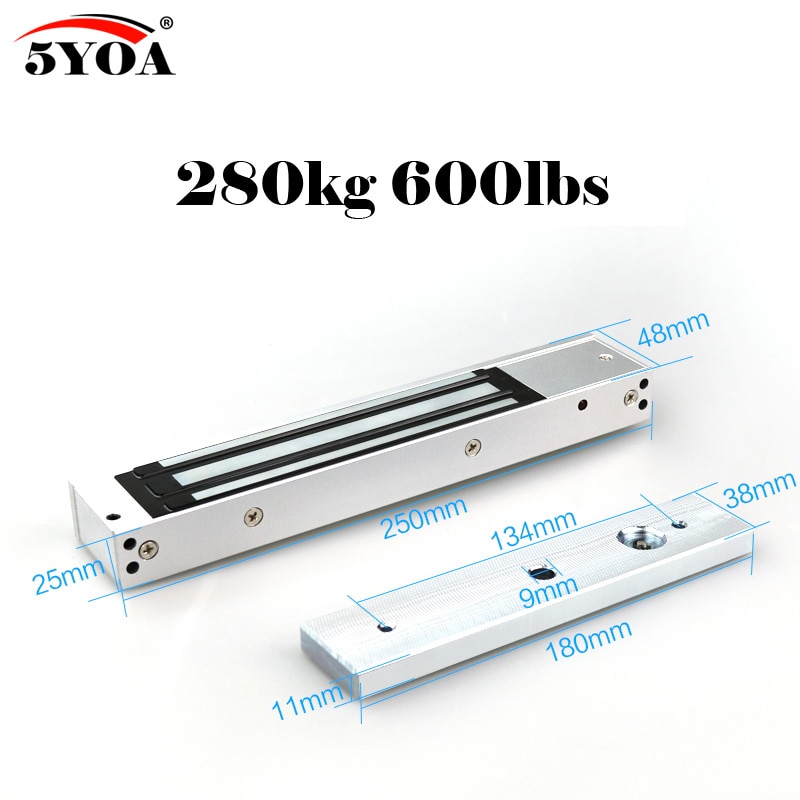

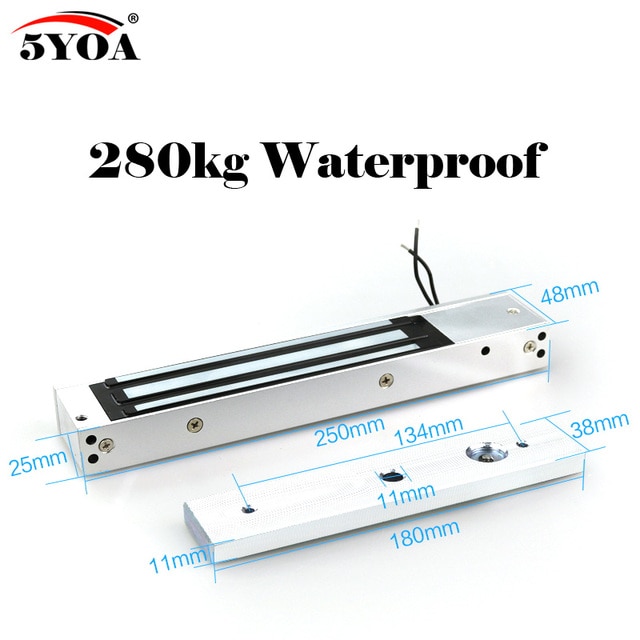

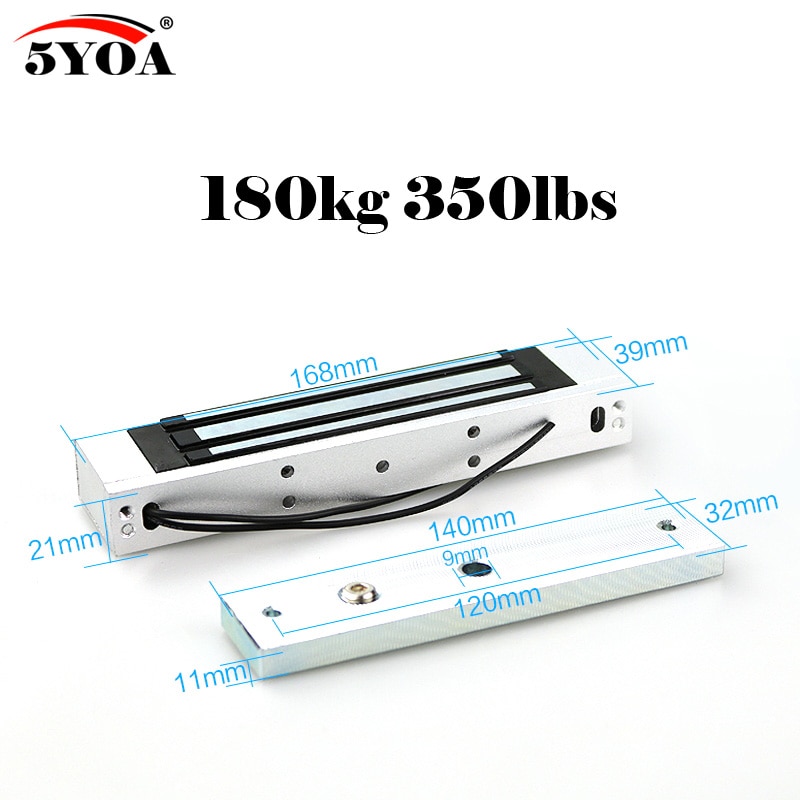

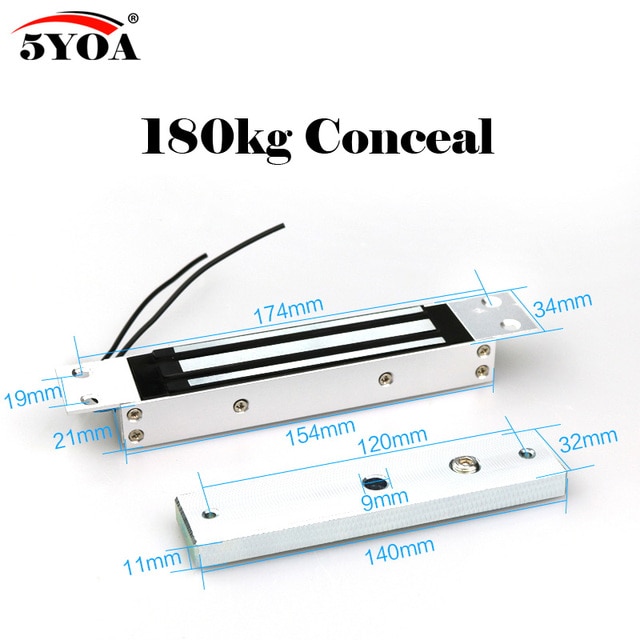

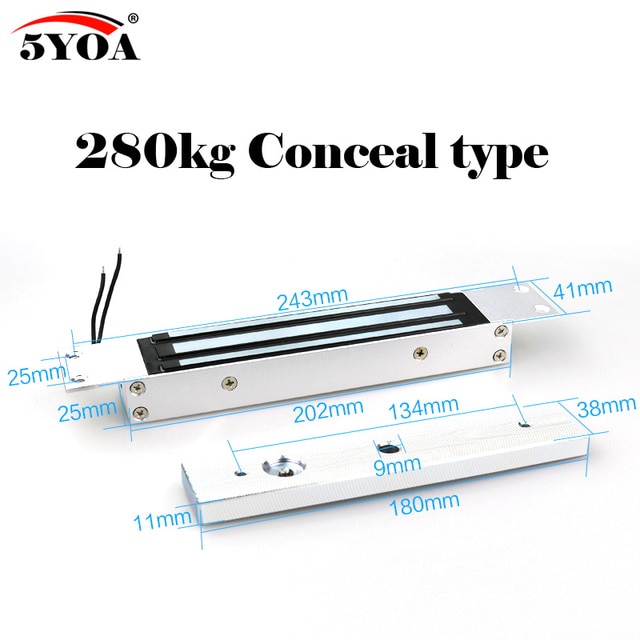

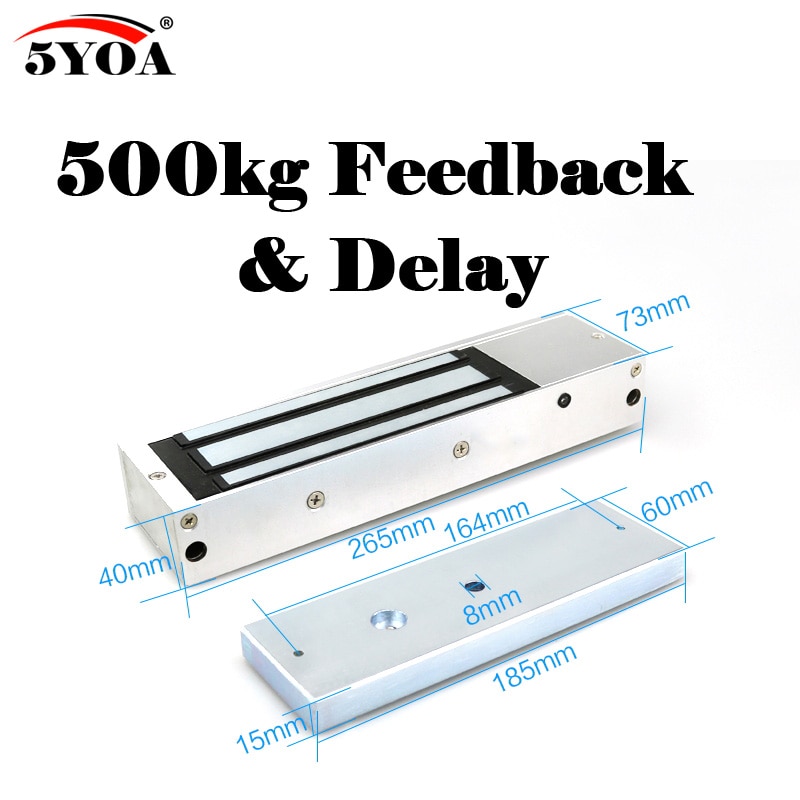

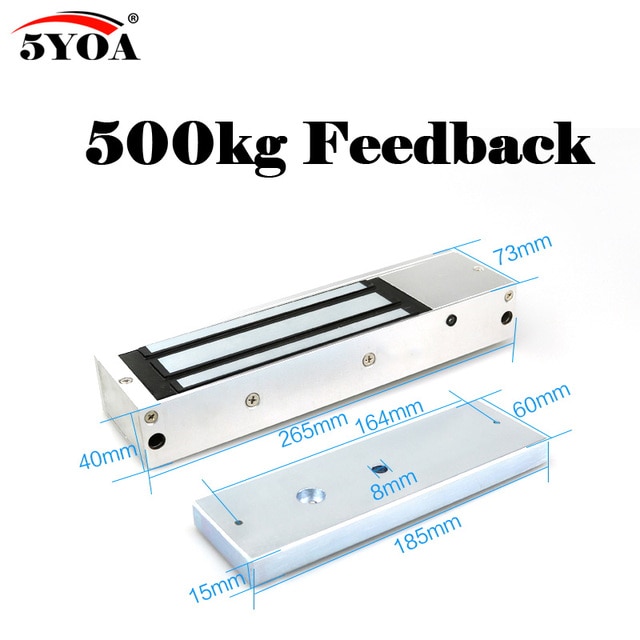

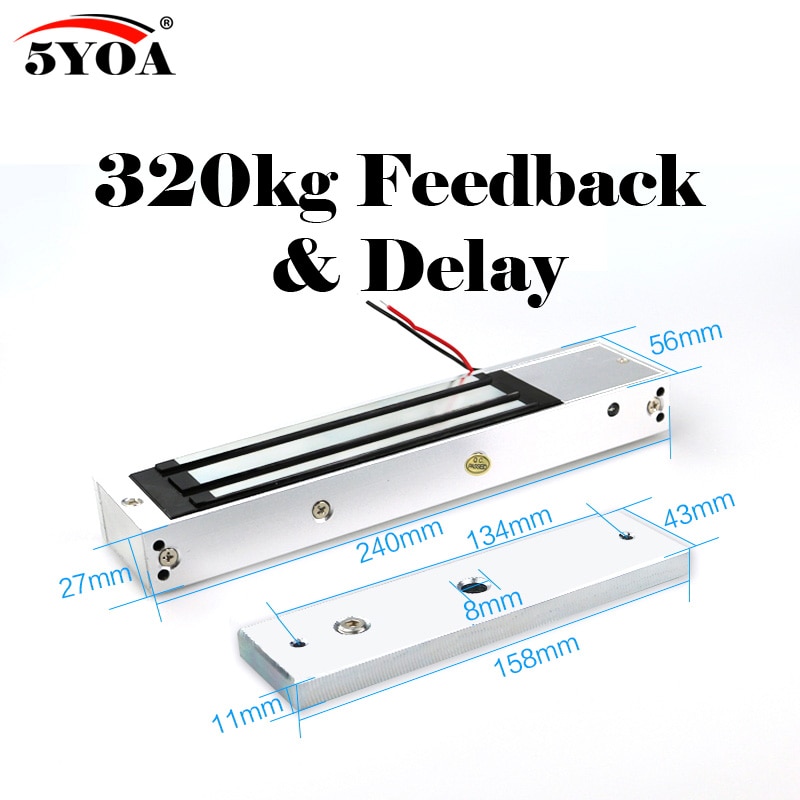

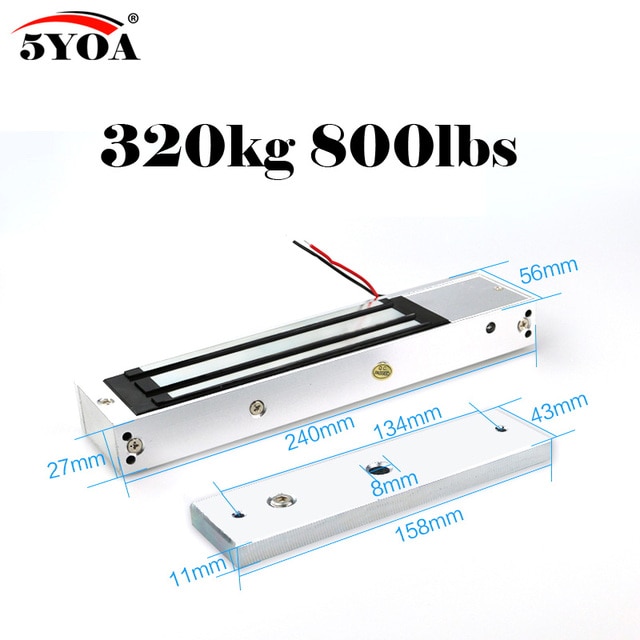

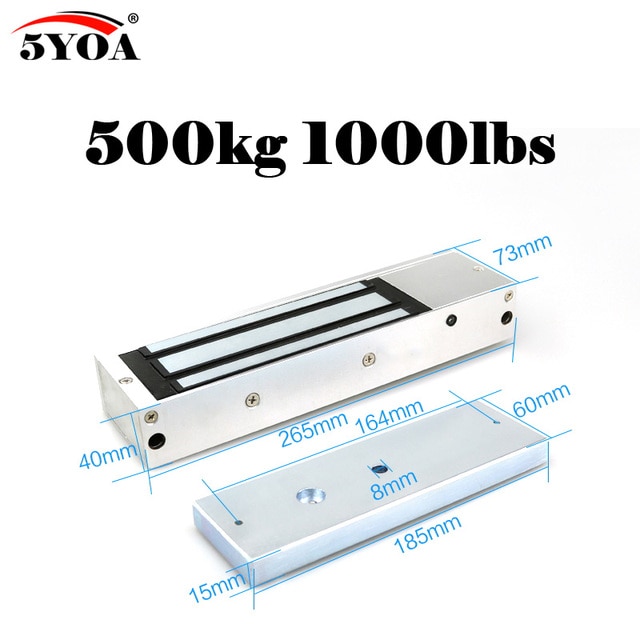

Use magnetic power to lock the door, 180kg(350lbs)/280kg(600lbs)/350kg(800lbs)/500kg(1000lbs) holding force.
Built-in reverse current protection device (MOV).
Alluminum shell adopts high strength material, with hard anodised processing.
Corrosion resistant.
Good quality and durable to use.
Can be opened by push button, remote controller, etc.
Fit for wooden door, metal door, glass door, fireproof door, etc.
Specifications:
Holding force: 180kg(350lbs)/280kg(600lbs)/350kg(800lbs)/500kg(1000lbs)
Voltage: DC 12V
Current: 380-430mA
Working temperature: -10 to 55 Celsius degree (14 to 131 Fahrenheit degree)
Humidity: 0 to 95%
Working mode: power-on to lock

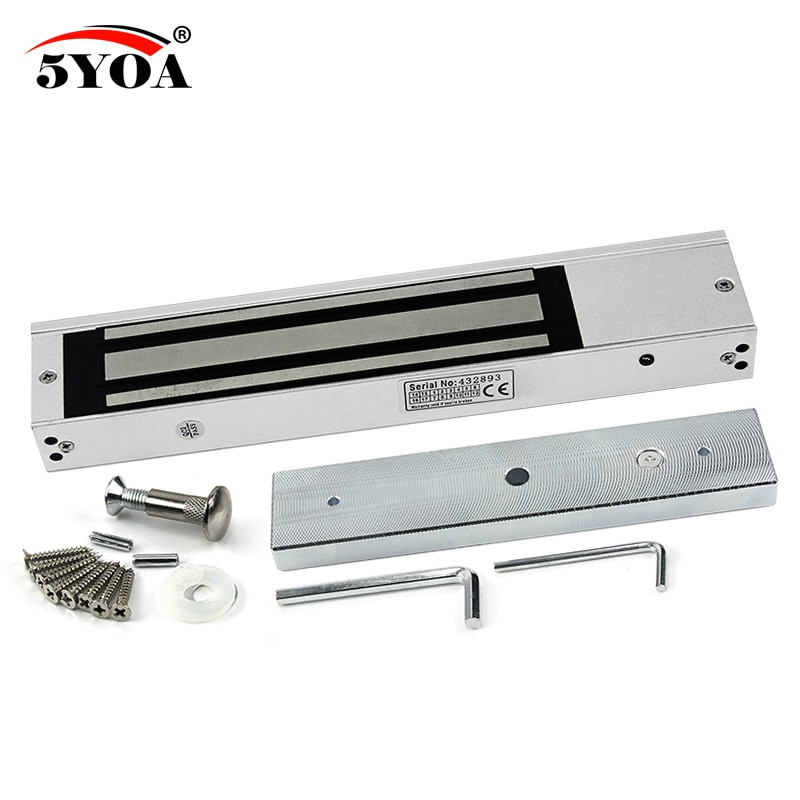

Packing list:
1 Electronic magnetic lock
1 Armature plate
1 Bag of installation kit
1 Pad

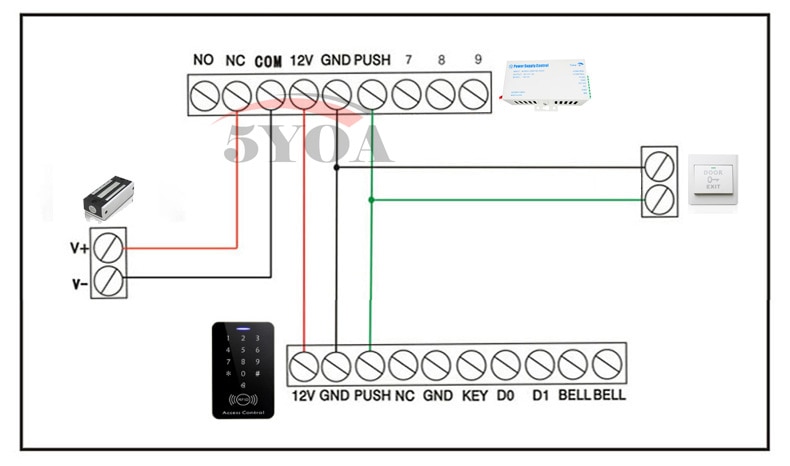

Normal Magnetic Lock Connection Diagram
With Feedback Function Magnetic Lock Connection Diagram
Products Showing

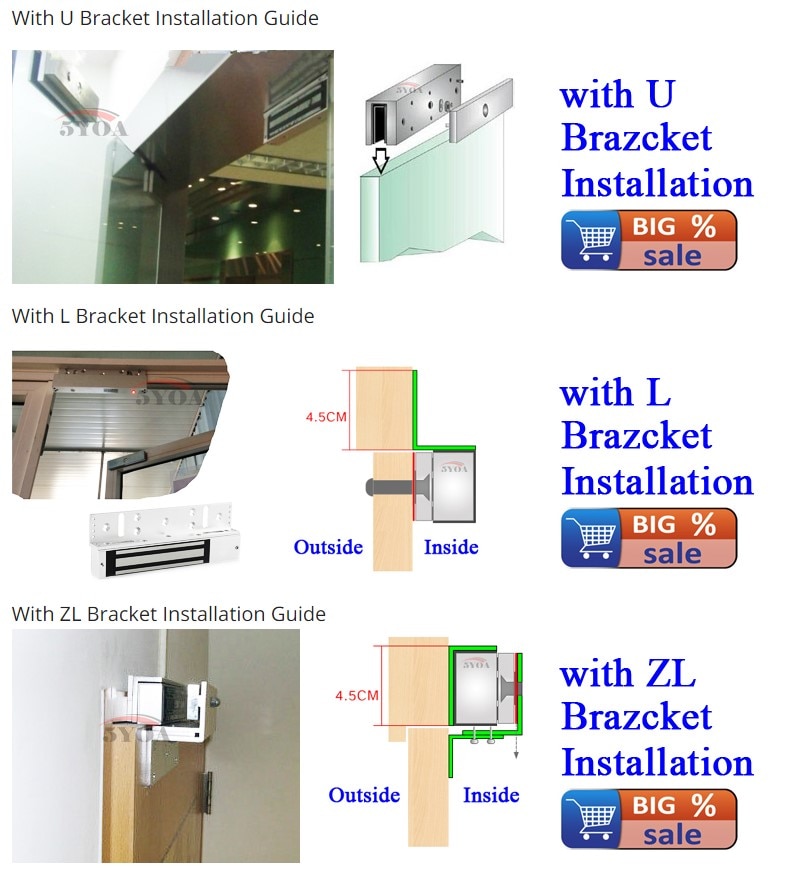

With U Bracket Installation Guide
- Direction: None
- Model Number: M1803
- Brand Name: 5YOA
- Certification: CE
- Smart home platform: Other
- Origin: Mainland China
