DZ30L DZ40LE EPNL DPNL 230V 1P+N Residual Current Circuit Breaker With Over And Short Current Leakage Protection RCBO MCB 6-63A
4.9 (718 votes) | 1803 orders
Price:
US $11.44 - 14.04
/ piece
Discount Price:
US $
9.95 -
10.53
/ piece
-13%

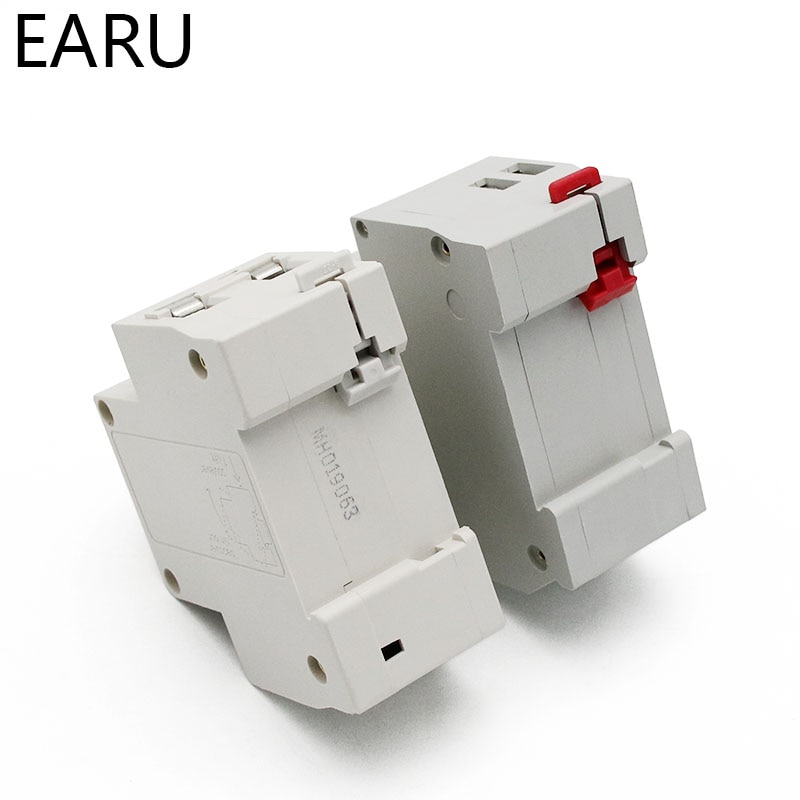

DZ30L DZ40LE EPNL DPNL 230V 1P+N Residual Current Circuit Breaker With Over And Short Current Leakage Protection RCBO MCB 6-63A
Construction and Feature | |||||||||||
1)Provides protection against earth fault/leakage current, short-circuit,overload,and function of isolation. | |||||||||||
2)Contact position indication. | |||||||||||
3)Provides protection against indirect contact by human body. | |||||||||||
4)Provides complementary protection against direct contact by human body. | |||||||||||
5)Effectively protects electric equipment against insulating failure. | |||||||||||
6)Equipped with switched neutral and phase pole . | |||||||||||
7)Provides protection against over-voltage. | |||||||||||
8)Provides comprehensive protection to household and commercial distribution systems. | |||||||||||
Technical Data | |||||||||||
9)Type: Electronic type | |||||||||||
10)Residual current characteristics: AC | |||||||||||
11)Pole No.: 1P+N | |||||||||||
12)Tripping curve: C | |||||||||||
13)Rated short-circuit capacity: 4.5KA | |||||||||||

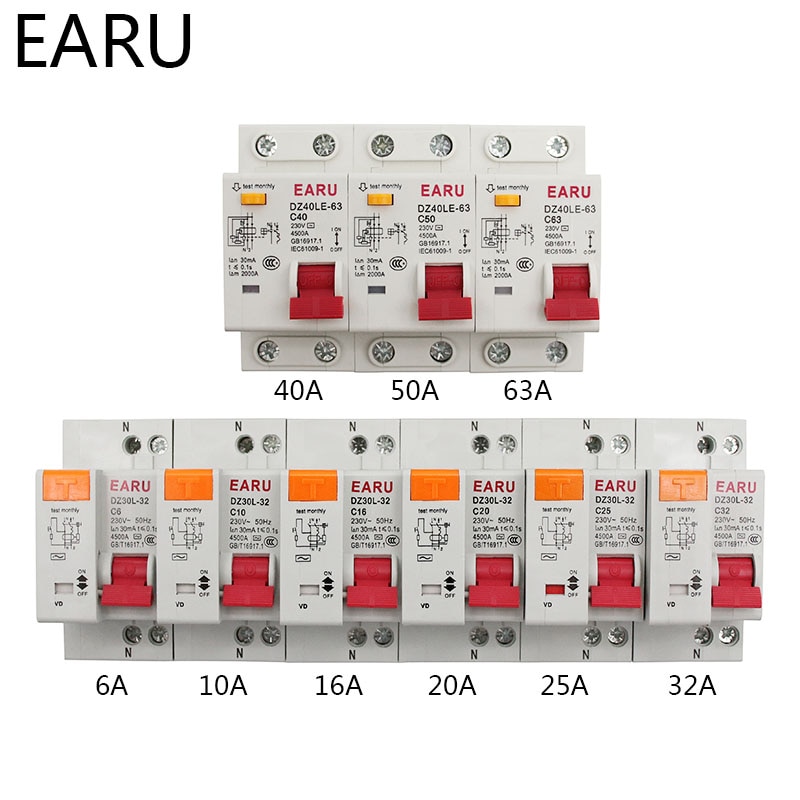

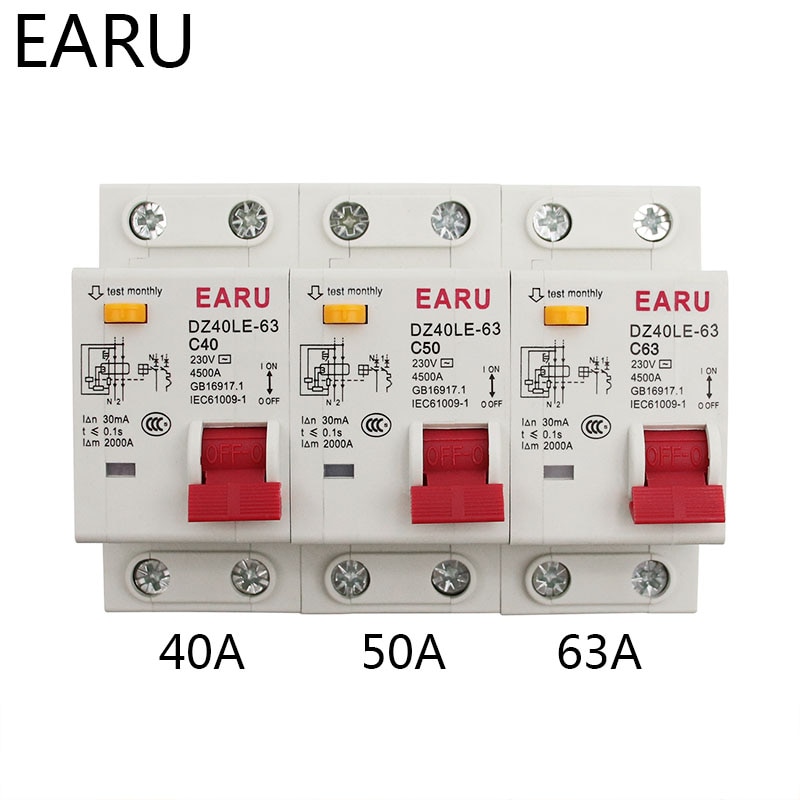

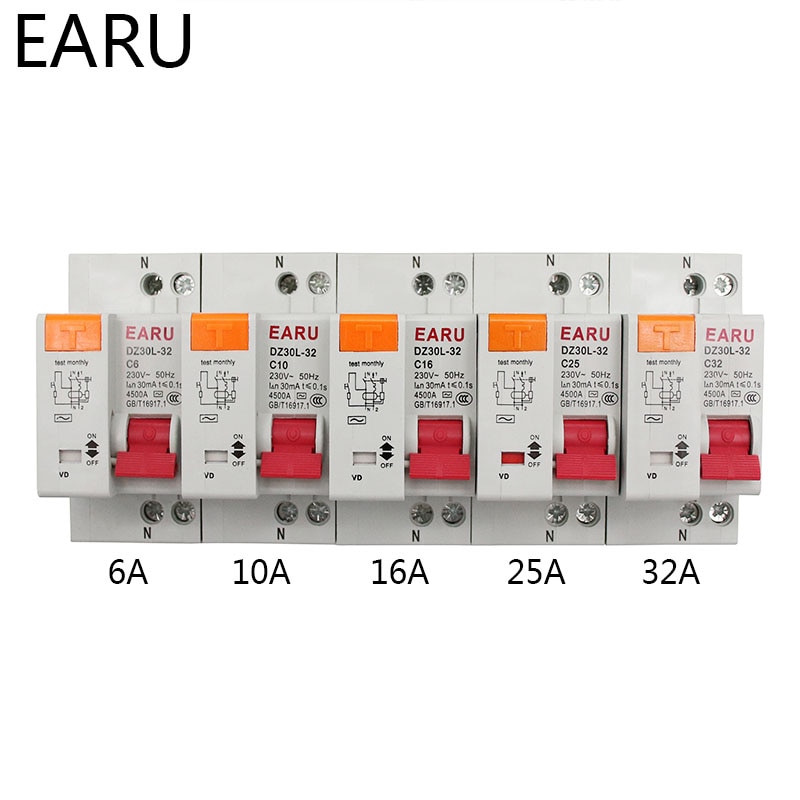

14)Rated Current(A): 6,10,16,20,25,32,63 | |||||||||||
15)Rated Voltage:230V AC | |||||||||||
16)Rated Frequency:50/60Hz | |||||||||||
17)Rated residual operating current(mA): 30 (63A is 15mA) | |||||||||||
18)Tripping duration:instantaneous under or equal 0.1s | |||||||||||
19)Electro-mechanical: pillar terminal with clamp. | |||||||||||

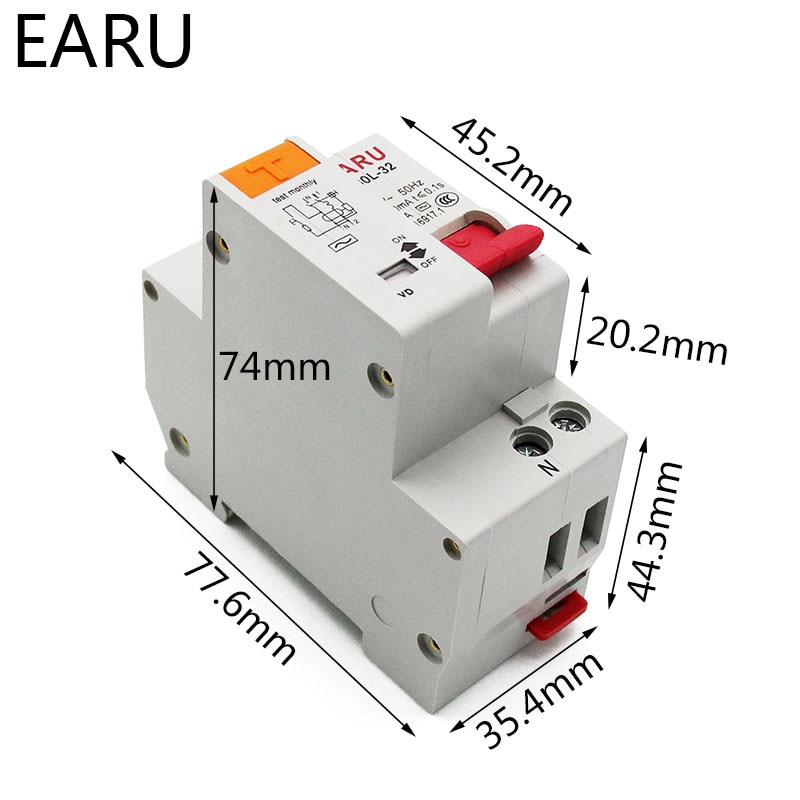

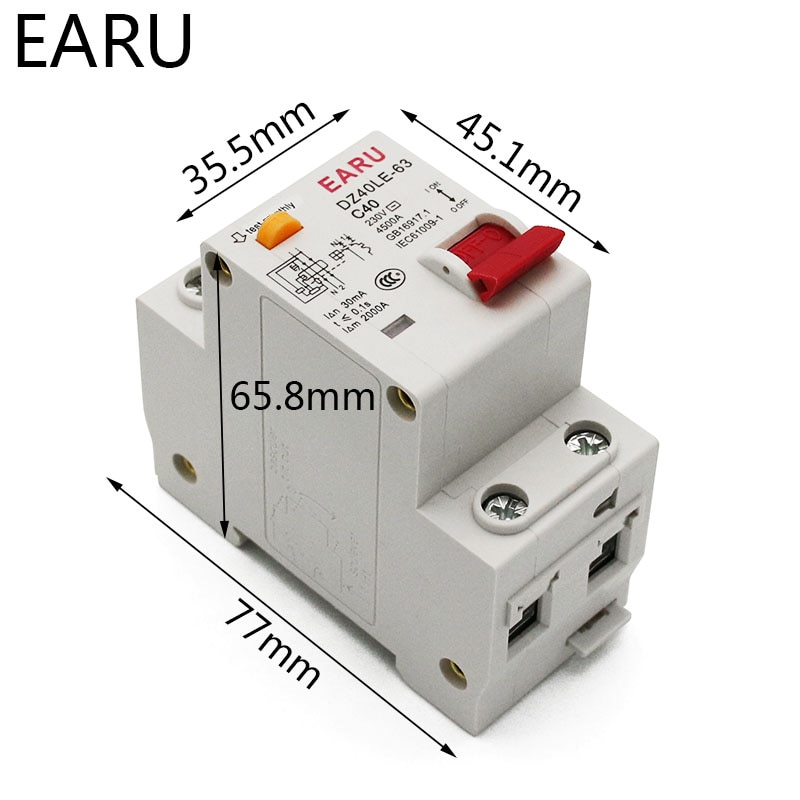

20)Terminal Connection Height: H1=16mm ,H2=21mm | |||||||||||
21)Over-votage tripping: 280V±5% | |||||||||||
22)Connection capacity: Flexible conductor 10mm2 , Rigid conductor 16mm2 . | |||||||||||
23)Installation: On symmetrical DIN rail 35mm, Panel mounting | |||||||||||
Accessories | |||||||||||
24) S2 Shunt Tripper | |||||||||||
25) U2+O2 Over-voltage and under-votage tripper. |
Product's advantage
1 , Our products have the guarantee period of 36 calendar months.
2, Our Products have an excellent ratio between price and quality , you can possess them by competitive price and high
quality .
3, The fast and flexible production form aim at the customer require.
4, The deliveries exactly in accordance with customer orders.
5, The fast transportation.
- Is Smart Device: No
- is_customized: Yes
- Model Number: DPNL-32/DZ30L-32/DZ30LE-32/DCZ40L-63/DZ40LE-63
- Type: Residual Current
- Brand Name: EARUELETRIC
- Origin: Mainland China
- Standard: IEC61009 GB6829
- Rated Voltage: 230V~
- Rated current: 6A 10A 16A 25A 32A 40A 50A 63A
- Mounting: 35mm din rail
- Breaking Capacity: 4KA
- Charcteristic Curve: C Type
- Type: electronic
