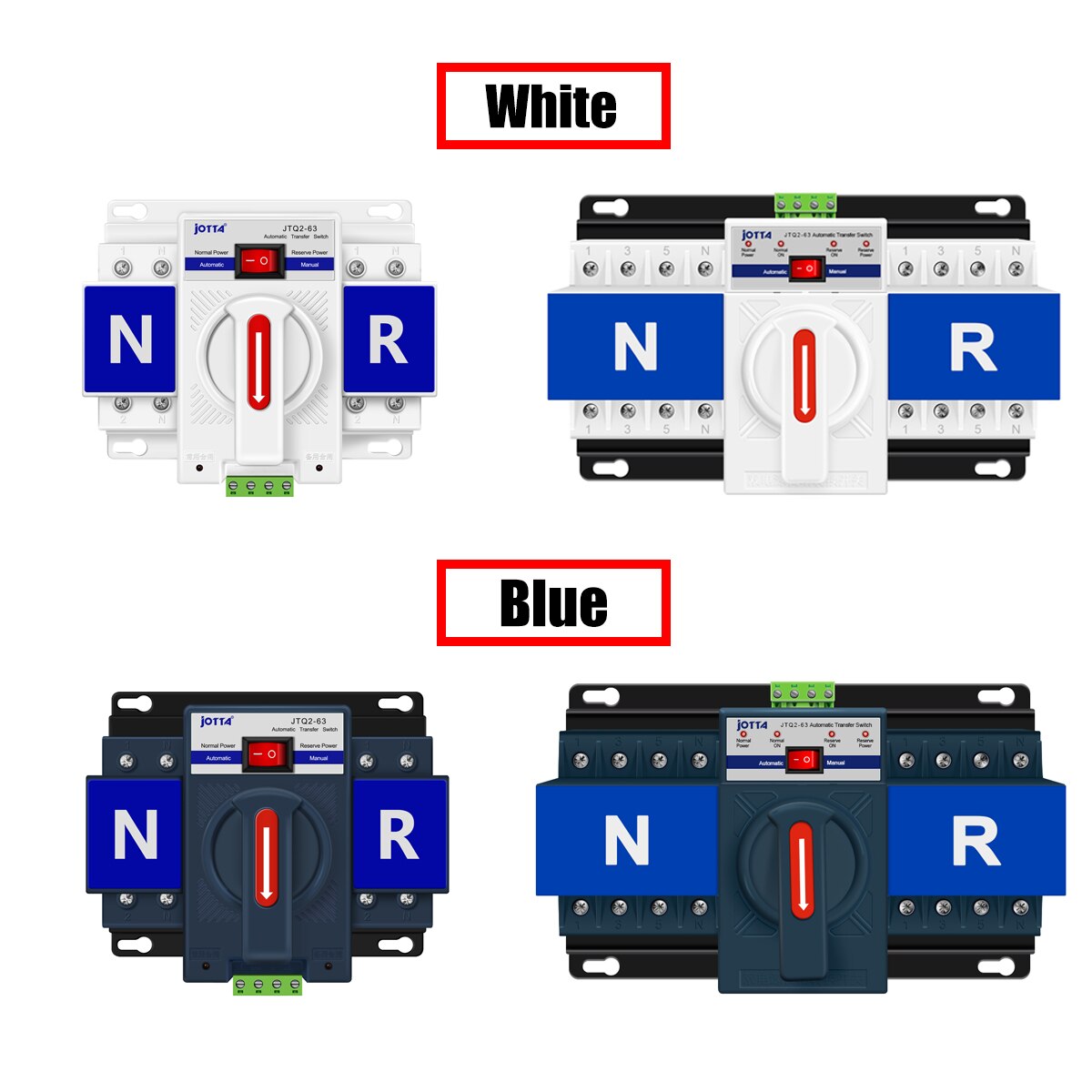

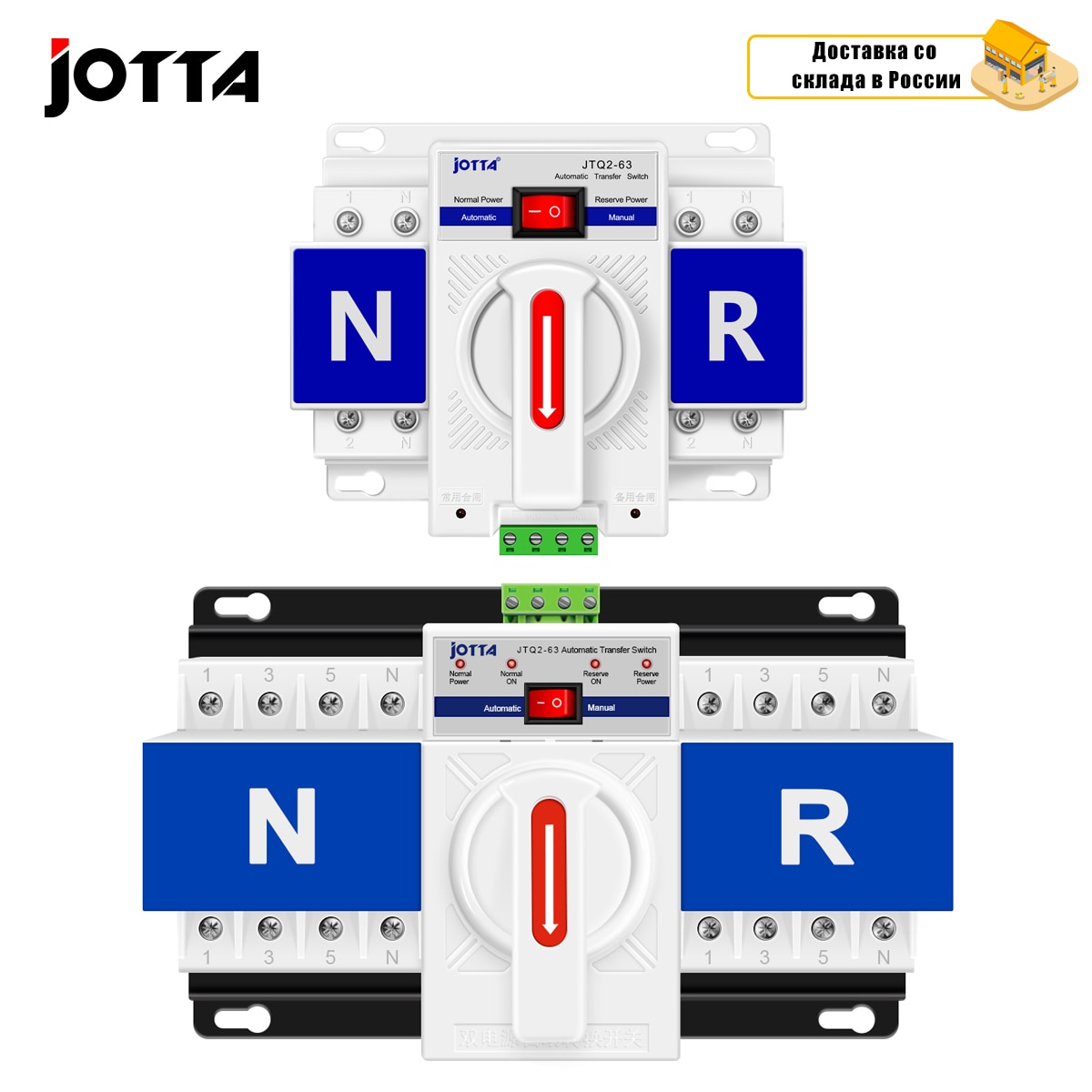

2P/4P 63A 220V MCB Type White/Blue Dual Power Automatic Transfer Switch ATS Rated Voltage 220V /380V Rated Frequency 50/60Hz

4.9 (54 votes) | 71 orders
Price: US $133.20 - 185.00 / piece
Discount Price:
US $ 64.80 - 90.00 / piece
-51%
Ships From
Poles Number
Rated Current
Quantity










2P/4P 63A 230V MCB Type White/Blue color  Dual Power Automatic Transfer Switch ATS Rated voltage 220V /380V Rated frequency 50/60Hz


Rated: voltage 220V 50/60HZ

Noted: power will be interrupted when Switching.

Switch time<4S

Max current: 63A.

1. Dual power Automatic transfer switch can switch to Normal power or reserve power automatically. Please noted that the switch can’t turn on or turn off the generator. This switch Normal power first. If normal power on, the switch will switch to Normal power. If normal power off, and reserve power on, the switch will switch to reserve power.

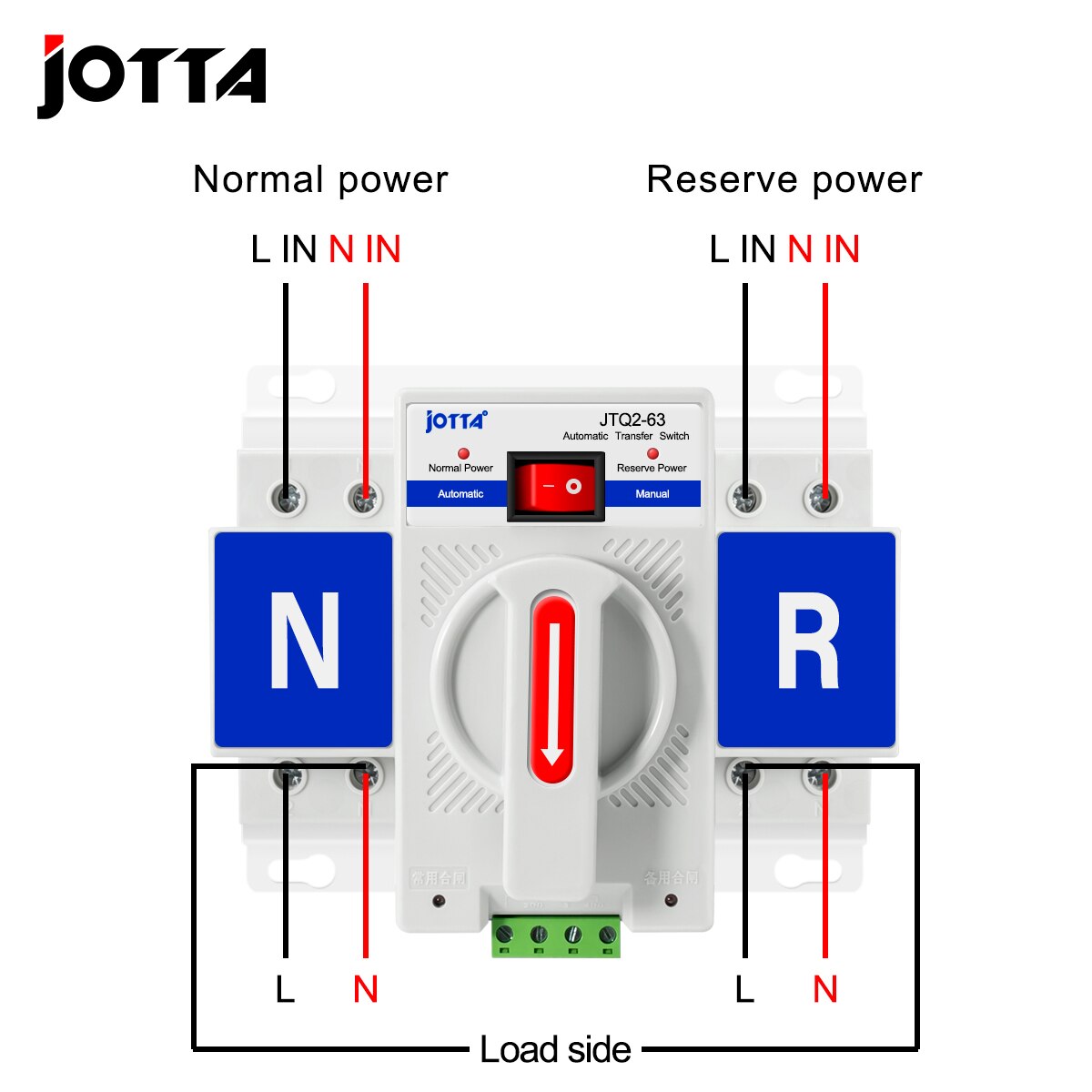

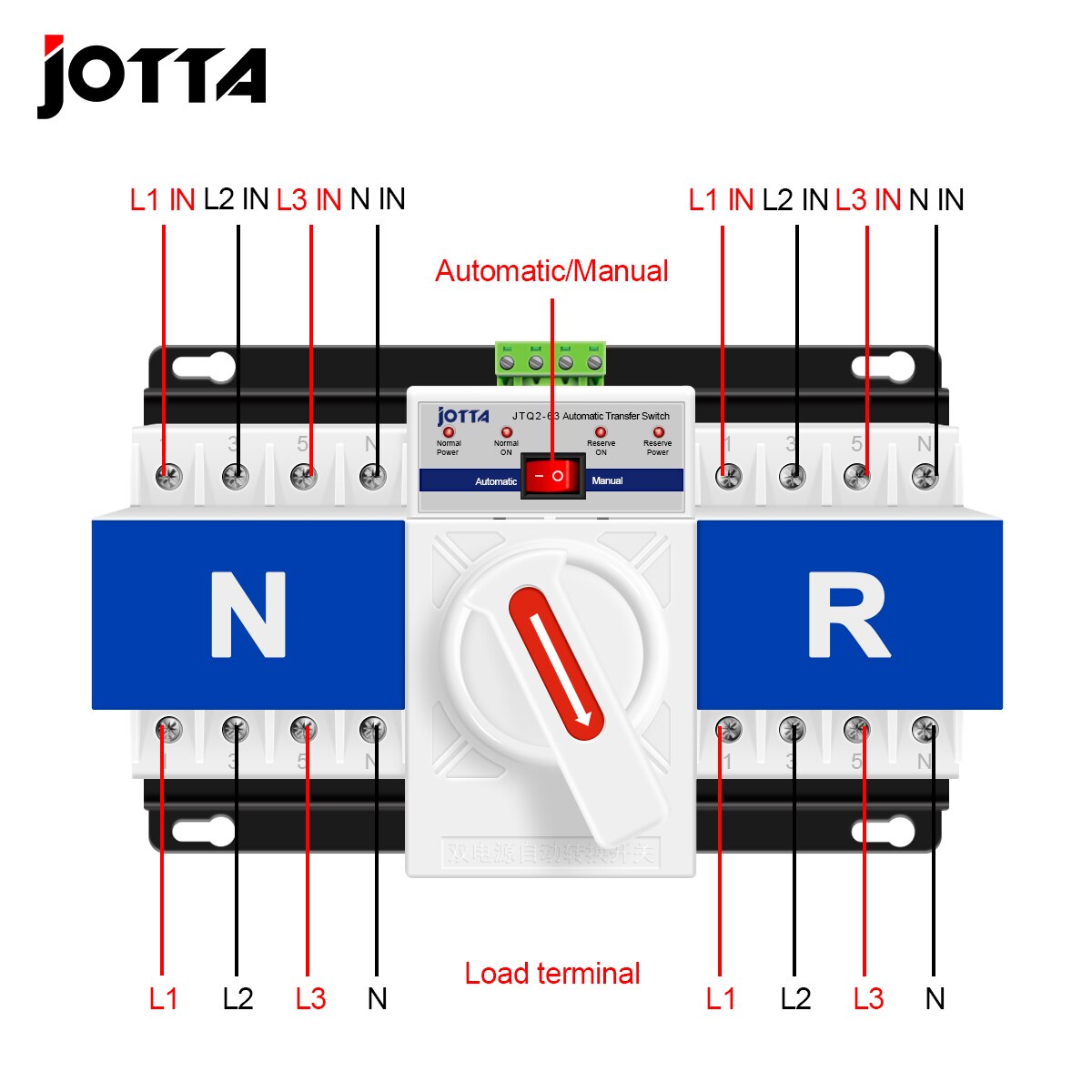

2.Wire

Press the button to Automatic, the switch will switch to Normal power or reserve power automatically.

Press the button to Manual, Then you have to switch the Direction manually.


1.Application
automatic transfer device. It’s suitable for 3 phases 4 wires (or 1 phase 1 wire) dual power grid with AC 50/60Hz, rated voltage 400V/230V and rated current up to 63A. When one power goes wrong (only test normal Phase A voltage and reserve Phase A voltage, only test loss voltage or loss phase),it will automatic connect one or several load circuits from one power to the other power automatically, to ensure normal power supply of load circuits.

The automatic transfer switch conforms to IEC60947-6-1 and GB/T14048.11


2.Normal conditions for operation and installation:

Environmental Temperature Condition:-5~+40°C

Installation site is not more than 2000 meters above sea level.

Pollution Level: Grade 3

Installation Category:  3

Vertical installation or horizontal installation

4. Main parameter

Rated Current Ie A

6,10,16,20,25,32,40

50, 63

Electrical Appliances Class

CB

Use Category

AC~33B

Tripping Current

5~10In (Type C), 10~15In (Type D),

Rated voltage Ue

220V (2P),380V (3P or 4P)

Rated frequency

50/60Hz

Rated short circuit connecting ability Icm (Peak)

9.18KA

6.615KA

Rated short circuit breaking ability Icn (effective value)

6KA

4.5KA










Every item will be packed well,we use carton box or Bubble film to pack it.

You can choose the delivery method you want,and we will send the order according to your choice if there are no other special circumstances.

Delivery time is accoring to the shipping method you choose,if there is any problem when you track the order,please feel free to contact us,we will contact the shipping company for you.

Please Note:You'd better know the protection time,if it only left a few days but you still do not receive the order,

please contact us for extending the protection,because if the protection is over,you can not open a dispute,and we can not give you the refund.

If the product is sent wrong one or it can not work at all,please contact  us at first time,

we will always be happy to serve you for any problem.

And we will send you a new one or give you a full refund according to the situation.

Thank you for your purchasing in our store,if you are satisfied with our products please give us a 5 statrs good feedback.

We will give you a 5% discount of product at your next purchase.

If your order is big,please contact us and we will give you a whosesale price according to the quantity.

If you are not satisfied with our product,please contact us at first time,we will give you a solution for the problems.

Hope all of you have a nice shopping experience in our store and wish all of you a good day!!!




  • Rated Voltage: 220V
  • Type: Circuit breaker
  • Is Smart Device: No
  • is_customized: Yes
  • Model Number: Q30-63-2P/4P
  • Type: Mini
  • Brand Name: JOTTA
  • Origin: Mainland China
  • Certification: NONE
