DN15/DN20/DN25 AC 220V Brass Electric Motorized Thread Ball Valve 2-Way 3-Wire DC 12V solenoid water valve with Actuator
5.0 (5 votes) | 93 orders
Price:
US $56.14 - 107.06
/ piece
Discount Price:
US $
40.28 -
68.90
/ piece
-28%
- Specification

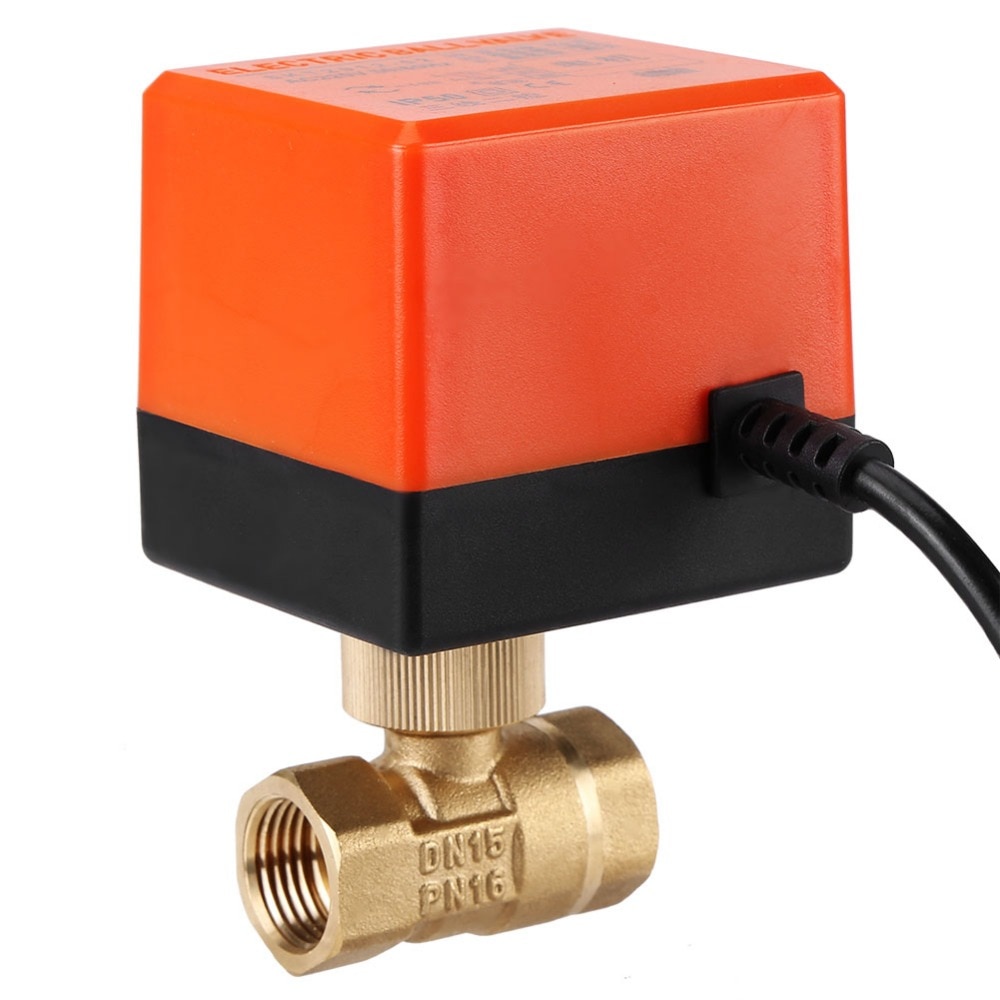

DN15/DN20/DN25 AC 220V Brass Electric Motorized Thread Ball Valve 2-Way 3-Wire DC 12V solenoid water valve with Actuator
Description:
This electric ball valve is made of high quality brass, durable for use. This 2 way 3-wire ball valve can be rotated 90 degrees. DN15 and DN25 two model for you to choose.
Features:
1. Made of high quality brass with durable performance.
2. Highly energy saving, long life design.
3. Suitable for medium of water, gas, oil.
4. This 2 way 3-wire ball valve can rotate 90 degrees.
5. DN15 and DN25 DN20 three models for you to choos
Specifications:
DN15,DN25:
Valve material: brass
Operation temperature: normal
Rotation: 90 degree
Medium: water, gas, oil
Operation pressure: 1.6mpa
Connection: thread
Power Supply: AC 220V
Control method: 2 Way 3-Wire

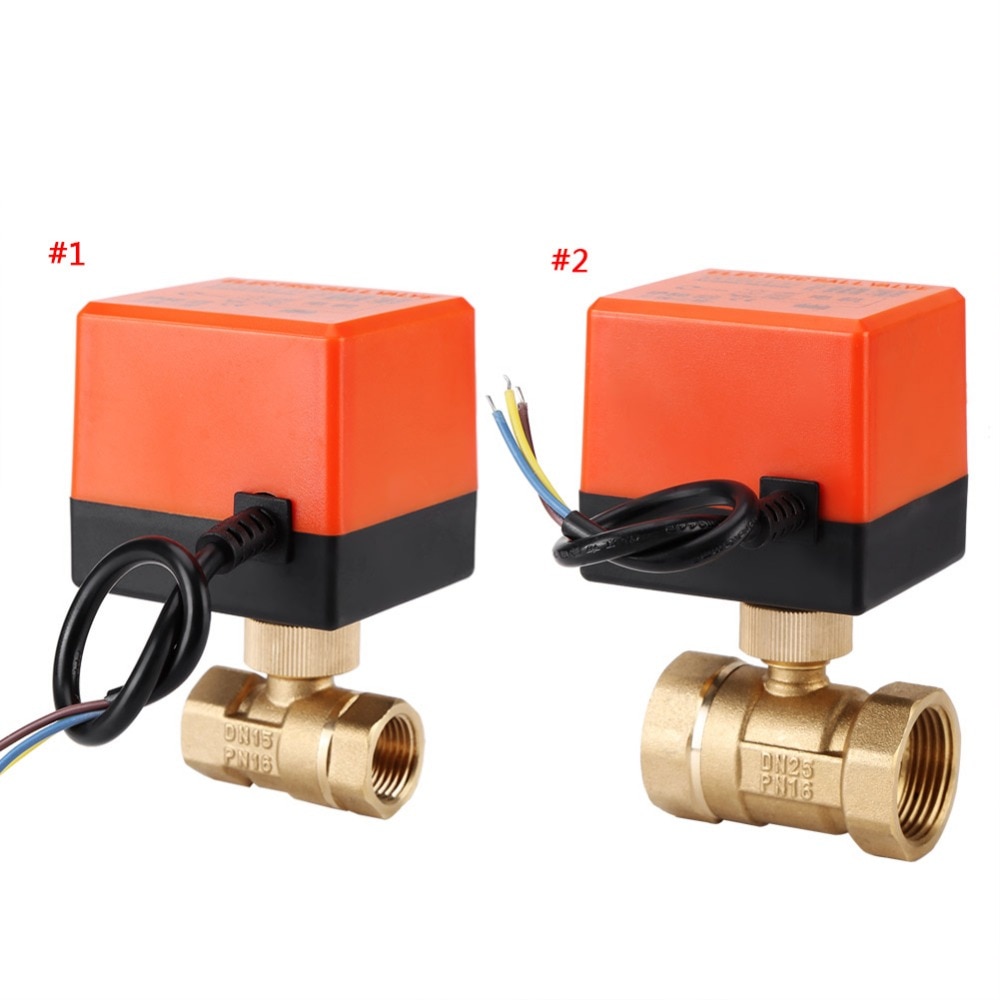

Model(Optional): DN15, DN25
Weight: 447g(DN15), 608g(DN25)

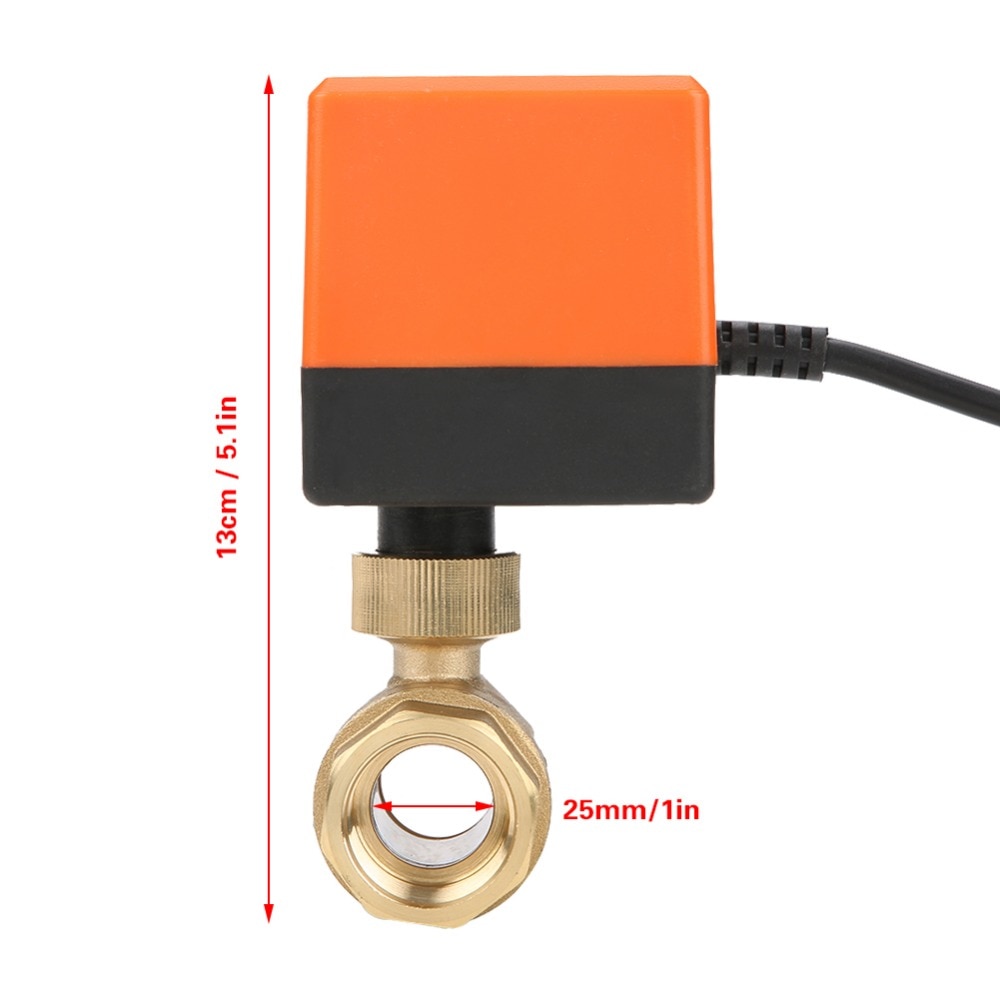

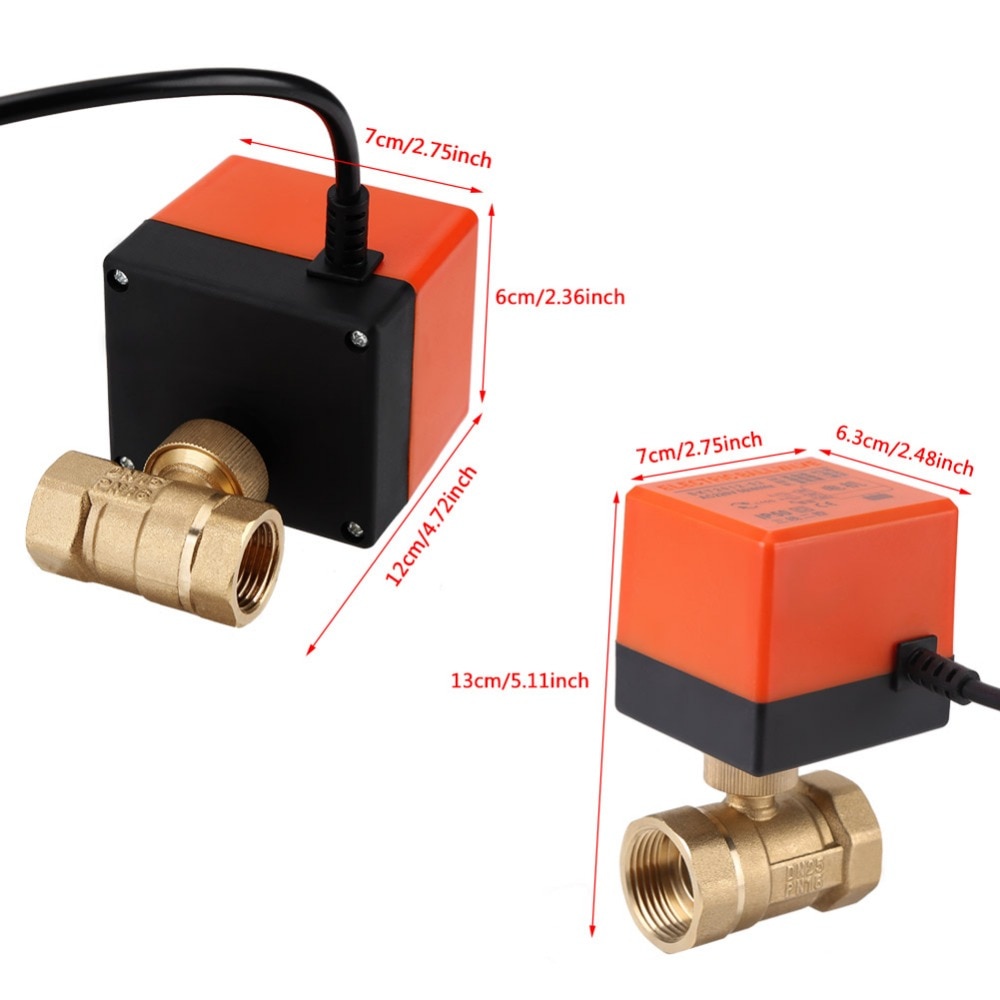

Size: 12*7*6cm / 4.7*2.8*2.4inch, 13*7*6.3cm / 5.1*2.8*2.5inch
Quantity: 1pc
DN20:
Material: Brass(valve), 304 stainless steel(stem), special rubber(sealing), aluminum alloy (driver base), ABS engineering plastic(driver cover)
Type: 2-Way 3-Wire 2-Point Control
Driver Motor: Hysteresis synchronous motor
Driver Working Voltage:AC220V
Power Consumption: ≤7.5VA
Valve Pressure: 1.6MPa
Allowable Pressure Difference: ≤0.13MPa
Suitable Fluid: Cold water, hot water
Suitable Fluid Temperature: 2℃-95℃
Ambient Temperature: 0℃-60℃
Open Time: About 10s
Close Time: About 5s
Valve Connection: G3/4 (DN20)
Weight: 666g / 23.5oz(approx.)

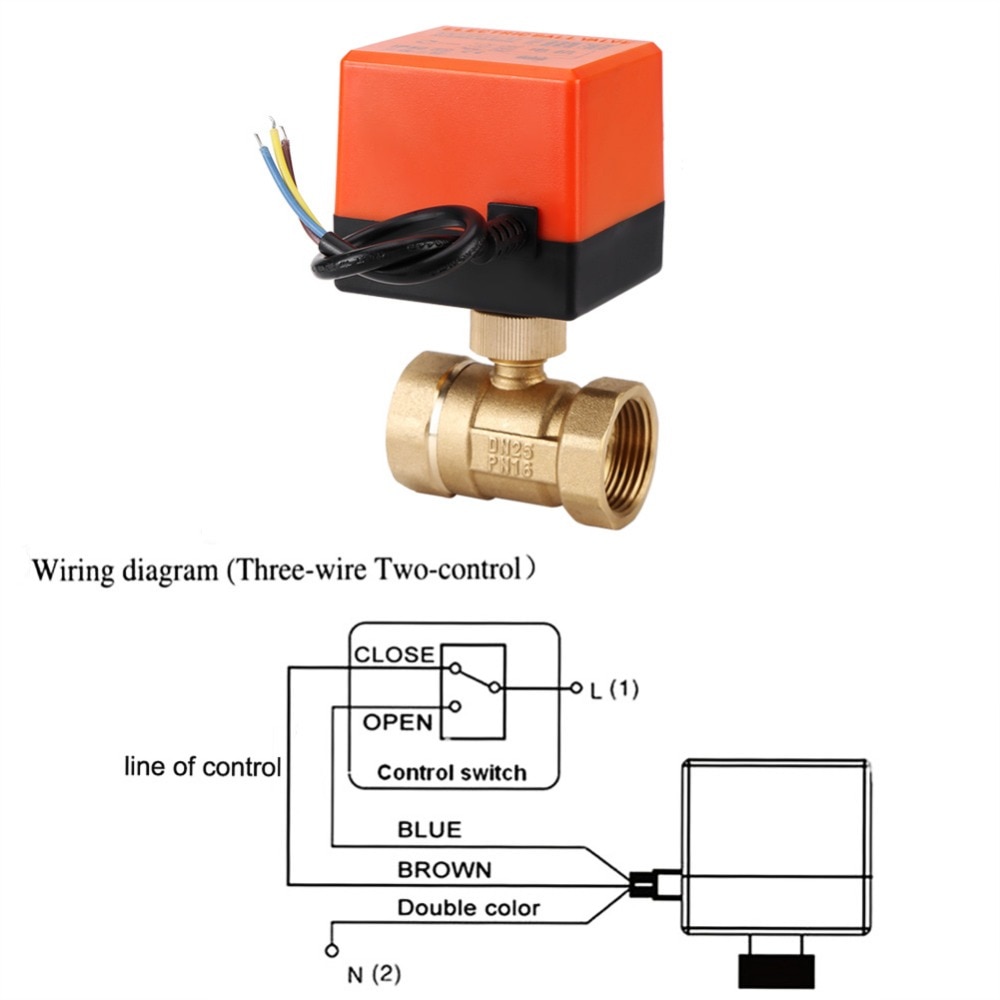

Wiring Method:
SR(Dual-color): COM
BR(Brown): Valve Close
BL(Blue): Valve Open
DN20 Installation:
1, Cut off the power supply before installation and it must be installed by professionals.
2, The direction of must be the same as the direction on the valve body.
3, The valve should be located above the fan water tray, to ensure that drops of water fall into the water tray.
4, The valve and the driver must be installed within ±60° in vertical direction, and there should be at least 30mm space above for dismantling.
5, The should be enough space from surrounding pipes, devices and building for maintenance operation, and making sure the place is reachable by maintenance personnel through manhole.
6, Two or more valves cannot be connected in parallel. If parallel connection is really necessary, use relay for isolation.
7, Installed valve first and test pressure with pipeline, then install driver.
8, If the driver is already installed on the valve, do not apply force on driver during installation and debugging work, otherwise the driver will be damaged.
9, The drive cannot be wrapped with thermal insulation material, otherwise it will affect its heat dissipation.
10, The driver must be grounded reliably with wires not less than 1.5mm⊃2;, other wires should be in conformity with the relevant standards of electrician.
11, After installation and making sure everything is correct, power on and debug without water. Observe three complete operation of the drive at least, till all parts are normal and correct.
12, After adjustment without water, then debug with water.The fluctuation pressure difference of water in system must be strictly controlled within 0.13MPa, to ensure the effectiveness of the valve to water switch.
Package Included:
1 x Ball Valve
Type(optional)：
AC220V DN15 DN20 DN25
DC12V DN15 DN20 DN40
Feedback From Buyer：
1) We accept Alipay, West Union, TT. All major credit cards are accepted through secure payment processor ESCROW.
2) Payment must be made within 3 days of order.
3) If you can't checkout immediately after auction close, please wait for a few minutes and retry Payments must be completed within 3 days.
About shipping
1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)
2. Orders processed timely after the payment verification.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
4. The images shown are not the actual item and are for your reference only.
5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
6. If you have not received your shipment within the period, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
8. We seller are not in charge of import duty, buyer is responsible for that. Any dispute caused by this is unreasonable.
9. BR buyer please provide the cpf or cnpj, it will be better for you to get it more quickly. thanks
Return and Refund
1. You have 7 days to contact us and 30 days to return it from the date it was received. If this item is in your possession more than 7 days, it is considered used and WE WILL NOT ISSUE YOU A REFUND OR REPLACEMENT.
2. All returned items MUST BE in the original packaging and you MUST PROVIDE us with the shipping tracking number, specific reason for the return, and your po#.
3. We will refund YOUR FULL WINNING BID AMOUNT, upon receipt of the item in its original condition and packaging with all components and accessories included, AFTER BOTH Buyer and Seller cancel the transaction from Hogaki. OR, you may choose to have a replacement.
About feedback
We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns.
It is impossible to address issues if we do not know about them!
- Is Smart Device: No
- Actuator Mode: Without Manual And Instruction
- Power Source: AC
- Port Size: DN15 DN25 DN20
- Media: Water
- Temperature of Media: Medium Temperature
- Standard or Nonstandard: Standard
- Model Number: Electric Ball Valve
- Power: Manual
- Pressure: High Pressure
- Material: BRASS
- Structure: control
- Brand Name: Aramox
- Origin: Mainland China
- Certification: NONE
- Feature 1: Ball Valve
- Feature 2: Electric Ball Valve
- Feature 3: Brass Ball Valve
- Feature 4: 2 Way Ball Valve
- Feature 5: 1/2 Electric Ball Valve
- Feature 6: 1 Electric Ball Valve
- Feature 7: Solenoid Valve
- Feature 8: Ball Valve
- Feature 9: Water Valve
- Feature 10: Water Return Valve
- Feature 11: Water Stopwater
- Feature 12: Check Valve
- Feature 13: Valve
