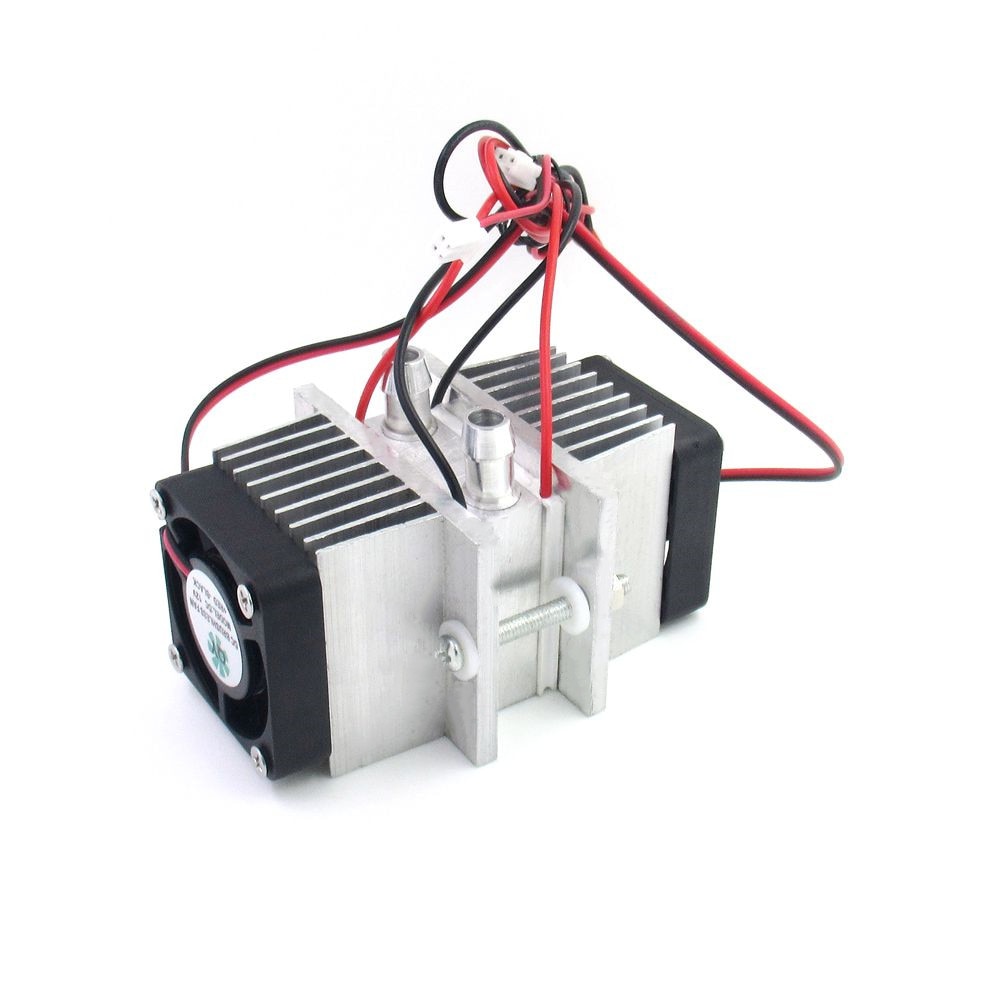

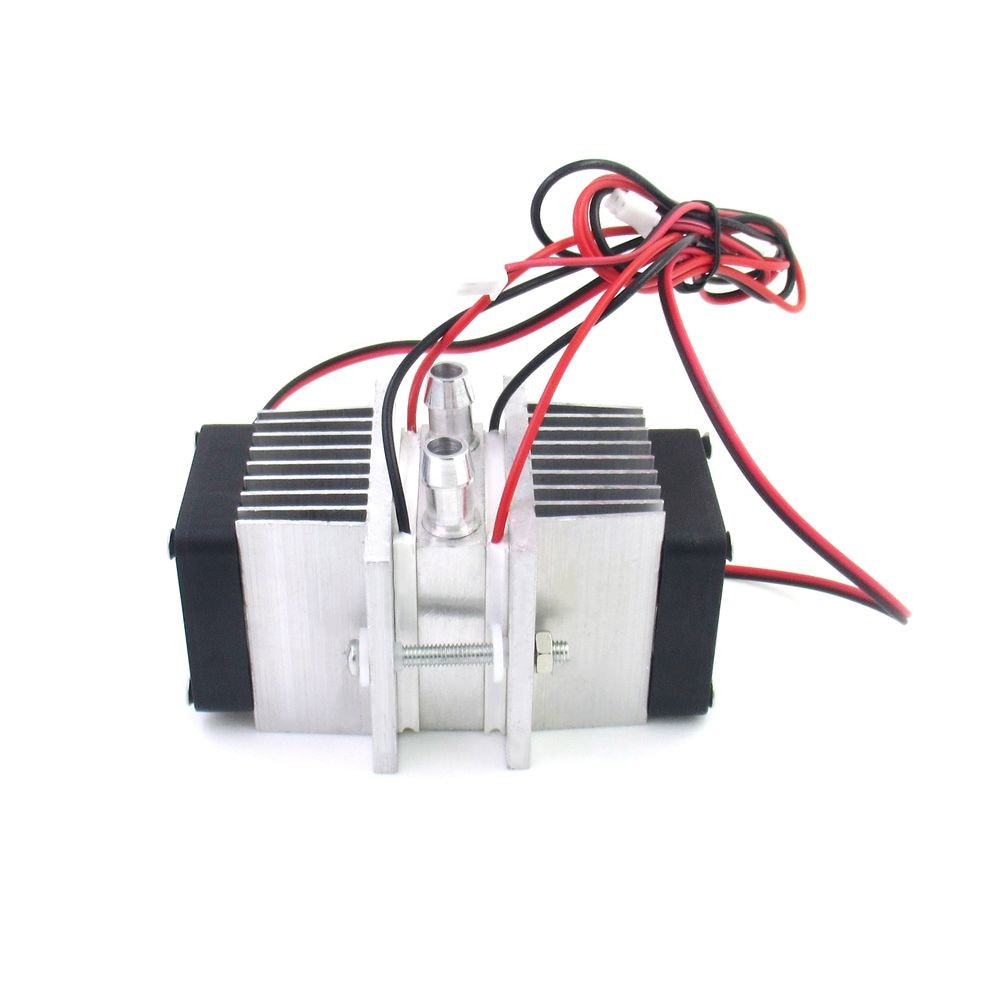

DIY Semiconductor Refrigeration System Kit Mini Refrigerator Cooler 12V Conduction Module+Water Cooling Head+Fan+TEC1-12706
4.8 (32 votes) | 164 orders
Price:
US $50.45
/ piece
Discount Price:
US $
36.48
/ piece
-28%
Sorry! This item is out of stock
With the wide applications of semiconductor cooling, more and more DIY enthusiasts are interested in it. It's a question that how to make refrigerating capacity to a more great extent in water cooling applications. This DIY kit could be just to your taste to solve this problem.
Reminder
This is not installed, just kit. It'll need yourself install.
It's not suitable for pepole who are beginner and don't know anything about the cooling system kit. We don't offer any technical support.Please read carefully with the follow instrution and vedio before you purchasing. Thanks!
Burnt Issue Problem Possible Reason
Thermoelectric peltier The hot end of peltier must be well-dissipated. If the heat is not good, not only the temperature will not be too low, but also it is easy to burn the peltier (take the peltier without heat to directly electrify, and definitely burn in one minute)!
How to use and test peltier? ↓
https://v.youku.com/v_show/id_XMzYzMjYwOTE1Ng==.html?x&sharefrom=android&sharekey=5172bbfa810f9fa2771e243adcbce9e17
Assembly and DIY refrigerator video ↓
http://v.youku.com/v_show/id_XMzY2NjUzMDEyMA==.html?x&sharefrom=android&sharekey=b4396e0832563c1931f65d407da0d6d24
The peltier must be prepared for heat dissipation before powering on. Powering on without adequate heat dissipation / insufficient heat dissipation preparation will cause the peltier to burn directly.
The peltiers we send are all brand-new and intact, and they have also been tested for quality at the factory. Due to the particularity of peltiers, any damage after power-on is not a product quality problem.
Features
Adopt TEC1-12706 semiconductor chilling plate, good quality for use.
Complete sealed structure, isolating the moisture in the air.
Higher reliability than others.
Include TEC1-12706 semiconductor cooler, 2 conduction module and other accessories, easy to install.
Great DIY kit for electronic enthusiasts in semiconductor cooling applications.
Note
1. The conduction cool module can frost when the temperature is under -25°C.
2. TEC1-12706: one side with words is the refrigeration side, the other side is heat dissipation side.
3. Must install heat sink or water-cooled radiator on the heat dissipation side; otherwise will burn the Peltier.
4. The DC power is not included in this kit, please prepare it by yourself.
Specifications

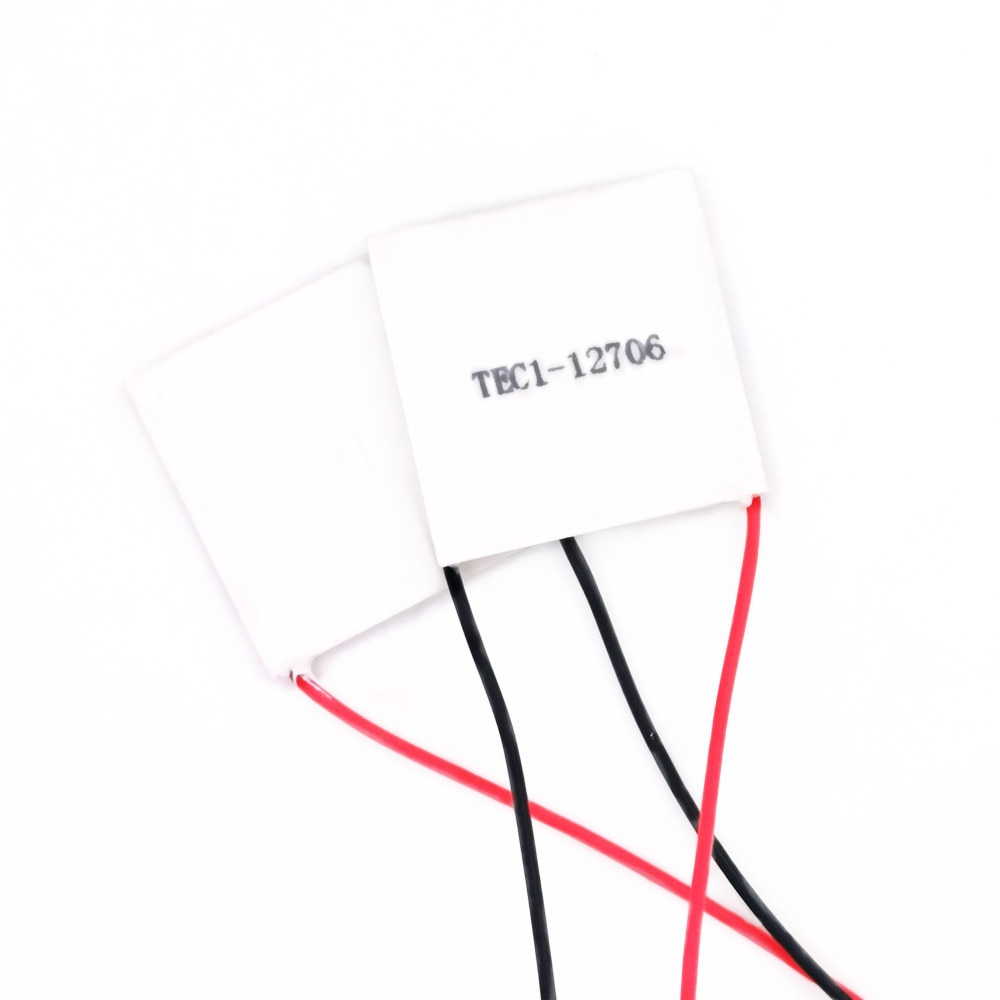

Semiconductor Chilling Plate: TEC1-12706
Size: 40 * 40 * 3.75mm
Internal Resistance: 2.1~2.4Ω
Max. Temperature Difference: 67°C Above
Rated Voltage: 12V(Vmax. 15V, Starting Current 5.8A)
Working Current: Imax.=4~4.6A(Rated 12V)
Refrigeration Power: Max. 50~60W
Working Environment: -55~83°C
Sealing Process: Standard 704 silicon rubber sealing all sides

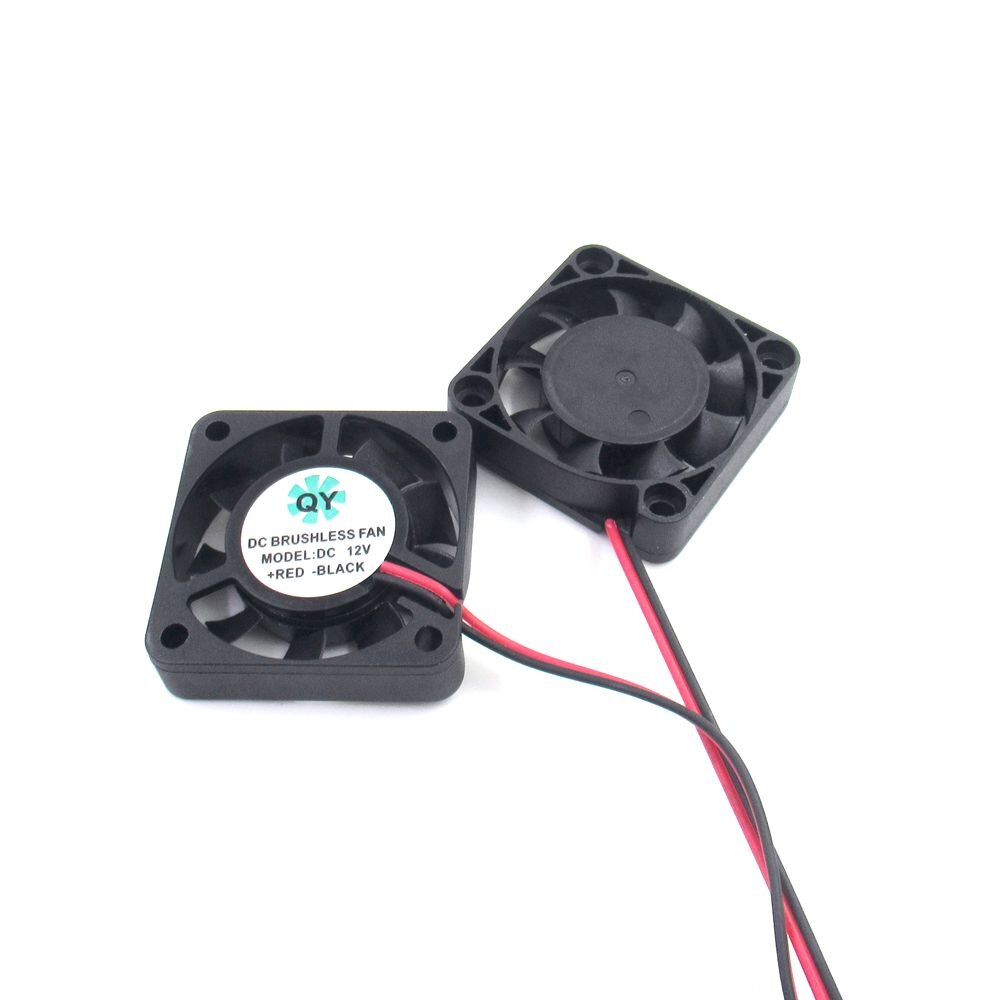

Fan: DC 12V
Small Fan Size: 40 * 40 * 10mm

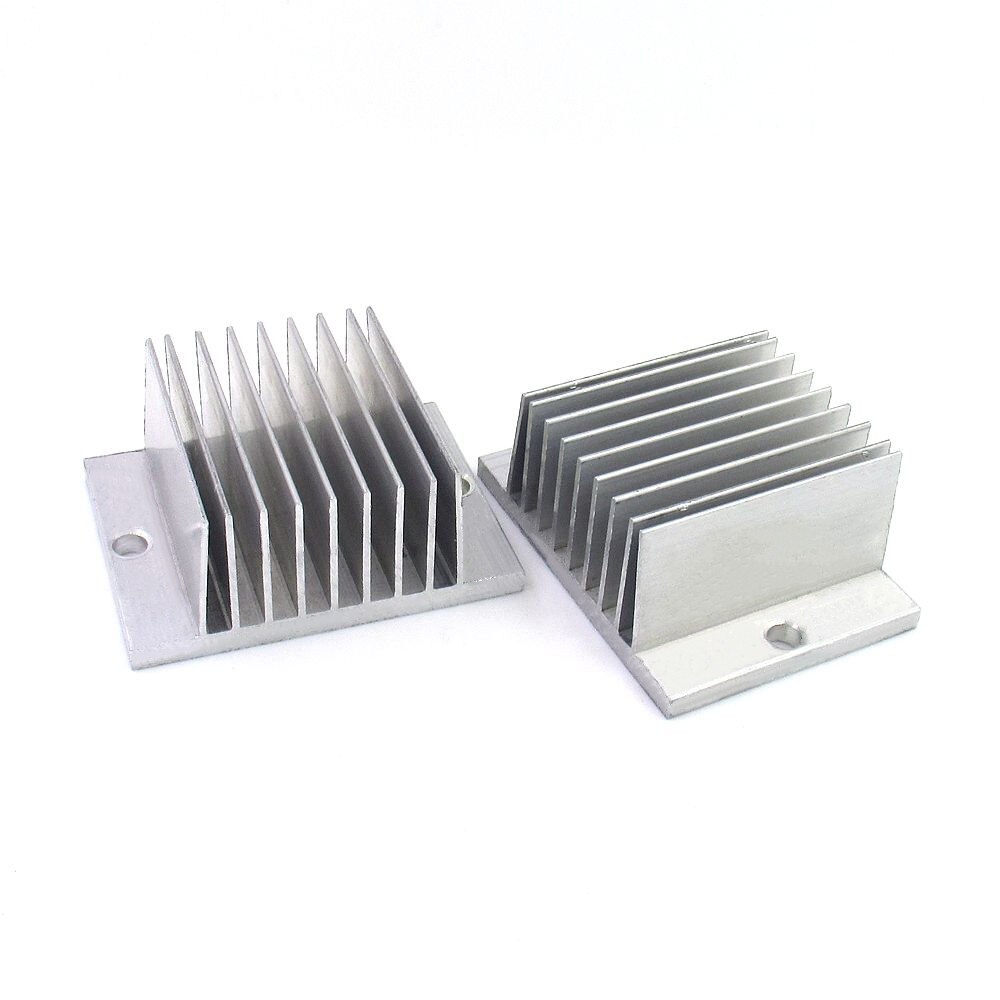

Conduction Module Size: 60 * 45 * 21mm
Water Cooling Head Size: 40*40mm
Machine size: length 58mm * width 60mm * total thickness 92mm
Machine power: in the case of 15.4V, two TEC1-12706 cooling fins 144W + two coolingfans 3W ≈ 147W (while in the case of 12V, it'll be about 100W)

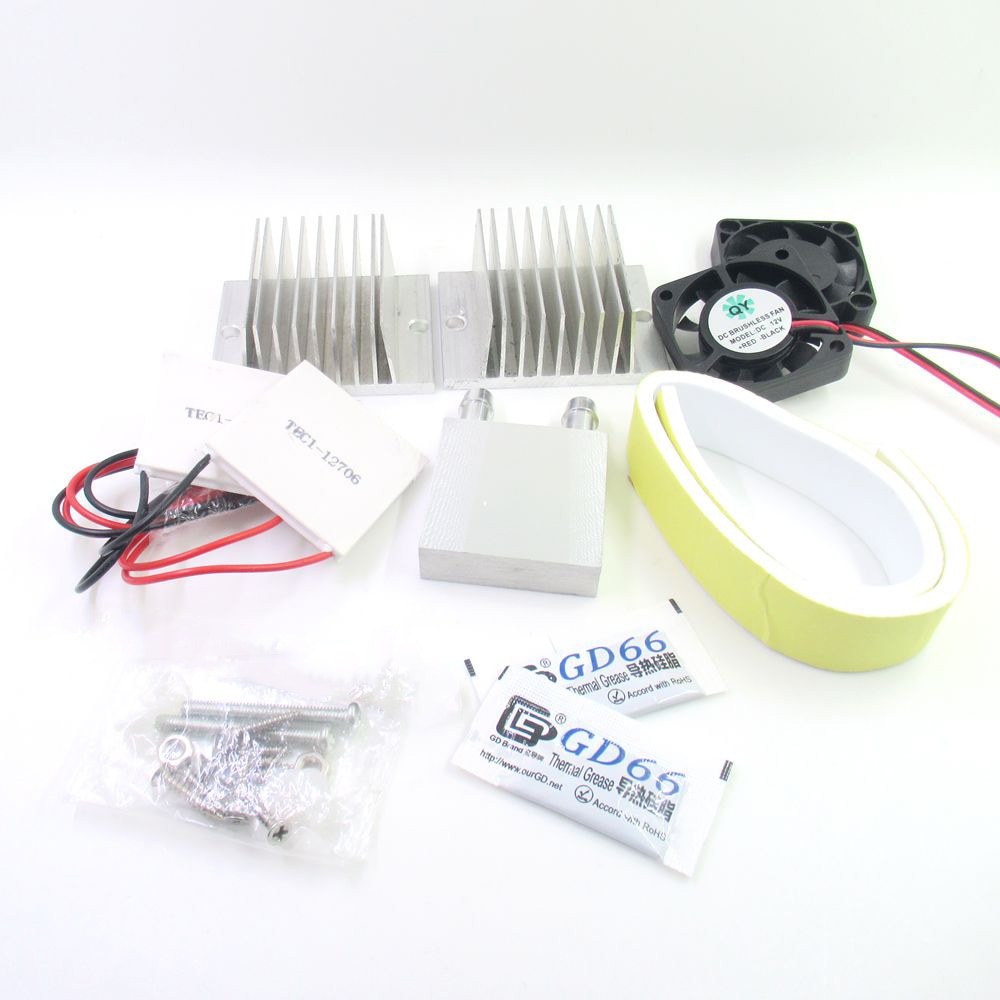

Package List
2 * TEC1-12706
2 * Small Fans
1 * Water Cooling Head
2 * Conduction Module
2 * Thermal Grease
1 * Thermal Insulation cotton
1 * Pack of Screws
- Origin: Mainland China
