220V 50cm Width Healthy Floor Heating Infrared Underfloor Heating Carbon Film Heater
5.0 (9 votes) | 22 orders
Price:
US $915.16 - 8181.68
/ piece
Discount Price:
US $
686.08 -
6135.70
/ piece
-25%
220V 50cm Width Healthy Floor Heating Infrared Underfloor Heating Carbon Film Heater
>>>Specifications:
Working voltage:
200~240V 50/60Hz
Rated power:
220W/m2
Max surface temperature
: 52C degrees
Thichness:
0.338mm (the 0.25mm heating film is not suitable for underfloor heating.)
Width:
50cm
Notice: order only includes the heating films.
Add 1 USD via the following link to get
2 clips
and
4 insulation
pastes together:
https://www.Hogaki.com/item/4000989870531.html
Heating Using a Heating Film
The petroleum, gasm electric heaters are a convective heating type through primary heating, but the heating film is of a radiant heating method that radiates far infrared rays heated secondarily from the carbon semiconductor to be an ultra-power-saving heating system with an excellent energy efficiency, heats the object with a light and thin film to be attachable to the walls as well as the floors, and can use the space freely to be a new material of dream. This is safe, semi-etemal well-being heating system that purifies the room air, provides pleasant heating and smoothes the blood circulation by radiating a lot of far infrared rays and anions using only electricity, a clean energy, without consuming the dissolved oxygen in the room for convection and heat radiation.
Superiority of Heating Film Heating System:

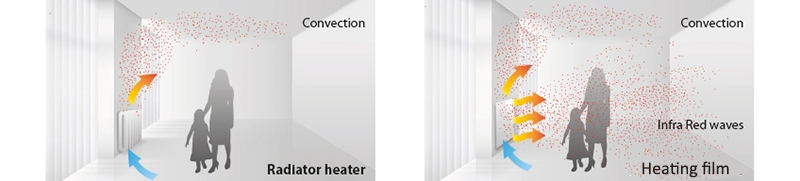

Infra red heating is one of the healthiest and most modern method of heating, which uses a similar thermal properties as the sun itself. Infra red rays directly heat people, walls and objects, and then the air is heated from them. In traditional radiator heating it leads to heating and drying the air. Warm air flows up and first heats the top of the room and then low-lying objects, people and so on.
- Infra panels have an efficiency of 98%, an average energy saving is 30%
- Infra heating does not cause dust dispersion
- It creates a healthy environment, destroys bacteria
- Ensures uniform temperature in whole room
- Clean, noiseless, maintenance-free operation and space-saving
- Easy control and operation with thermostats
- Easy installation, no need to rework the floor or walls
When using infra red heating, the air temperature is usually lower by 3-4 ° C, as in a room with traditional heating it to achieve a comparable feeling of warmth. Lowering the air temperature by 1 ° C can save up to 5-6% of energy.

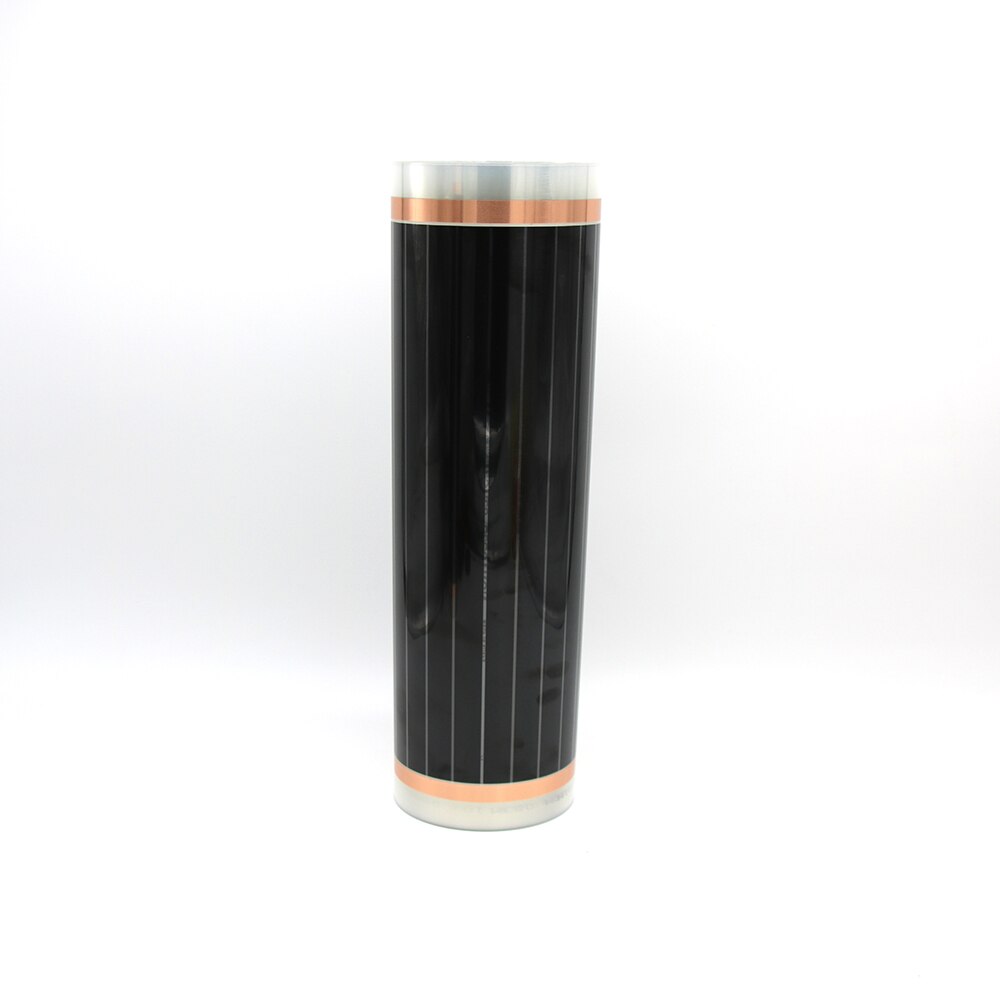

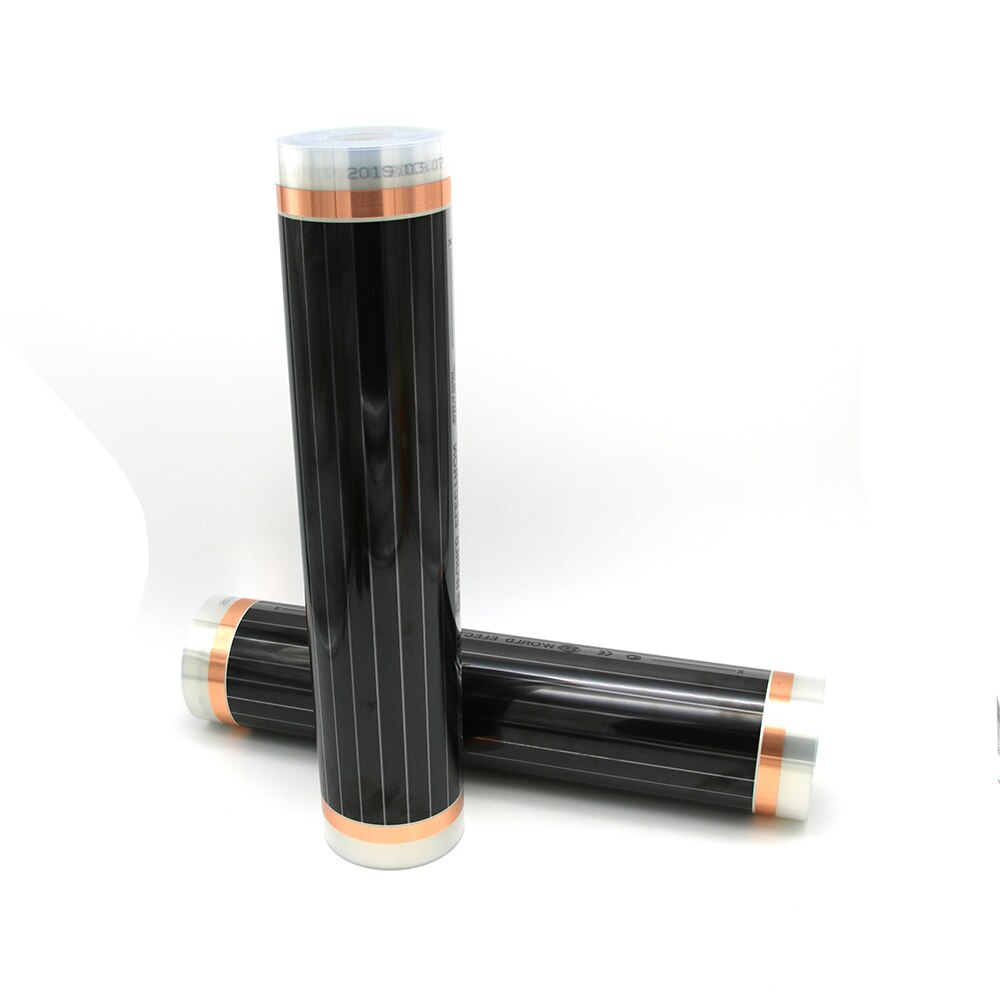

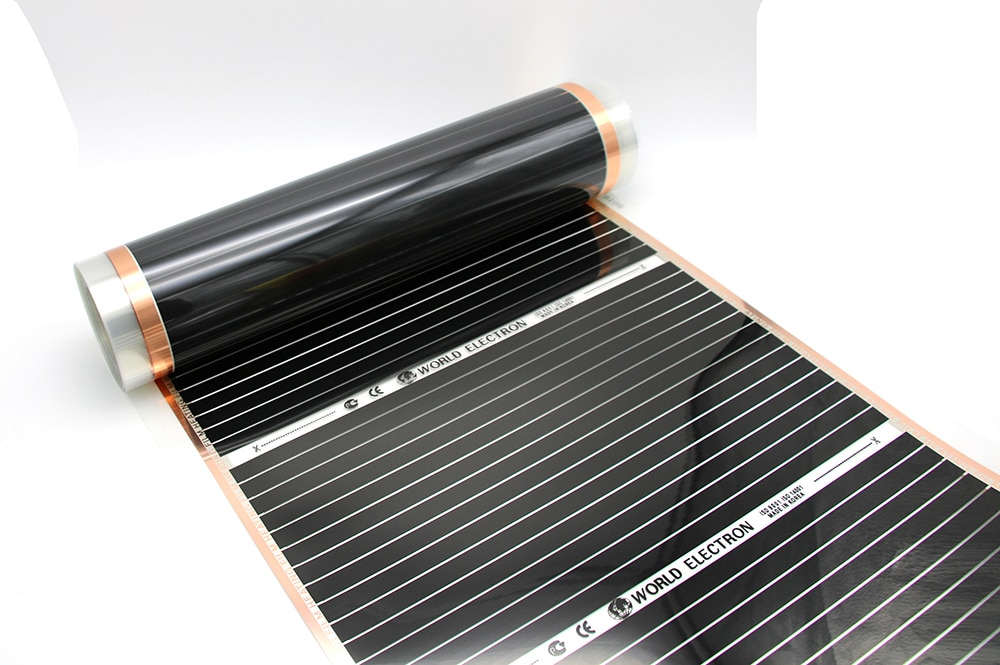

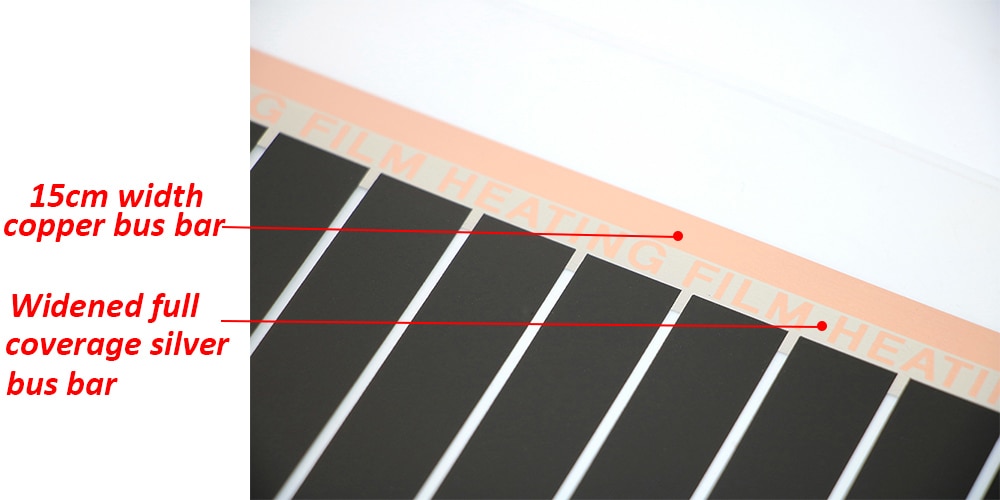

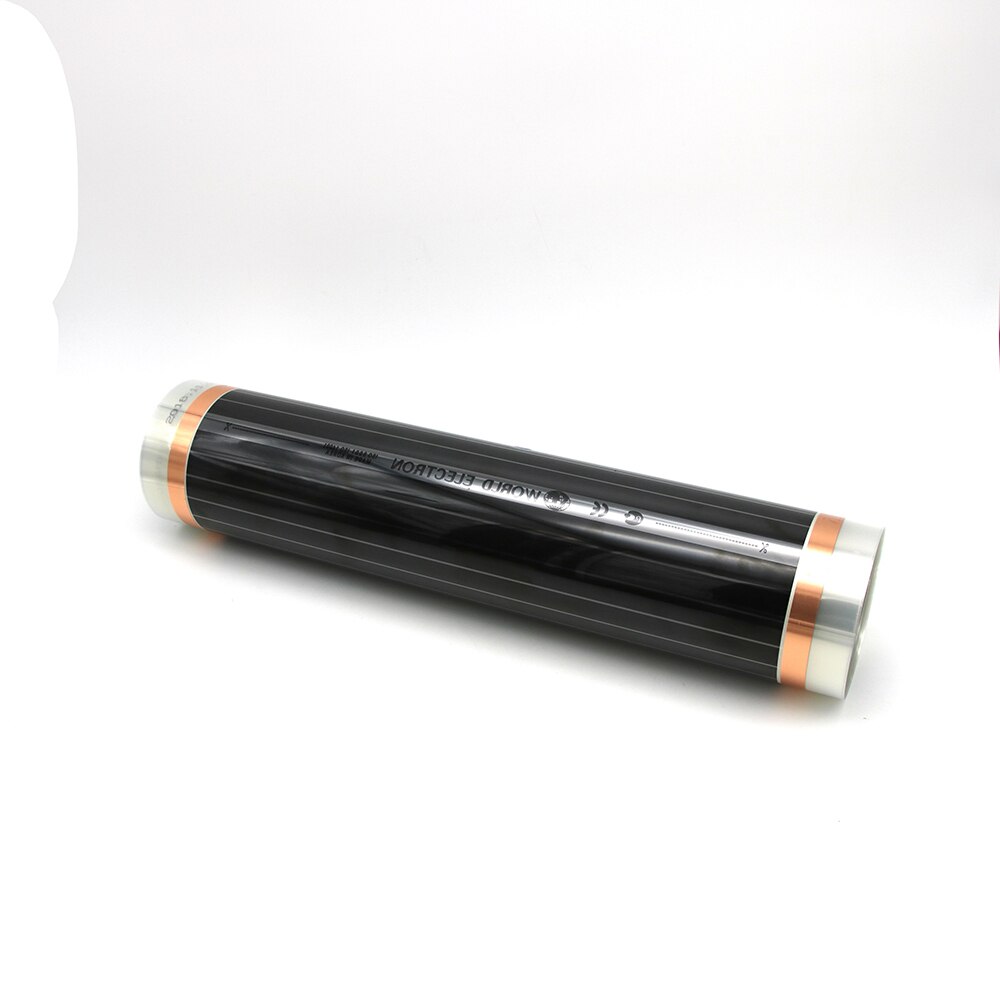

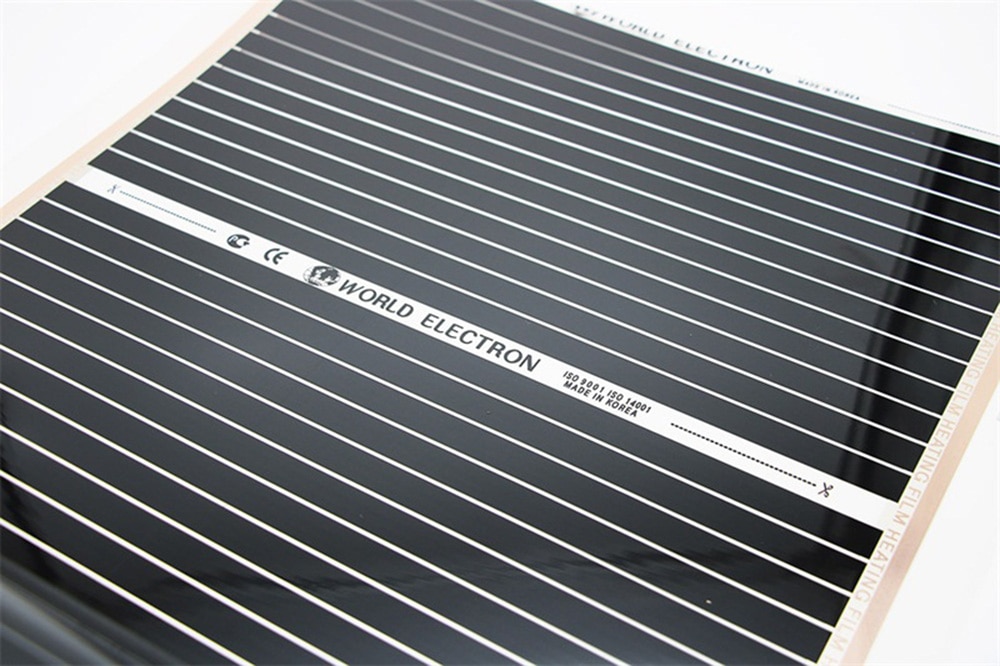

Real Photos of Products:

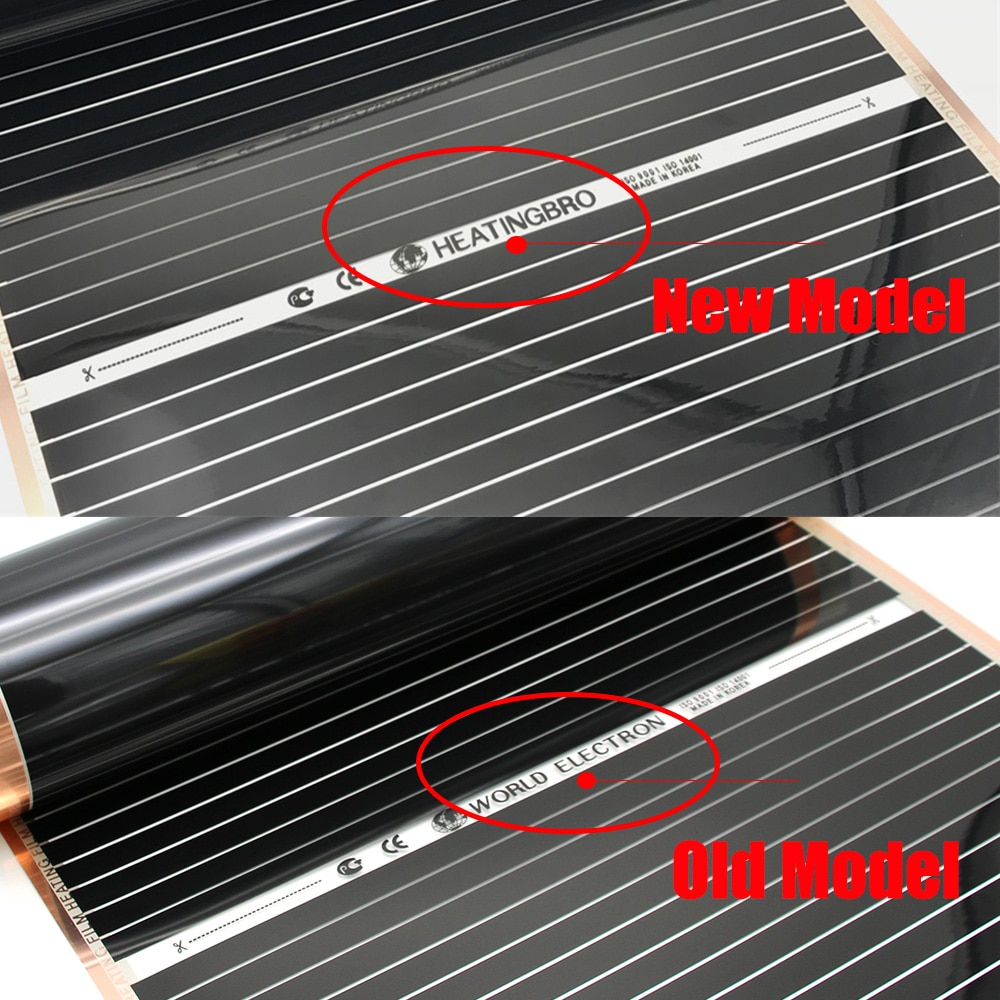

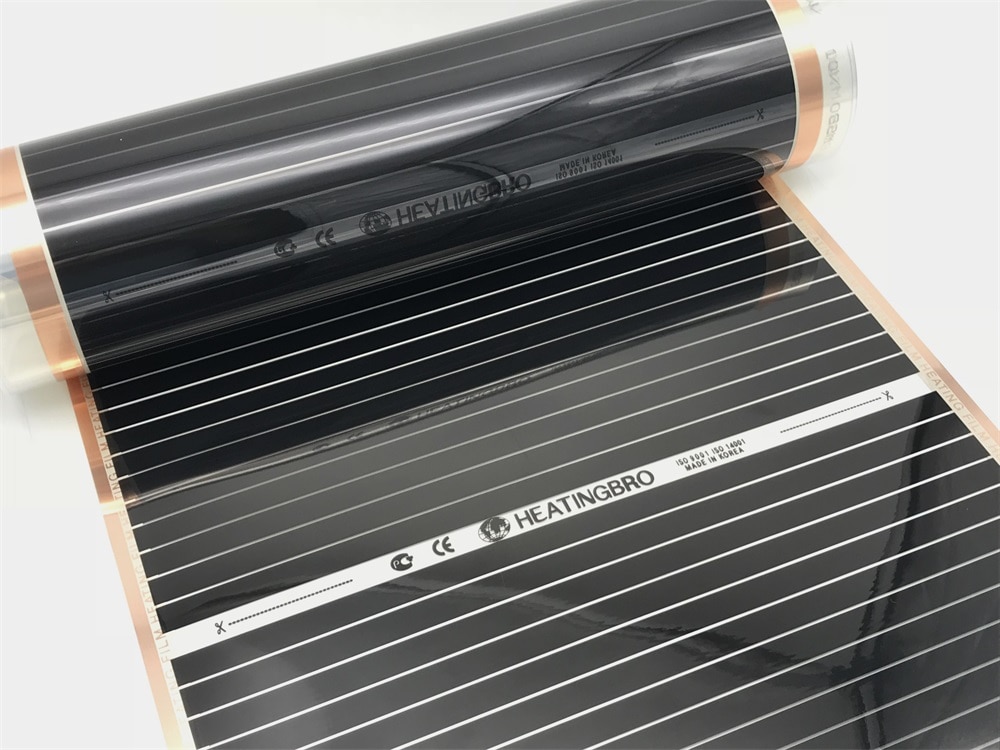

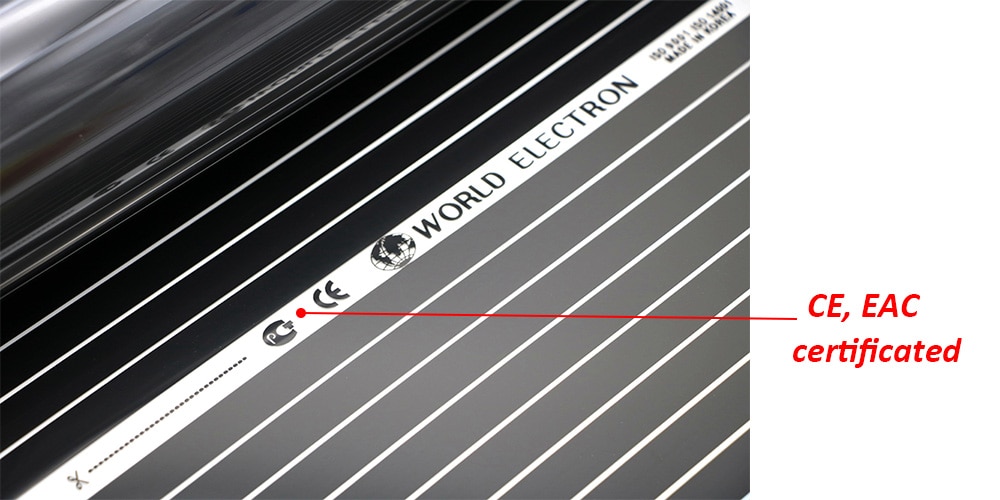

Notice: The Newly Produced label on the film is "HEATINGBRO" now, the old label "WORLD ELECTRON" and new label "HEATINGBRO" will send at randon. The specifications of the films are exactly same, only the label difference. Thank you for your concern : )

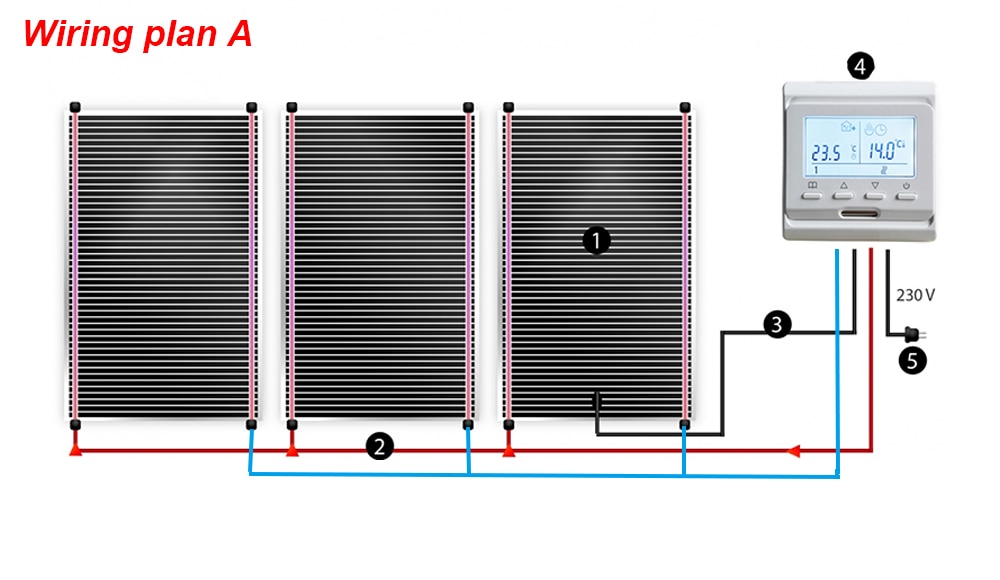

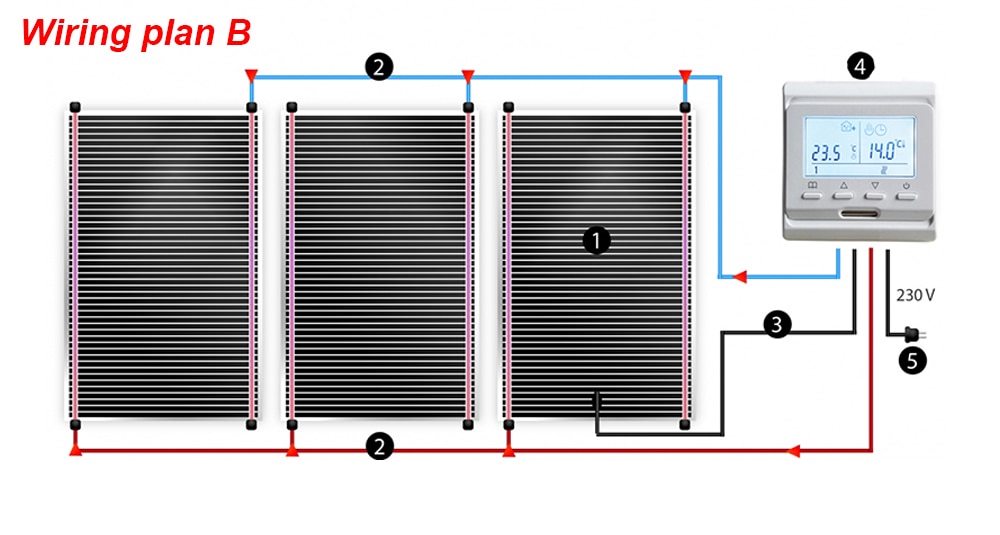

Wiring the heating film, two wiring plans:
1. Heating film
2. Power to the heating film
3. Floor temperature sensor
4. Thermostat
5. Power of whole installation
Steps of Making Connection for Heating Film:

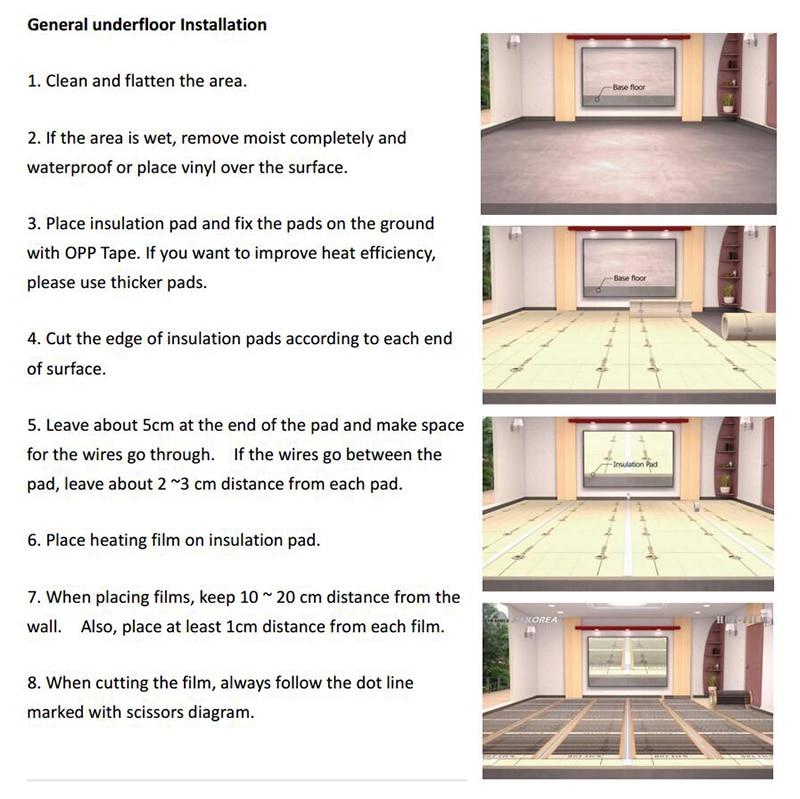

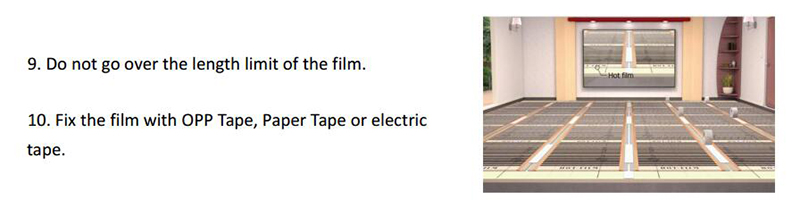

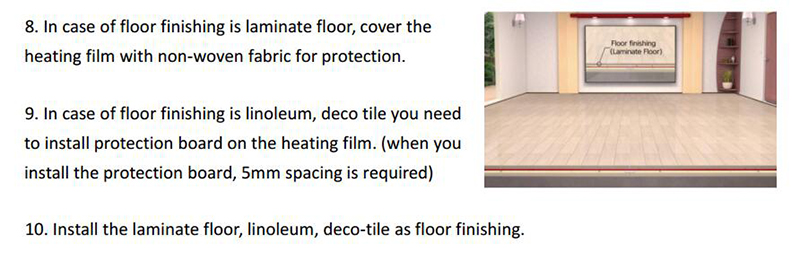

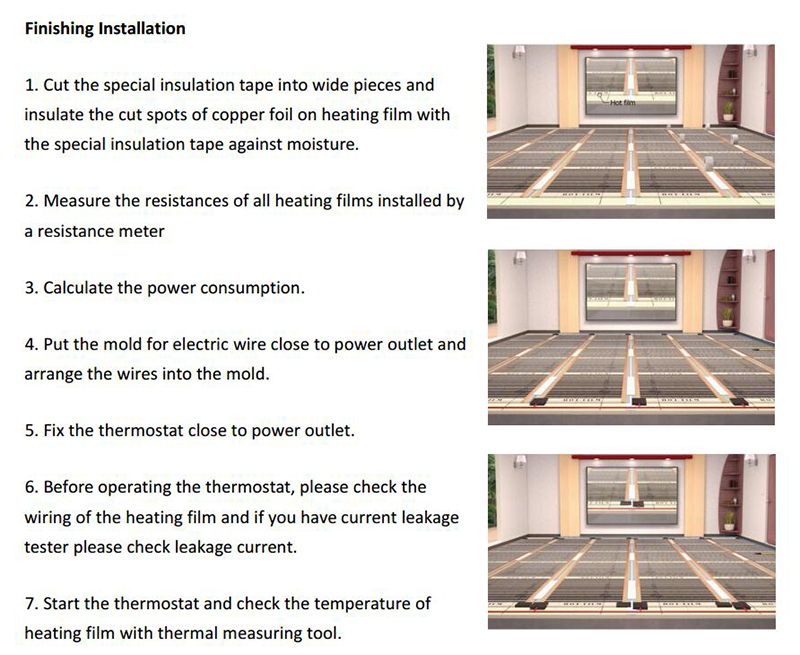

General Installation Steps >>>>
>>> Reminder:
1. When installing, do not overlap each film. Always keep 1~3cm distance between films. and keeps 10~20cm distance between the way and films.
2. Maximum film length for one row.
50cm model: 12~13m; 80cm model: 7~8m; 100cm model: 5~6m.
>>>Installation Parts (Click the picture to buy)
1) Accessries for installing heating film:
2) Marched room thermostats:
Wifi mobile APP control thermostat - - - - >>
Minco Company Certifications:
- Voltage: 220V
- Floor Heating Part Type: Floor Heating Films
- Model Number: HF-220
- Floor Heating Valve: Thermostatic Mixing Valve
- Type: Floor Heating Parts
- Material: PEX
- Brand Name: MINCO HEAT
- Origin: Mainland China
- Certification: CE
- Power: 220W/m2
- Width: 50cm
- Thichness: 0.338mm
- Infrared wave length: 8~15um
