WaveTopSign 20W 30W Fiber Laser Mark Machine Body + Control box+Lift Worktable+Laser Path+Aluminum Plate Base Can Use MAX Laser
2,558.56 2,371.56 $
ID: 32715
Quantity
Distributer Price Raycus/Ipg Fiber Laser 20w Tube Marker Machine
0.0 ( votes)
Price:
US $
10269.58
/ piece

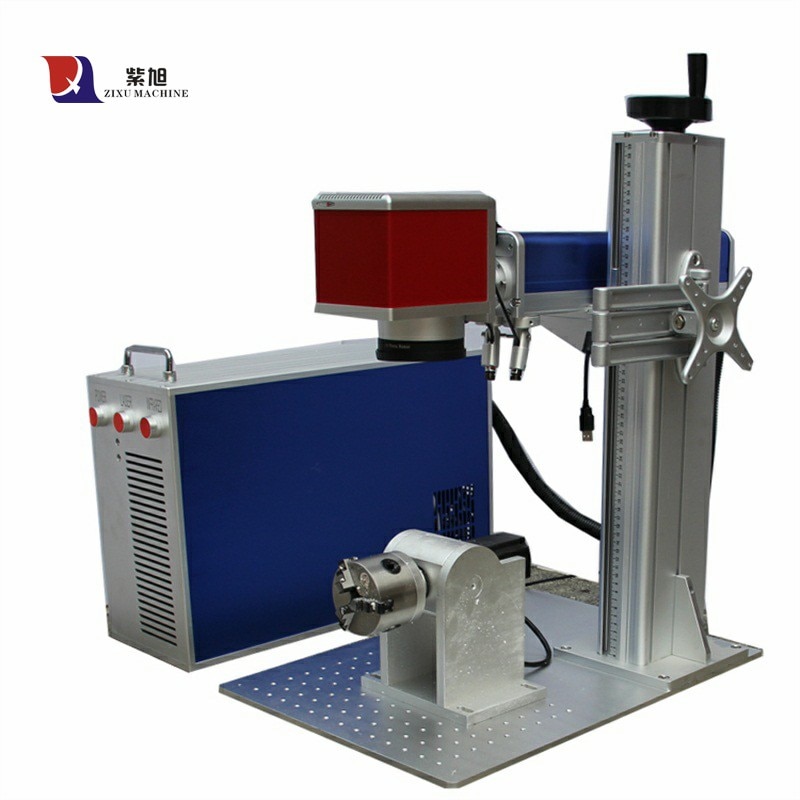

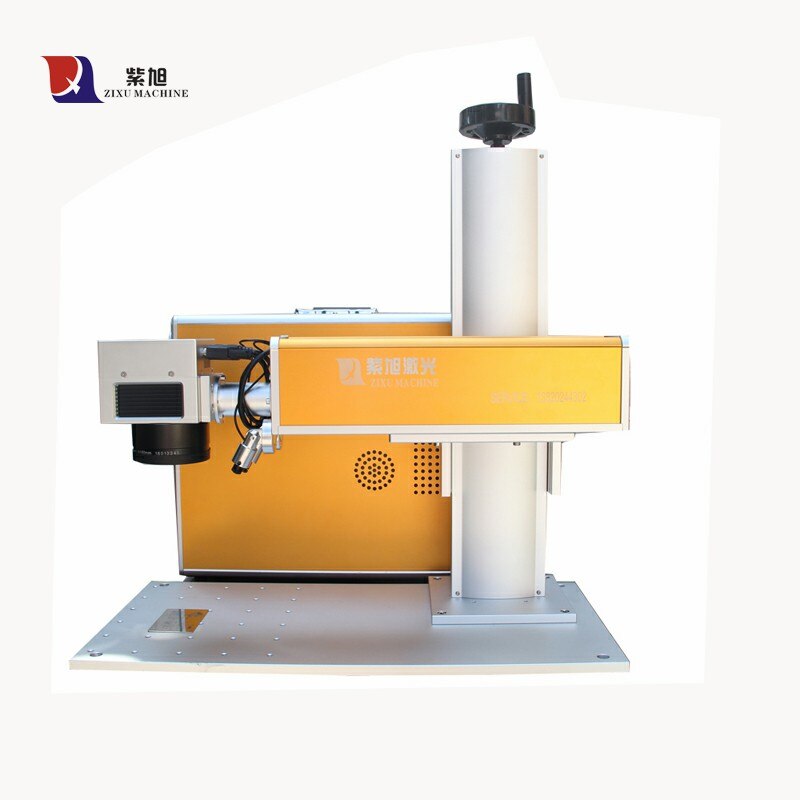

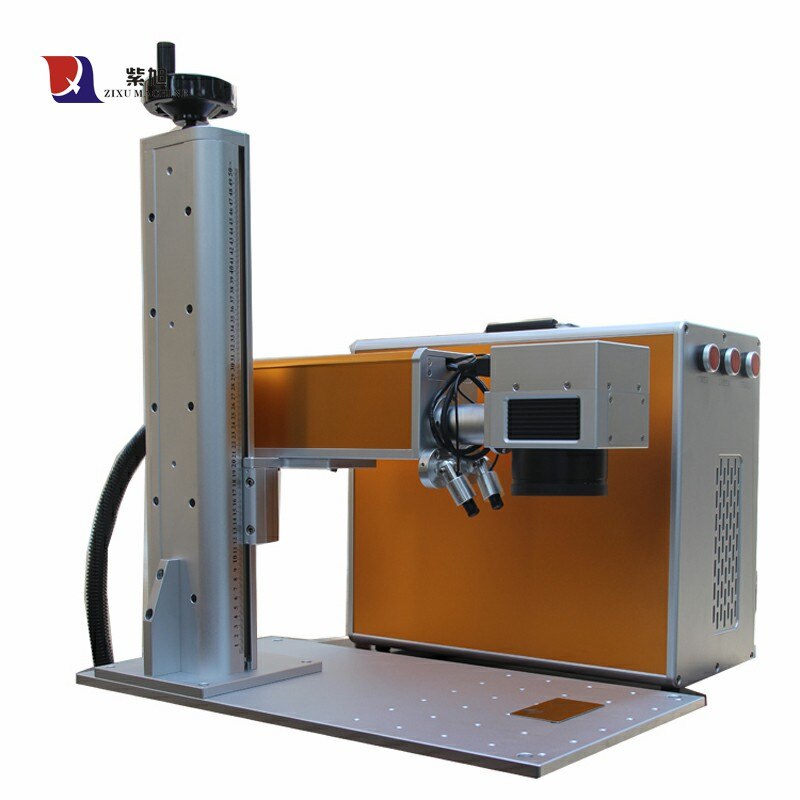

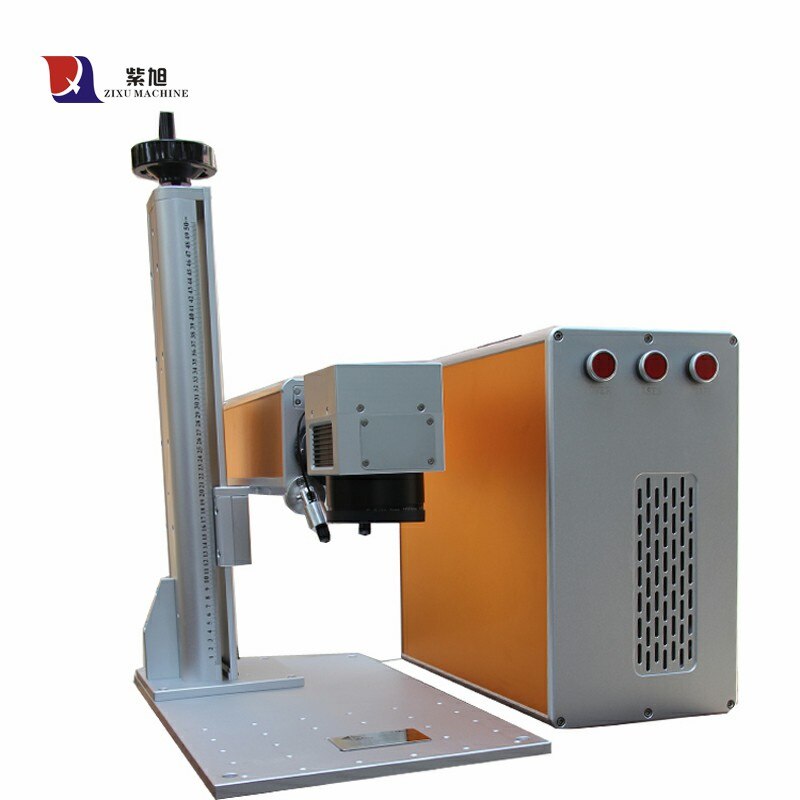

Raycus 30W Fiber Laser Cable Marking Stainless Steel Machine

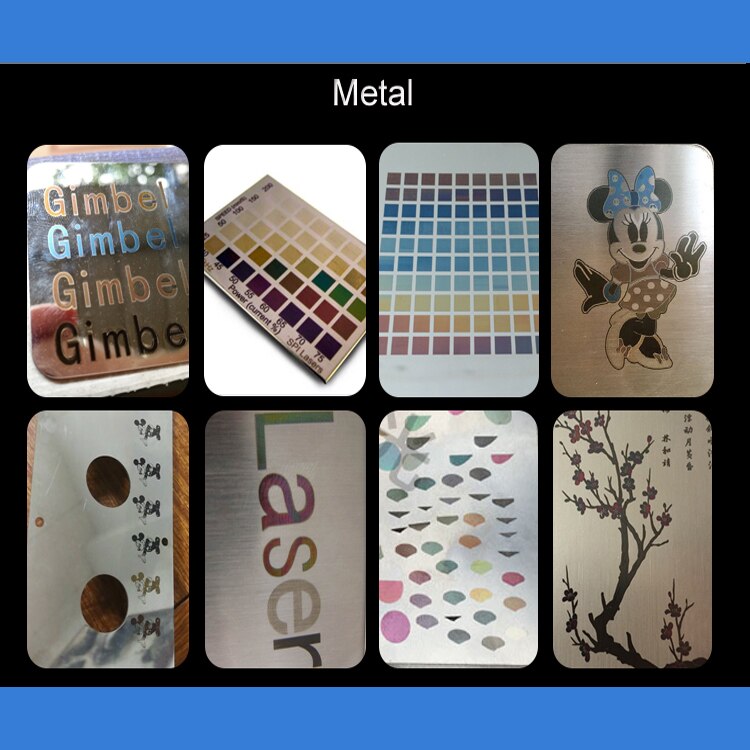

Fiber laser marking machine Application:(Sample picture)
Electronic and communication products, IC products, electric lines, cable computer components and electric appliance. Every kind of precision parts,hardware tools,instrument appliance,aviation and spaceflight appliance.
Jewelry, garments, instruments, gifts, office devices, brand scutcheon, sanitary ware appliance.

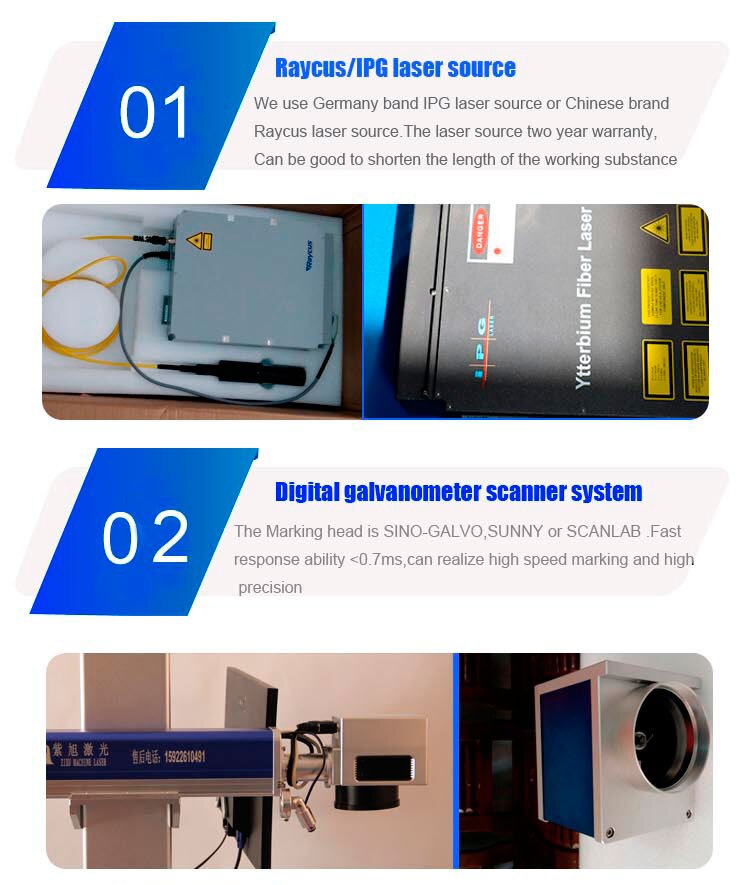

laser device
We use Germany band IPG laser source or Chinese brand Raycus laser source.The laser source two year warranty,life long maintenance.Can be good to shorten the length of the working substance,by changing laser cavity length to adjust.still can prolong service life,make it more durable.
Marking head
The Marking head is SINO-GALVO,SUNNY or SCANLAB .Fast response ability <0.7ms,can realize high speed marking and high precision,if you need flying marking,can custom made the marking head.
Field Lens
Improve the ability of edge beam incident to the detector,detector photosensitive non-uniform illumination on the surface of the homogenization.The field lens area is 100x100,175x175,300x300mm.

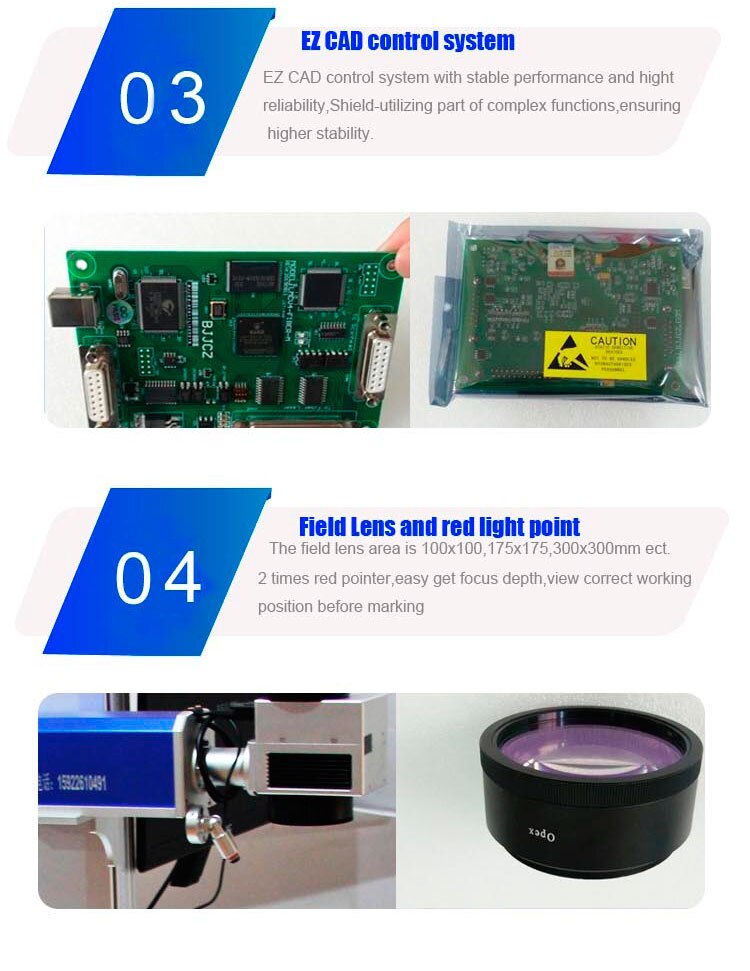

Mother card
EZ CAD control system with stable performance and hight reliability,Shield-utilizing part of complex functions,ensuring higher stability.The software have the English,russian,Arabic Chinese,language.
Power supply
Control system use famous TAIWAN MW power supply with stable performance,professional technology and long lifetime.
Foot switch
Press by foot,the machine can do marking,so easy to use.Dont need the hand.
Fiber laser marking machinee Features:
Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery.
High Precision: Re-position precision is 0.001mm
High Speed: Imported scanning system makes the scanning speed is up to 7000m/s
High Reliability: MTBF>100,000 hours
Energy Saving: The efficiency of optic-electrical converting is up to 30%
Low Running Cost: No wearing part. Free maintaining.
Parameter
|
type |
Fiber laser marking machine |
|
Size |
75*65*145cm |
|
Gross Weight |
75kg |
|
Laser power |
10/20/30/50 w |
|
Laser wavelength |
1064nm |
|
Power supply |
220Vplusmn10%/50Hz/4A |
|
Repeating precision |
plusmn0.002 |
|
Repeating frequency |
plusmn0.002 |
|
Marking range |
110x110mm(customize) |
|
Marking depth |
0.01~1mm |
|
Marking speed |
7000mm/s |
|
Minimum character |
0.15mm |
|
Minimum line width |
0.01mm |
|
Marking content |
Graphics, text, bar codes, two-dimensional code, date, batch number, serial number |
Packing and shipping
The machine gross is 1-75KG, you can use express delivery. If more than 75KG, you can choose sea transportation.
|
Delviery time |
3-10days |
|
Type of shipping |
Express,air or sea |
|
Terms of payment |
T/T,credit card,western union,paypal |
|
package size |
75x55x83cm |
|
Gross weight |
75KG |
After service
A: How to install and run the machine?
Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, userrsquos manual along with the machine. 95% customers can learn by themselves.
B:How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
- Power (W): 20W
- Rated Voltage: 220V
- Dimensions: 77X65X145CM
- Max. Output Power: 20W
- Focal Spot Diameter: 0.15MM
- Wavelength: 1057-1070MM
- Pulse Width: 0.01MM
- Single Pulse Energy: 20 W
- Model Number: FLMM-B01
- Usage: Marking logo
- Software: Ezcad
- Colour: Blue
- Drive type: fiber laser
- Product name: Tube Marker Machine
- printing material: plastic
- Application: PVC ID Card
- Minimum character: 0.15mm
- Minnimum line width: 0.01mm
- power: 20w
- printing content: logo,number ,letter
