Magnetic Powder Clutch 12Nm 1.2kg DC 24V Double Shaft Dual 2Axis Winding Brake for Tension Control Bag Printing Dyeing Machine
467.43 431.83 $
Product Description
Direct Sale Durable tension control powder clutch for laminating machine

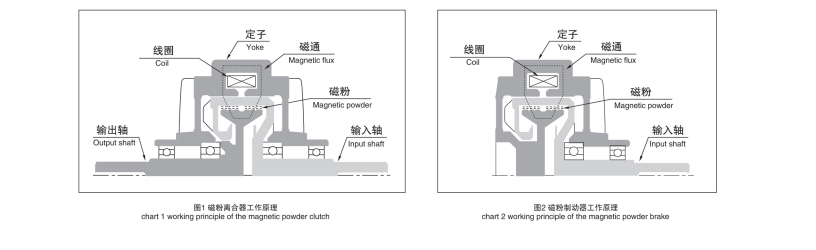

The magnetic power clutch is composed of active rotor (input shaft), driven rotor (out shaft) and Yoke with excitation coil. The three parts are assembled relative concentric and form a system which can rotate relatively. The annular gap between active rotor and driven rotor is full of alloy powder which has high magnetic conductivity.
The magnetic power will be in the state of loose when the current do not pass the excitation coil. The magnetic power will be thrown on the inner wall of active rotor. In this case, there will not exist the interaction force between the active and driven rotor. So the magnetic powder clutch is in the state of separation, no torque transmission exits.
The magnetic power in the working chamber will ink state under the action of the magnetic flux generated form the Yoke when the current pass the excitation coil. The magnetic powder clutch can transfer torque relying on the shear force generated from magnetic chain and the friction generated from the magnetic power and working face. In this case, the magnetic power clutch is in the state of combination
When the current is cut off, the magnetic flux will disappear with the disappearance of the magnetizing current, the magnetic powder will be in the state of loose under the action of gravity again, and will be thrown on the inner wall of active rotor under the action of the centrifugal force. In is case, the magnetic powder clutch will be in the state of separation again.
The magnetic powder clutch and brake have the same principle, the magnetic powder brake will form as long as the driven rotor of the magnetic powder clutch is fixed.
Advantages:
1, CNC precision manufacturing, high precision, precision machining, good linearity, superior performance.
2, magnetic powder high purity, no black powder, stable performance, long life.
3, aluminum alloy structure, with excellent heat dissipation performance, good demagnetization, fast response.
4. Stable operation, no vibration, no impact and no noise when starting, running and braking.
Company Information
Hangzhou Ocean Industry Co., Ltd. is a specialized supplier of a full range of electromagnetic clutch, chains, sprockets, gears, gear racks, v belt pulley, timing pulley, V-belts, couplings, machined parts and so on.
Due to our sincerity in offering best service to our clients, understanding of your needs and overriding sense of responsibility toward filling ordering requirements, we have obtained the trust of buyers worldwide. Having accumulated precious experience in cooperating with foreign customers, our products are selling well in the American, European, South American and Asian markets.Our products are manufactured by modern computerized machinery and equipment. Meanwhile, our products are manufactured according to high quality standards, and complying with the international advanced standard criteria.
With many years' experience in this line, we will be trusted by our advantages in competitive price, one-time delivery, prompt response, on-hand engineering support and good after-sales services.
Additionally, all our production procedures are in compliance with ISO9001 standards. We also can design and make non-standard products to meet customers' special requirements. Quality and credit are the bases that make a corporation alive. We will provide best services and high quality products with all sincerity. If you need any information or samples, please contact us and you will have our soon reply.
- Voltage: DC 24V
- Material: Carbon Steel
- Model Number: ZKG
- Origin: Mainland China
- Certification: NONE
