DBG-203/ DBG-204/ DBG-205 DBG-103 DBG-104 DBG-105 Disk Type Pneumatic Brake & Air Pressure Disc Clutch For Tension Control

0.0 ( votes) | 4 orders
Price: US $463.30 / piece
Discount Price:
US $ 448.11 / piece
-3%
Color
Quantity

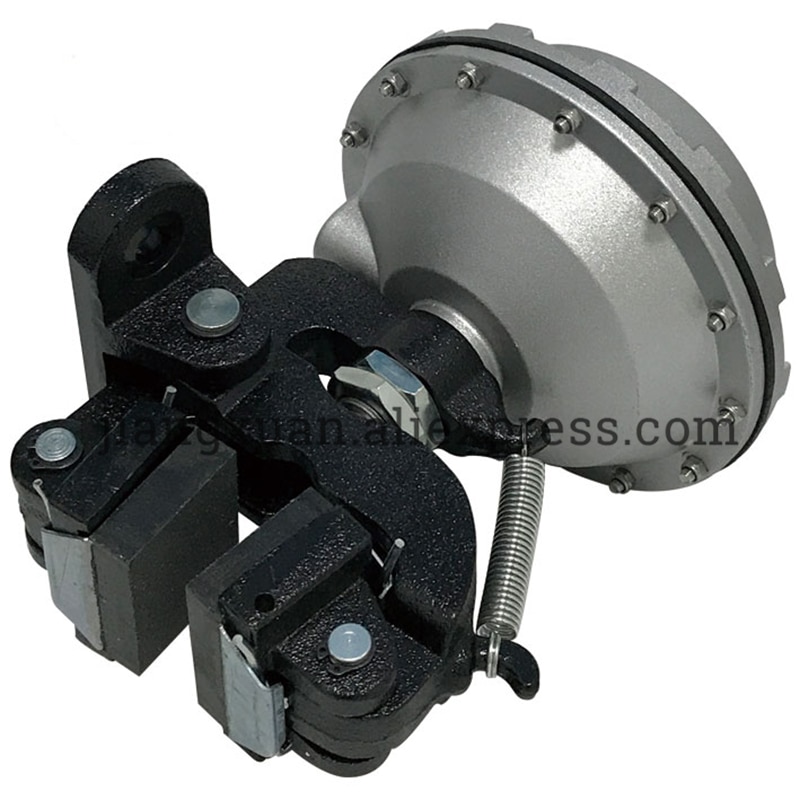

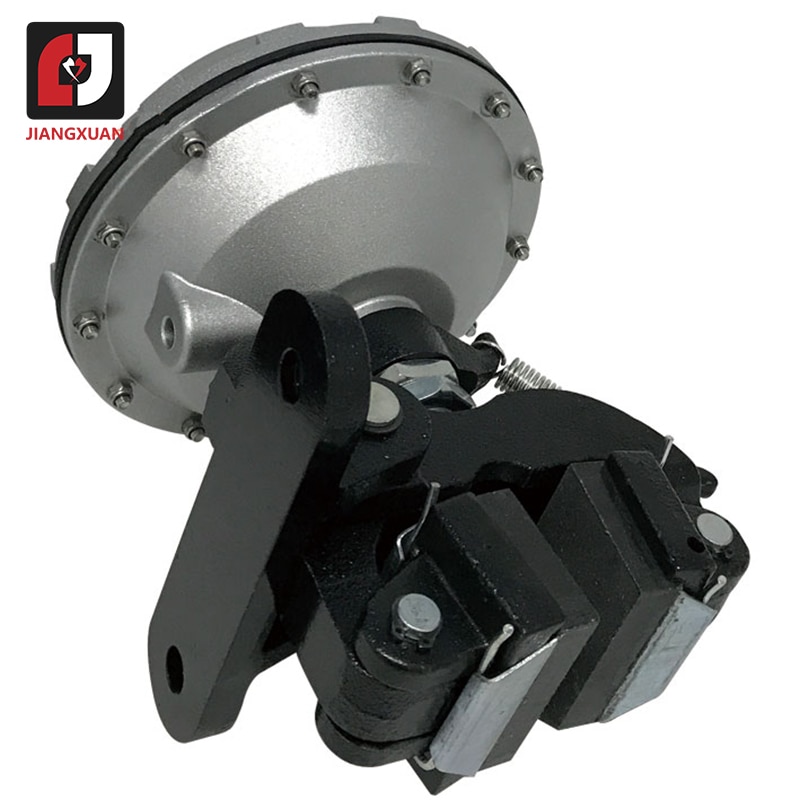

DBG 203 204 205 103 104 105 Disk Type Pneumatic Brake & Air Pressure Disc Clutch For Tension Control

Model:DBG

Type:Disk type pneumatic brake

Features:

Disk type pneumatic brake is suitable for different installation modes, it can also be used in linear motion braking.The larger friction area extends the maintenance cycle, and long service life.If several brakes are installed on a disk, the torque increases several times.

The working principle:

Disk type pneumatic brake and the air pressure disc clutch are produced by the piston on the cylinder body to generate the axial thrust, thus forming the torque transmission.

Once the cylinder is unloaded, the spring pushes the piston back to its original position and the torque disappears.

When the spring brake is used, the axial thrust required by the torque is generated by the spring, and the piston is provided with an appropriate air pressure to release the brake.

Disk type pneumatic brake with multipoint braking, a variety of flexible installation, optional braking components increase or decrease, make it have the wide-area torque control range, and has the characteristics of high torque and high precision.

Disk type pneumatic brake is suitable for all kinds of situations including tension control, emergency braking and position control.

The main features:

1.Water resistance, dust resistance, high temperature resistance, high durability and stable performance.

2.Use air pressure action, no electrical spark, with explosion-proof, safe and reliable.

3.The braking force can be adjusted arbitrarily, the braking moment range is wide.

4.The heat dissipation is good. The friction plate is resistant to friction and the replacement is easy.

Application:

Disk type pneumatic brake is suitable for working machinery, construction machinery, steel rolling machinery, wire drawing and stranding machine Yang Yang, coiling Yang, gate type crane and crane, paper making machinery, ship Yang heavy car, trimming, feeding, positioning, tension control, etc.

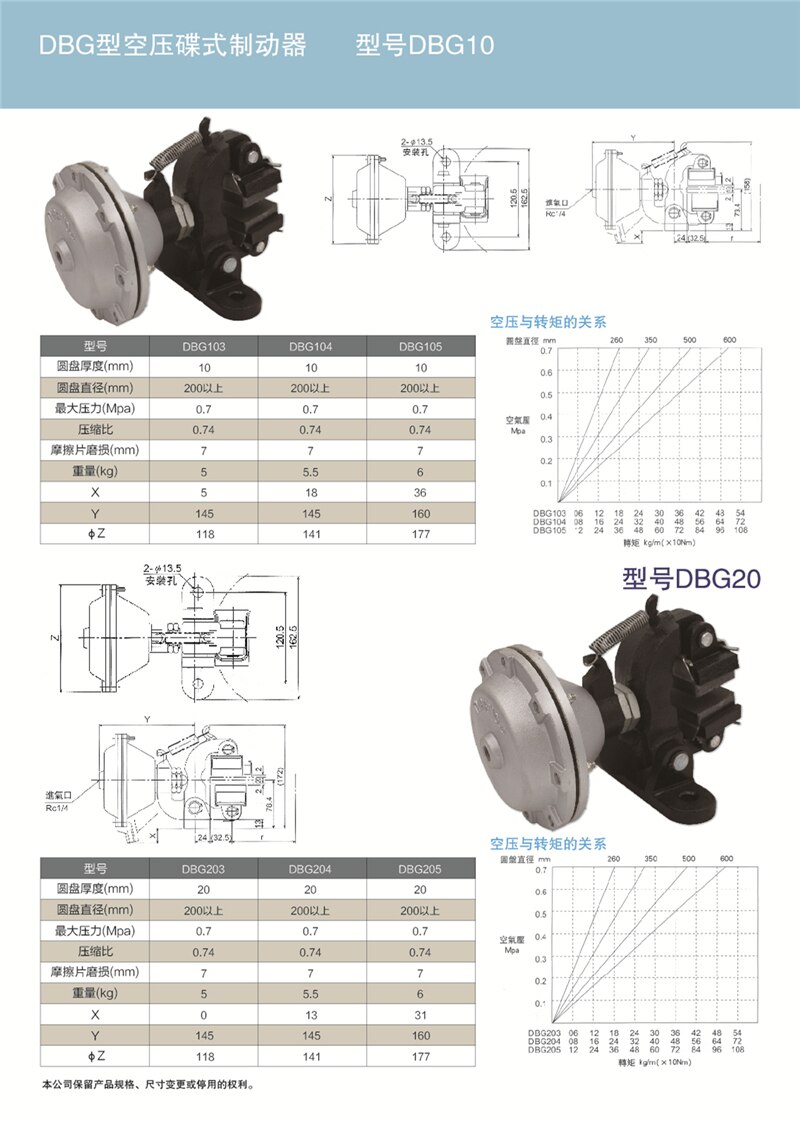

More products pls kindly click here  :As the following is a table of other spec. , pls choose the perfect match standard you need.





  • Voltage: 0
  • Material: Aluminium-copper Alloy
  • Model Number: Disk Type Pneumatic Brake DBG-203/ DBG-204/ DBG-205
  • Origin: Mainland China
  • Name: DBG-205 Disk Type Pneumatic Brake
  • Type: Magnetic Powder Brake
  • Advantage: No pollution, no noise, no impact vibration energy saving, etc
  • Magnetic powder clutch used in: Tension control, overload protector, torque loader, etc
  • Used for: Printing machine, paper machine, rewinding machine, drawing machine,
