ID: 92090

DH Logo Multi-language VTO2211G-WP VTO2211G-P 802.3af PoE IP Villa Doorbell,Video intercom,IP Door Phone,P2P Cloud,Door Station

4.2 (6 votes) | 101 orders
Price: US $199.50 - 222.30 / piece
Discount Price:
US $ 196.65 - 222.30 / piece
-1%
Ships From
Color
Quantity


Important:

If you have any questions about EU Tax, Please chat with me


Note: This link only includes outdoor doorbell, not includes indoor display screen and PoE switch

If you need a indoor monitor or PoE switch, press this photo to buy:



Phone app: DMSS

The Doorbell can work with the Indoor monitor.

One button doorbell supports Max up call to 1 Indoor main monitor and 9 Indoor extended monitors.

The doorbell also can be used alone, can call to the phone app directly.


Support Language:

English, Russian, Dutch, French, German, Italian, Polish, Portuguese, Spanish, Ukrainian, Arabic, Bulgarian, Czech, Danish, Finnish, Greek, Hungarian, Latvian, Lithuanian, Romanian, Serbian, Slovak, Slovenian, Vietnamese, Turkish, Portuguese (Brazil), Spanish (Latin America);

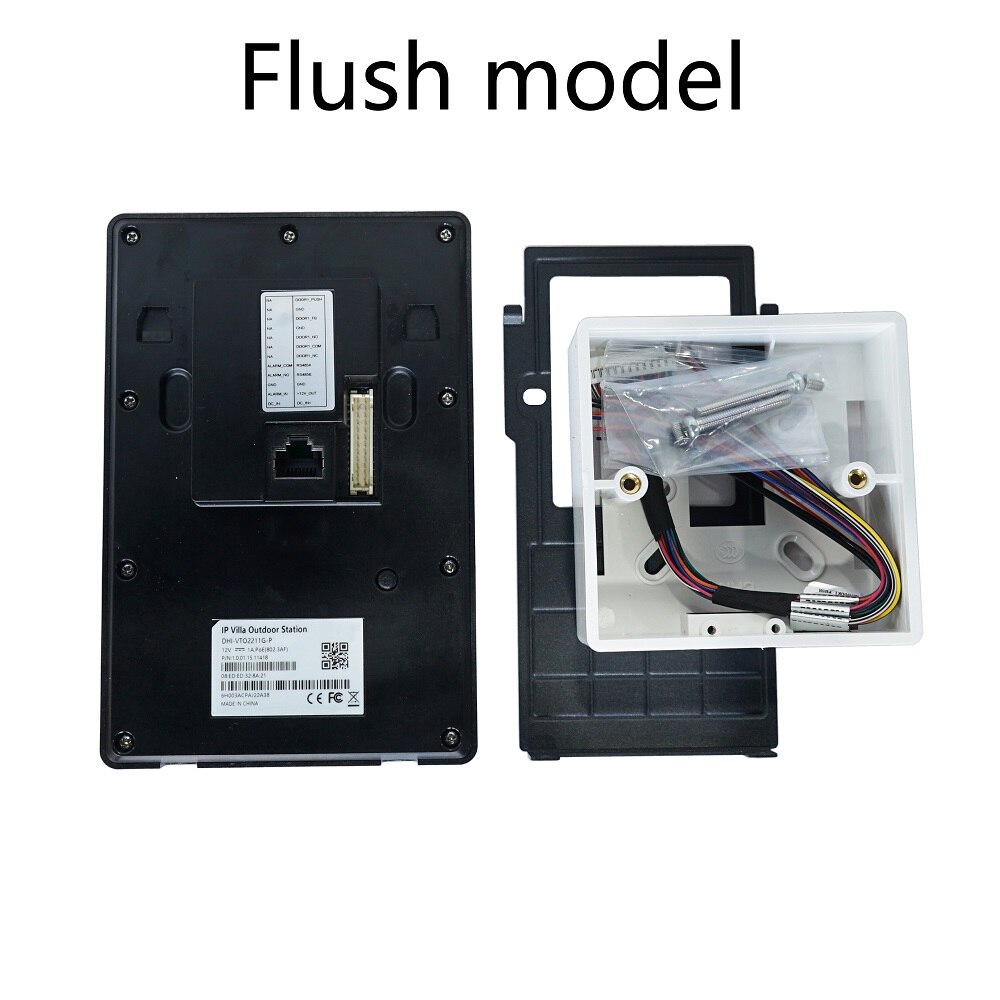

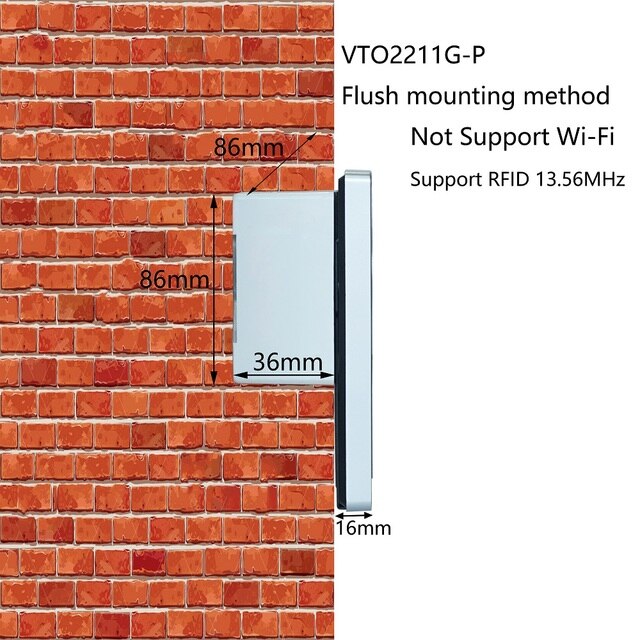

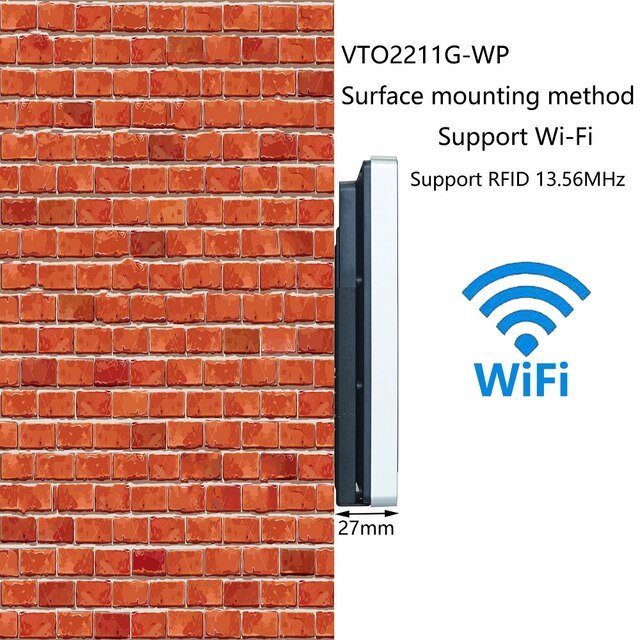

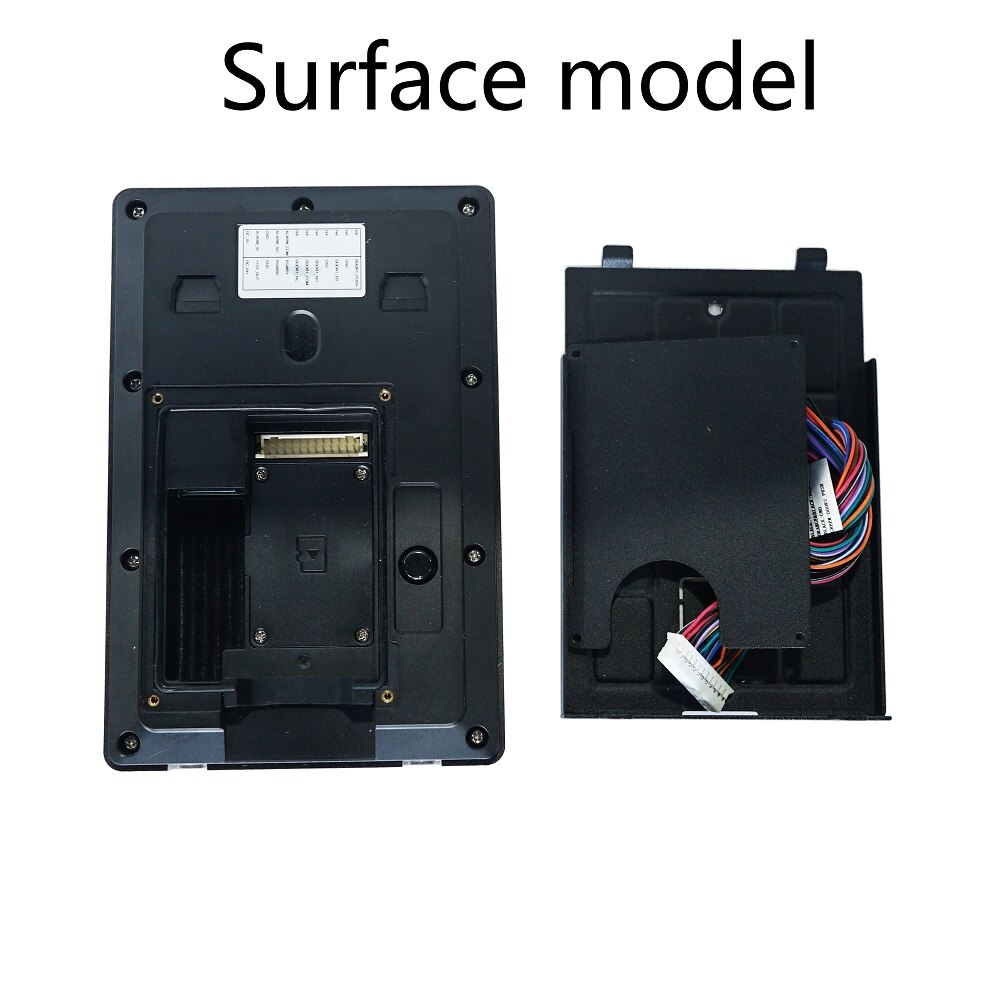

VTO2211G-P is divided into Surface model and Flush model, please confirm and order


Scenes 1 :Work with 802.3af PoE monitor

If you need a compatible PoE switch, press this photo to buy:

Use Access Control Extension Module(DEE1010B) to control two locks


System

Main Processor

Embedded processor

Operating System

Embedded Linux operating system

Button Type

Mechanical

Interoperability

ONVIF

Network Protocol

SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP

Basic

Camera

1/2.8" 2MP CMOS high definition, low illumination/WDR/color/IR

Field of View

Horizontal: 125°; vertical: 72°; diagonal: 142°

WDR

120dB

Noise Reduction

3D noise reduction

Video Compression

H.264

Video Resolution

Main stream: WVGA, 720P, D1 Sub stream: CIF, WVGA, QVGA, 1080P, D1

Video Frame Rate

PAL:25 fps NTSC:30 fps

Video Bit Rate

256K to 4M

Light Compensation

Auto IR

Day/Night

ICR auto switch

Audio Compression

G.711Mu; G.711u; PCM

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression and cancellation/digital noise reduction

Audio Bit Rate

16KHz, 16Bit

Function

Communication Mode

Full digital

Unlock Mode

Card/app/indoor monitor unlock

Card Type

IC card

Motion Detection

Video motion detection

Auto Snapshot

Auto snapshot can only be enabled on indoor monitors

Leave Videos

Yes (insert an SD card into the indoor monitor)

Web Configuration

Yes

Performance

Card Reading Distance

3cm–5cm

Casing

PC+Acrylic

Capacity

Card

10,000

Port


RS-485

1

Electric Lock

1

Alarm Input

1

Alarm Output

1

Power Output

1

Exit Button

1

Door Status Detection

1

Lock Control

1, normally closed by default

Network

1 10M/100M network port

Alarm

Tamper

Yes

General

Color

Black plate & silvery frames

Power Supply

12V DC 1A

Standard PoE

Installation

Surface mount

Certifications

CE/FCC

Accessory

Brackets and alarm ribbon cable

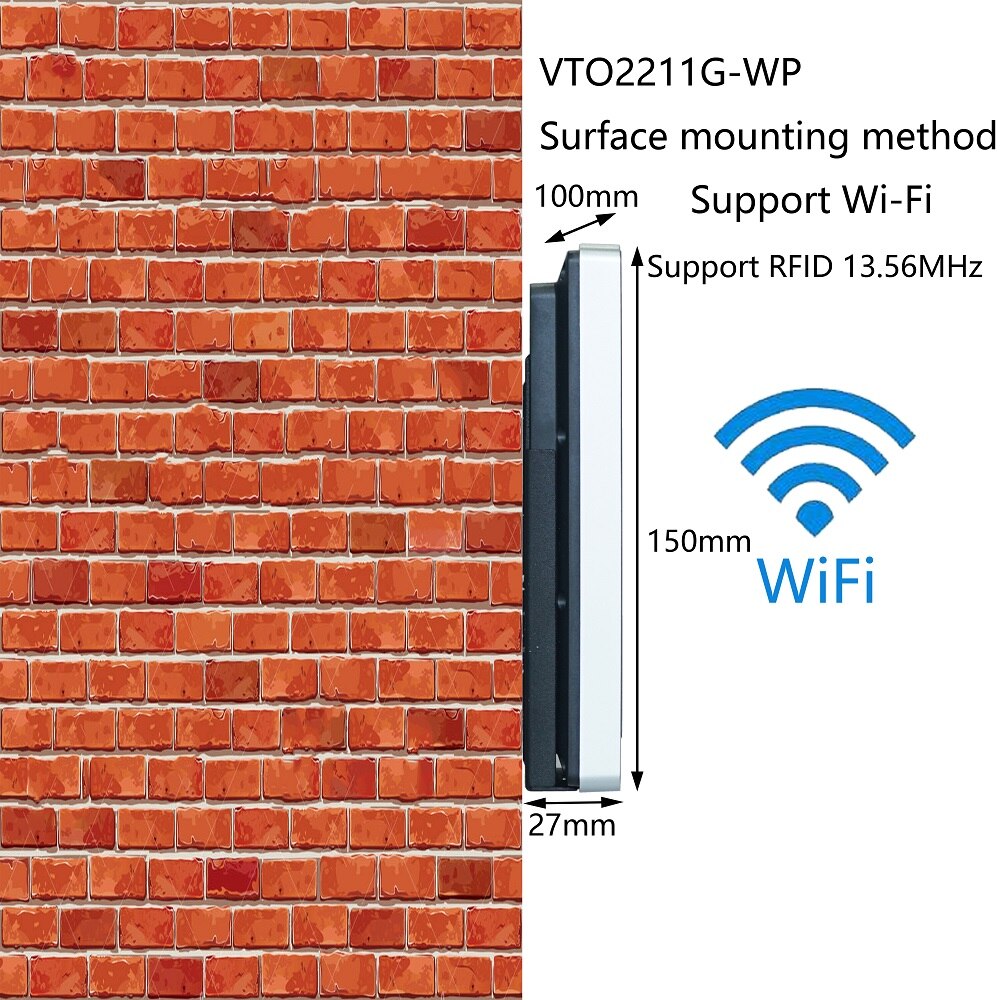

Dimensions

150 mm × 100 mm ×24.8 mm (5.91'' × 3.94'' × 0.98'')

Protection Grade

IP65 (silicone sealant is needed, see the quick start guide)

Operating Temperature

-30°C to + 60°C (-22°C to +140°C)

Operating Humidity

10%RH–90%RH (non-condensing)

Operating Environment

Outdoor

Operating Altitude

Beneath 3000 m (9842.51 ft)

Power Consumption

Standby≤1W, working≤7W

Gross Weight

490 g (1.08 lb)

Only the Surface version supports motion detection to record video to VTO SD card, you can use DMSS to view the video(supported language:
English,Russian,Ukraine,Arabic,Italian,French,Germany,Nederlands,Spanish,
Portuguese,Polish,Turkey,Vietnamese, Spanish Latino,PortugalBR;)
Support for adding outdoor stations to Synology NAS recording and playback










































  • Plug Type: EU plug ,US plug,AU Plug,UK plug
  • Size: 150mm*100mm*24.8mm
  • Doorbell: Yes
  • Material: Plastic
  • Power: DC 12V / IEEE802.3af PoE
  • Power: 7W
  • Camera: color
  • Model Number: VTO2211G-P VTO2211G-WP
  • IP Camera Interface: No
  • Access Control: Inductive Card
  • Waterproof: Yes
  • Samrt Home Interface: No
  • Technology: Digital
  • Installation: Surface&Flush
  • Connection Type: WIRED
  • Type: Entrance Machine
  • Viewing Angle (°): Horizontal: 125°; vertical: 72°; diagonal: 142°
  • Display Size: none
  • Answering Mode: Hands-free
  • Camera Sensor type: CMOS
  • Connection Method: Wired
  • Brand Name: XHJYVISION
  • Origin: Mainland China
  • Smart home platform: Other
  • Certification: CE,FCC
