DE free VAT Waterproof 2.2kw ER20 Water-cooled spindle motor Carved metal & 2.2kw Inverter 220V & 80mm Clamp & Water pump/Collet
0.0 ( votes)
Price:
US $1176.36 - 1400.18
/ piece
Discount Price:
US $
937.16 -
1102.78
/ piece
-20%
Notice:
this item will delivery from our "EU/Germany"warehouse,within European Union countries free VAT(import duty)andfree shipping by UPS/DHL, the package will be not easy broken with delivery.
The free ship and free VAT Europe countries area:
Austria, Belgium, Bulgaria, the Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Monaco, Netherlands, Norway,
Poland, Portugal, Romania, Slovakia, Slovenia, Spain,Sweden.

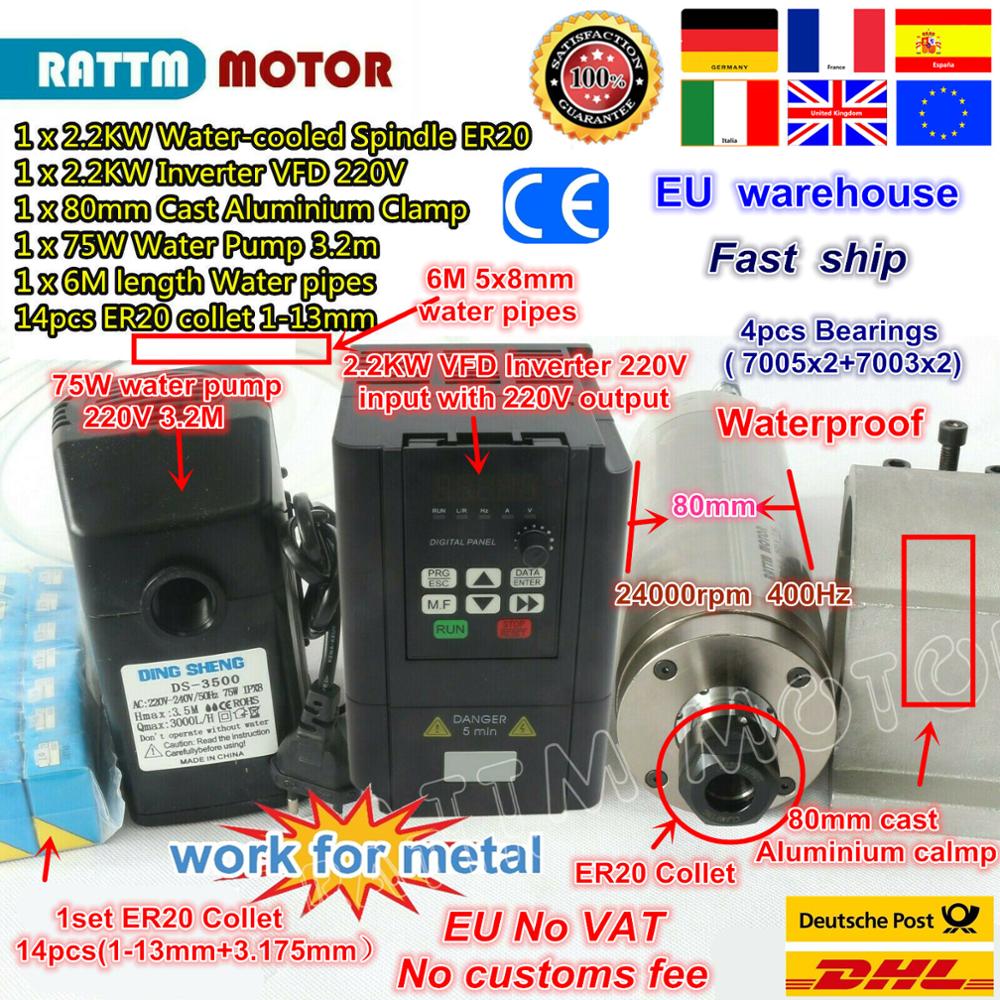

Package include:
1 x 2.2KW Waterproof Water-cooled spindle motor ER20 ( 220V/AC,24000rpm,400Hz,8A 4 bearings)
1 x 2.2KW VFD Inverter 3HP 220V input with 220V output
1 x 80mm spindle bracket clamp
1 x 75W Water pump 220V/AC 3.2m
5M water pipes
1Set of ER20 collet ( 1mm, 2mm, 3mm, 3.175mm , 4mm, 5mm, 6mm, 7mm,8mm,9mm,10mm,11mm,12mm,13mm )

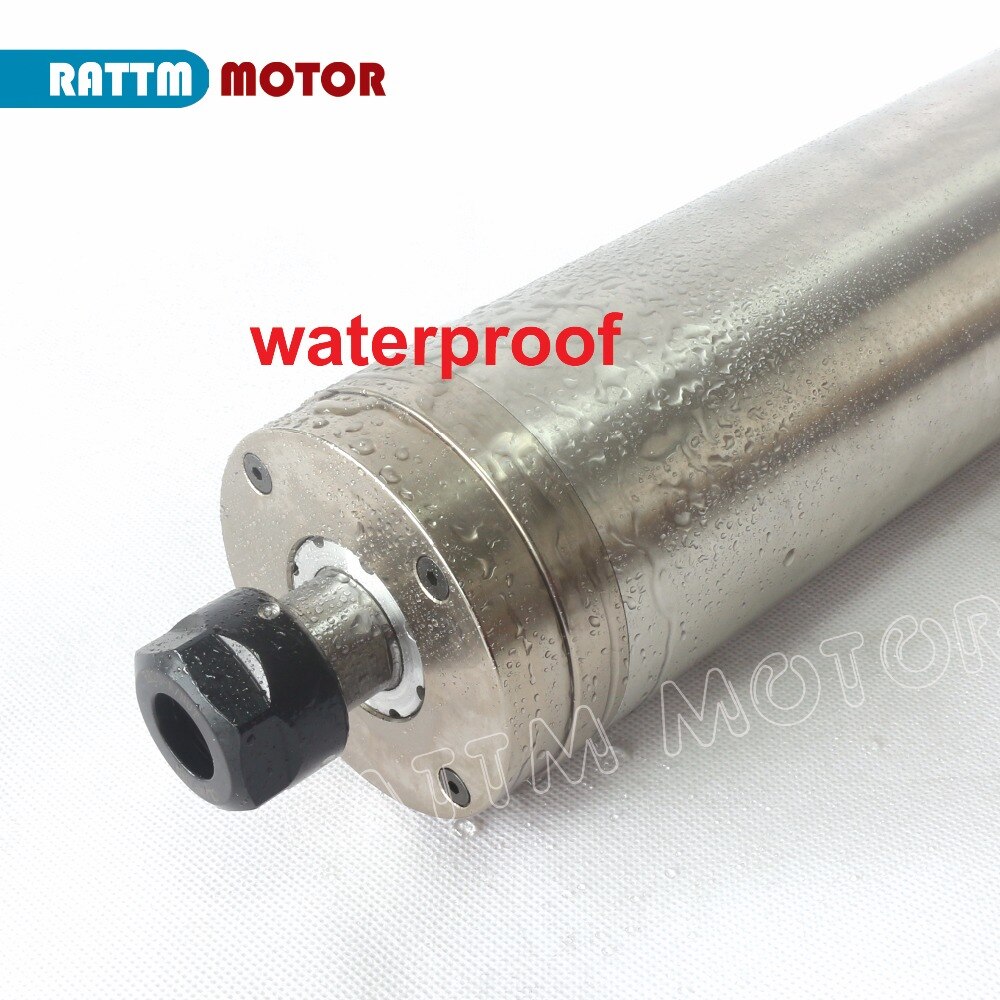

2.2KW WATER-COOLED SPINDLE MOTOR ENGRAVING MILLING GRIND
Specification:
Material: Stainless Steel
Size: Φ 80x246mm (long length and high torque)
Power: 2.2Kw
Voltage: 220VAC
Current: 8A
Torque: 0.8N.m
Frequency: 0-400Hz
Speed: 10-24000rpm
Cooling: Water-cooling
Precision tapered bore: 0.01mm
Runout off: Less than 0.02mm
Bearing Lubrication: Grease
Collet size: ER20
Bearings: 4 bearings(C7005x2 + C7003x2),P4 class
Net Weight: 6.1kg
Power supply interface: Professional aviation Interface, Interface 1234 marked 123 respectively connected to the inverter output end of the (U, V, W), 4 is blank.
Main application: Wood, Aluminum, Stone, metal, glass, PVC industry

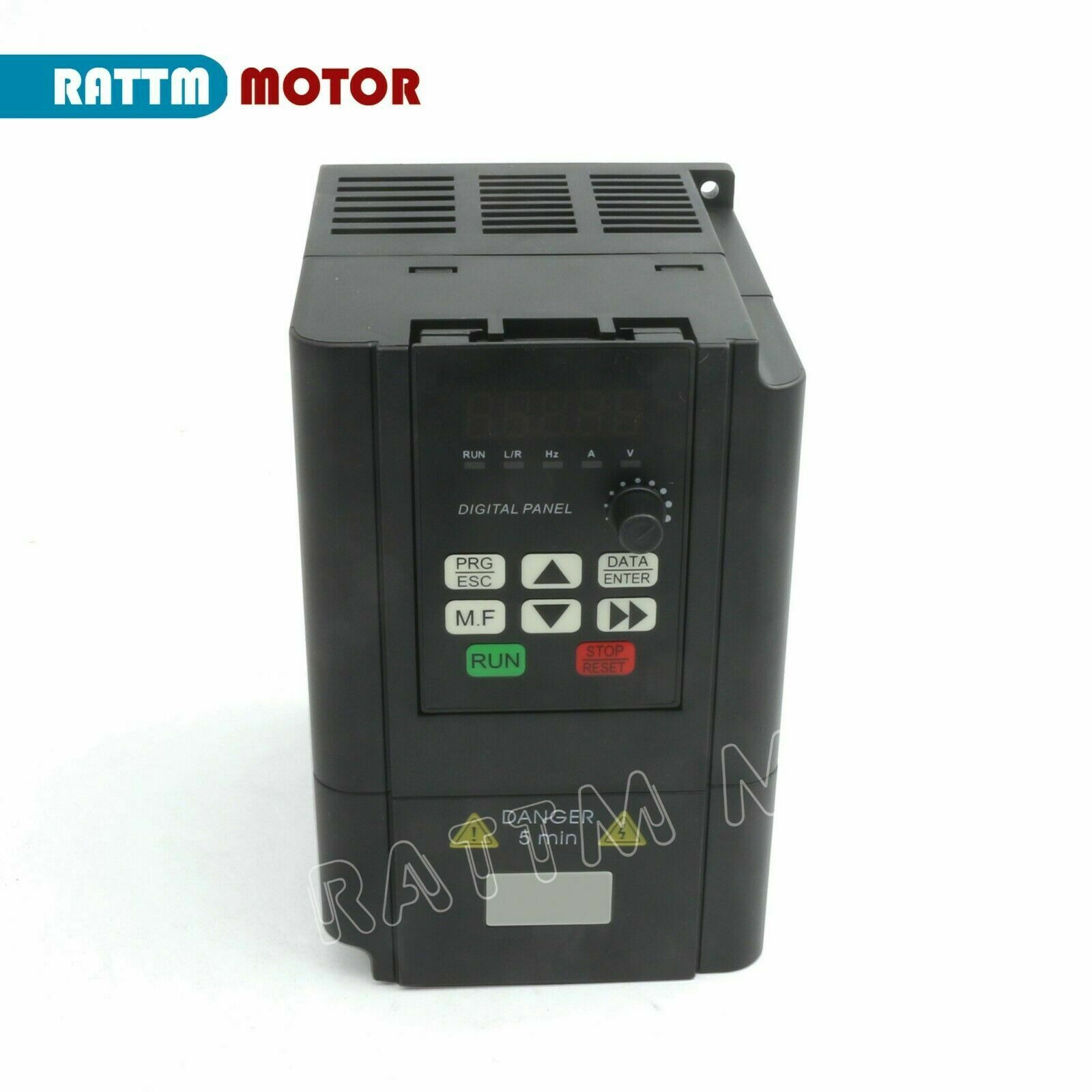

2. 2.2kw Inverter VFD 220V input with 220V output
1. Product Feature:
1. E100 series inverter uses a simplified vector control technology, with extensive application of functional blocks.
2. Can be the whole frequency band of torque automatic compensation, to compensate for the output torque to meet the user requirements for high torque; to improve the dynamic response and motor control features.
3. Have a proportional, integral and differential (PID) control function of the closed-loop control, can be used for process control ,such as constant pressure water supply.
4. Built-in the function of the textile-specific swing band.
5. Fast current limit (FCL) function, to avoid undue running trip.
6. Built-in DC injection braking.
7. Acceleration / deceleration ramp features have a programmable smoothing function.
8. Prevent the speed lose during over-voltage, in running the inverter automatically limit the increase of DC bus voltage.
9. Fault and fault query monitoring features.
10. Built-in serial communication interface, using standard modbus communication protocol.
2. Installation Environment
1. There are vents or ventilation devices in indoor places.
2. Ambient temperature -10 C ~ 40 C. If the ambient temperature is bigger than 40 C, but lower than 50 C, may take off the cover board of inverter or open the front door cabinet, in order to reduce temperature.
3. Try to avoid high temperature and wet places, humidity less than 90%, and without dewfall.
4. Avoid direct sunlight.
5. Away from air pollution such as flammable and corrosive gases, liquids.
6. No dust, floating particles of fiber and metal.
7. It is not allowed that the inverter falls down or suffers from fierce impact or the inverter installed at the place that vibration frequently.
8. Keep away from the electromagnetic radiation source.

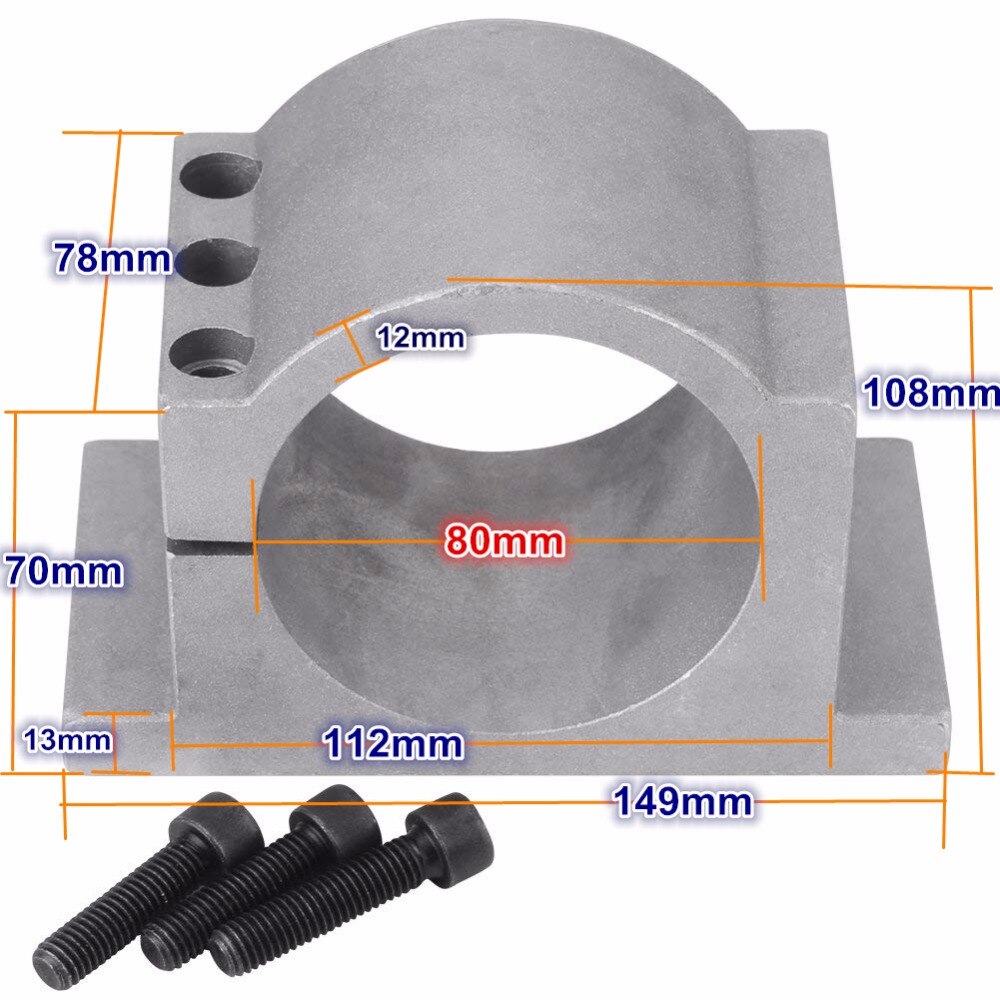

3. 80mm cast aluminium bracket

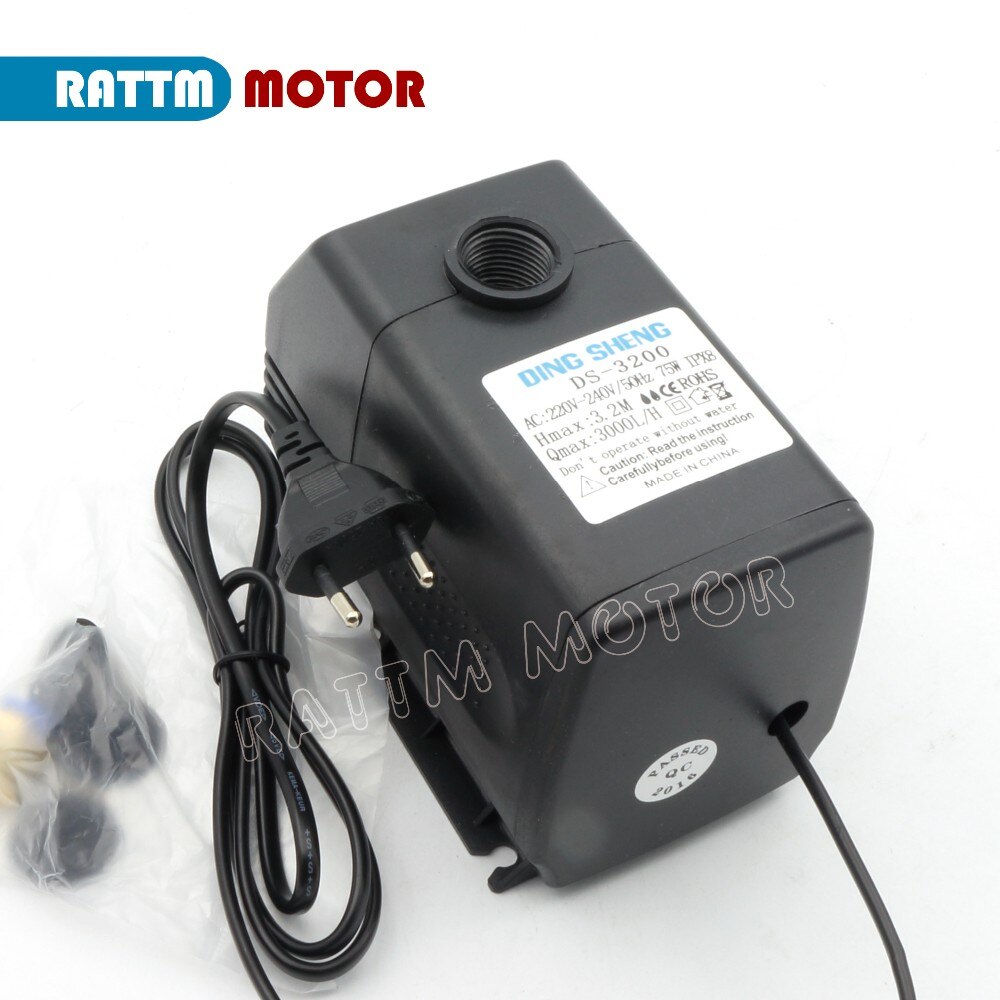

4. 75W CNC spindle motor water pump 3.2m 220VAC
Specification:
Pump length:3.2m
Voltage:220-240VAC
Power:75W
Flow:3000L/H
Size:150x80x140mm
Water nozzle diameter:6mm
Application: fit for 0.8kw,1.5kw,2.2kw,3kw,water cooled spindle even 4kw and 5.5kw too

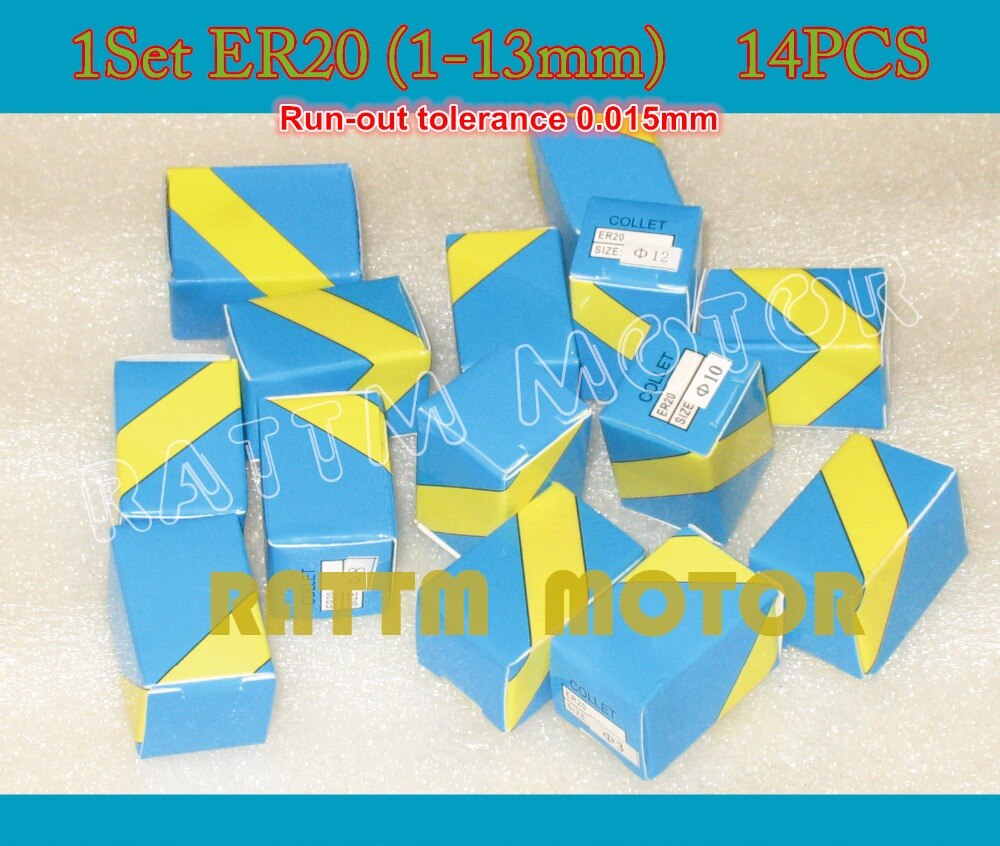

5.ER20 Spring Collet (14pcs,1mm-13mm)
(1mm, 2mm, 3mm, 3.175mm, 4mm, 5mm, 6mm, 7mm,8mm,9mm,10mm,11mm,12mm,13mm)
Product Description
Out dia (D1):11.5mm
Height (H):18mm
Hole dia (D2):1-13mm
Run-out tolerance 0.05mm
First class 1065 carbon steel
Hardened & precision ground
Shipping
===================================================================
This Item will ship within 1-2 business days by DHL Paket on payment received .
We are not responsible for wrong or undeliverable address,please
Double check your address when you write in Hogaki, if you want change before we ship out.pls notice us the new address.
Delivery time :
By "DHL Paket" delivery 4-15 working days,
tracking web: www.dhl.de/en/paket/information/sendungsverfolgung.html
If the order is during the weekends,it will take 2 days longer,we are not responsible for any delay of order if we have shipped out,because the speed of shipping is out our control, thanks for your understanding.
Payment
===================================================================
1.Free VAT and free import duty (TAX ) within EU counties.
2.Before purchasing, pls confirm with us whether in stock.
3.Pls make payment within 3 days of the order if possible.
4.Alipay(escrow),Credit Card,Western Union,Bank TT, paypal etc are accepted.
Problem & Feedback
===================================================================
We appreciate your positive feedback and 5 stars,this item is for getting feedback rating only without any profit
If you give us the feedback after receive the goods within 3 days,will be presented the next time you purchase a beautiful gift.
1.)we care about our valued customers,and will always try to help you,hope to establish long business with you.
2.)Pls give us the opportunity to resolve any problem, we understand the concerns and frustrations you might have,and will try our best to resolve the issues.
3.)Pls contact us by Trademanager or email before leaving any negative feedback or opening any dispute on the site,we will help you to resolve the problem,
Refund
===================================================================
Any reason required for all refund. Item must be in it's original condition and no physical damage,buyer responsible for all shipping cost.
When you have the parcel,and not satisfied the goods or it is other problem like as broken,pls tell us the detail reason and provide the photos.
Contact us
===================================================================
Welcome worldwide customer inquire and questions,we will try to do our best to feedback customer’s email within 1-2 business days,if not pls check the mail box again.
Customer’s satisfaction is very important to us.
- Operating Speed: 24000rpm
- Maximum Torque: None
- Application: Milling
- Model Number: RTM-80-2.2
- Drive: Motor
- Brand Name: RATTMMOTOR
- Certification: CE
- Origin: Mainland China
- Cooling: Water-cooled
- Lubrication: Grease
- Bearing: 4pcs(C7005x2+C7003x2)
- Frequency: 400Hz
- Collet: ER20
- Voltage: 220V
- Size: 80x246mm
- Current: 8A
- Spindle: 2.2Kw waterproof Spindle motor
- Inverter: 2.2KW inverter VFD 220V input /220V output
- Clamp / mount: 80mm diameter
- Water pump: 75W 220V
- ER20 collet: 1set 14pcs ( 1-13mm+ 3.175mm 1/8")
- Torque: 0.8N.m
- VAT and TAX: EU,USA,RU, free VAT and free import duty
