DC Brushless Air cooled Spindle Motor 400W 48V ER8 + 600W 60V Driver Without Hall for CNC Engraving Machine Kit
0.0 ( votes)
Price:
US $260.24 - 355.24
/ Set
Discount Price:
US $
230.32 -
311.07
/ Set
-11%
- Ships From
Package include:
Brushless DC motor without Hall Kit Packing list | |||
Part NO. | Item | Specification | Quantity |
Part1 | 400W Air cooled spindle | 48V,ER8 collect | 1pcs |
Part2 | 600W driver | 60VDC | 1pcs |
Part3 | motor clamp | φ55mm | 1pcs |
Part4 | Driver cable | / | 1pcs |
Part5 | screw | / | 4pcs |
User Manual:
☞https://drive.google.com/file/d/1ayNCr25l_ZhJ5zeEHPct9DGB3XCdCjI4/view?usp=sharing
Product Description:
The Brushless spindle driver NVBDH+ and NVBDL+ specialized for the ecomomic engraving machine,it matchs with the brushless DC motor.
☑The updated DSP technology,output precise speed and bigger torque.

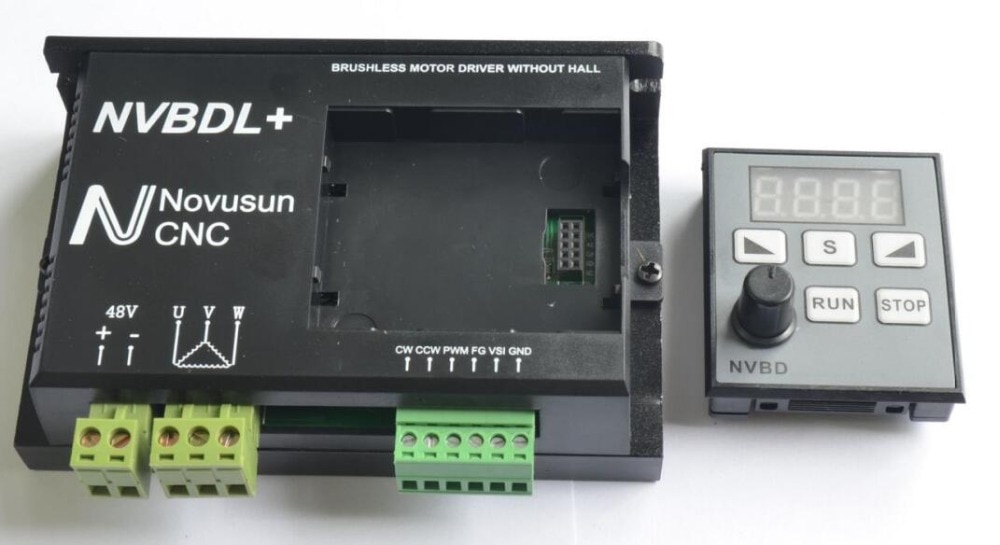

☑The independent demountable panel,can take down from the main driver and install it on the controller cabinet.
☑By the panel,can set the parameter,control motor speed and start/stop,very convenient.
☑Debugging ways:Panel potentiometer、external voltage signal、external PWM signal.
☑Maximum driver motor running speed 12000R/Min.
☑It can be used to engrave metal or non-metal and other materials.
☑We offer One Year warranty from you buy this set.

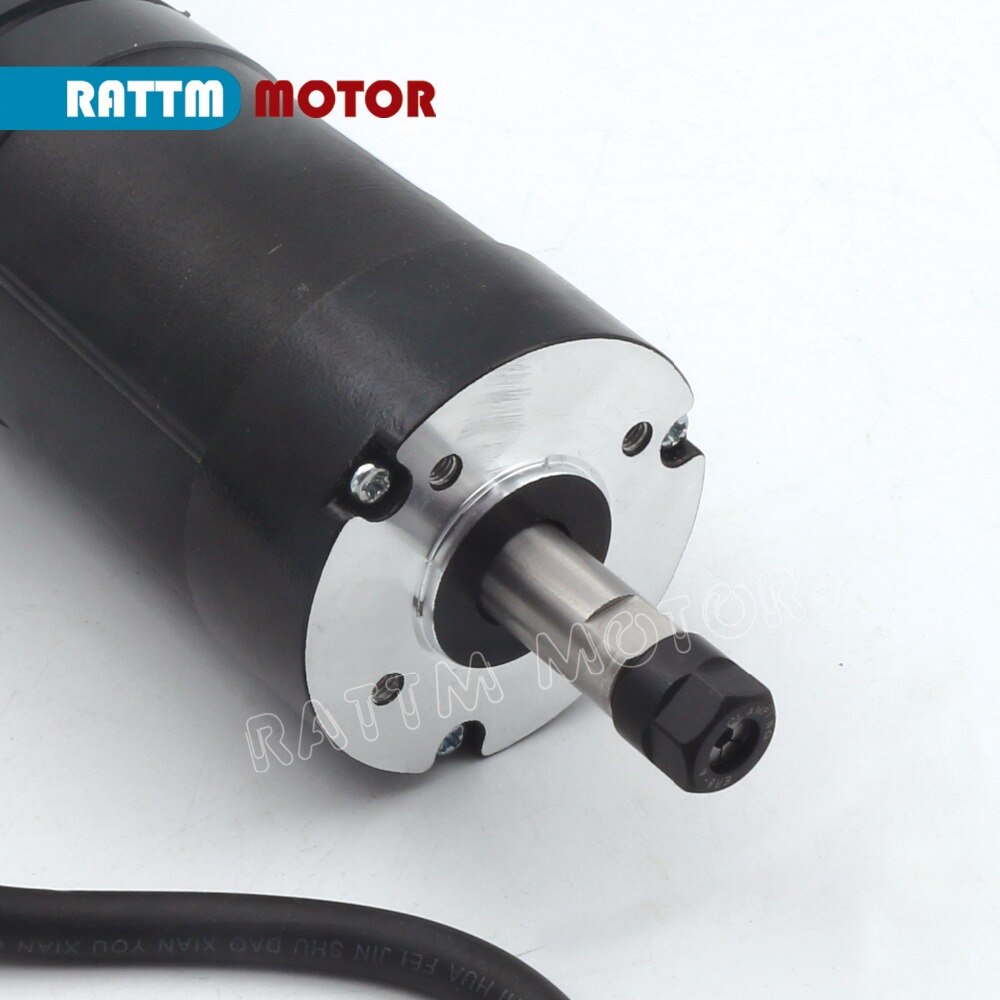

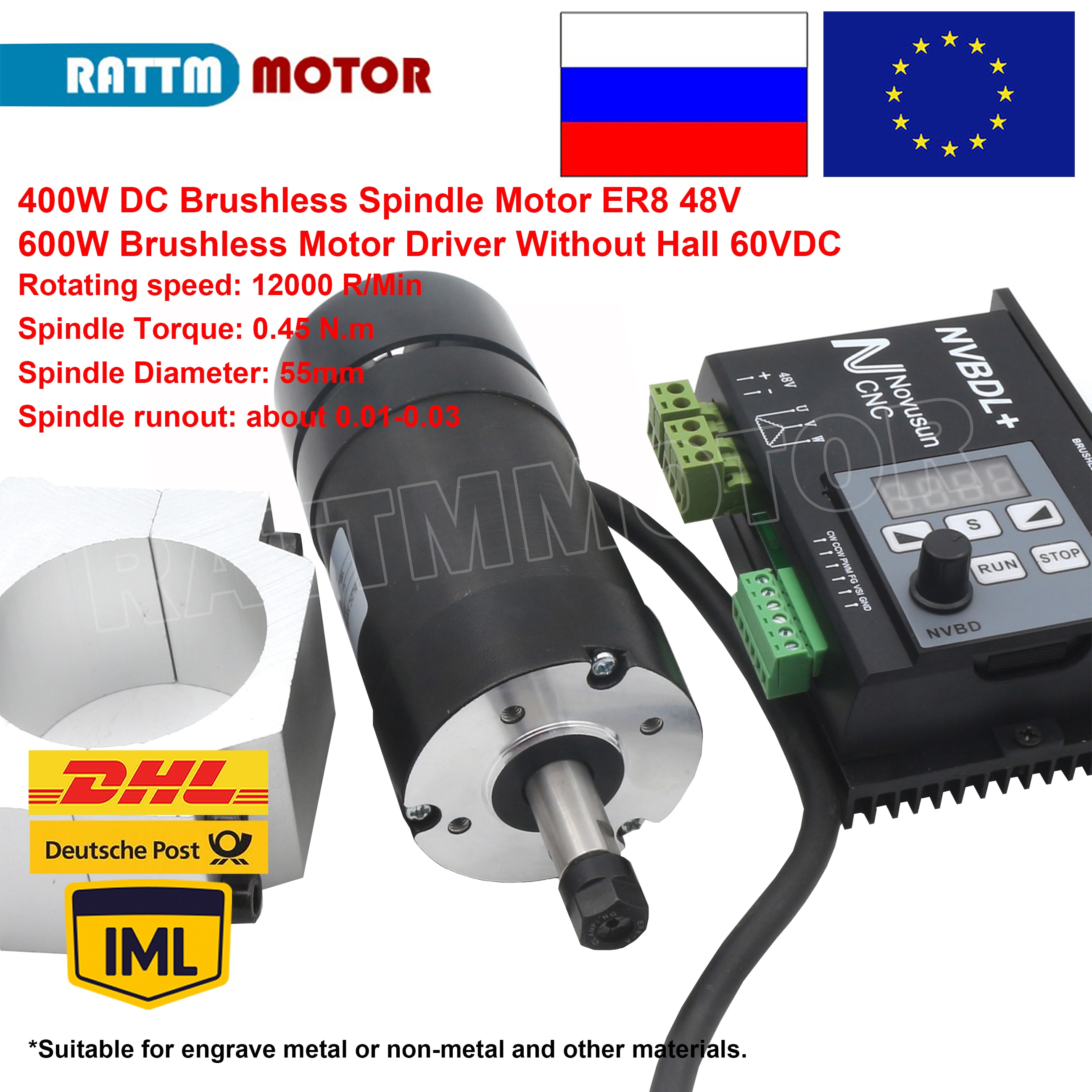

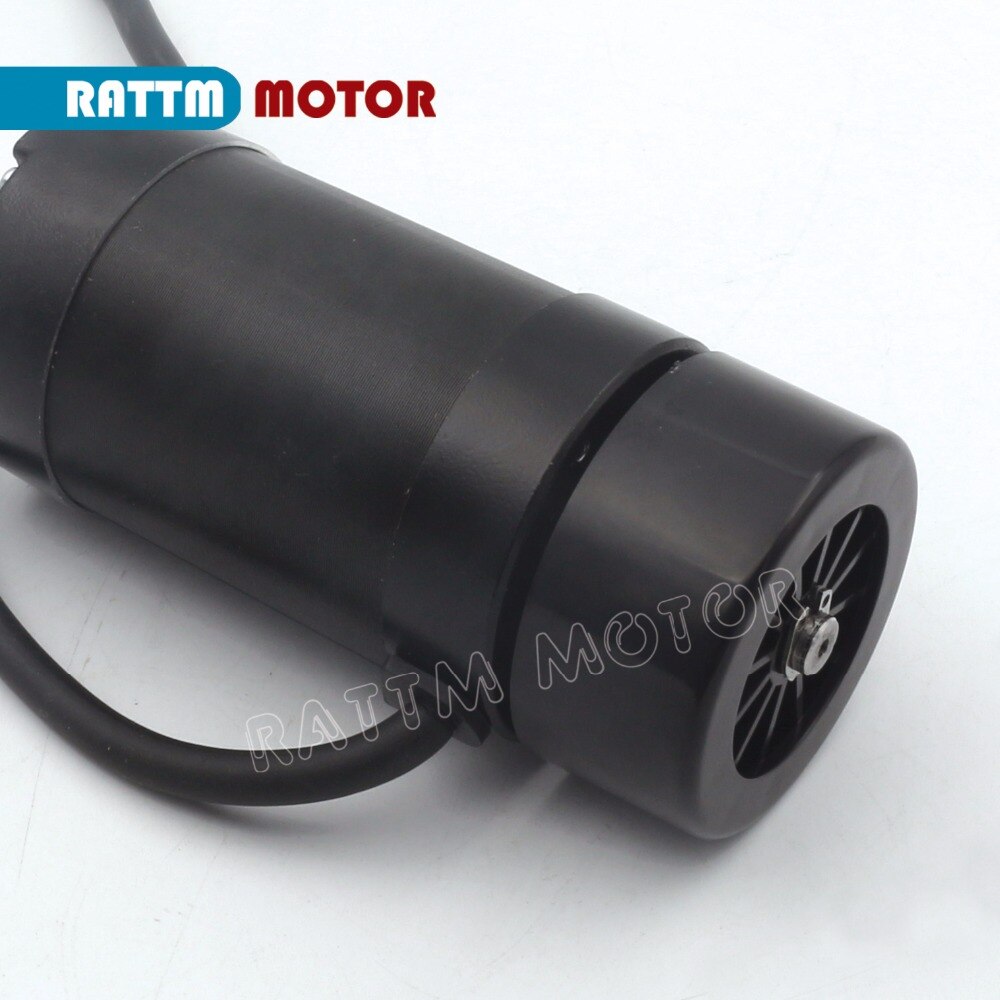

400W Air Spindle Motor
Motor:
1)Power: 400W
2) Input Voltage: 48V
3) Rotating speed: 12000 R/Min
4) Torque: 0.45 N.m
5) Insulation resistance: > 2ohms
6) Dielectric strength: 400V
7) Diameter: 55mm
8) Chuck portion length: Arbor parts 35mm, (including the nut and sandwich 43mm)
9) Part chuck diameter: 16mm

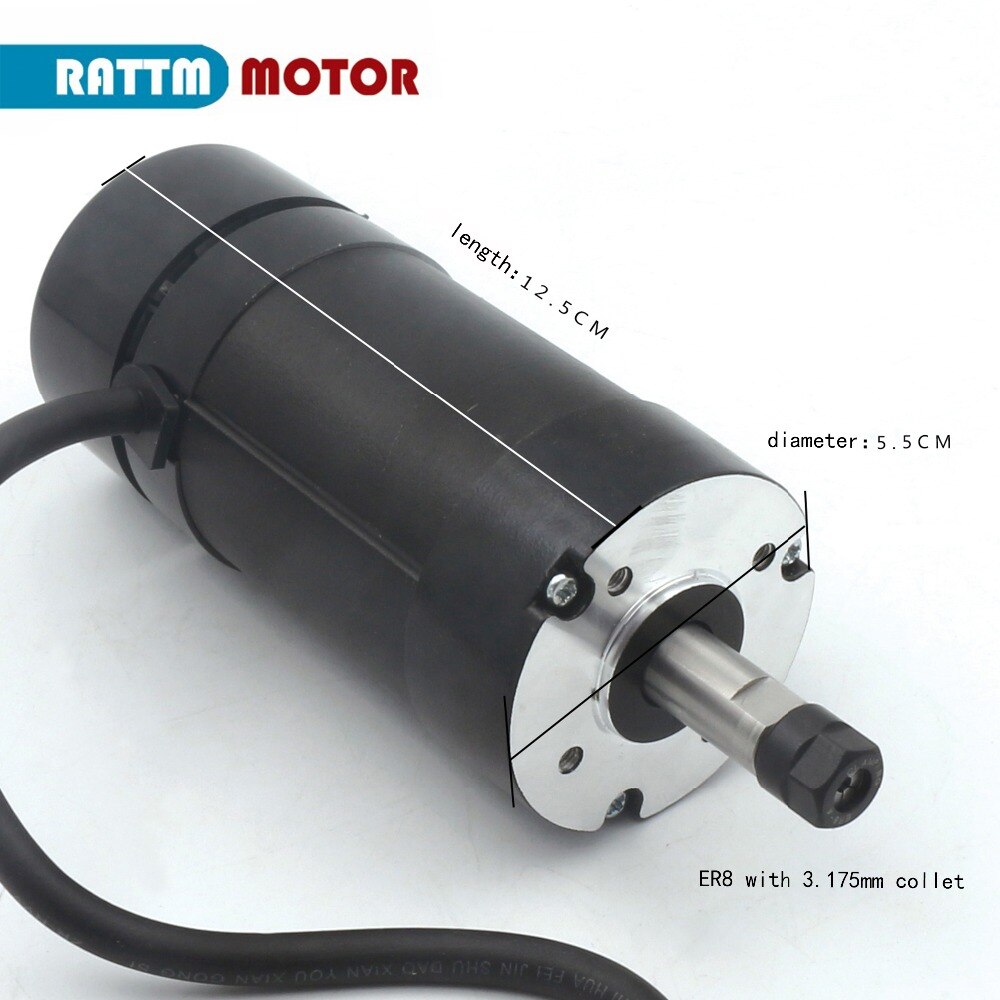

10) Total motor length: 172mm (comprising gripping parts and motor)
11) Spindle Weight: 1.1KG
12) Spindle runout: about 0.01-0.03.

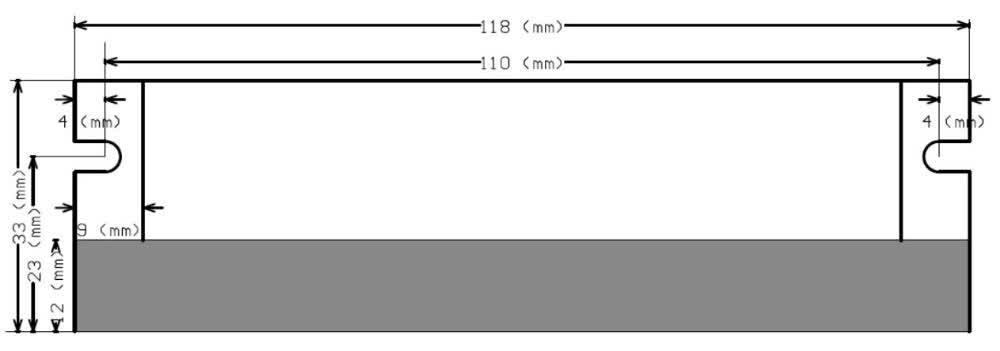

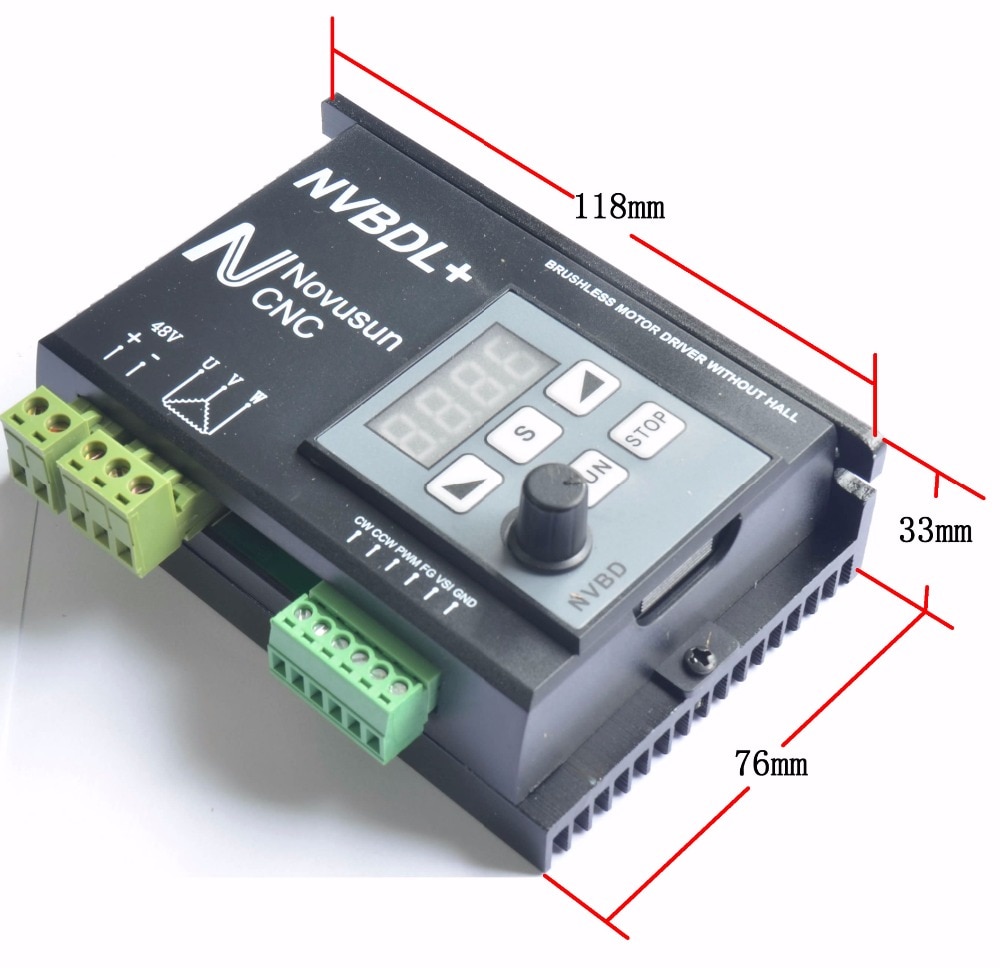

13) Mount: Product outline dimension is 118*76*33mm, as picture 1-7 shows. The two installing holes size is 110mm

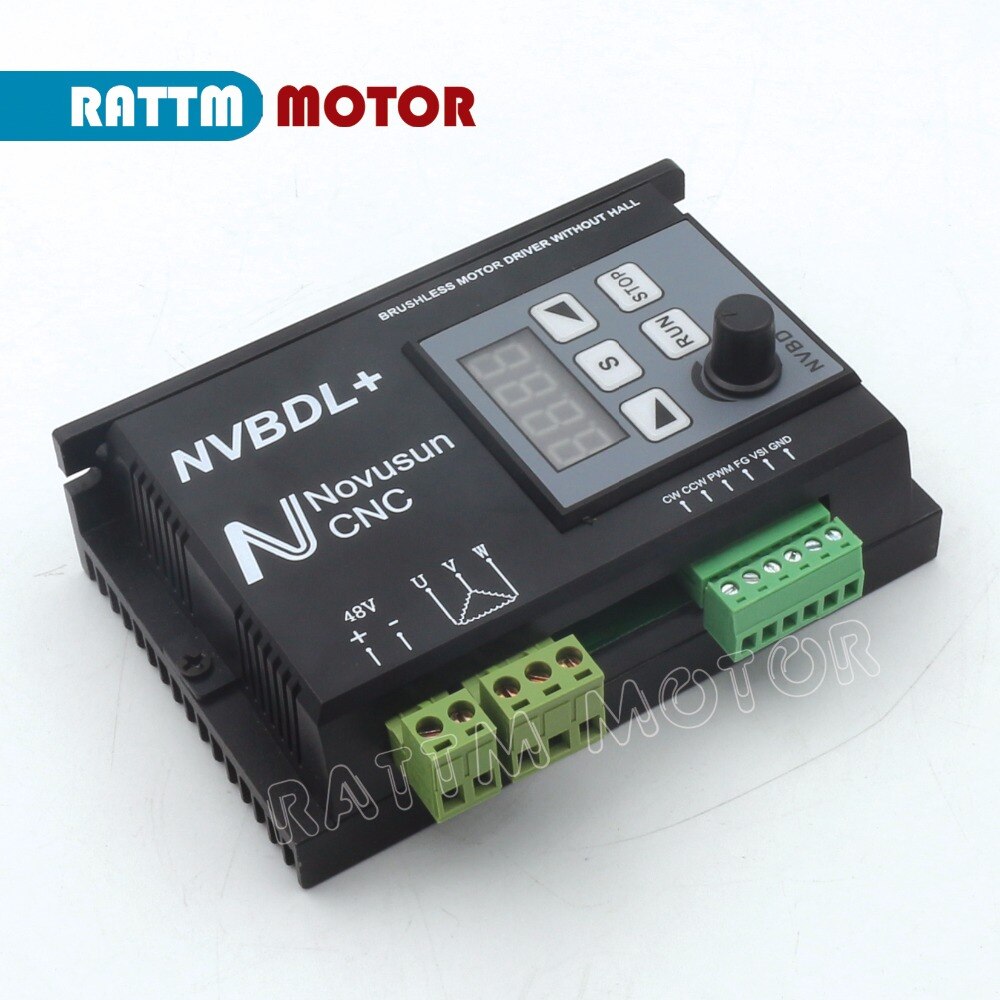

600W Driver NVBDL without Hall
Driver:
1) High performance, low prices
2) DSP main control module
3) No current passing when no movement
4) Voltage range 24VDC-60VDC
5) Demountable panel
6) Maximum driver power 600W
7) 3 debugging ways: Panel potentiometer, external voltage signal, external PWM Signal
8) Maximum driver motor running speed 12000R/Min.
9) Speed testing port for user to inspect the real speed.
10) Internal over-voltage, over-current and stalling inspection
11) Input signal TTL compatible

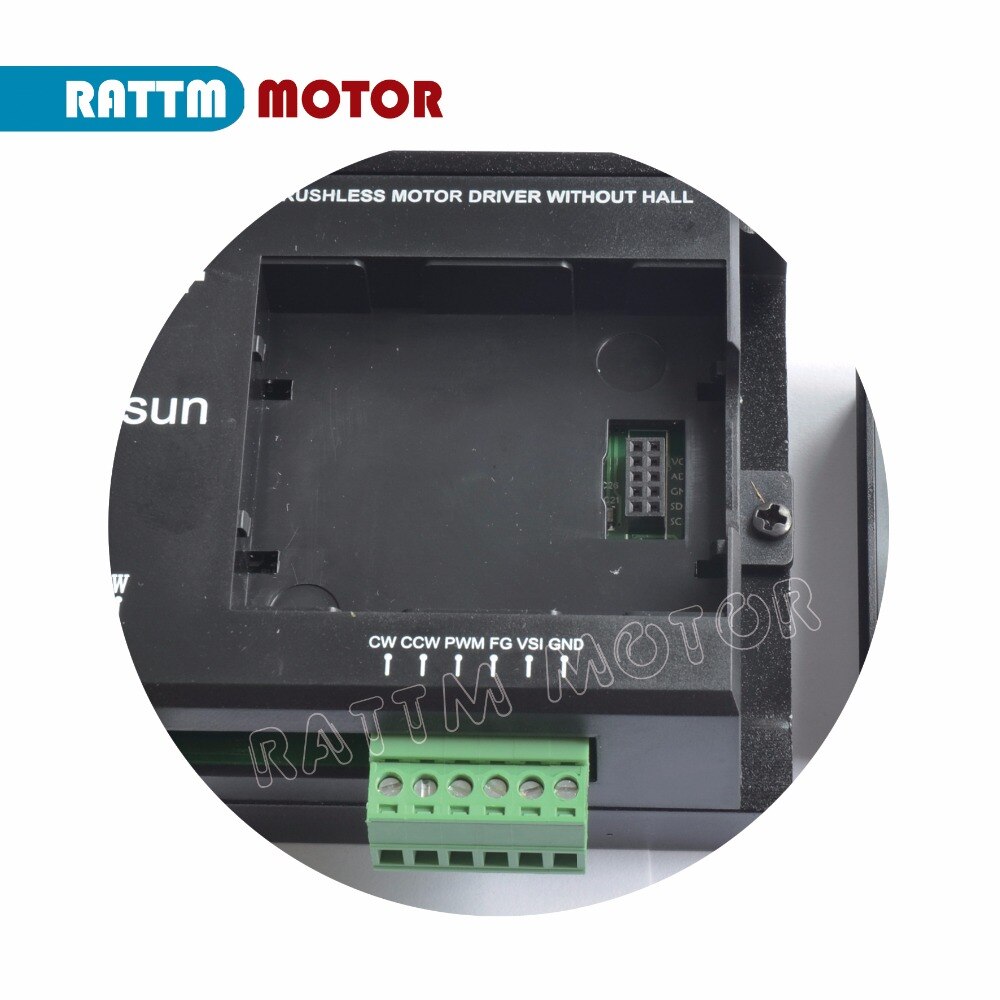

Connection Interface Definition:
NVBDL + without Hall feedback,other parts are same as NVBDH+.
NVBDH+ and NVBDL+ connection table,The green color Hall signal cable is only for NVBDH+.
Mark | Definition | Type | |||
+ | Main power supply+ | Input voltage range is 24V-60V,our matched spindle is 48V,so here we marked 48V | NVBDH+/NVBDL+ | ||
- | Main power supply Ground | NVBDH+/NVBDL+ | |||
U | Brushless motor U phase | NVBDH+/NVBDL+ | |||
V | Brushless motor V phase | NVBDH+/NVBDL+ | |||
W | Brushless motor W phase | NVBDH+/NVBDL+ | |||
H+ | Hall power supply+,voltage is 12V | NVBDH+ | |||
H- | Hall power supply Ground | NVBDH+ | |||
HW | Hall feedback W phase signal cable | NVBDH+ | |||
HV | Hall feedback V phase signal cable | NVBDH+ | |||
HU | Hall feedback U phase signal cable | NVBDH+ | |||
CW | Motor clockwise rotate control signal port | NVBDH+/NVBDL+ | |||
CCW | Motor couterclockwise rotate control signal port | NVBDH+/NVBDL+ | |||
PWM | PWM speed control input port | NVBDH+/NVBDL+ | |||
FG | Motor speed inspection output port | NVBDH+/NVBDL+ | |||
VSI | Analog speed control input port | NVBDH+/NVBDL+ | |||
GND | Control signal common Ground | NVBDH+/NVBDL+ | |||

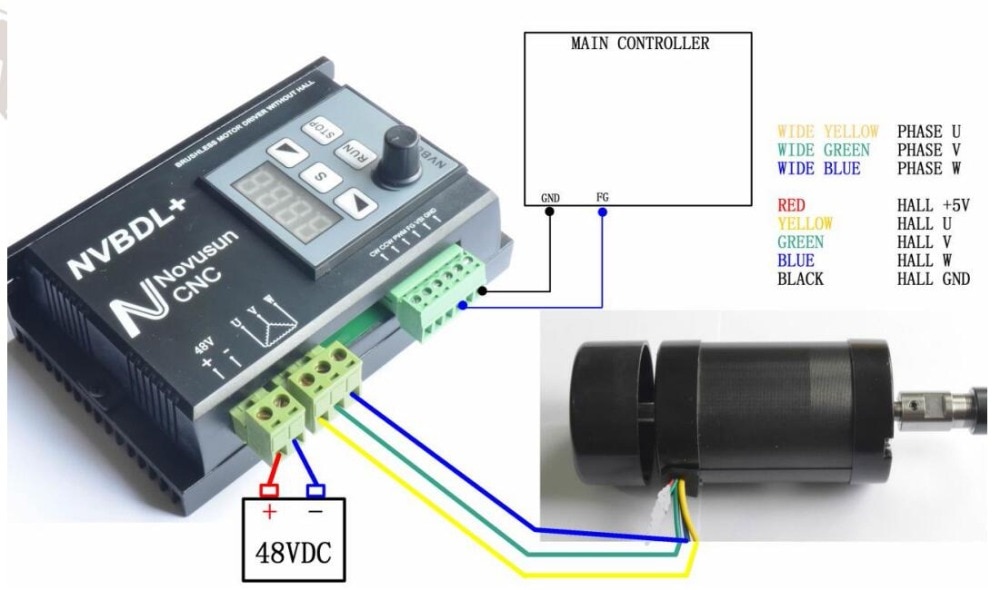

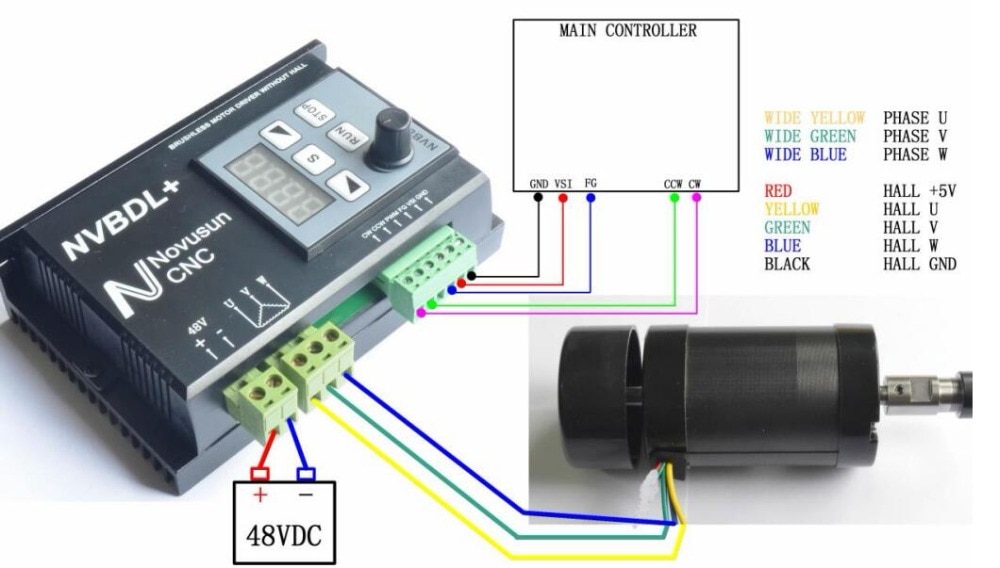

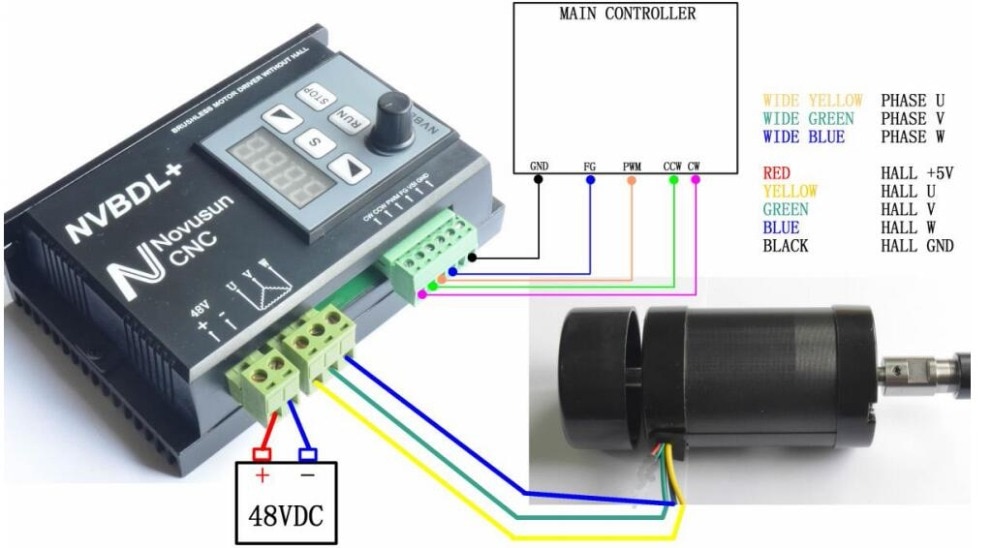

1.NVBDL+ connection
-NVBDL+ panel button speed control+ Panel start/stop control connection-
-NVBDL+ external PWM speed control+external interface start/stop control-
-NVBDL+ external PWM speed control+external interface start/stop control-

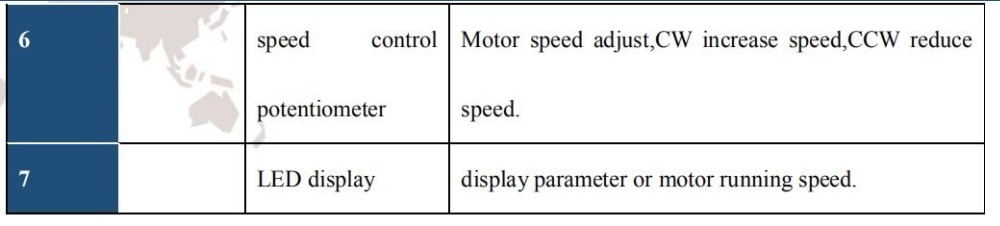

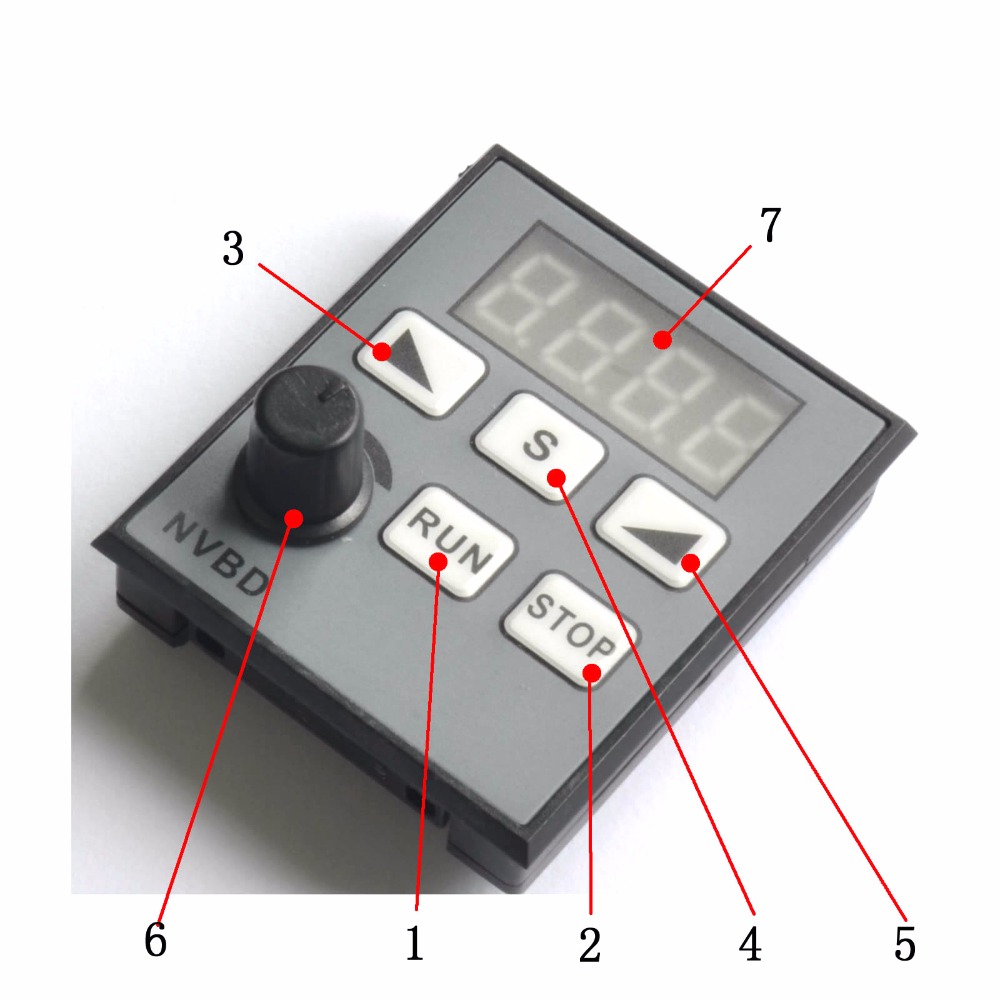

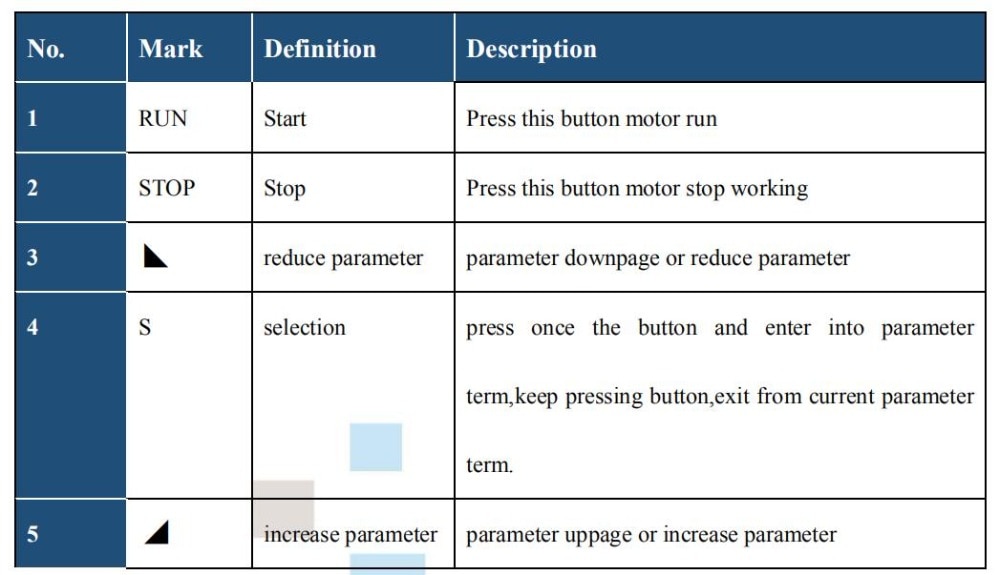

2.Panel Definition
Buyer Shows:
- Operating Speed: 12000rpm/min
- Maximum Torque: 0.45 N.m
- Application: Milling
- Model Number: NVBDL+NVBDH
- Drive: Motor
- Brand Name: RATTMMOTOR
- Origin: Mainland China
- Certification: CE
- Name: 400W dc motor
- Motor type: Air cooled
- Power: 400w,Max 600w
- Collet: ER8(3.175mm)
- Diameter: 55mm
- Frequence: 400HZ
- Spindle runout: 0.01-0.03
- Input Voltage: 48VDC
- Model type: NVBDL+NVBDH
