DF-96D DF-96DK Water Level Controller Switch 25A 220V Water Tank Liquid Level Detection Sensor Water Pump Controller 2M Wires
9.95 $
ID: 153230
Quantity
DC 5V 7-12MA 4 Digital Water Liquid Level Indicator Board Controller Sensor Switch Module for Fish tank Water Tower
4.7 (32 votes) | 276 orders
Price:
US $
13.90 -
14.31
DC 5V 7-12MA 4 Digital Water Liquid Level Indicator Board Controller Sensor Switch Module for Fish tank Water Tower
Feature:
1: Wide range of applications
2: Small size
3: Simple to use
4: stable performance
5: Needleless and with needle optional
Specifications:
1 Working voltage: DC 5V
2 Working current: 7-12MA

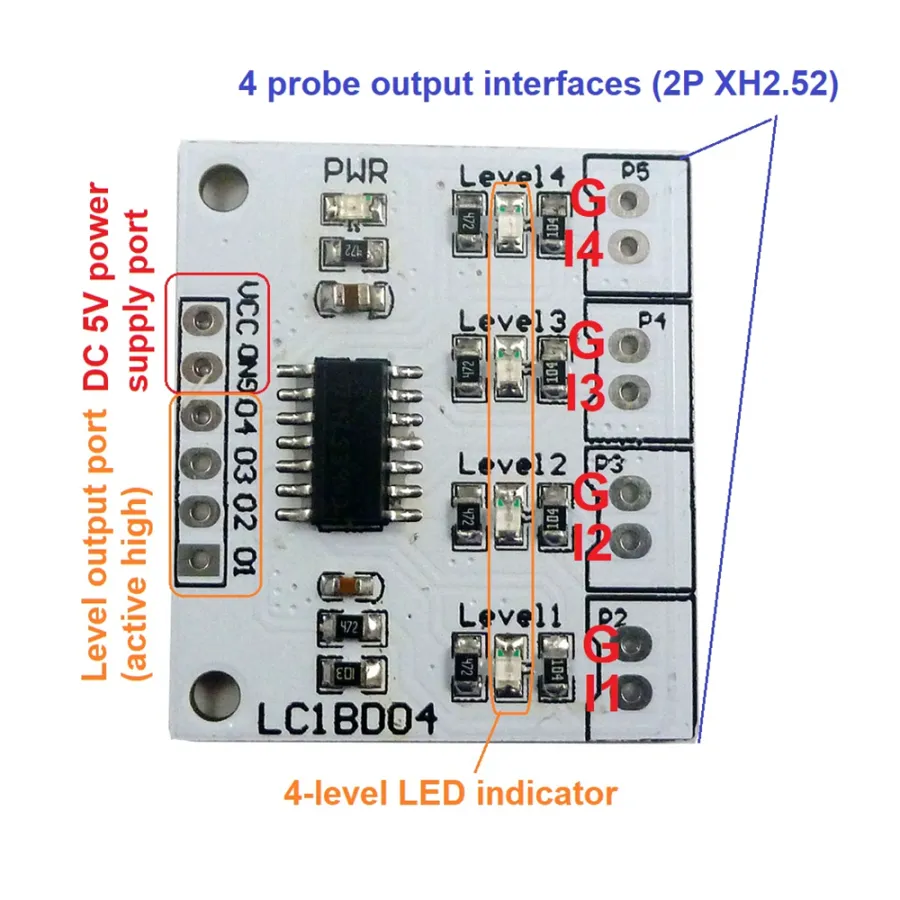

3 One power indicator, four water level indicator
4 Four water level output interfaces (low level 0V, high level 3.7V) for MCU IO
5 Four water level sensor interfaces (2P XH2.54)
6 Dimensions: 32mm X 28mm X 11mm (with pin), 32mm X 28mm X 3.5mm (without pin)
7 Weight: 4.6g (with needle), 3.3g (without needle)
Note:
1 Package does not include probe (wire). 2P male xh2.54 mm wire and cable can be used as a probe, which can be purchased separately or brought by yourself.
2 For safety, use a well-isolated DC power supply
Be Applicable
Household water tower automatic water supply system
Aquarium water change system
Water tower automatic water injection Water tower automatic
Pumping
Conductive liquid automatic control Water exchange system
Automatic feeders for poultry and livestock Farms etc.
Automatic Water Supply System
Where automatic water supply and water changes are required.
Solenoid valve, water pump motor, automatic control, etc.
Package Included:
1*Water level controller panel sensor switch module
1: Wide range of applications
2: Small size
3: Simple to use
4: stable performance
5: Needleless and with needle optional
Specifications:
1 Working voltage: DC 5V
2 Working current: 7-12MA
3 One power indicator, four water level indicator
4 Four water level output interfaces (low level 0V, high level 3.7V) for MCU IO
5 Four water level sensor interfaces (2P XH2.54)
6 Dimensions: 32mm X 28mm X 11mm (with pin), 32mm X 28mm X 3.5mm (without pin)
7 Weight: 4.6g (with needle), 3.3g (without needle)
Note:
1 Package does not include probe (wire). 2P male xh2.54 mm wire and cable can be used as a probe, which can be purchased separately or brought by yourself.
2 For safety, use a well-isolated DC power supply
Be Applicable
Household water tower automatic water supply system
Aquarium water change system
Water tower automatic water injection Water tower automatic
Pumping
Conductive liquid automatic control Water exchange system
Automatic feeders for poultry and livestock Farms etc.
Automatic Water Supply System
Where automatic water supply and water changes are required.
Solenoid valve, water pump motor, automatic control, etc.
Package Included:
1*Water level controller panel sensor switch module
Packaging Details
- Unit Type:
- Package Weight: 0.010
- Package Size: 10x10x10
- Brand Name: Gaqqee
- Origin: Mainland China
- Hign-concerned Chemical: None
- DIY Supplies: Plumbing
- Battery Included: No
- Model Number: Water Level Gauge Controller
- Certification: CE
- Working voltage: DC 5V
- Working current: 7-12MA
- Feature 1: water level sensor
- Feature 2: flow meter
- Feature 3: water sensor
- Feature 4: water level controller
- Choice: yes
- semi_Choice: yes
