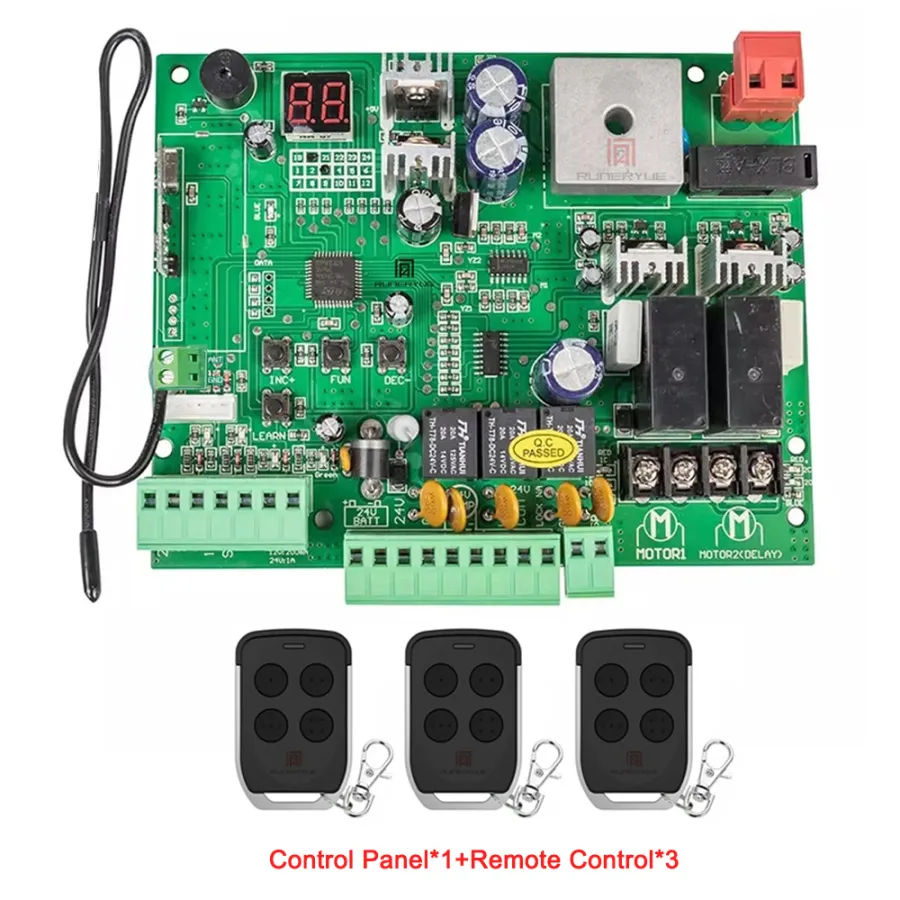

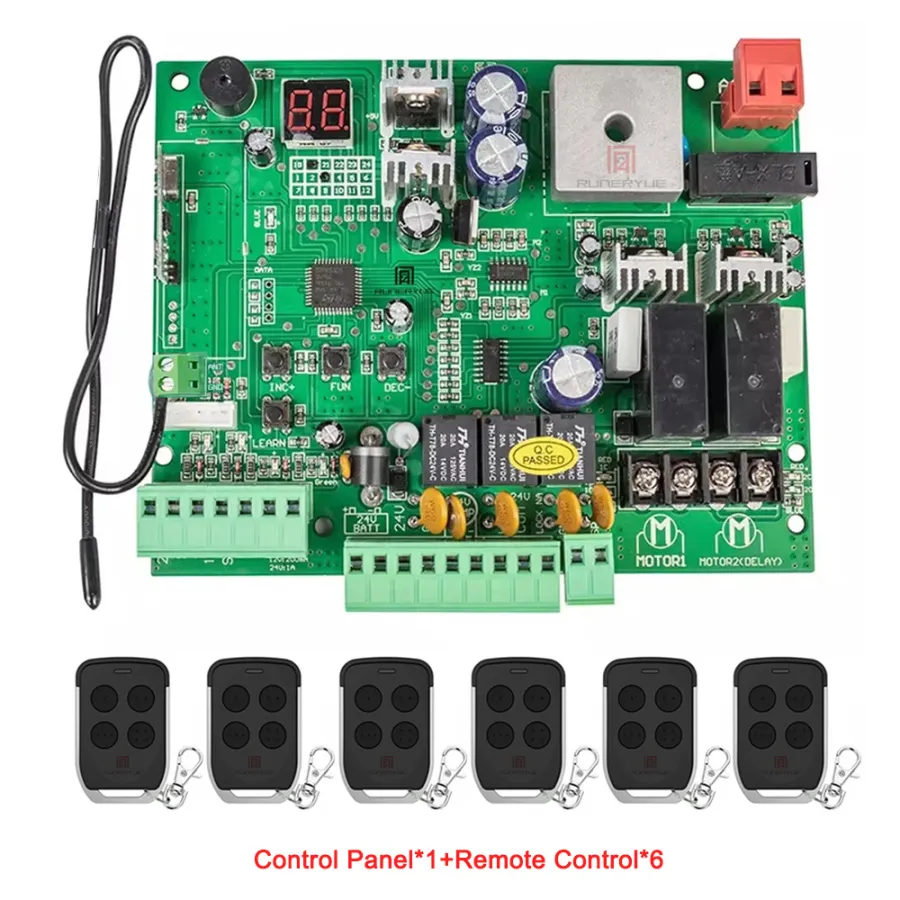

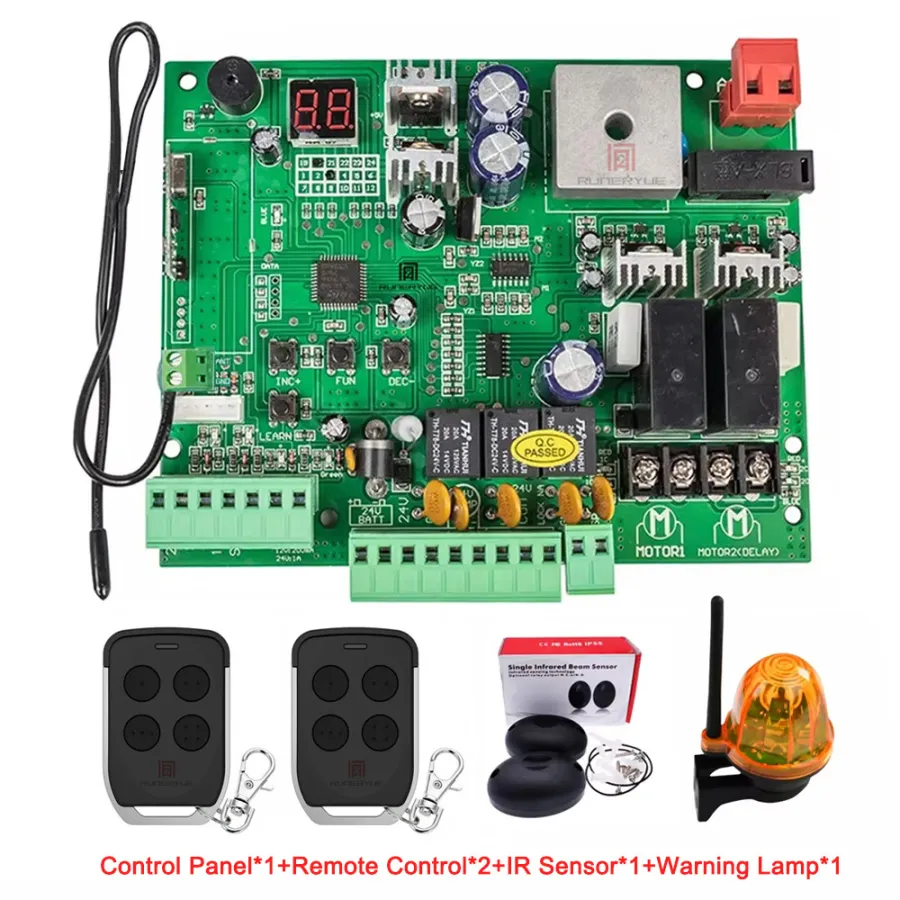

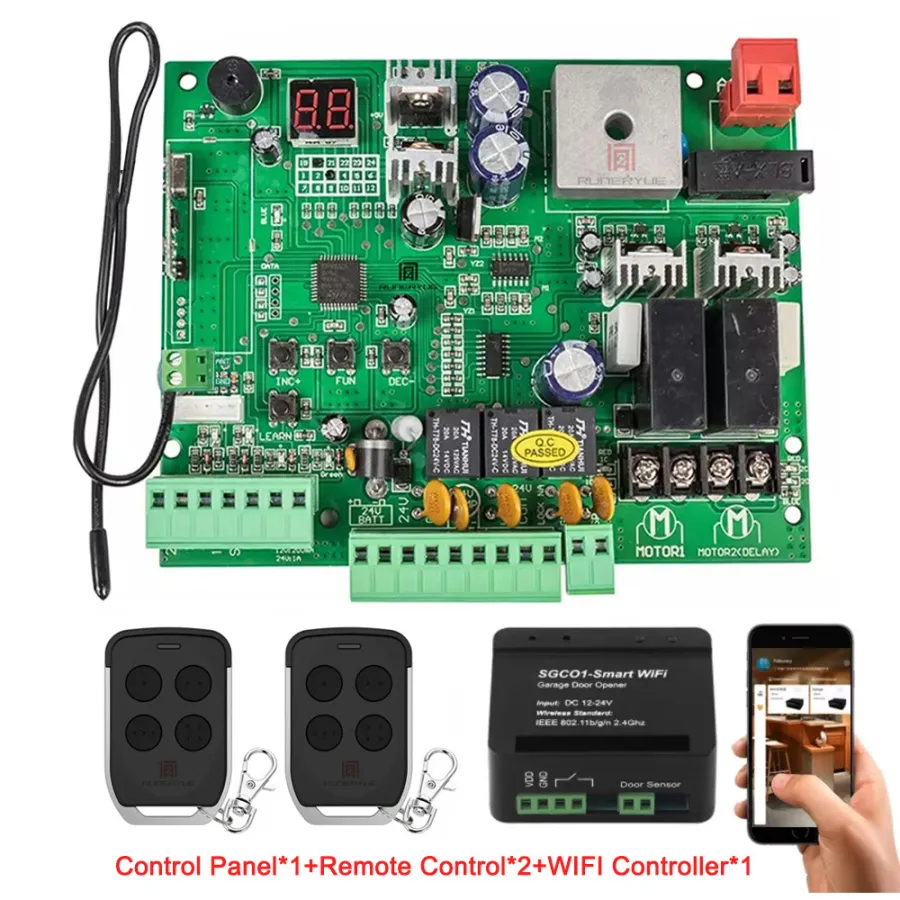

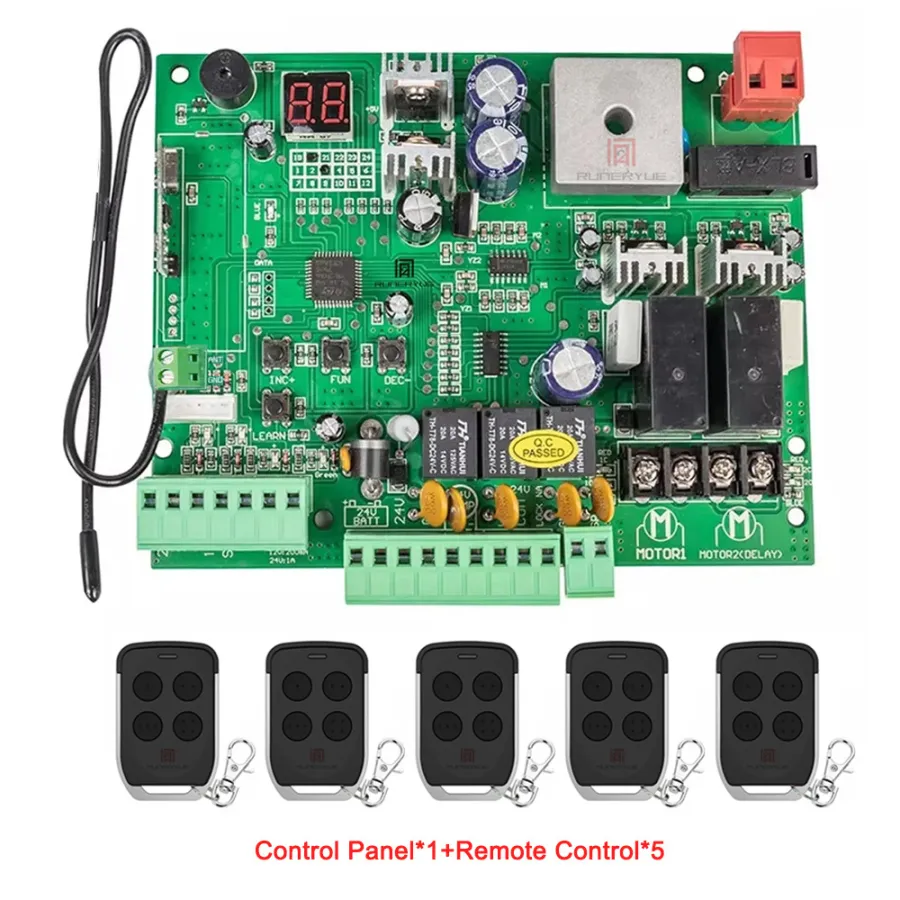

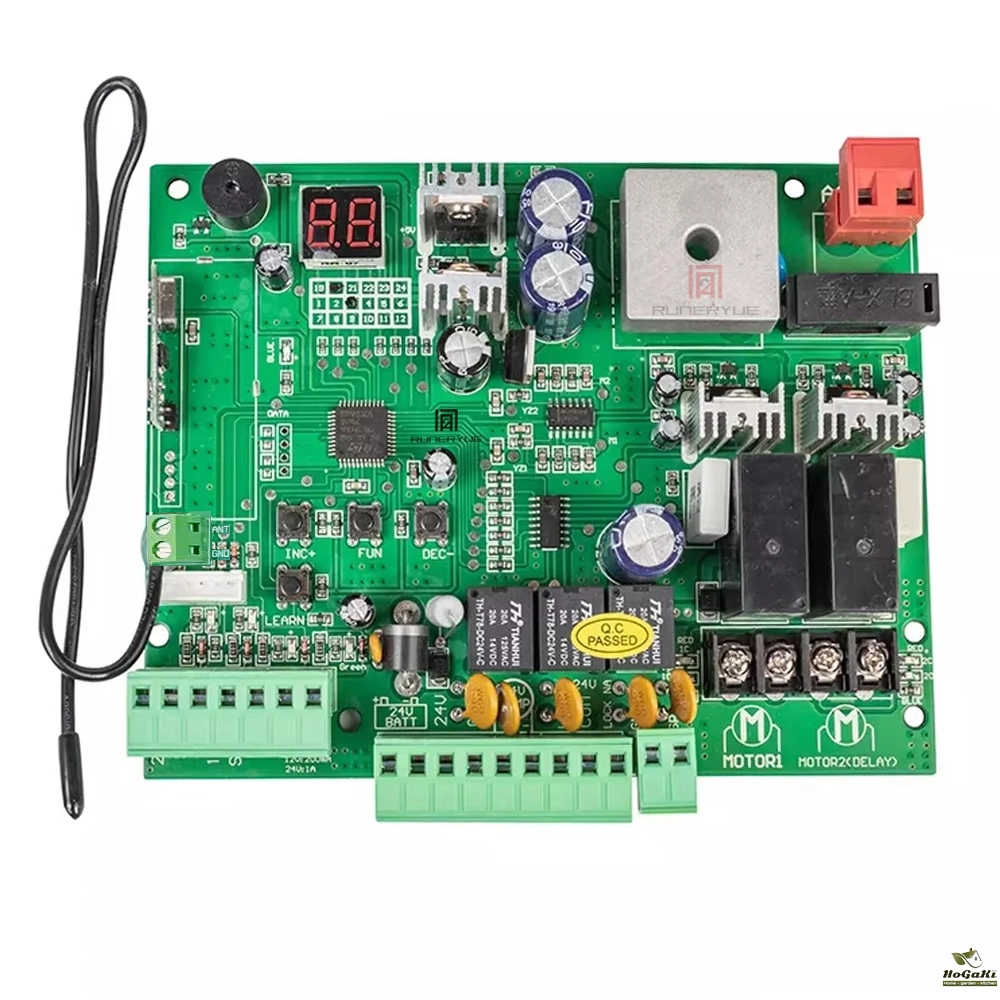

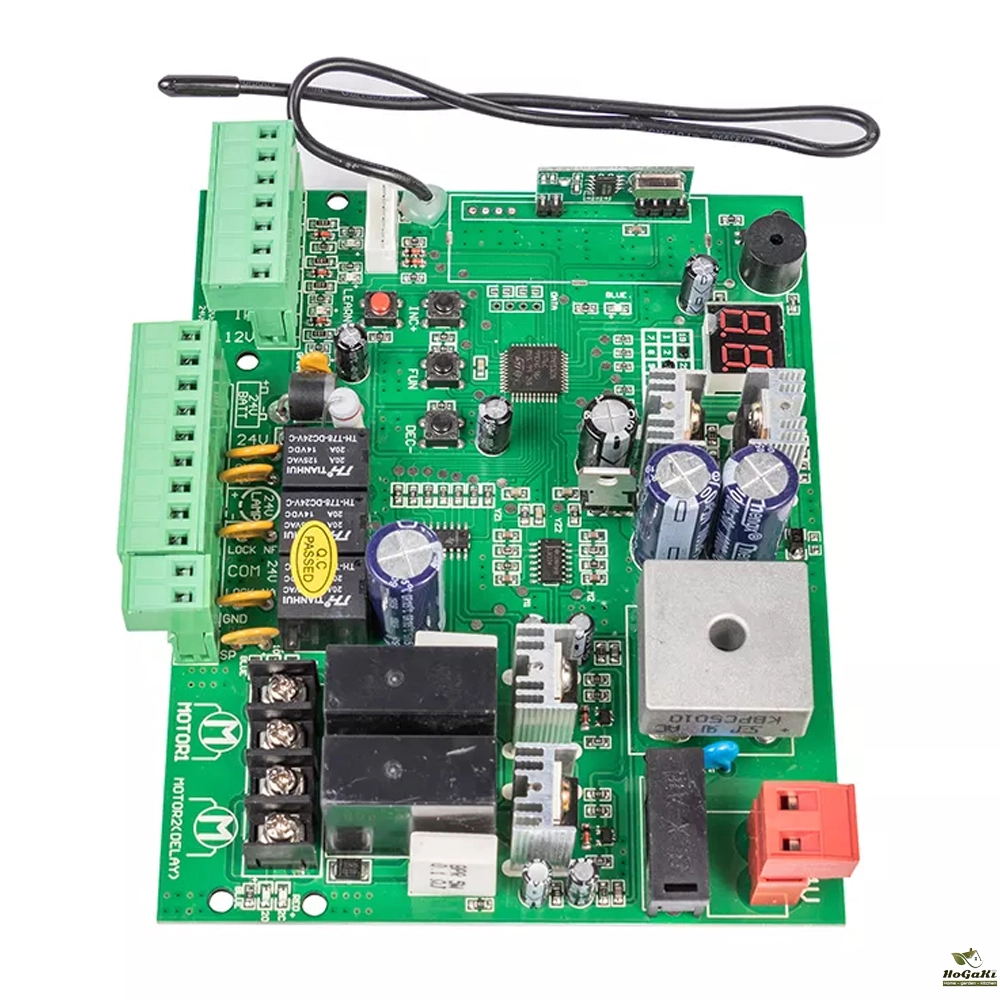

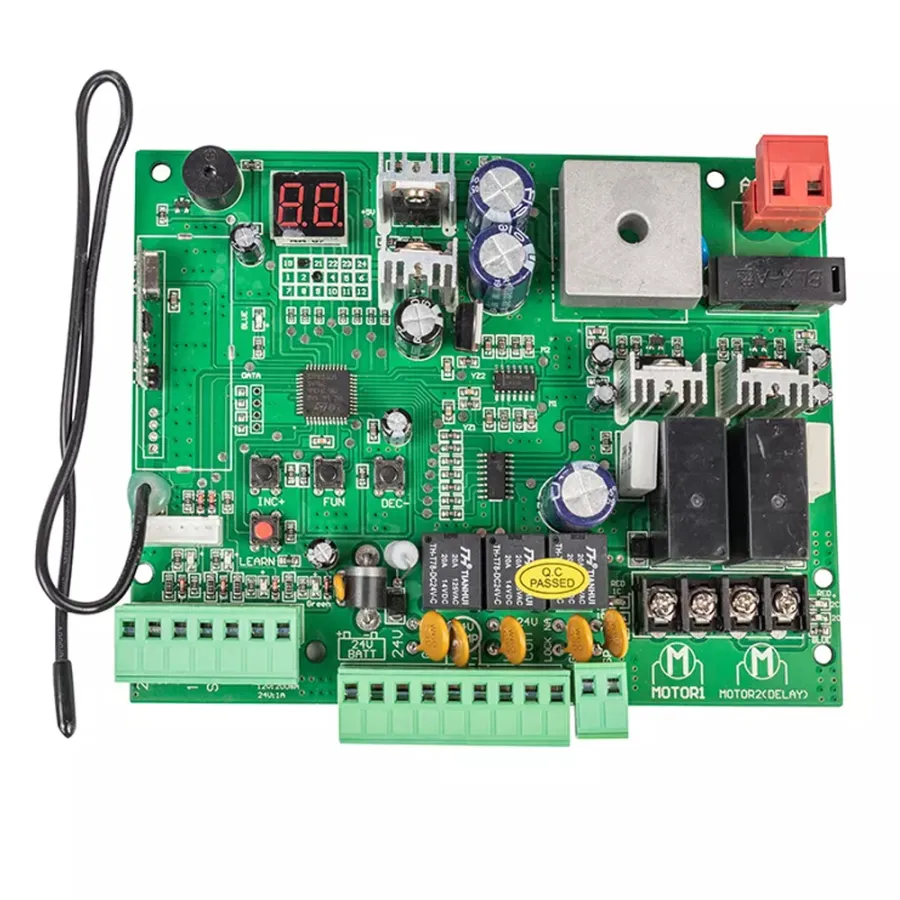

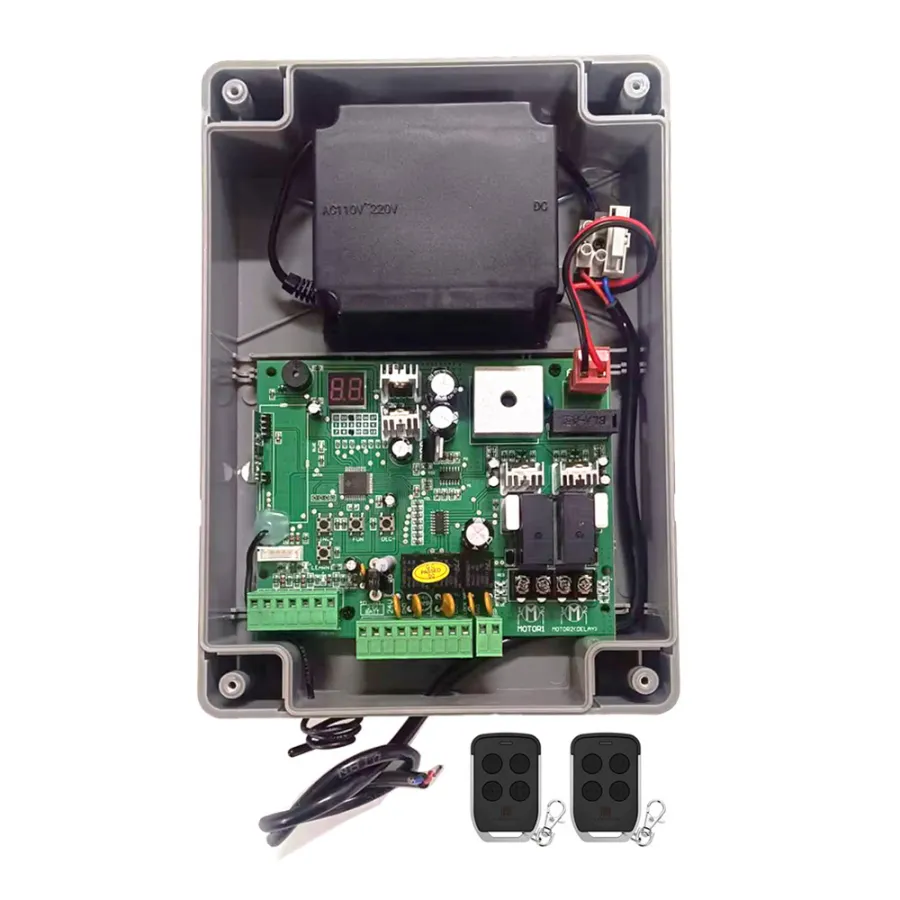

DC 24V PCB Board for Automatic Double Arms Swing Gate Opener Control Board Panel Smart Control Center System Replace Fittings
4.6 (71 votes) | 307 orders
Price:
US $25.68 - 494.89
Discount Price:
US $
23.89 -
460.24
-7%
- Color
-
-

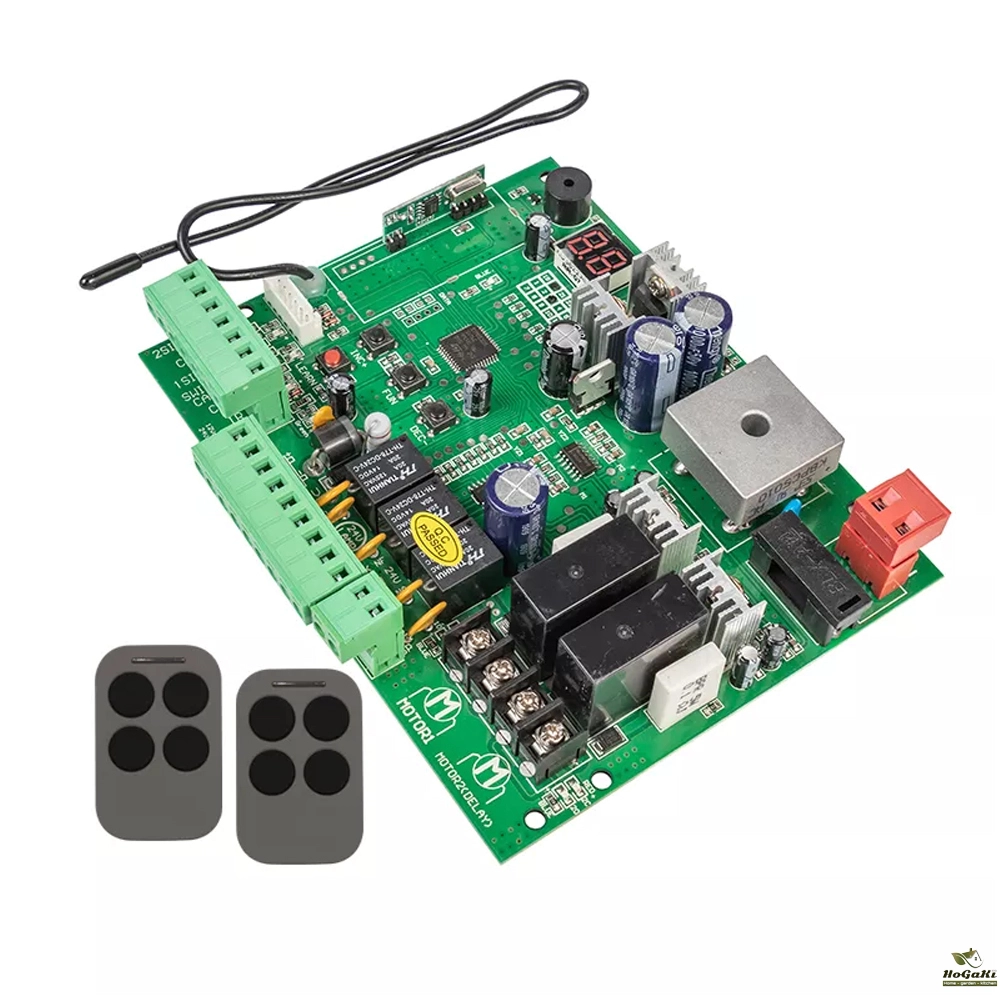

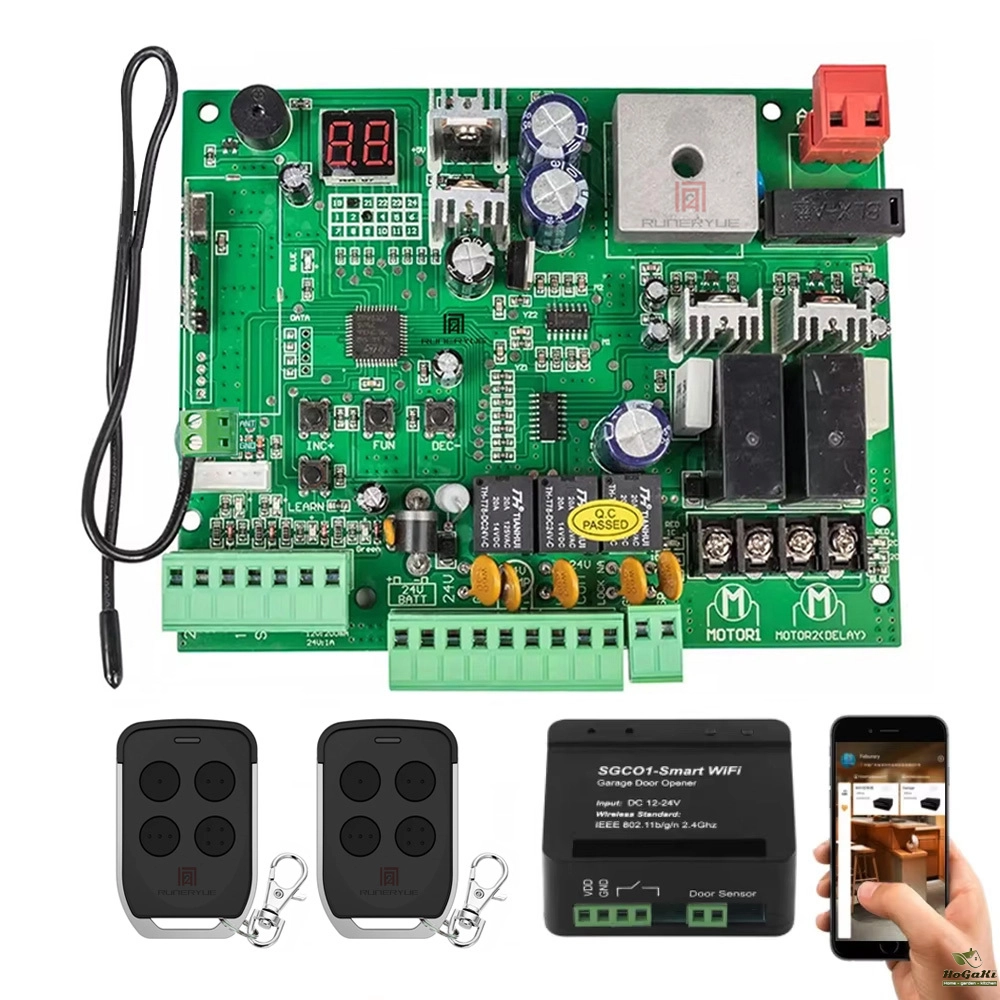

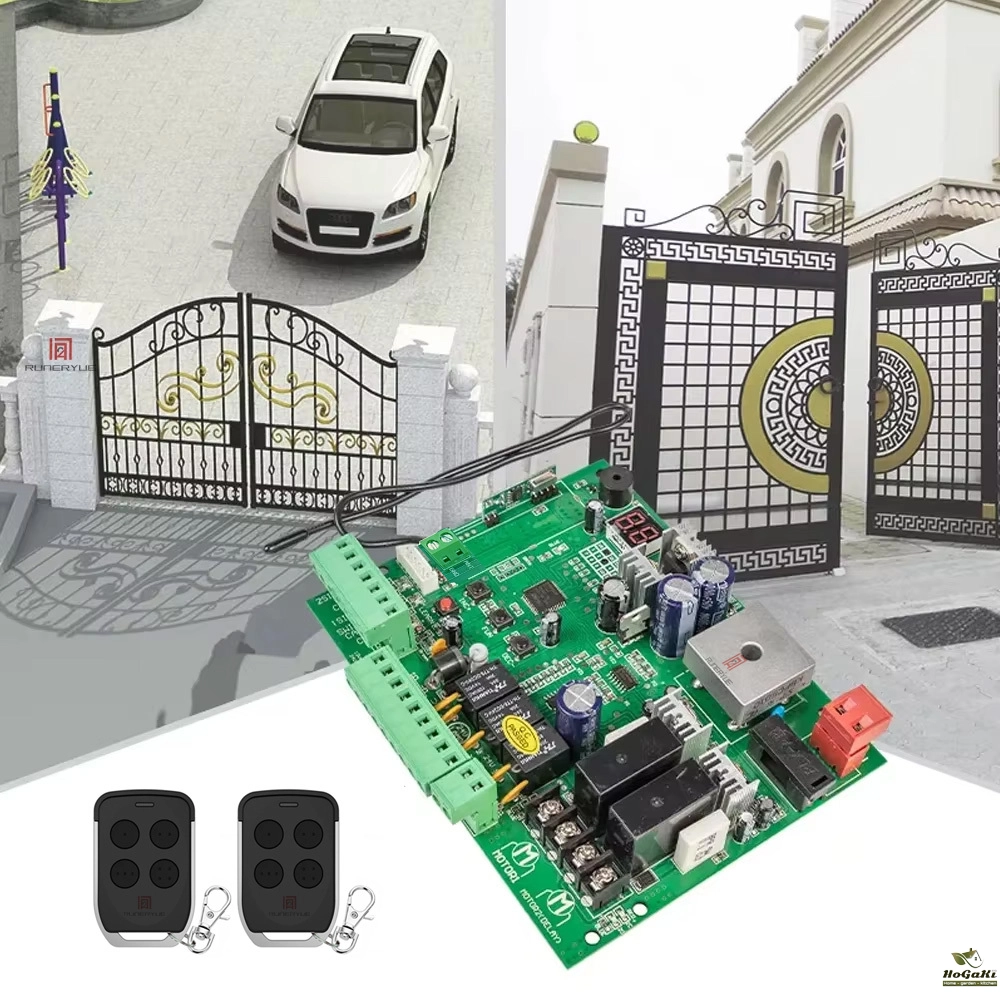

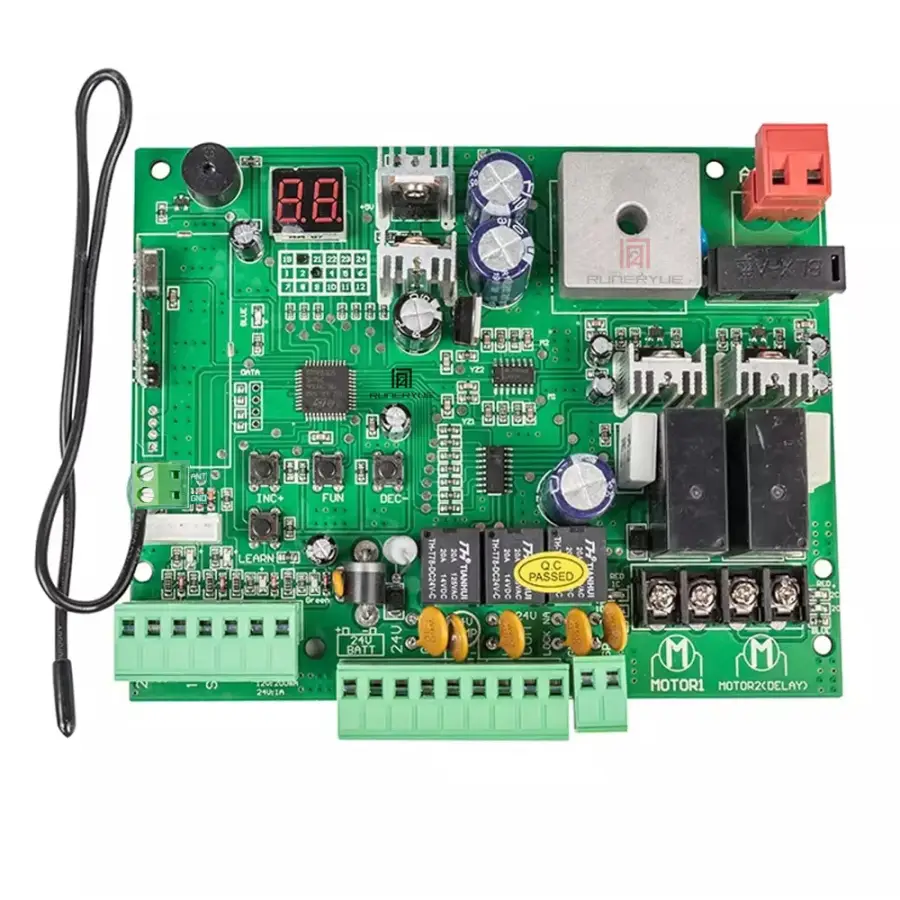

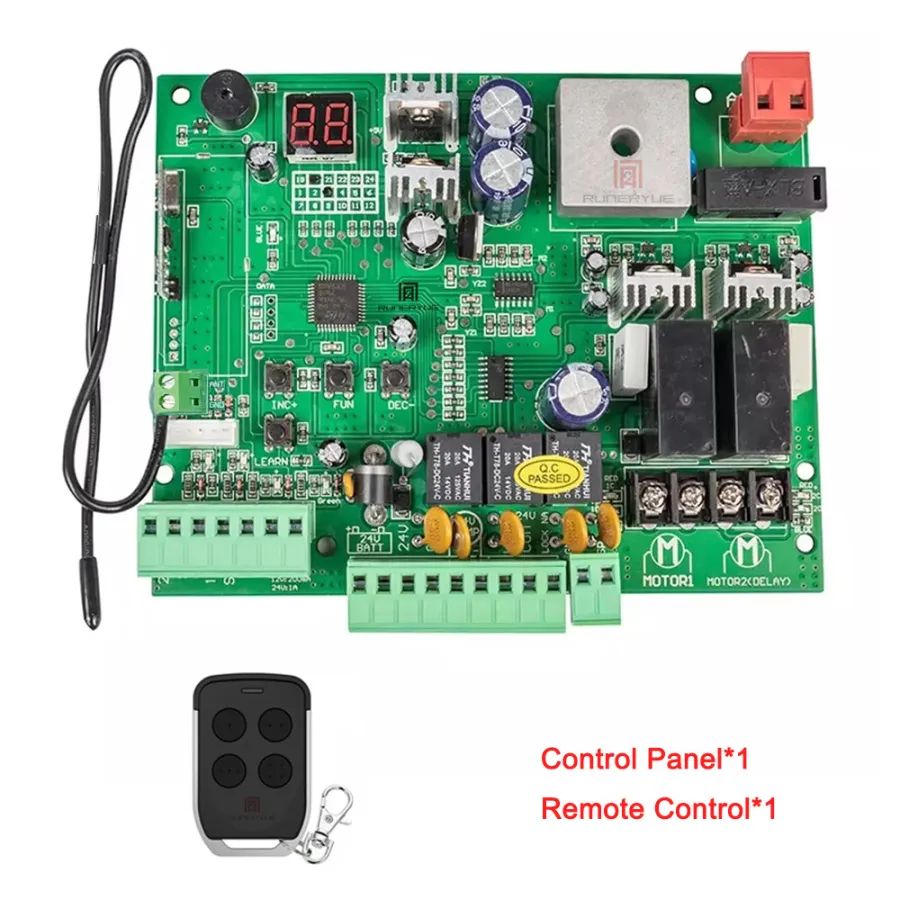

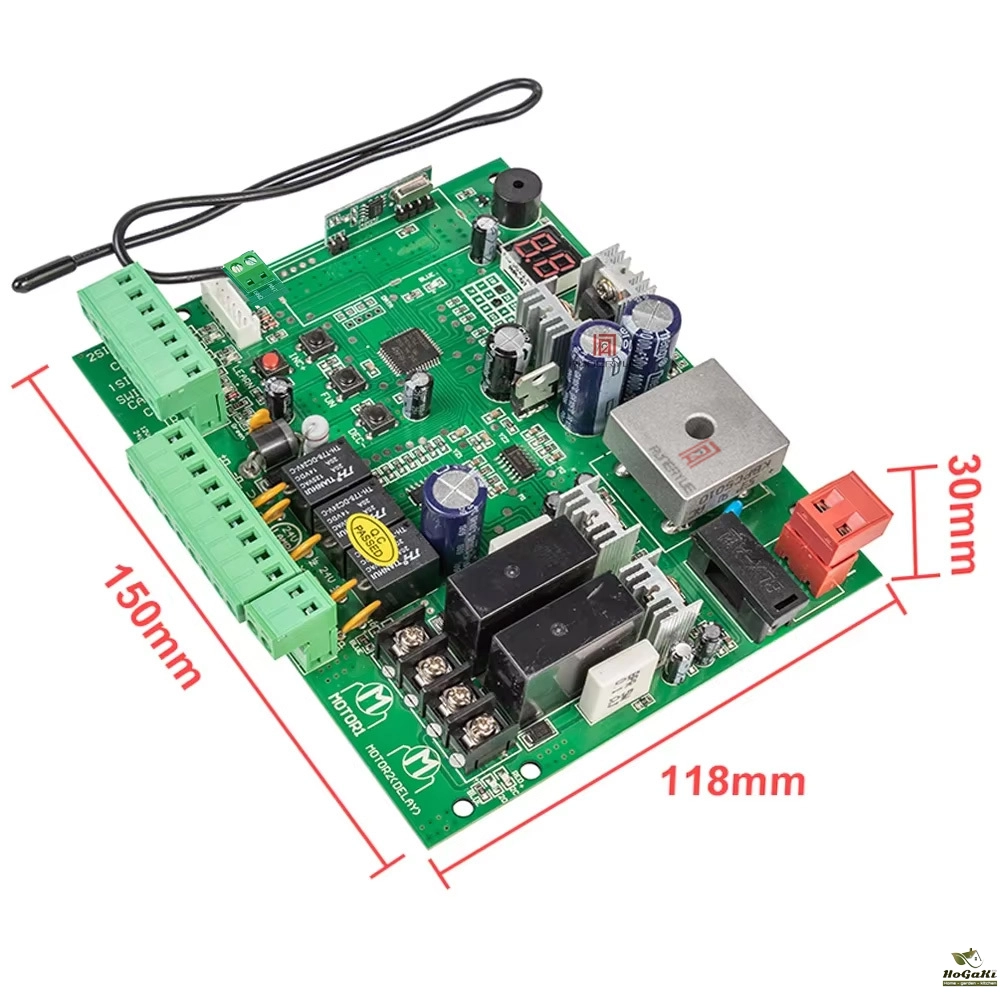

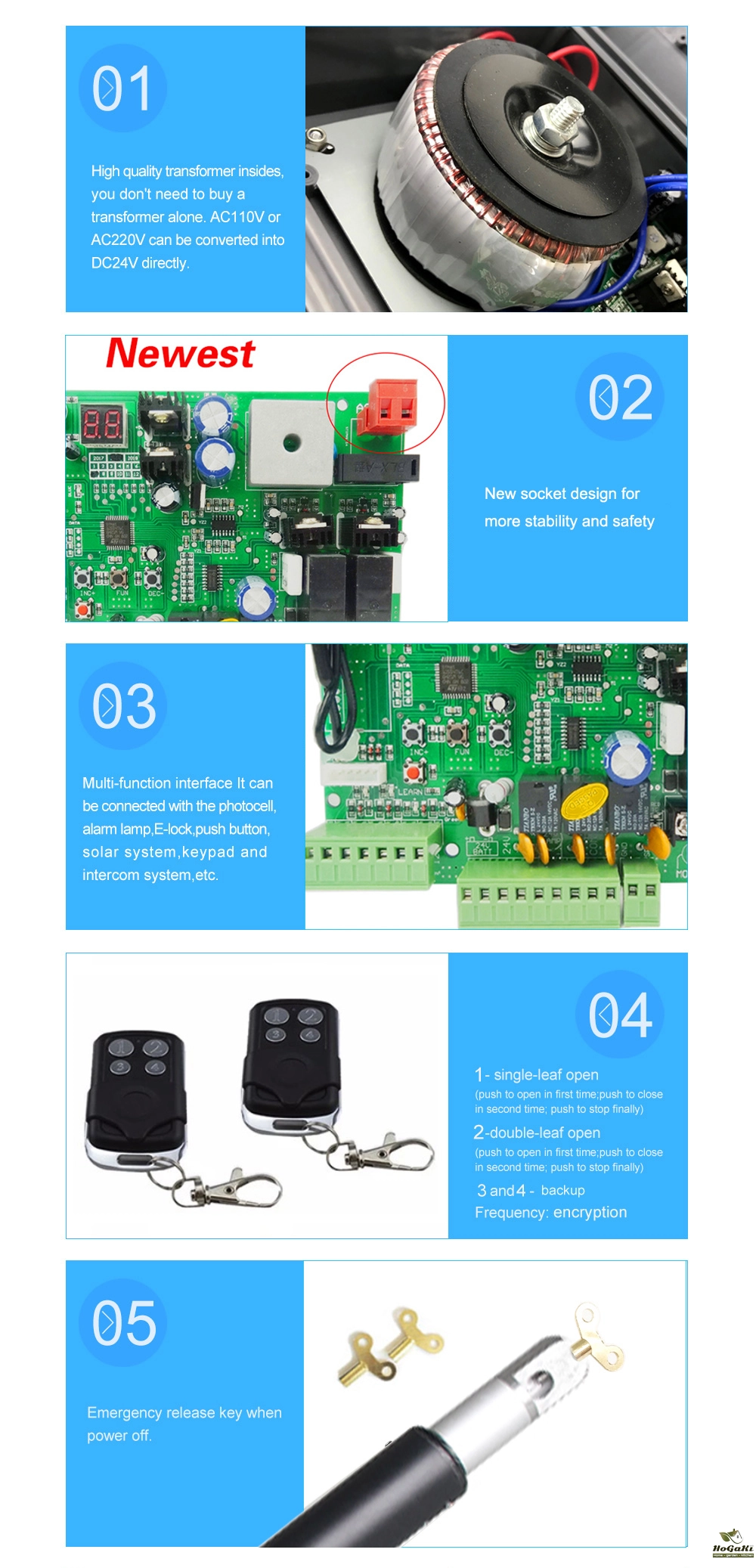

DC 24V PCB Board for Automatic Double Arms Swing Gate Opener Control Board Panel Smart Control Center System Replace Fittings
1. Application: Used for double or single swing gate opener.
2. Speed -adjustable function.
3. Auto closing/opening,opening/closing delay time adjustment.
4. Adjustable Residence sensitivity.
5.Terminals available for loop detector, photocell, push button, keypad, access control equipment
6. Digital LED Menu brings a easy setting, plug and play.
7. Open/Close single leaf or double leaves.
8. Total 60's working time to protect the motors.
1. Technical parameters:
1.Control panel voltage input: 24VDCAC. Can connect 2PCS 12V 9AH back up battery.

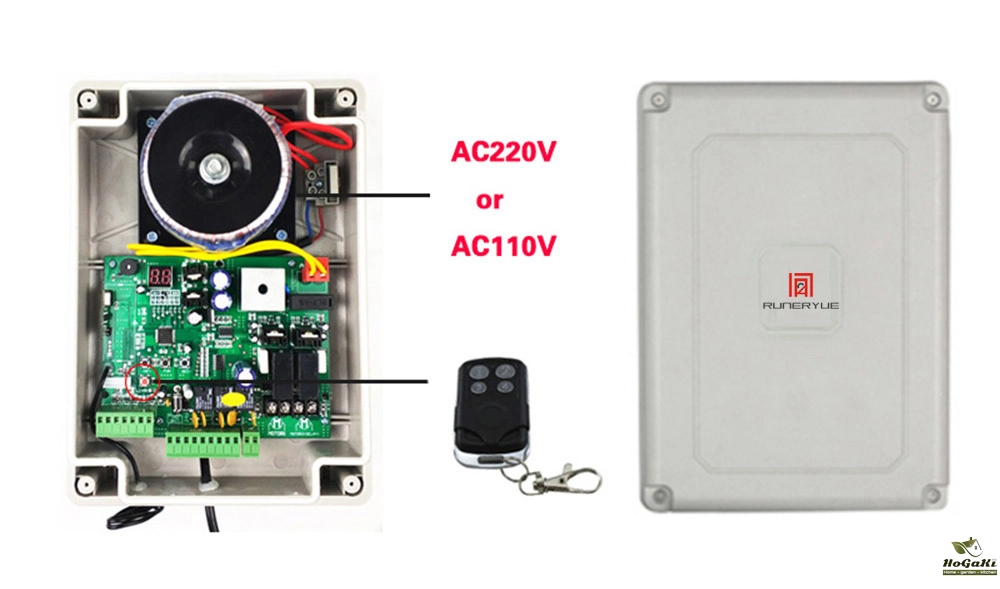

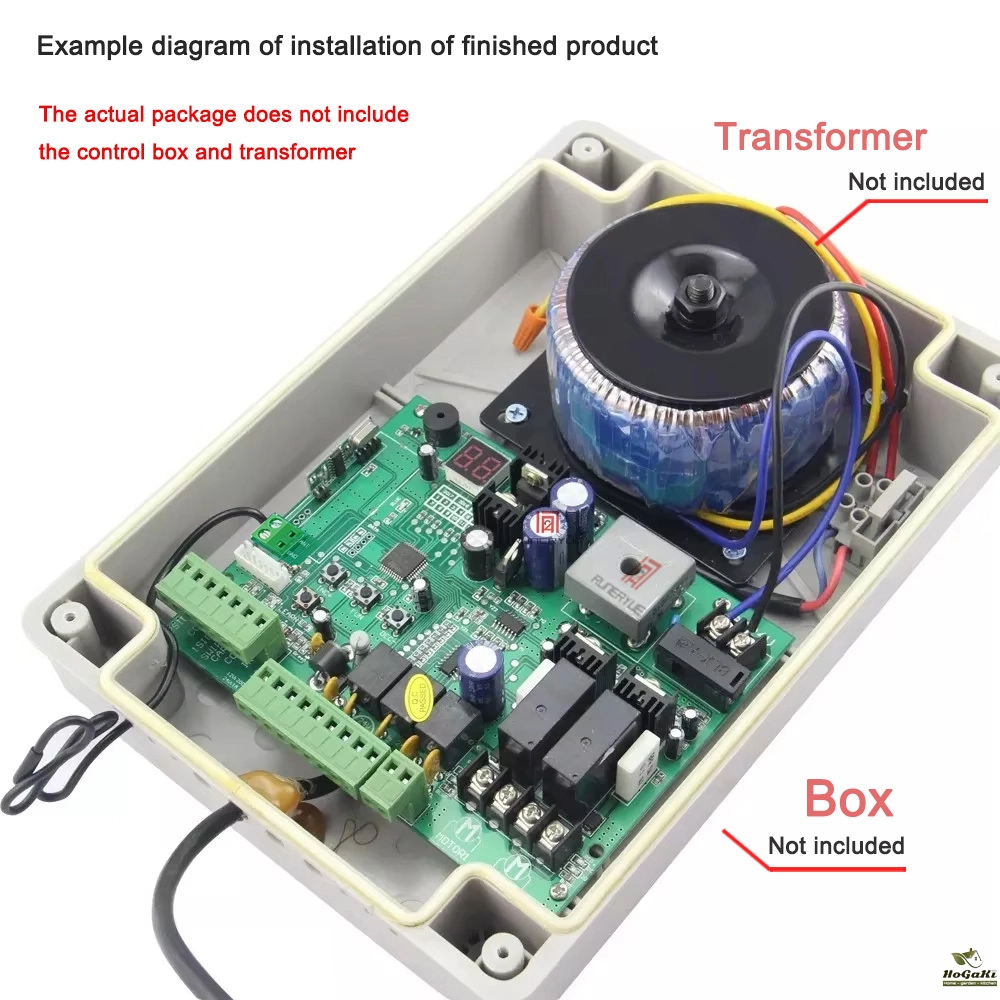

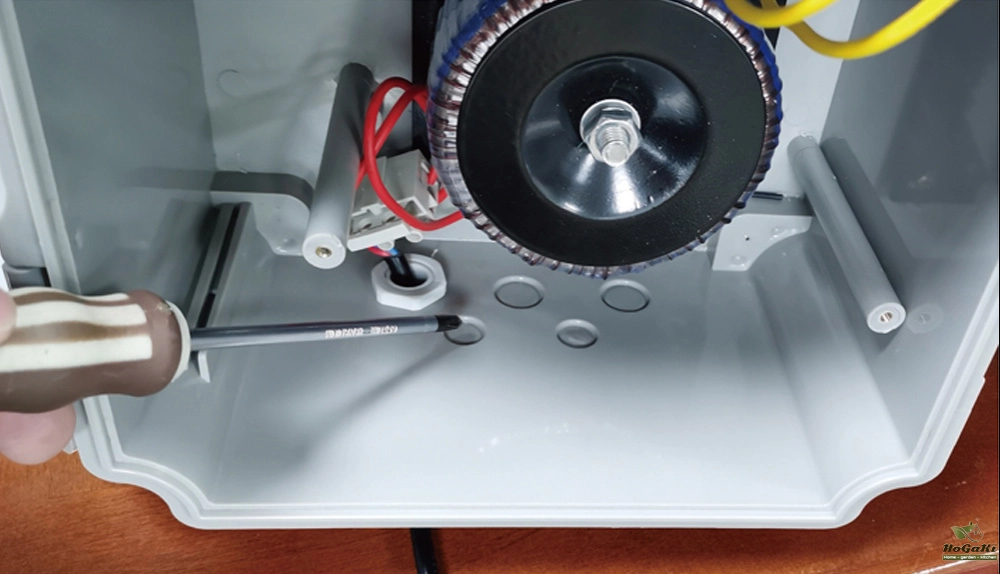

Note that the control board purchased separately needs to be used with a transformer, and cannot be directly 100-250V AC.
2.Motor's voltage: 12-24VDC support.The input of the control board is 24V, and the output is 12-24V.
3.Encoder for transmitter: Use our own customized rolling code.(Encrypted code, no copying and non-branding of our products )
4.Range of application: Suit for our double arms swing gate openers.
*The Linear Spiral 24V Straight Brush Arm is supported, but only fully works with our products, and is not covered by the warranty if tested on a non-ours product.
2. Functions and testing:
1.Indicator LED light: It's always on once the system electrified. when automatic close gate countdown,the light flashing light is 1 second interval . It turns off when enter into the learning code state or removing code state; it flashes twice show that successfully learning code or removing code.

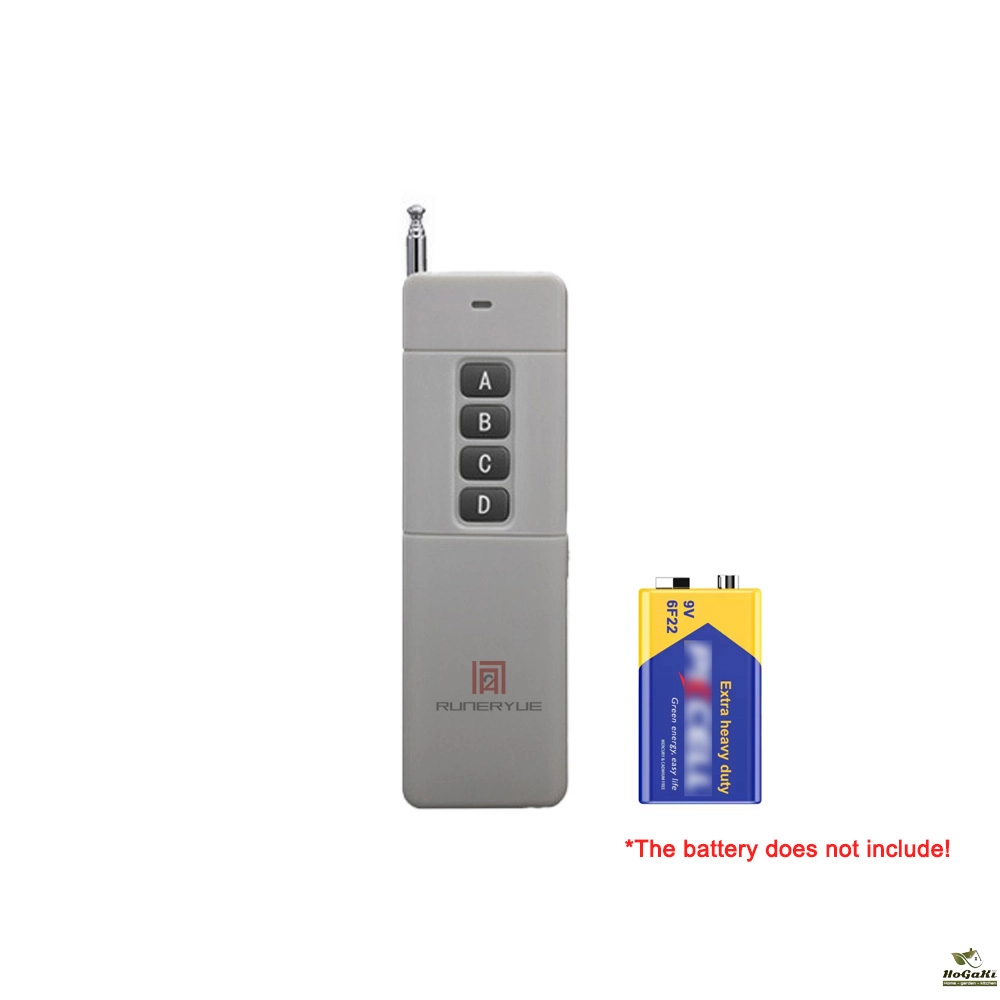

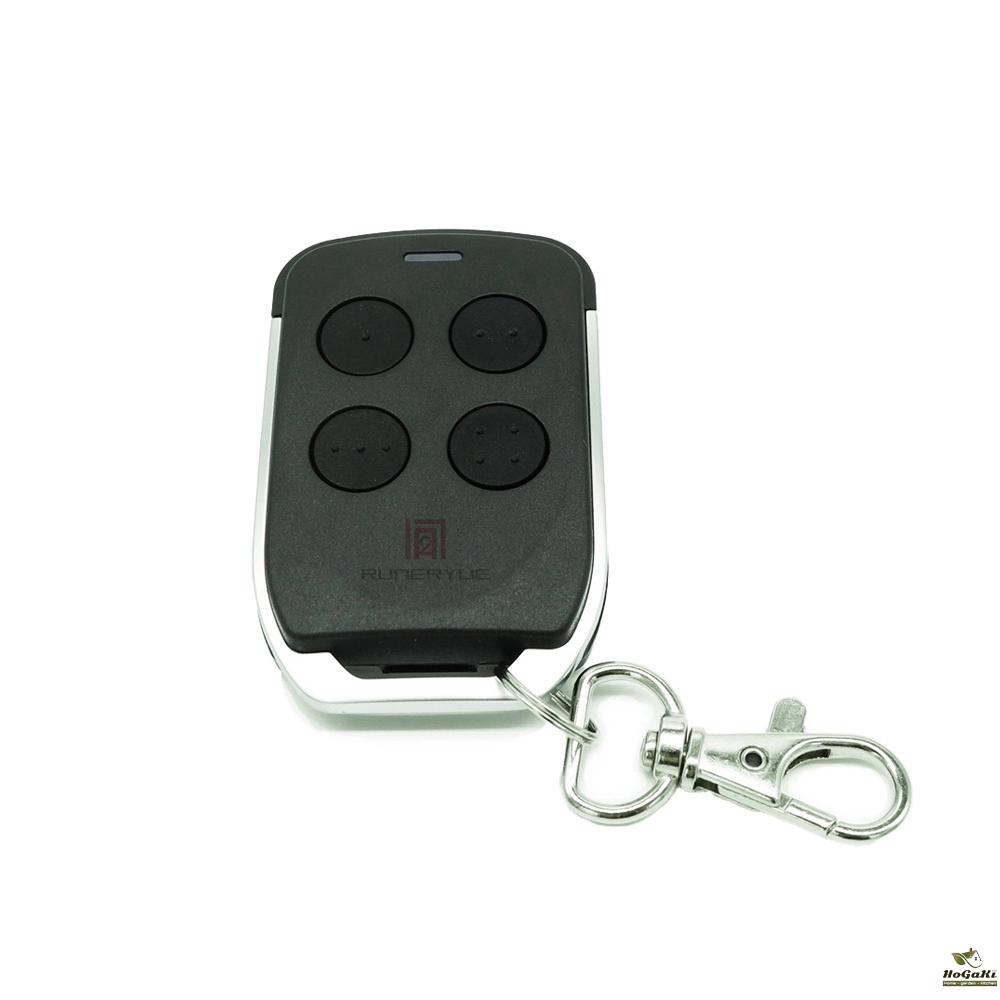

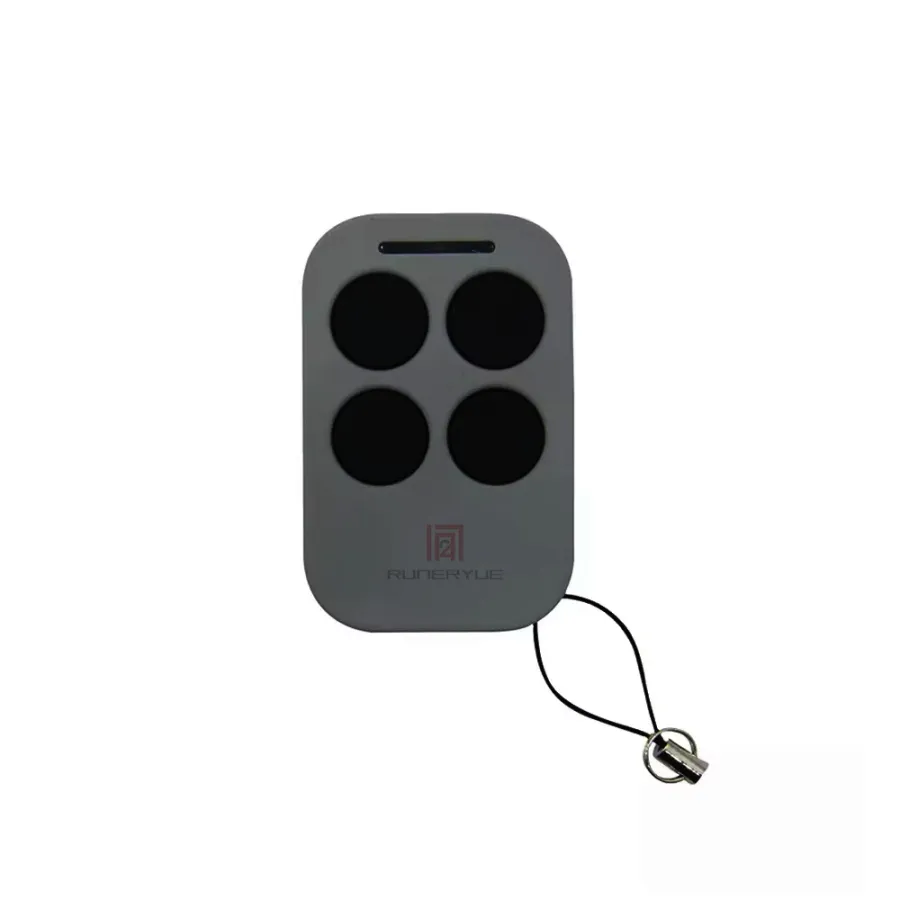

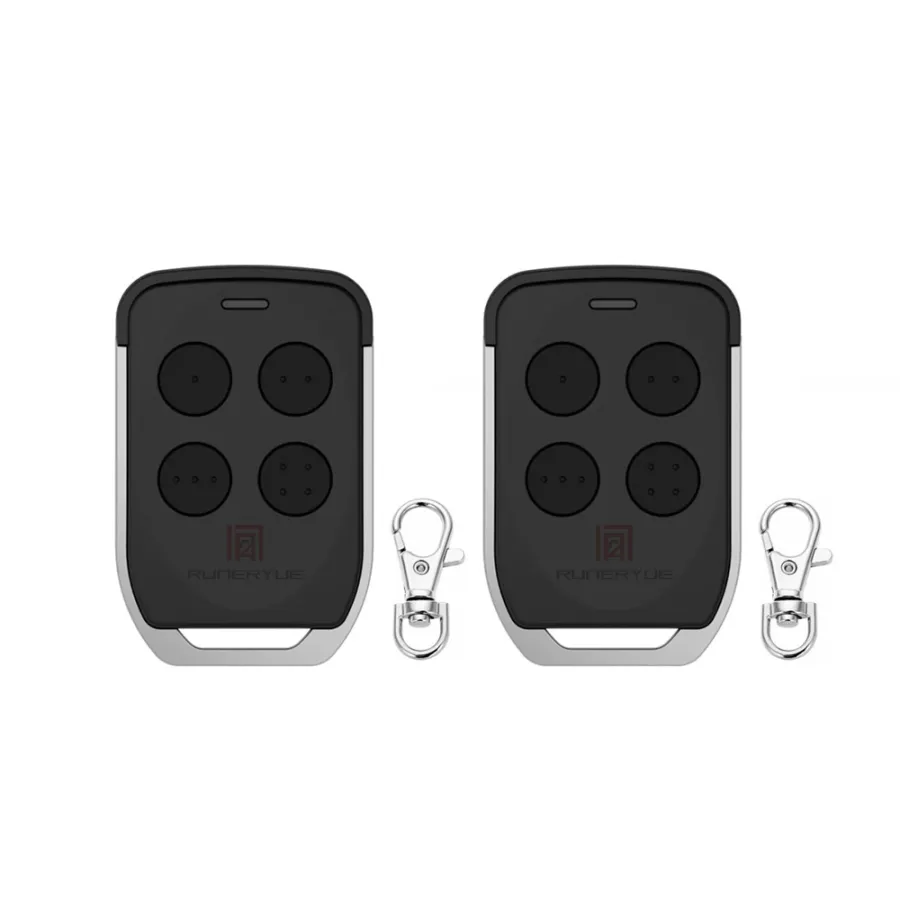

2.Transmitter :
Encoding formats: our company customized rolling code .
Button: doule button open two gate or single button open two gate. Single button control MOTOR2 ,double button control MOTOR 1 and MOTOR 2.
The system can support remote control is 130pcs (our company rolling code) or 180pcs (SMC5326/ EV1527 )
3.Judge motor reversing:When motor start operate ,and open or close gate ,the blue LED will light on,so our motors must in the opening state. When LED turns into red ,and light on .at the moment ,our motors must in ths closing state.
4.Code-learning: press and hold learning button for 1second then release, LED turns off and press any button of transmitter, then LED flashes twice, now the codes has been learnt to the panel. If there is no any signals received within 5seconds, the LED will light and then exit code-learning state .
5.Code-removing: press and hold learning button (once you press learning button,LED is off), 5seconds later LED lights up, now the codes has been removed.
6.MOTOR operate & rotating speed : Motor first start,is in the low speed operate state. when obstacle and then start again, the motor with high speed
operate,and then with low speed operate till to motor stop.high speed operate time from 0-33seconds can adjustment .(use HSPEED TIME Rotating button),when adjust to 0 second,high speed operate will not start. During the motor operate,if use remote control control motor stop up to 2 times.the motor just operate at low speed. Till to meet obstacle signals.
7.Limit & obstacle sensitivity adjustment: During the opening and closing, the
motor stops running once the limit & obstacle sensitivity signals sensed. Sensitivity of the two motors are set seperately. Adjusting the sensitivity of MOTOR 1 through MOTOR1 trimmer, while MOTOR2 trimmer control sensitivity of MOTOR 2.
Notice:
Arm-type motors only have the funcion of obstacle sensitivity, no functions of limit.
8.Open & close gate delay : When open gate ,MOTOR 2 is first open ,and then open MOTOR 1 . when close gate ,MOTOR 1 is first close,and then MOTOR 2.if start open or close gate delay function. Close gate time can adjustment from
0-18seconds. but open gate just can limit in 1 second.9.Single open gate : Single open gate button just can open MOTOR 2 swicth.
10.Auto closing gate function : if have obstacle of opening or closing gate . or
after in the position of motor operate protection time,start auto close gate. auto close gate time can be adjustment from 0-66seconds. If set up 0 seconds, auto close function will close. And auto close gate countdown ,flashing light will flash interval of 1 seconds.
11.Motor delay protection : If motor operate more than 60seconds,the motor will stop operate, to protect motor.
12.Copy remote control can auto matching : As for copied remote control,
doesn’t need use controller to learning code,can use it directly .first time use copied remote control. Just need long press remote control (about 2-3 seconds) ,till to LED of learning code flashing 2 times later.
13.Interface of flashing light : when motor is in the state of opening or closing , Lights relay output interface, otherwise don't output.
14.Photocell : gate will re-open if the resistance detected while gate closing. When open gate ,photocell will not effected.

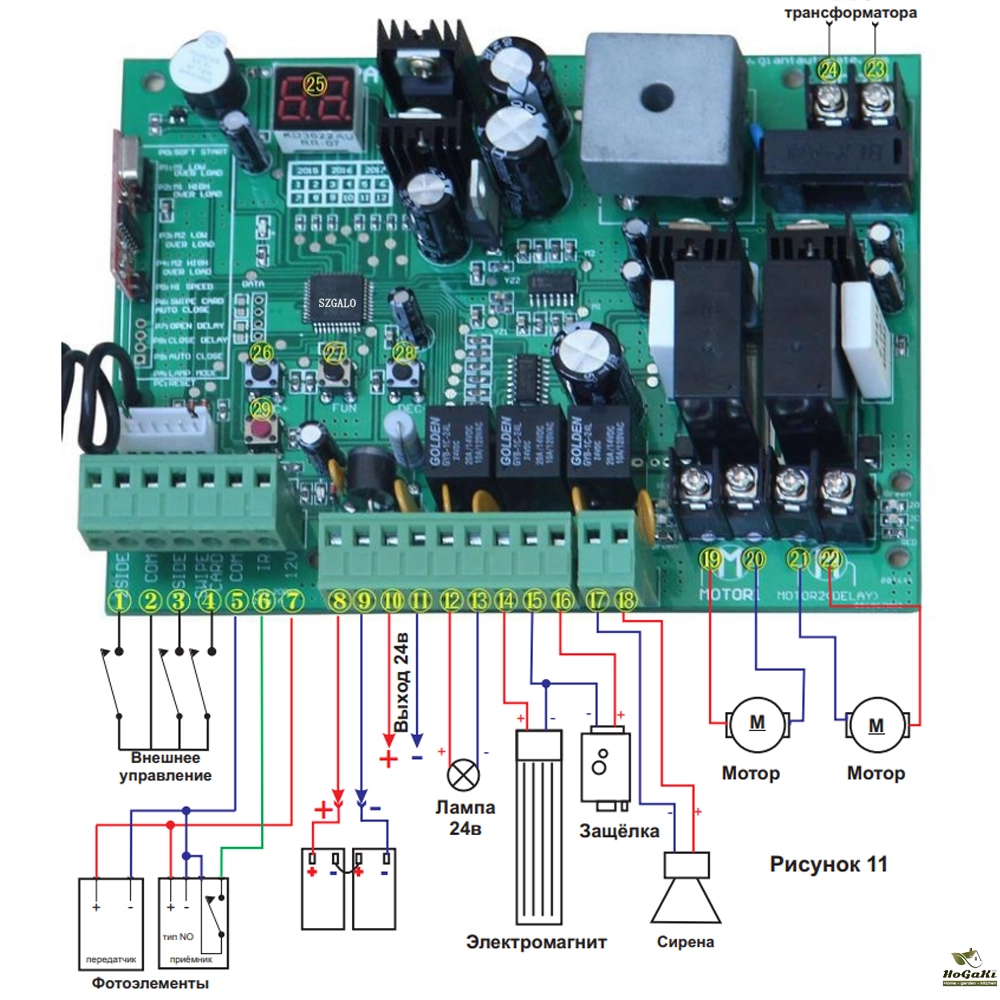

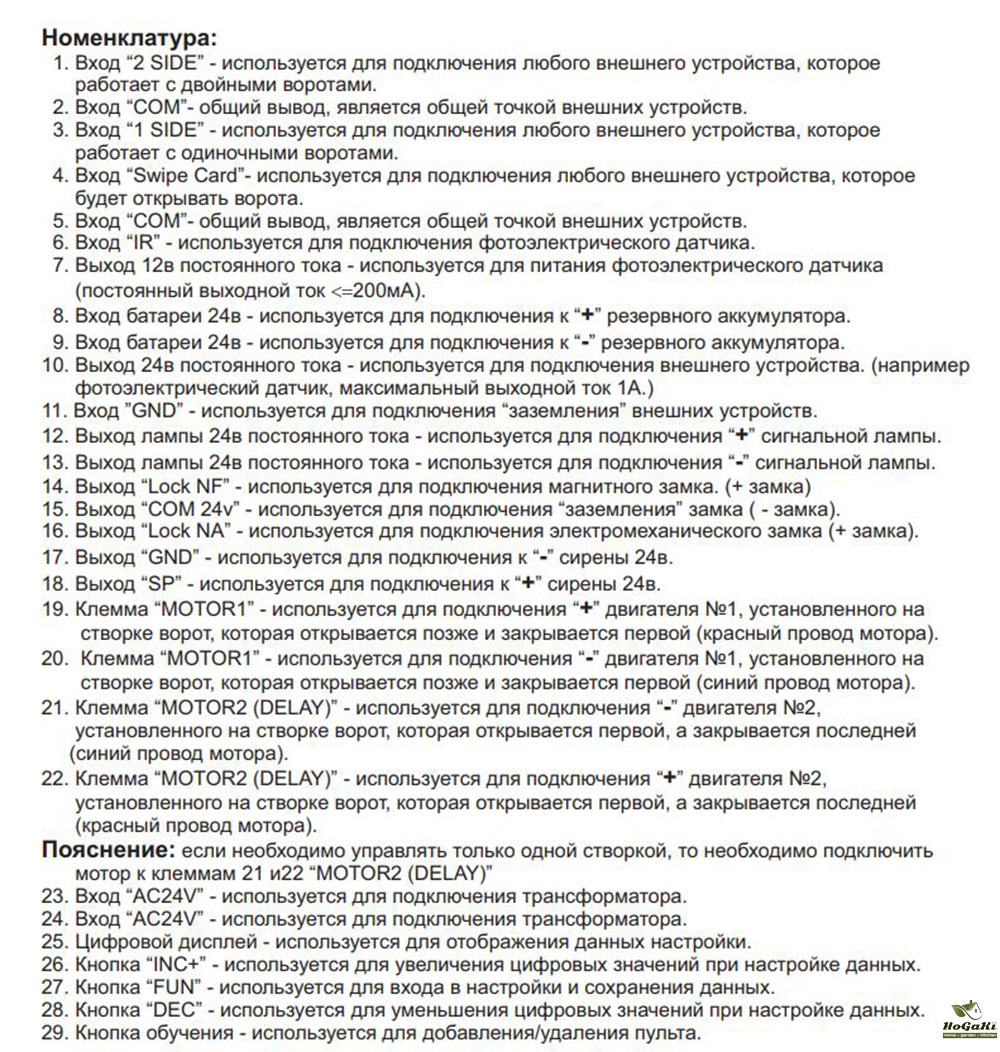

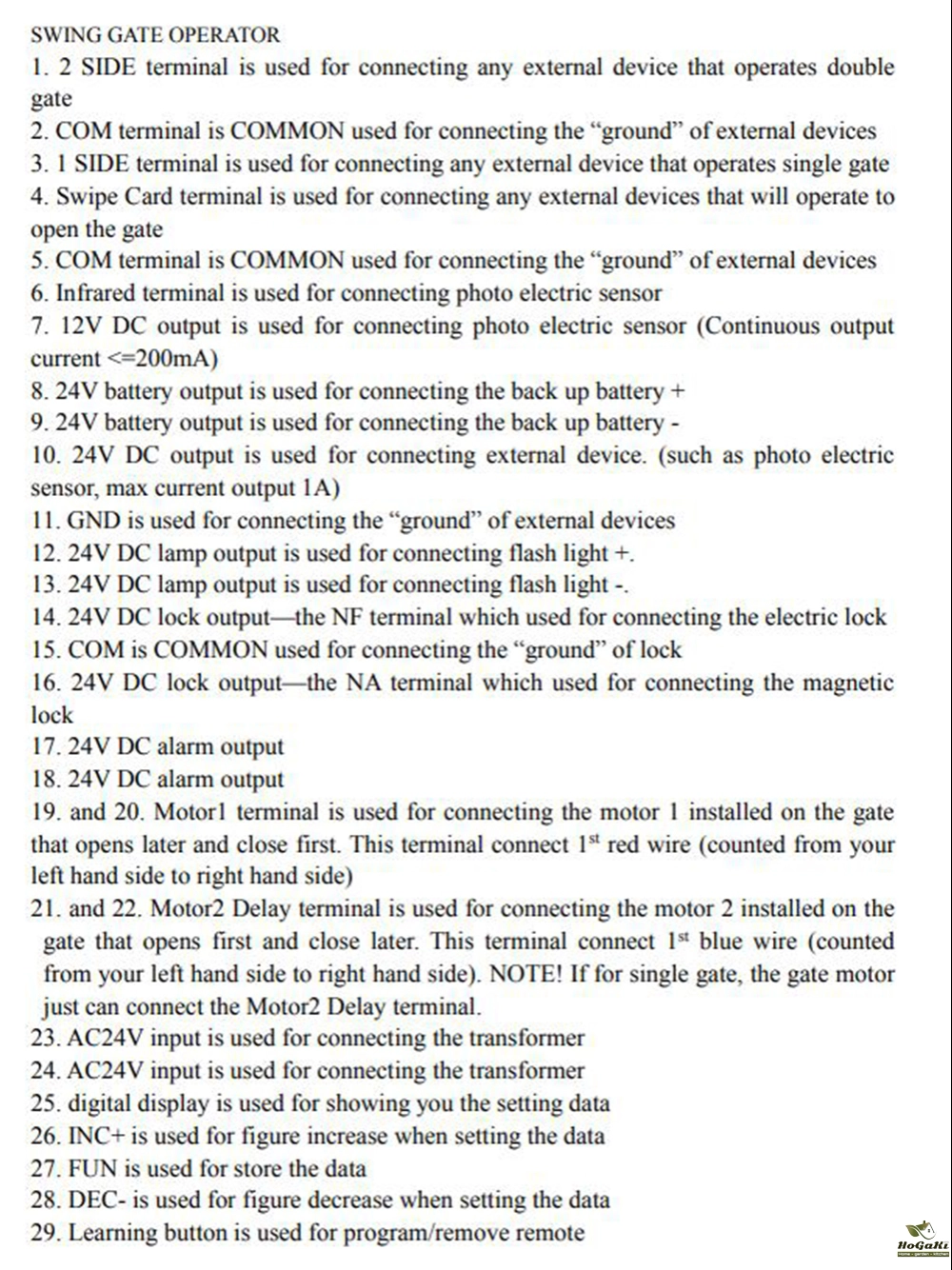

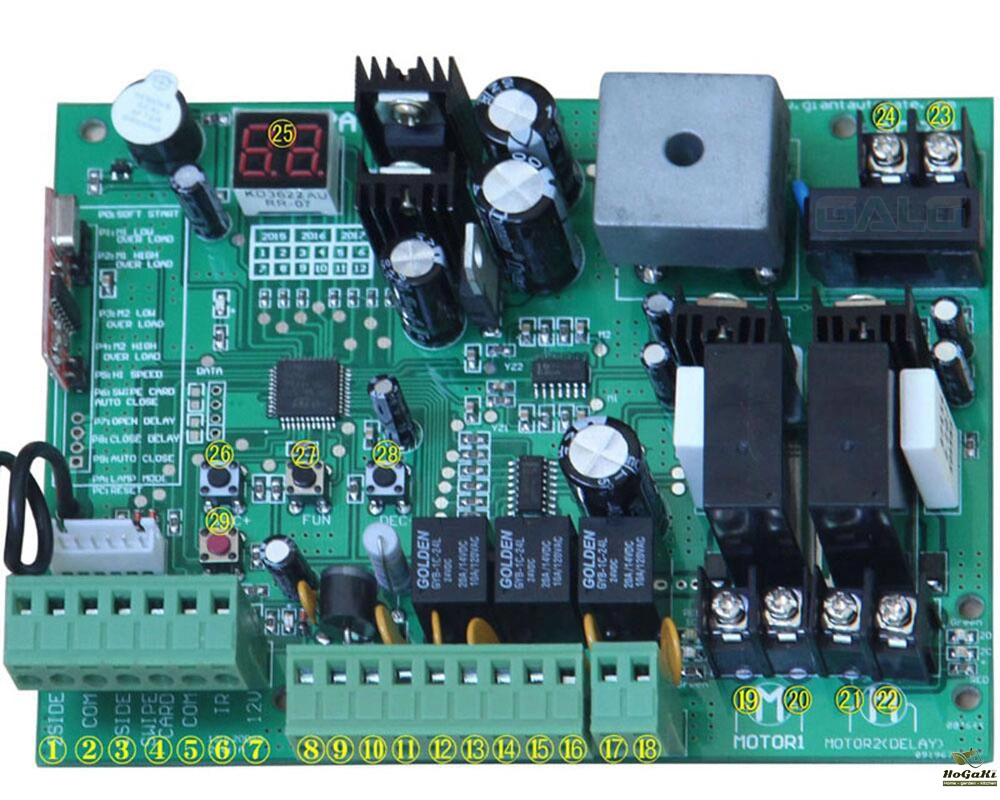

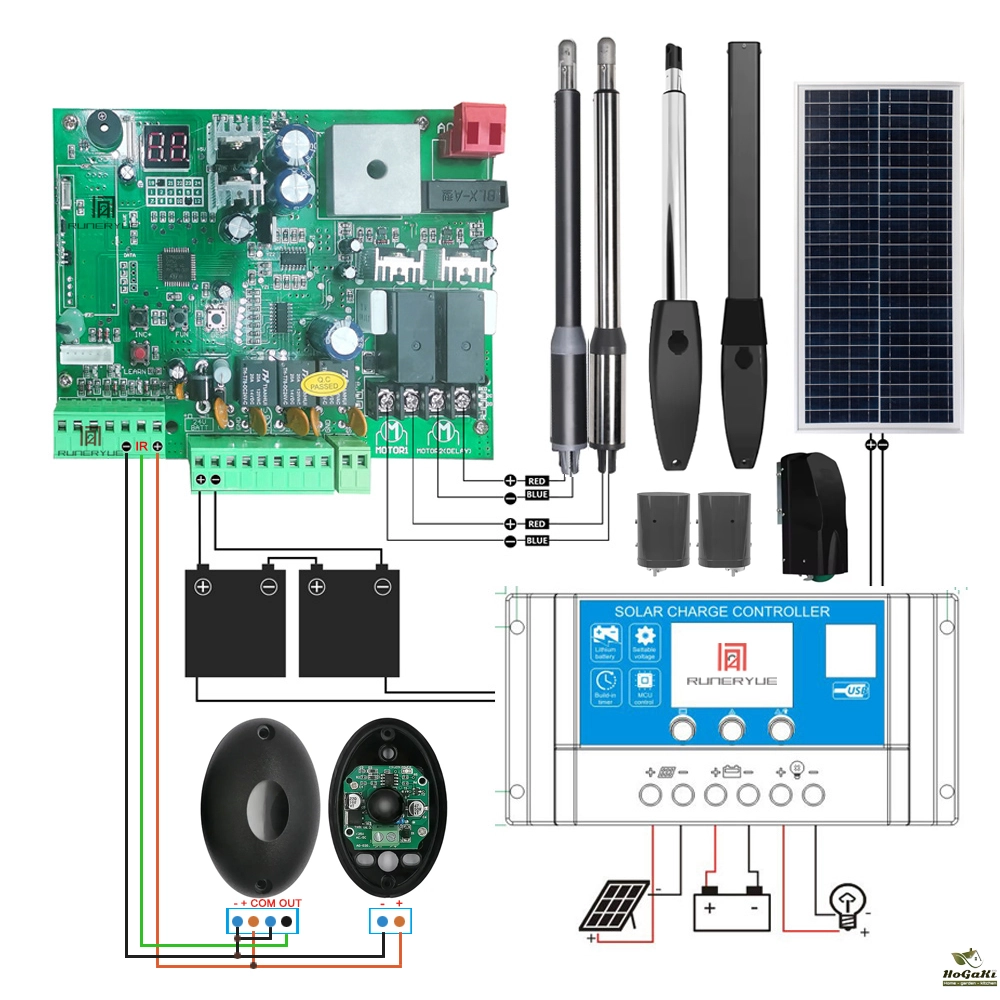

3.Instructions for all terminals:
2 SIDEThis terminal is same as “double-leaves button” of transmitter. It controls the dual doors as Open-Stop-Close-Stop-Open cyclically.
1 SIDE : This terminal is same as “Single-leaf button” of transmitter. It controls the
single door as Open-Stop-Close-Stop-Open cyclically. COM: Common terminal for connecting ground.

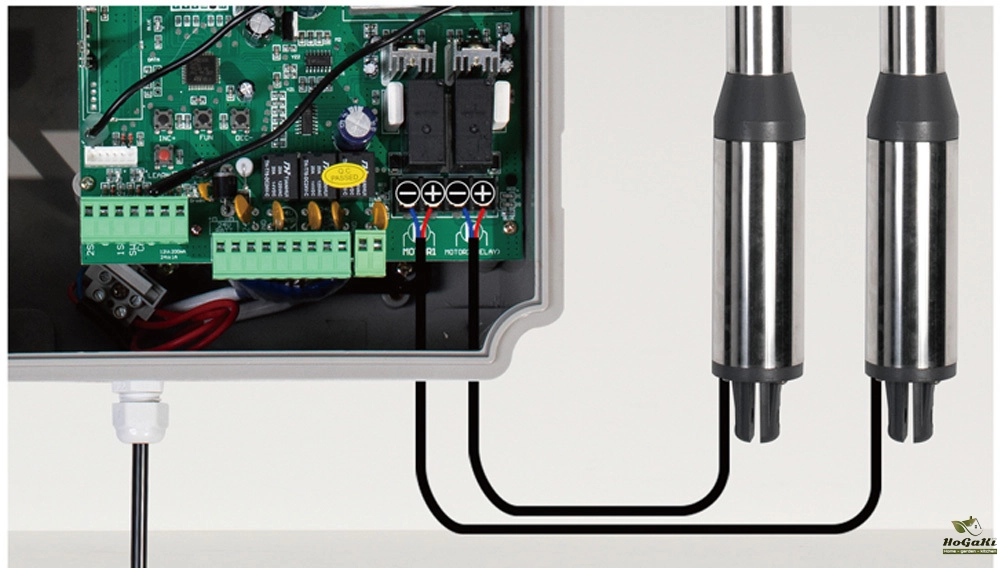

MOTO 1 : Wiring of motor1: should connect wires of the motor which opens first.Or connecting the wires of motor installed at the side of door with thrust plate.
MOTO2(DELAY) : Wiring of motor2: should connect wires of the motor which you could use single-leaf button to control .
24V/12V-12V/0V-0V/12V : Secondary for the 12 v or double 9 v ac transformer . UPS+/- : External 12V storage battery, the storage battery can be charged. When there is no power supply, the UPS will start working automatically. The standby current of UPS when it is working is 20mA, the current is around 1.5A when the motor is running.(specific current depends on the actual usage) .
LOCK12+/- : Electric lock signal, no voltage output,when open gate 1 second. DC12V voltage output is by default.
SWIPE CARD : Swipe card to open two gates, active low, auto-closing is enabled after the door opened.
INFRARED : Terminal for photocells, active low, when the obstacle sensed by photocell while the door is closing, the door will stop and then rebound to open. COM: Common terminal for connecting ground.
VCC : 12-28V output voltage; supply the power for photocells or other saftey devices;current ≤200mA.

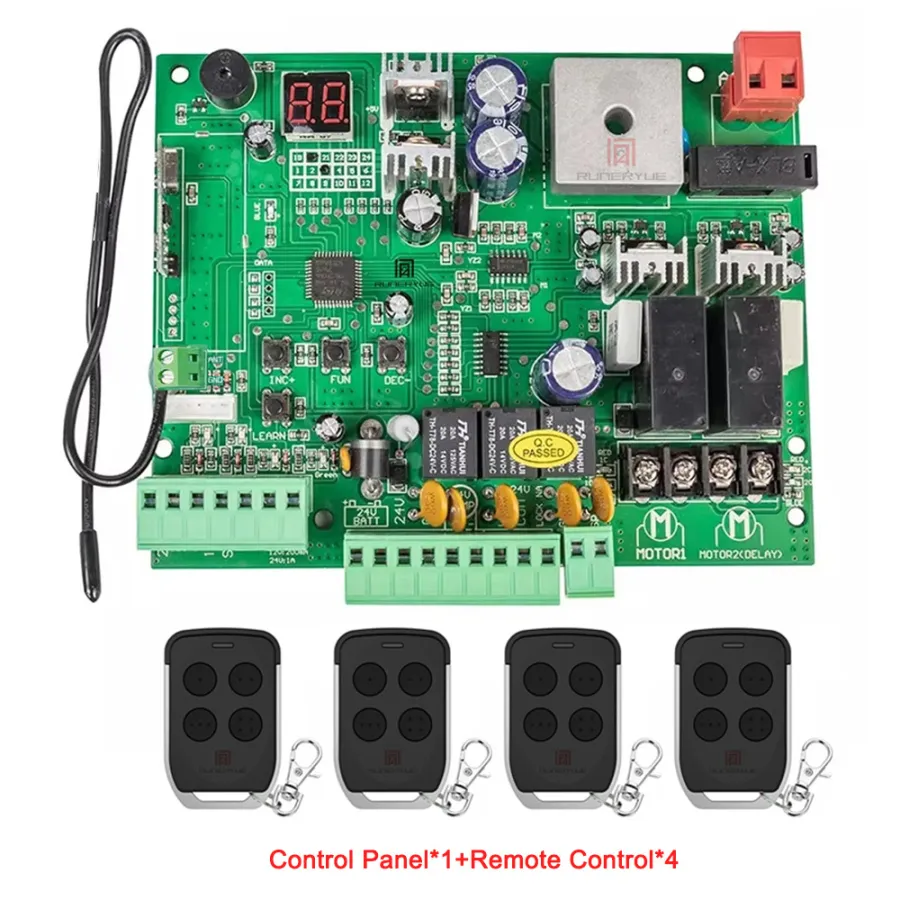

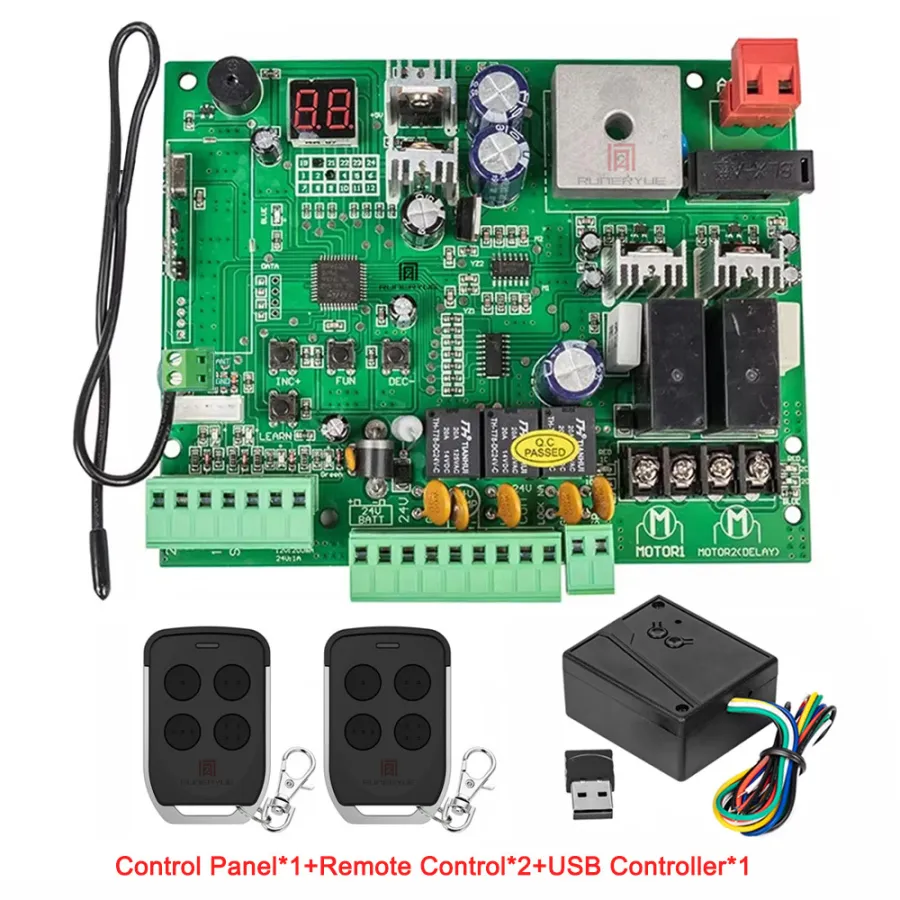

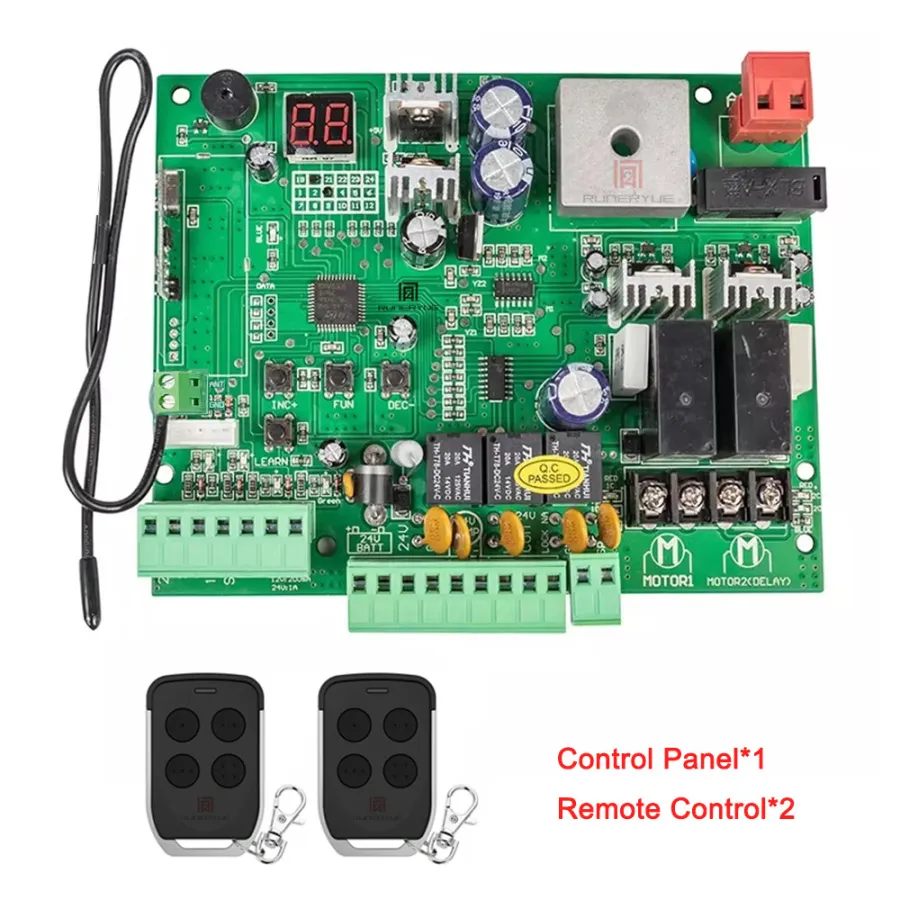

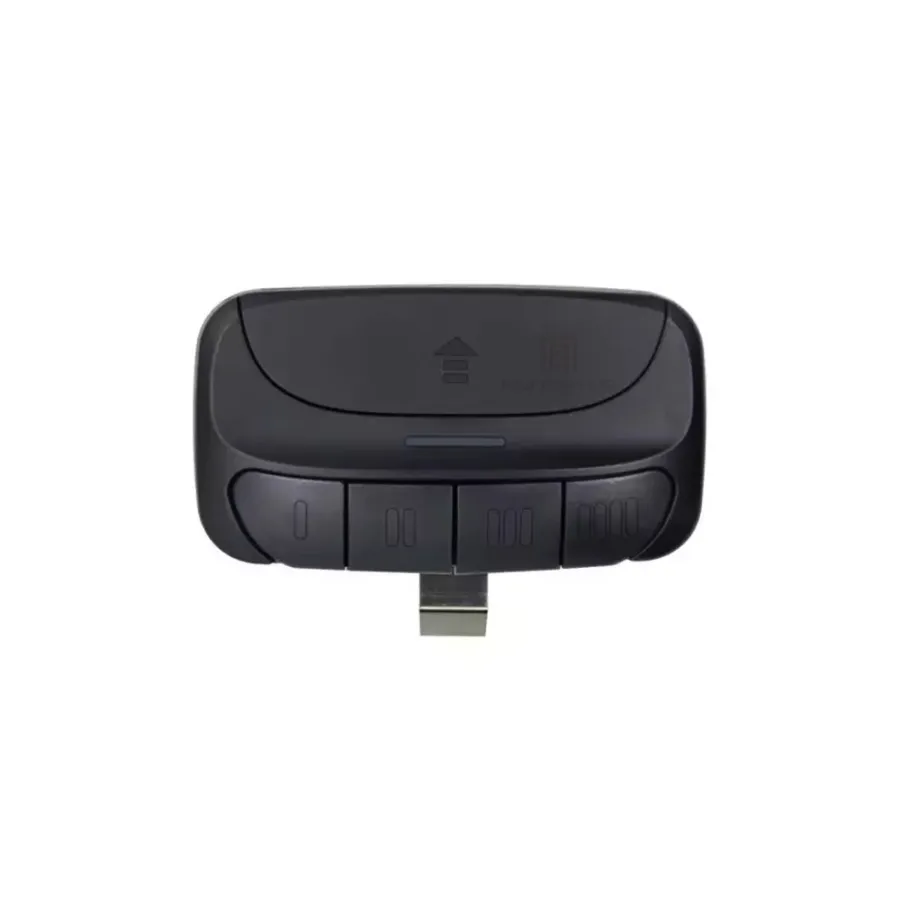

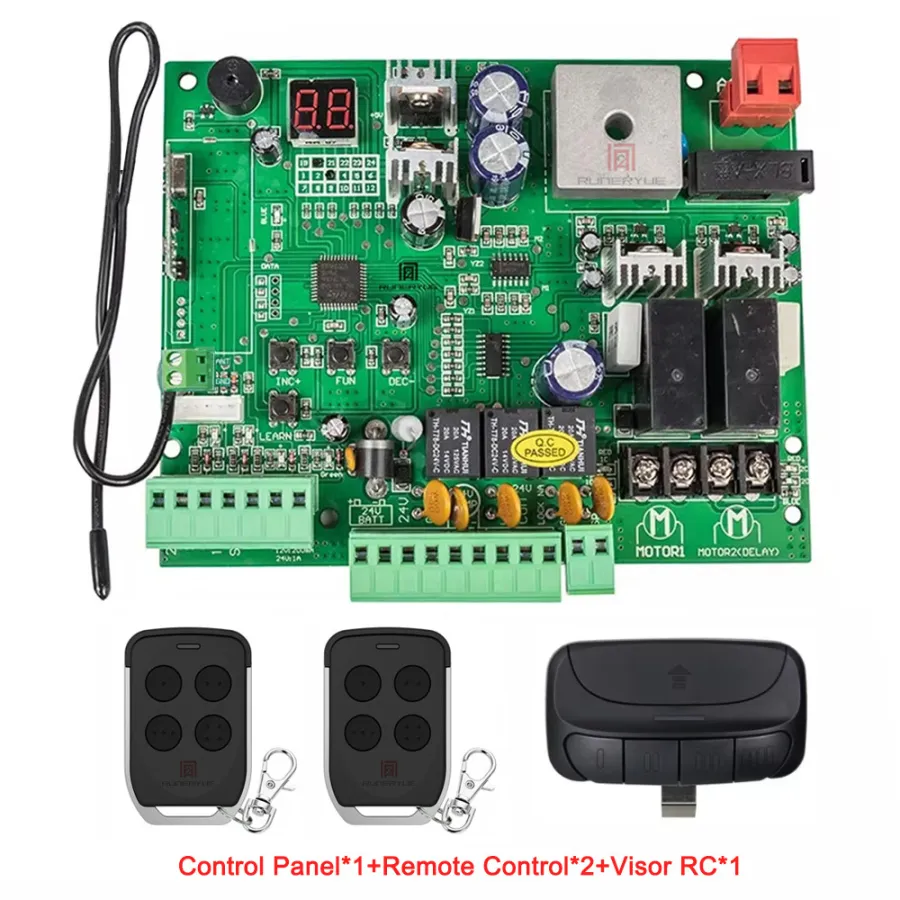

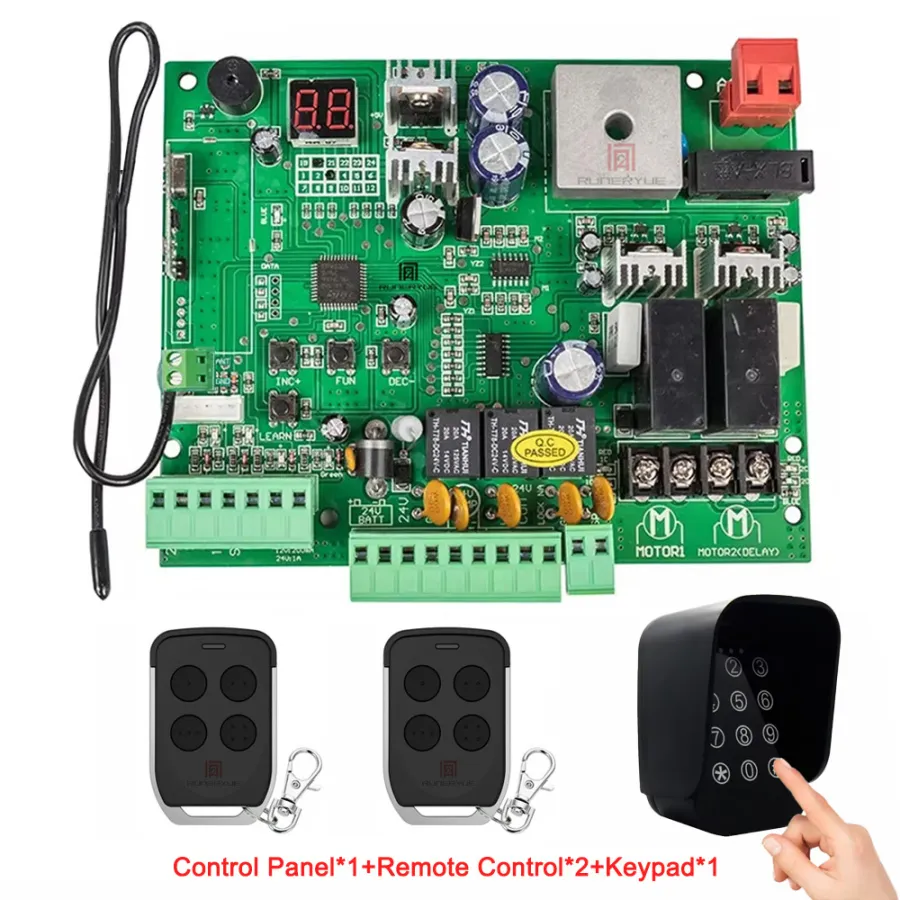

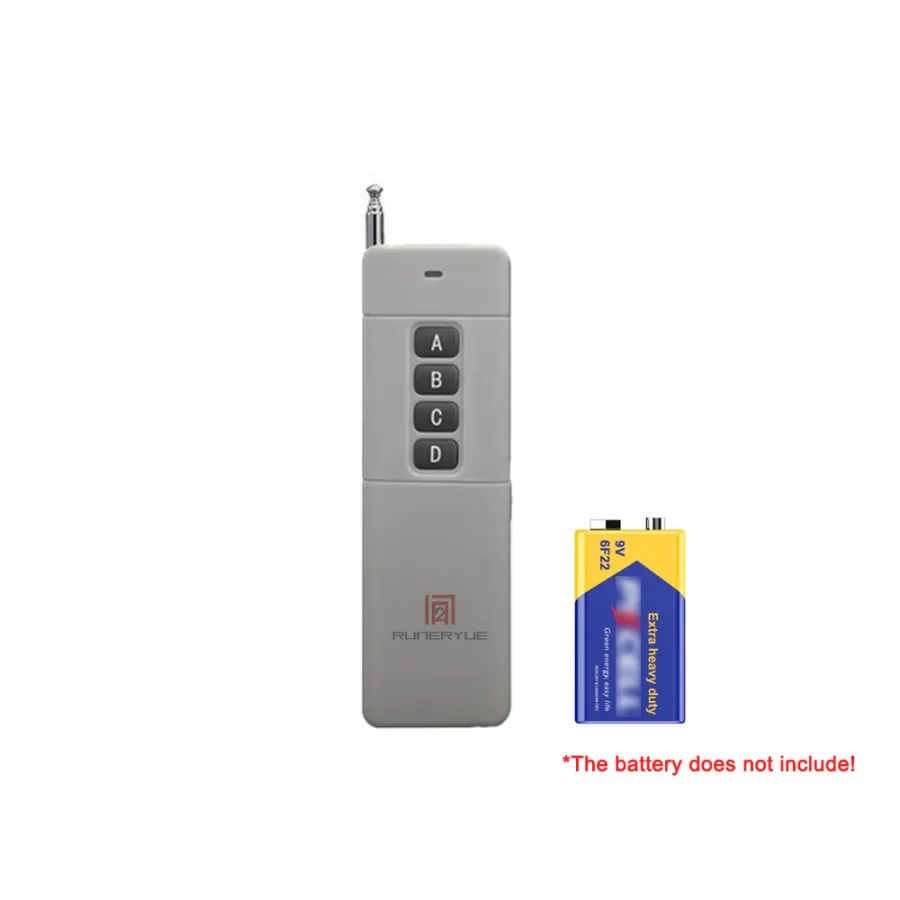

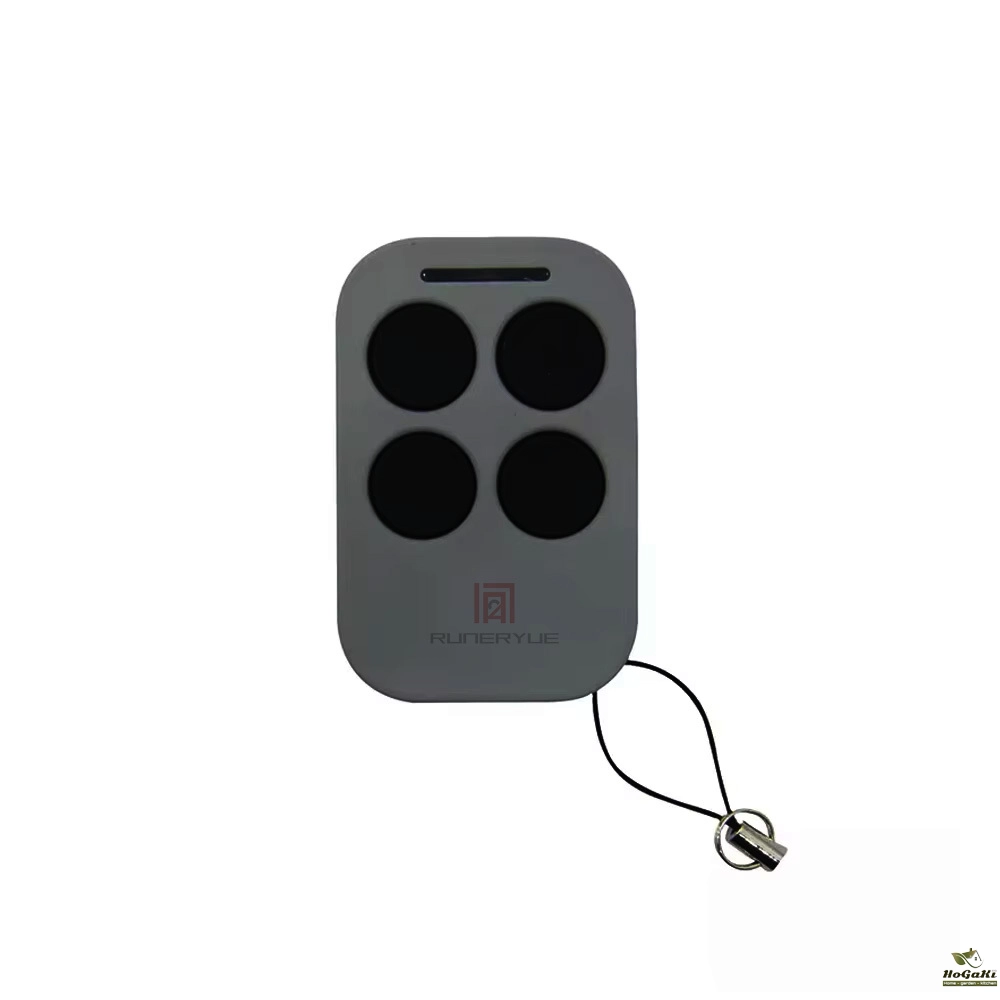

Multiple remote control accessories to choose
Packaging Details
- Unit Type:
- Package Weight: 0.500
- Package Size: 10x5x15
- Brand Name: SZGALO
- Origin: Mainland China
- Hign-concerned Chemical: None
- Model Number: EG-22A
- Certification: CE
- Smart home platform: Other
- Smart home platform: Tuya
- Direction: None
- Security Mode: Fail Secure with Signal
- Type: 24V control board
- voltage: 24V DC
- out put: 12-24V DC
- Use for: 12/24V swing gate motor
Shipping & Delivery
We are proud to offer international shipping services that currently operate in over 200 countries and islands world wide. Nothing means more to us than bringing our customers great value and service. We will continue to grow to meet the needs of all our customers, delivering a service beyond all expectation anywhere in the world.
How do you ship packages?
Packages from our warehouse in China will be shipped by ePacket or EMS depending on the weight and size of the product. Packages shipped from our US warehouse are shipped through USPS.
Do you ship worldwide?
Yes. We provide free shipping to over 200 countries around the world. However, there are some location we are unable to ship to. If you happen to be located in one of those countries we will contact you.
What about customs?
We are not responsible for any custom fees once the items have shipped. By purchasing our products, you consent that one or more packages may be shipped to you and may get custom fees when they arrive to your country.

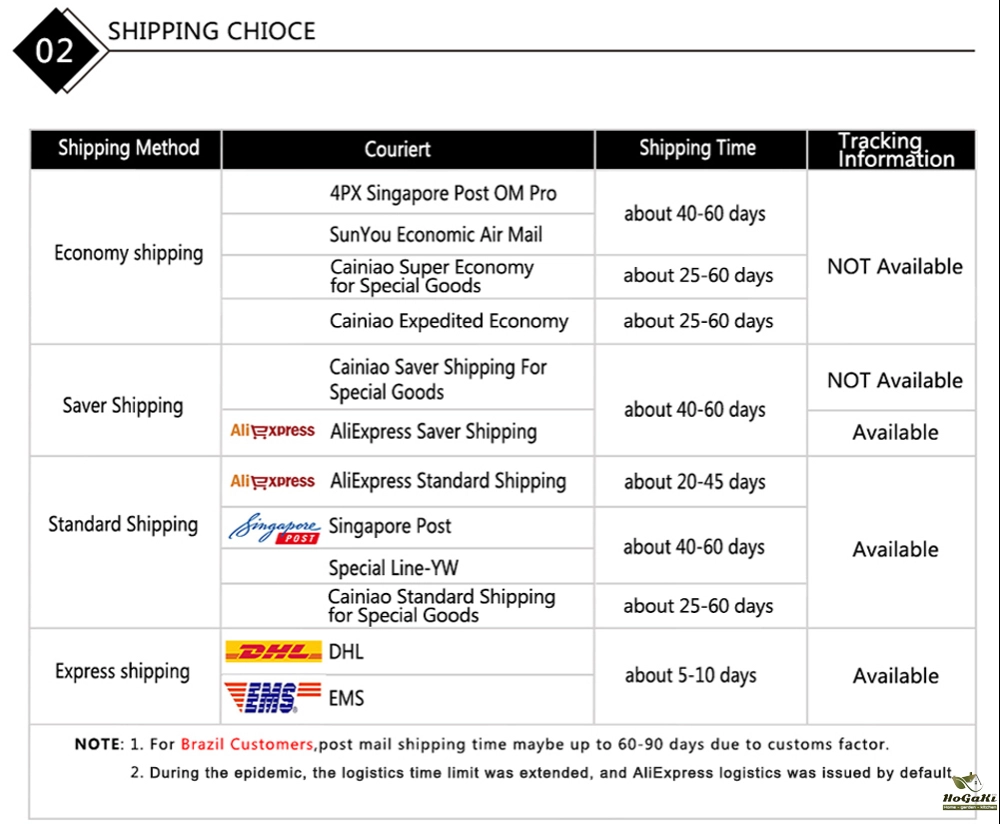

How long does shipping take?
