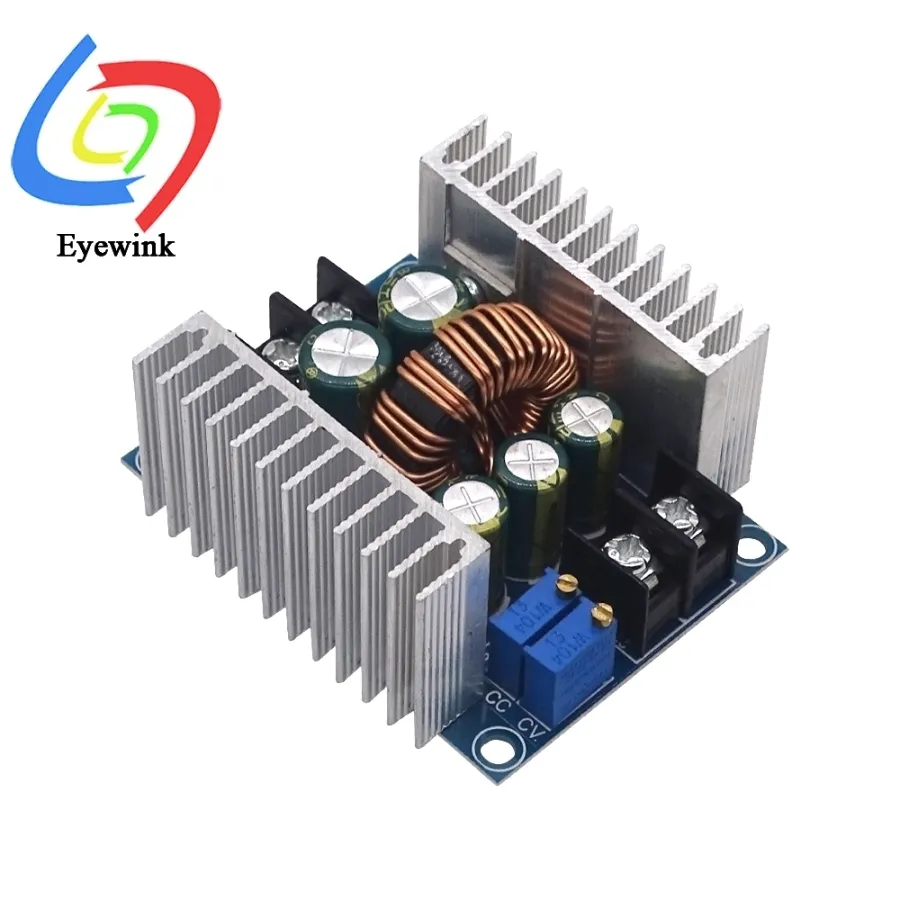

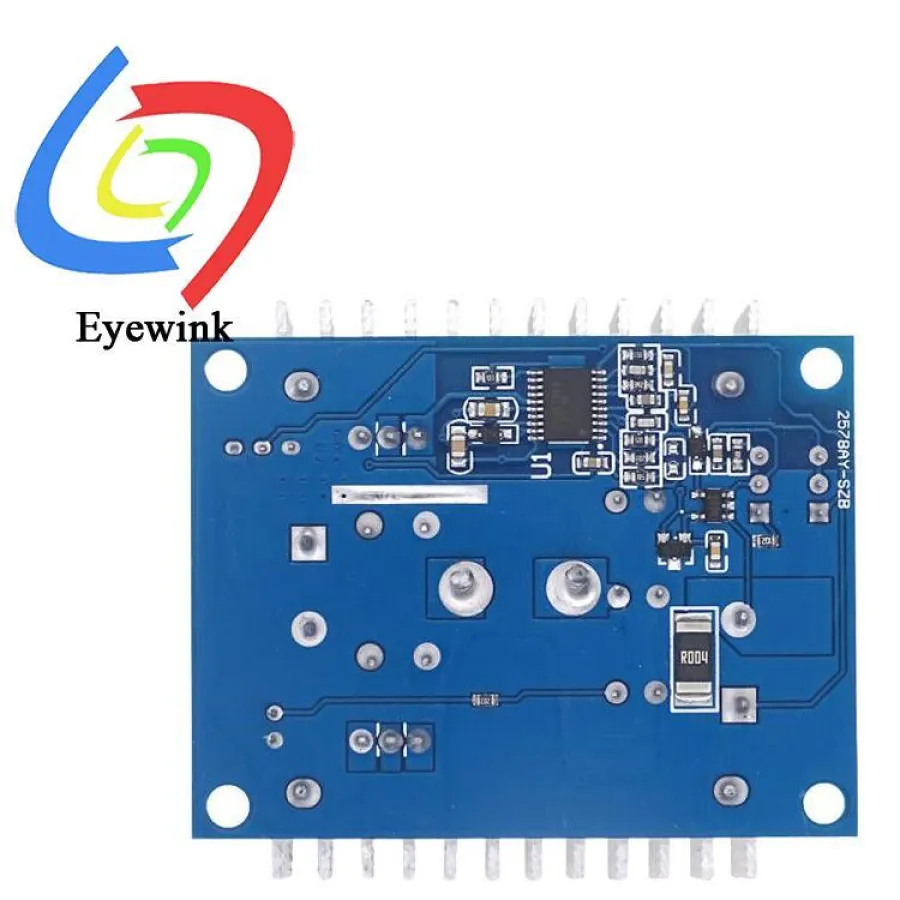

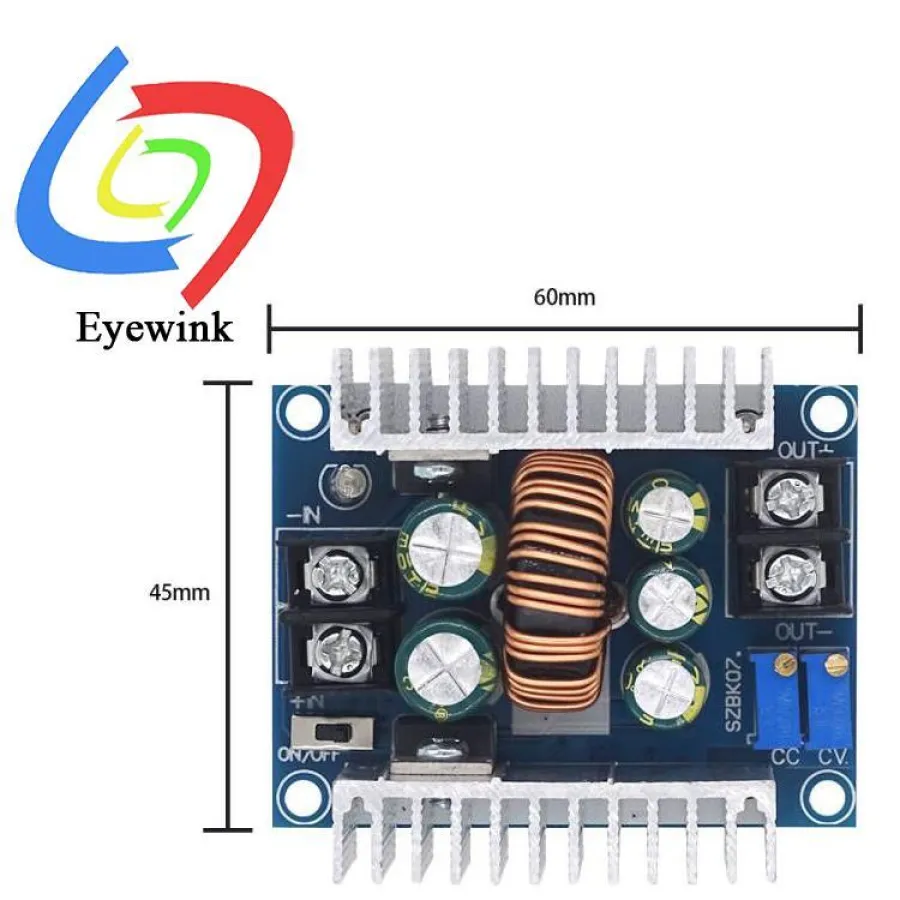

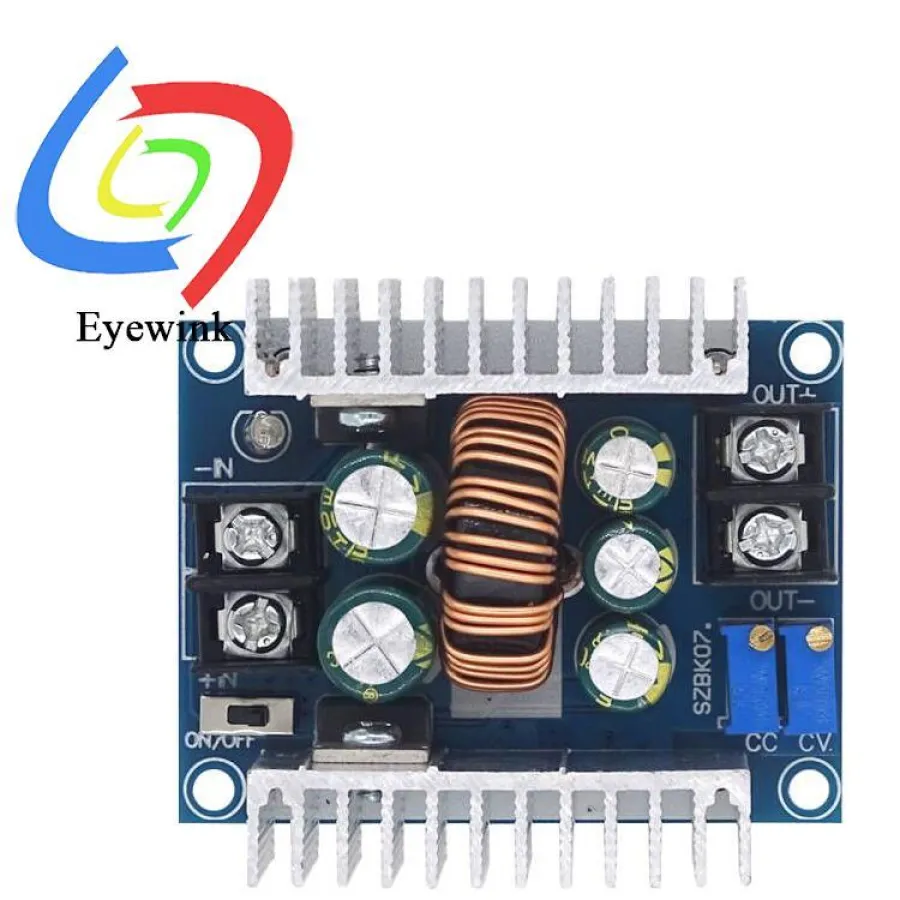

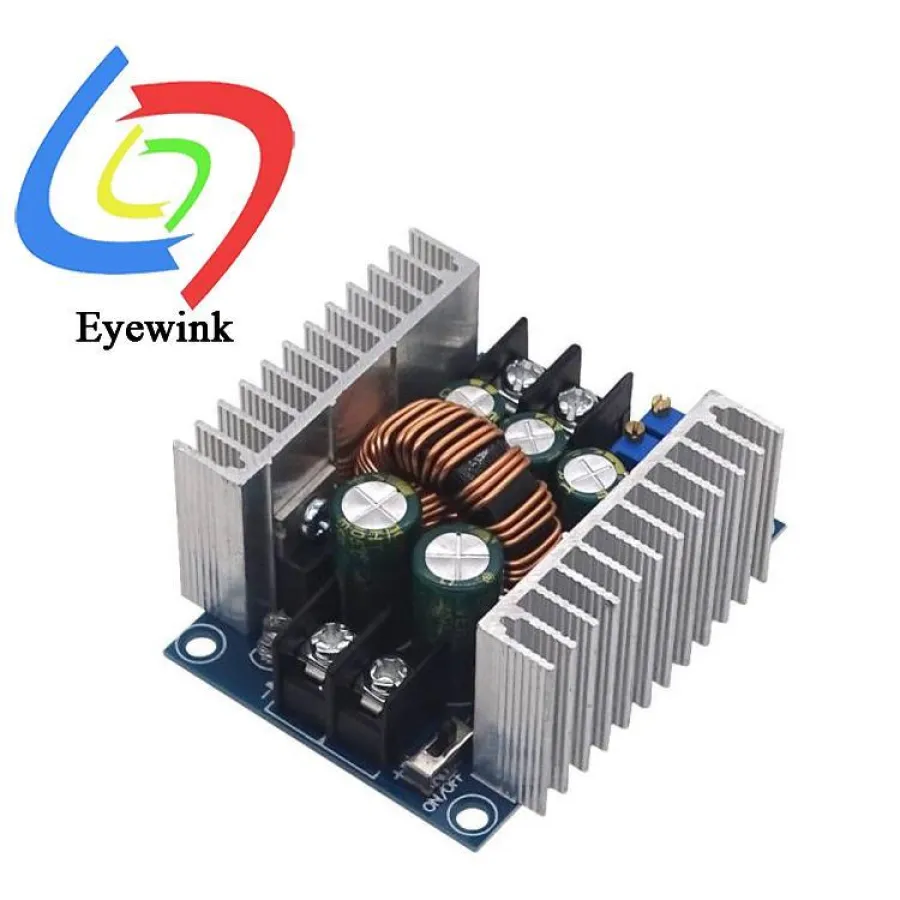

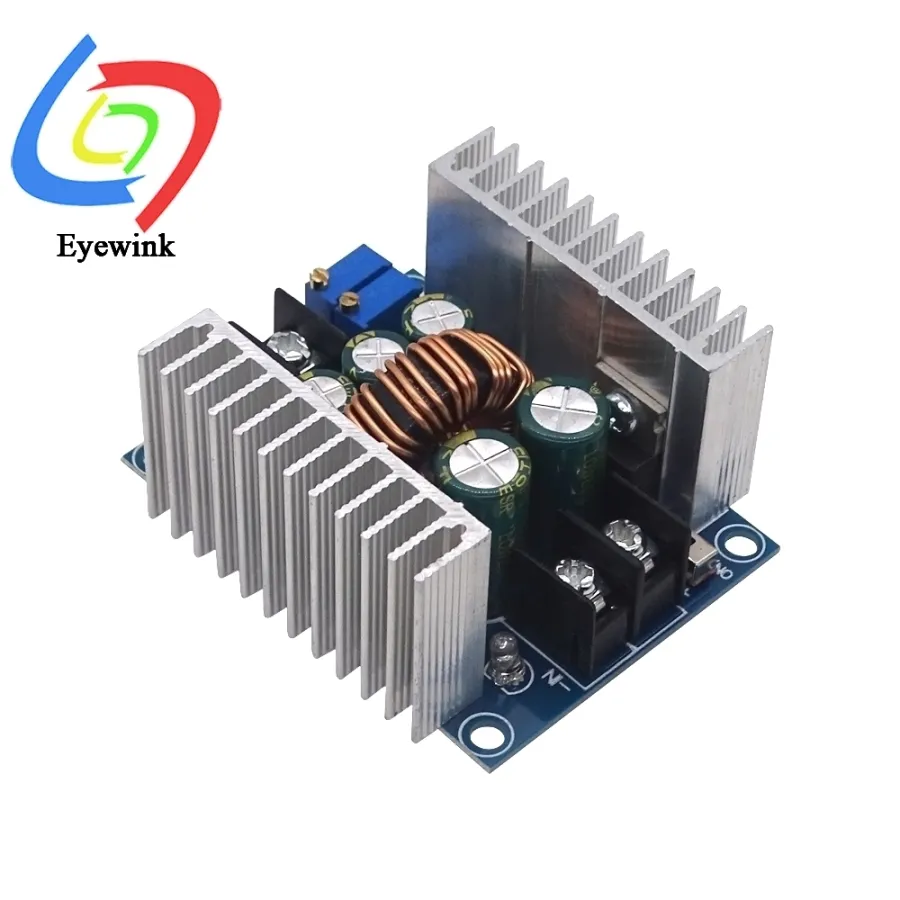

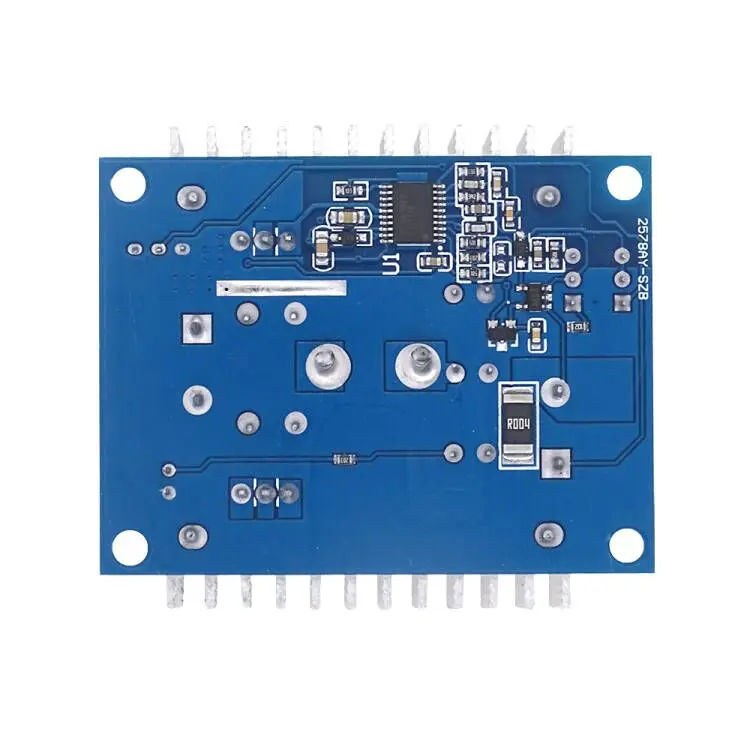

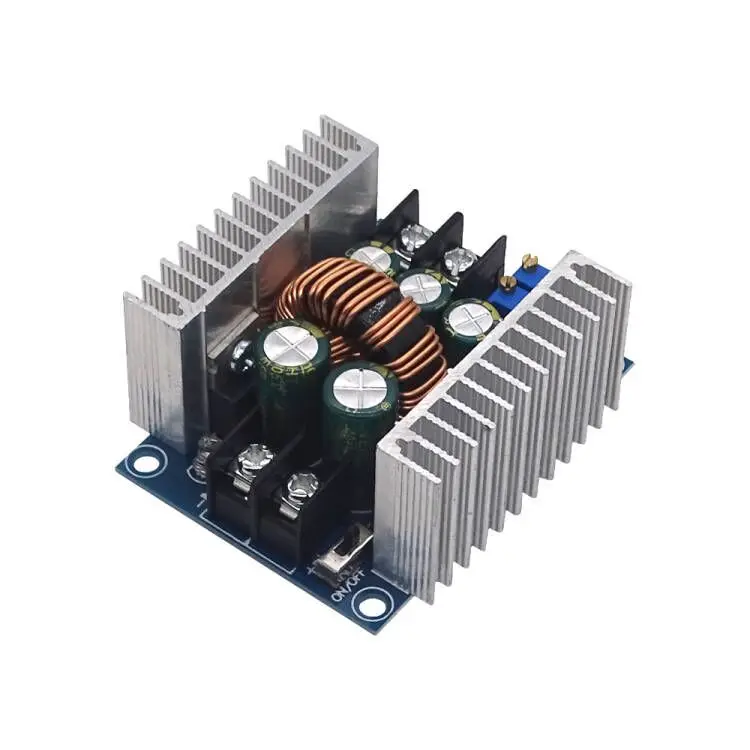

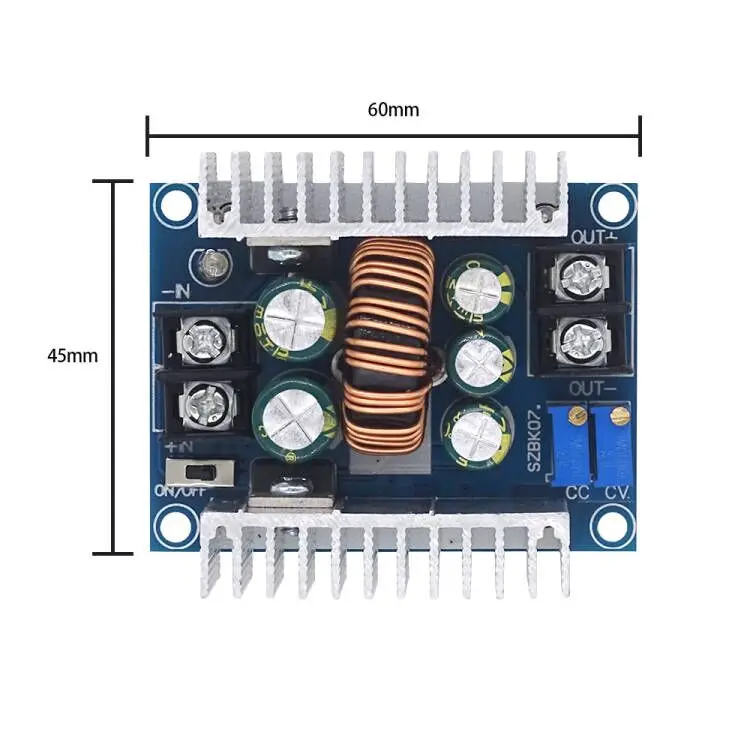

300W DC-DC 20A Step Down Constant Voltage Constant Current LED Driver Power Step Down Voltage Module
4.9 (711 votes) | 3000 orders
Price:
US $19.73
Discount Price:
US $
11.17
-43%
Module Parameters
Module nature: Synchronous rectification non isolated step-down constant current constant voltage module CC CV charging module
Scope of application: high-power LED constant current drive, lithium battery charging (including ferroelectricity), 4V, 6V, 12V, 14V, 24V battery charging, nickel cadmium nickel hydrogen battery (battery pack) charging, solar panels, wind turbines
Input voltage: 6-40VDG
Output voltage: continuously adjustable (1.2-35V00) for a long time below 32V (suitable for applications where the input voltage is higher than the output voltage and cannot be boosted)
Output current: maximum 20A, within 15A for a long time (if the temperature of the power transistor exceeds 65 degrees, please add a fan for heat dissipation, and for high voltage output, please reduce the rating for use)
Current limiting range: 0.2-20A (adjustable)
If the module exceeds 65 degrees, please add a fan.
Minimum pressure difference: 3V
Working frequency: 150KHz
Packaging Details
- Unit Type:
- Package Weight: 0.085
- Package Size: 10x5x15
- Brand Name: EYEWINK
- Origin: Mainland China
- Hign-concerned Chemical: None
- Condition: New
- Type: Module
- Supply Voltage: 6~40VDC
- is_customized: Yes
- Operating Temperature: 0℃~+75℃
- Choice: yes
