DC 12V 4Ch RS232 Relay Board SCM PC UART DB9 Remote Control Switch PLC Motor Car free shipping

0.0 ( votes)
Price: US $19.46 / piece
Discount Price:
US $ 16.34 / piece
-16%
Quantity

Description


4 Channel Relay Module;

Power input: DC 12V(8.5-13.5V).

Standby current (all relays closed) 18MA, 1 relay open 50MA, 2 relays open 81MA, 3 relays open 110MA, 4 relays open 140MA

PC Serial ports RS232 Control Relay;

Power indicator : LED lights;

Output indication : relay output with LED indicators,easy to see working status of the relay;

Communication protocol: UART protocol communication, baud rate 9600kpbs, 8 data bits, one stop bit, no parity. Each data frame contains eight bytes. Two-way data transmission.

Baud rate 9600kbps, 8 data bits, one stop bit, no parity. Each data frame contains eight bytes.

Size : 90mm*47mm*19mm

Weight : 62g


Download information from the following link
//1drv.ms/1R6Sxvg


1 Control commands:

1.Reading status(reading the satus of the relay (on/off)

55 56 00 00 00 00 00 AB

2.Relay open (issue this command,Relay open,COM connect to NO)

Channel 1 : 55 56 00 00 00 01 01 AD

Channel 2 : 55 56 00 00 00 02 01 AE

Channel 3 : 55 56 00 00 00 03 01 AF

Channel 4 : 55 56 00 00 00 04 01 B0

3. Relay close (issue this command,Relay close,COM disconnect NO,and COM connect to NC)

Channel 1 : 55 56 00 00 00 01 02 AE

Channel 2 : 55 56 00 00 00 02 02 AF

Channel 3 : 55 56 00 00 00 03 02 B0

Channel 4 : 55 56 00 00 00 04 02 B1

4. Relay toggle (Relay status reversal,if COM connect to NO,this commands will Disconnect COM to NO and Reverse COM connect to NC,and vice versa)

Channel 1 : 55 56 00 00 00 01 03 AF

Channel 2 : 55 56 00 00 00 02 03 B0

Channel 3 : 55 56 00 00 00 03 03 B1

Channel 4 : 55 56 00 00 00 04 03 B2

5. Relay momentary (Relay COM connect to NO,disconnect after 200MS)

Channel 1 : 55 56 00 00 00 01 04 B0

Channel 2 : 55 56 00 00 00 02 04 B1

Channel 3 : 55 56 00 00 00 03 04 B2

Channel 4 : 55 56 00 00 00 04 04 B3

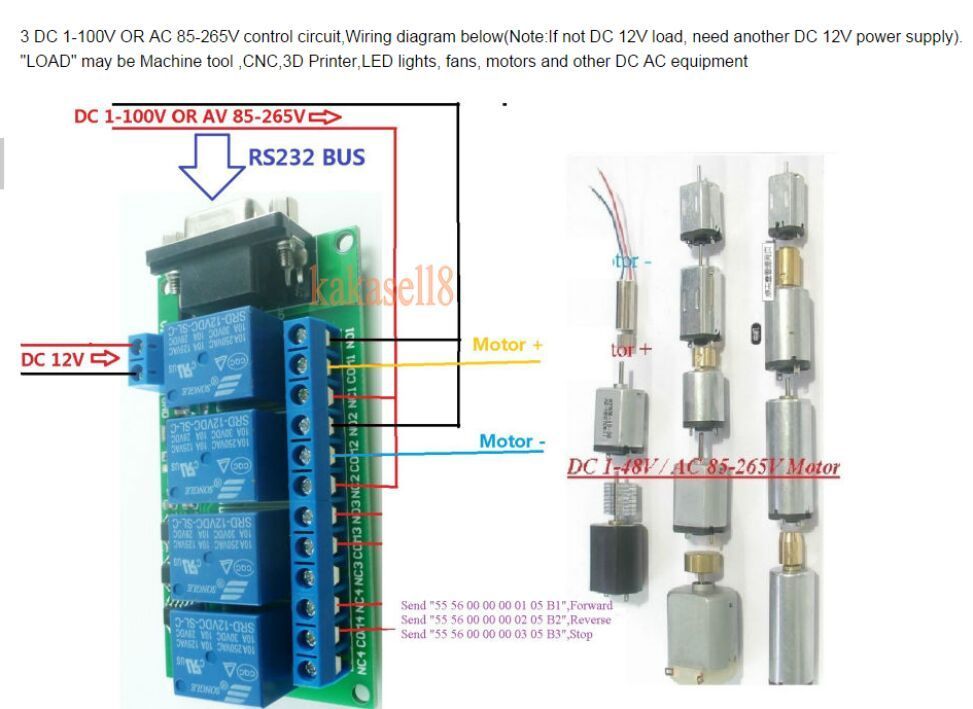

6. Relay Interlock

Channel 1 : 55 56 00 00 00 01 05 B1

Channel 2 : 55 56 00 00 00 02 05 B2

Channel 3 : 55 56 00 00 00 03 05 B3

Channel 4 : 55 56 00 00 00 04 05 B4


Once issue a command,will have a return fame,7th byte of return fame mean the satus of realy

2 return command

1.Return relay open (return this command,mean COM connect to NO)

Channel 1 : 33 3C 00 00 00 01 01 71

Channel 2 : 33 3C 00 00 00 02 01 72

Channel 3 : 33 3C 00 00 00 03 01 73

Channel 4 : 33 3C 00 00 00 04 01 74


2.Return relay close (return this command,mean COM disconnect NO ,and COM connect to NC)

Channel 1 : 33 3C 00 00 00 01 02 72

Channel 2 : 33 3C 00 00 00 02 02 73

Channel 3 : 33 3C 00 00 00 03 02 74

Channel 4 : 33 3C 00 00 00 04 02 75



Application

Remote control, remote measurement system;
Wireless meter ;
Smart Home,Home Automation ,Wiser Home;
Access control ;
Identification system ;
Data collection;
IT household appliance ;
Intelligence household appliance;
Baby monitoring system;
