ZL-7850A ver 2.0, Incubator, Cheese or Sausage Deposit, Wet Sauna Control, Humidity Temperature Controller, Hygrostat Thermostat
87.80 62.82 $
SALE
ID: 132578
100-240VAC PID REX-C100 Temperature Controller Range 0 to 900C SSR40A K Thermocouple, PID Controller Set + Heat Sink
4.8 (237 votes) | 740 orders
Price:
US $20.75 - 36.37
/ piece
Discount Price:
US $
14.53 -
26.13
/ piece
-30%
- Ships From
- Color
-
-
Sorry! This item is out of stock

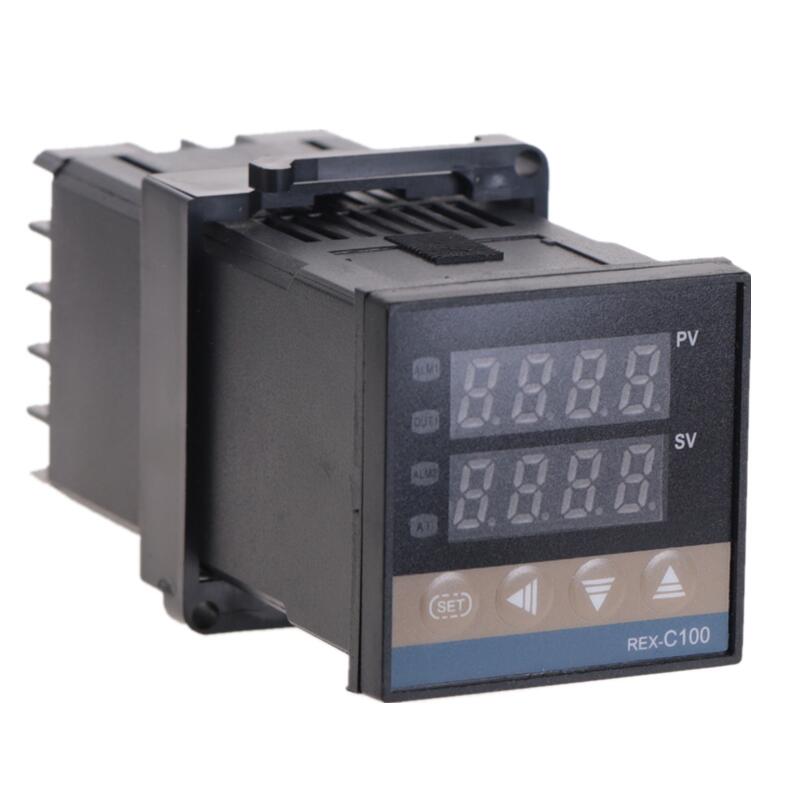

Digital 100-240VAC PID REX-C100 Temperature Controller + max.40A SSR + K Thermocouple, PID Controller Set + Heat Sink
Power : AC 100-240V 50/60HZ
Process value (PV), Setting value (SV)
PIN control (including ON/OFF, step-type PID and continuous PID)
Self-tuning control
Relay output: contact capacity 250V AC 3A (resistive load)
Proportional band (P): 0~full range (ON/OFF control when set to 0)
Detective temperature range: 0 to 900 Celsius
Insulation resistance: more than the 50M ohm(500V DC)
Insulation resistance : 1500V AC/min
Insulation resistance : Power Consumption Less than 10 VA
Service environment: 0~50 Celsius
environment with no corrosive gas 30~85% RH
Aluminum Alloy Heat Sink
Specification:
Materail: Aluminium alloy.
Size:Roof:50mmX60mm.Foot:80mmX50mm.
Height:43mm.
Compatible with:Designed specially for single phase solid state relay.
Color :Silver
Max.40A SSR
Output Current:40A
Input Voltage:DC 3-32V
Output Voltage:24-380V AC
Output Voltage Range:Standard Type

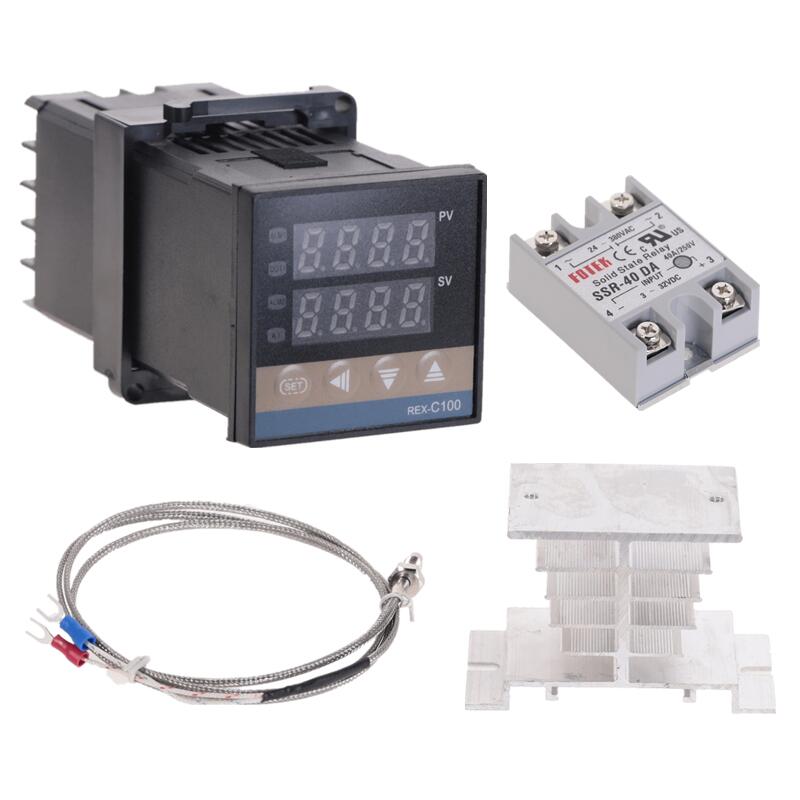

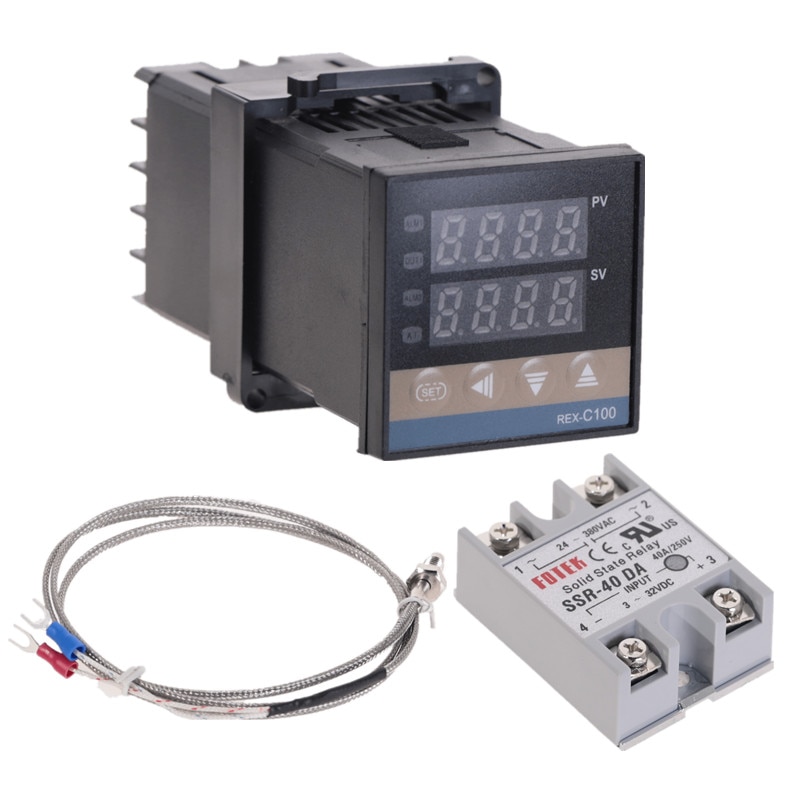

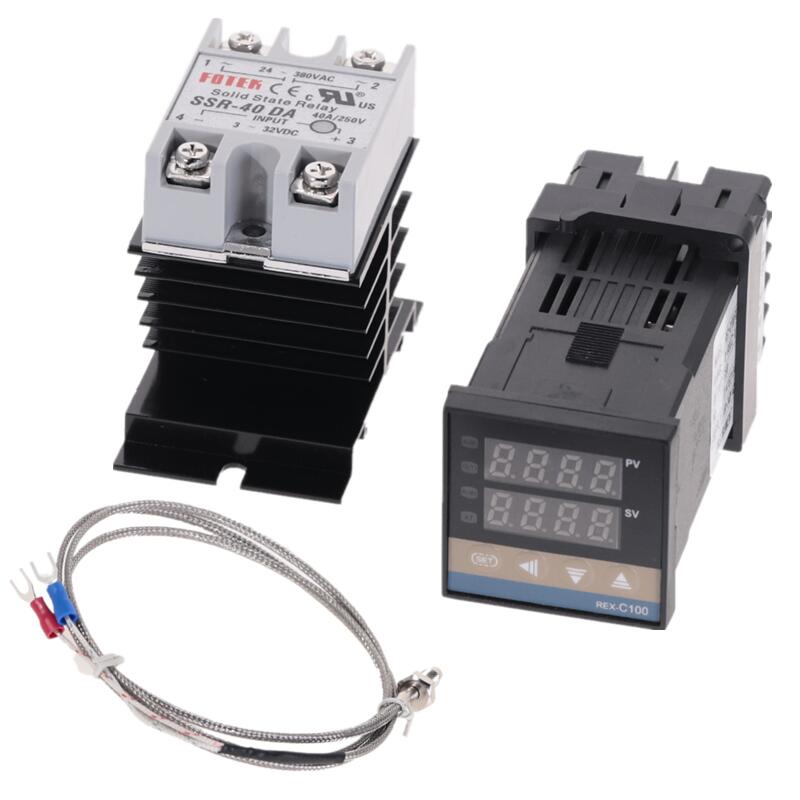

Package Included:
1 x PID Temperature Controller
1 x K Type Probe Sensor
1 x 40DA SSR
1 x Heat Sink
- Brand Name: YTQHANF
- Origin: Mainland China
- Theory: Temperature Controller
- Max Measuring Temperature: 120°C & Above
- Display Type: DIGITAL
- Certification: NONE
- Style: Embedded
- Usage: Industrial
- Model Number: Temperature Controller
- Cable Length: 1M
- Measure Type: K
- Power Type: SSR
- Type: K
- Screw: M8*1.25
- Display Size: 1.9 Inches & Under
- Is Smart Device: NO
- Voltage: 100-240VAC
- Temperature Range: 0 to 900 Celsius
