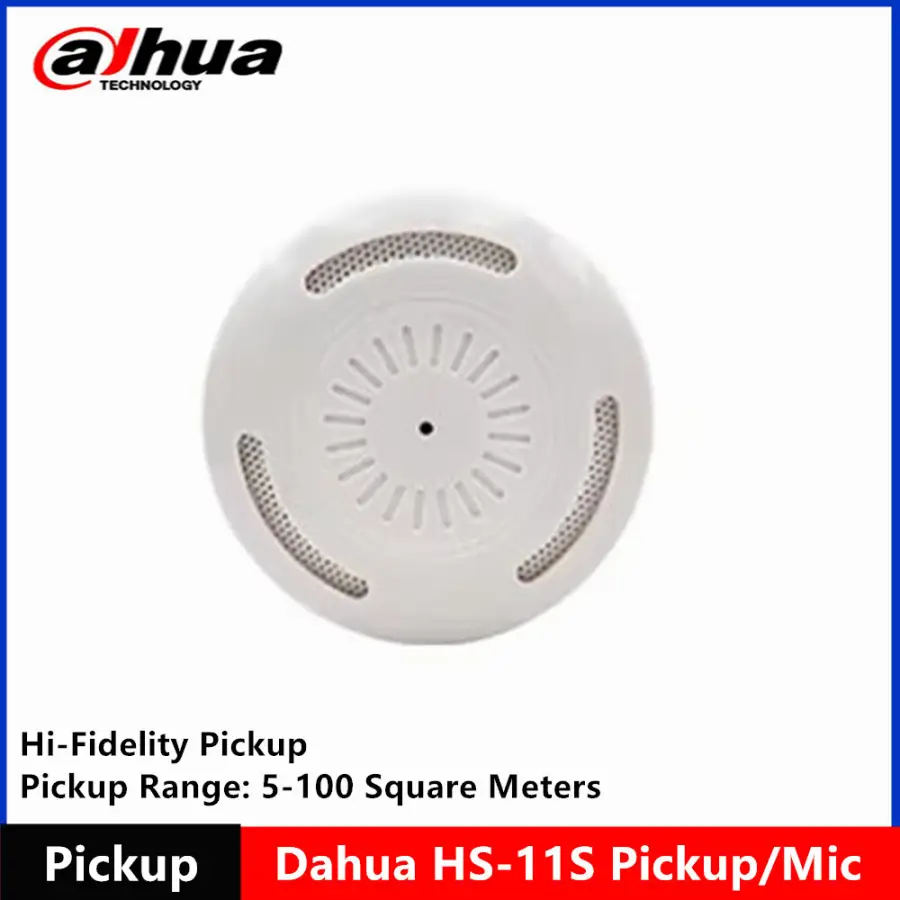

Dahua HS-11S Hi-fidelity Audio Pickup Microphone for Dahua & Hikvision Camera audio interface
ID: 160100

Dahua HS-11S Hi-fidelity Audio Pickup Microphone for Dahua & Hikvision Camera audio interface

5.0 (2 votes) | 5 orders
Price:
US $ 43.04
Quantity

Buy Now
Add to Cart


1. Hi-fidelity Pickup

2. UNIGUARD radio frequency interference (RFI) shield technology to prevent radio frequency interference and inhibit the murmur around the environment.

3. The microporous design of the "Temple of Heaven echo wall" principle is used to accurately calculate the sound reflection angle of the sound.

4. Use echo to eliminate the serious echo of the empty room effectively, and provide clear and high -quality audio signal output.

5. Use Dolby's directional logic surround sound system, built -in high -speed voice processing unit, and two levels of dynamic noise reduction treatment.

6. The United States Kaboni large -scale gold -plated shock -plated capacitor head, 100 square meters of high -fidelity, high sensitivity, low noise.

7. Built -in AGC and DTS noise reduction signal micro -processing circuits, automatically adjust the high -intensity sound and instant impact.

8. Built -in the latest DNP and DSP digital processing units to eliminate "SS" electronic noise.

9. Built -in lightning strike protection, power supply polar reflection protection, static protection and power protection module.

10. Construction specifications of EU Environmental ROHS instructions 2002/95/EC.

Model                                                                                                                     HS-11S

Scope

5m--100square meter

Frequency response

20Hz～20kHz

Sensitivity(re 0dB=1V/Pa@1kHz)

-40dB

Default gain

44dB

Gain adjustment range

Non adjustment

SNR(re 94dBSPL=1Pa@1KHz)

58dB(A)

Dynamic range

75dB(A)

Directional characteristic

Omni-directional

Max. sustainable sound pressure

120dB SPL(1KHz, THD1%)

Output impedance

600-1000Ω(non-equilibrium)

Output signal amplitude

2.5Vpp/101dBSPL

Working voltage

DC 12V

Working current

60mA

Working temperature

-52℃～+65℃(-22℉~+158℉)

Color

Silver

Outer shell

Aluminum,ABS

Protection

IP66, IK10

Dimension

78mmx22mm

Weight

50g

Carried standard

CE/FCC









Packaging Details

  • Unit Type:
  • Package Weight: 0.250
  • Package Size: 12x8x15

  • Brand Name: Dahua
  • Origin: Mainland China
  • Certification: CE
  • Certification: FCC
  • Model Number: HS-11S
  • Choice: yes
  • semi_Choice: yes
