Mini Router 3020Z 3040Z Engraver Milling Machine USB 3/4Axis Wood Engraving Machine USB/LPT Port Optional Control Handle
5.0 (1 votes) | 4 orders
Price:
US $2926.00 - 4791.60
Discount Price:
US $
1463.00 -
2395.80
-50%

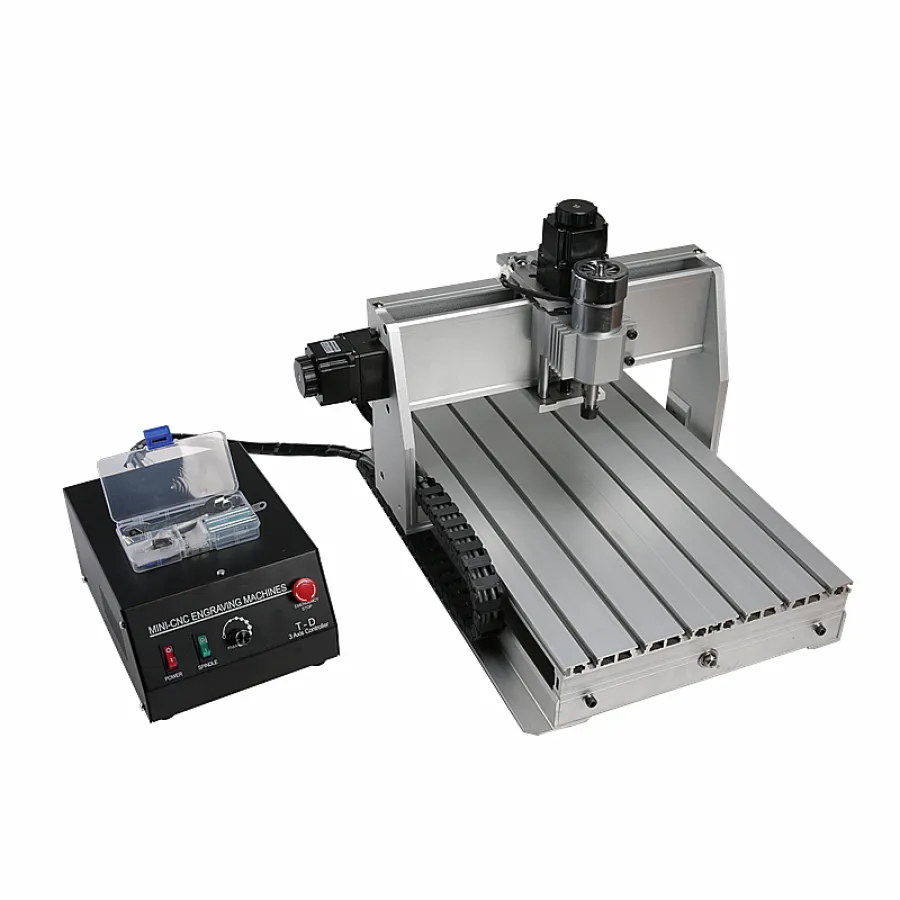

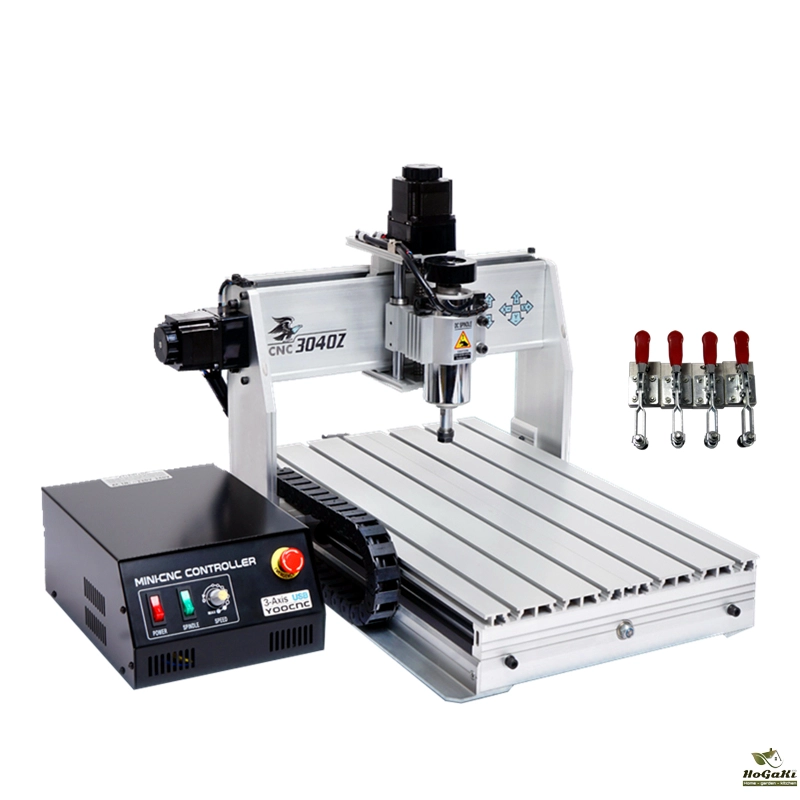

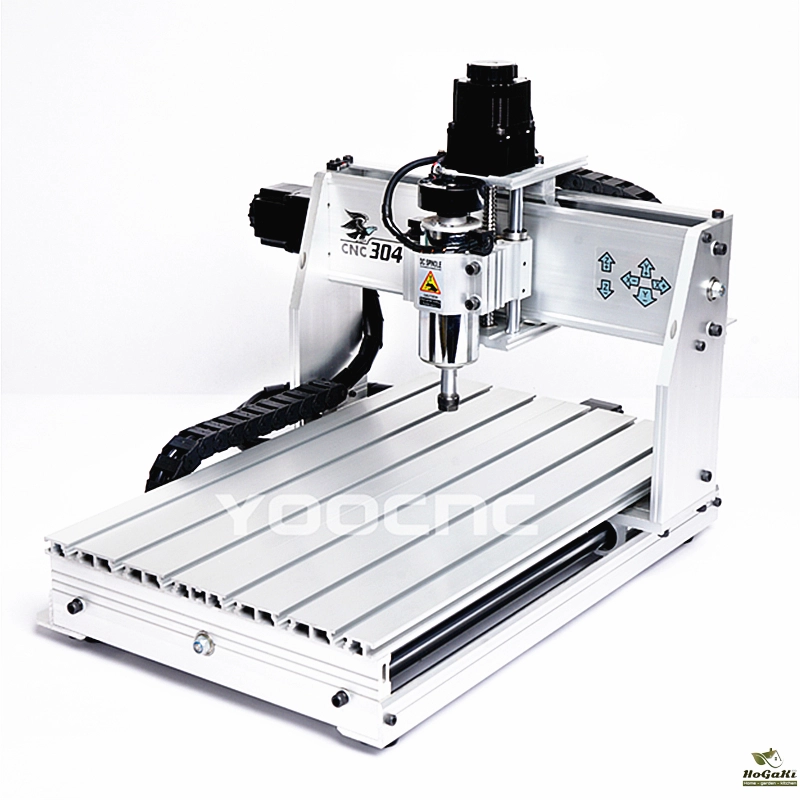

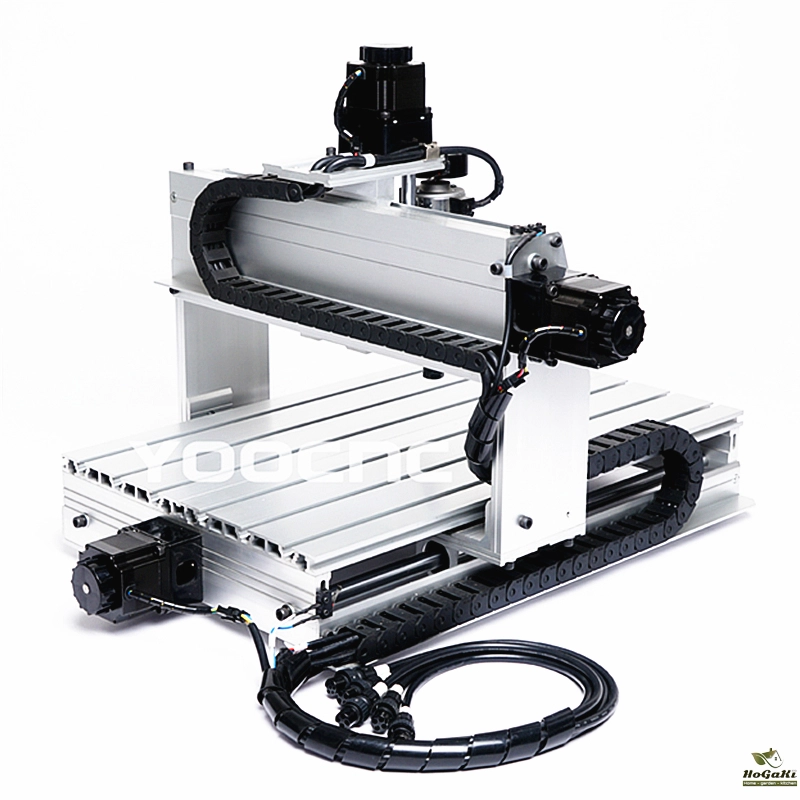

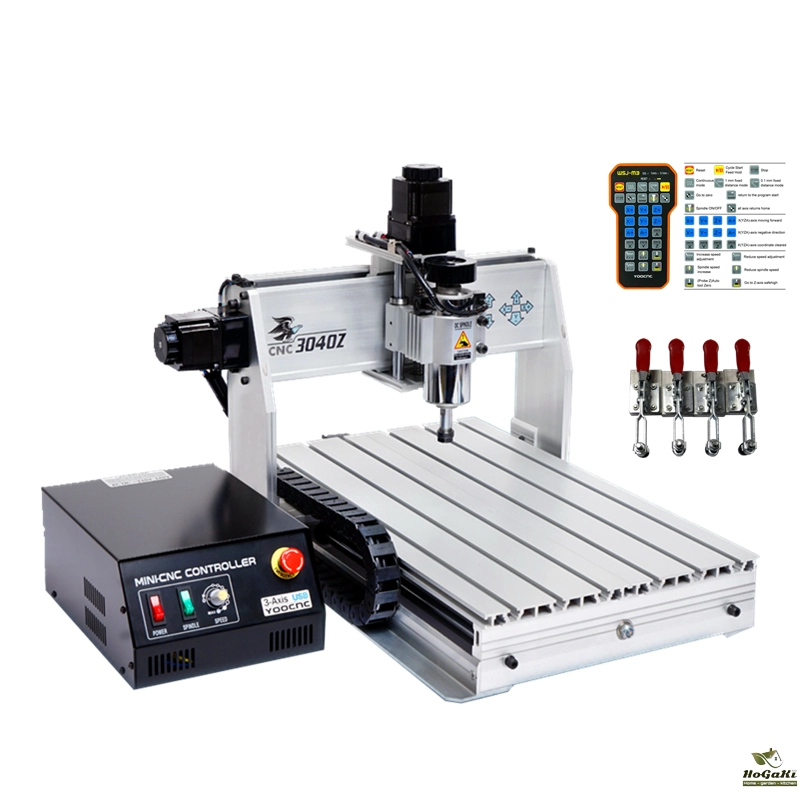

Mini Router 3020Z 3040Z Engraver Milling Machine USB 3/4Axis Wood Engraving Machine USB/LPT Port Optional Control Handle
The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designedfor large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
Model and Technical Parameters
MODEL |
3020 |
|||
Attribute |
T-DJ |
Z-DQ |
||
Axis |
3axis |
3axis |
||
Interface |
LPT port |
LPT port |
||
Limit switch |
No |
No |
||
Tool auto-checking |
No |
Yes |
||
Spindle Motor: |
300W |
300W |
||
Type of screw |
Trapezoidal Screw |
Ball screw |
||
Weigh |
22KG |
22KG |
||
Machine Dimensions： |
525X400X370mm |
|||

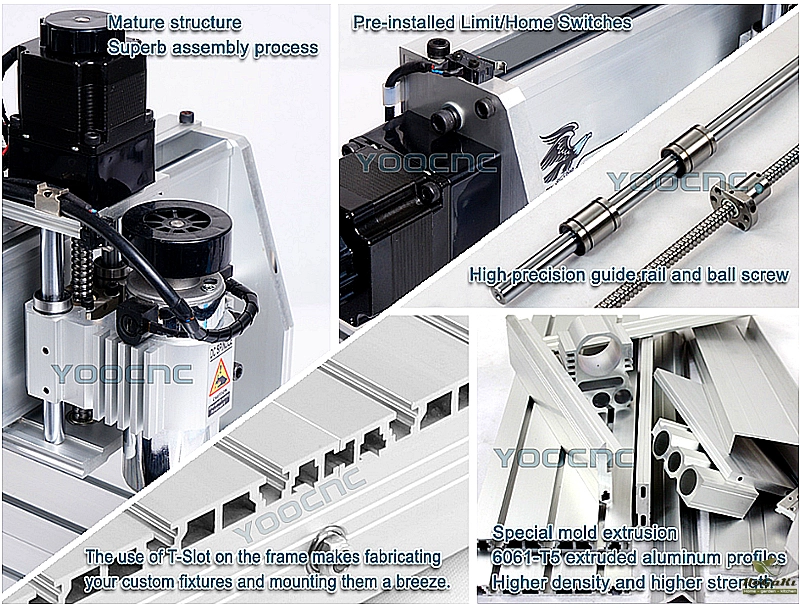

Rack material： |
6061 and 6063 Hard aluminum alloy (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.) |
|||
Engraving area： |
300X200mm |
|||
Z-Axis Stroke： |
45mm, Engraving depth depends on the length of the tool edge |
|||
Acceptable material thickness： |
≤60mm |
|||
Rail type： |
Chromeplate shaft + Linear Bearings, Surface hardening 61HRC |
|||

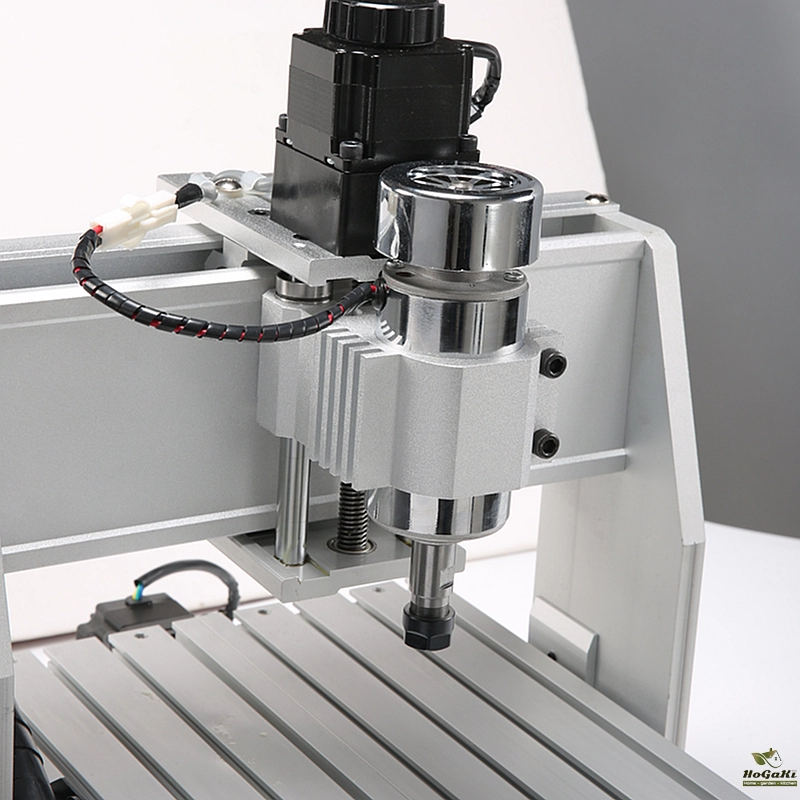

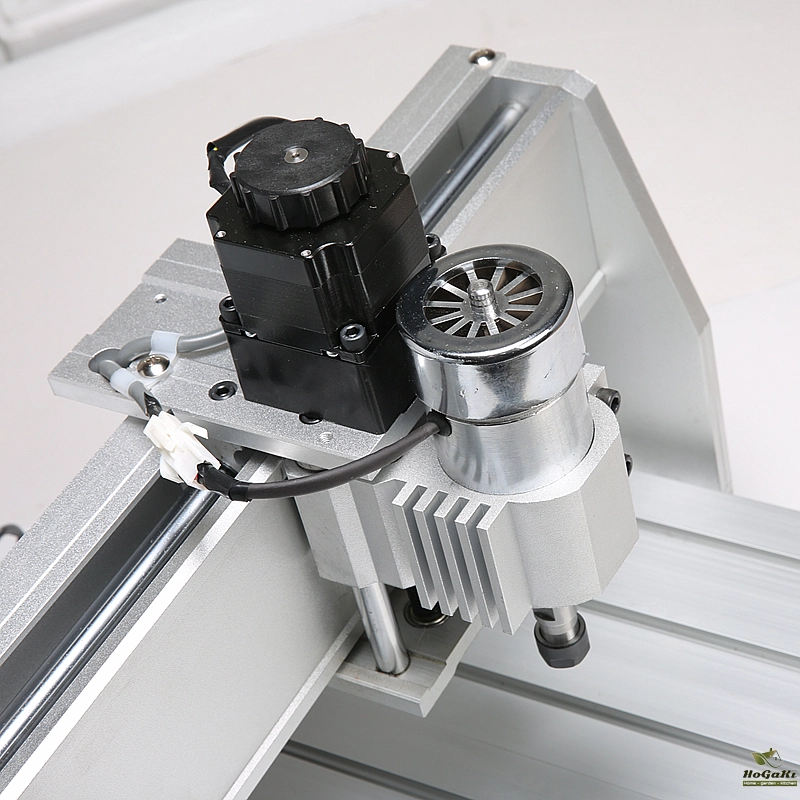

Spindle motor： |
300W/11000r/min (Very small noise) |
|||
Collet type： |
ER11,1/8"(3.175mm) Collet |
|||

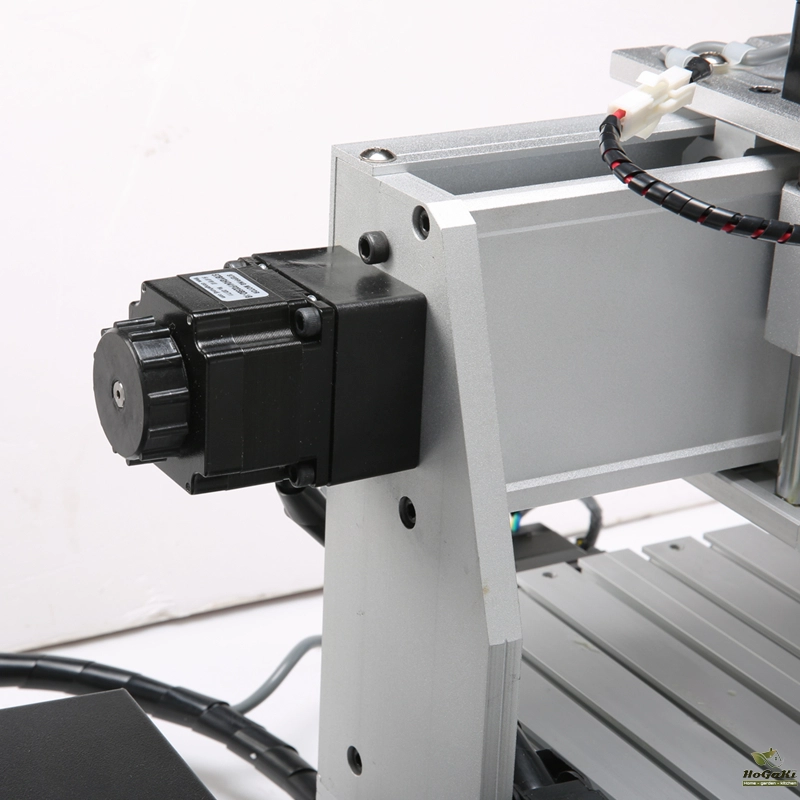

Stepper motor and drive： |
two-phase hybrid stepping motor 1.8A/PHASE,40N.cm, 8 segments drive. |
|||
Maximum operating speed： |
4000mm/min (Engraving speed :300-3000mm/min) |
|||
Repeat positioning Accuracy： |
≤0.04mm |
|||
Software Compatability： |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
Command code： |
G code/.nc/.ncc/.tab/.txt |
|||
MODEL |
3040 |
|||
Attribute |
T-DJ 3axis |
T-DJ 4axis |
Z-DQ 3axis |
Z-DQ 4axis |
Axis |
3axis |
4axis |
3axis |
4axis |
Interface |
LPT port |
LPT port |
LPT port |
LPT port |
Limit switch |
No |
No |
No |
No |
Tool auto-checking |
No |
No |
Yes |
Yes |
Spindle Motor: |
300W |
300W |
300W |
300W |
Type of screw |
Trapezoidal Screw |
Trapezoidal Screw |
Ball screw |
Ball screw |
Weigh |
29KG |
34KG |
29KG |
34KG |
Machine Dimensions： |
620X490X410mm |
|||
Rack material： |
6061 and 6063 Hard aluminum alloy (The unique and dedicated mold extrusion profil s, Let counterfeiters dwarfs.) |
|||
Engraving area： |
380X285mm |
|||
Z-Axis Stroke： |
55mm, Engraving depth depends on the length of the tool edge |
|||
Acceptable material thickness： |
≤80mm |
|||
Rail type： |
Chromeplate shaft + Linear Bearings, Surface hardening 61HRC |
|||
Spindle motor： |
300W/11000r/min (Very small noise) |
|||
Collet type： |
ER11,1/8"(3.175mm) Collet |
|||
Stepper motor and drive： |
two-phase hybrid stepping motor 1.8A/PHASE,40N.cm,. |
|||
Maximum operating speed： |
4000mm/min (Engraving speed :300-3000mm/min) |
|||
Repeat positioning Accuracy： |
≤0.04mm |
|||
Software Compatability： |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
Command code： |
G code/.nc/.ncc/.tab/.txt |
|||

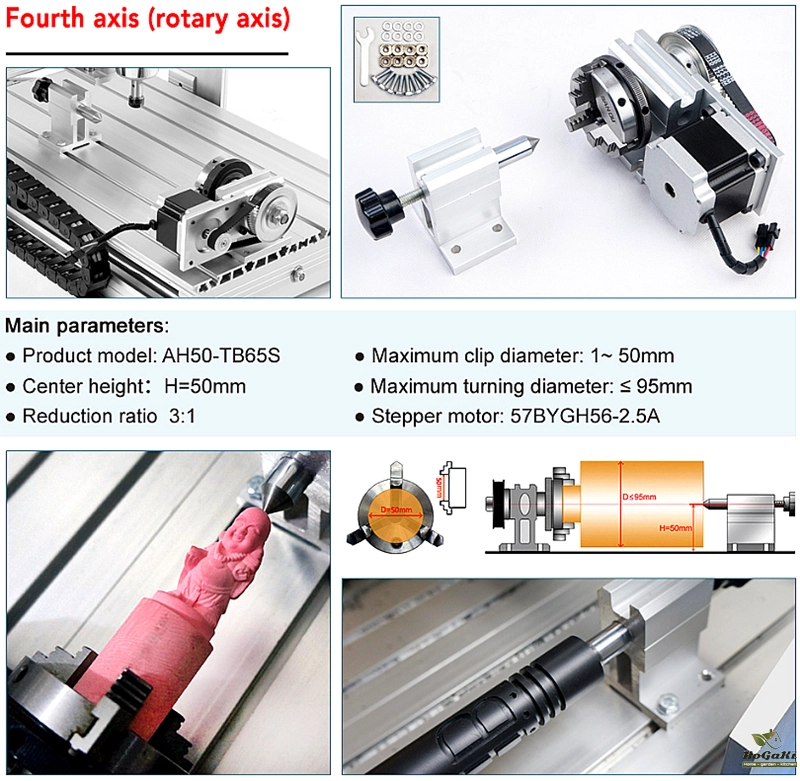

Rotation Axis (4th Axis) Description: |
Center height: H = 50mm Maximum turning diameter: ≤95mm Deceleration ratio: 3:1 Stepper motor: NEMA23-2.5A Weight: 4.2KG |
|||

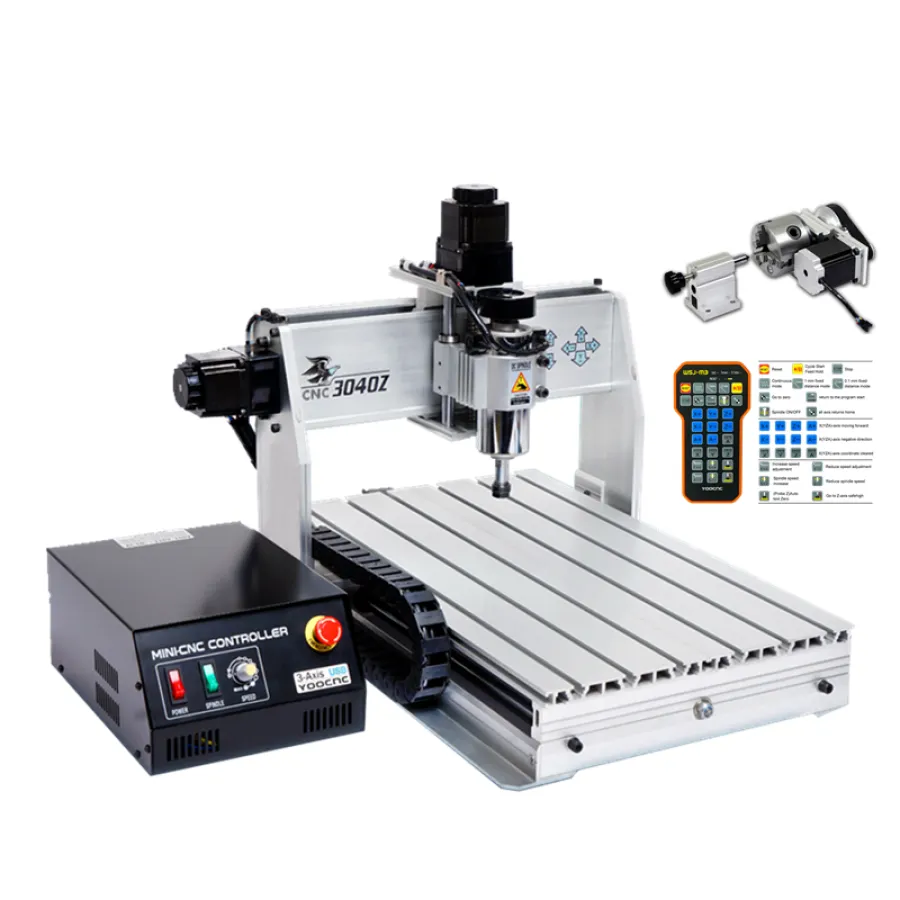

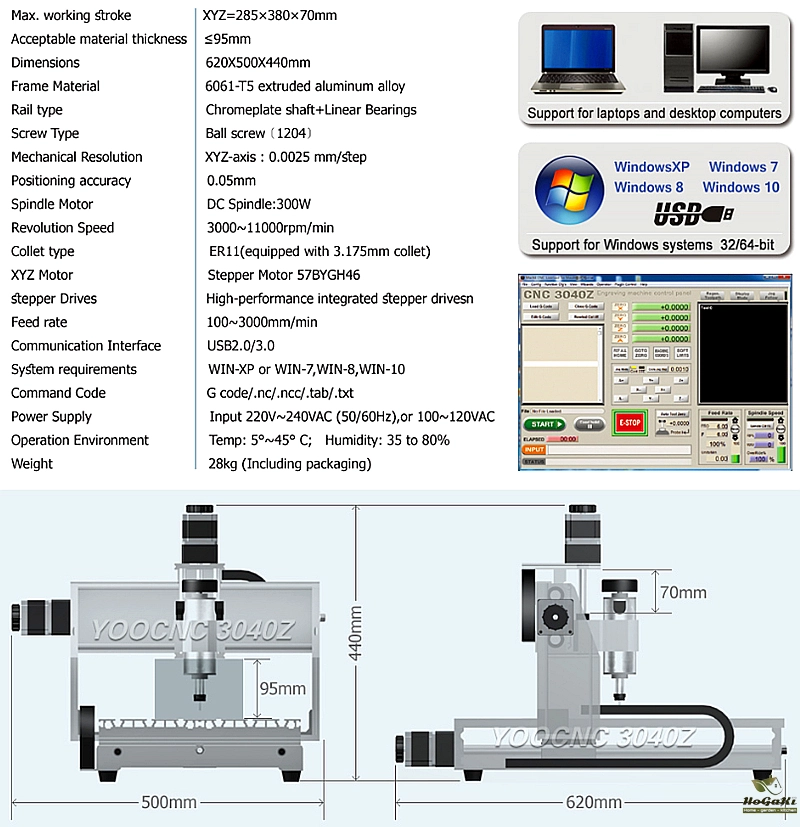

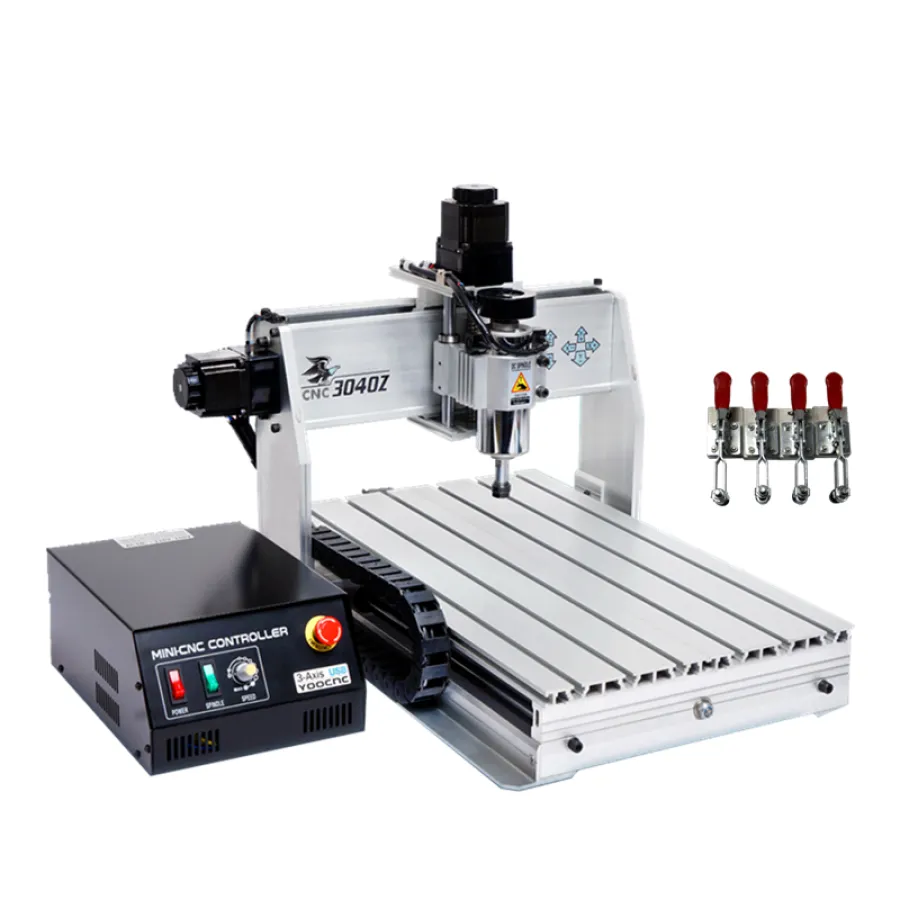

MODEL |
3040Z-DQ USB |
|||
Attribute |
3axis |
3axis+H |
4axis |
4axis+H |
Axis |
3axis |
3axis |
4axis |
4axis |
Interface |
USB port |
USB port |
USB port |
USB port |
Limit switch |
Yes |
yes |
Yes |
Yes |
Tool auto-checking |
Yes |
Yes |
Yes |
Yes |

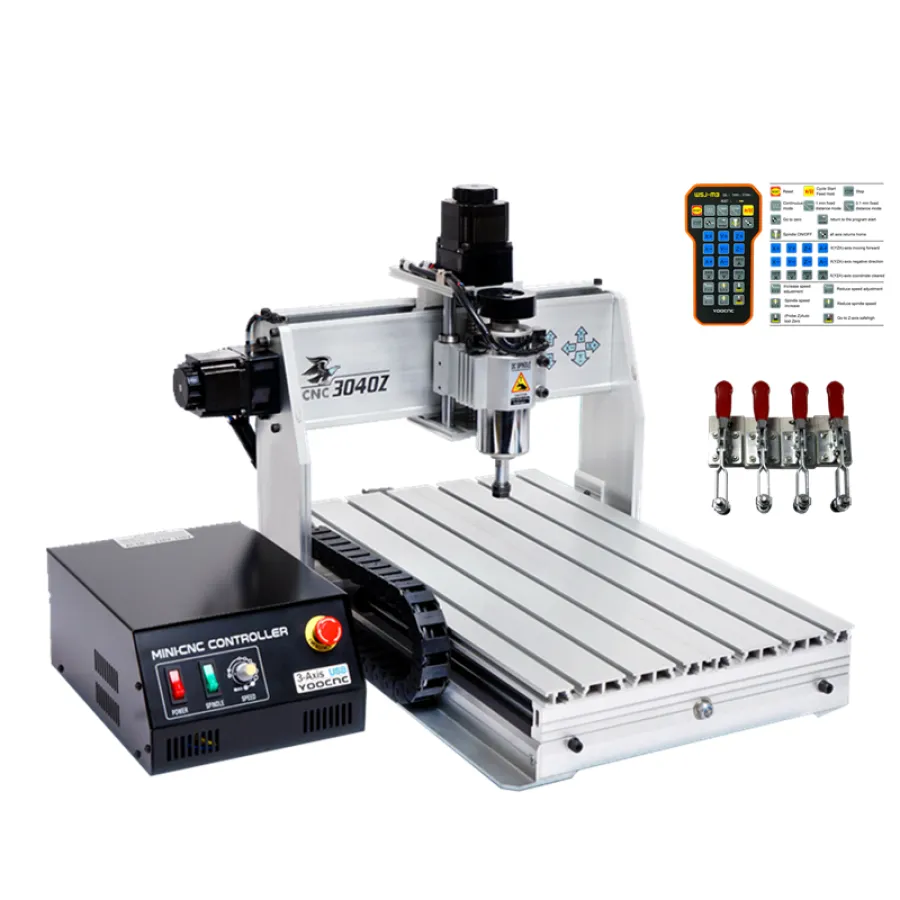

Add Remote control handle |
No |
Yes |
No |
Yes |
Spindle Motor: |
300W |
300W |
300W |
300W |
Type of screw |
Ball screw |
Ball screw |
Ball screw |
Ball screw |
Weigh |
29 |
29 |
34 |
34 |
Machine Dimensions： |
620X490X410mm |
|||
Rack material： |
6061 and 6063 Hard aluminum alloy (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.) |
|||
Engraving area： |
380X285mm |
|||
Z-Axis Stroke： |
70mm, Engraving depth depends on the length of the tool edge |
|||
Acceptable material thickness： |
≤95mm |
|||
Rail type： |
Chromeplate shaft + Linear Bearings, Surface hardening 61HRC |
|||
Type of screw： |
Ball screw 1204, Pitch 4mm |
|||
Spindle motor： |
300W/11000r/min（(Very small noise)） |
|||
Collet type： |
ER11,1/8"(3.175mm) Collet |
|||
Stepper motor and drive： |
two-phase hybrid stepping motor 57BYGH46 |
|||
Maximum operating speed： |
4000mm/min (Engraving speed: 100-2500mm/min) |
|||
Repeat positioning Accuracy： |
0.03mm |
|||
Software Compatability： |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
Command code： |
G code/.nc/.ncc/.tab/.txt |
|||

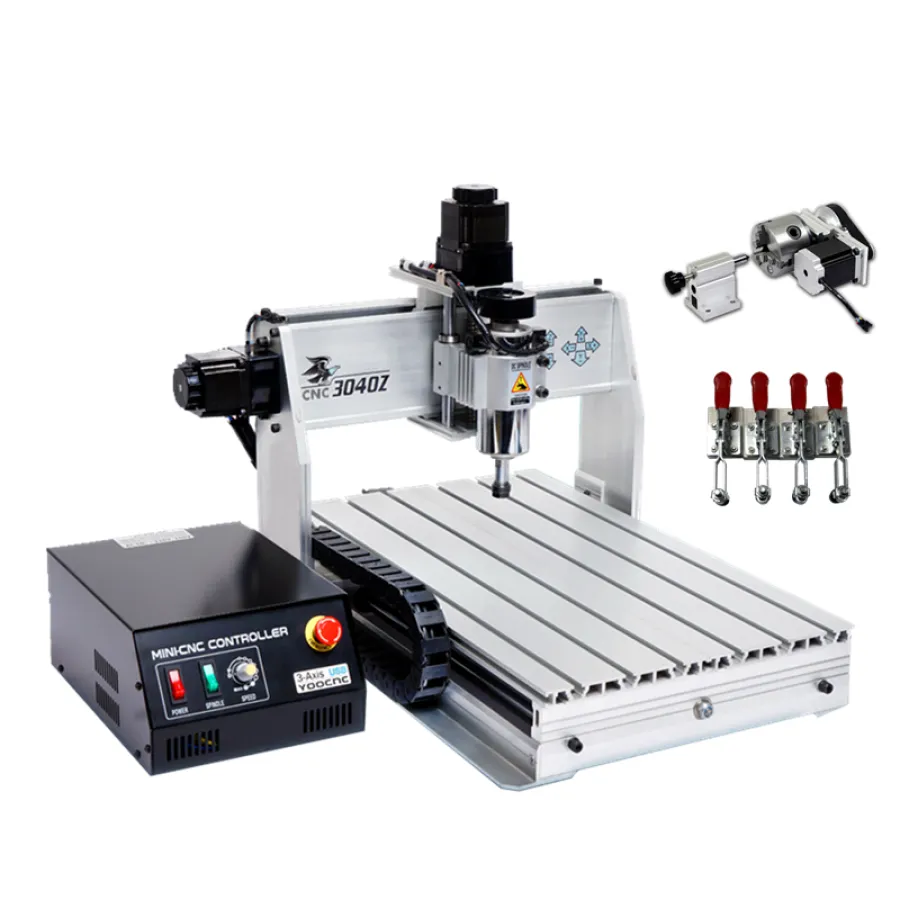

Rotation Axis (4th Axis) Description: |
Center height: H = 50mm Maximum turning diameter: ≤95mm Deceleration ratio: 3:1 Stepper motor: NEMA23-2.5A Weight: 4.2KG |
|||
Packaging Details
- Unit Type:
- Package Weight: 35.000
- Package Size: 40x30x50
- Brand Name: LYBGACNC
- Origin: Mainland China
- Hign-concerned Chemical: None
- Engraving Area: Other
- Model Number: CNC2520/3020/3040
- CNC or Not: CNC
- Is Smart Device: No
- Controller: MACH3
- Condition: New
- Certification: CE
