CNC Non-HF Pilot Arc HC8000 80A CUT80NP IGBT Plasma Cutter Digital Control Plasma Cutting Machine Cutting Thickness 30mm Show
ID: 133041

CNC Non-HF Pilot Arc HC8000 80A CUT80NP IGBT Plasma Cutter Digital Control Plasma Cutting Machine Cutting Thickness 30mm Show

5.0 (6 votes) | 34 orders
Price:
US $ 1598.00 - 1798.00 / piece
Ships From
Color

Sorry! This item is out of stock

Note:

1. We provide 2 years warranty for this model

2. The price for this machine is not include customer's local tax

3. Please read the words for the accessories and parameters before you place an order, Make sure it is what you want

4. Please contact us before you open a dispute or leave a negative feedback if you have any problem, We will try our best to help you.


HC8000/CUT80NP Description:

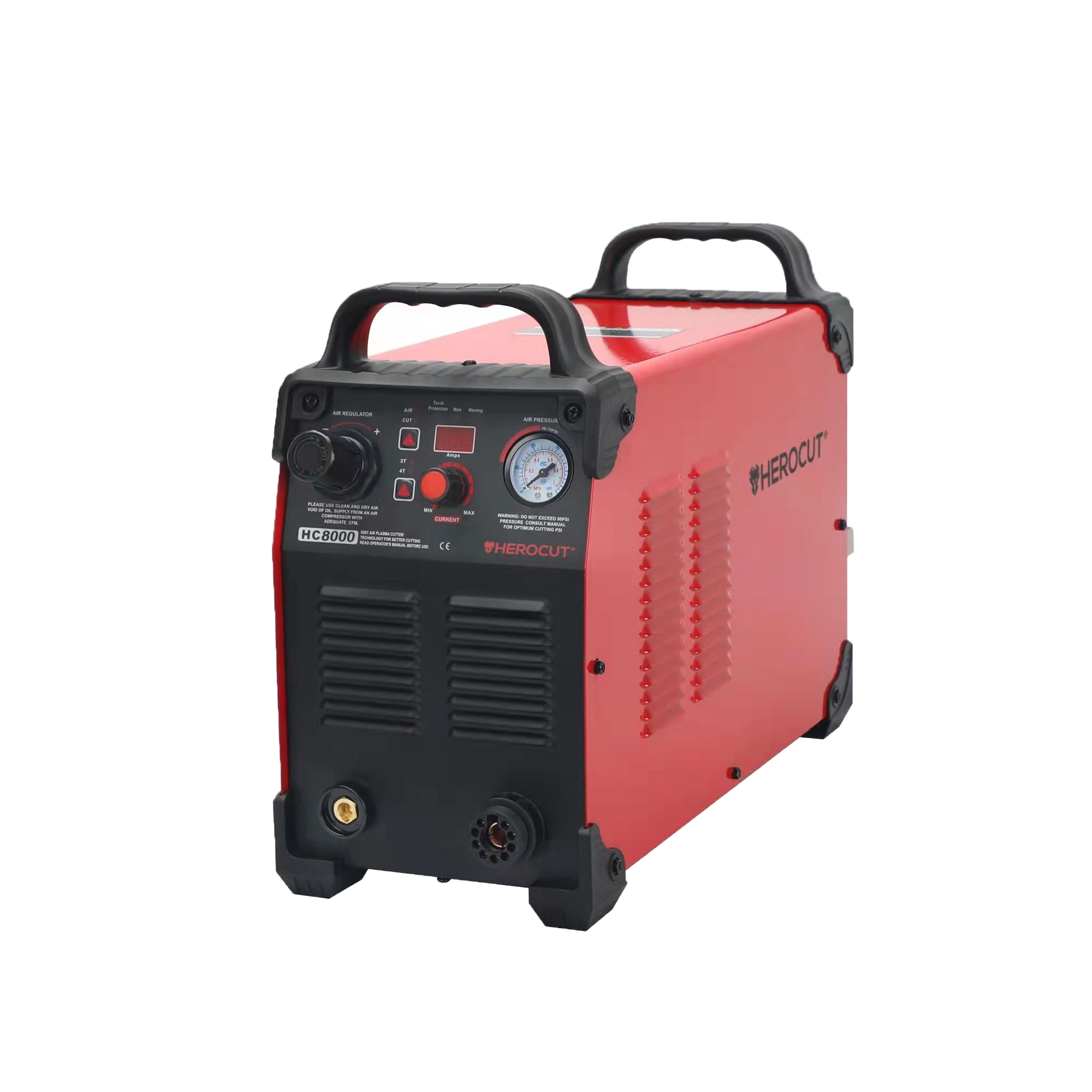

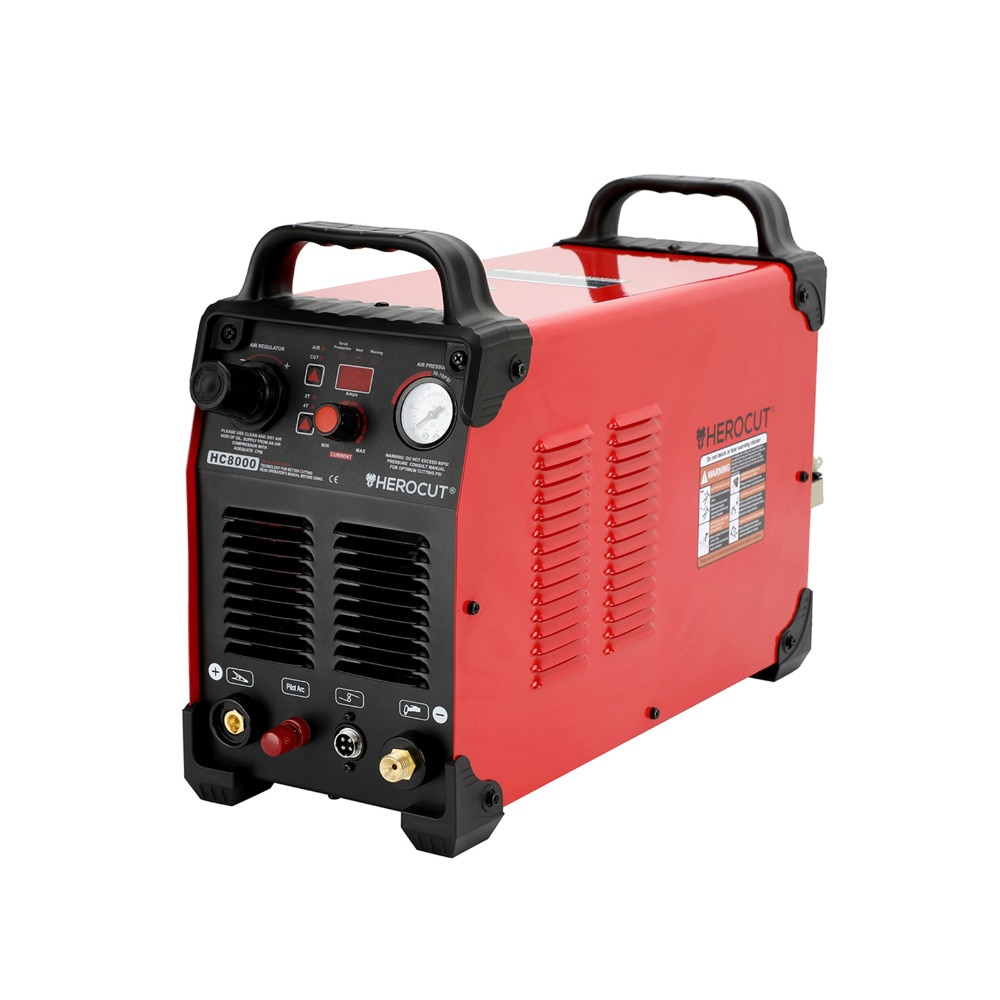

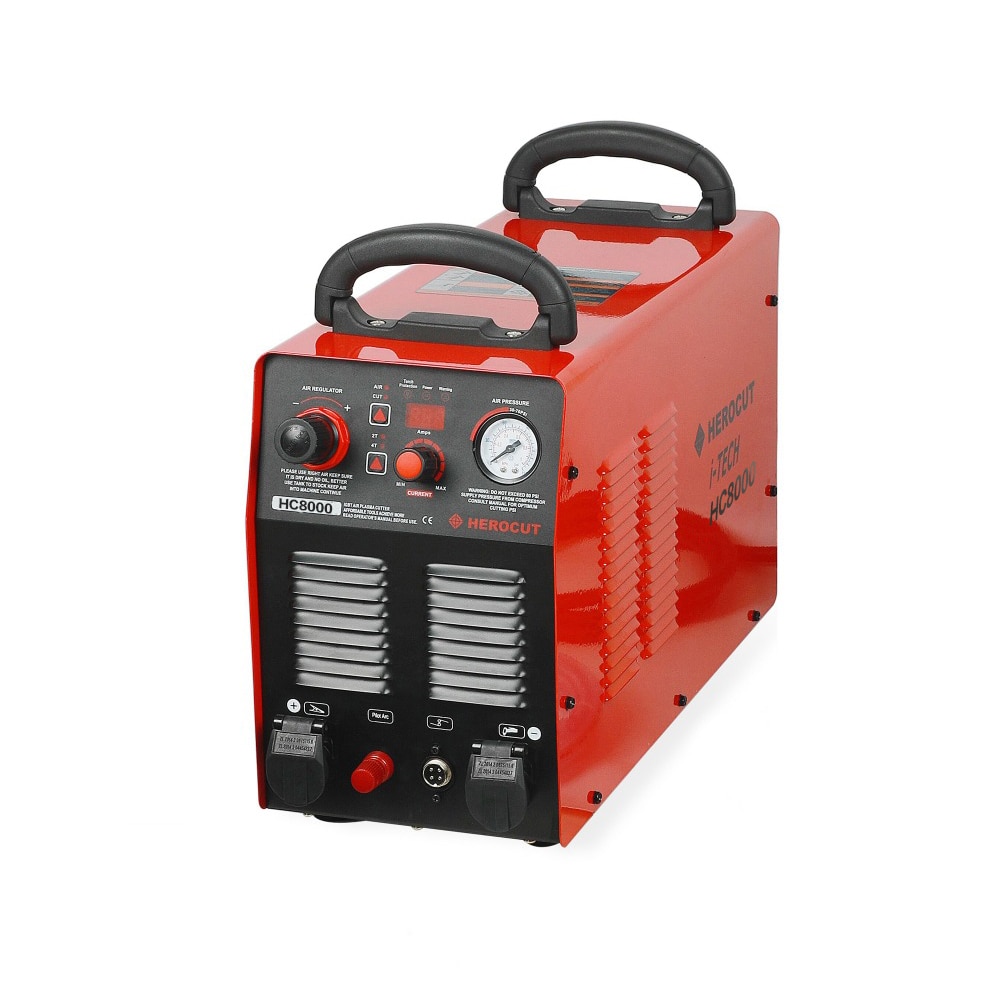

IGBT Plasma cutting machine HC8000 CUT80NP is developed by HeroCut, On rear of machine have CNC port, Can easy with CNC system. Non-HF pilot arc Heavy Duty efficient Digital controller. This machine is single phase inverter cutting machines on the market. With quality torch fixed safety plasma plug, The fast connection quick to release torch and ground clamp. The machine is easy to operate in terms of settings, Display show cutting amps help user adjust the current to cut different metal. Cutting thickness for this machine is 30mm at 70 psi with good performance, Max cutting thickness can reach at 35mm if needed for a short run. Torch standoff and 5 set of consumables included.

lIPT80 High quality plasma cutting torch.

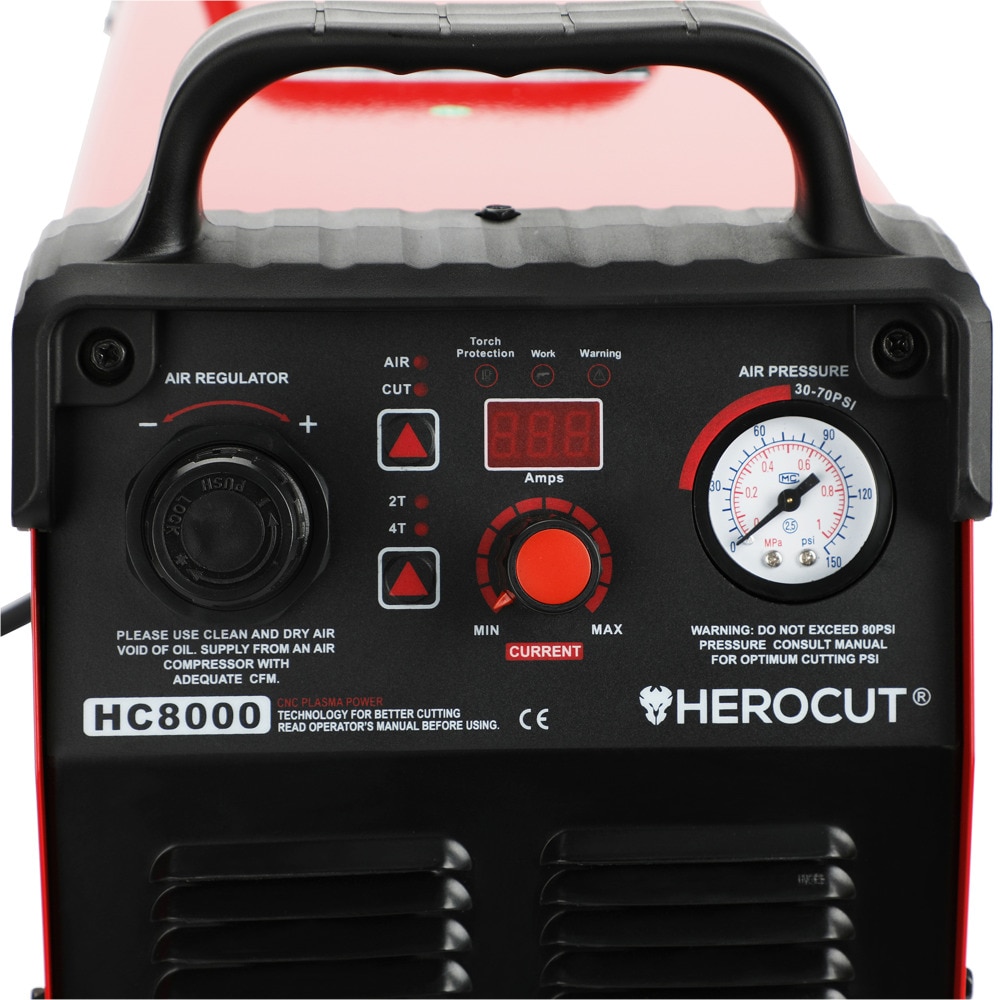

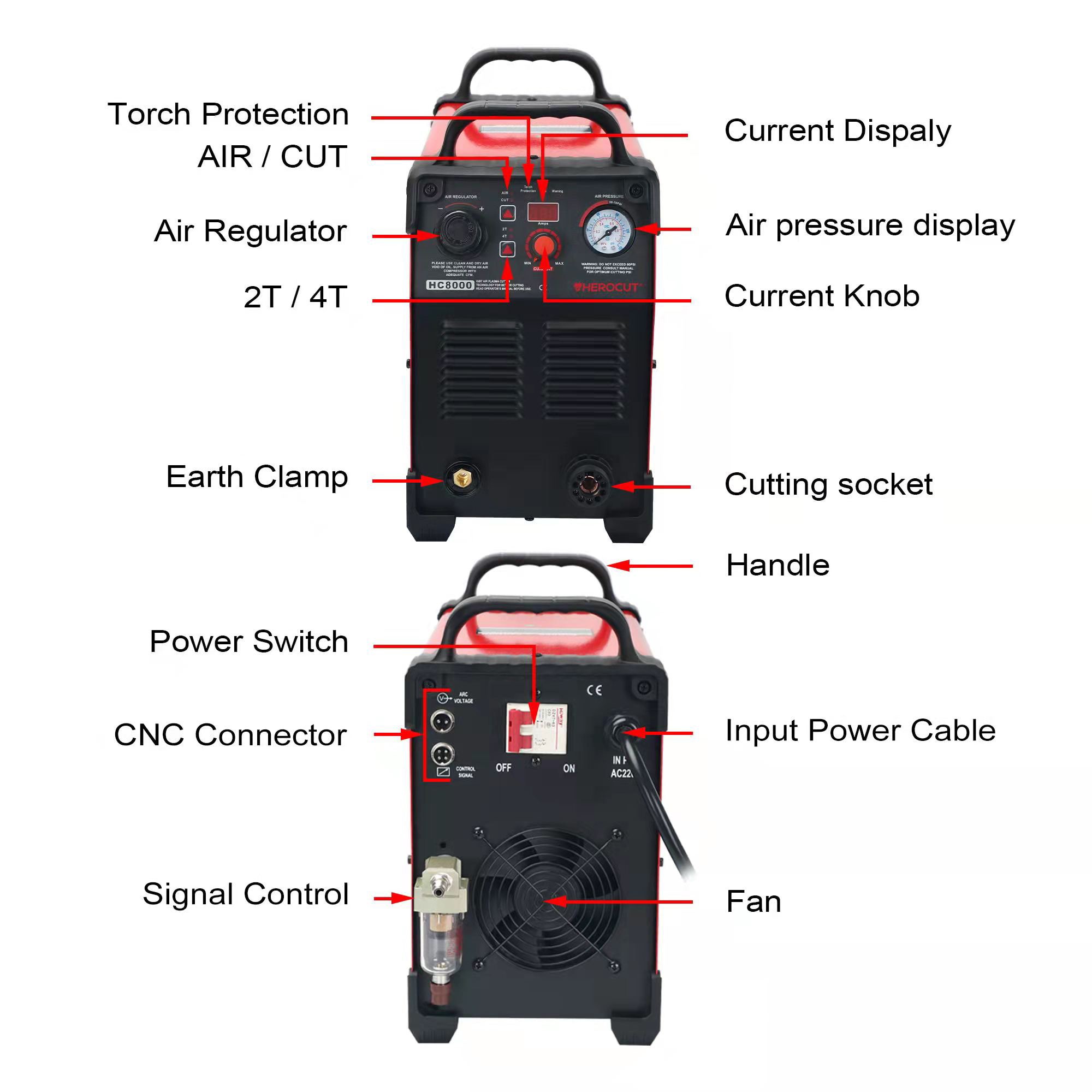

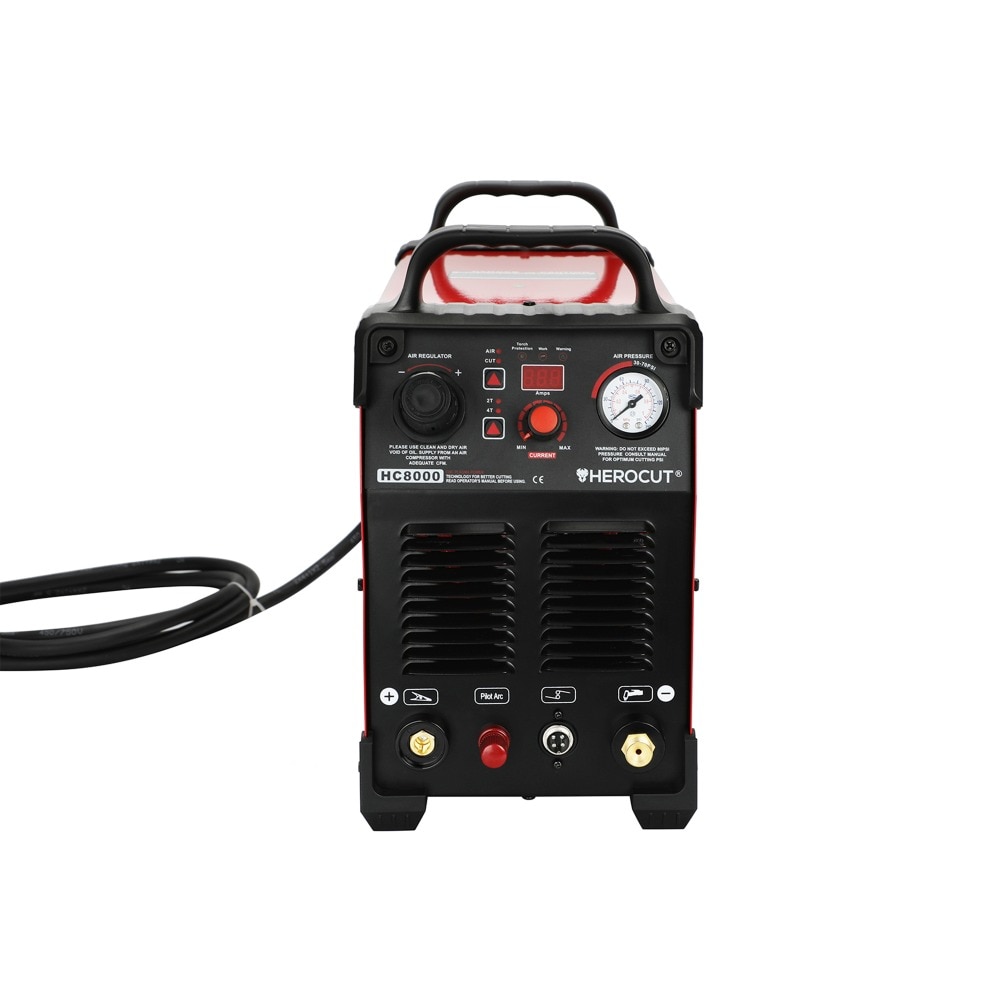

lDigital display, Air pressure Display, 2T/4T, Air Check / Cutting function.

lInverter 80Amps power supply, 60% Duty cycle at 80amps, 100% at 70amp.

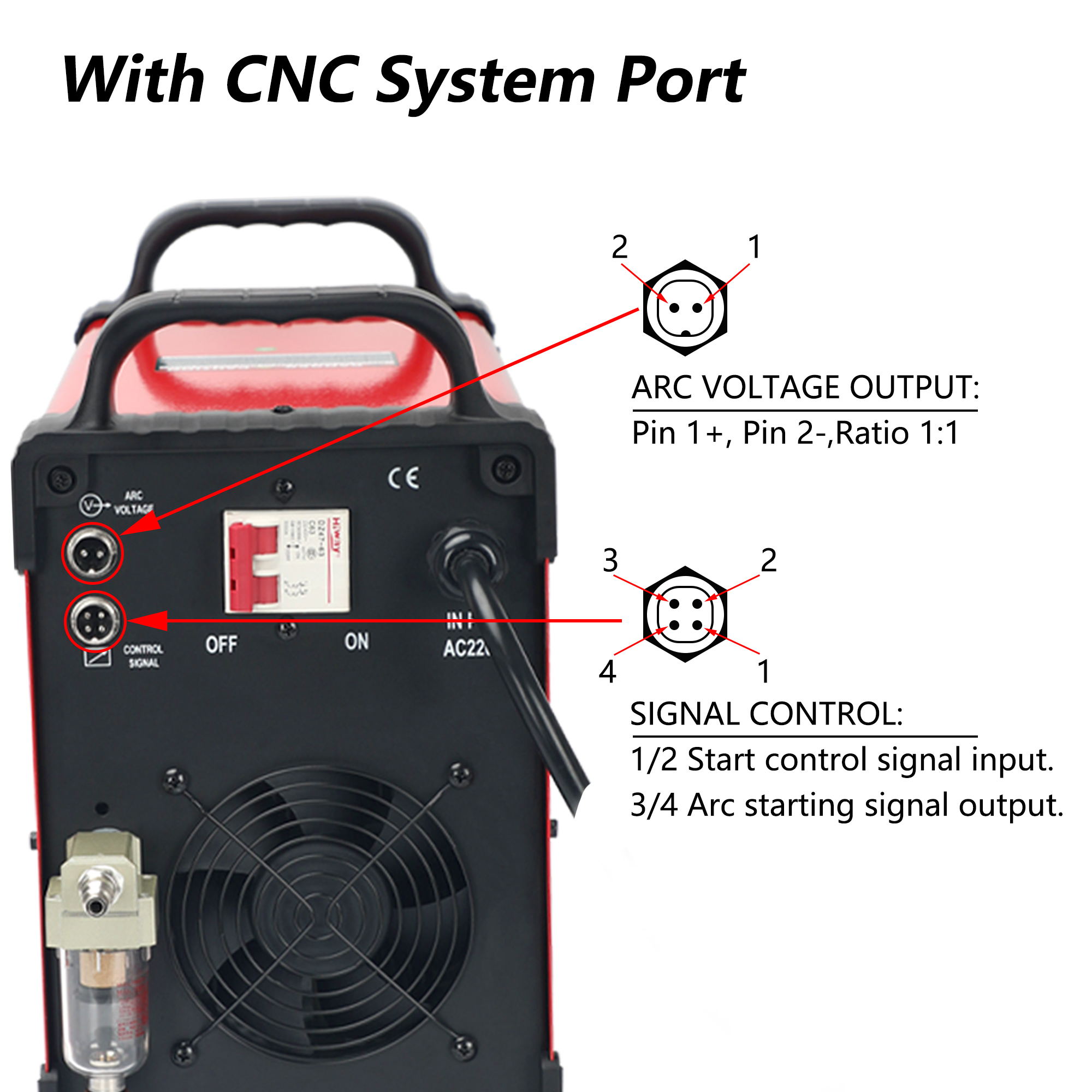

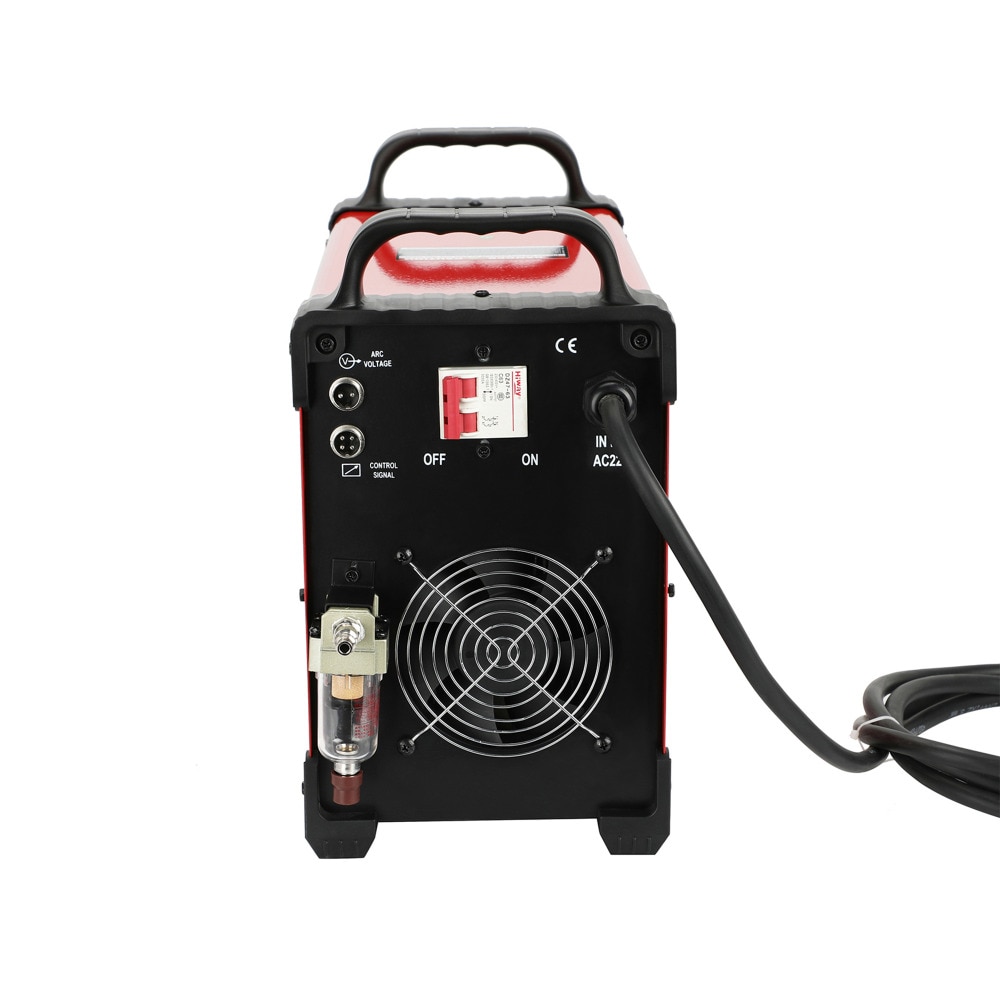

lIGBT Technology Non-HF Pilot Arc No Touch, With CNC port, Can easy with CNC system.

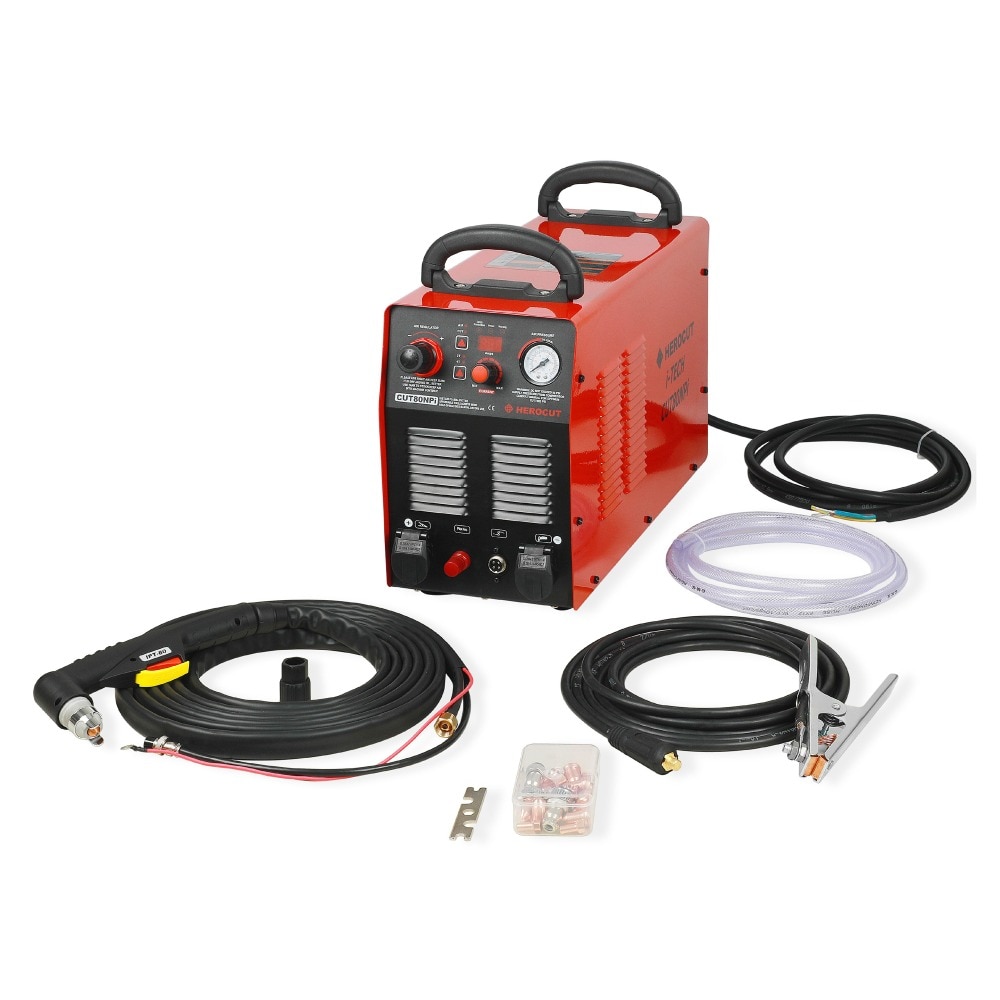

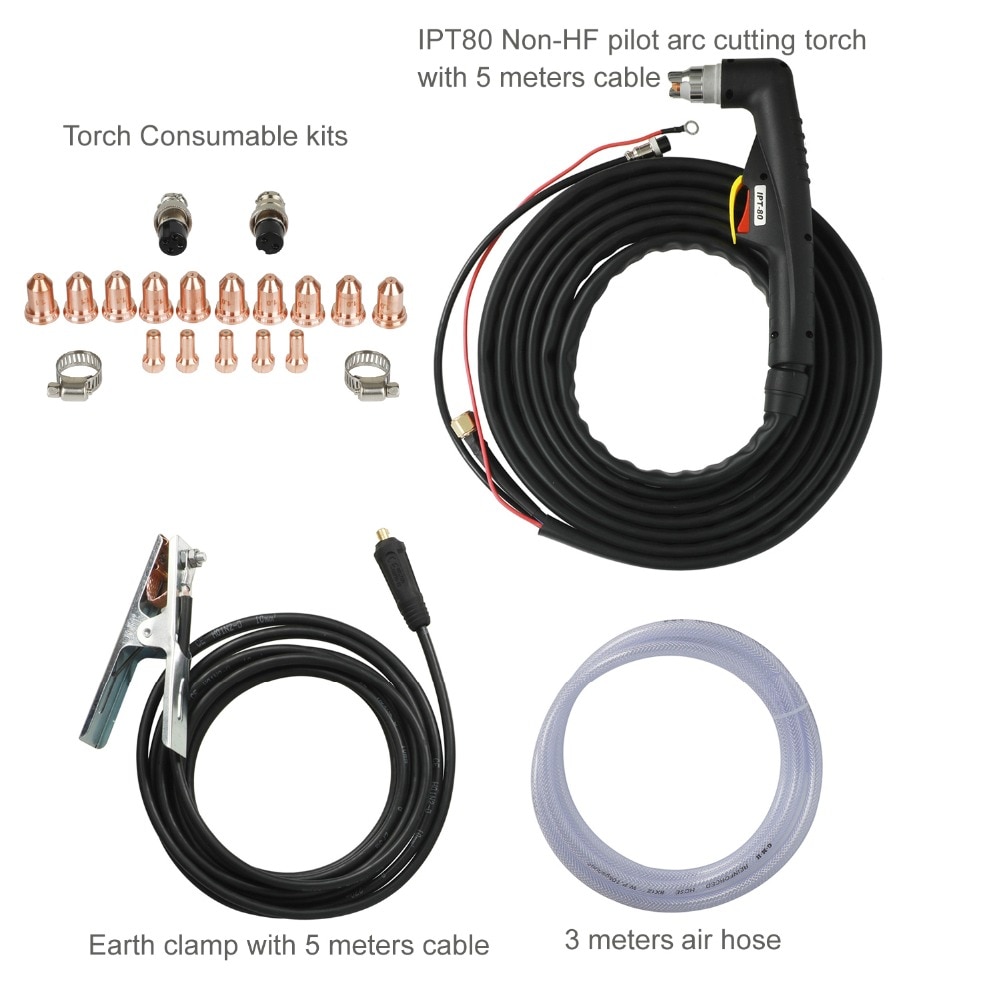

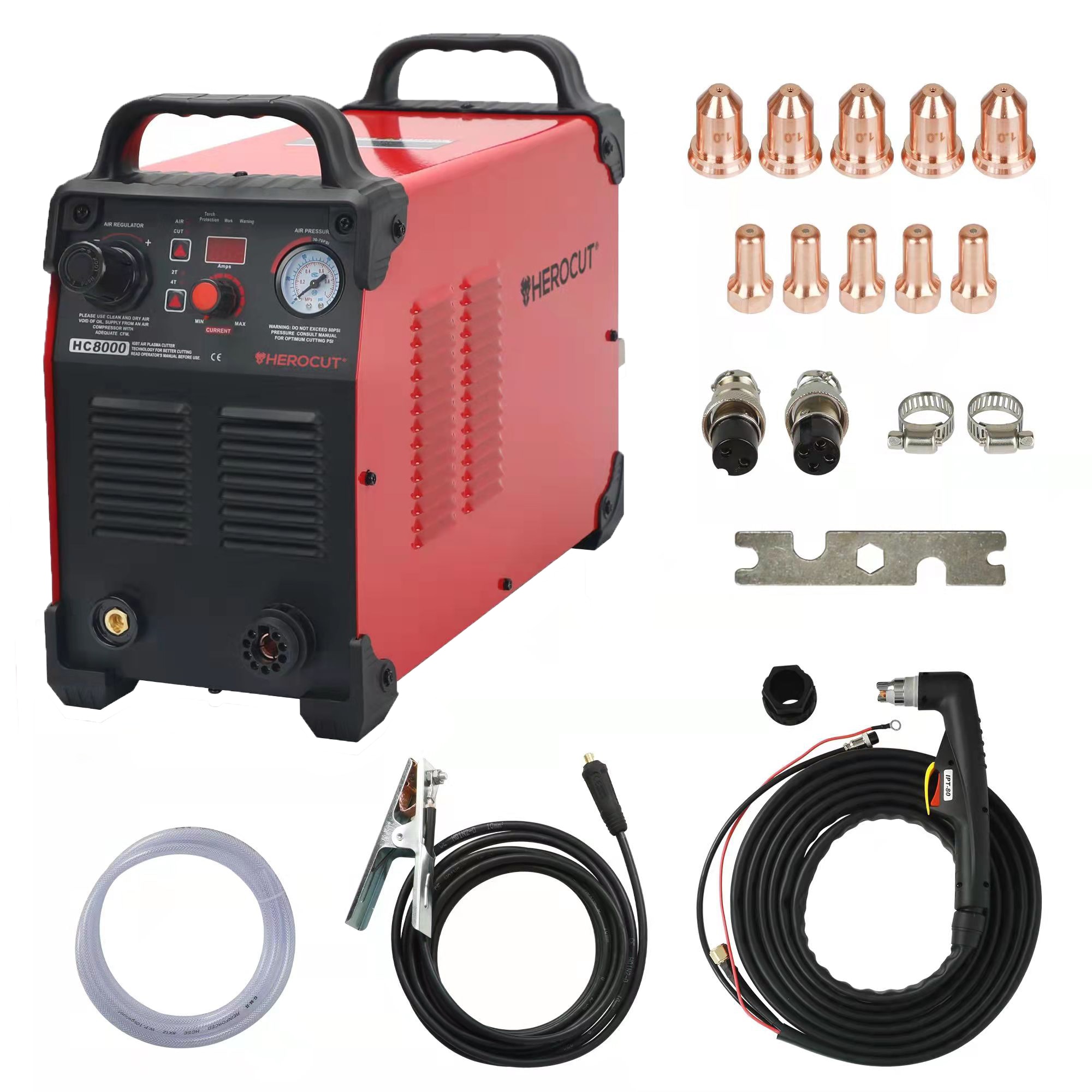

ACCESSORIES:

1.IPT80 Non-HF Pilot Arc Cutting torch with 5 meters cable

2.Earth clamp with 5 meters cable

3.2 meters air hose

4.2 pcs hose clamp

5.5 pcs #1.0 tips, 5 pcs #1.1 tips, 5 pcs electrodes

6.2 pcs CNC Female Connector


Technical Details：

Input power voltage

AC220 & 380V ±15%

Rated input power capacity

7.5 KVA

Input voltage frequency

50/60 Hz

No-load voltage

232 V

Output current range

20-80 V

Rated output voltage

110 V

Duty-cycle (35℃)

60%

No-load loss

50 W

Efficiency

85%

Power factor

0.75 cosφ

Insulation class

B

Arc-starting

Non-HF

Protection class

IP21S

Size

630*350*450 mm

Max.Cutting thickness

30 mm

Weight

18 KGS

Air flow

0.17 m3/m


  • Brand Name: HeroCut
  • Origin: Mainland China
  • Input Voltage: 220V & 380V
  • Rated Current: 80Amps
  • Model Number: HC8000/CUT80NP
  • Certification: CE
  • Is Smart Device: NO
  • Usage: plasma cutting machine
  • Dimensions: 630*350*450 mm
  • Max Cutting Thickness: 30mm @70PSI dry air
  • Power Component: IGBT
  • Arc Starting: Non HF Pilot Arc
  • Duty Cycle: 60% in 80Amps, 100% in 70Amps
  • CNC Port: Support
  • 2T/4T: Yes
  • Torch Length: 5 meters
  • Earth clamp with cable: 5 meters
