CNC THC Plasma Cutting Torch Height Controller THC Lifter and Holder Z Axis two proximity switches

0.0 (2 votes) | 5 orders
Price:
US $ 365.69 / piece
Quantity

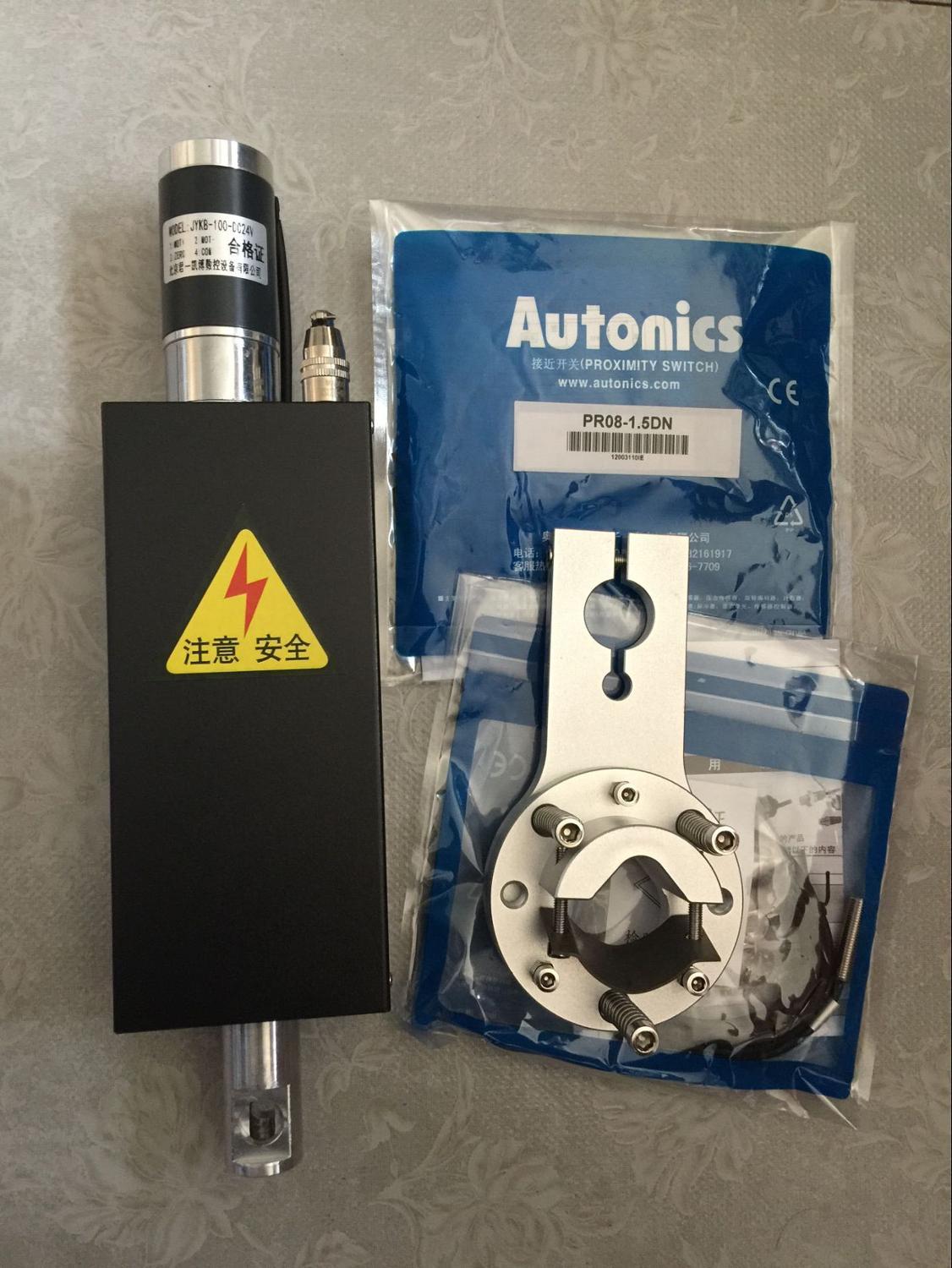

CNC THC Plasma Cutting Torch Height Controller THC Lifter and Holder Z Axis two proximity switches
One Lifter with 100mm travel distance, Maximum Load 3kg, DC24V, 4-PIN Aviation Plug, max 2400mm/min

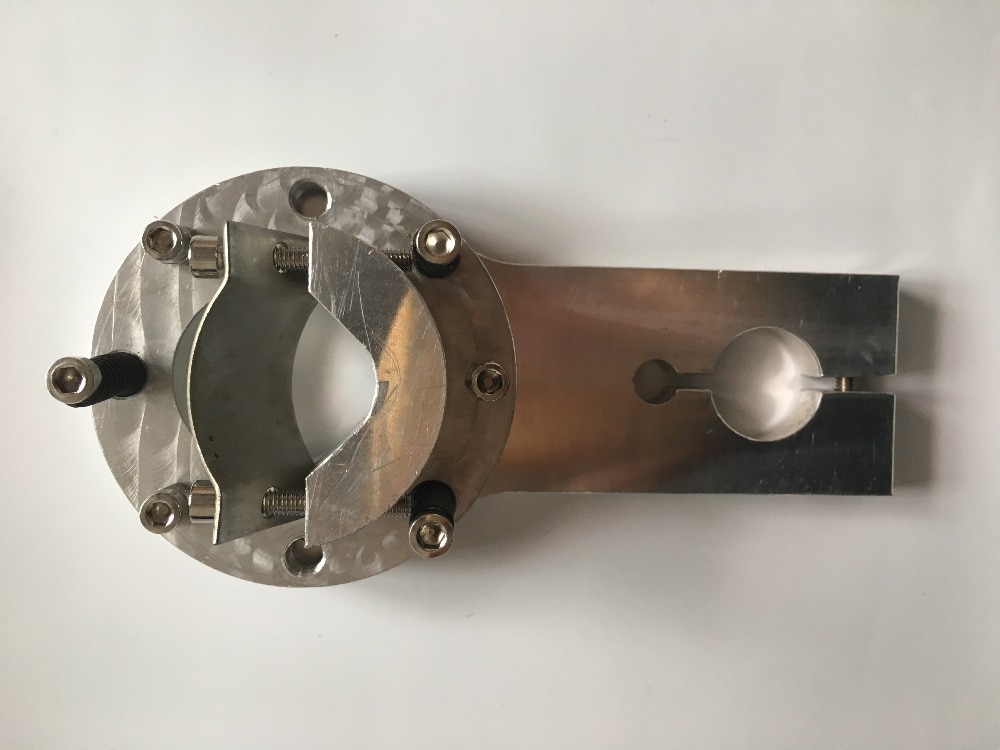

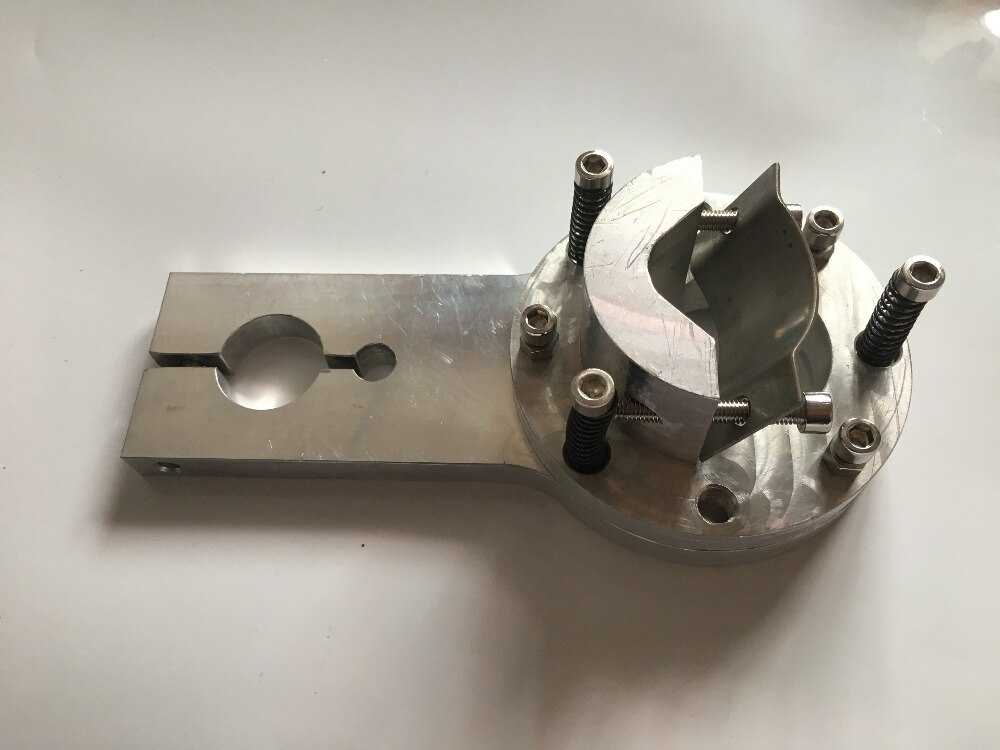

One anti-collision Holder 20mm-35mm

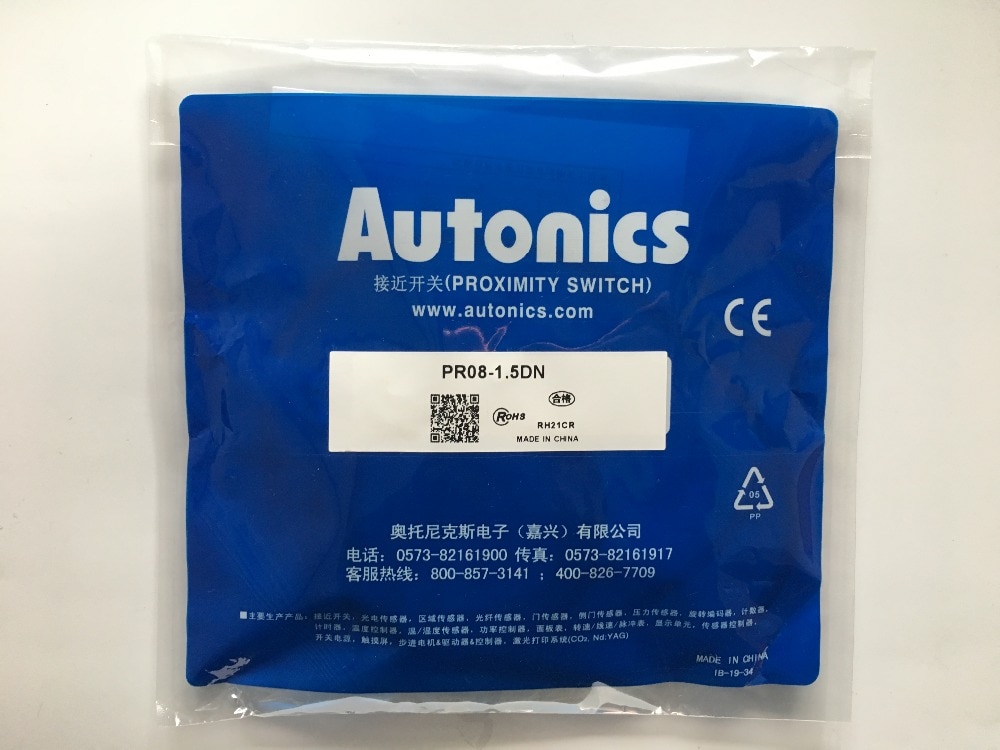

Two anti-collision photoelectric switches

Application:

Portable/desktop light duty CNC flame/plasma cutting machine.

Description:
1. This flame/plasma cutting machine Z-axis torch lifter is driven by DC gear motor to lift the torch up & down

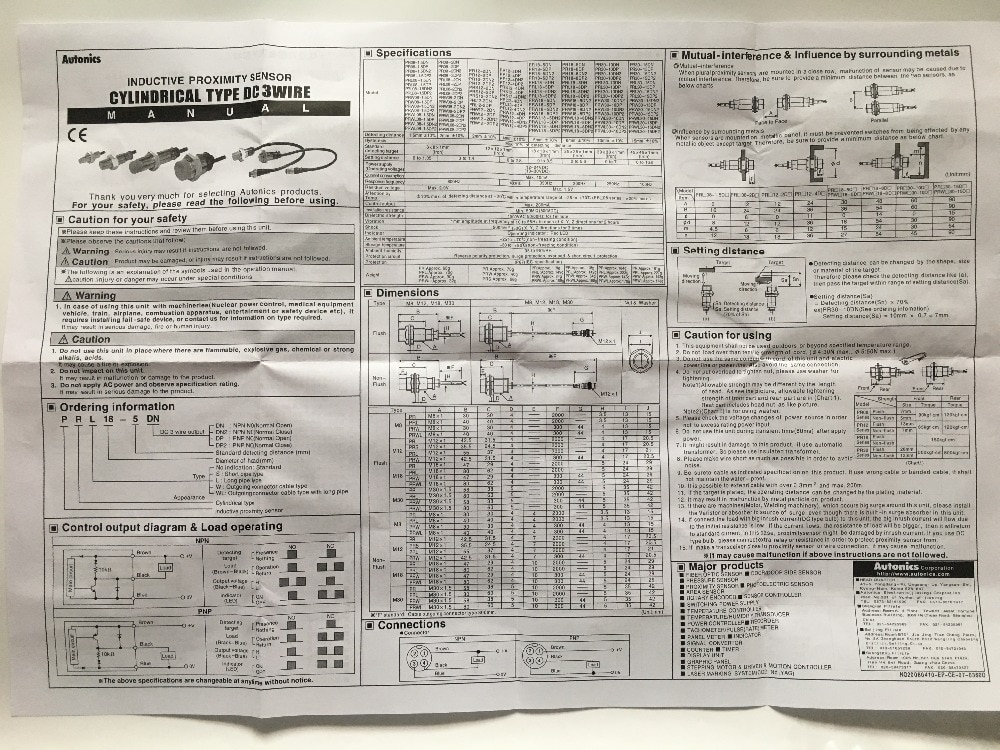

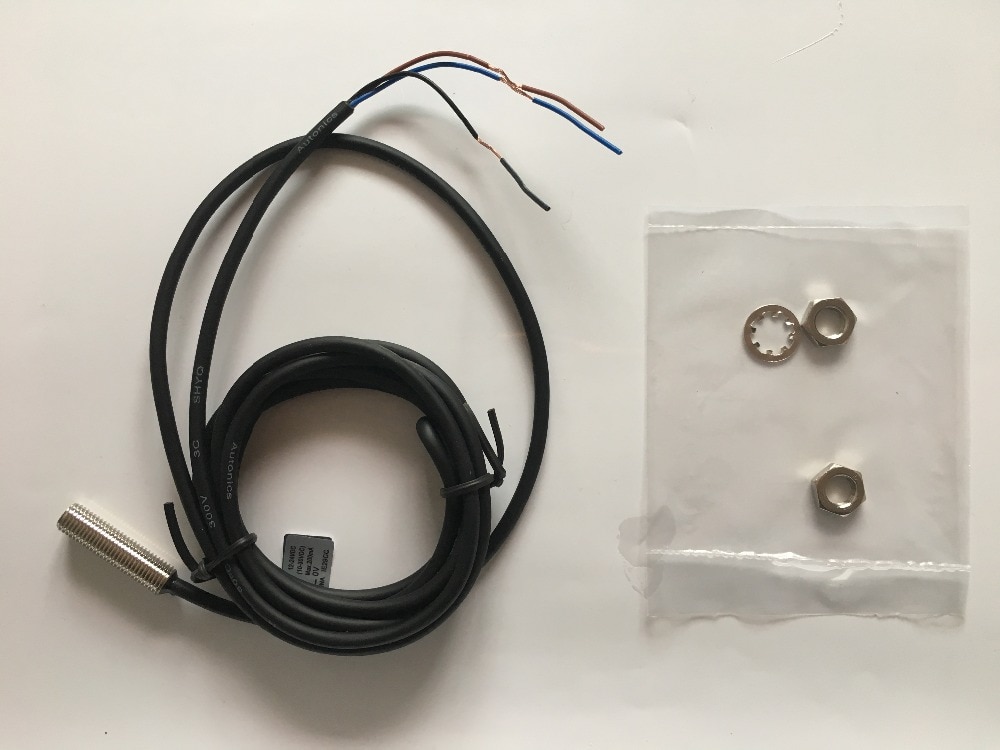

2. The most important part of the device, which is to keep the machine's cutting accuracy and to support plasma arc positioning function, is equipped with NPN proximity switches
3. This lifter's machenical movement part is made of Taiwan TBI ballscrew, standard linear shaft(SFC) & linear slider on the ends; torch clamper/holder is made of bearing steel, and fasterned by linear sliders, which is to ensure the lifter movement's stability & verticality
4. Convenient to install, work simple, improving the work efficiency

Air control plug definition:
1 foot --D +; (motor positive)
2 feet --D -; (motor negative)
3 feet --Zero; (positioning normally open output)
4 feet --COM; (positioning normally open output)
Note: Built-in limit (reverse diode)

Parameter:
1. T-304 stainless steel screw
2. Includes jig (torch range 12mm-38mm)
3. Lift inside a plasma arc positioning
4. Aluminum body, the upper and lower aluminum sheet thickness of 8mm, forming a processing center
5. Four-core plug
6. Colour: black spray housing
7. Working stroke: 100mm
8. Working voltage: DC24V
9. Bearing weight: 3 kg

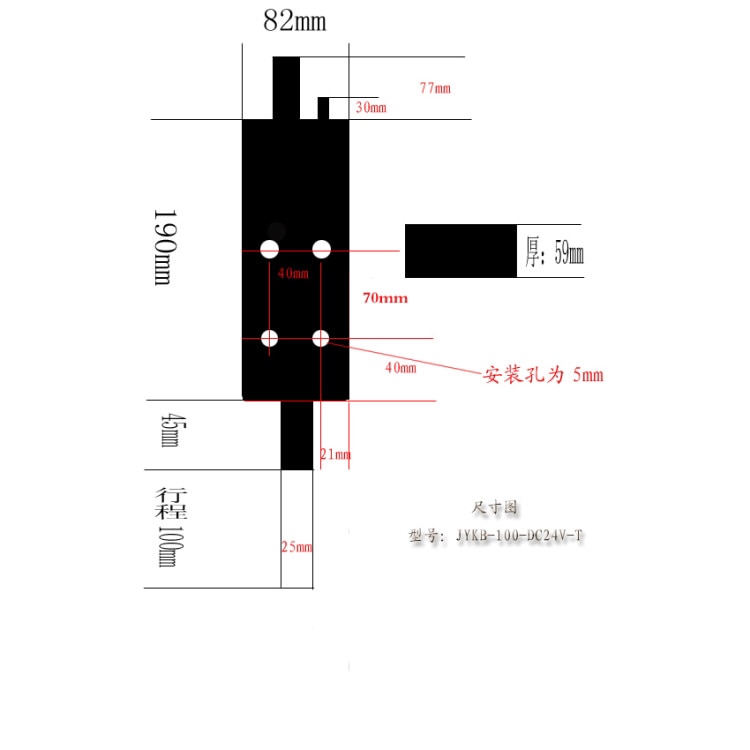

10. Dimensions: length 320 * W 80 * H 60
11. Mounting Hole Size Length: center distance between two holes 40mm

H1157fc1e6a224096b0cd9139caef5480J

24VDC-100mm-working-stroke-2400mm-min-CNC-Plasma-Cutting-Lifter-Z-axis-anti-collision-fixture-2pcs

IMG_2992IMG_2988IMG_2989IMG_2990IMG_2991
