CNC Kit Water cooling spindle motor 1.5KW ER16 8A & HY Inverter VFD for Router Milling Lathe Machine
0.0 ( votes)
Price:
US $911.54 - 1075.54
/ Set
Discount Price:
US $
816.74 -
956.14
/ Set
-10%
- Ships From

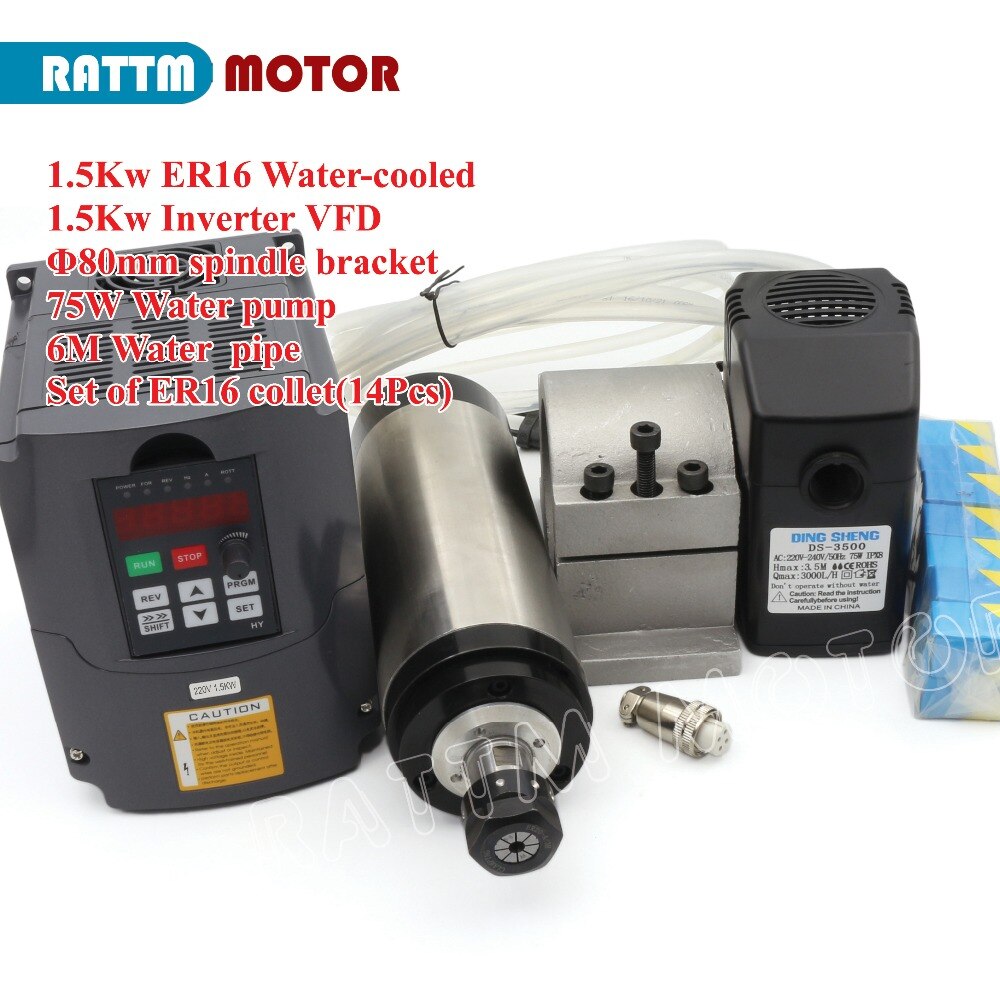

Package include:
- 1 x 1.5KW Water-cooled spindle ER16 8A 24000rpm
- 1 x Inverter 1.5KW 220V
- 1 x 80mm cast aluminium bracket
- 1 x75W Water Pump 3500L/H
- 1 x 5m water pipe
- 1set ER16 collet (11Pcs)
Englisht user manual:
https://drive.google.com/file/d/0B49xwe9ffk3fZ3VWR3NHMjB6VkU/view?usp= sharing
https://www.youtube.com/watch?v=Tdn_KANxff4
https://www.youtube.com/watch?v=1-D1gscZQvA
https://www.youtube.com/watch?v=Q9912w665RA

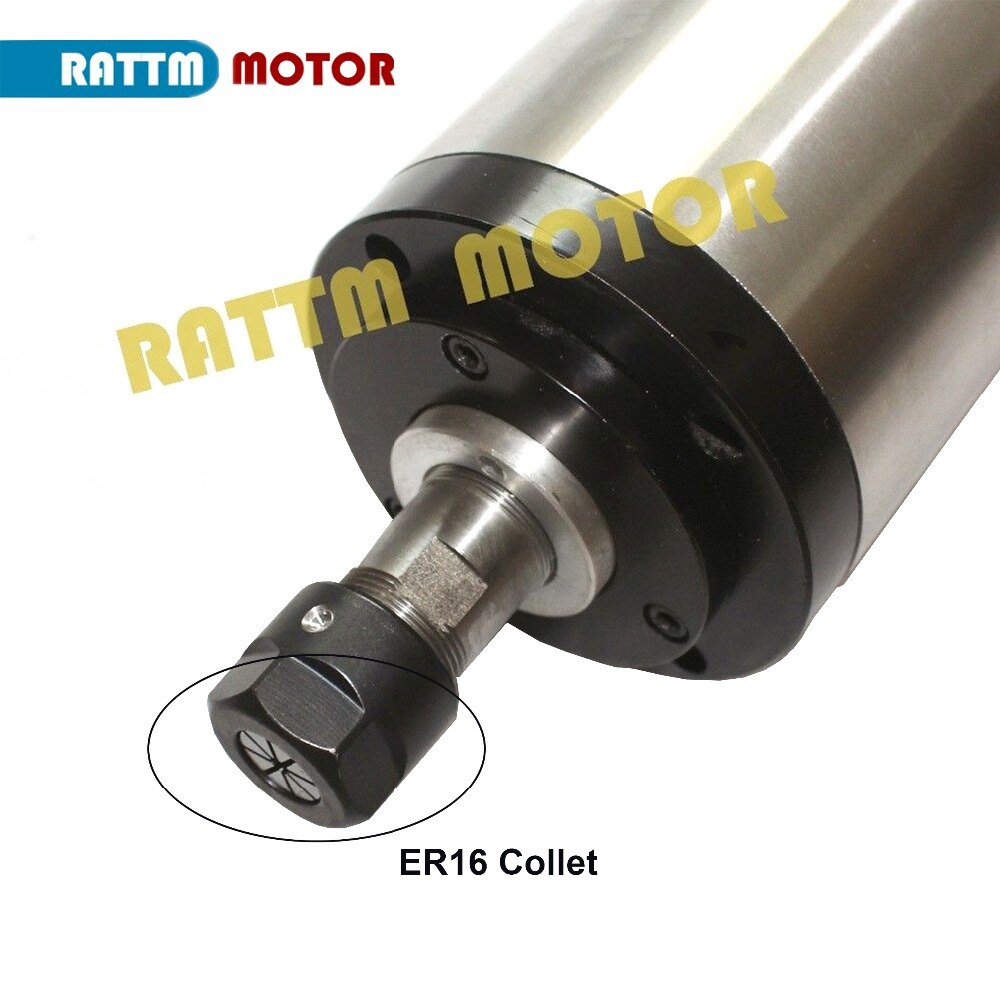

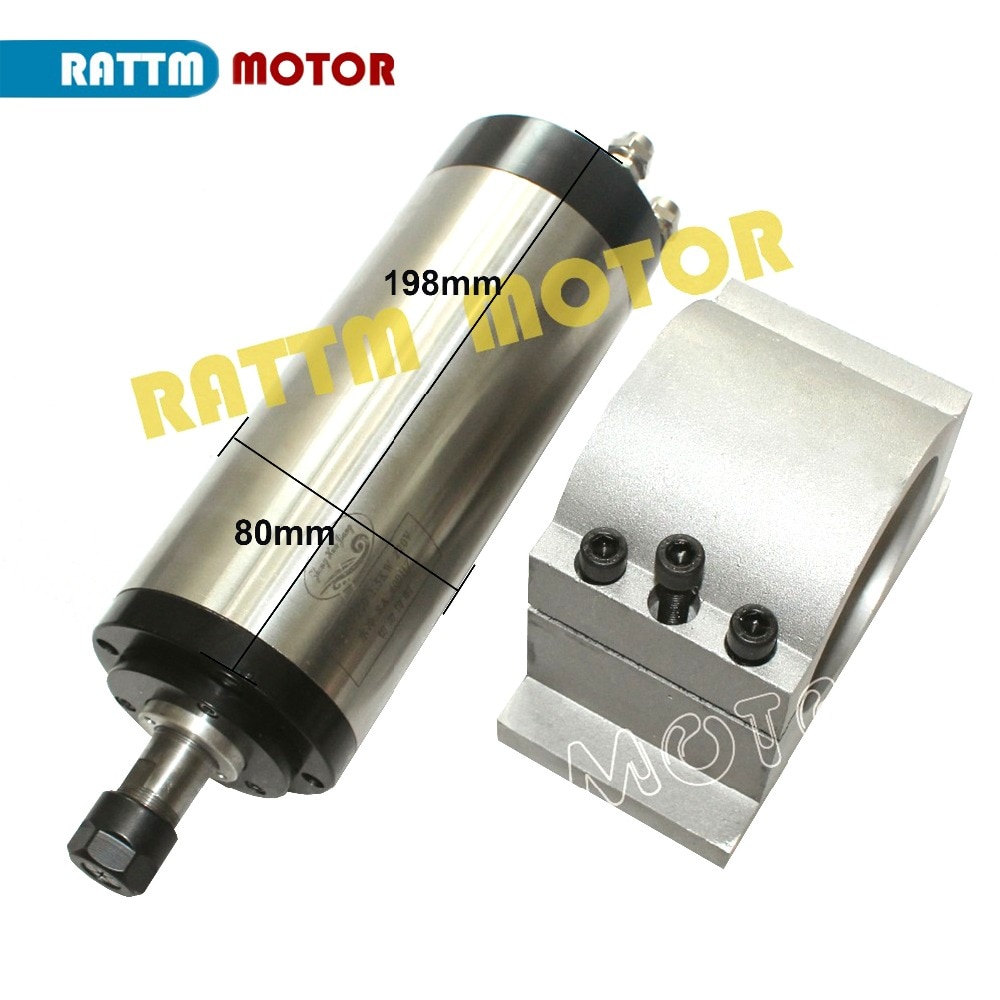

1. 1.5KW WATER-COOLED SPINDLE MOTOR ENGRAVING MILLING GRIND
Specification:
Material: Stainless Steel
Size: Phi80x198mm
Power: 1.5Kw
Voltage: 220VAC
Current: 8A
Frequency: 0-400Hz
Speed:24000rpm
Cooling: Water-cooling
Precision tapered bore: 0.003--0.005
Runout off: Less than 0.02mm
Bearing Lubrication: Grease
Collet size: ER16
Bearings: 4 bearings (C7004x2+C7002x2),P4 class
Net Weight: 4.6kg
Power supply interface: Professional aviation Interface, Interface 1234 marked 123 respectively connected to the inverter output end of the (U, V, W), 4 ground wire this interface must be safe ground.
Main application: Wood, Aluminum, Stone, metal, glass, PVC industry

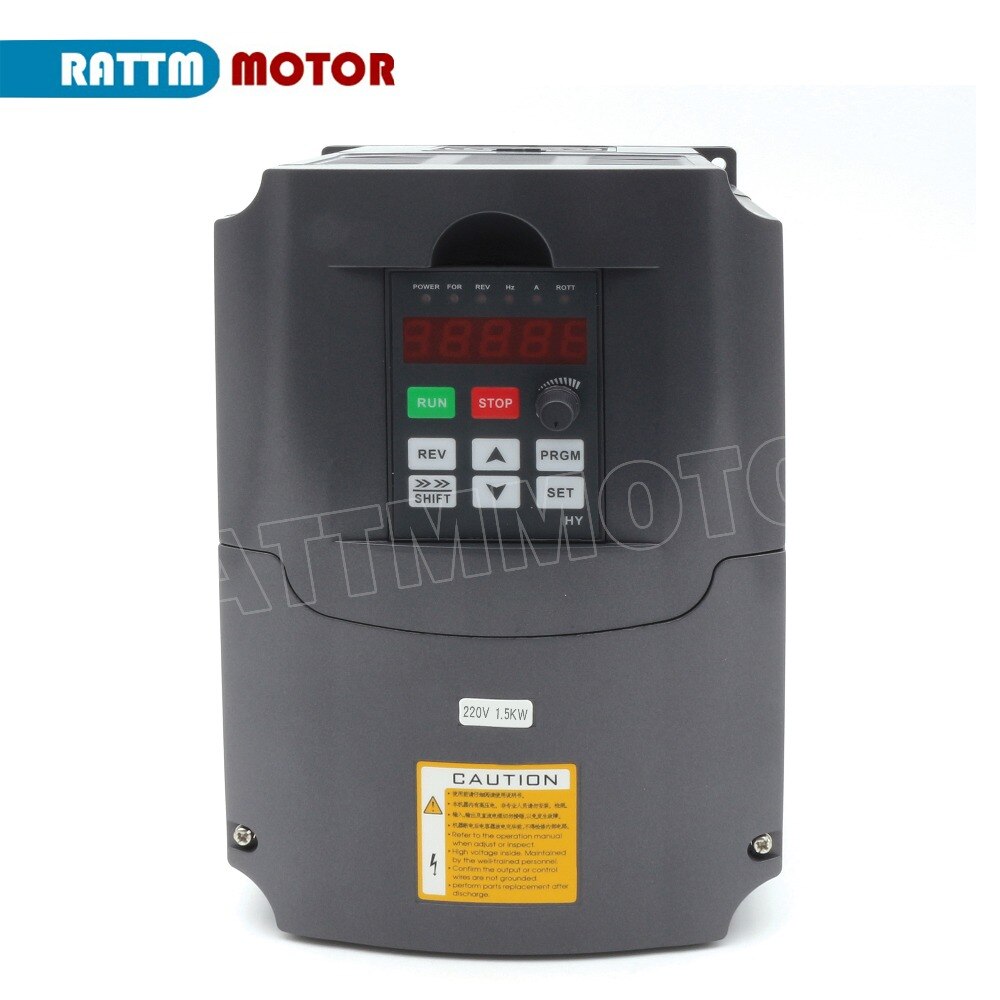

2. Variable Frequency Drive VFD Inverter 1.5KW 3HP 220VAC
Product Feature:
1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;
2)Easy PLC function can realize 16 legs of speed and inverter control function;
3)RS485 communication port, adopting standard international MODBUS main circuit control;
4)With extremely strong anti-jamming capability
5)Low output ratting torque0.5HZ-150%, low speed running ability;
6)Carrier adjustable by 16KHZ, completely soundless working environment;
7)Broad voltage working area, normal running in 304V-456V;
8)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;
9)Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;
10)With perfect error protection and short circuit starting protection capability;
Tech parameters:
1) Input Voltage: 220V(+/-15%) ,We also stock 380V(+/-15%), please contact us
for item stock.
2) Output Voltage 208Vac-240VAC
3) Input Frequency: 48-63 Hz
4) Output Frequency: 0-400 Hz
5) Input Phase: 1 or 3 phase
6) Output Phase: 3 phase
7) Warranty: 1 year from the date you purchased
3. 80mm cast aluminium bracket

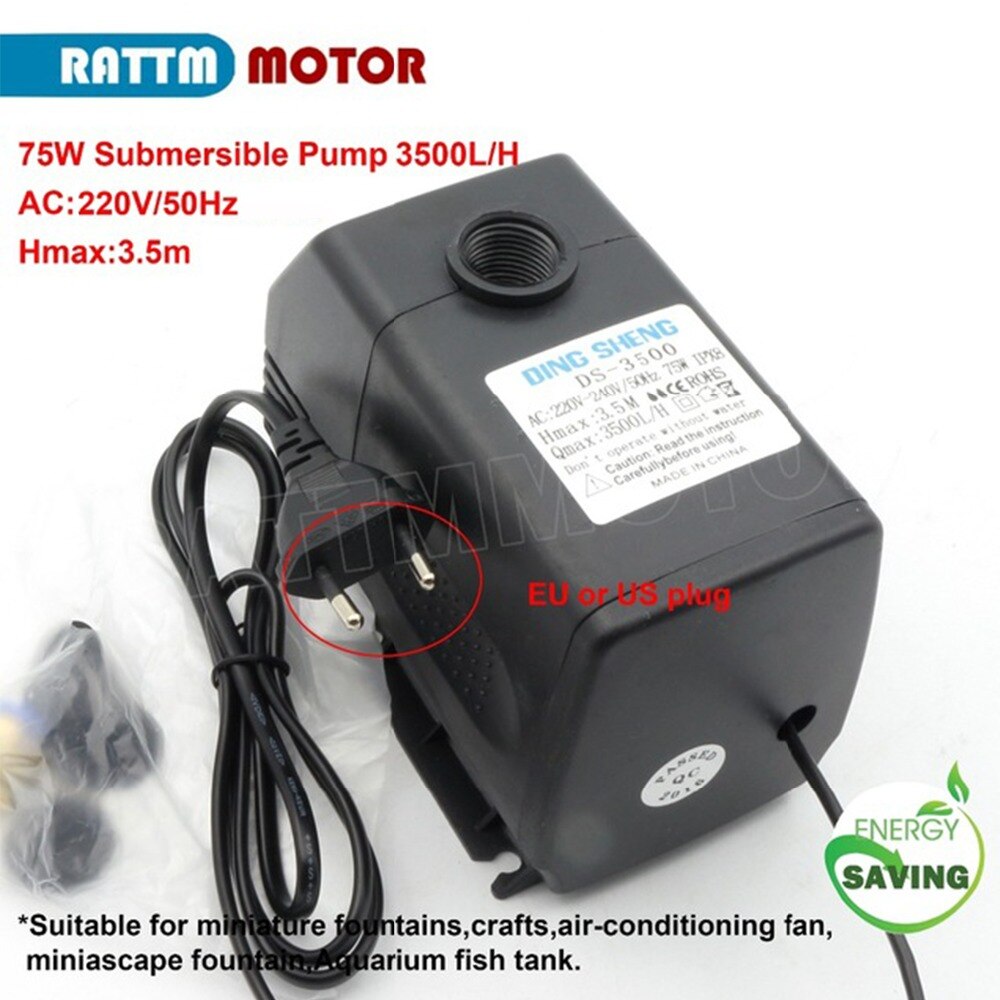

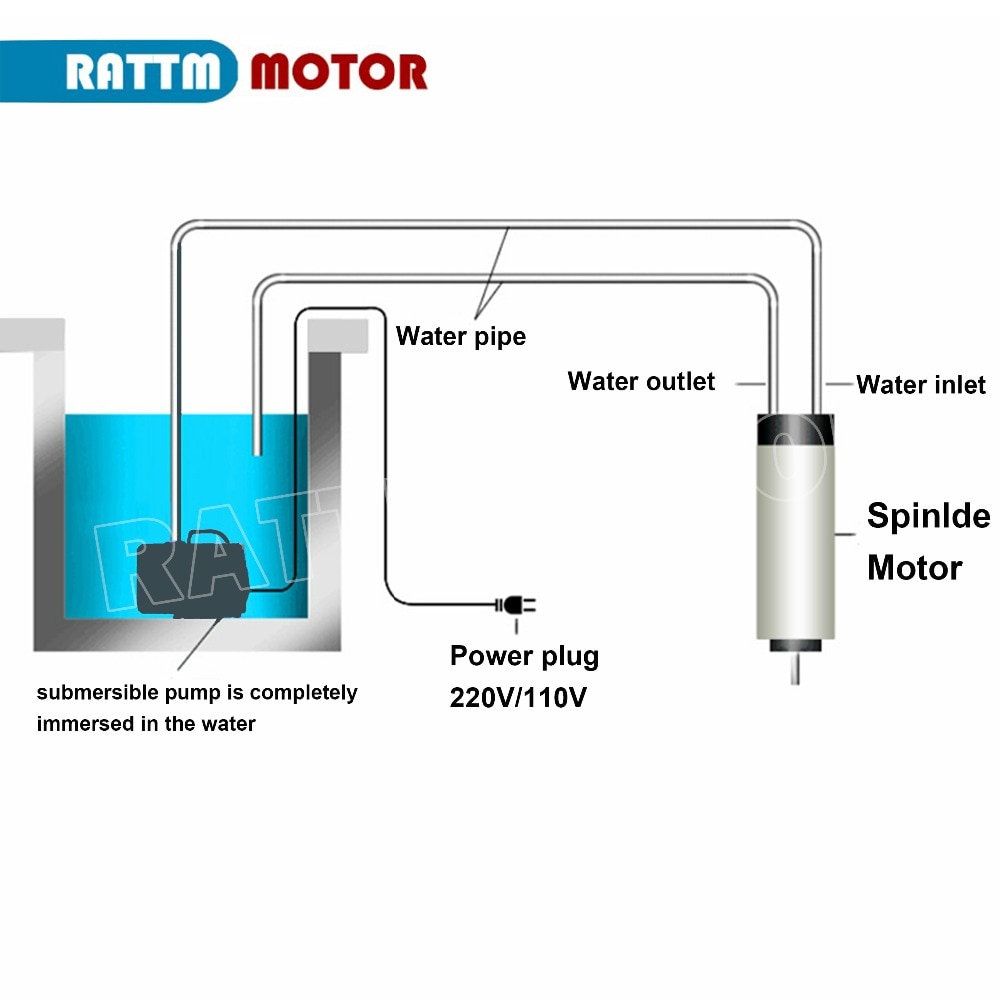

4. 75W CNC spindle motor water pump 3.5m 220VAC
Specification:
Pump length:3.5m
Voltage:220-240VAC
Power:75W
Flow:3500L/H
Size:150x80x140mm
Water nozzle diameter:6mm
Application:fit for 0.8kw,1.5kw,2.2kw,3kw,water cooled spindle even 4kw and 5.5kw too

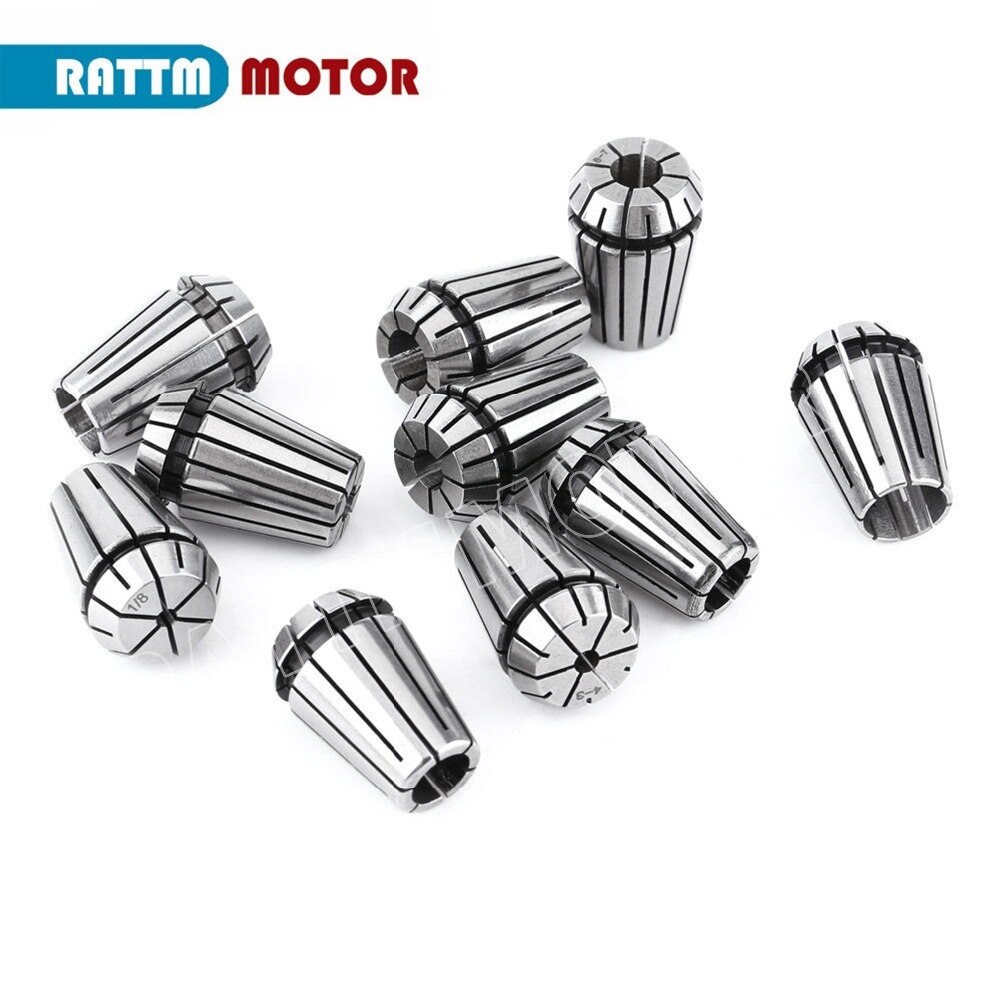

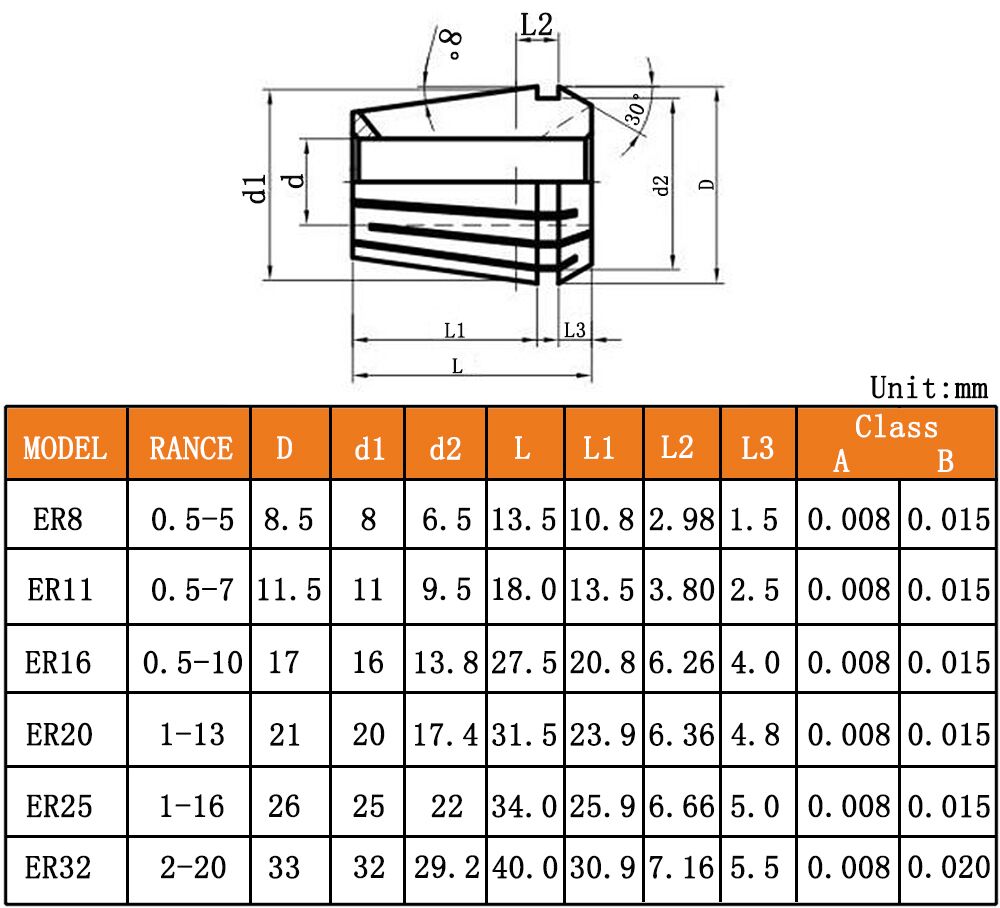

5. ER16 Collect set
1 x ER16 Spring Collet (11pcs,1mm-10mm)
(1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm，8mm，9mm，10mm，1/8mm)
Product Description
Out dia (D1):17mm
Height (H):27.5mm
Hole dia (D2):1-7mm
Run-out tolerance 0.1mm (0.006")
First class 1065 carbon steel
Hardened & precision ground
Shipping
- Please open the package and check if there are some damages before sign, if there are some damages , please do not sign and contact us immediately.
- We ship to worldwidebut If your countryrsquos custom is strict, please contact us before you bid to check detail and confirmed.
Payment
- We accept credit card,bank TT,western union,Moneygram etc
- Payment must be made within 48hours of the auction end time
- Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility
Problem&Feedback
- Please give us the opportunityto resolve any problem when you have,we concern your problem and we will try our best to resolve it.
- We are a new member in ebay now,and need understand both of sides.
- Pls email us before you want to leave any negative feedback
Refund
- When you have the parcel,and not satisfied the goods or it is other problem like as broken,pls tell us the detail reason and provide the photos.
- Any reason required for all refund. Item must be in it's original condition and no physical damage. Buyer responsible for all shipping cost
Contact us
- Welcome worldwide customer inquire and questions,we will try to do our best to feedback customerrsquos email within 1-2 business days,if not pls check the mail box again.
- Customerrsquos satisfaction is very important to us.
- Operating Speed: 10-24000rpm
- Application: Milling
- Model Number: 1.5KW ER16 Water Spindle & VFD
- Drive: Motor
- Brand Name: RATTMMOTOR
- Certification: CE
- Origin: Mainland China
- Name: CNC spindle & inverter&cast aluminium bracket
- Spindle: 1.5KW ER16
- Inverter: 1.5KW 220V
- Fixture: 80mm
- Place of Origin: Jiangsu, China (Mainland)
- Pipe length: 6m
- is_customized: Yes
- Spindle size: 80x198mm
- Current: 8A
- Runout off: Less than 0.02mm
- Bearings: 4 bearings(C7004x2+C7002x2),P4 class
- Water Pump Type: 75w 220v 3500 L/H
- Application: Milling, Engraving
