Ceramics Base LED COB Chip Bulb 3W 5W 7W 9W 12W 15W 20W 30W 50W AC220V Smart IC Diode For FloodLight Spotlight Downlight DIY LED
4.7 (69 votes) | 219 orders
Price:
US $10.57 - 20.51
Discount Price:
US $
10.18 -
17.75
-4%
- Emitting Color
- Voltage

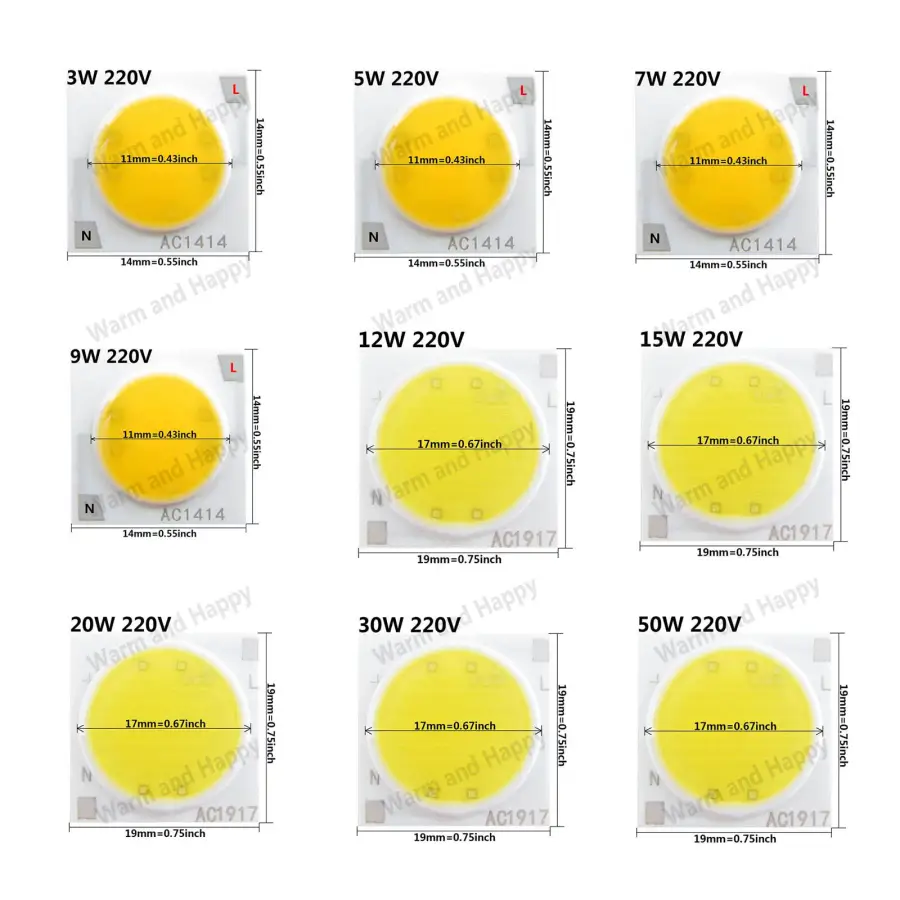

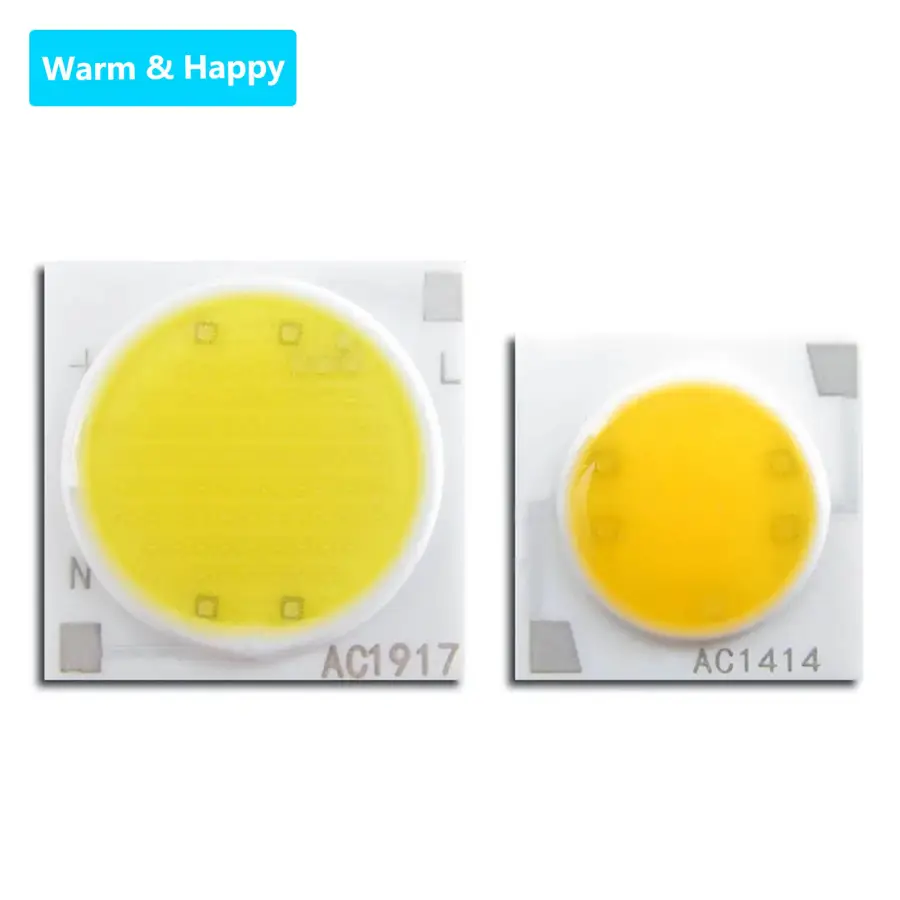

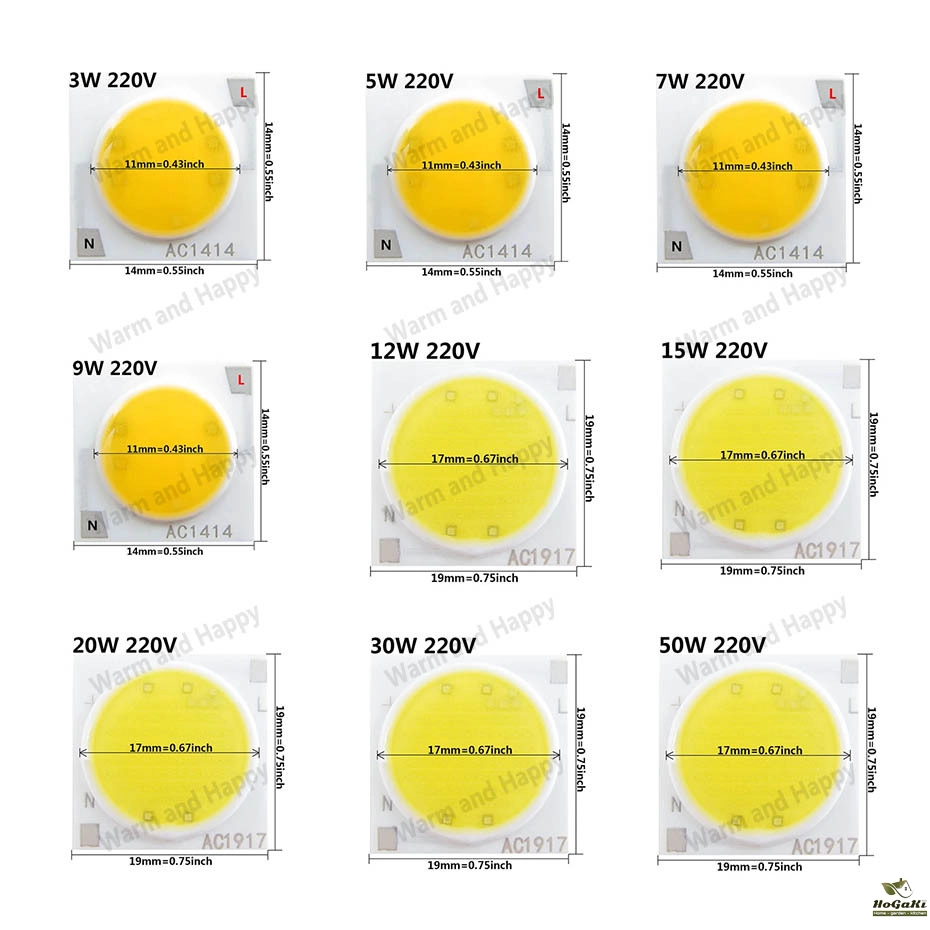

Product parameter

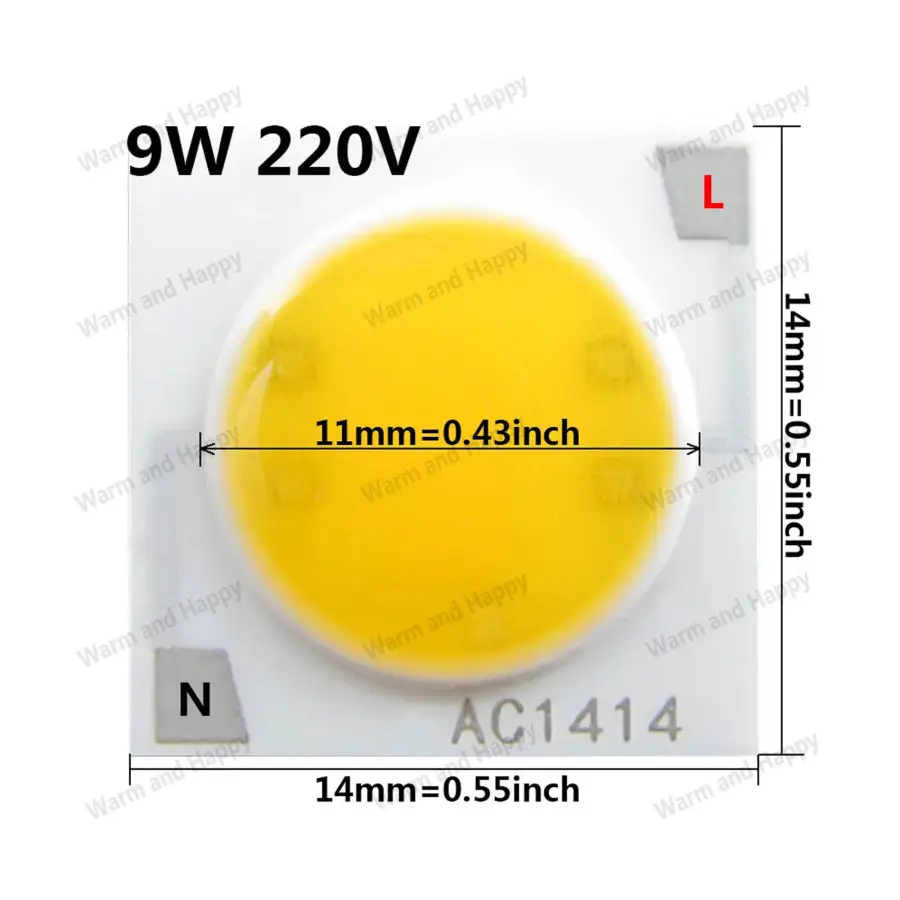

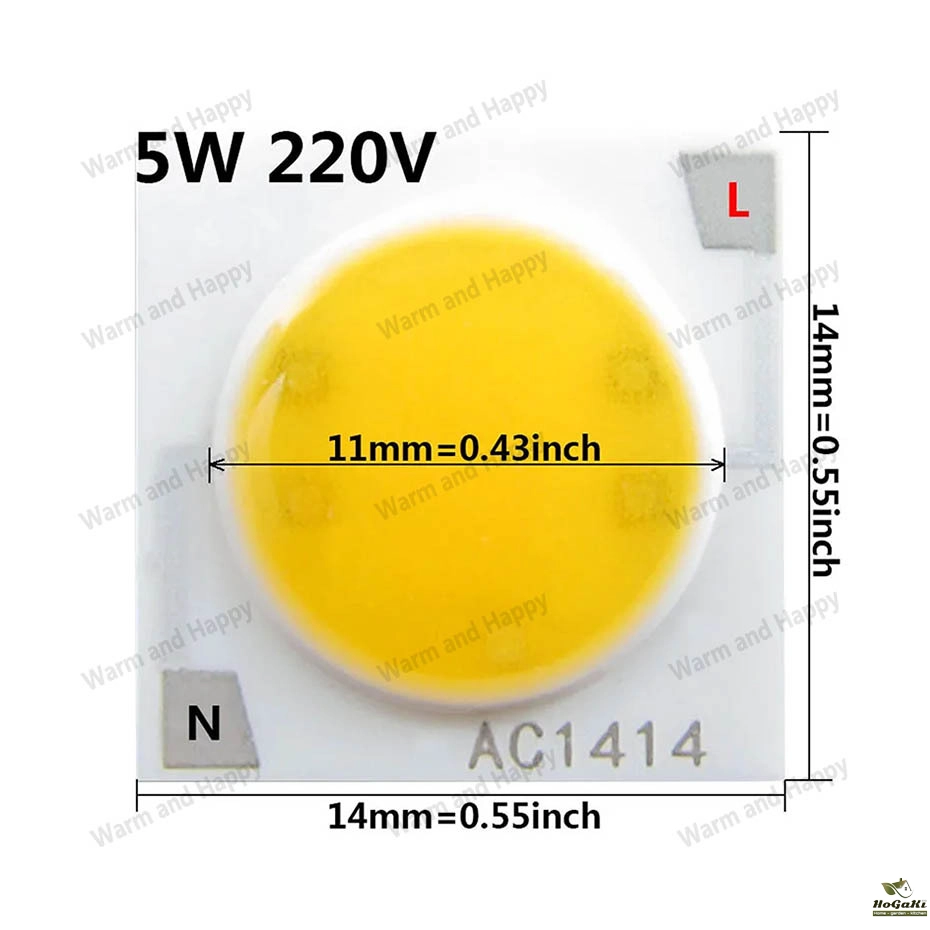

Power :
3W/5W/7W/9W
Material:Ceramic chip

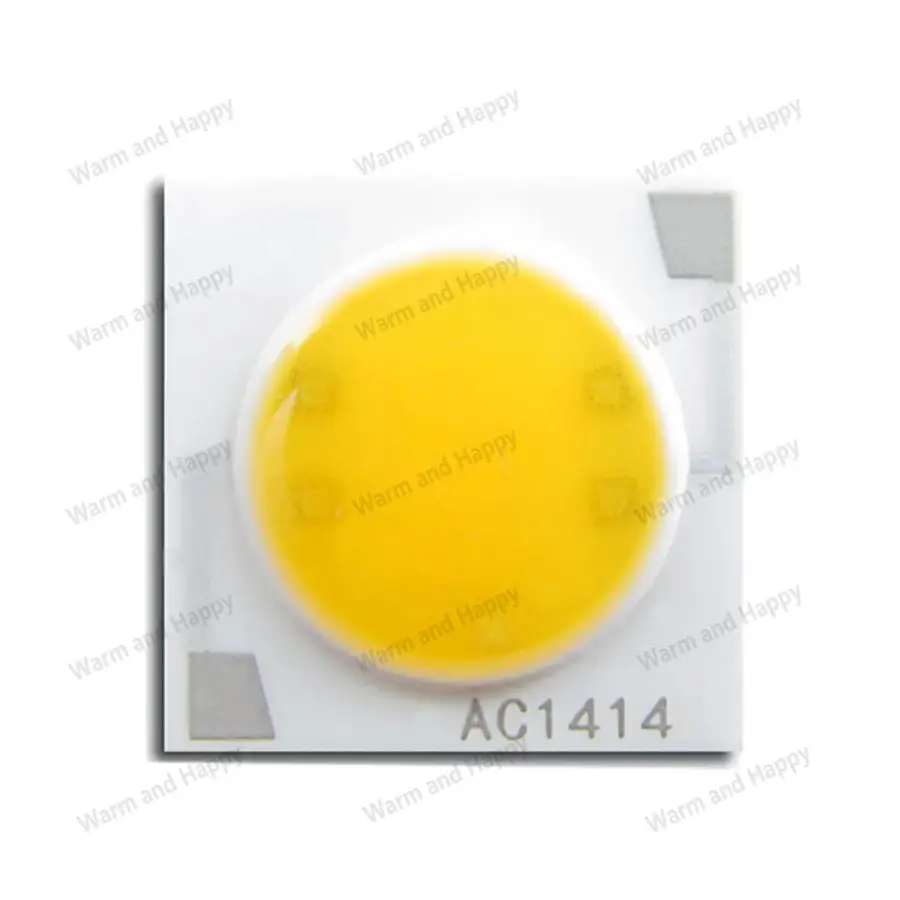

Size:14*14mm
Light surface size:11mm
Operating voltage: AC220V
Anti-lightning surge: 4000V
Ceramic plate thickness: 1.0MM
3W Lumens: 270-300LM
5W Lumens: 450-500LM
7W Lumens: 630-700LM
9W Lumens: 810-900LM

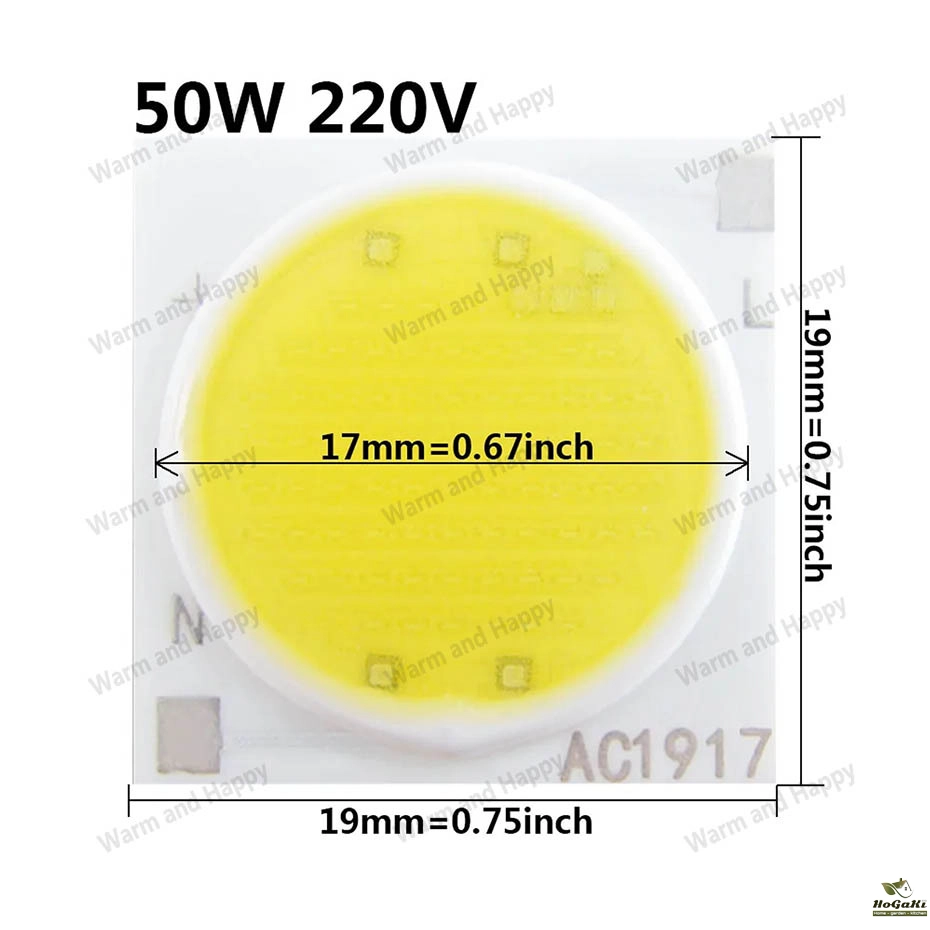

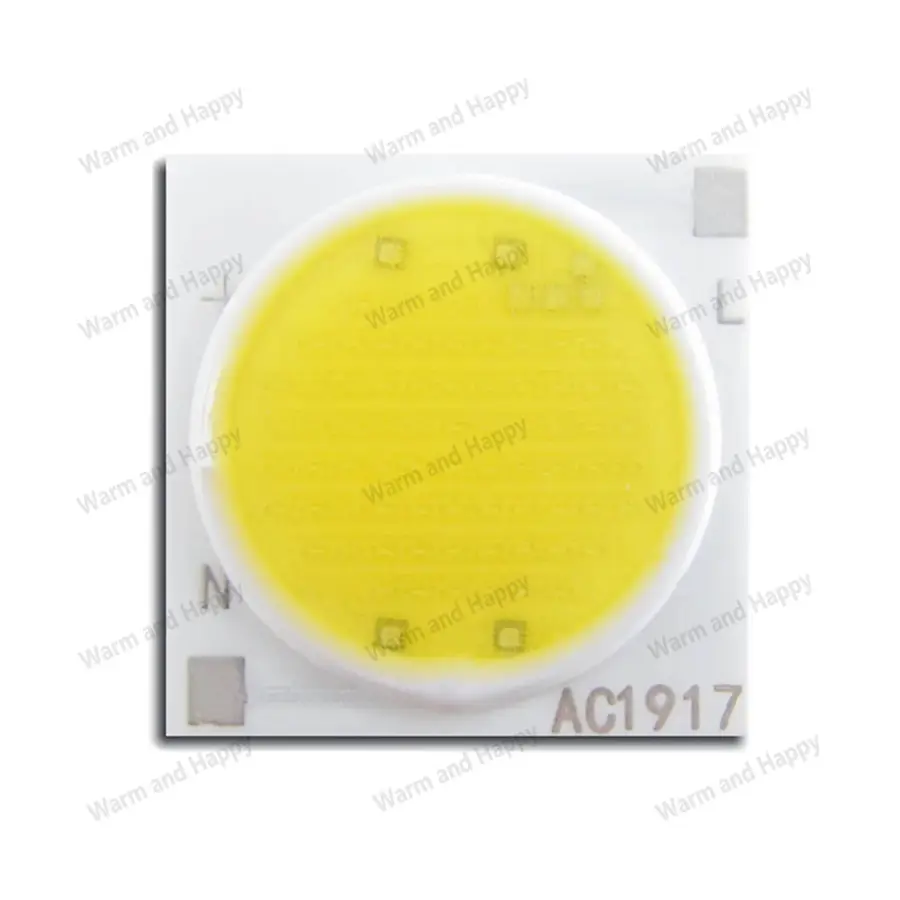

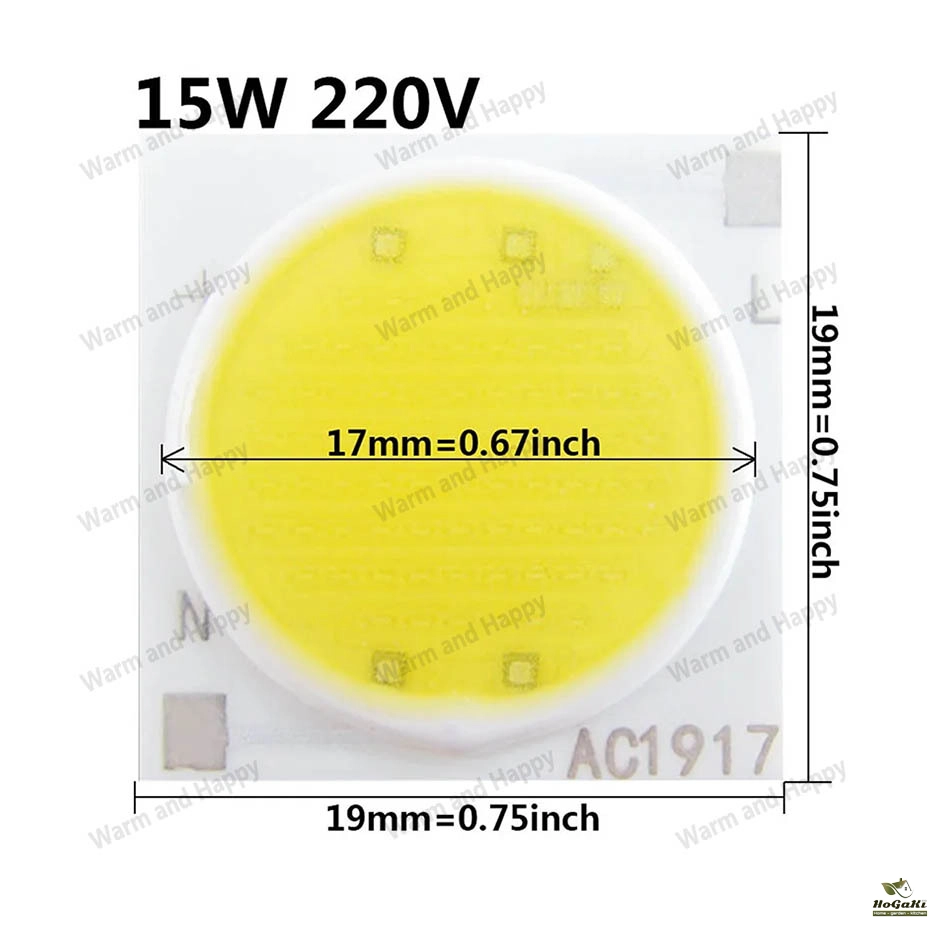

Power:
12W/15W/20W/30W/50
Material:Ceramic chip

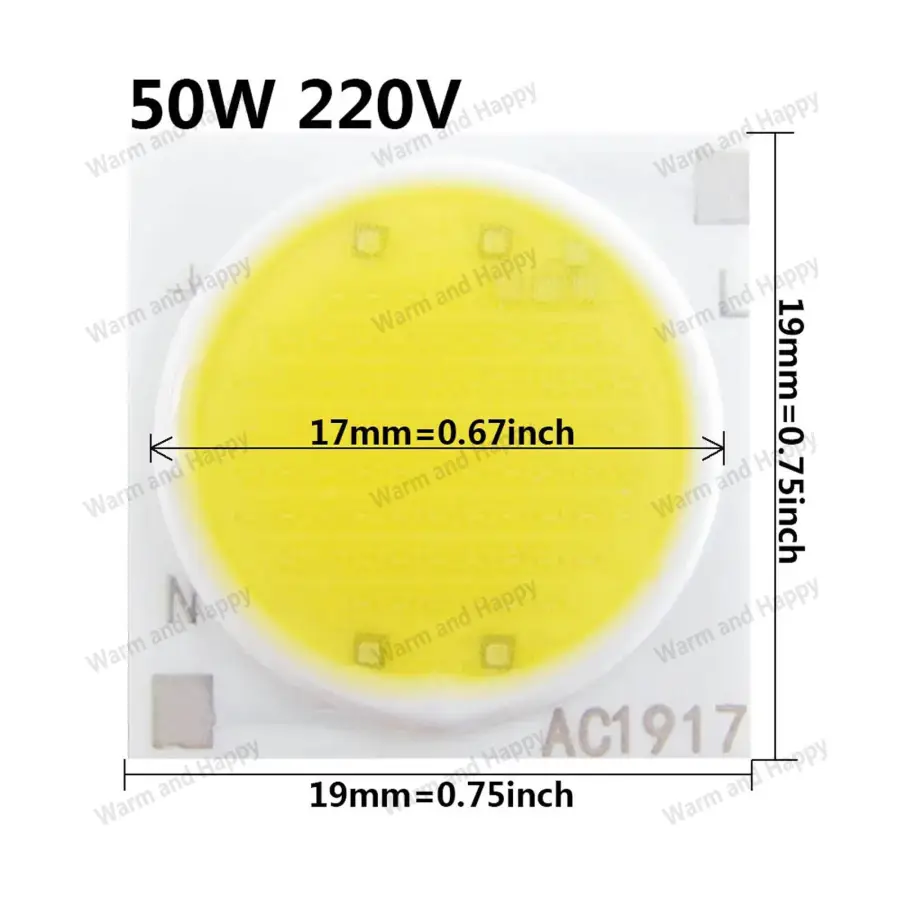

Size:19*19mm
Light surface size:17mm
Operating voltage: AC220V
Anti-lightning surge: 4000V
Ceramic plate thickness: 1.0MM
12W Lumens: 960-1000LM
15W Lumens: 1350-1500LM
20W Lumens: 1800-2000LM
30W Lumens: 2700-3000LM
50W Lumens: 4500-5000LM
Attention
Dear customer, hello.
The following is the precautions when using, please read carefully.
1: LED AC220V ceramic chip welding point is metal, meet the air to form an oxide layer, which is unavoidable, when you get the product, please use an eraser/wipe. (See the video introduction.)
2. The electric soldering iron temperature is set at 400 degrees, which is conducive to welding wires. (See the video introduction.)

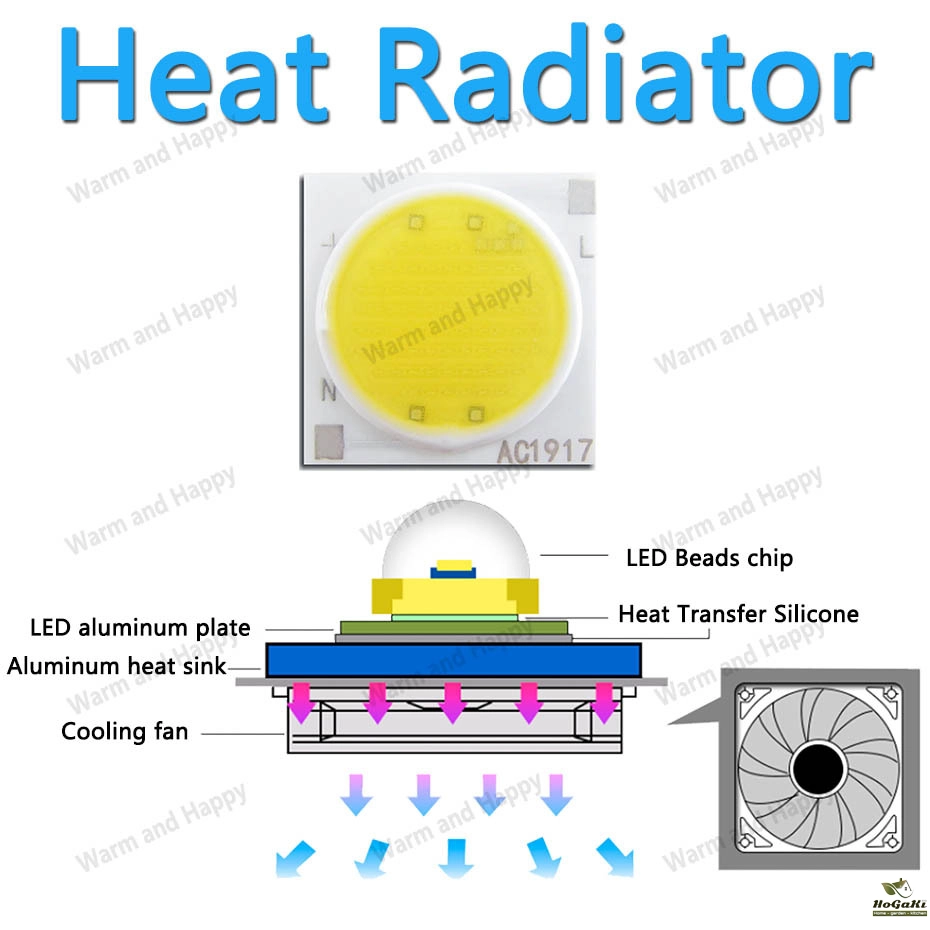

3. Please pay attention to heat dissipation, when the LED ceramic chip is lit, there will be a lot of heat, please pay attention to heat dissipation, the chip temperature control is about 65 degrees, otherwise it will burn the lamp bead. (See the video introduction.)
Packaging Details
- Unit Type:
- Package Weight: 0.010
- Package Size: 10x1x10
- Brand Name: NoEnName_Null
- Hign-concerned Chemical: None
- Origin: Mainland China
- Shape: Round
- Model Number: Ceramic chip AC220
- Certification: CCC
- Material: Ceramic base
- Thickness: 1MM
- Lightning surge protection: 4000V
- 3W/5W/7W/9W Size: 14x14mm
- 12W/15W/20W/30W/50W Size: 19x19mm
- Luminous surface: 11MM/17MM
- Use voltage: AC220V
- Use place: spotlights, track lights, indoor lights, bulbs, commercial lighting
- Color: White white, Natural white, Narm white.
- Features: No LED driver can wroking
- High thermal conductivity: 20W/m-k
- long life: 50000h
