IPC1800 plus 4" IP Camera Tester monitor CCTV TVI CVBS Analog Video Test PTZ Control Touch Screen H.265 4K 8MP 1080P with WIFI
431.93 336.68 $
SALE
ID: 133255
CCTV-tester-monitor IPC camera tester poe 8MP AHD TVI CVI SDI cable tracer RJ45 cable TDR test Rapid ONVIF cctv tester tool
5.0 (9 votes) | 16 orders
Price:
US $457.61 - 642.78
/ piece
Discount Price:
US $
334.40 -
470.03
/ piece
-27%
- Ships From
- Color
-
-
Sorry! This item is out of stock
CCTV tester monitor
POMIACAM 4K cctv tester cctv monitor for camera Ip camera tester IPC tester poe testers camera CCTV camera tester CCTV camera
8MP 4K Monitor HDMI VGA Input CCTV Tester CCTV Monitor for Camera Ip Camera Tester IPC Tester Poe Testers CCTV Camera
New 4inch cctv tester monitor

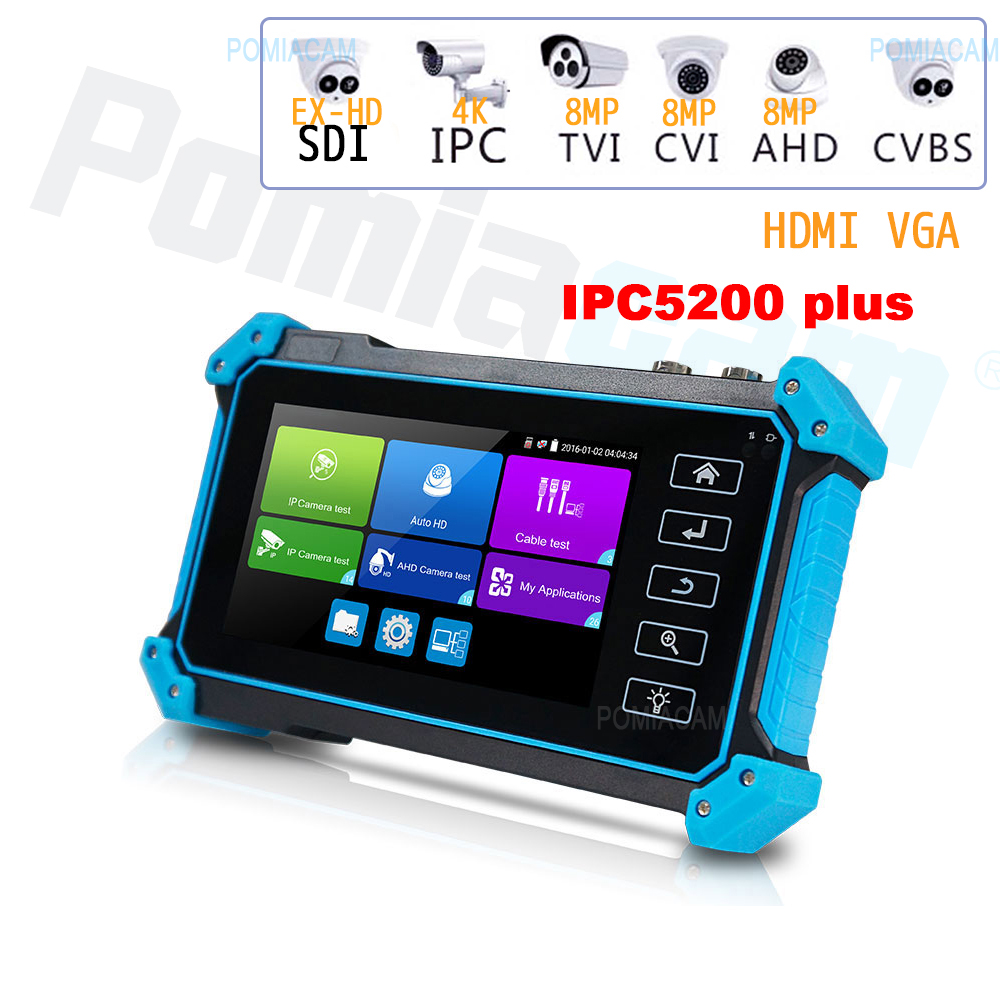

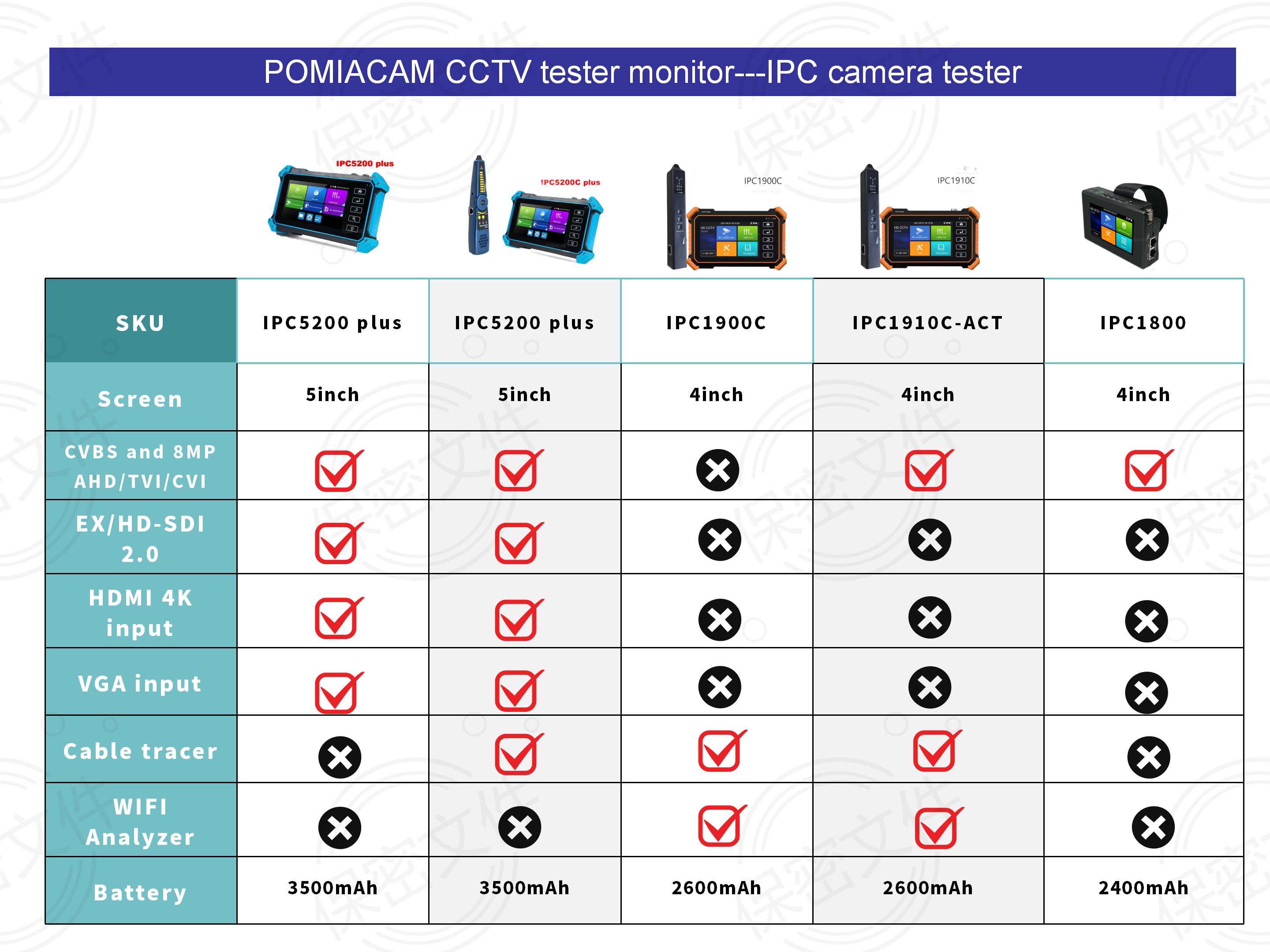

IPC5200 plus : 5inch display touch screen ----- H265 IP camera test , Support 8MP TVI camera testing +8MP CVI camera testing +8MP AHD camera testing +SDI camera testing +4K H.265 IP +Analog+EX-SDI/HD-SDI+HDMI IN+VGA IN test + POE 48V output +DC 12V 3A output + cable test + Built-in wireless WIFI

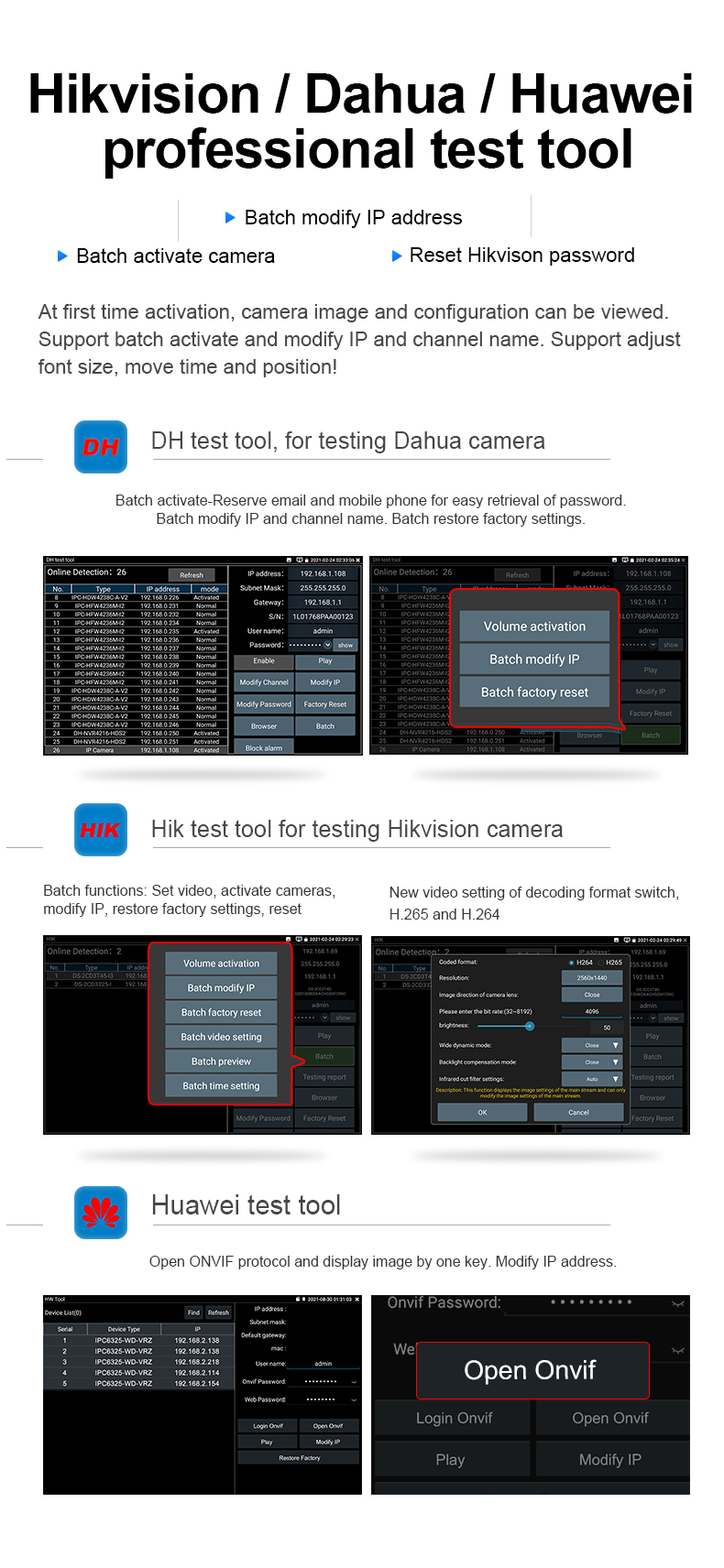

Hikvision / Dahua / Huawei professional test tool , Rapid ONVIF ,
IPC5200 plus : 5inch display touch screen ----- Support H265 IP camera test+ 8MP TVI camera testing +8MP CVI camera testing +8MP AHD camera testing +SDI camera testing +4K H.265 IP +Analog+EX-SDI/HD-SDI+HDMI IN+VGA IN test + POE 48V output +DC 12V 3A output + cable tracker + Built-in wireless WIFI
Hikvision / Dahua / Huawei professional test tool , Rapid ONVIF ,

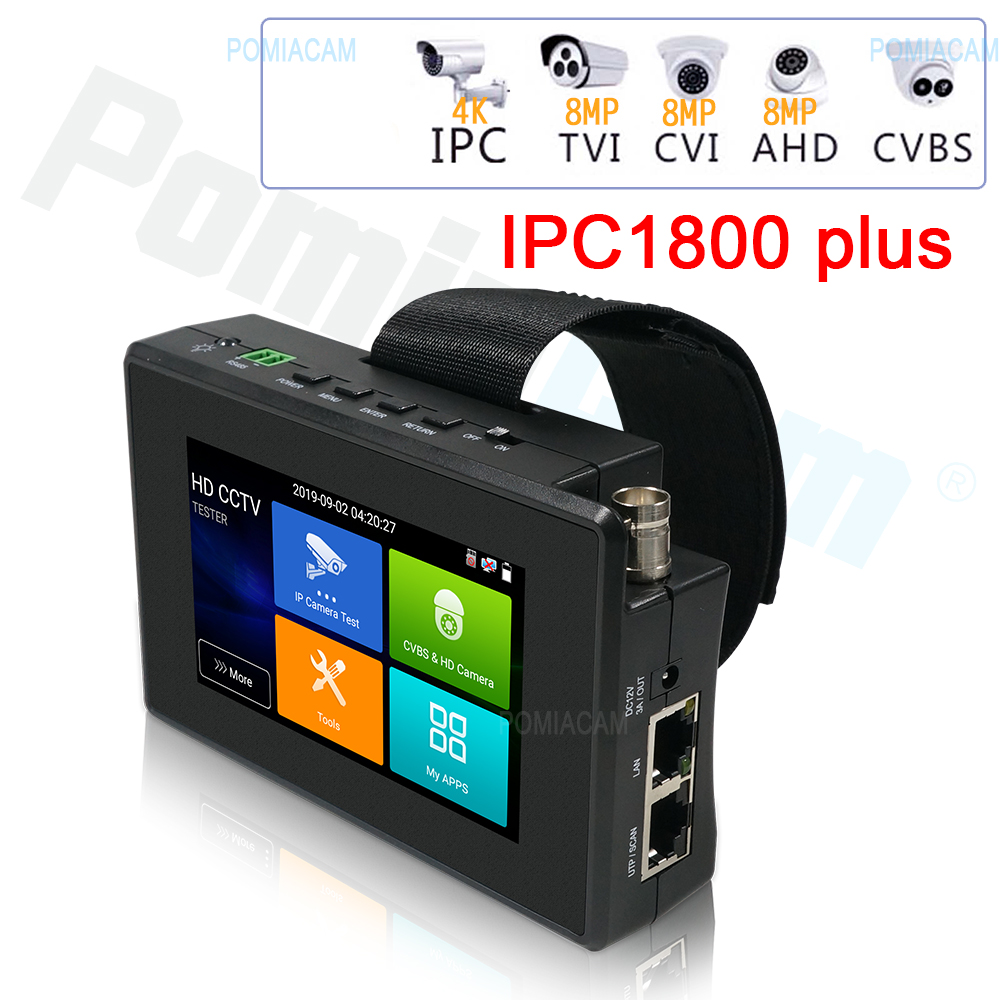

IPC-1800 plus : 4inch touch screen H.265/H.264 IP+Analog+8MP AHD+8MP CVI+8MP TVI+POE output+DC12/3AOutput+Network cable test box +Built-in wireless WIFI
Hikvision / Dahua / Huawei professional test tool , Rapid ONVIF ,

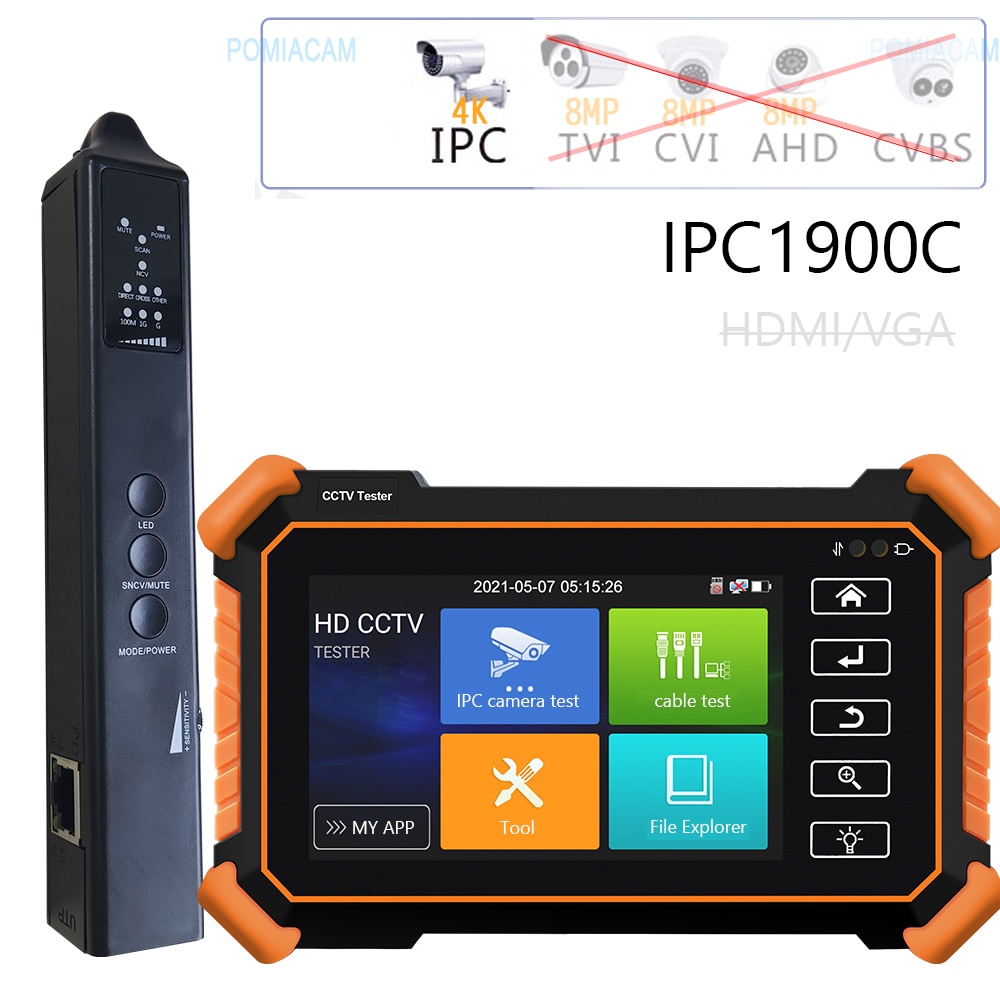

IPC1900C: IPC camera test +2.4G WIFI analyzer+ UTP cable test + cable tracker (this model cannot test the CVBS camera ) Built-in wireless WIFI

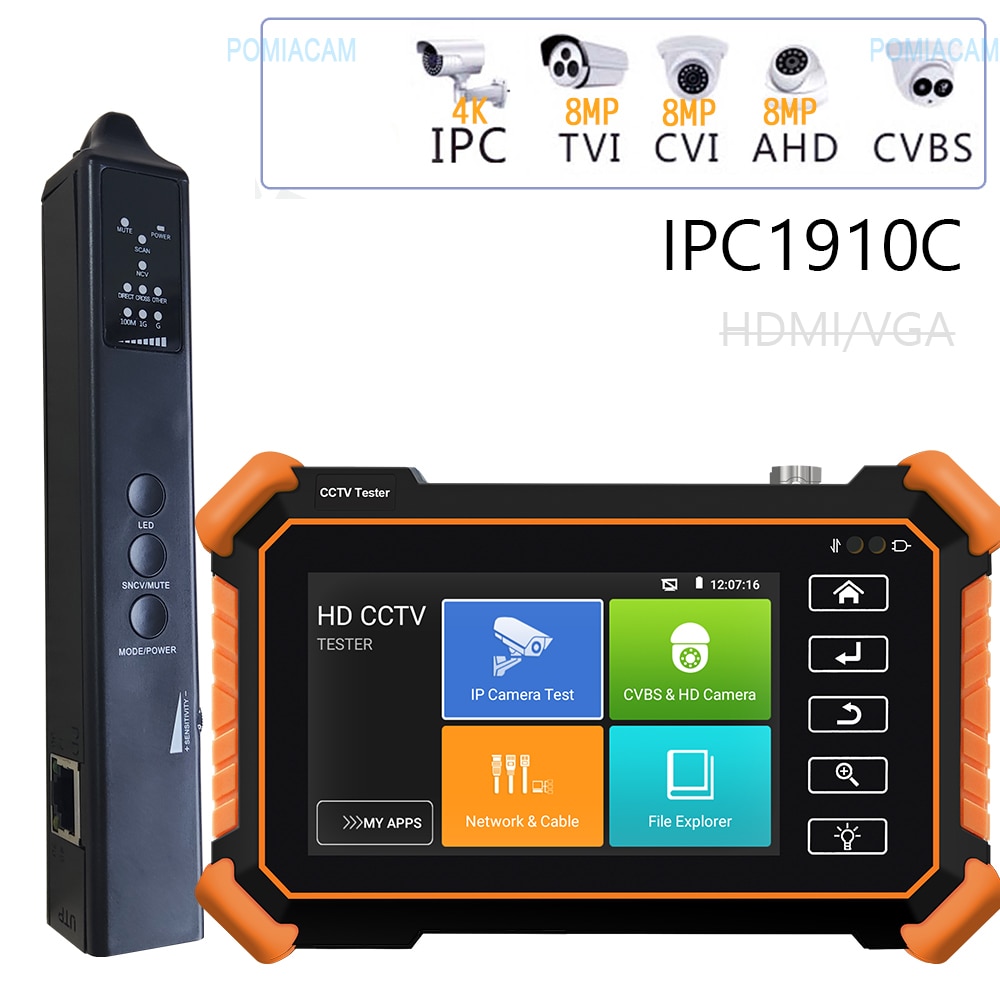

IPC1910C-ATC: IPC camera test +2.4G WIFI analyzer+ UTP cable test + 8MP AHD camera test + 8MP CVI camera test + 8MP TVI camera test +CVBS camera test +Built-in wireless WIFI

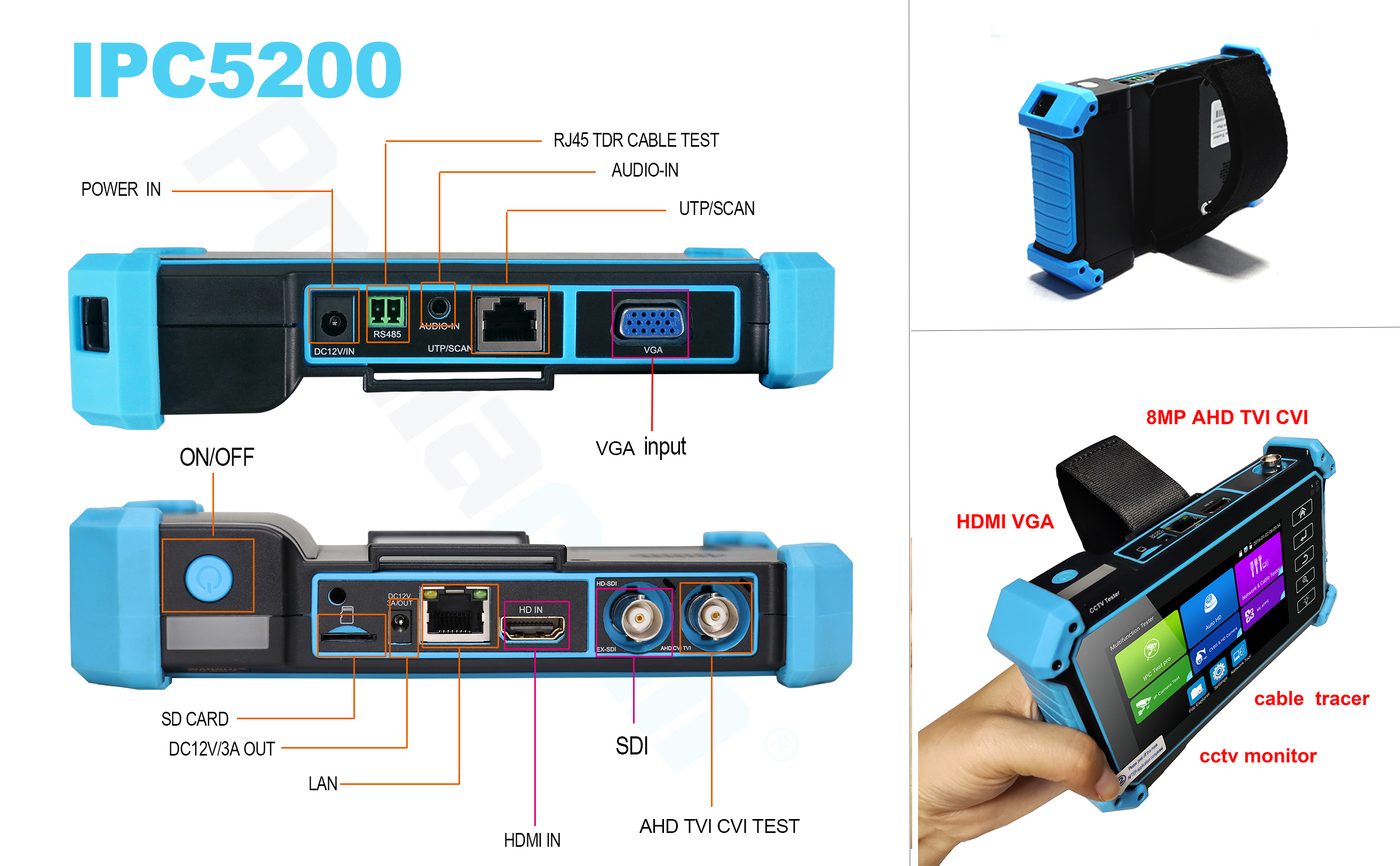

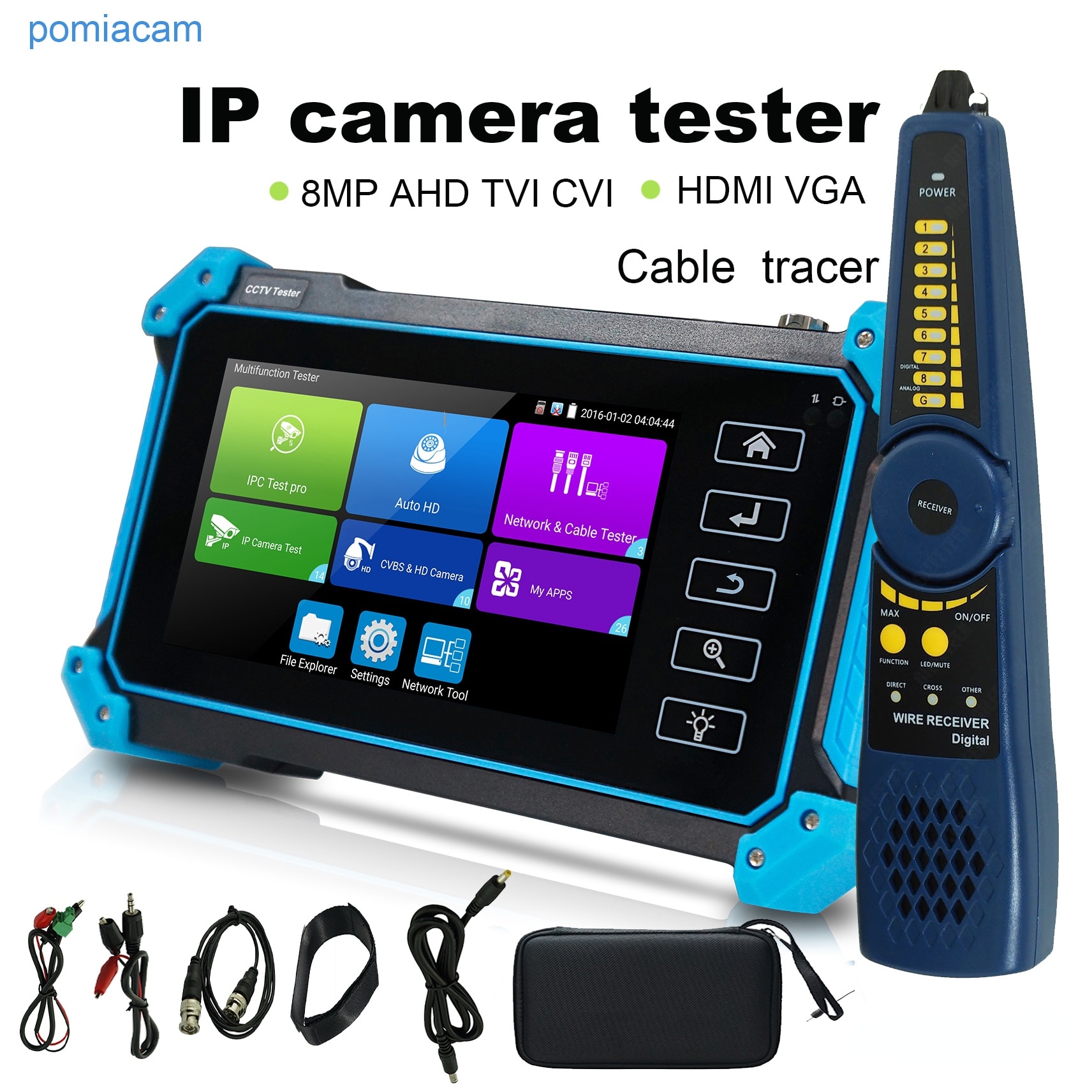

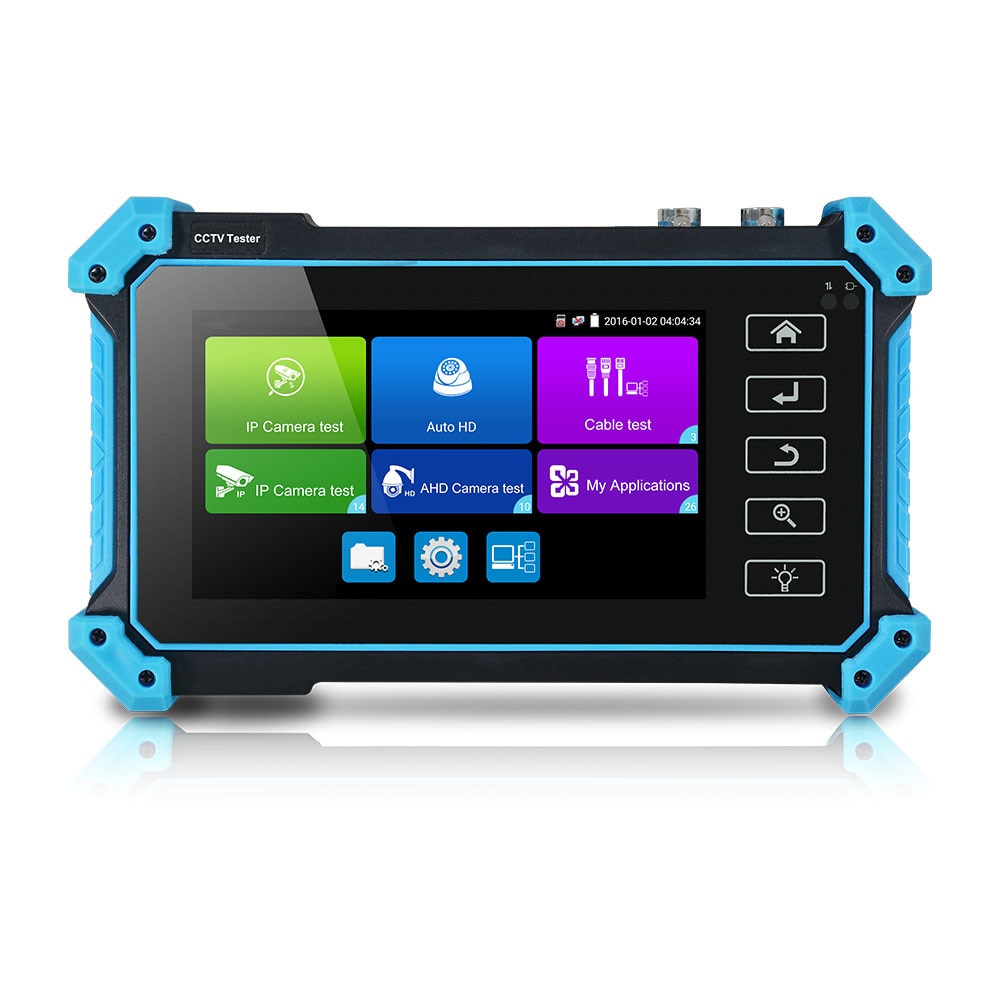

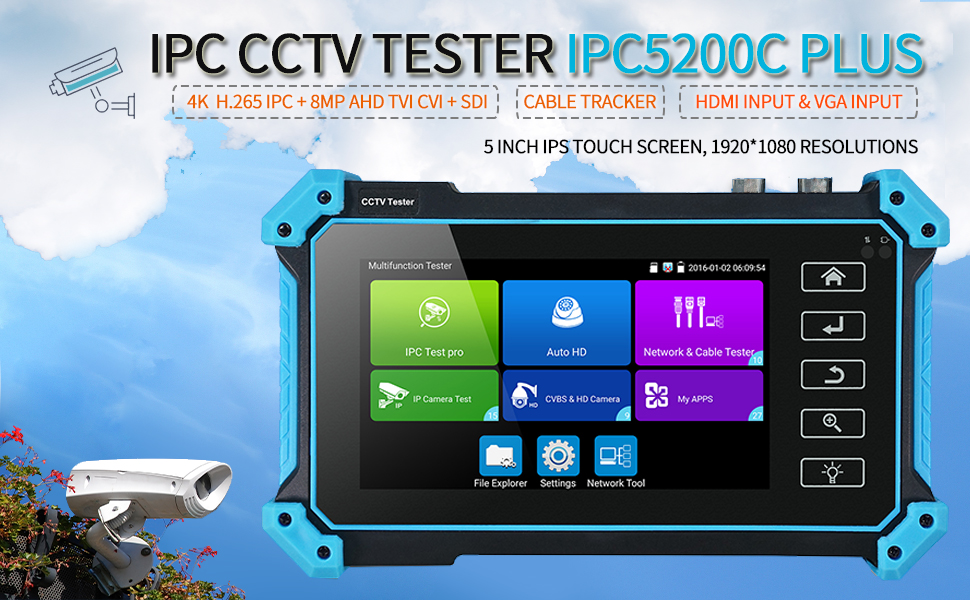

IPC5200 plus cctv tester montior Detail as follow :

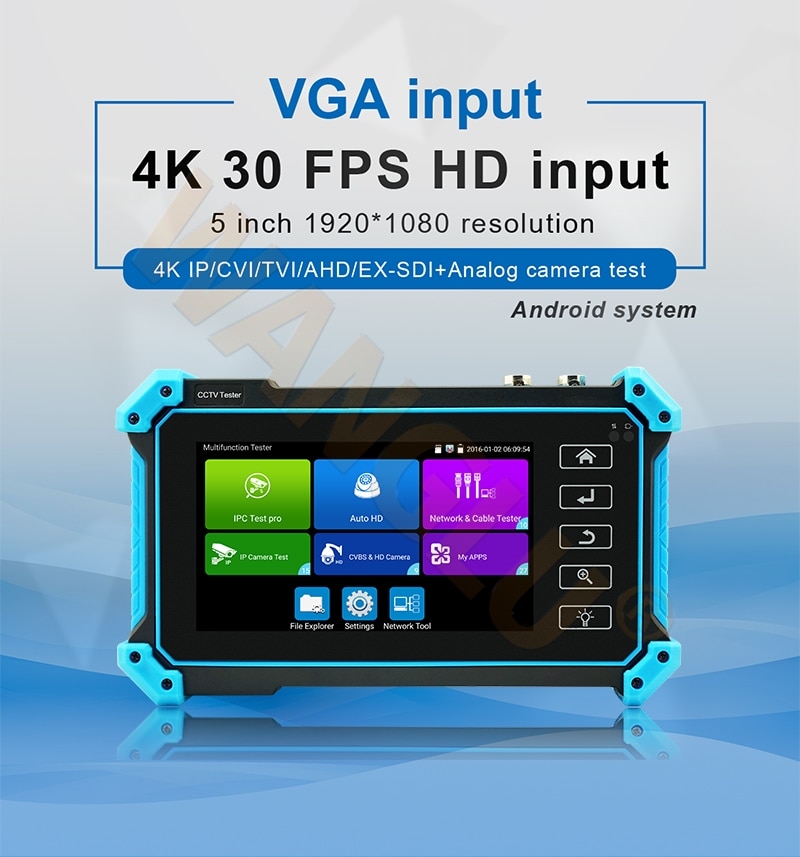

The 5 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1920*1080 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control, and cable test functions. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.
Key Feature

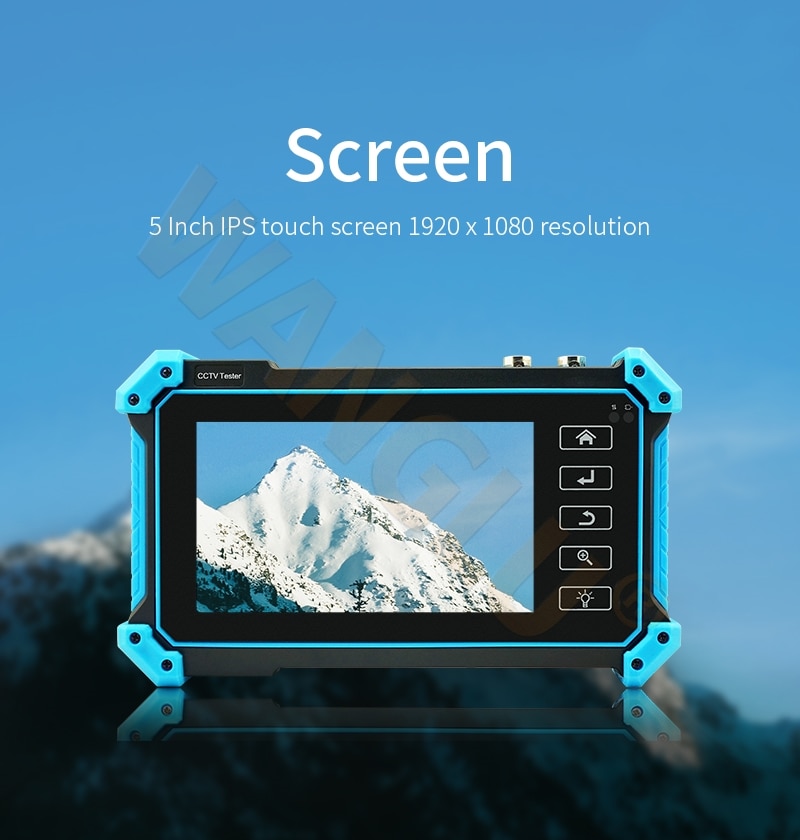

● 5 inch IPS touch screen, 1920x1080 resolution

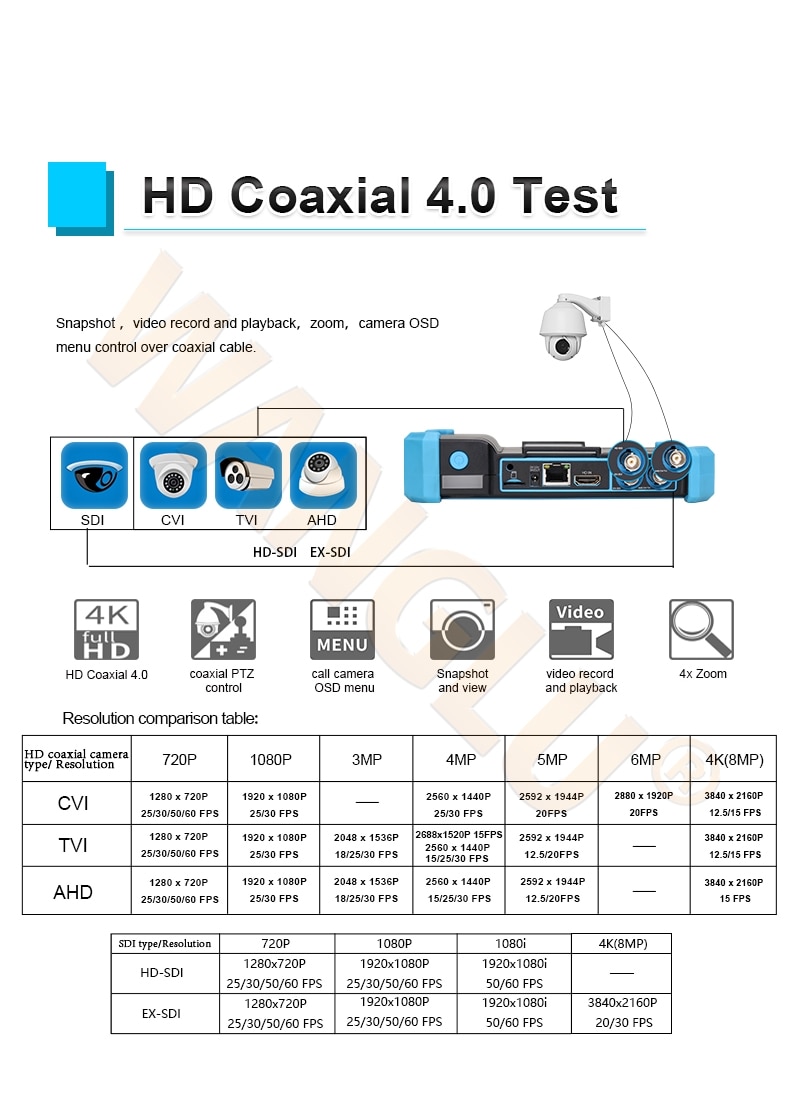

● 8MP CVI/ TVI/ AHD camera test
● 8MP EX-SDI, HD-SDI, 3G-SDI camera test*
● H.265/H.264, 4K video display via mainstream

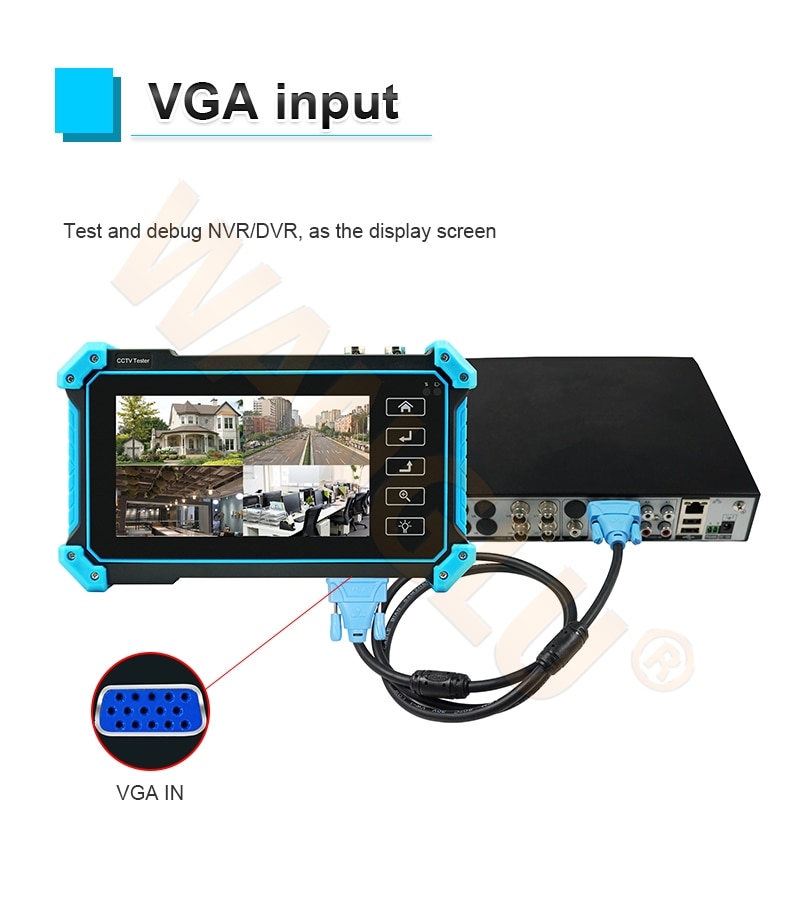

● VGA input, support 2048 x 1152 60FPS*
● HDMI Input, support 4K 30FPS*
● DC12V 3A, 48V PoE power output

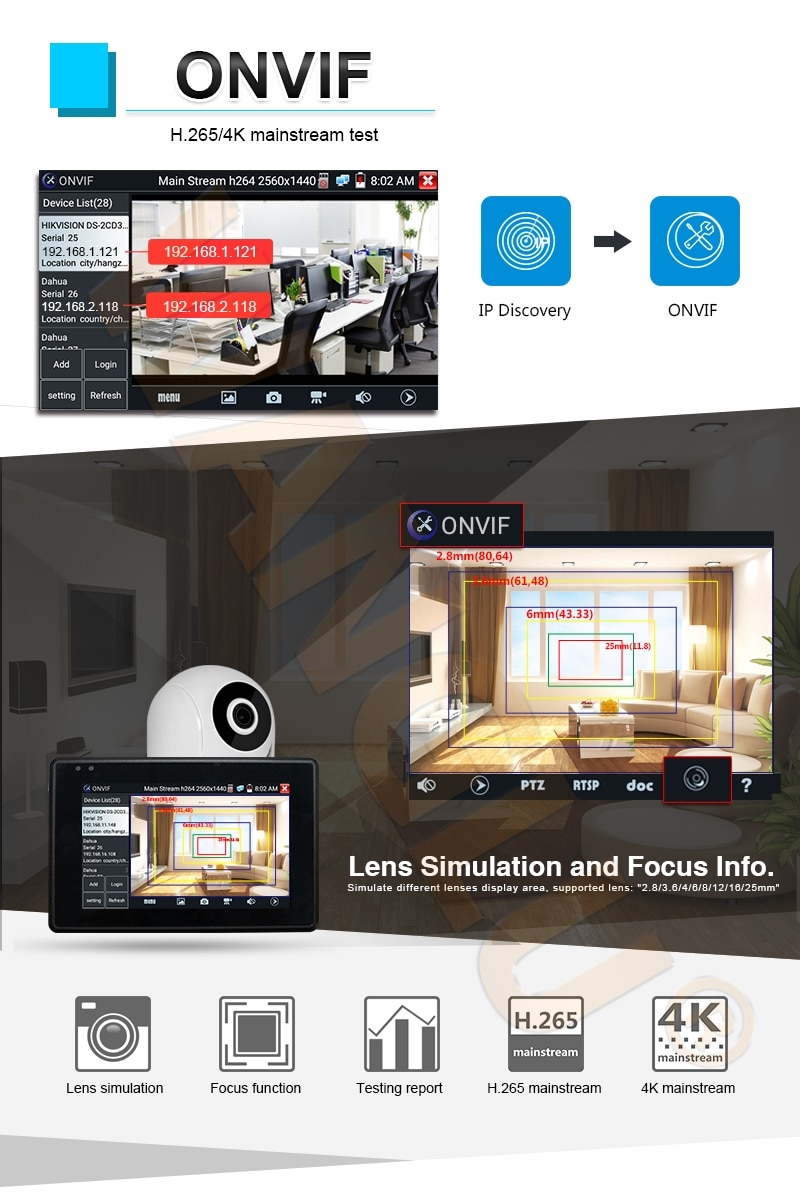

● Rapid ONVIF, Create the test report and modify IP address, etc

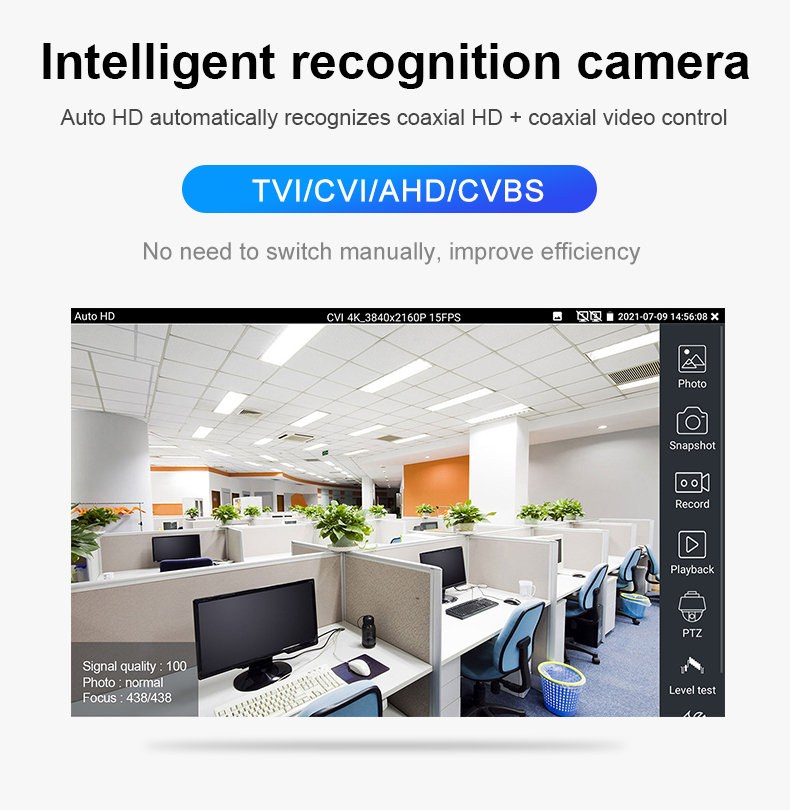

● Auto HD, auto recognize HD coax camera type and resolution
● RJ45 TDR cable test, cable quality test

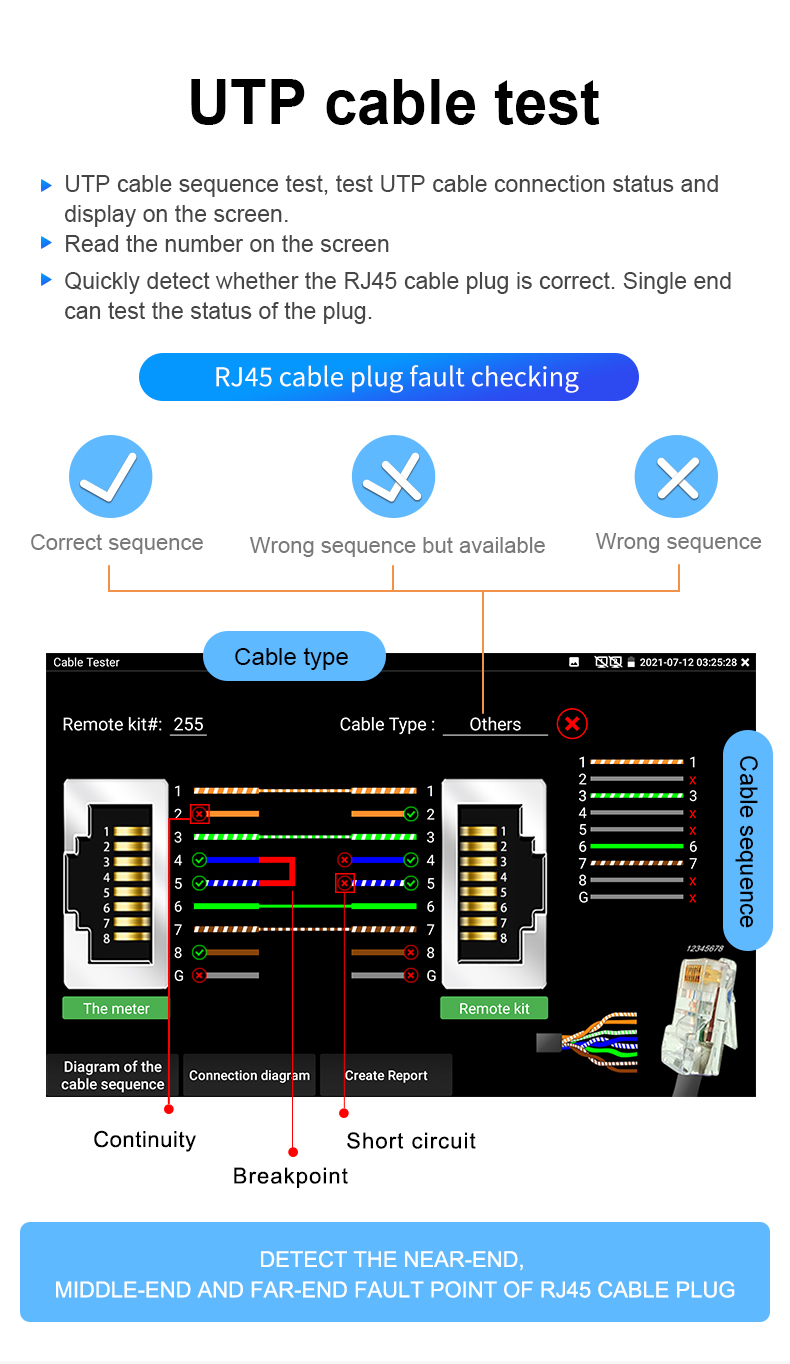

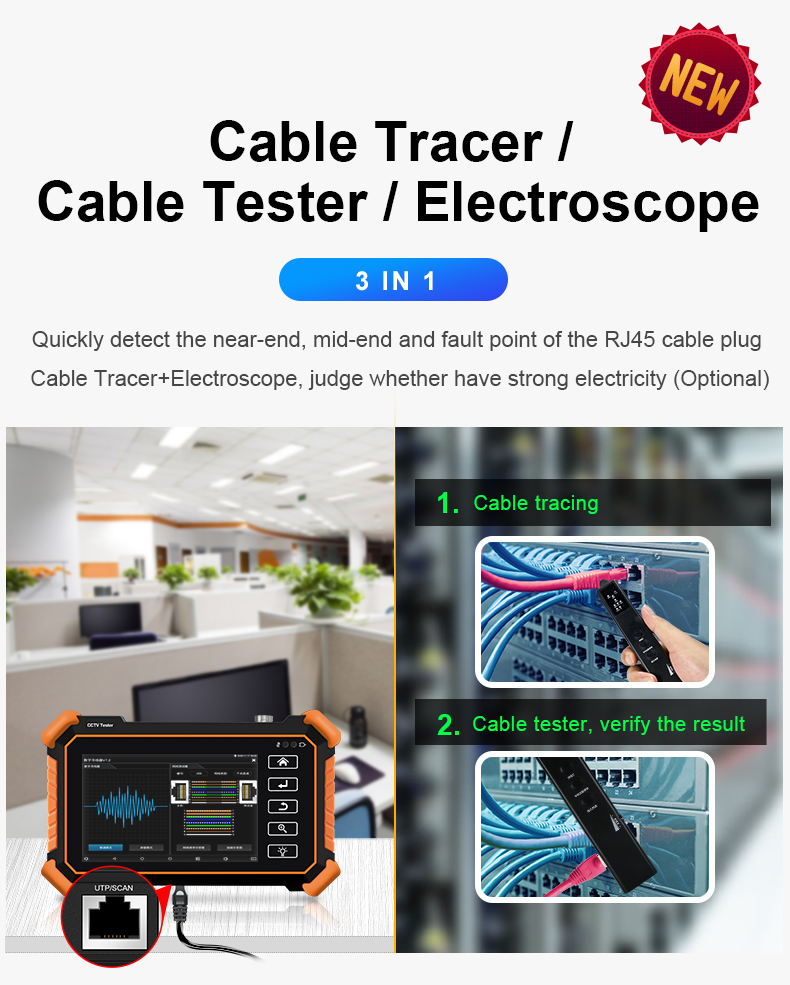

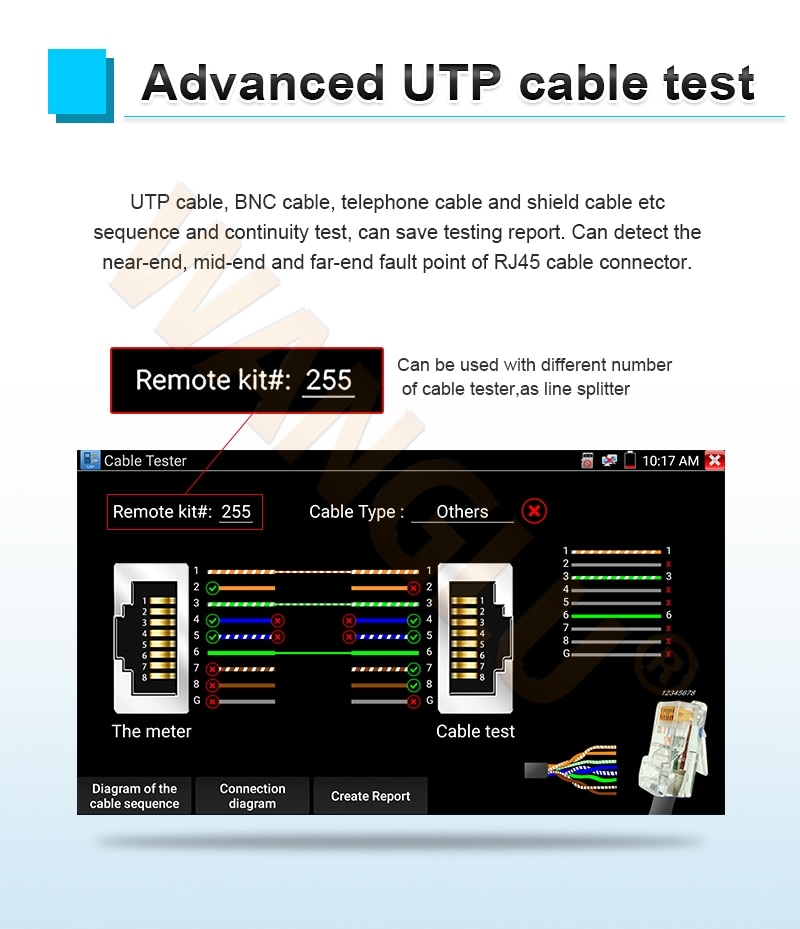

● UTP cable test, detect the near-end, mid-end and far-end fault point
of the network cable crystal head
Highlights

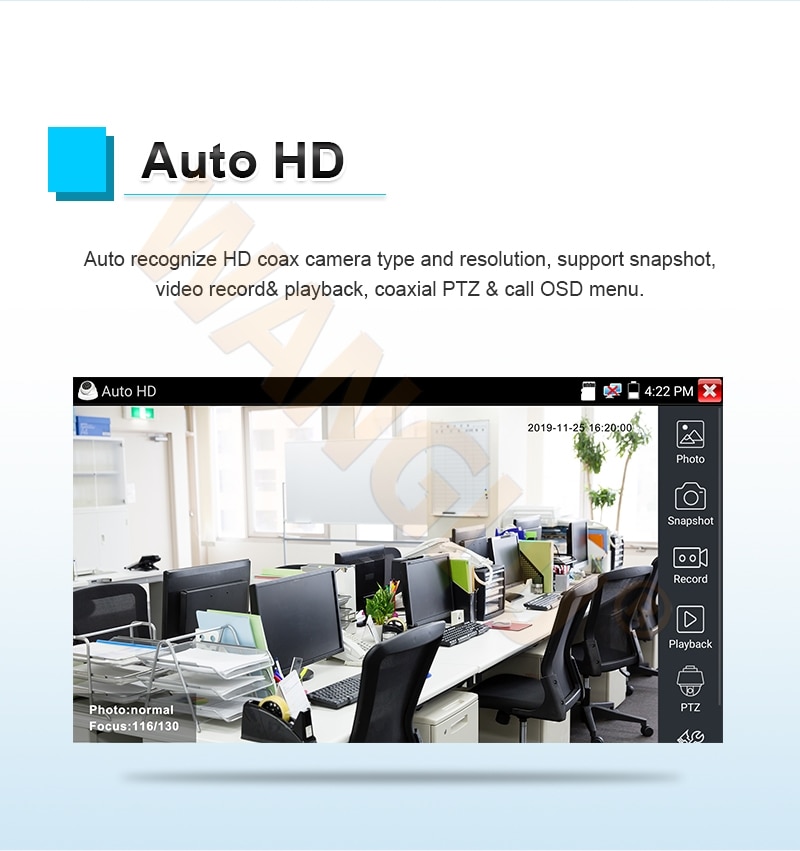

Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu.
● VGA input, up to 2048 x 1152 60FPS, support snapshot, video record & playback*
● HDMI Input, up to 4K 30FPS, support snapshot, video record & playback*

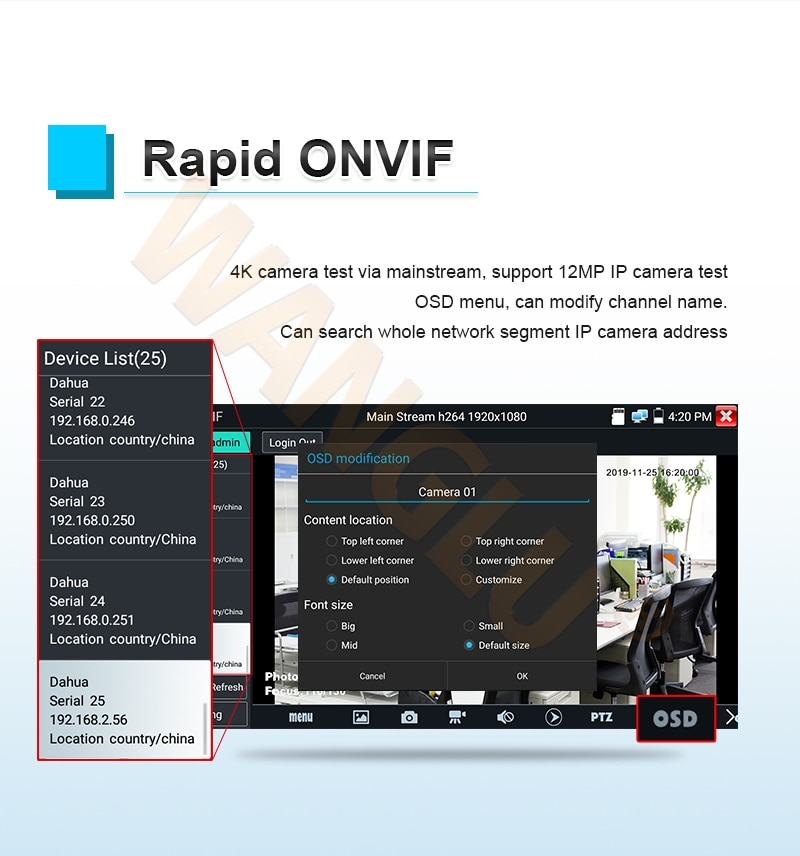

● Rapid ONVIF, Auto log in and display image, create testing report
● IPC test pro, auto scan all network segments IP, auto open PoE power and display the power. Input username and password, can scan camera image, can batch activate HIKVISION and Dahua cameras. Jump to ONVIF interface and test tools.
Another Functions

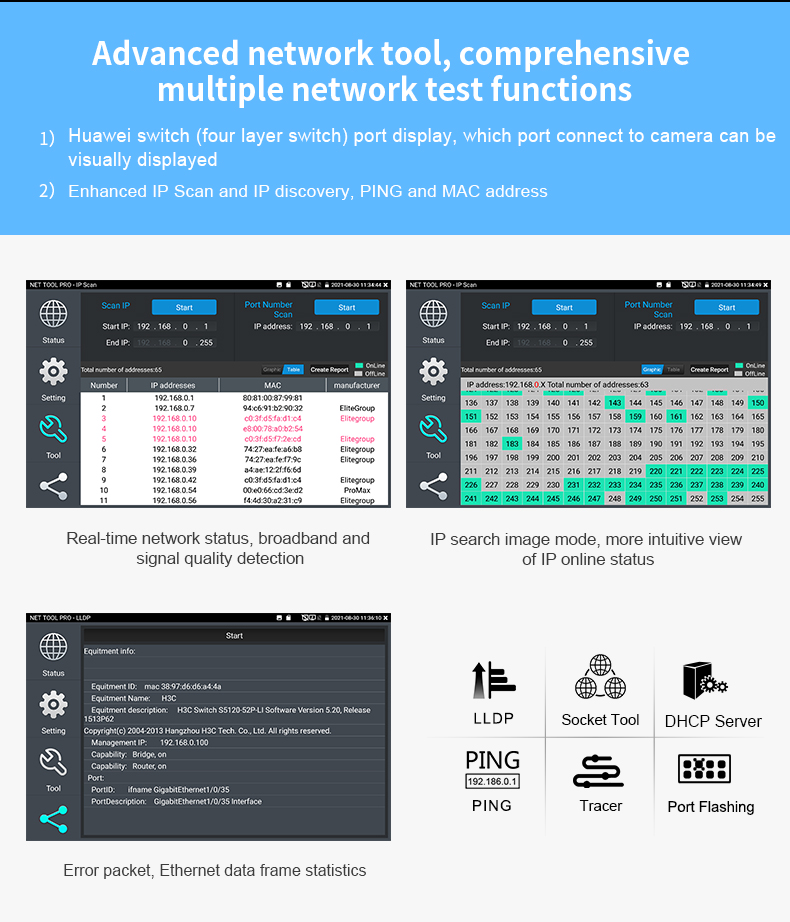

● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
● Tester Play: Tester, android version mobile phone and PC display at the same time
● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
● Customers self-update software, you can install apps with android version
● Media player, 4K video files and MKV/MP4 media files play
● Display its genuine resolution of the IP camera images
● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
● 7.4 V /3350mAh Lithium Ion Polymer Battery, after 3-4 hours charging, working time lasts 5 hours

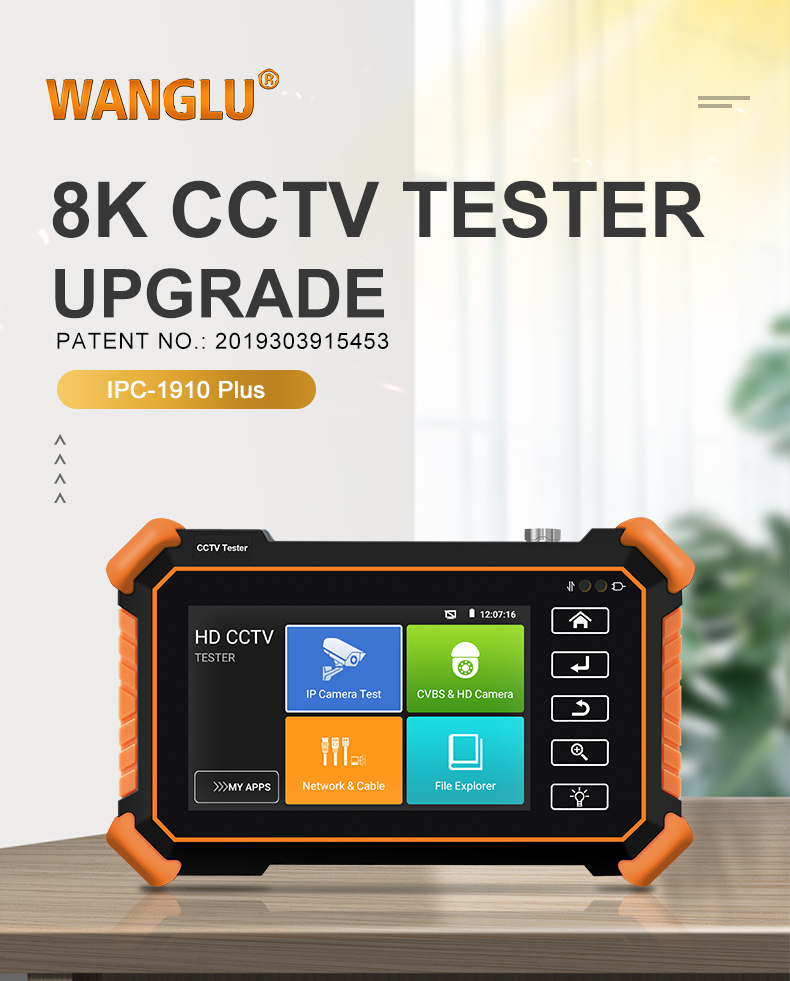

IPC1910 detail as follow :
Feature
1,4-inch 960*640 resolution, IPS high-definition capacitive touch screen.

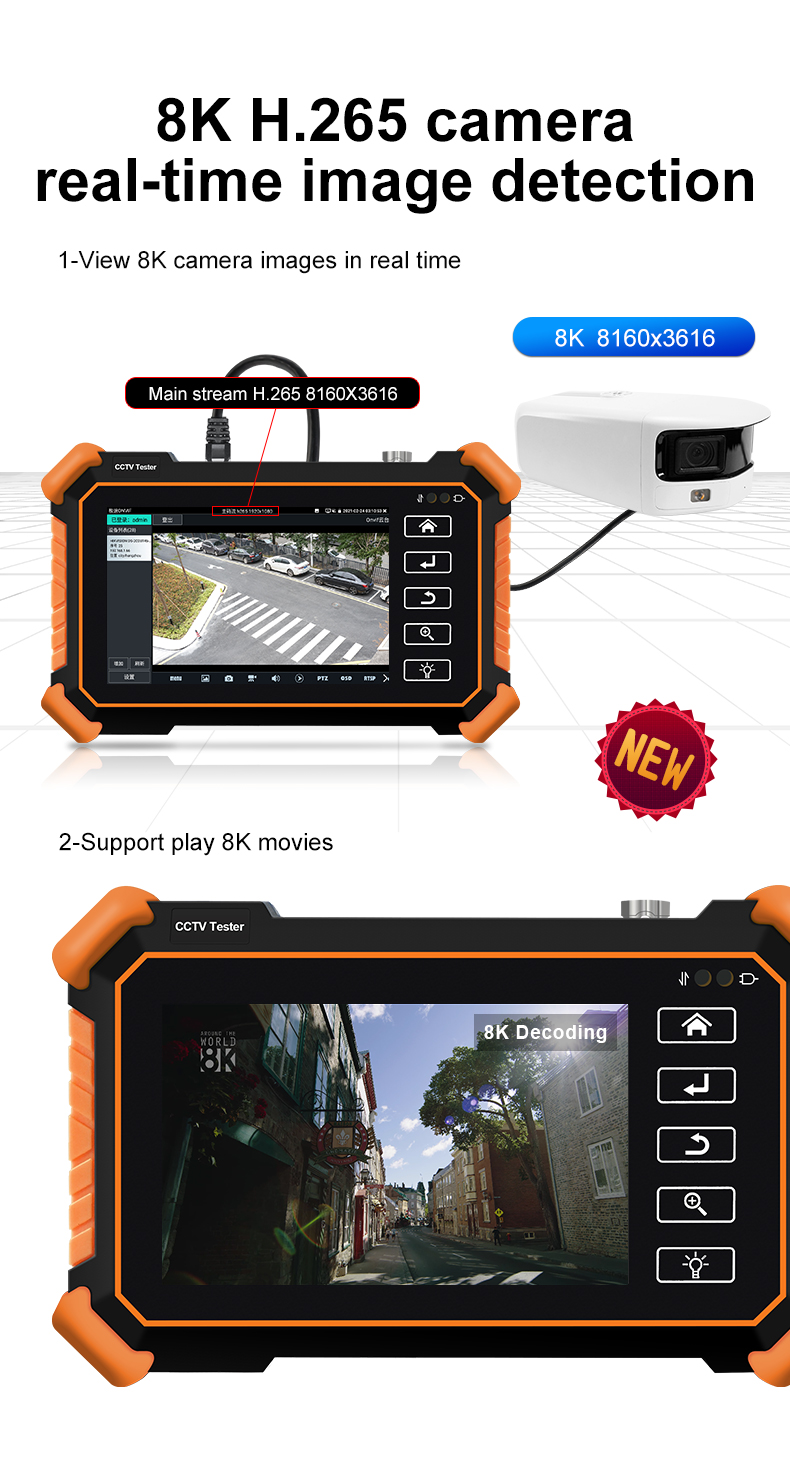

2,8K H.265 main stream test, up to 8K 8160*3616 24 frame network camera test.
3,4K H.265 main stream test, up to 4K 4096*2160 30 frames network camera test.
4,Support multi-segment test, PTZ control of network dome camera, and test report generation.

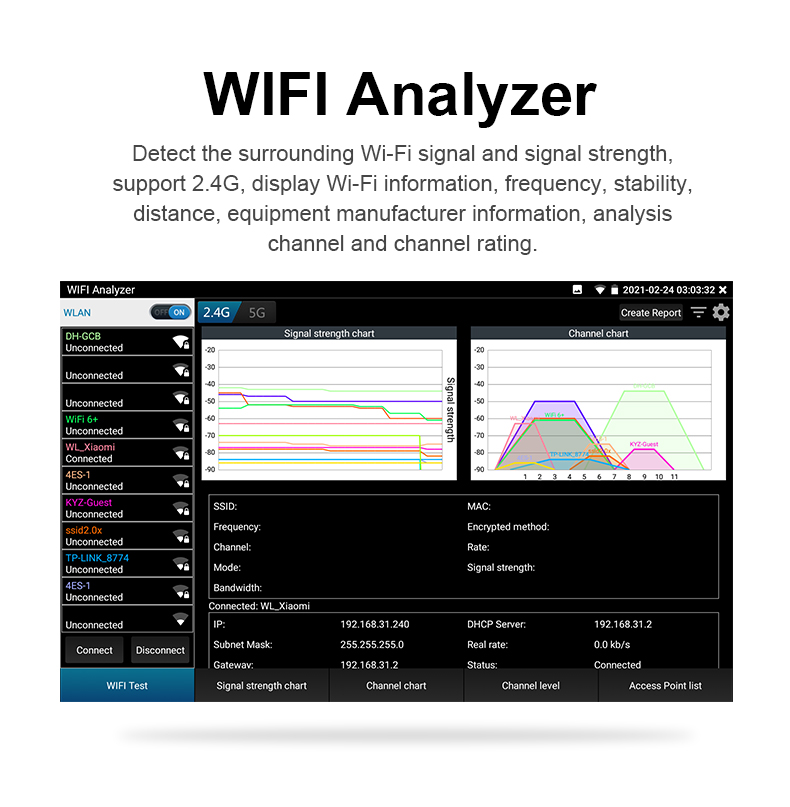

5,WiFi analyzer, can view WiFi information, detect WiFi signal strength, channel occupancy and rating, etc. (cannot support 5G)
6,UTP network cable sorting test, test network cable connection.
7,Built-in wireless WIFI, speed 150M, receiving wireless network camera images, etc.
8,Screen projection, mobile phone, PC terminal receive real-time engineering treasure screen picture, can remotely operate engineering treasure.
9,Enhanced version of LED lights, dual LED strong light illuminators, without fear of darkness, illuminate the entire computer room. Multi-channel preview can support 9-channel camera real-time preview at the same time.
10,Working hours: Built-in battery 2600mAh, it takes about 3-4 hours to fully charge, and it can be used for 9 hours.
11,Languages: Simplified Chinese, Traditional Chinese, English, French, German, Russian, Korean, Japanese, Czech, Polish, Vietnamese, Italian, Spanish, Portuguese, Turkish, Serbian.

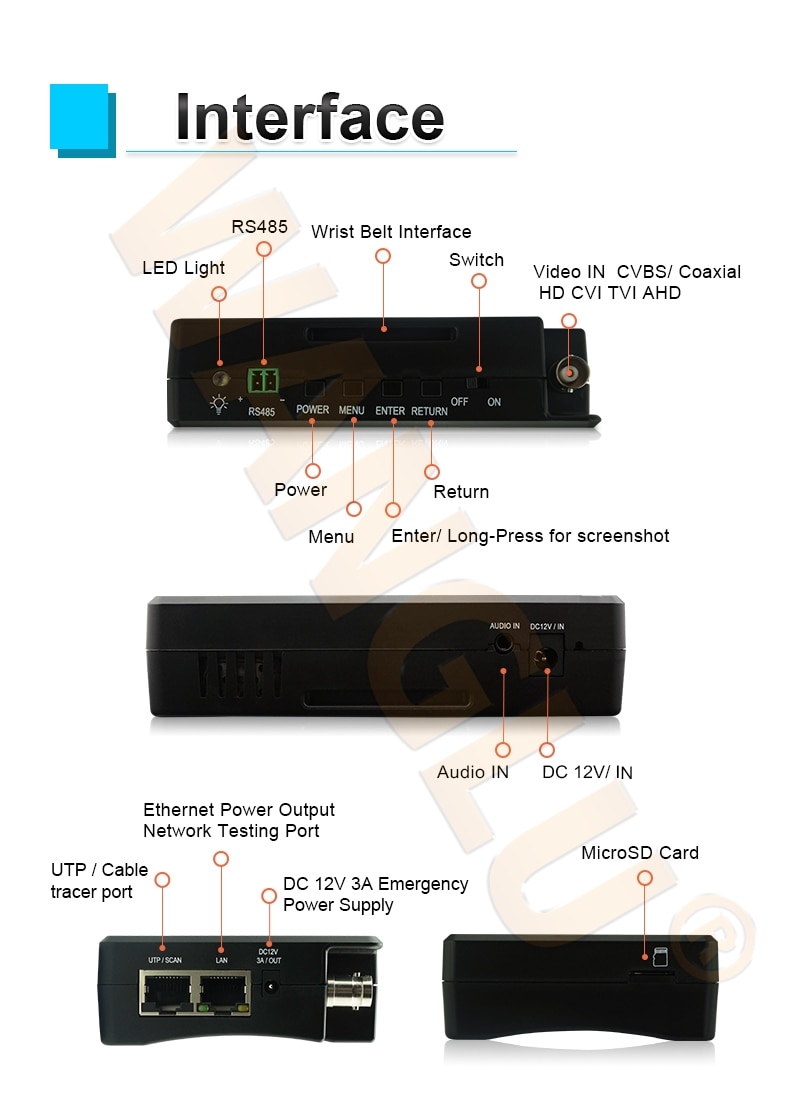

IPC 1800 CCTV tester monitor detail as follow :
New 4" wrist 4K H.265 IP CVBS 8MP CVI TVI AHD 5-in-1 CCTV Tester

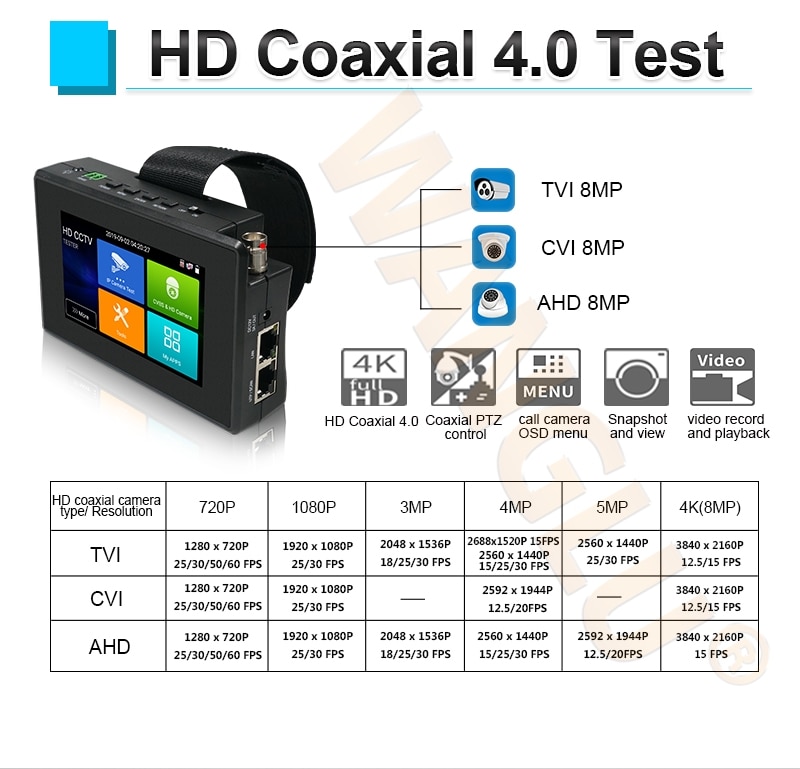

● 8MP TVI/ CVI/AHD, 4K H.265 IP, CVBS camera test
● H.265/H.264, 4K video display via mainstream
● Dahua, Hikvision, Axis etc ONVIF camera test
● Rapid ONVIF, auto view video and create testing report
● DC12V 3A, DC48V PoE power output
● Built in WIFI, create WIFI hotspot
● RJ45 cable TDR test,cable quality test
● Wrist design, portable and easier to carry
● 10/100/100M Ethernet, network state and traffic display
Camera test:

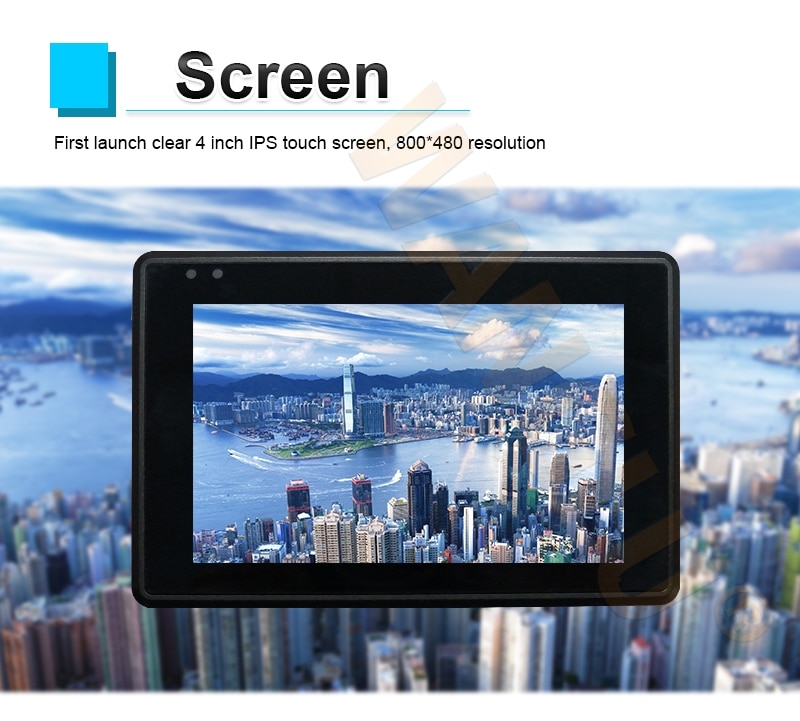

● 4 inch touch screen, 800*480 resolution
● H.265 & H .264 IP, 4K video display via mainstream
● Rapid ONVIF, Auto log in and display image, create testing report
● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
● 8MP TVI/8MP CVI/8MP AHD
● CVBS camera test and PTZ control

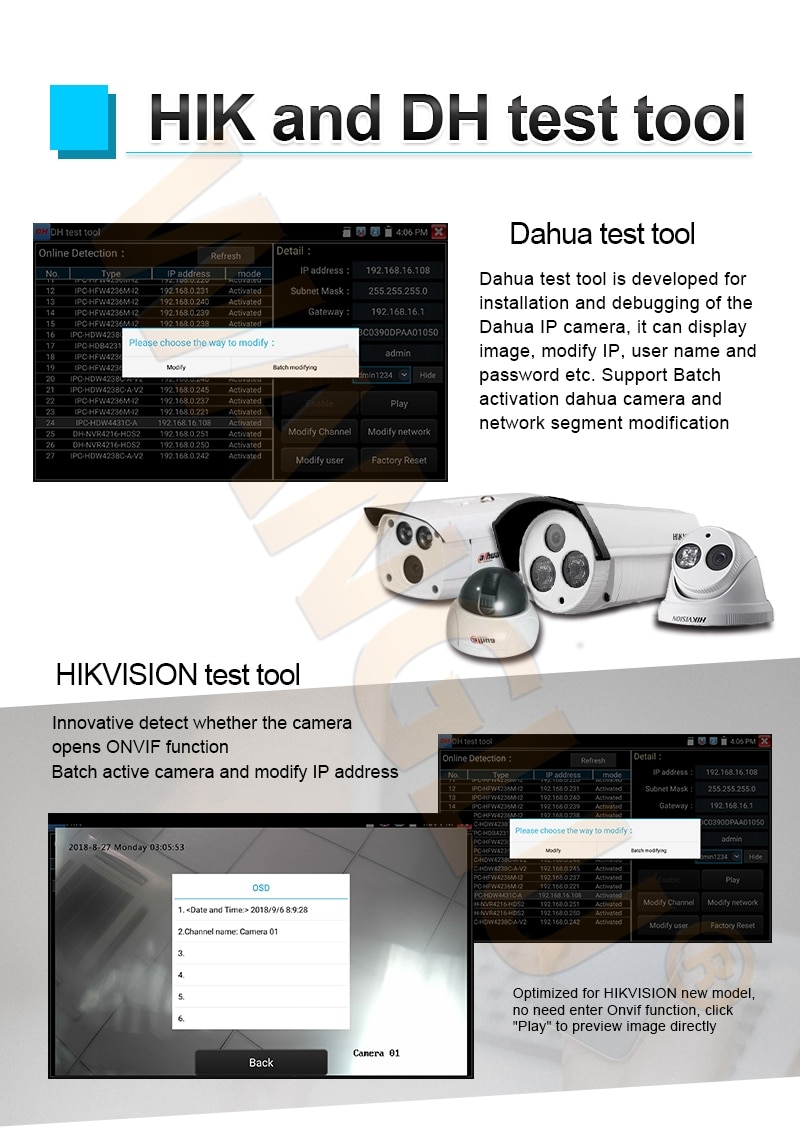

● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)

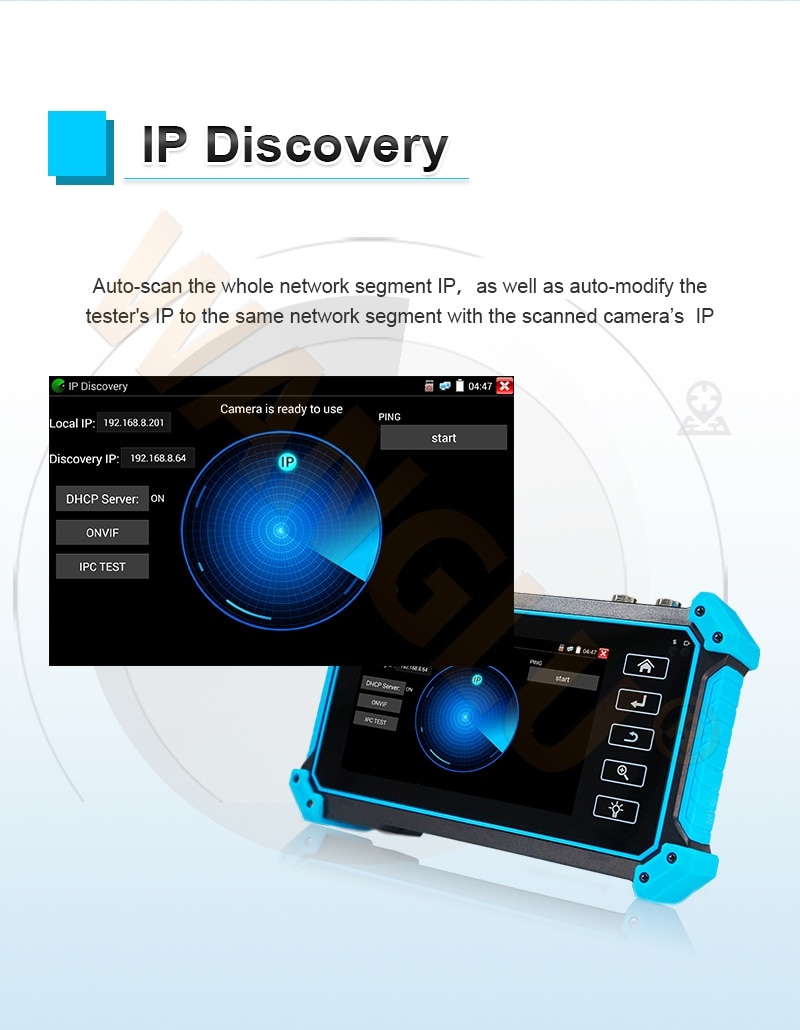

● IP discovery, just by one key to detect all network cameras IP address
● Rapid video, just by one key to detect all network cameras and auto display
● DC 12V 3A power output
● PoE DC48V power output, Max power 25.5W
● Innovative coaxial HD focus, video signal quality test
● Built in WiFi, display image from the wireless camera, create WIFI hotspot
Cable test:

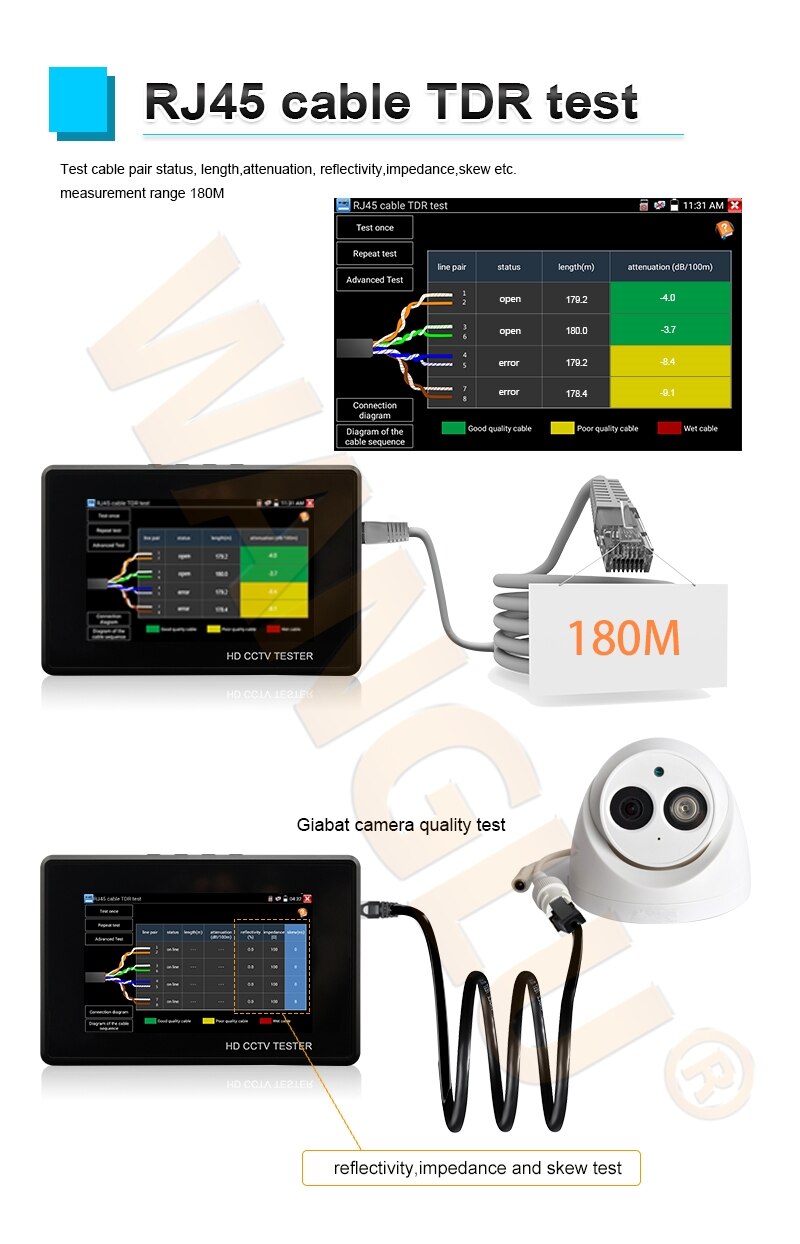

● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
Other functions:
● 10/100/1000M Ethernet, network state and traffic display
● Wrist design, portable and easier to carry
● TesterPlay: Tester, android version mobile phone, PC display at the same time
● Network tool: PING test, IP address scan, port flashing etc
● Drop-down menu, can select Poe power, IP setting, CVBS, LAN info etc
● Self -update software, you can install apps with android version
● Media player, 4K video files and MKV/MP4 media files play
● Display its genuine resolution of the IP camera images
● PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG
● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
● 7.4 V /2400mAh Lithium Ion Polymer Battery, after 4~5 hours charging, working time lasts 7 hours

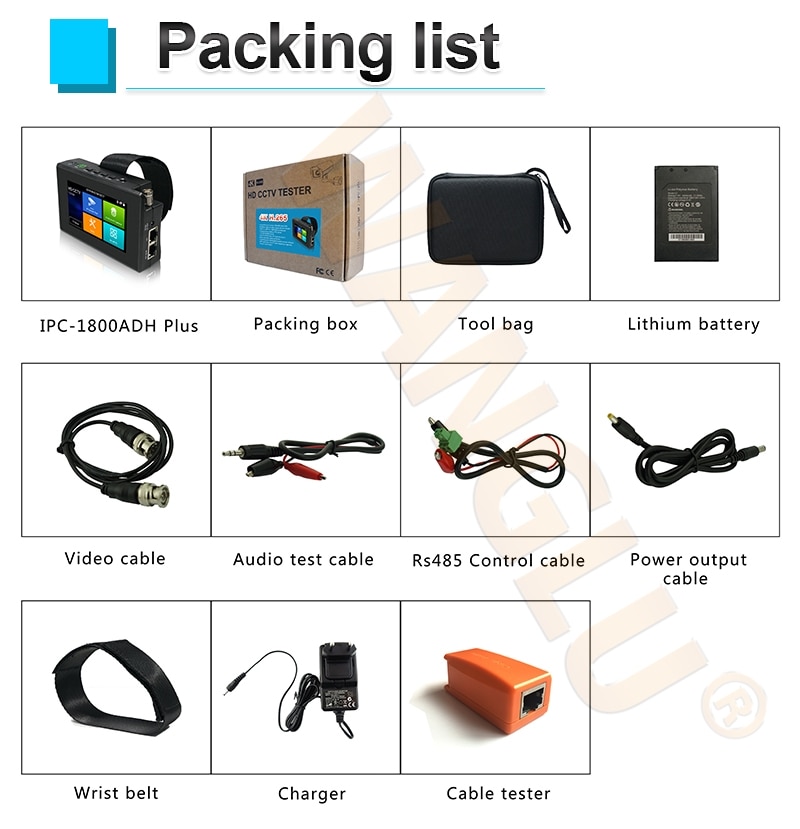

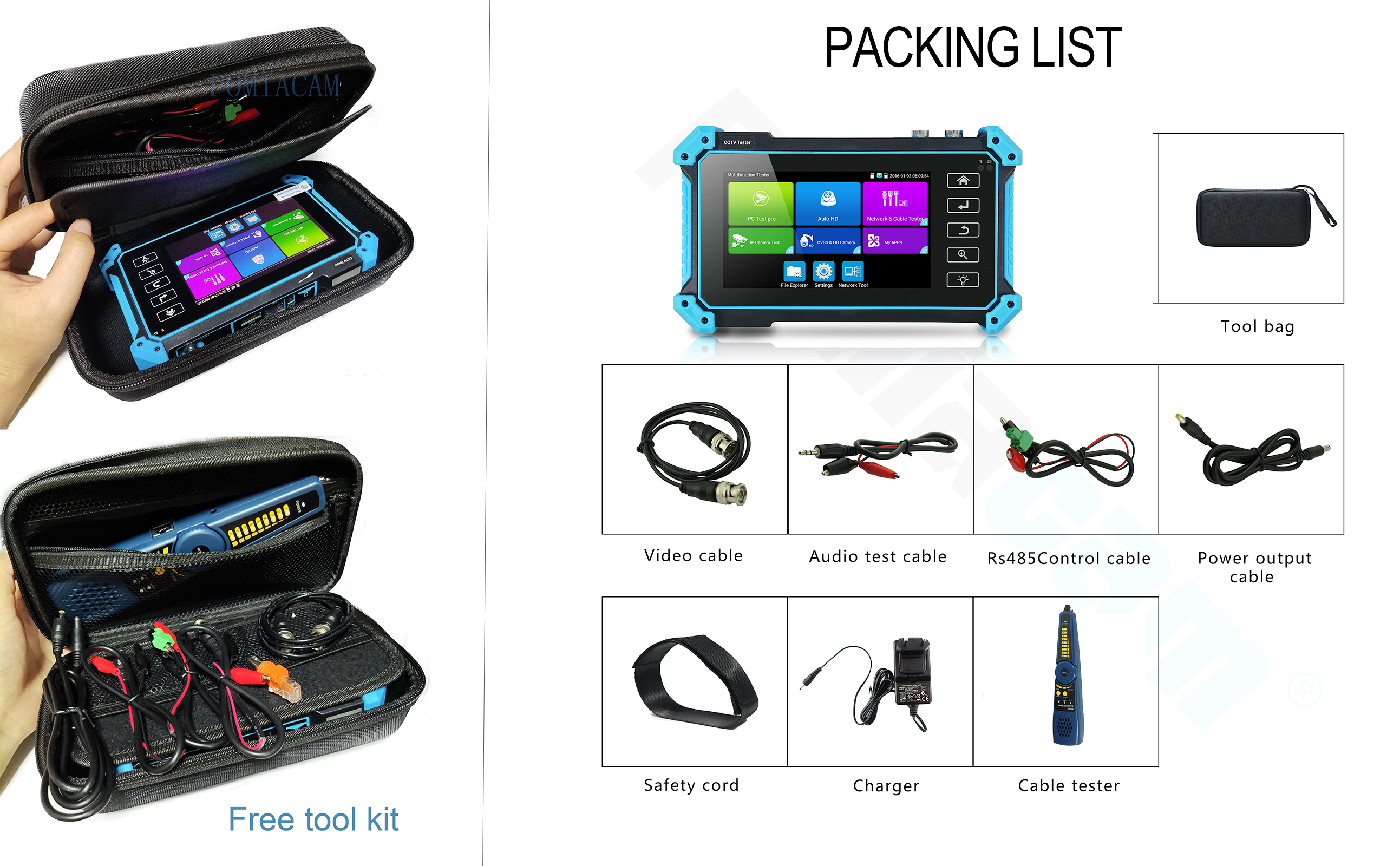

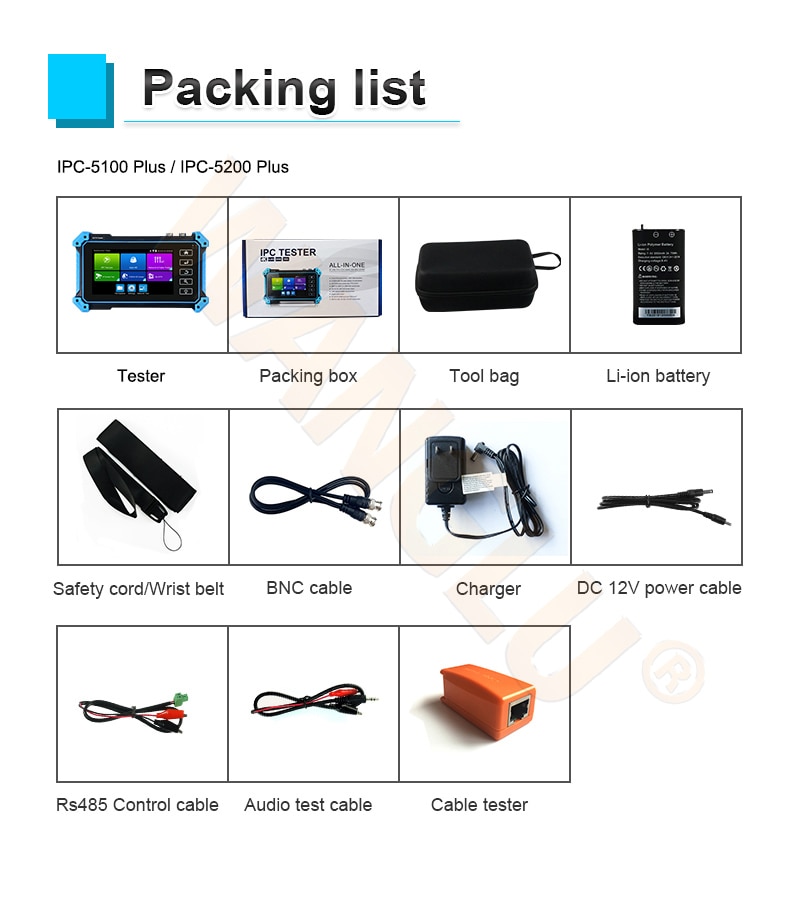

Packing list
1*Tester(Built-in battery)
1*Adapter
1*BNC cable
1*RS485 connector
1*Power output conversion cable
1*Audio cable

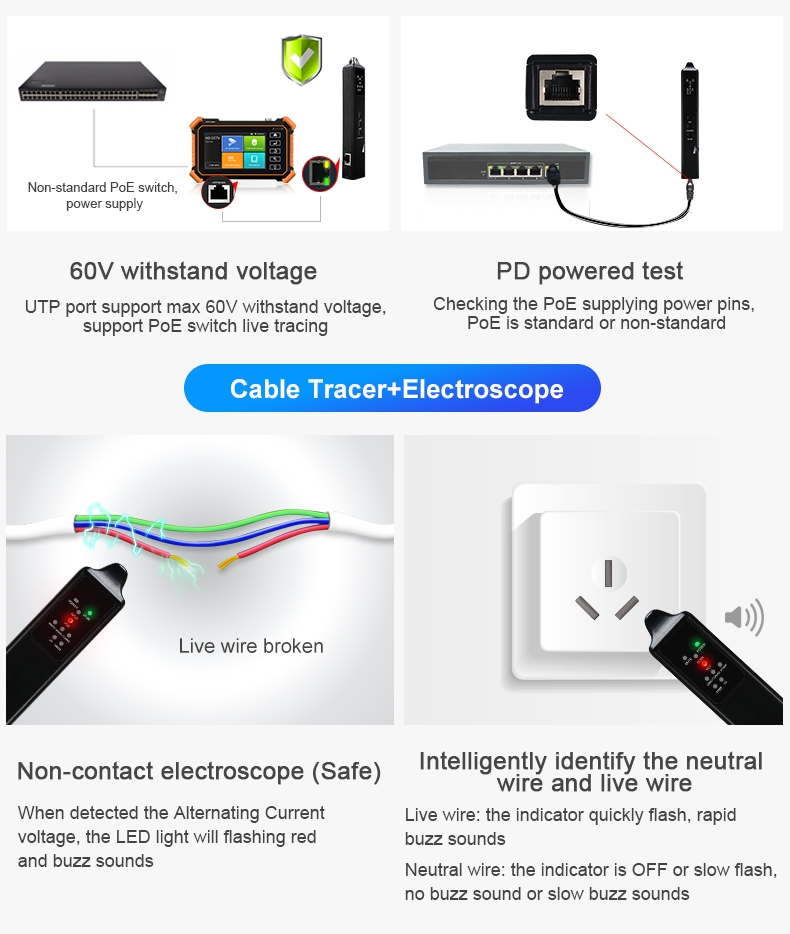

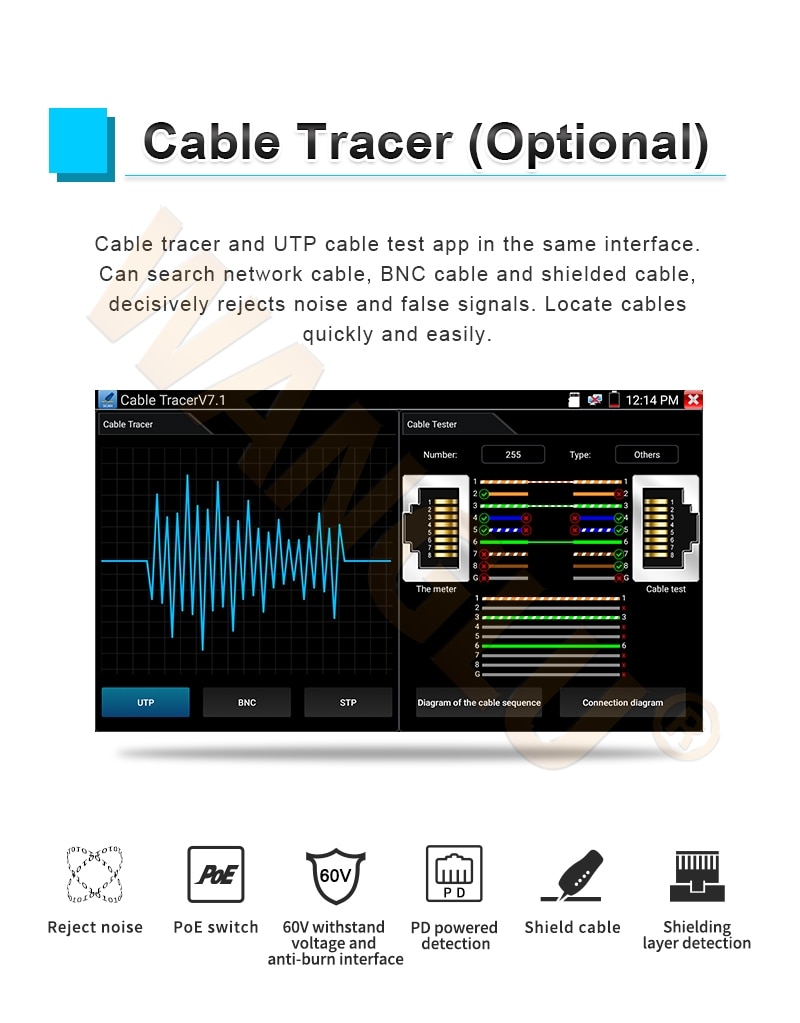

[ cable tracer optional ]

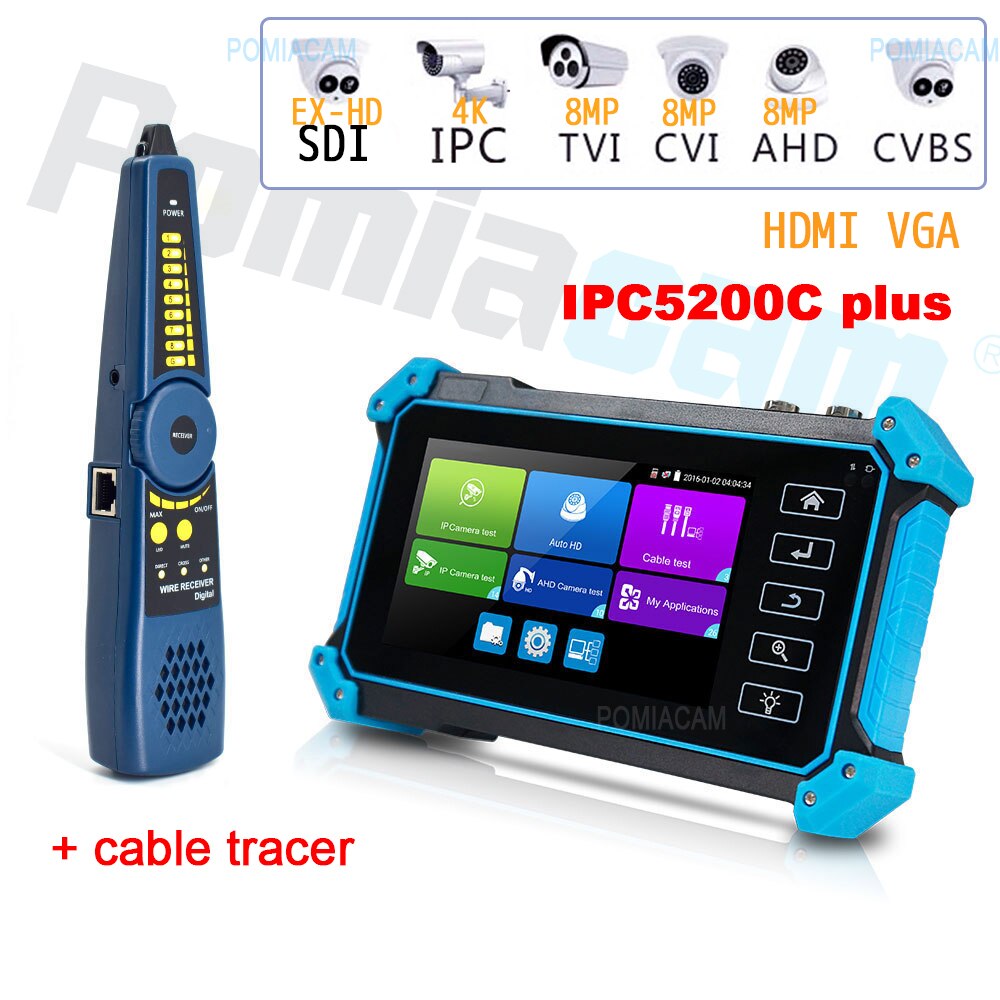

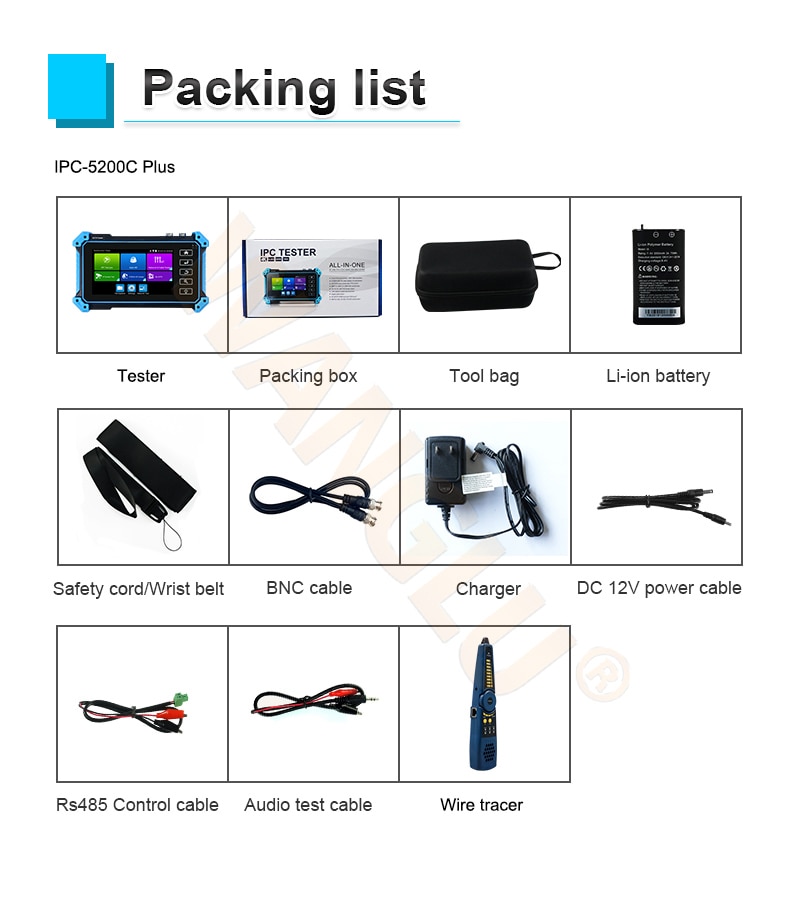

IPC5200C detail as follow :
Probador de cámara IP de 5 pulgadas 4K IP CVI TVI AHD SDI todo en uno VGA y 4K HD entrada Modelo: IPC-5200 Plus ● Pantalla táctil IPS de 5 pulgadas, resolución de 1920x1080 ● Prueba de cámara 8MP CVI/ TVI/ AHD ● Prueba de cámara 8MP EX-SDI, HD-SDI, 3G-SDI ● Pantalla de vídeo H.265/H.264, 4K a través de la corriente principal ● Entrada VGA, compatible con 1920x1200 60FPS ● Entrada HD, compatible con 4K 30fps ● DC12V 3A, 48V salida de potencia PoE ● Auto HD, reconoce automáticamente el tipo de cámara coaxial HD y la resolución. ● Prueba de cable RJ45 TDR, apertura de cable, prueba de cortocircuitos y longitud, Max180m. ● Prueba de cable UTP, detecta el punto de falla cercano, medio extremo y extremo lejano del enchufe del cable RJ45. Prueba de la cámara: ● Pantalla táctil IPS de 5 pulgadas, resolución de 1920*1080 ● H.265 & H .264 IP, pantalla de vídeo 4K a través de la corriente principal ● Prueba de cámara analógica, controlador PTZ ● Prueba TVI de 8MP, 3840x2160P 12,5/15 FPS, 4xzoom, grabación y reproducción de video, control PTZ coaxial y menú OSD de llamadas ● Prueba AHD de 8MP, 3840x2160P 15 FPS, 4xzoom, grabación y reproducción de video, menú coaxial PTZ y llamada OSD ● Prueba CVI de 8MP, 3840x2160P 12,5/15FPS, 4xzoom, grabación y reproducción de video, menú PTZ coaxial y OSD de llamadas ● Prueba de 8MP EX-SDI, 3840x2160P 25/30FPS,4xzoom, grabación y reproducción de video, menú coaxial PTZ y llamada OSD ● Prueba HD-SDI, 1920x1080P 25/30/50/60 FPS, 4xzoom, grabación y reproducción de video, menú coaxial PTZ y llamada OSD ● Prueba 3G-SDI, 1920x1080P 50/60 FPS, 4xzoom, grabación y reproducción de video, menú coaxial PTZ y llamada OSD ● Aplicación HD automática, reconoce automáticamente el tipo y la resolución de la Cámara coaxial HD, admite instantánea, grabación y reproducción de video, menú PTZ coaxial y OSD de llamadas ● Entrada VGA, hasta 1920x1200 a 60FPS, admite instantánea, grabación de vídeo y reproducción. ● Entrada HD, 30fps hasta 4K, admite instantánea, grabación de vídeo y reproducción. ● ONVIF rápido, inicio de sesión automático y visualización de imágenes, Crear informe de prueba. ● Prueba IPC pro, escaneo automático de todos los segmentos de red IP, apertura automática de alimentación PoE y visualización de la potencia. Ingrese el nombre de usuario y la contraseña, puede escanear la imagen de la cámara, puede activar las cámaras por lotes. Saltar a la interfaz ONVIF y herramientas de prueba. ● Prueba de la Cámara, introduce la aplicación ONVIF, introduce el nombre de usuario y la contraseña para probar. ● IP e imagen de visualización analógica al mismo tiempo ● Prueba IPC (prueba no ONVIF) ● Salida de potencia DC12V/3A, la cámara se puede alimentar desde voltaje DC 12 ● Vídeo rápido, con solo una tecla para detectar todas las cámaras de red y pantalla automática. ● Wi-Fi integrado, muestra la imagen desde la cámara inalámbrica, crea un punto de acceso WIFI. Prueba de Cable: ● Mejora del probador de cables, cable UTP, cable telefónico, etc. prueba de pedido y conectividad, puede guardar el informe de prueba, si es un número especial, necesita ser personalizado. Puede detectar el punto de falla del extremo cercano, medio y lejano del enchufe del cable RJ45. ● Prueba de cable RJ45 TDR, estado de par de cables de prueba, longitud, atenuación, reflectividad, impedancia, madeja, etc., puede crear informe de prueba. ● Trazador de cables Digital, busque el Cable BNC, el cable de red y el cable telefónico de los cables desordenados. La búsqueda de cables y el Cable UTP se pueden probar al mismo tiempo *.(Función opcional, si necesita agregarlo, contáctenos) Otras funciones: ● Herramienta de Red: Ping, escaneo IP, Puerto Flash, servidor DHCP, ruta de seguimiento. ● Probador de reproducción: probador, versión android Teléfono Móvil y pantalla de PC al mismo tiempo. ● Monitoreo del tráfico, visualización del puerto de red o conexión WIFI velocidades de carga y descarga en tiempo real y otros parámetros de red ● Los clientes actualizan el software por sí mismos, pueden instalar aplicaciones con la versión de android. ● Reproductor multimedia, archivos de vídeo 4K y reproducción de archivos multimedia MKV/MP4. ● Muestra su resolución genuina de las imágenes de la cámara IP ● Entrada de Audio, admite grabar y guardar la lámpara de audio/LED, calculadoras, reproductores de música y otras herramientas de aplicación ● Batería de iones de litio de 7,4 V /3350mAh, después de 3-4 horas de carga, el tiempo de trabajo dura 6 horas(Para IPC-5100 plus y IPC-5200 Plus) Tabla de artículos
| |||||||||||||||||||||||||||||||||||||||||||||||||||
- Brand Name: POMIACAM
- Lens: CCTV tester
- Origin: Mainland China
- Sensor Size: CCTV tester
- Maximum IR Distance(m): CCTV tester
- Sensor Type: CCTV tester
- Model Number: IPC5200C
- Certification: CE
- Plug Type: EU plug
