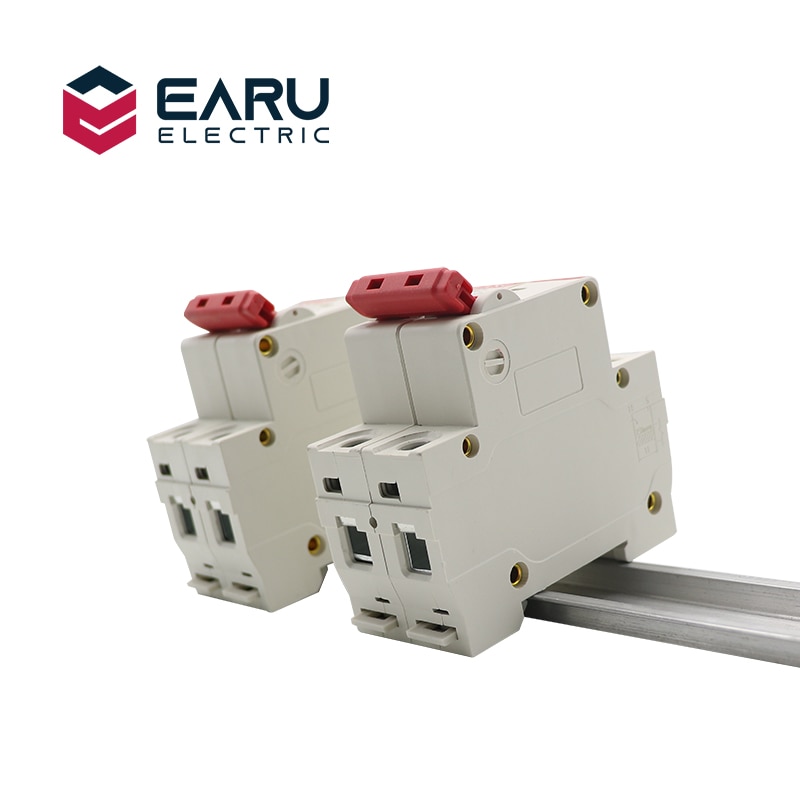

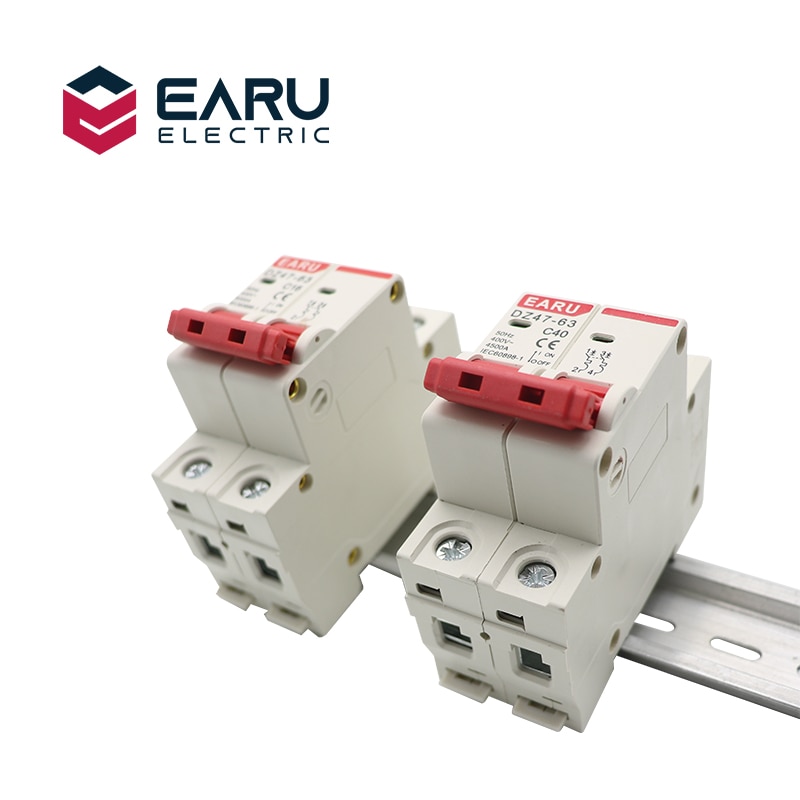

C45N 2 Pole 3A/6A/10A/16A/20A/32A/40A/50A/63A 400V~ C Type Mini Circuit Breaker Mcb Mounting 35mm Din Rail Breaking Capacity 6KA

4.9 (224 votes) | 593 orders
Price: US $9.95 - 10.76 / piece
Discount Price:
US $ 8.99 - 9.95 / piece
-10%
Ships From
Rated Current
Quantity

C45N series circuit breaker is used in lighting distribution system or motor distribution system for protecting overload and short-circuit in the system. The product is novel in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly and it's installation uses with guide, it's case and items are adopted with high fire-retartant and shockproof plastics. The product, with long life, is mainly used in AC 50Hz/60Hz, single-pole 240V or two, three, four-pole 415V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case.

GB 10963, IEC898, BS3871.1.

Specification:

No. Of pole:                                   1, 2, 3, 4P
Rated voltage                               240V/415V AC
Rated current                                 (C):  6, 10, 16, 20, 25, 32, 40, 50, 63A

Breaking capacity                            6kA
Electrical life                                no less than 6000 times
Mechanical life                            (0-c)no less than 20000 times
Tropical trial Treatment                    2(RH 95% at 5'C)

As per Instantaneous release type:   C type (5ln~10ln)


Sequence
NO .

Release

Test
current I/In

Start state

Tripping
time

Expected
restlt

1

B,C,D

1.13In

Cold state

t≤1h

Not tripping

2

B,C,D

1.45In

Start right after
the serial NO .
1 test

t<1h

Tripping

3

B,C,D

2.55In

Cold state

1s

Tripping

4

B
C
D

3In
5In
10In

Cold state

t≤0.1s

Not tripping

5

B
C
D

5In
10In
20In

Cold state

t<0.1s

Tripping

Frame class

63A

Rated working voltage

240V/415V

Rated frequency

50/60Hz

Rated working current

6,10,16,20,25,32,40,50,63A

Making and breaking capacity

6000A(6~40A),4500A(50,63A)

Release type

B,C,D

Poles

1,2,3,4P

Mechanical life

20000

Electric life

6000

We can offer OEM service to manfacture the circuit breaker with your logo,

if you need,feel free to contact the seller!












  • Is Smart Device: No
  • is_customized: Yes
  • Model Number: DZ47-63
  • Type: Mini
  • Brand Name: EARUELETRIC
  • Origin: Mainland China
