Beok Wireless Zone Thermostat Controller for Gas Boiler Water Floor Heating System 8 Sub-chamber and Actuators BOT306 Series
4.7 (42 votes) | 69 orders
Price:
US $58.81 - 214.24
/ piece
Discount Price:
US $
44.44 -
141.06
/ piece
-24%
- Color
-
-
- Voltage
CCT-10-X Hub Controller / BOT306 series Wireless Thermostat / Electric Thermal Actuators
·Wireless means that there is a wireless connection between the thermostat and the hub.
WIFI means that the thermostat can be controlled by mobile phone.
Wireless is not equal to WIFI ！！！！
NOTE:
· CCT-10-X can only work with BOT-X306-NR and BOT306RF-WIFI-NR these two wireless thermostats.
· The BOT-X306-NR and BOT306RF-WIFI -NR wireless thermostat in this link does not contain the receiver! （NR=No Receiver）
Product Introduction
CCT-10-X Wireless Hub is used in water underfloor heating system.
It can control zone valves, or boiler thermostats. As central control unit, it can also control wireless thermostats and electric thermal actuators.
According to user’s set temperature, hub controller can control to open or close boiler, circulating pump and electric actuators to achieve the purpose of comfort and energy consumption saving.
Working principle:
The CCT-10-X hub works together by connecting the boiler, water pump, actuator, and temperature controller. When the temperature controller detects the need for heating, it will send a heating signal to CCT-10-X. CCT-10-X will control the boiler and pump to turn on, and also control the corresponding room's actuator to turn on, allowing hot water to flow into the room that needs heating.
NOTICE :
* The CCT-10-X is connected to the NC actuator by default. If you need to connect the NO actuator, press and hold the debug button for 7 seconds to switch.
* Up to 8 pcs BOT-X306-NR and BOT306RF-WIFI-NR can be connected to one CCT-10-X.
* CCT-10-X and BOT-X306-NR are wireless products, not Wi-Fi products, they cannot be controlled by phones!
BOT306RF-WIFI-NR is WIFI product , it can be controlled by phones!
How many rooms can a hub control the temperature of?
* One CCT-10-X can independently control the temperature of 8 rooms.
* Up to 8 pcs BOT-X306-NR and BOT306RF-WIFI-NR can be connected to one CCT-10-X.
* CCT-10-X and BOT-X306-NR are wireless products, not Wi-Fi products, they cannot be controlled by phones!
BOT306RF-WIFI-NR is WIFI product , it can be controlled by phones!
How many actuators can each zone control?
* A CCT-10-X can control 8 zones, as long as it ensures that there is no overload, each zone can be connected to 8 actuators.

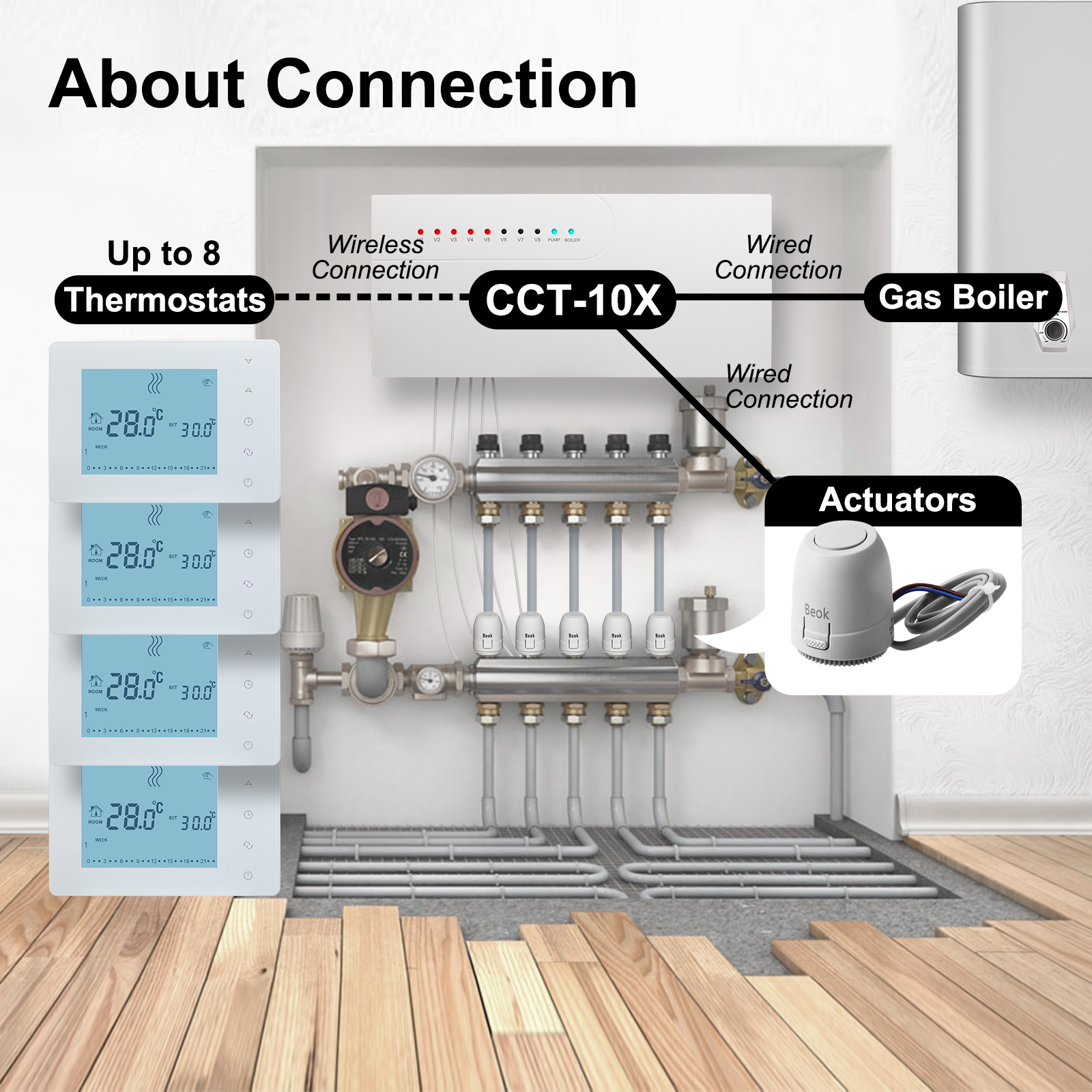

Wiring diagram:
1. Wireless Hub Controller
2. Wireless Thermostat
3. Gas boiler
4. Circulating pump
5. Electric actuator
Installation
If you want to debug or check whether the hub controller is working properly, before power on, you can press and hold the debug key, then make controller powered. At this time, time delay function fails, so you can quickly check and debug your required function(debugging function will fail without operation for 20 minutes).

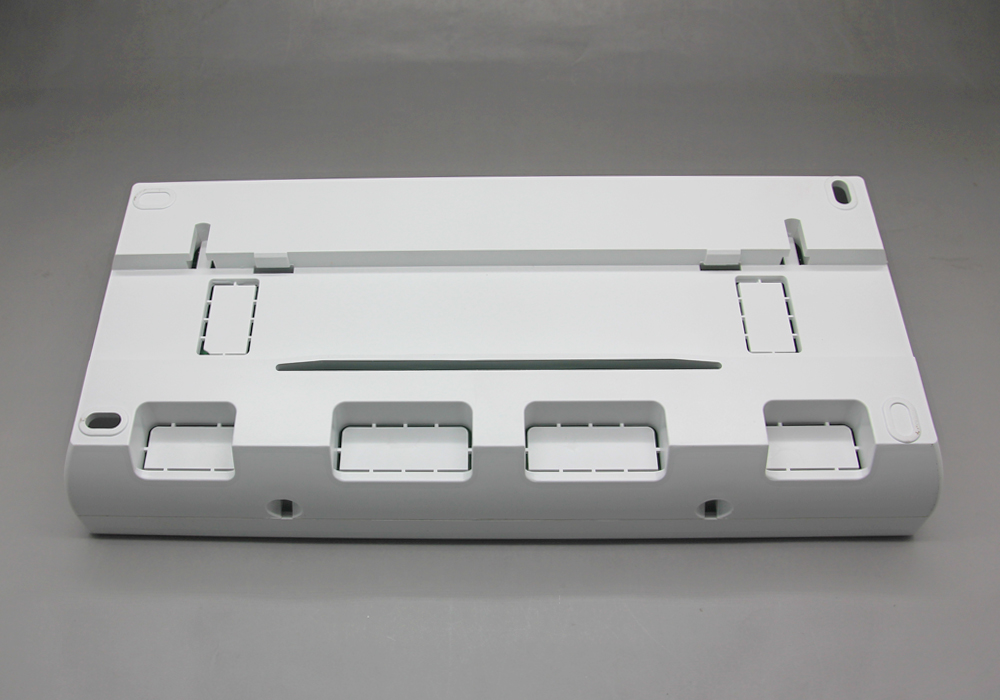

When controller is installed, you can pry 4 threading holes, and and go through power control wires from bottom. Controller can be installed by 2 self tapping screws fixed.
Each output has a corresponding indicator light, clear and easy to find fault.

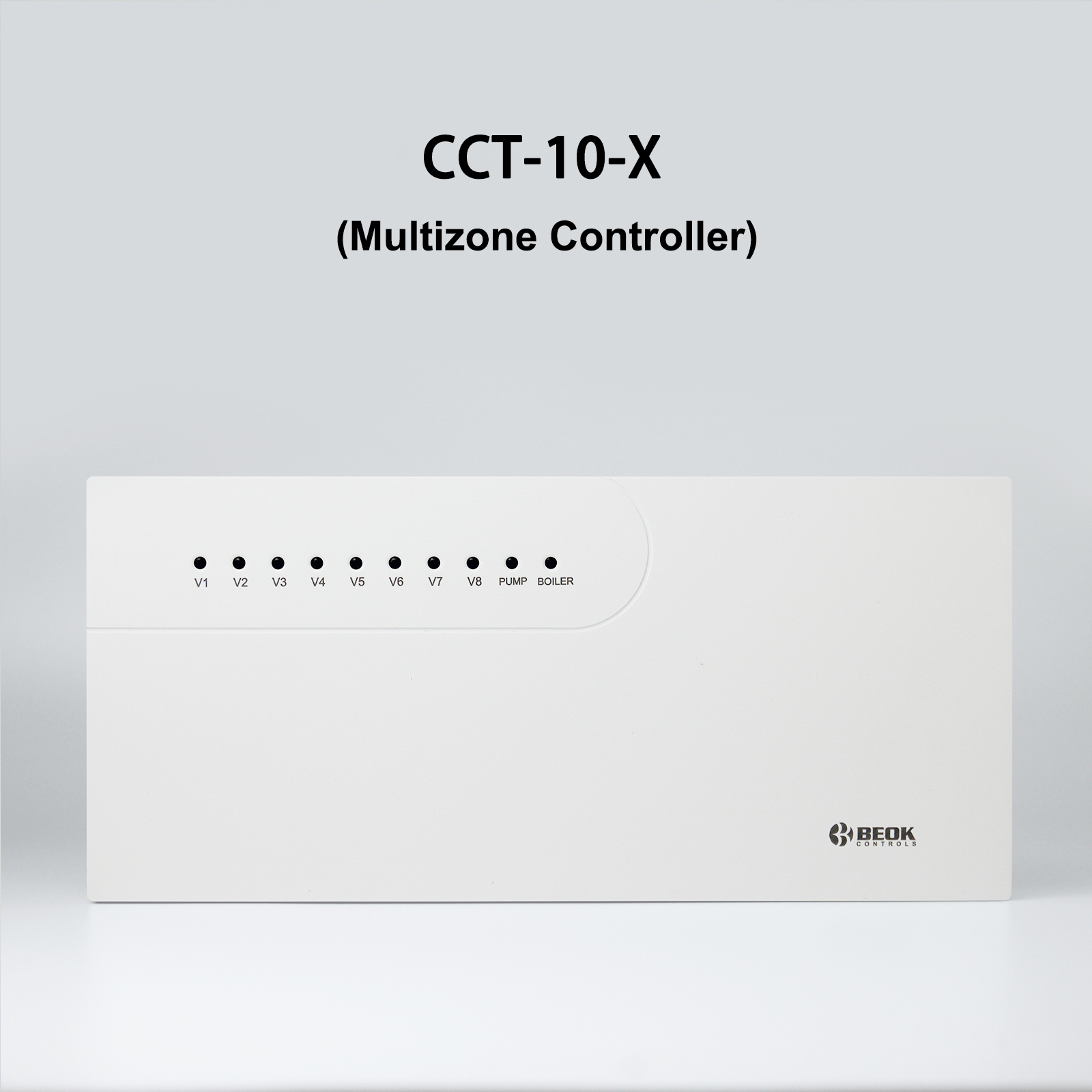

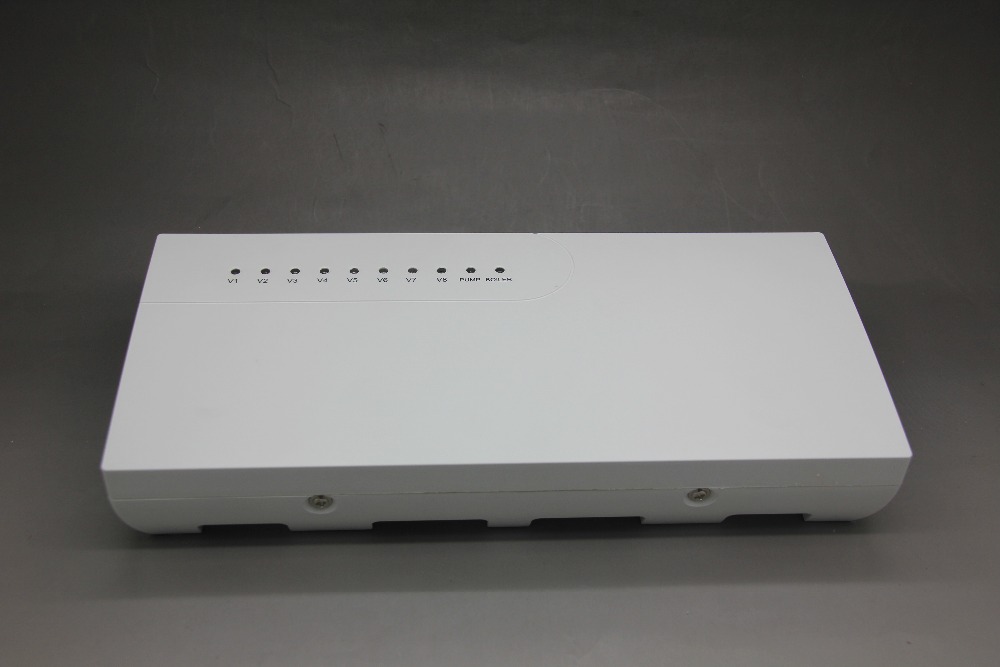

CCT-10-X
Product Advantage
1 Easy to connect with power:
user only needs to reserve main supply in the place of manifold before installation, and directly connect one three-wires cable to
thermostats. So user do not need professional wiring workers;
2 Easy to connect wires: user only needs to connect wires according to wire colors;
3 Easy maintenance after installation: all wires are very clear and neat;
4 To protect boiler or pump:
because hub controller has time delay function, it opens boiler and pump only when water valve is totally opened, and closes
boiler when temperature reaches requirements. Time delay to open boiler and pump when heating can realize the purpose of
energy-saving;
5 To extend boiler and pump life:
hub controller only start boiler and pump in appropriate temperature, in this way, it will reduce boiler and pump running time, to
extend their working life.
The Difference
BOT306RF-WIFI-NR: With wireless and wifi function. Powered by USB type-C
BOT-X306-NR: With wireless function, no wifi function. Powered by AA battery
Attention

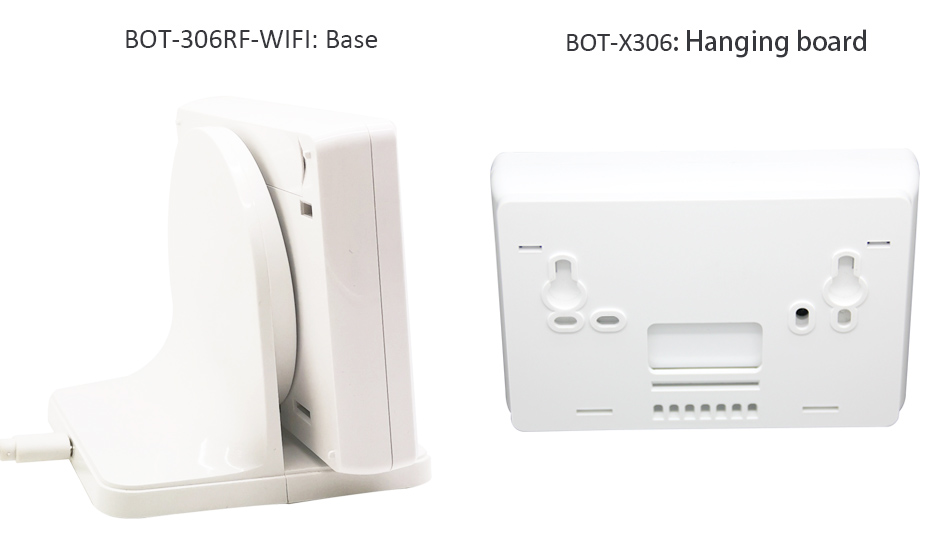

1. The controller of BOT306RF-WIFI-NR need to rely on the base and always connected to USB type C for power supply, can 't put into battery!!!
2. The controller of BOT306RF-WIFI-NR can only stand on the base, can't be hung on the wall.
3. BOT306RF-WIFI-NR does not include a charging head, it need to use your own mobile phone charging head for power supply.

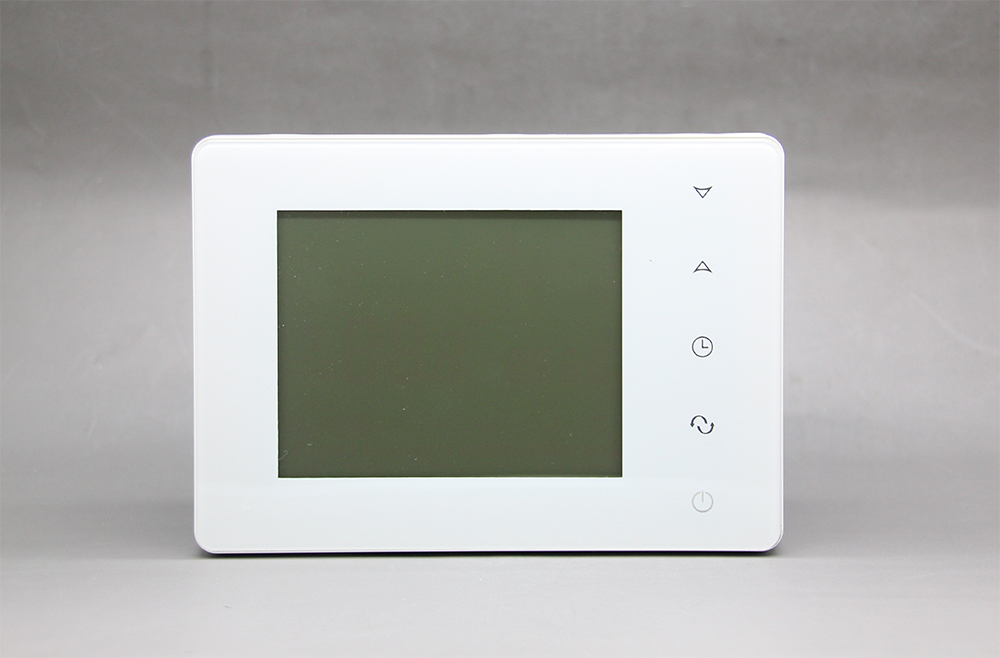

Function (BOT306 Wireless Thermostat)
- Wireless control, easy to place, 100 meters long control distance in open environment, 300 meters indoor.
- Big digital display, select themperature setting freely.
- High reliablity, energy-saving and powerful anti-jamming.
- 5+2/6+1/7 days week program function for chice.
- Manual mode and auto mode selectable.
- With child lock function, prevent children from accidentally touching.
- Anti-freeze function, prevent loss caused by low temperature.
- Power memory function, save the original settings after power off.

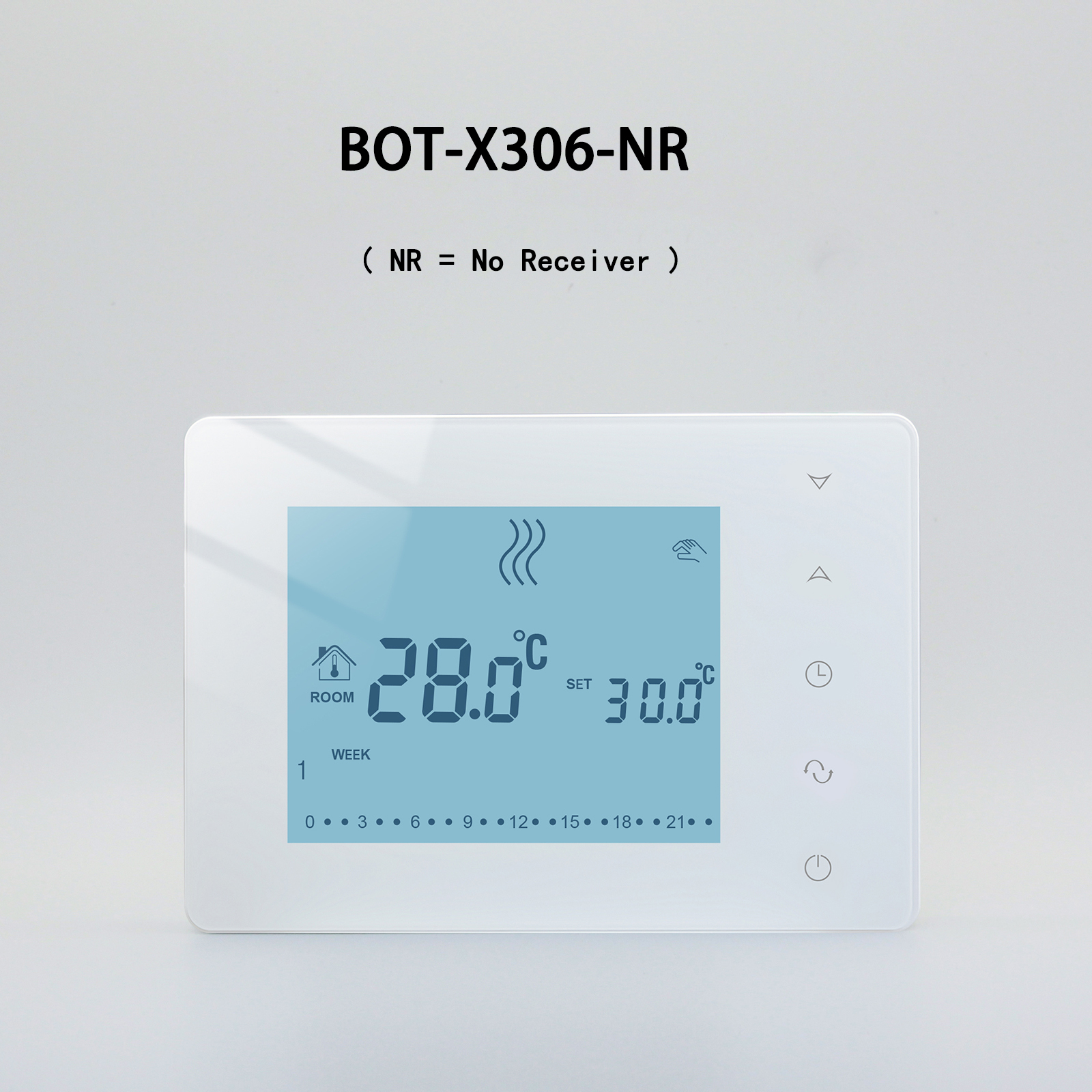

BOT-X306-NR
Package List
1 * Thermostat
1 * Wall Hunging Cover
1 * User Manual
2 * Screw.
(No Receiver !!!!)

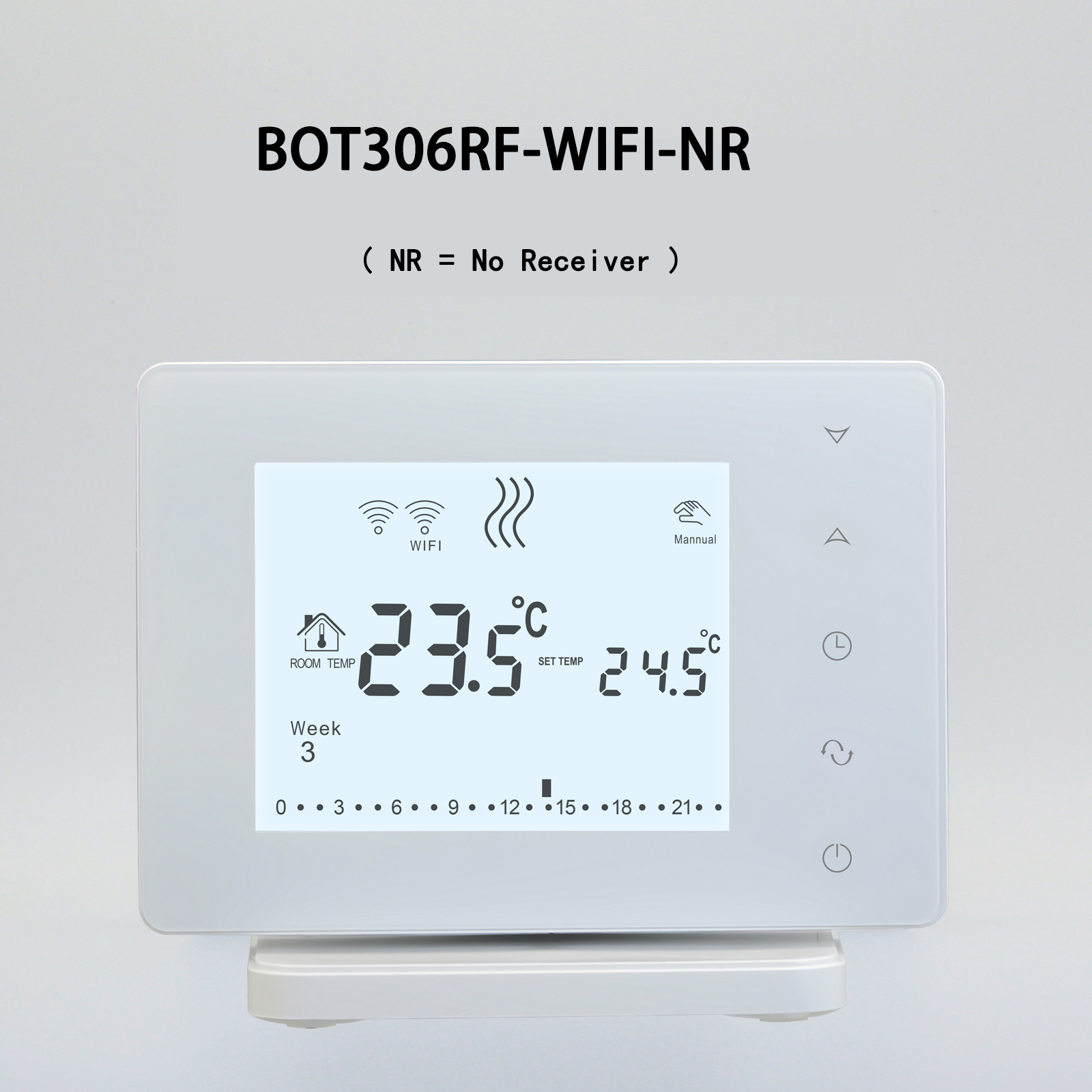

BOT306RF-WIFI-NR
Package List
1 * Thermostat
1 * Bracket
1 * USB line
1 * User Manual
2 * Screw.
(No Receiver!!!)

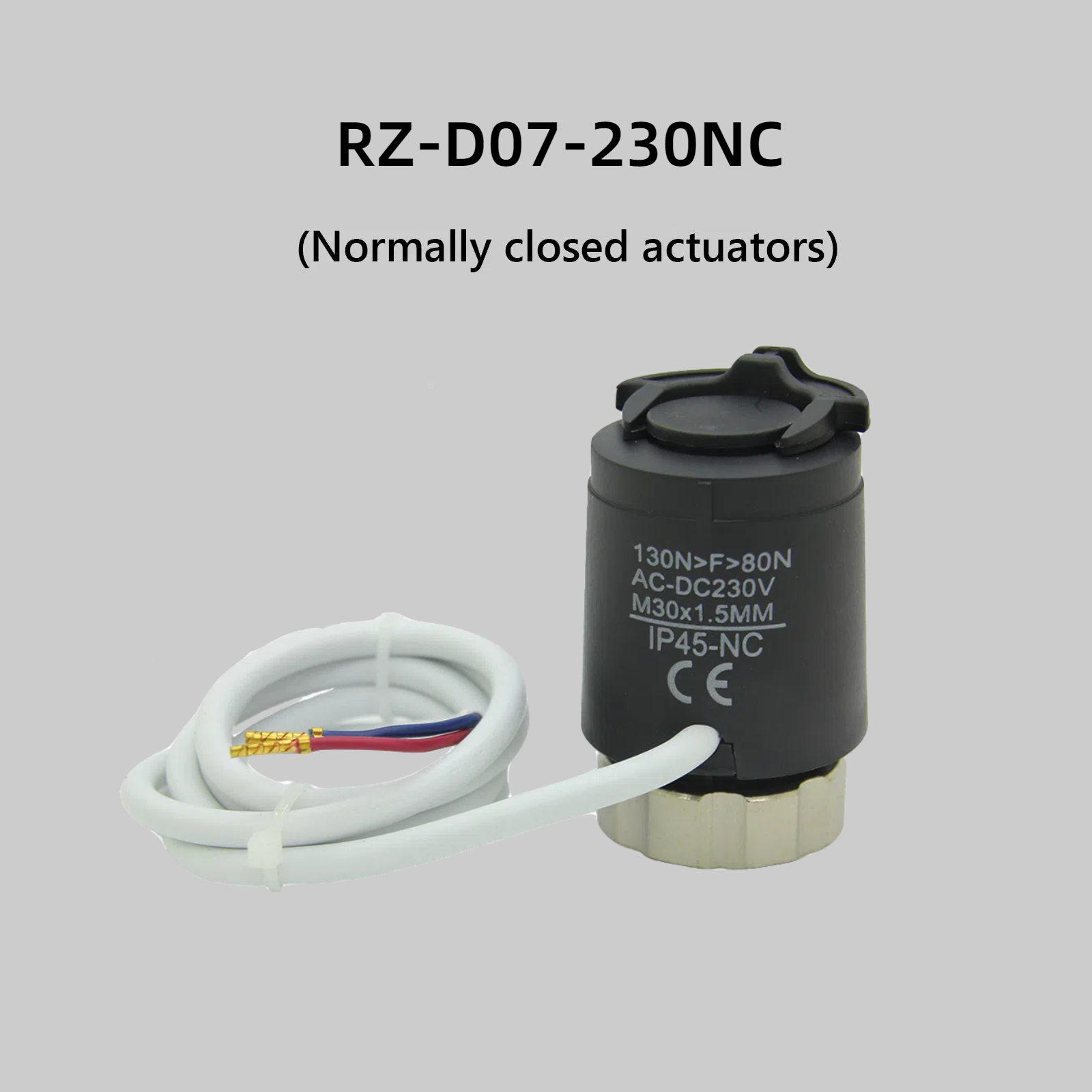

230V Actuators
Technical Description
CCT-10-X Wireless hub controller:
Power Supply: 170-240VAC 50\60HZ
Current Load: 3A
Size: 240mm X 110mm X 42mm
Working Temp: -20 - 60 celsius
Storage Temp: -20 - 70 celsius
Color: White
BOT-X306 wireless thermostat:
Working Voltage:1.5V X 2pcs AA battery
Current Load:3A
Temperature Control Accuracy:±0.5ºC
Setting Temperature Range: 5ºC-35ºC
Limiting Temperature Range:5ºC-99ºC
Consumption:<0.3W
Temperature Sensor:NTC
BOT306RF-WIFI-NR
Working Voltage: USB Type C
Current Load:3A
Temperature Control Accuracy:±0.5ºC
Setting Temperature Range: 5ºC-35ºC
Limiting Temperature Range:5ºC-99ºC
Consumption:<0.3W
Temperature Sensor:NTC

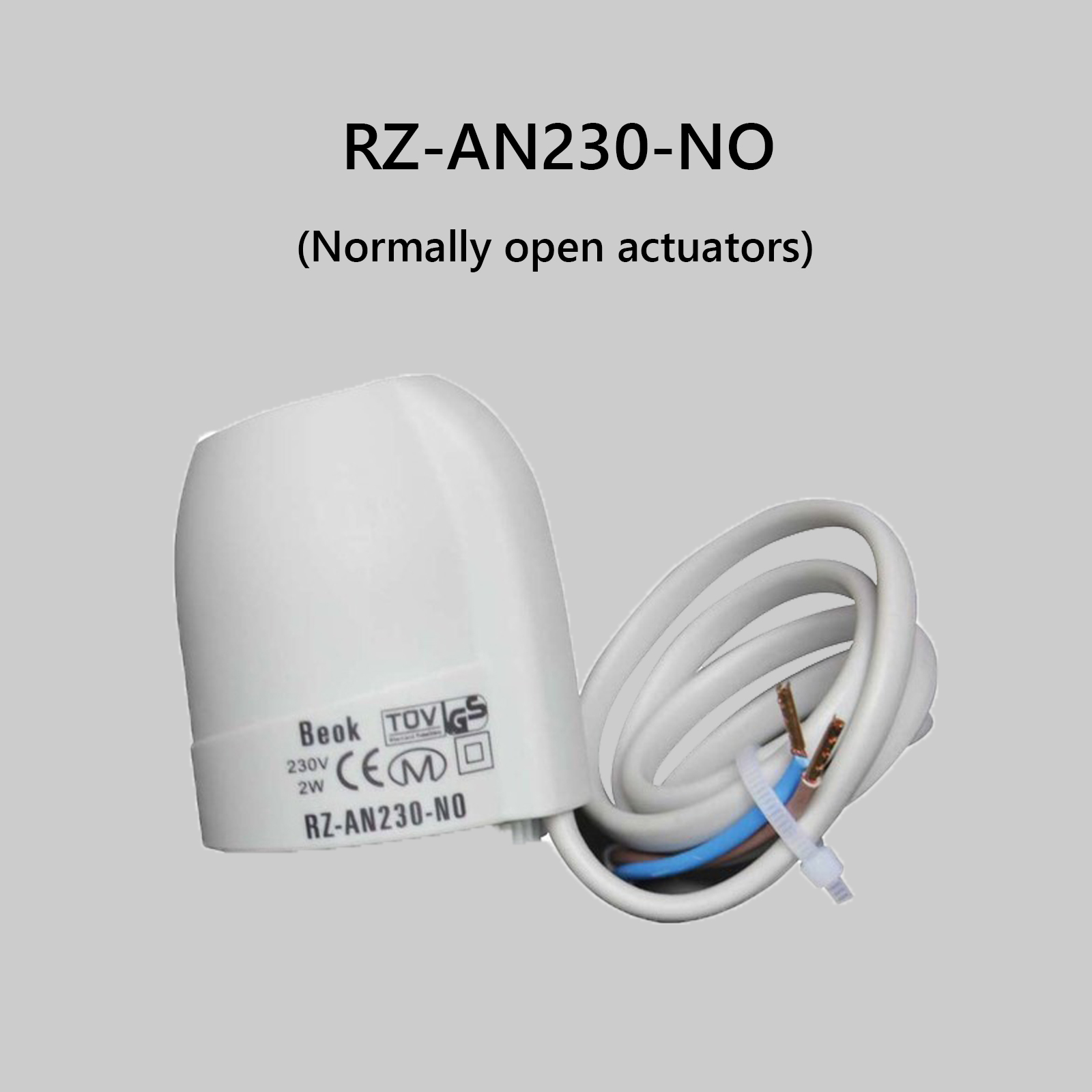

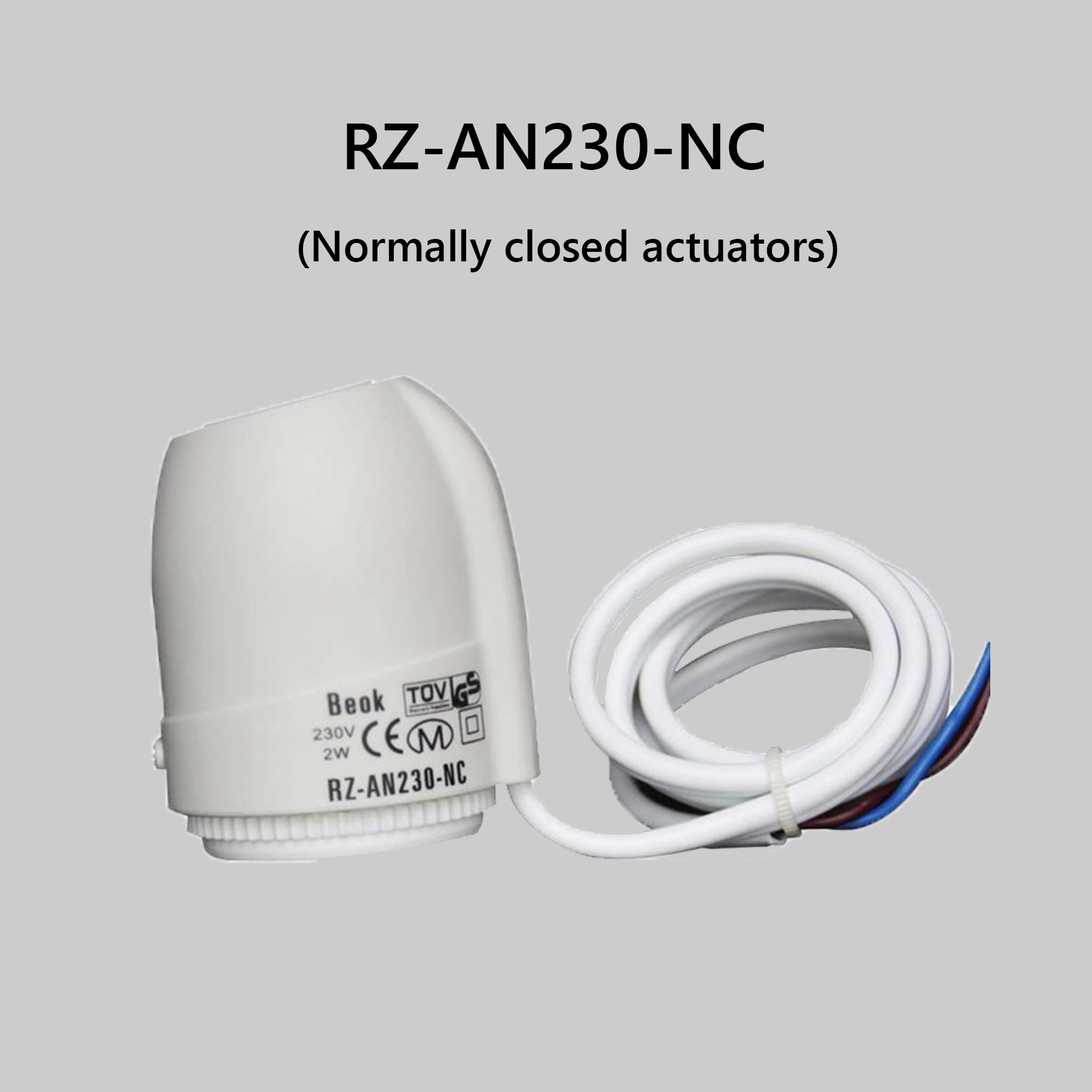

RZ-AN230 Actuator
Model: RZ-AN 230-NO/NC
Working Voltage: 230VAC±10%
Initial Current: About 50MA
Power Consumption: 2W
Protection Grade: IP41
Working Journey: 3.5~3.6mm
Working Temperature: -20~50℃
Storage Temperature： -25~60 ℃
Security Class： II(Double Insulation)
Cable Length：65cm
Running Time：180seconds (open-closed)
CE Standard：EN60730
Size ： M30*1.5

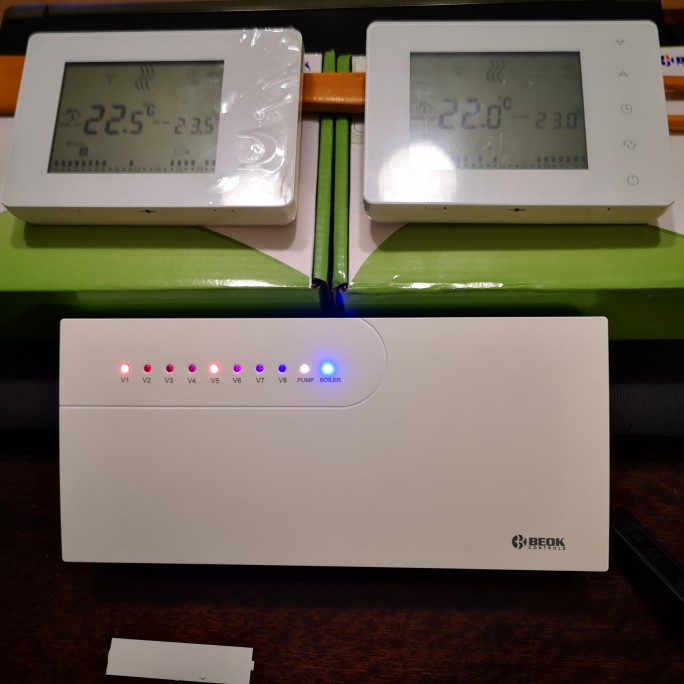

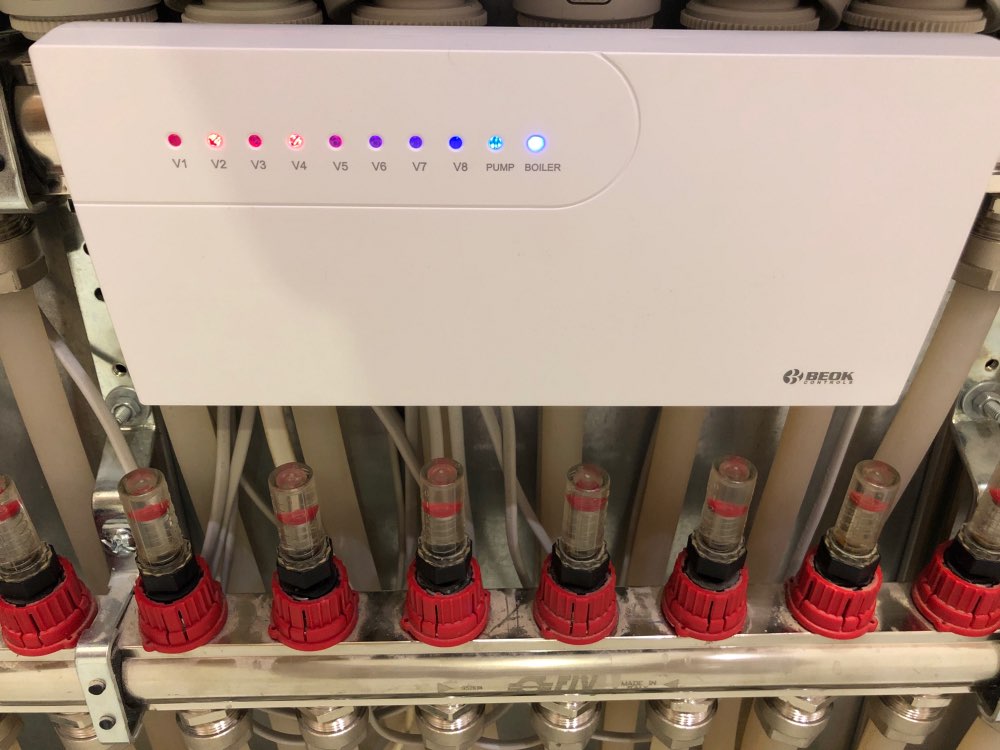

Buyer Show
Packaging Details
- Unit Type: piece
- Package Weight: 0.550
- Package Size: 12x6x30
- Brand Name: beok
- Wattage: 220-240V
- Certification: CE
- Origin: Mainland China
- Hign-concerned Chemical: None
- Model Number: CCT-10-X
- Hub controller Power Supply: 170-240VAC 50\60HZ
- Frequency hub controller: 467MHz
- Connecting Device1: thermostat for the boiler
- Connecting Device2: wireless programmable thermostat
- floor heating thermostat: water underfloor heating system
- Current Load: 3A
- Working Temp: -20 ℃ ~ 60 ℃
- Storage Temp: -20 ℃ ~ 70 ℃
- Which Servo can connect: Normally closed and open actuator
- If can connect with pump: Linkage Less 100w, Normally less 500W
- The maximum distance: About 300 Meters without obstacle
- How many servo can be connected: Totally 8 outputs ,1 output up to 5 servos
- Thermostat: thermostat rf wifi
