ID: 79778

Visible Power-on-lock Time Delay Electric Bolt Lock/Surface Bolt Lock

0.0 ( votes)
Price:
US $ 230.43 / piece
Quantity




Visible power-on-lock time delay Electric Bolt Lock/surface bolt lock


Model:HM-K29

Feaures:

  • The blot of this lock is so strong design and the switch is located correctly. It can withstand an extremely strong impact without any deformation.

  • Surface blot lock can be installed at 90 degree and 180 degree.

  • Only simple tools are needed to install the surface bolt lock: power drills and screwdrivers

  • Current voltage: operating and standby voltage consumption is 12VDC/the current consumption is only 180mA(Max)

  • The electric bolt lock uses the same power supply with any locks,sensors and card readers altogether. It will be compatible with any other brand of sensors and card readers.

  • These devices have been tested more than 5000,000 times.Precision,durability and reliability.


Specification

Surface bolt lock

Power to lock

Power source

12VDC

Current consumption

180mA(MAX)

Lock delay setting

2.5-5 seconds setting available

Unlock  contact

Grey: COM  Purple: NC  White:NO

Lock contact

Grey:Com  Purple:NO White:NC

Position Installation

On top of the door/side of the door

Door detection

Green&Blue: NC

Contact capacity: DC12V/30mA

Operating temperature

-10~ +50oC

Weight

512g

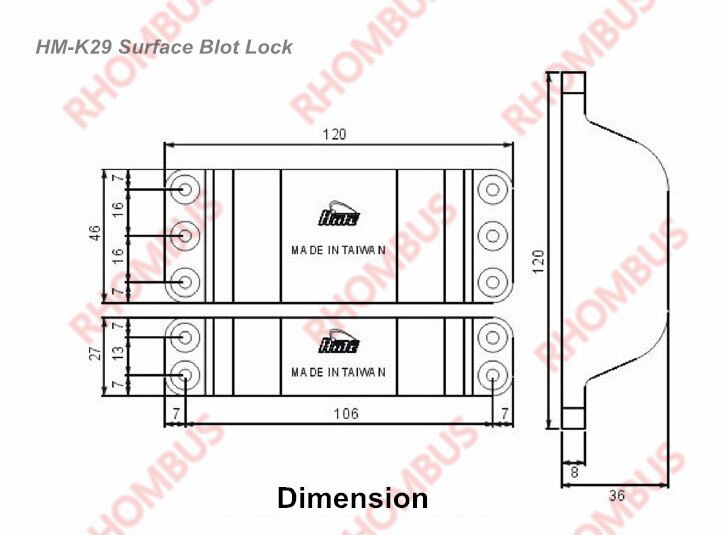

Dimension


Installation diagram




  • Model Number: HM-K29
  • Origin: Mainland China
