Air cooled spindle motor Kit 500W ER11 220V 12000rmp + Speed Controller + 52mm support bracket for CNC Router Machine
0.0 ( votes)
Price:
US $241.28 - 328.68
/ piece
Discount Price:
US $
215.63 -
289.92
/ piece
-11%

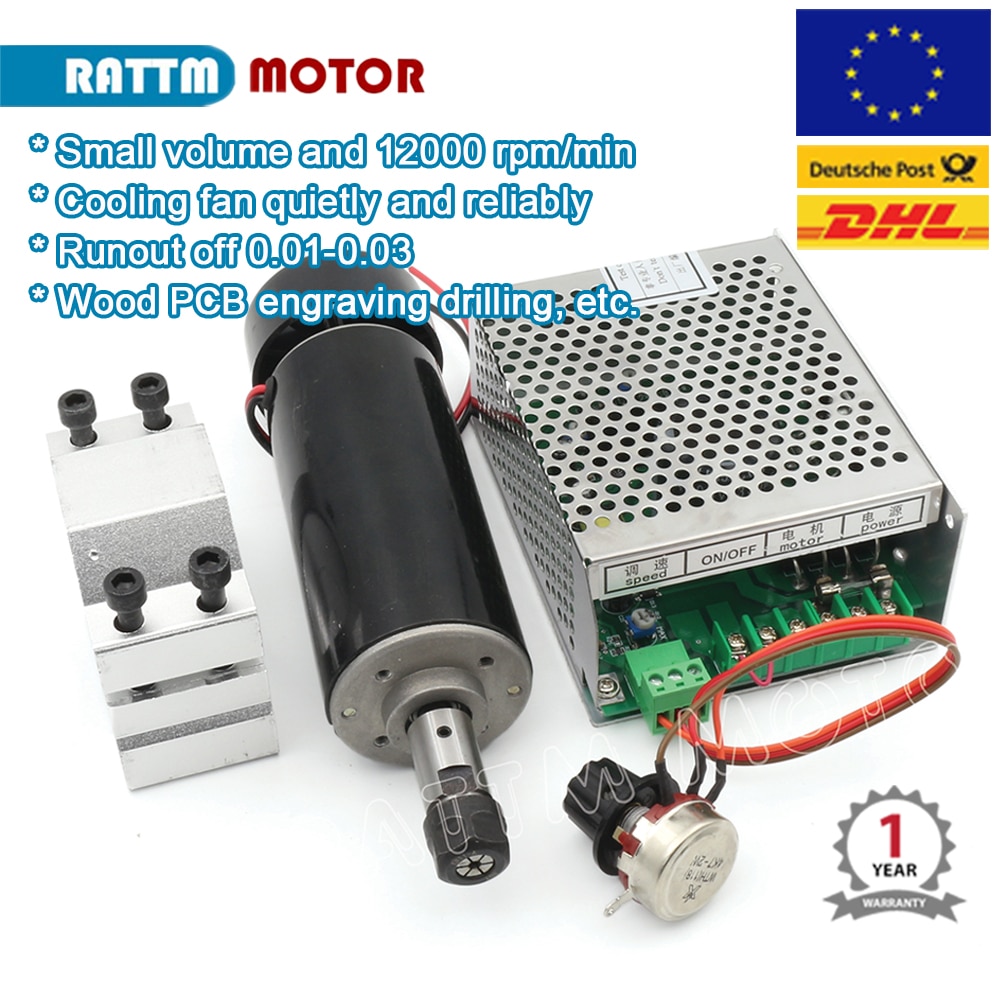

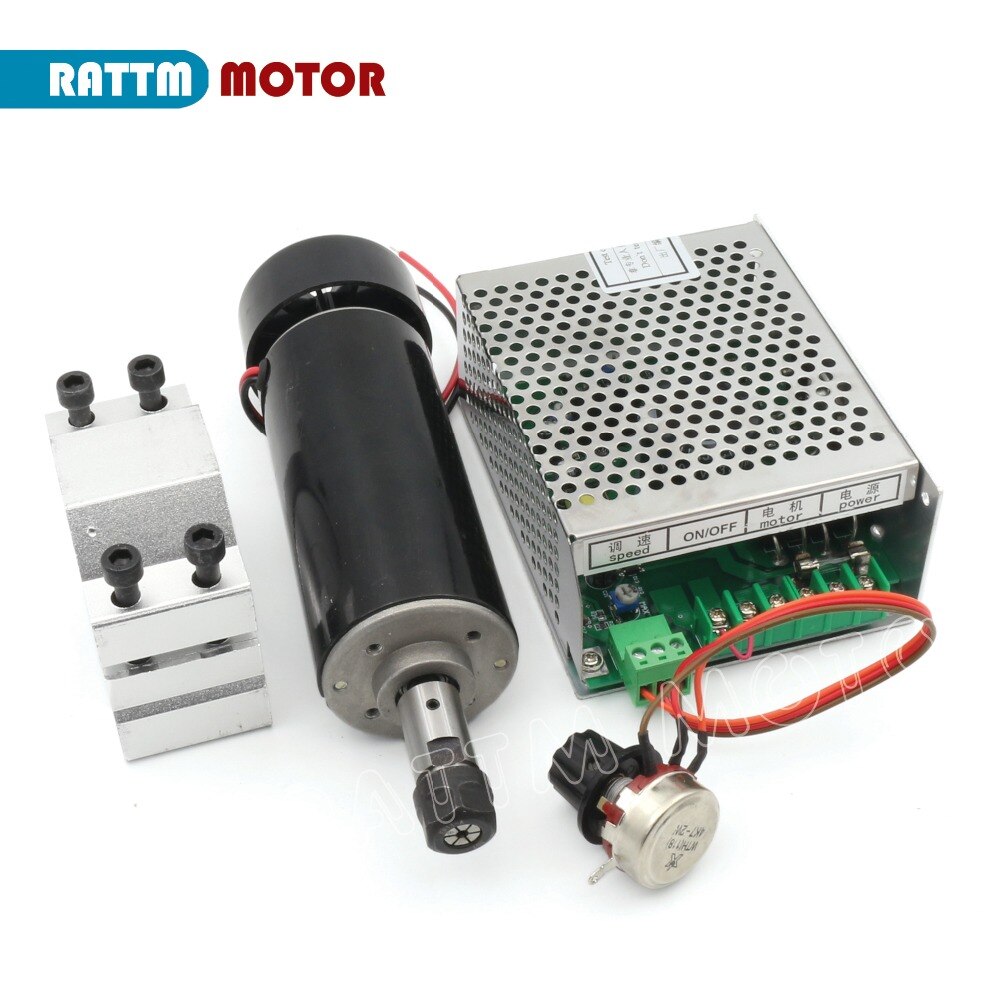

Package include:
500W DC Air cooled Spindle motor Kit Packing list | |||
Part NO. | Item | Specification | Quantity |
Part1 | 500W Air cooled spindle | 100V,ER11 collect | 1pcs |
Part2 | 50~500W speed governor | 0-100VDC,6A | 1pcs |

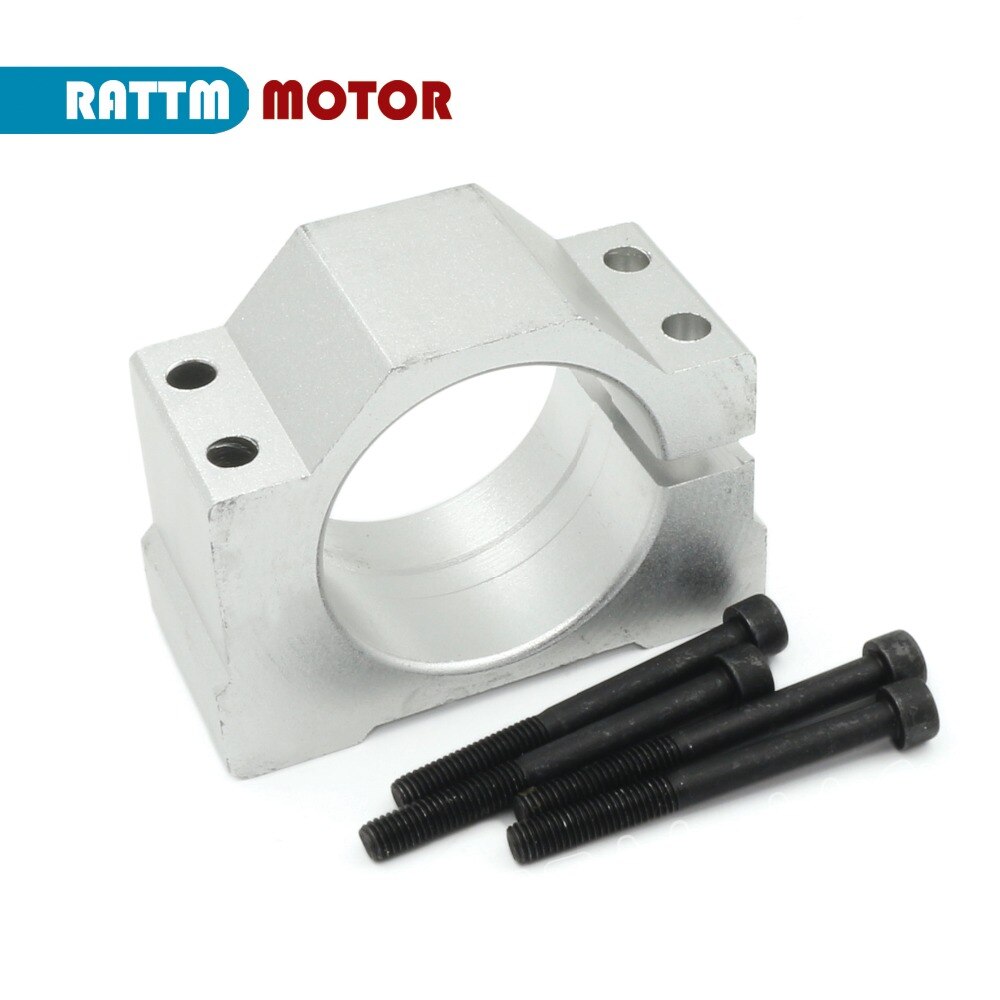

Part3 | motor clamp | φ52mm | 1pcs |
Part3 | Screws | / | 4psc |
Product Description:
☑Small volume and 12000 rpm/min.
☑Cooling fan quietly and reliably.
☑Runout off 0.01-0.03.
☑Wood PCB engraving drilling, etc.

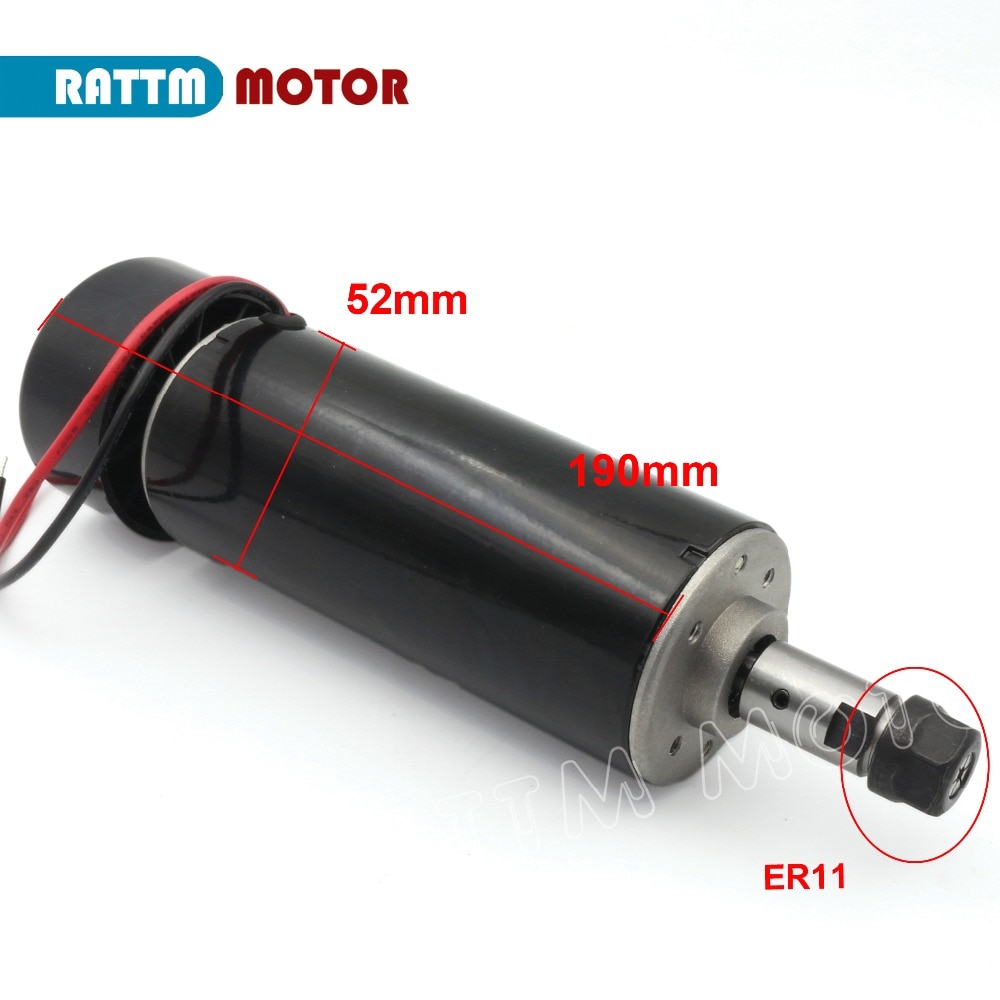

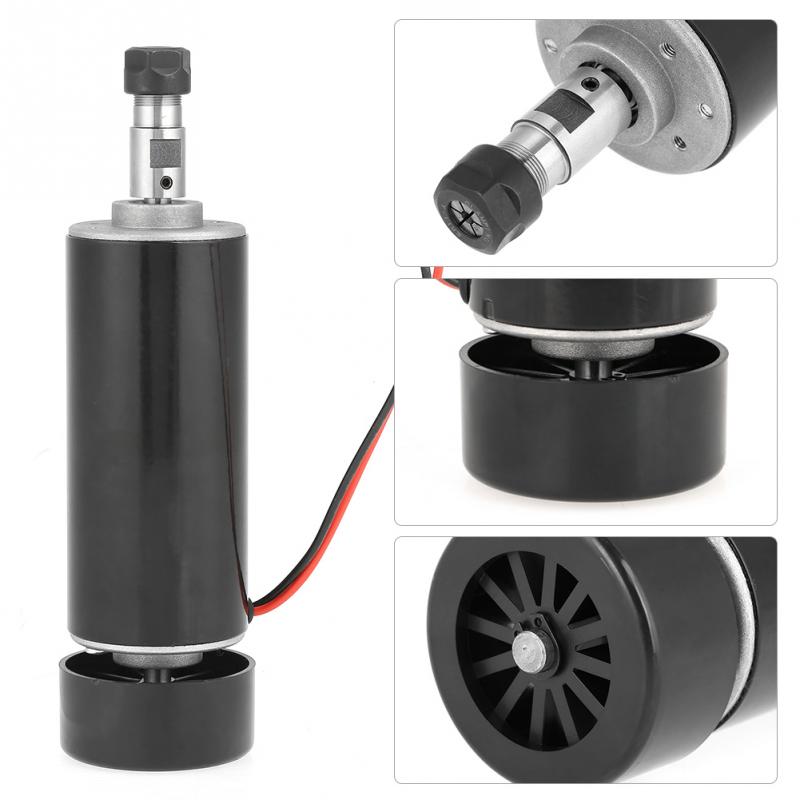

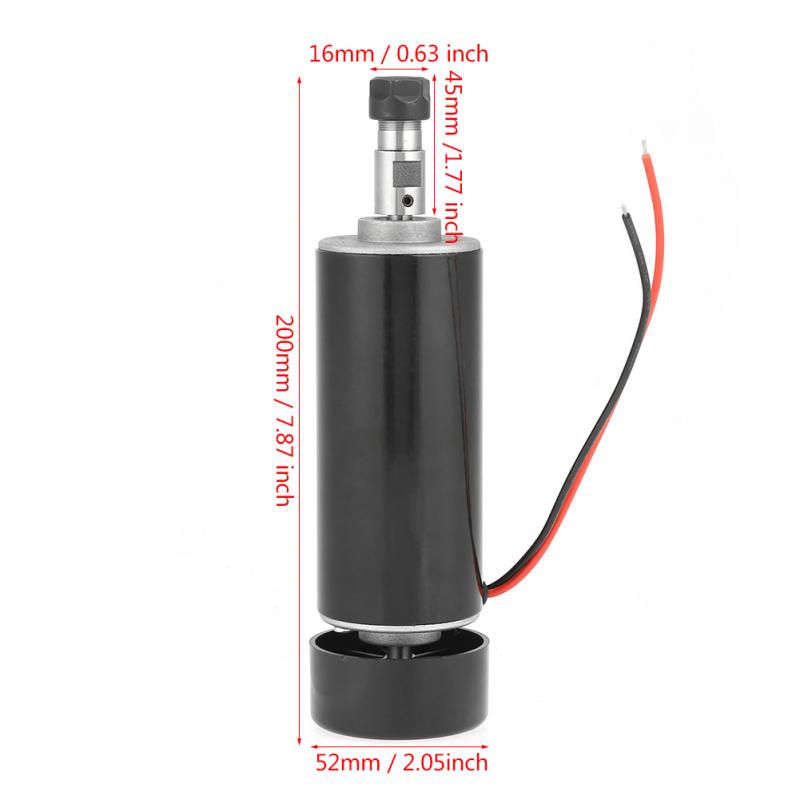

500W DC Air cooled Spindle Motor
500W Air Cooled Spindle Motor Parameter | |
Operating voltage | 12-100VDC |
Power | 500W |
Idle speed | 2000-12000 rev/min |
Torque | 0.5NM |
Insulation resistance | > 2 megohms |
Dielectric strength | 400V |

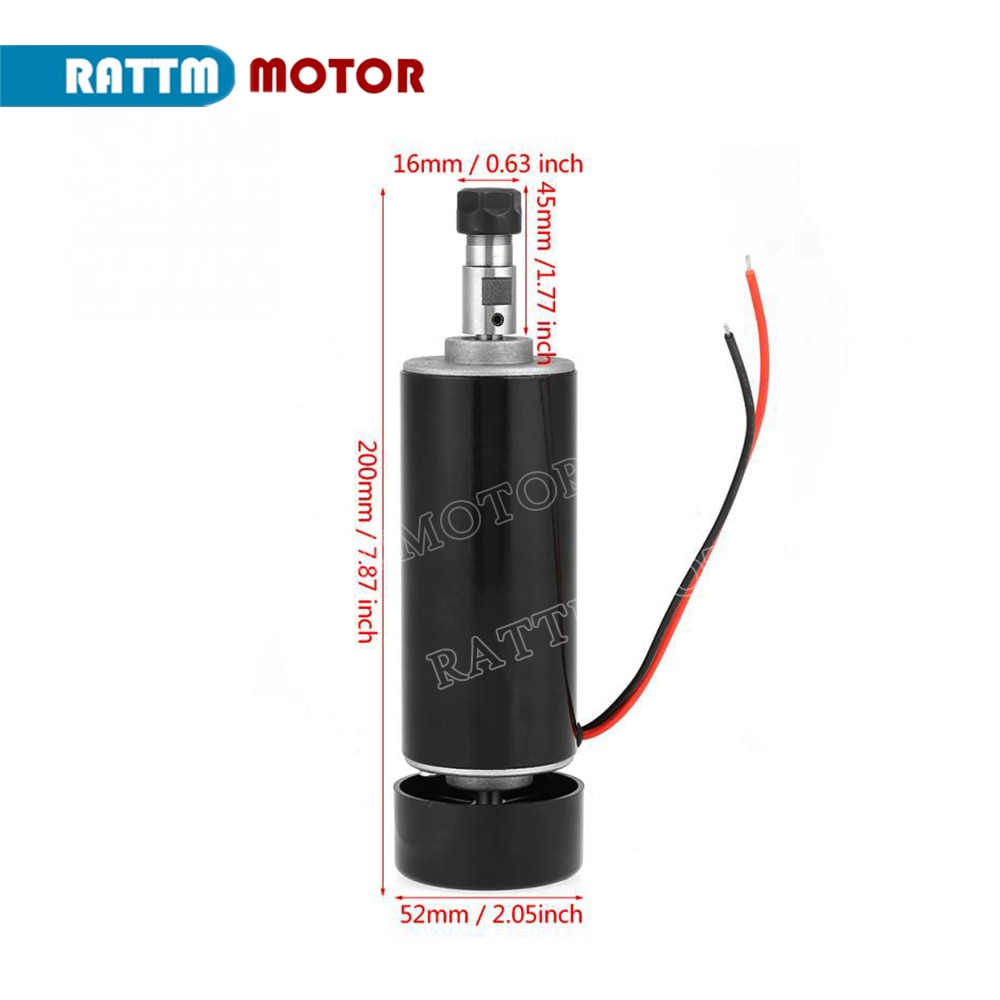

Diameter | 52mm |
Chuck portion length | 45mm |
Chuck portion diameter | 16mm |
Motor Length | approx. 190mm |
spindle run out | 0.01-0.03m |
Main application | wood PCB engraving drilling and so on. |

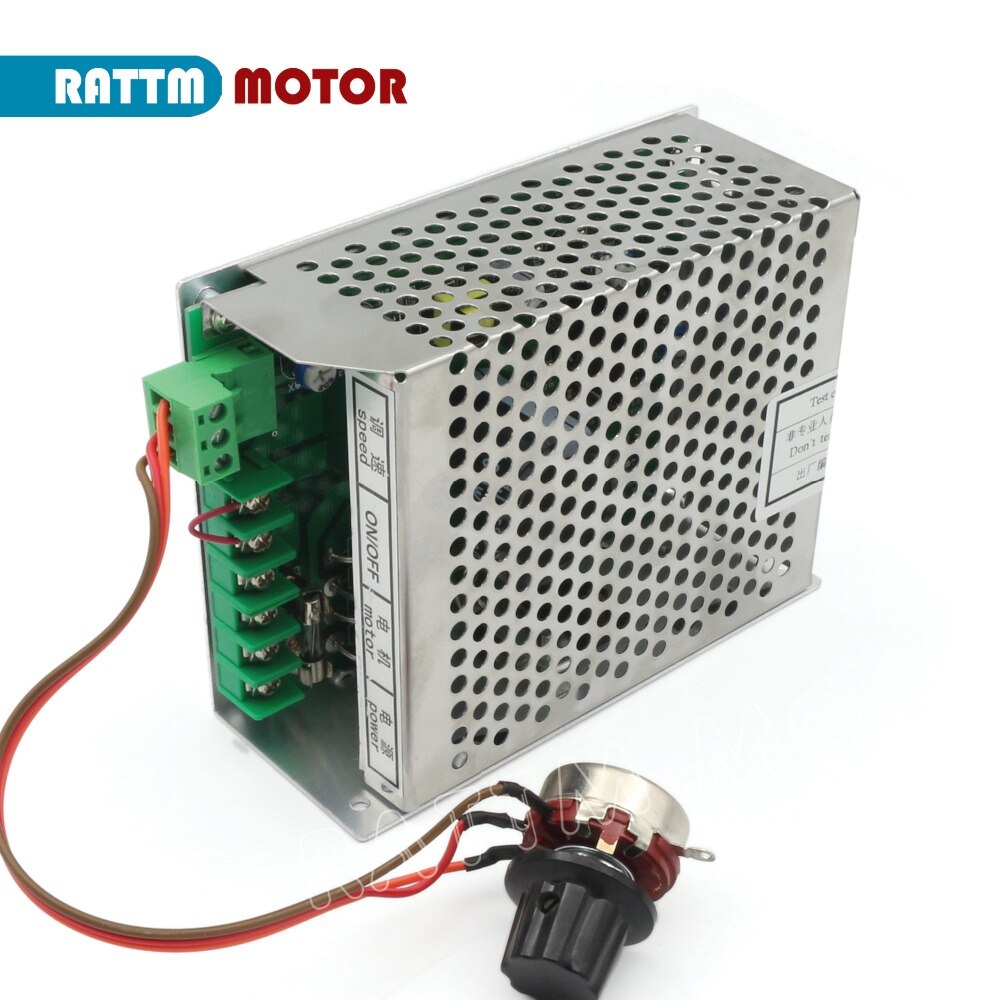

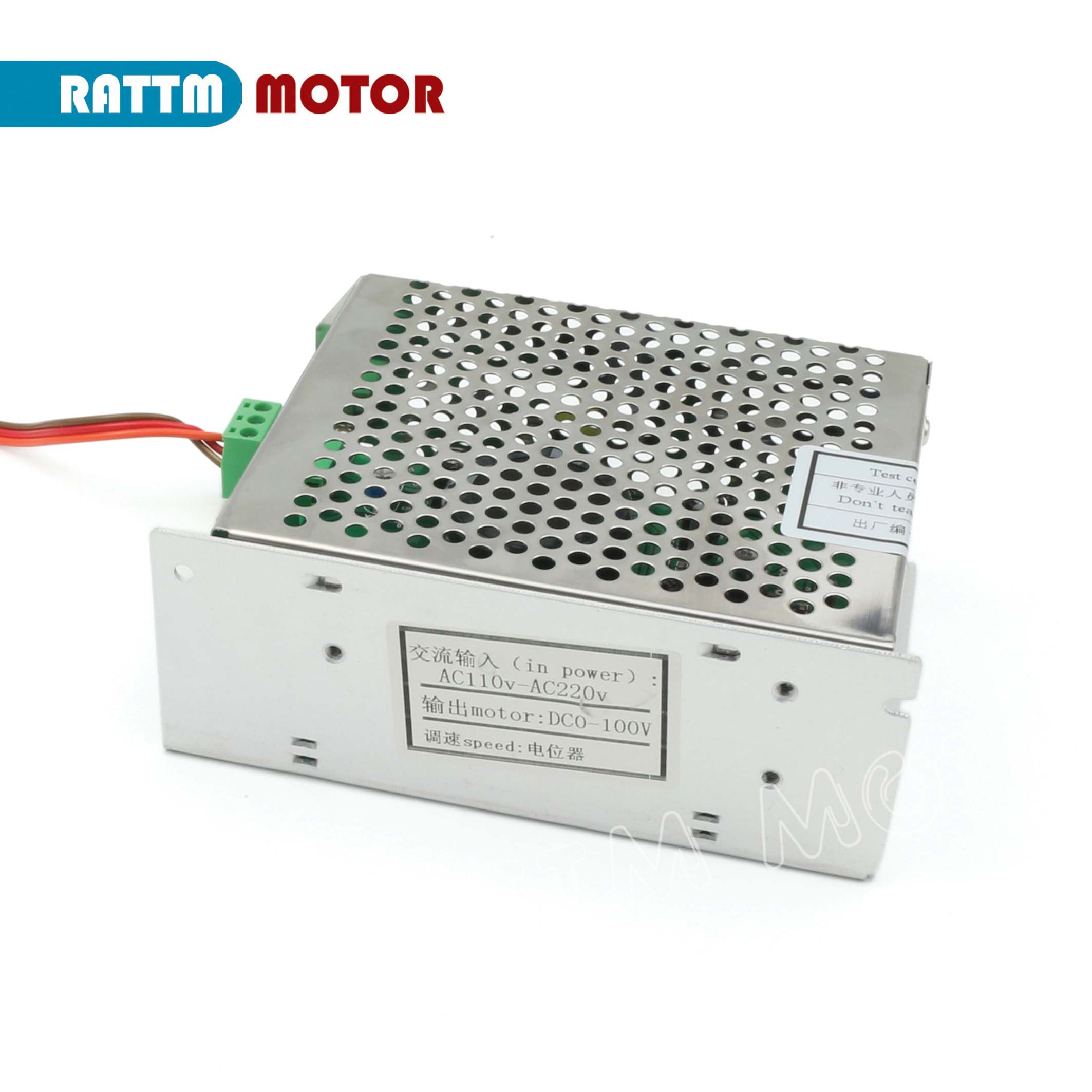

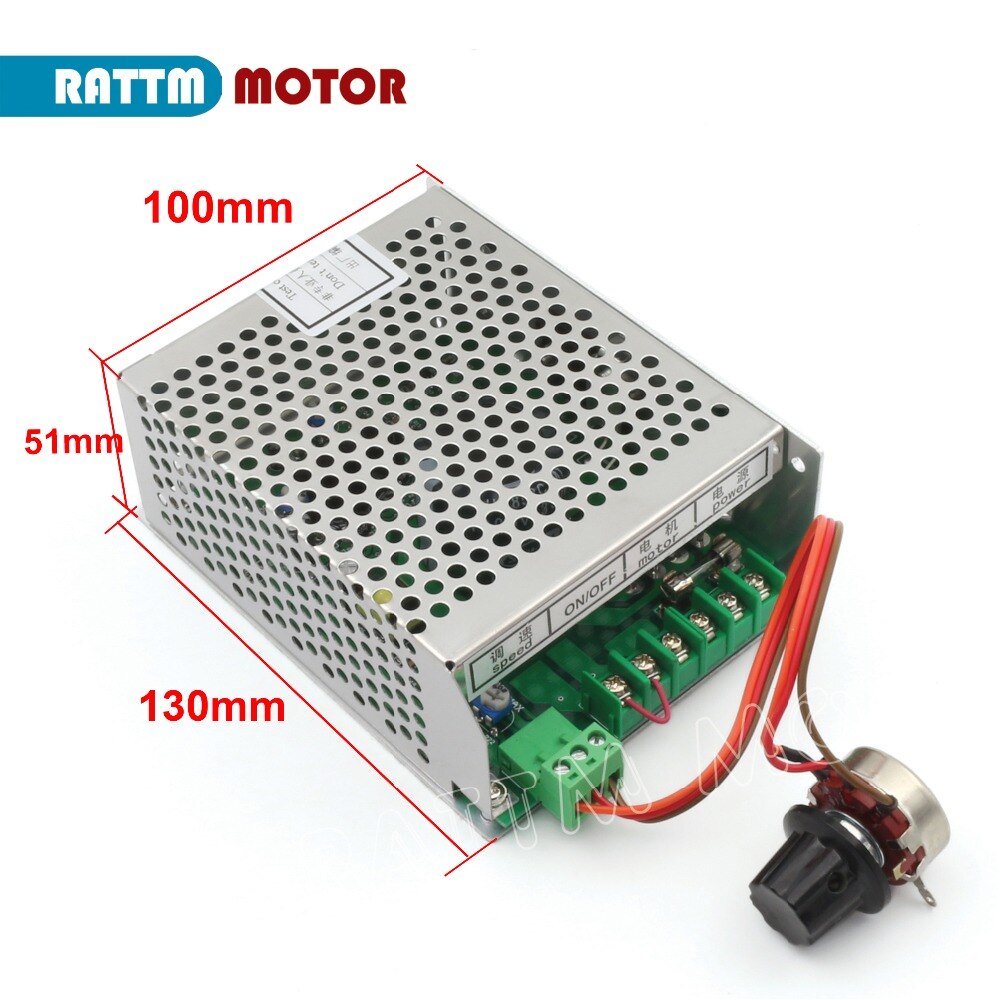

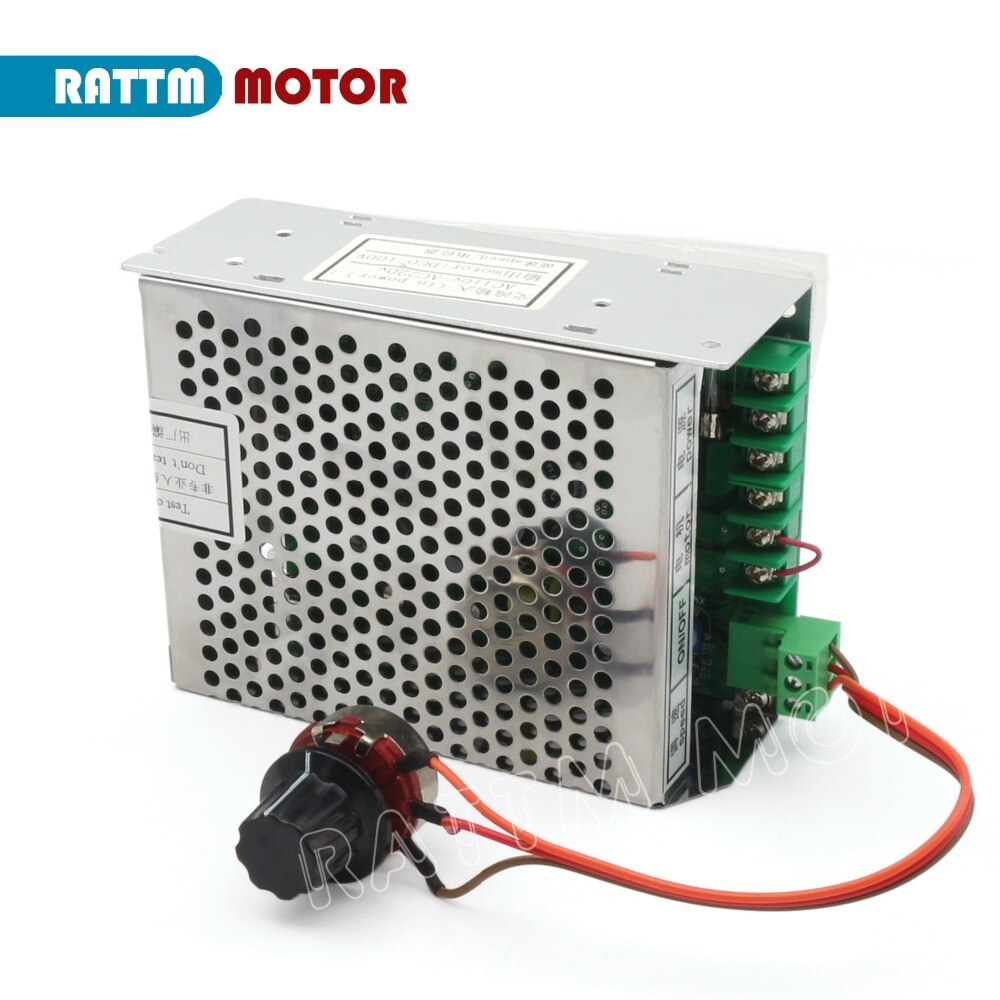

500W Speed Governor
500W Speed Controller Parameter | |
Input voltage | AC110-AC220V±10% 50/60Hz |
Current | 6A |
The adaptation motor power | 50W-500W |
Armature output voltage | DC0-100V adjustable |
Dimensions | 130*100*51mm(L*W*H) |
Wiring | terminal (convenient) |
| |||||
Working Environment: 1. Ambient air temperature: -10 ~ 40 ° C 2. The relative humidity of 85% or less, well ventilated 3. Installed in a well-ventilated, no severe impact, no vibration, no explosion of dangerous media | |||||
- Operating Speed: 12000rpm
- Maximum Torque: 0.5N.m
- Application: Milling
- Model Number: 500W
- Drive: Motor
- Brand Name: RATTMMOTOR
- Origin: Mainland China
- Certification: CE
- Power: 500W
- Collet: ER11
- Diameter: 52mm
- Spindle runout: 0.01-0.03mm
- current: 6A
- Cooling: Air cooled
- Operating voltage:: 12-100VDC
- Motor: air cooled spindle motor
- Type Name: Machine Tool Spindle
- Scope of application: Wood PCB engraving drilling, etc.
- Speed: 12000rmp/min
