AHD/N DVR 4Channel 8Channel CCTV AHD DVR AHD-N Hybrid DVR/1080P NVR 4in1 Video Recorder For AHD Camera IP Camera Analog Camera
4.8 (5 votes) | 14 orders
Price:
US $140.67
/ piece
Discount Price:
US $
61.60
/ piece
-56%
Note:

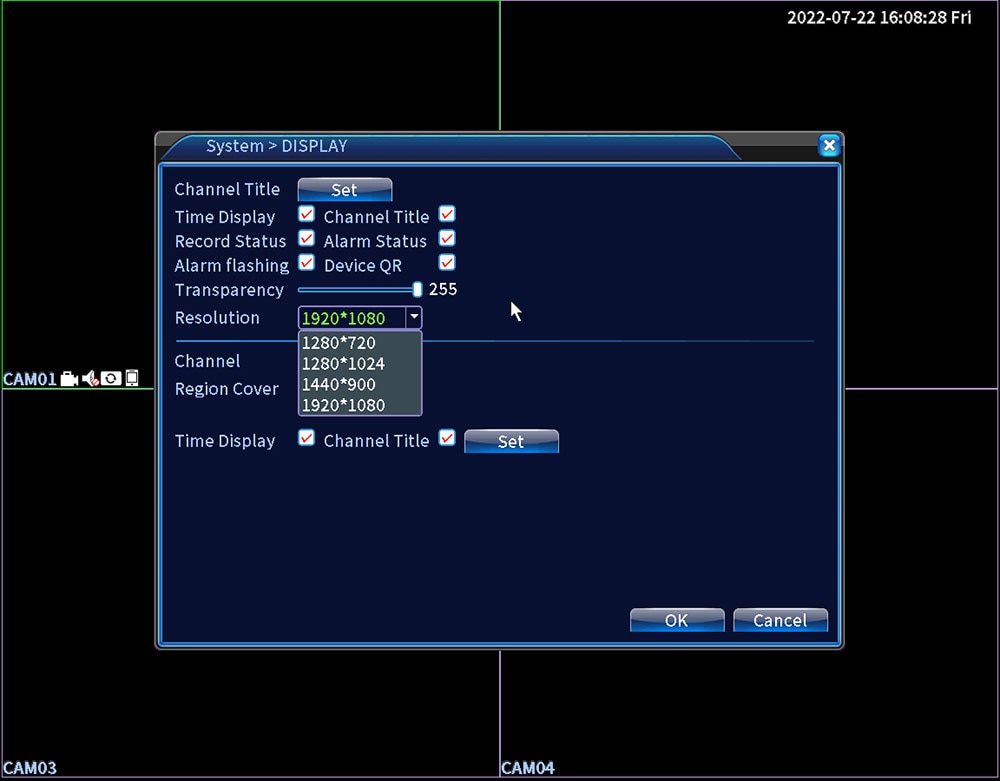

This one have defult output resuliton
No matter use HDMI-Compatible or VGA, Please make sure your monitor have the same resulution

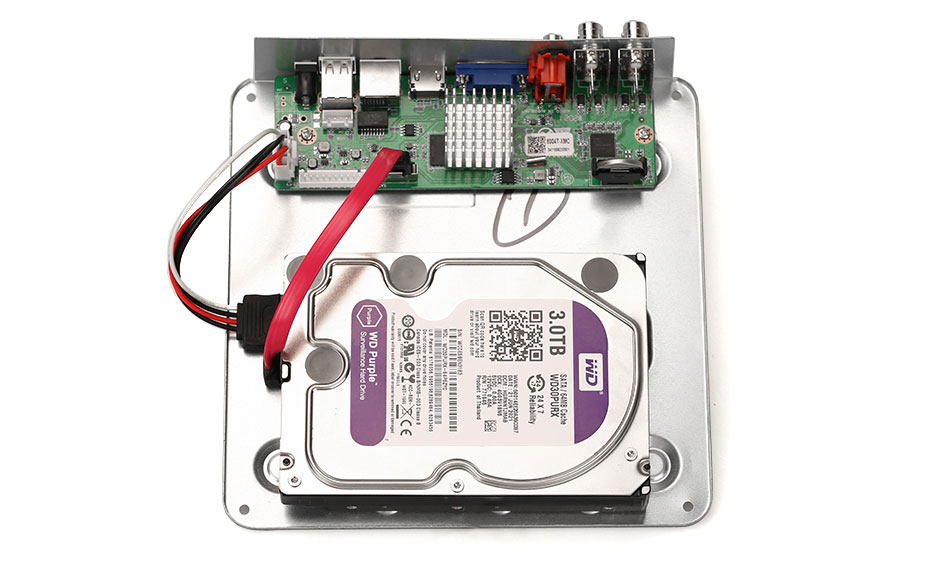

About the HDD:
We only recommend to use the security HDD.
TOSHIBA,Seagate,WD all have security HDD.
If your cameras is buy from other stores, please contact us to make sure they can work together, or we will not accept any dispute because use other brands items on our items.

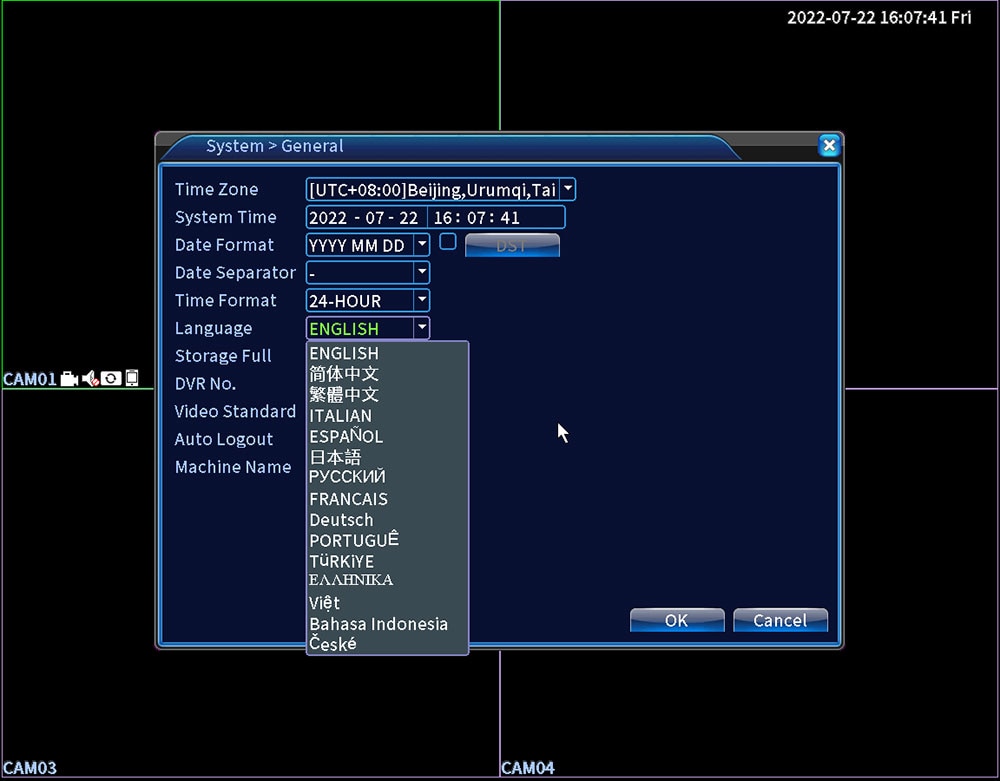

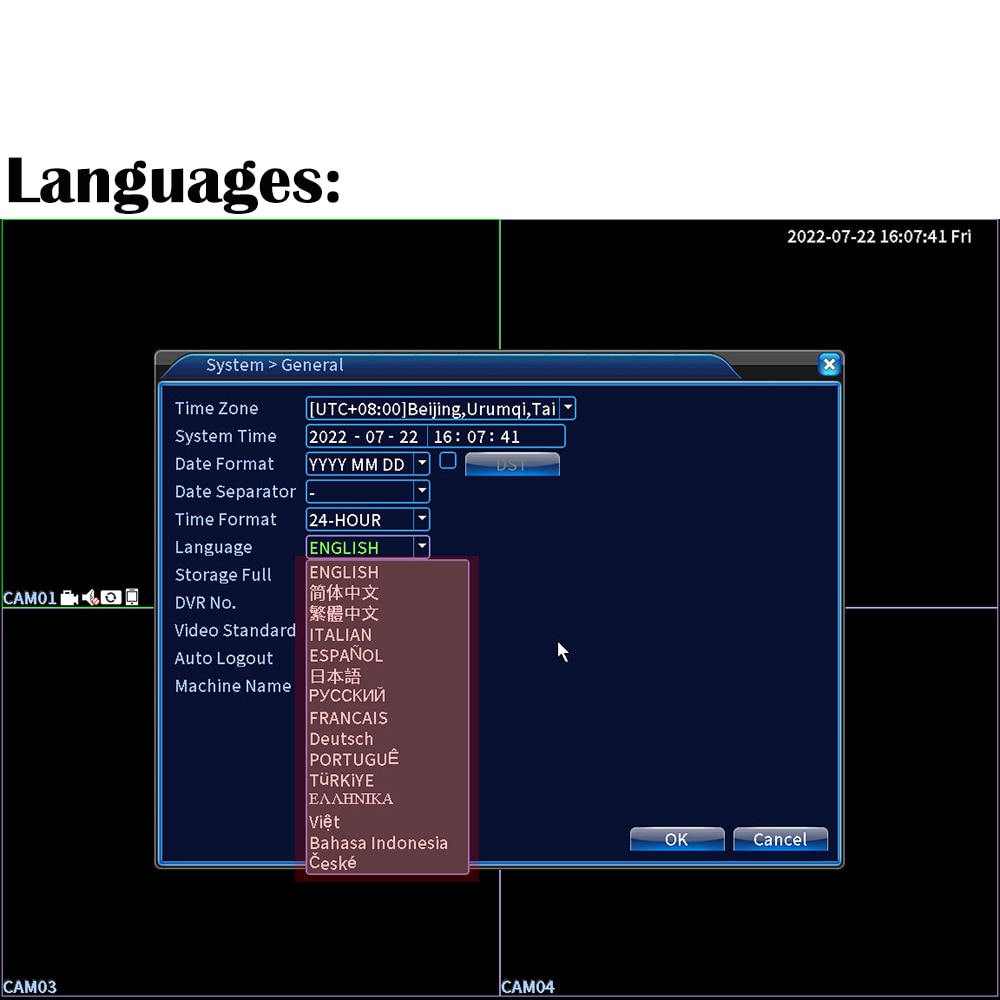

Many languages support
Please make sure include your country language, we will not update firmware to other language
Display Max 1920*1080P

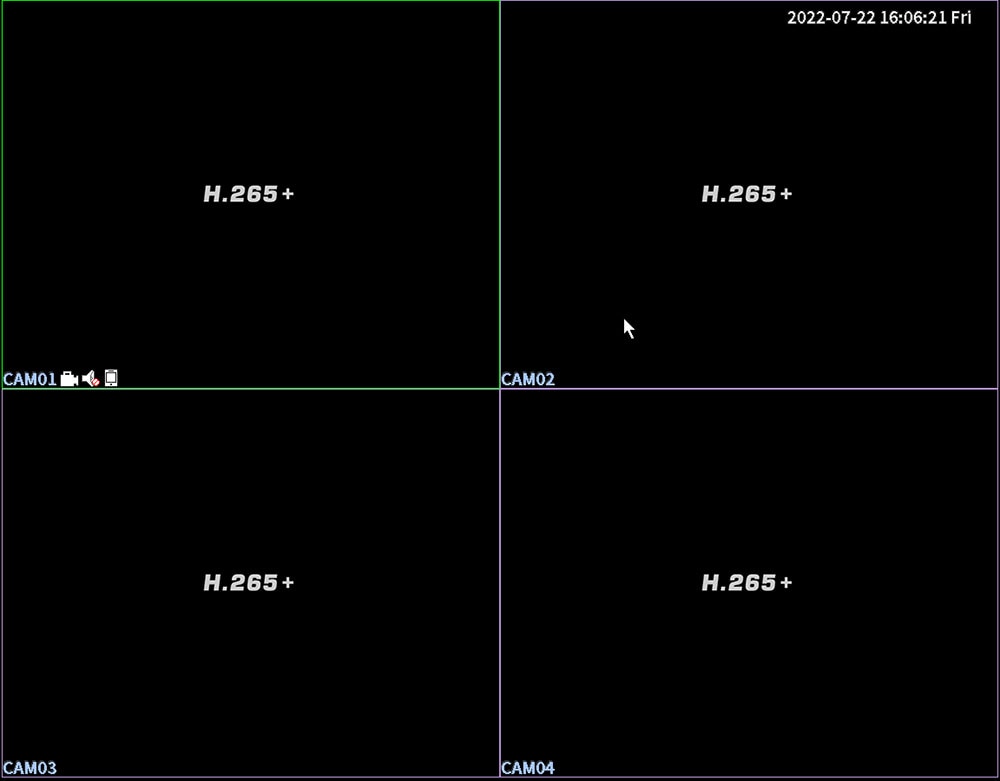

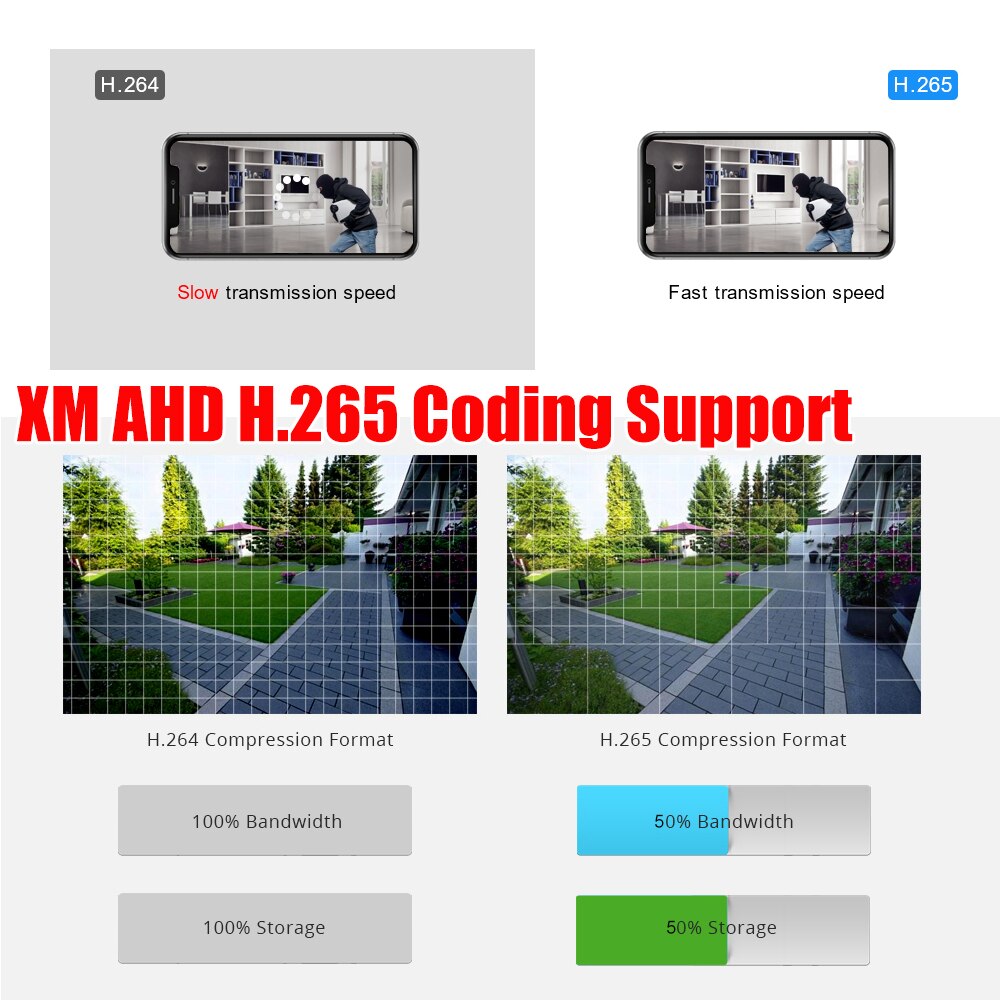

Newest H.265 AHD Mode

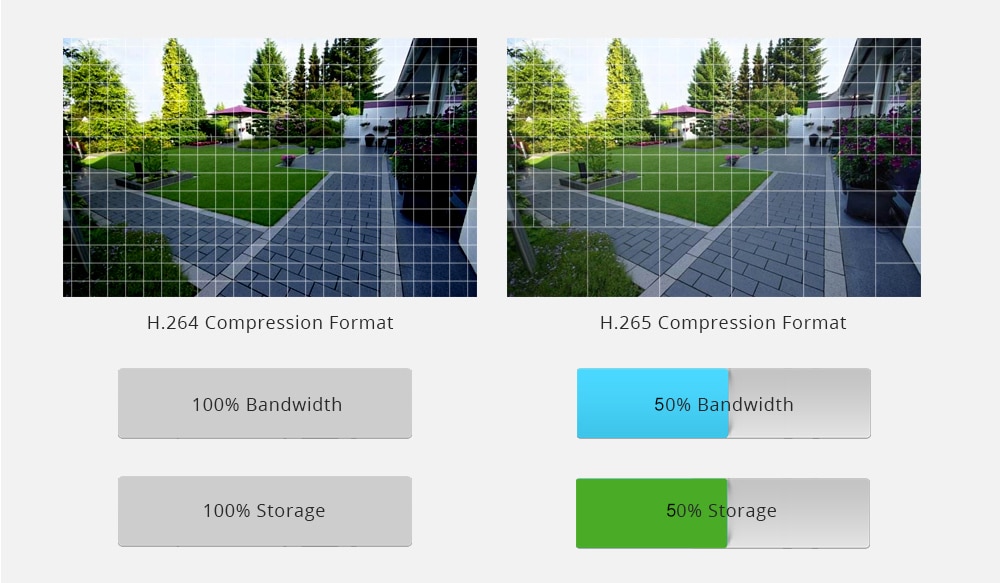

This is the AHD H.265, not the same as IP H.265,No require for the camera, if your camera is the AHD camera and contact this dvr, it will be H.265 storage, can save around 50% RAM than normal ahd dvr

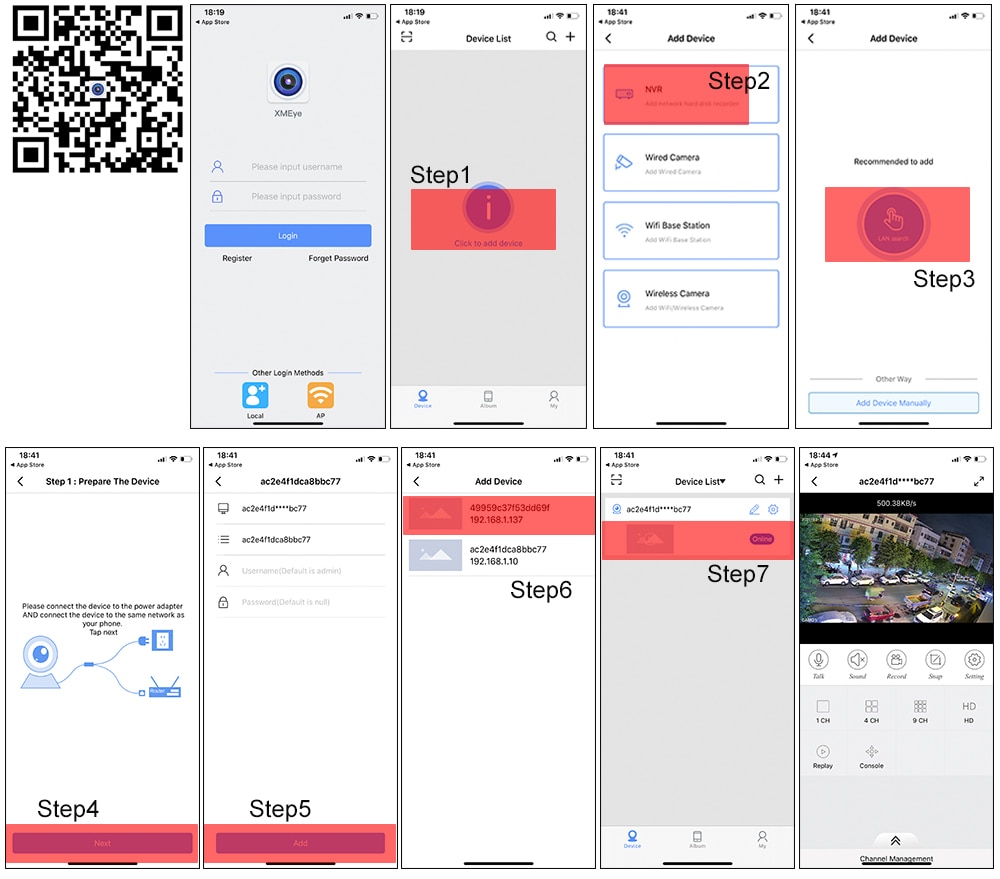

Support Xmeye Pro APP
4CH HVR Models optional
Features:
Ø Support H.265 encoding, ultra-low bitrates, compatible with H.264 surroundings;
Ø Support VGA, HDMI-Compatible full HD output simultaneously;
Ø Support ONVIF; access third party;
Ø Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;

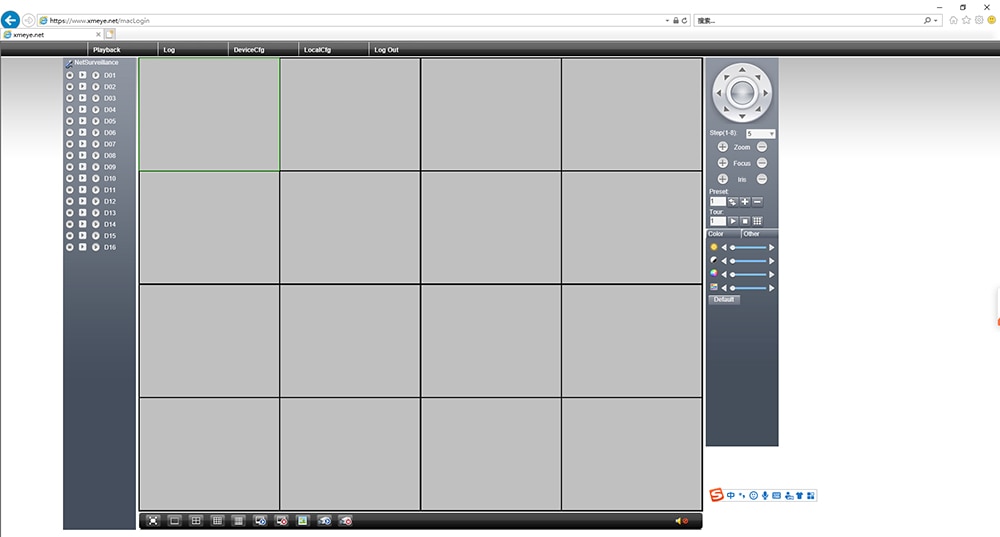

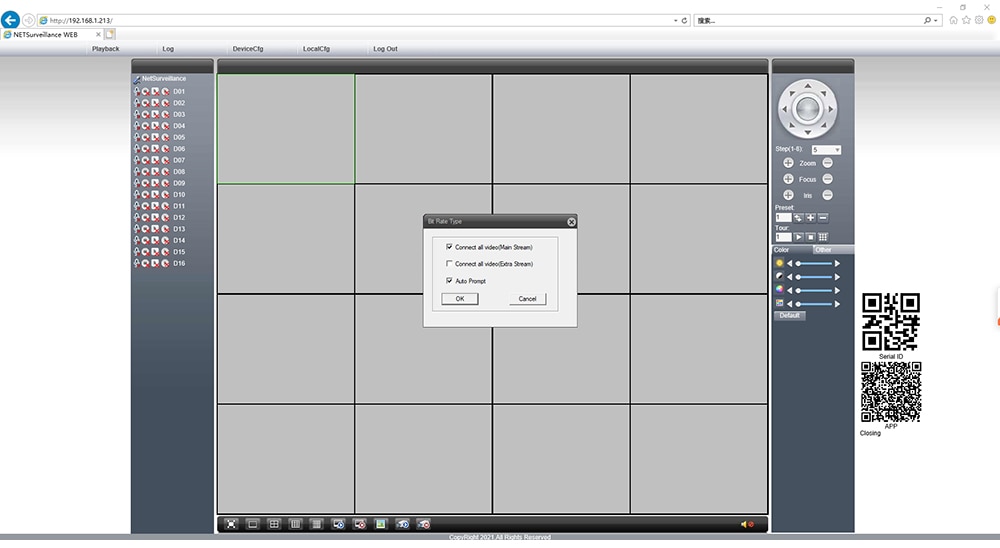

Ø Support web, CMS, center platform management software MYEYE, provide SDK development;
Ø Support various mobile monitoring (iPhone, Android);
Ø Remote Access, With DNS (ARSP),easy to monitor remotely
Ø Support UTC, control signal& video stream transmit through one single coaxial
Ø Support XVI/AHD/TVI/CVI/CVBS/IP six signals;
Ø Support Digital to analog conversion,Instant playback
Support 3.5ch Security HDD (This link is not include HDD)
Model | 45N04R-L | ||
Main processor | XM8520 | ||
Interface | Preview | 1/4 | |
Video | Codec | H.265 | |
Monitor quality | Max 1080P | ||

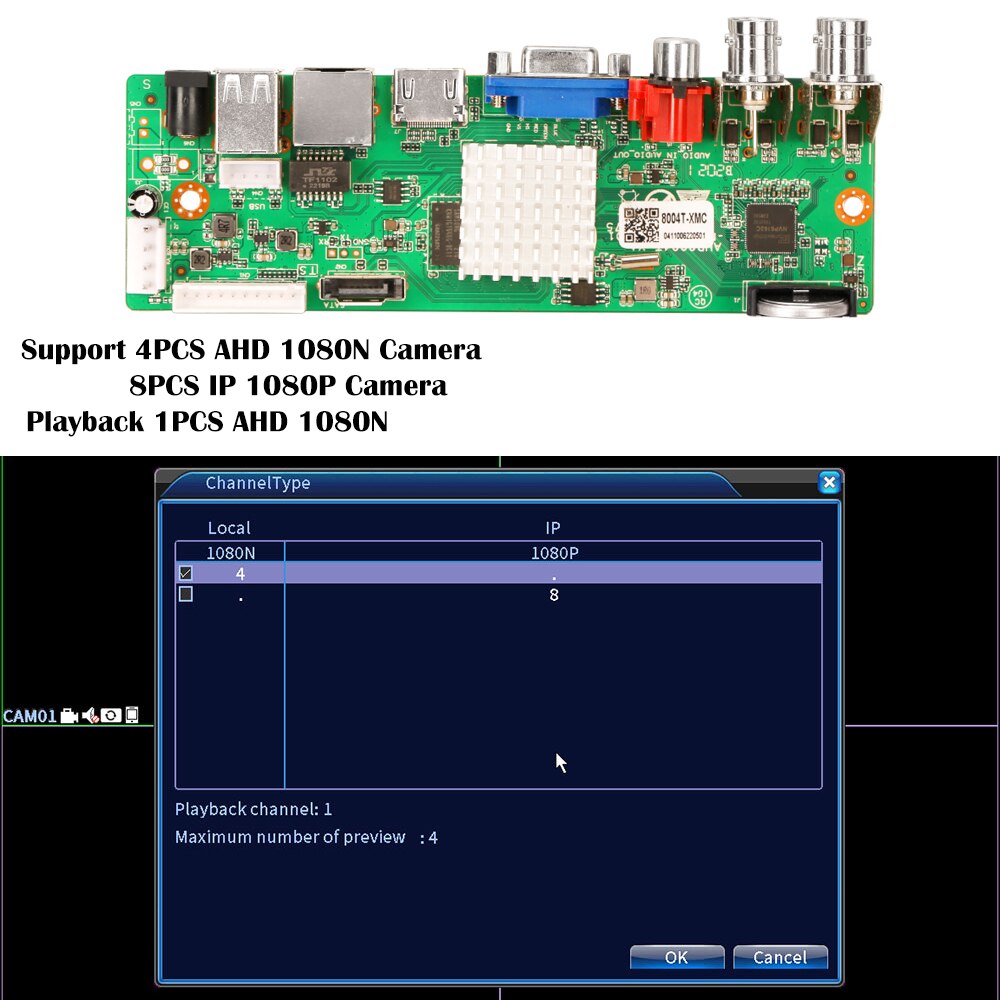

Preview ability | 4*1080N(5 in 1) 8*1080P(IP) | ||
Encode ability | 4*1080N(5 in 1) 8*1080P(IP) | ||
Decode ability | 4*1080N(5 in 1) 8*1080P(IP) | ||
Multi-mode input | Analog:4*1080N Network:8*1080P | ||
Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) | ||
Audio | Audio compression | G.711A | |
Intercom | support | ||

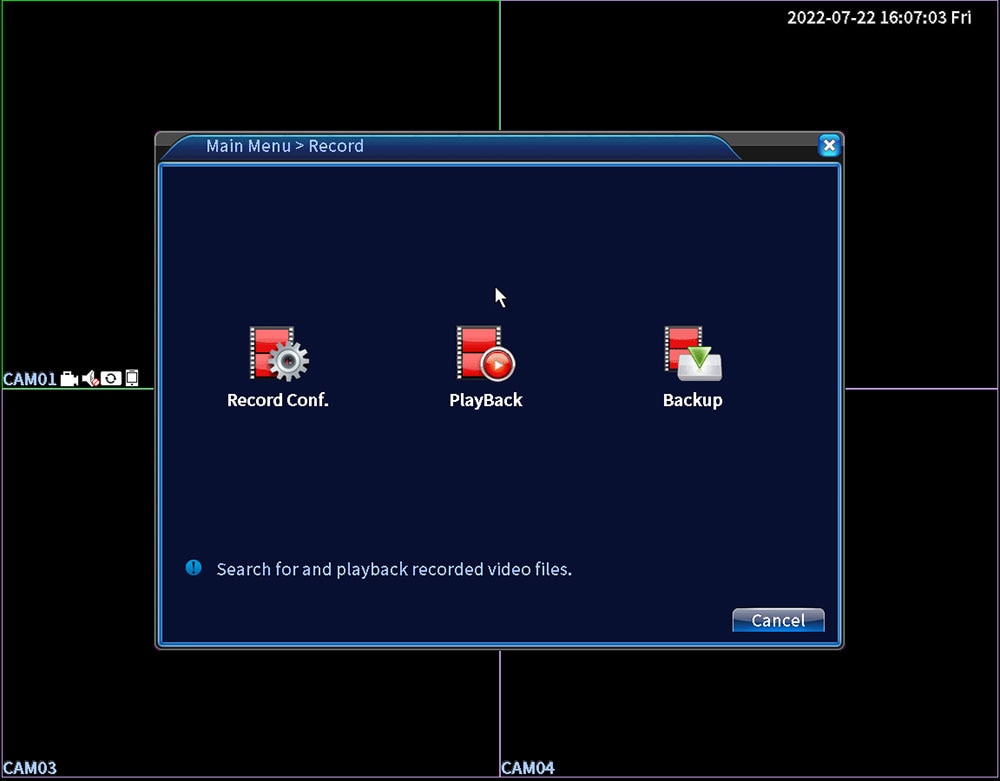

Record & playback | Record mode | manual>alarm>motion detection>timing | |
Local Playback | 1ch(analog input mode) | ||
Search mode | Search by time, calendar, event, channel | ||
Storage & backup | Video storage | HDD, network | |
Backup mode | Network, USB hard disk, USB burner, SATA burner | ||

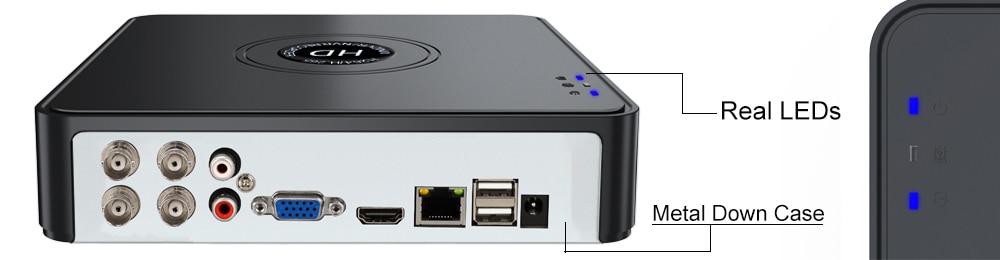

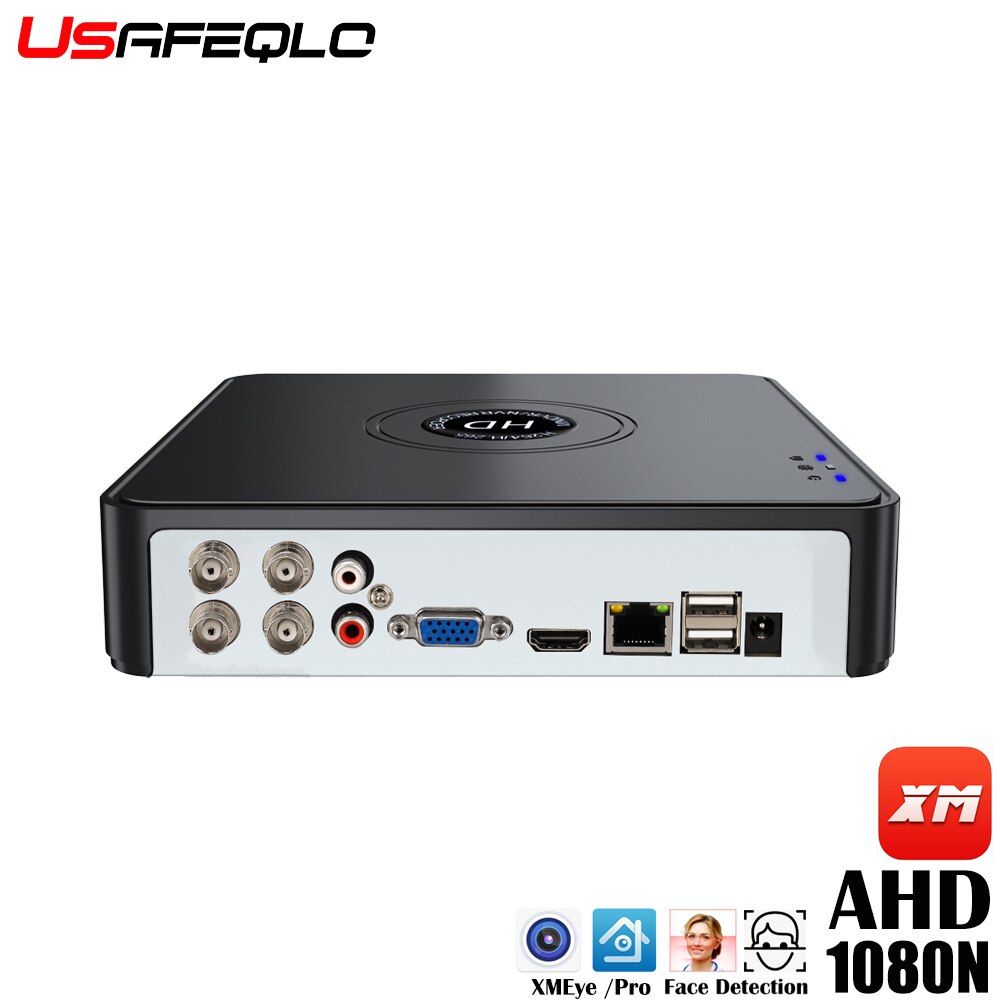

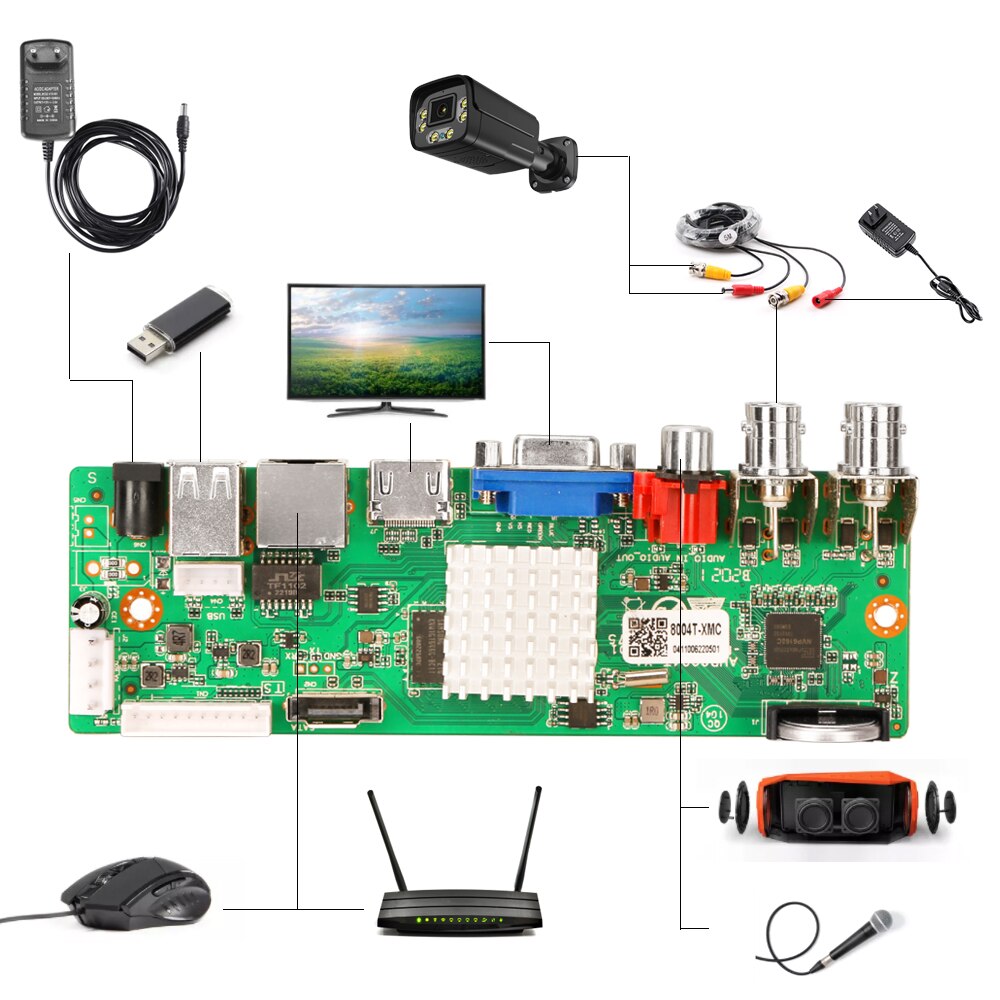

External Interface | Video input | 4ch BNC | |
Video output | 1ch VGA, 1ch HDMI | ||
Loop Vout | N/A | ||
Audio I/O | 1/1 | ||
Alarm I/O | 0/0 | ||

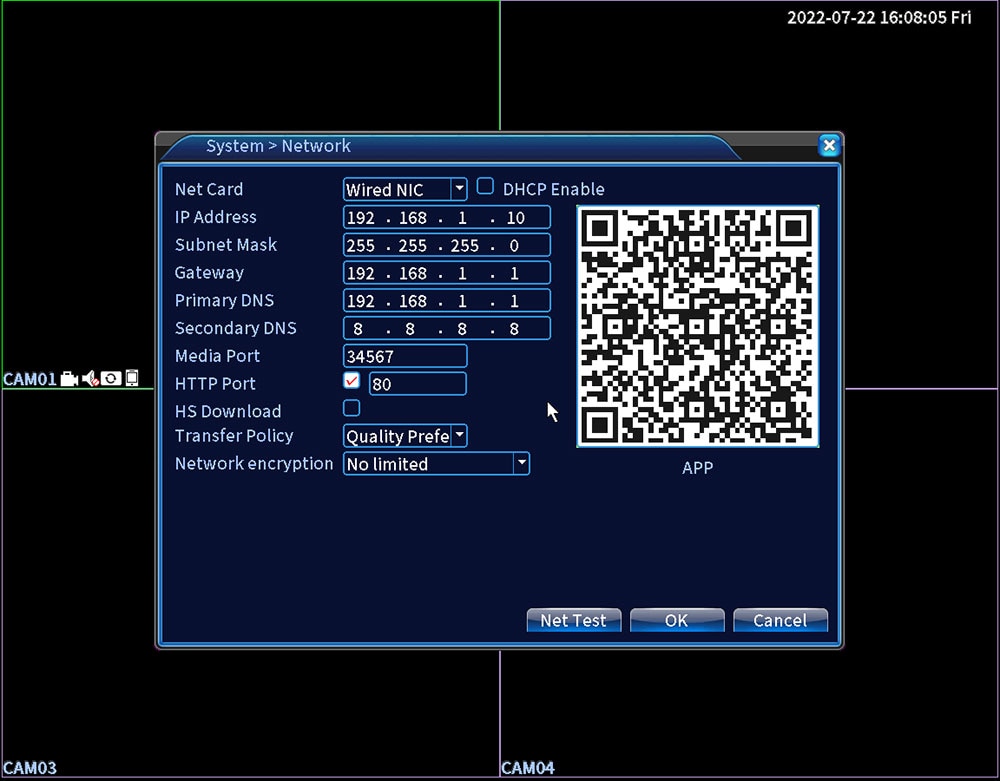

Network interface | RJ45 10M/100M self-adaption | ||
PTZ control | NO | ||
USB | 2* USB 2.0 ports | ||
HDD | 1*SATA ports (Max 14TB/per) | ||
Wireless | Not Support | ||
Genera | Power supply | 12V/2A | |
Power Consumption | <15W (without HDD) | ||
Working environment | Temperature:0℃-+55℃,Humidity:10%-90%,Atm:86kpa-106kpa | ||

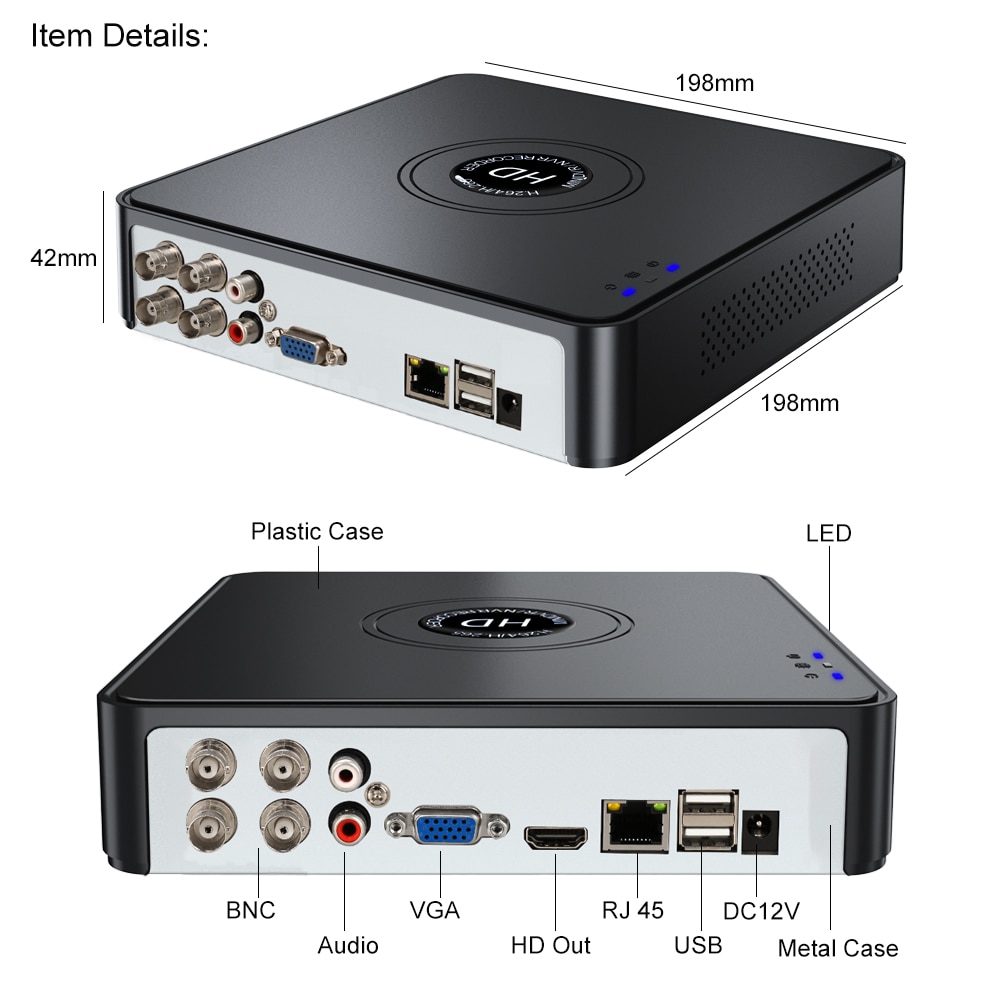

Dimension | 198mm*198mm*42mm | ||
Weight | 1000g | ||

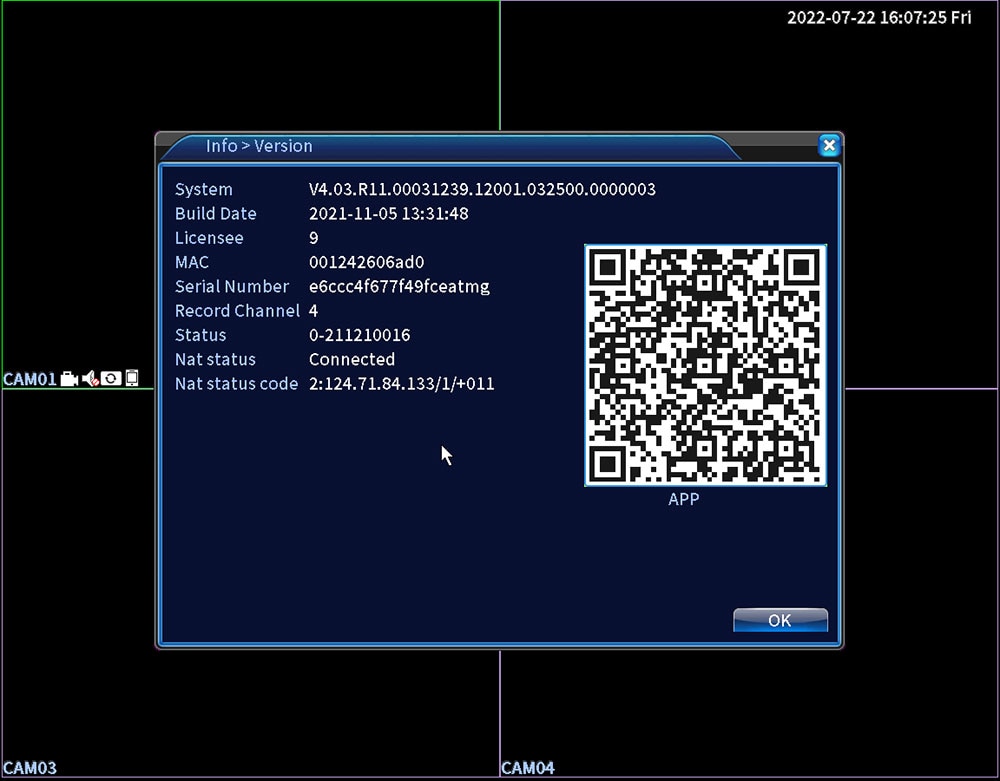

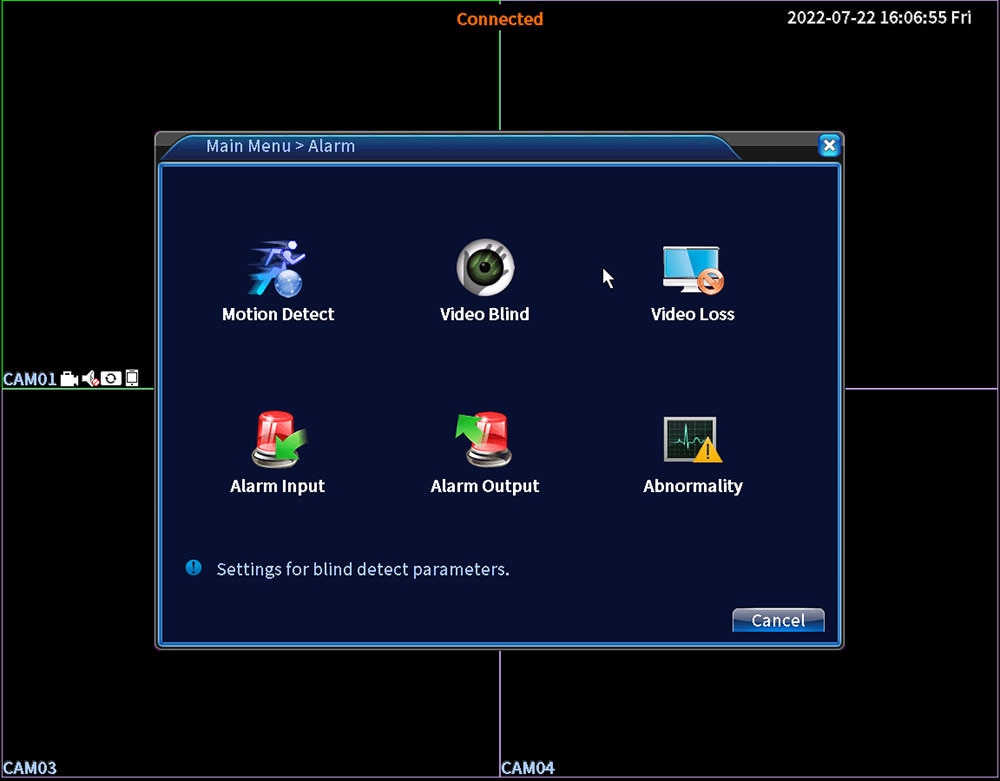

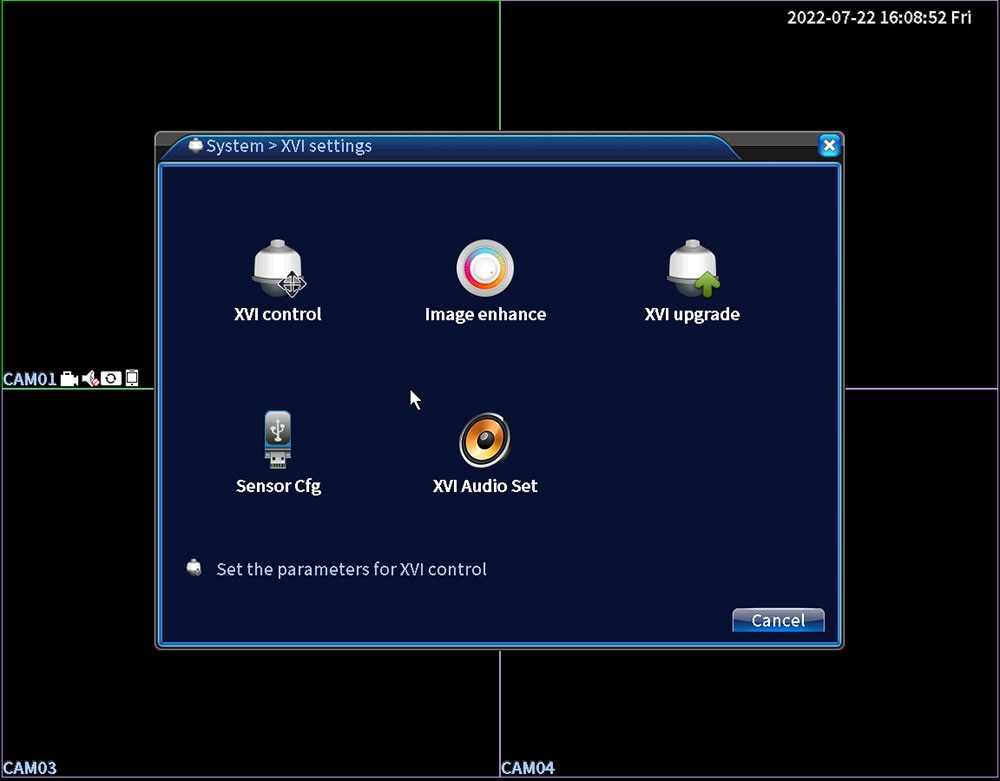

Item menu style

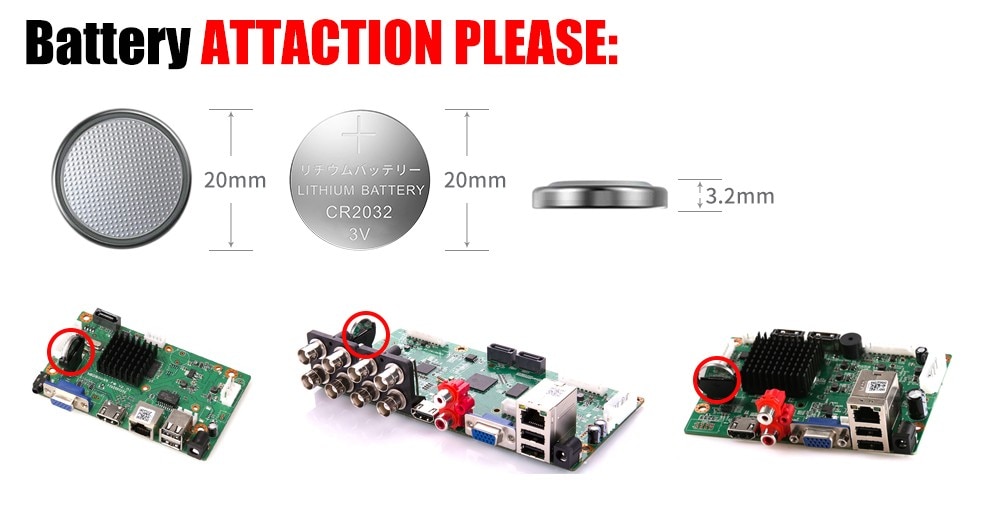

Because of Hogaki Shipping Rules
Some of countries will send without Battery.
You need by CR2032 battery by yourself if receive item without it.

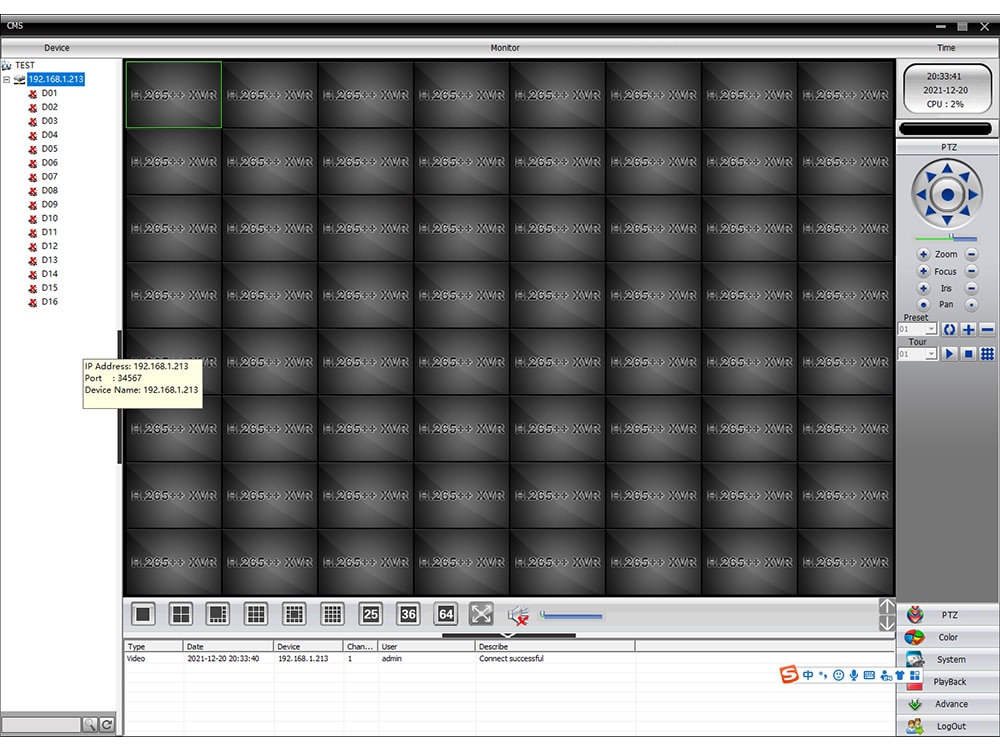

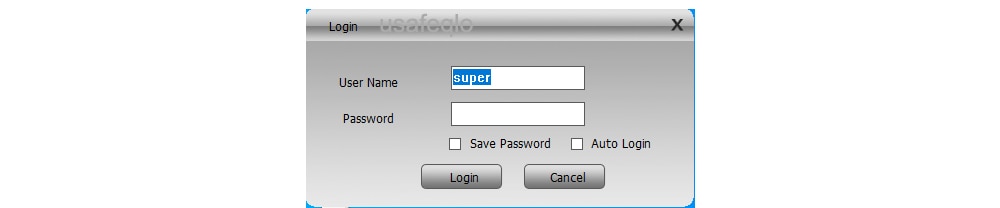

CMS/VMS PC Soft
- DVR Power Supply: DC12V
- e-Cloud(P2P): YES
- Two-way Audio: No
- Alarm Action: Email Photo,Local Alarm
- Backup Type: Hard Drive
- Supported Operating Systems: Microsoft Windows 98,Microsoft Windows 2000,Microsoft Windows XP,Microsoft Windows Vista,Microsoft Windows 7
- Supported Mobile Systems: iPhone OS,Android,Windows Mobile
- IP Mode: Static IP address
- Wireless Security: WEP
- Network Protocol: SMTP
- Communication Interface: NONE
- Network Interface: RJ45 10/100M
- Hard Drive Size: 3.5''
- Hard drive Interface Type: SATA
- Video Adjustment: Auto White Balance
- Audio Output: 1CH RCA
- Video Output: 1VGA + 1HDMI-Compatible
- Video Resolution: 1080N
- Video Standard: PAL
- Audio Compression Format: G711A
- Audio Input: 1 RCA
- Video Input Interface: BNC (1.0 Vp-p, 75Ω)
- Compression Format: H.265,H.264
- HDD Capacity: None
- Technology: Analog,AHD,HDCVI,HDTVI,Network
- Model Number: 45N04R-GL
- Brand Name: USAFEQLO
- Origin: Mainland China
- Smart home platform: Xmeye
- Certification: NONE
- Encode capacity: 1080N
- Power supply: 12V2A
- VMS: Support
- Support Camera: AHD/IP/Analog camera

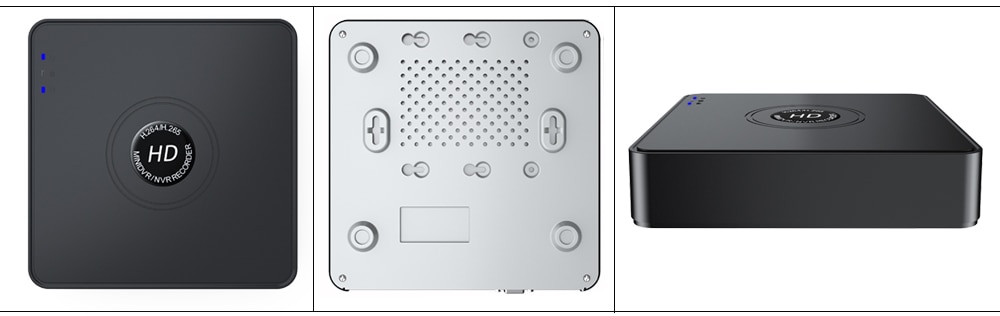

- Material: Metal Case+Plastic Cap
- Model: AHD H.265
