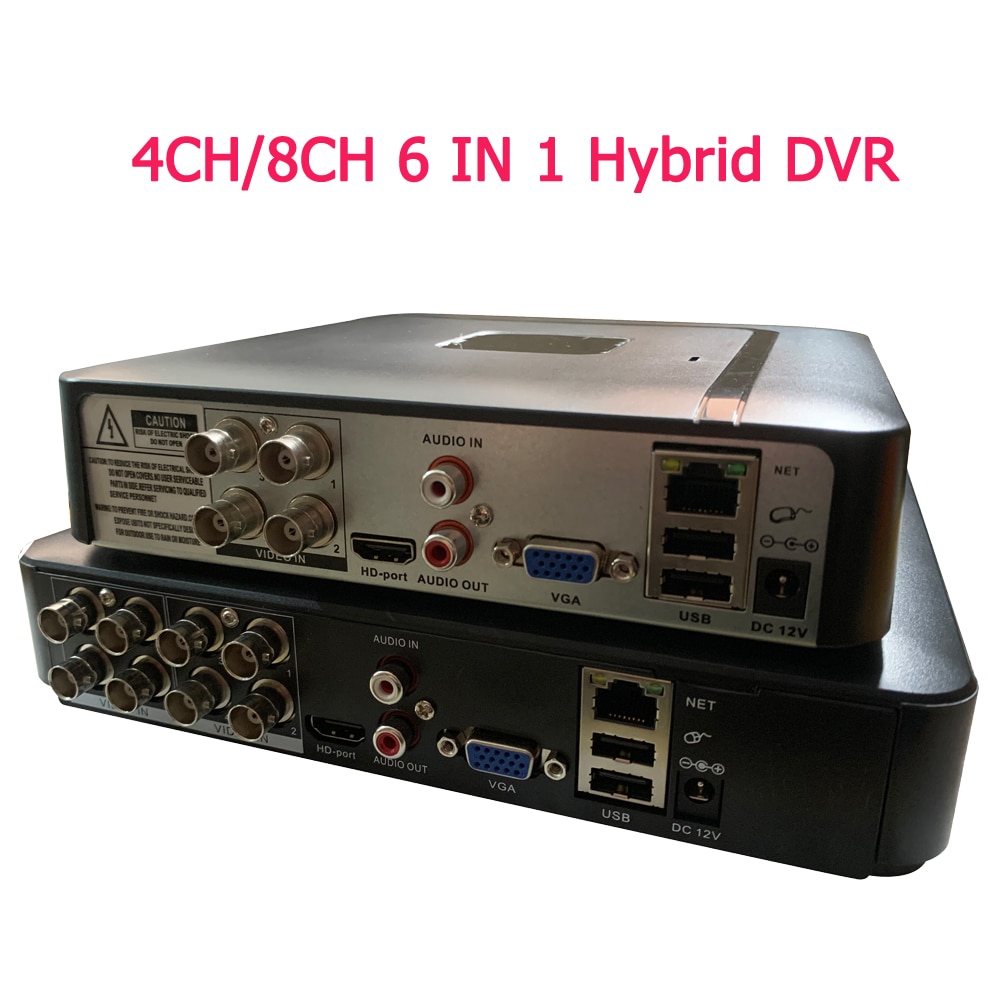

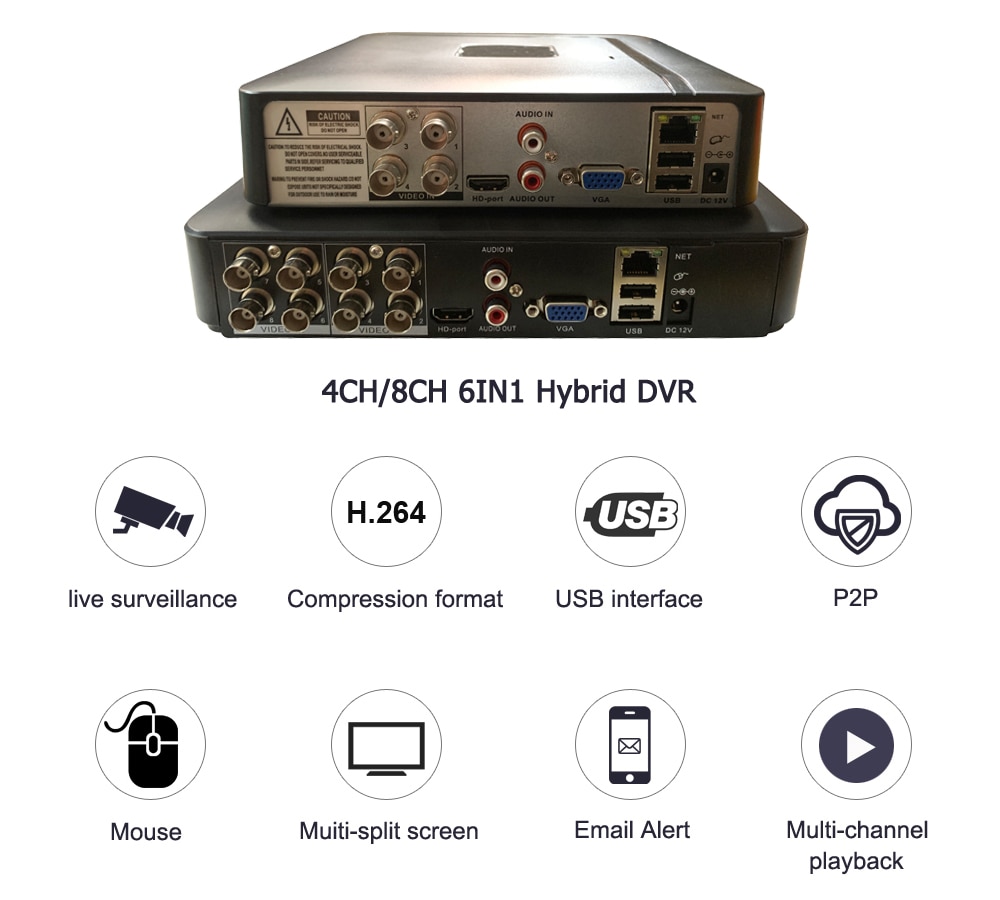

8CH 4CH Video Recorder Mini DVR XVR AHD Analog 6in1 Hybrid 5MP 1080P for CCTV Kits NVR Onvif IP Camera Safety Monitoring System
4.8 (5 votes) | 135 orders
Price:
US $84.49 - 247.48
/ piece
Discount Price:
US $
81.95 -
240.05
/ piece
-3%
Product List

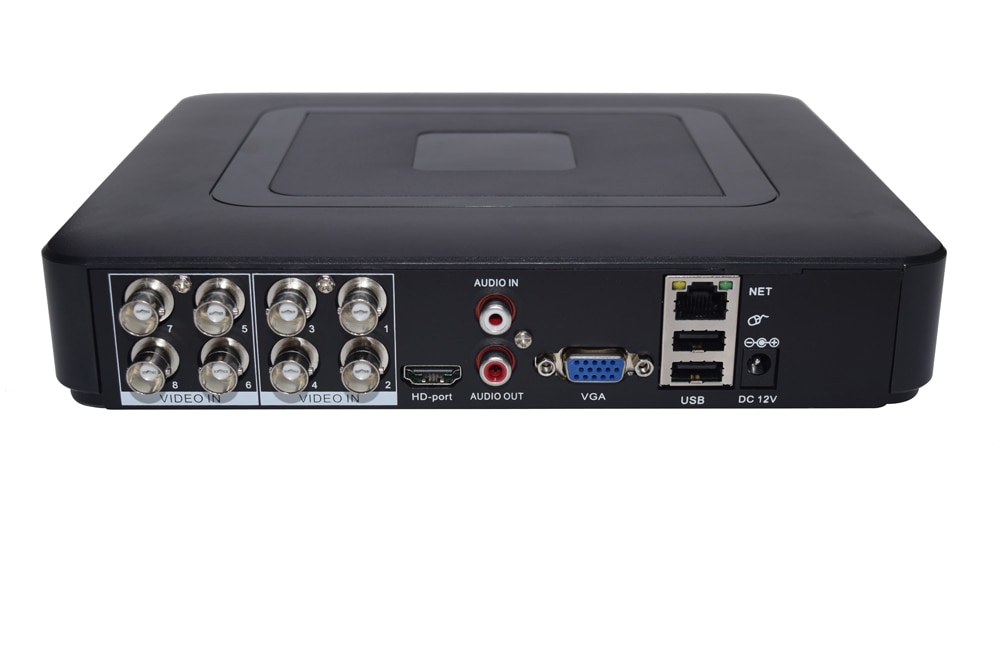

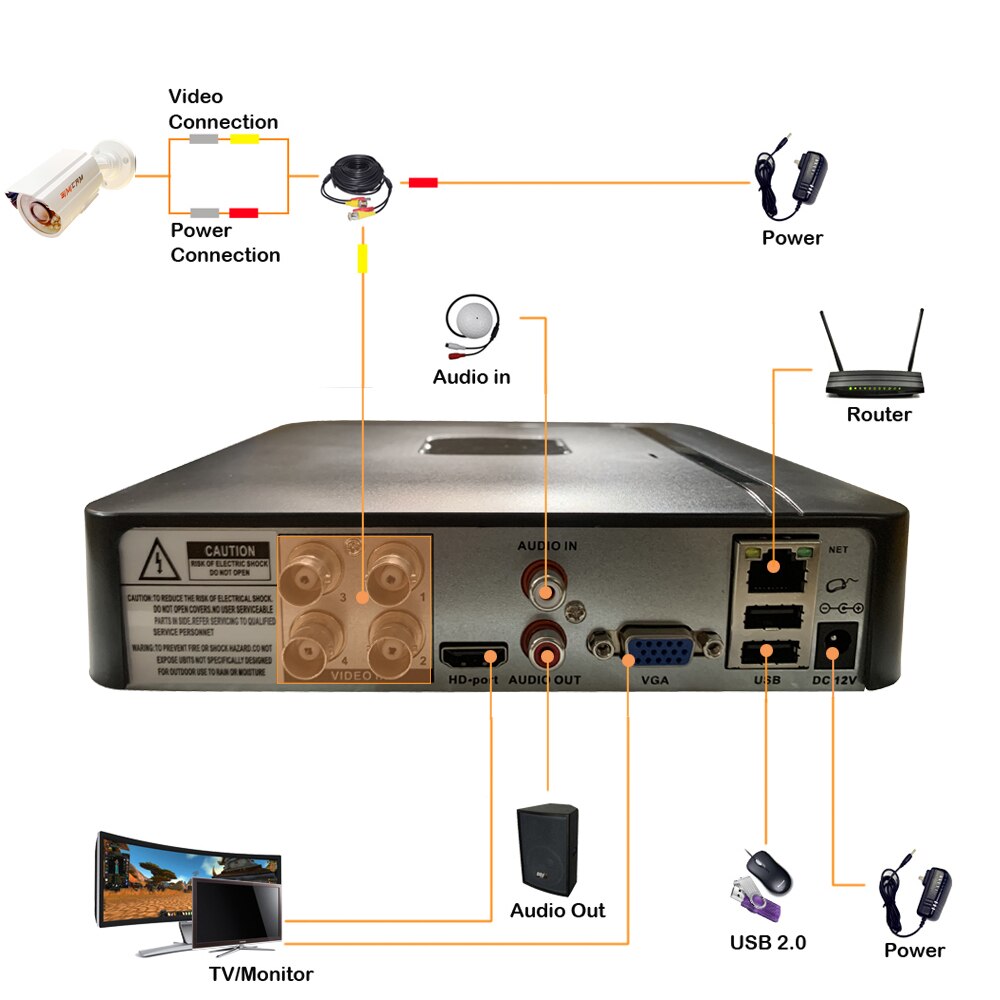

How the DVR system is connected，It's very easy.
H.265x H.265+video coding technology changes security pattern
The so-called core power is often a technology that needs long-term investment and is difficult to produce and achieve results quickly. Today, I'd like to introduce a core technology, video codec technology, which is ignored by most people in a more popular way.

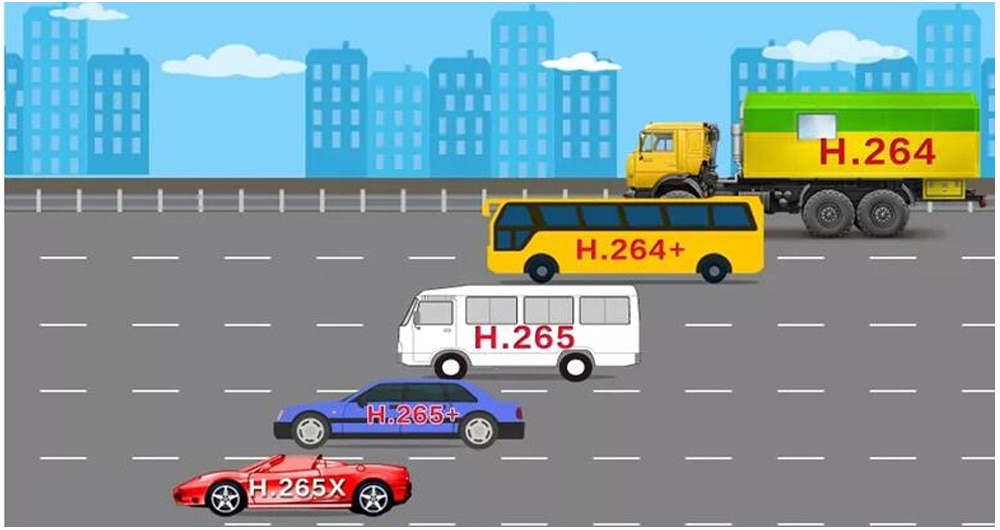

First of all, we use a graph to express the difference of coding technology.
1、 Why is the cost low?
Different coding formats will lead to a great difference in bit rate, the corresponding network bandwidth and the corresponding server forwarding resources are also different, of which the indirect cost is more than 5%.
Therefore, different coding formats and different code rates are just like different types of vehicles on high speed. Compared with large trucks, cars have lower fuel consumption and lower tolls.
2、 Why do we respond quickly when we plot in seconds?
Under the same picture quality, we can produce pictures in seconds and operate fast. What is the root cause?
Different codes and different bit rates lead to different occupancy of network bandwidth and different adaptability to various environments.
The xiongmai deep ploughing video coding technology can effectively reduce the bit rate, and it can also quickly draw pictures under the bad network environment and low bandwidth. Imagine a motorcycle and a truck. The speed of a motorcycle is certainly beyond the speed of a truck!
DVR SmartPlayback
Playback or backup of previous videos via DVR

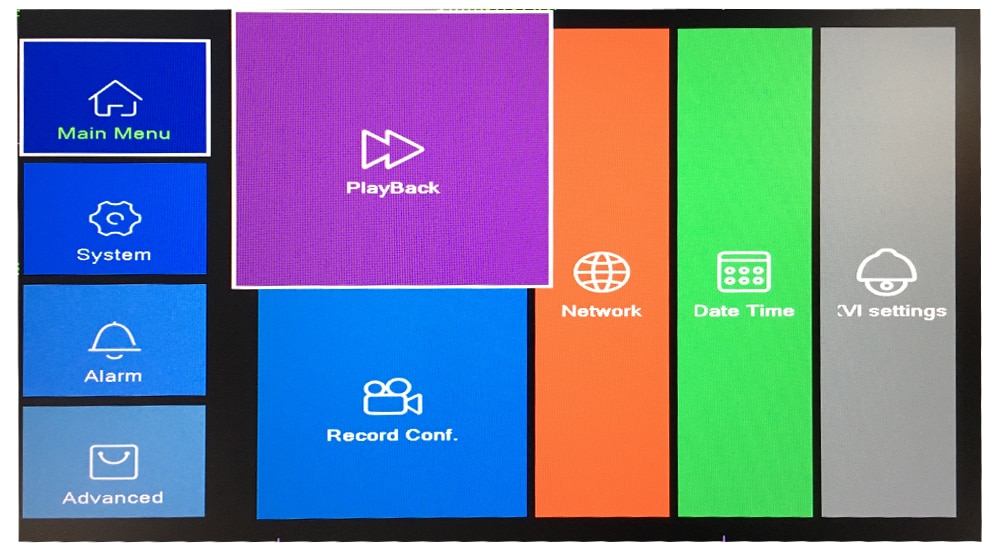

DVR's main Menu interface, where you can control everything

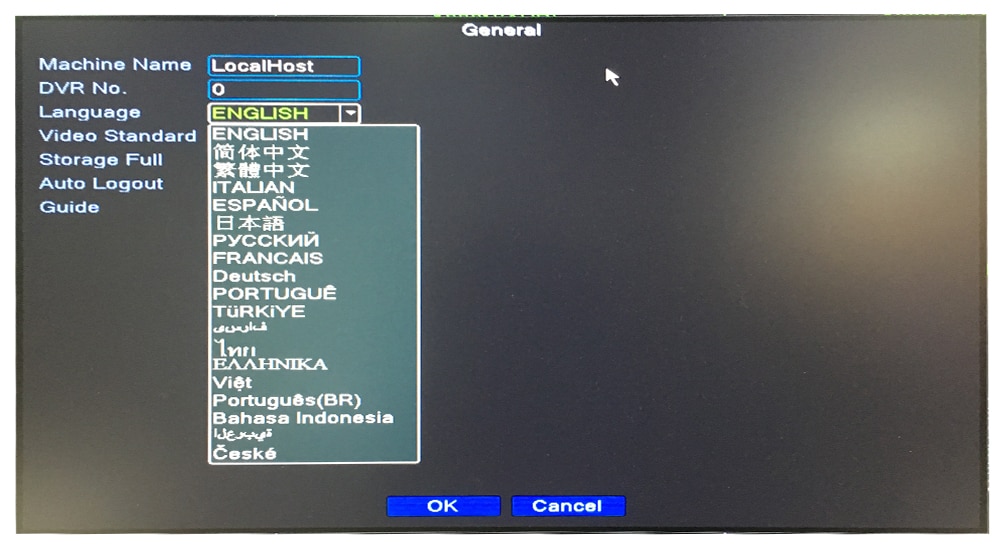

DVR System supports multiple languages

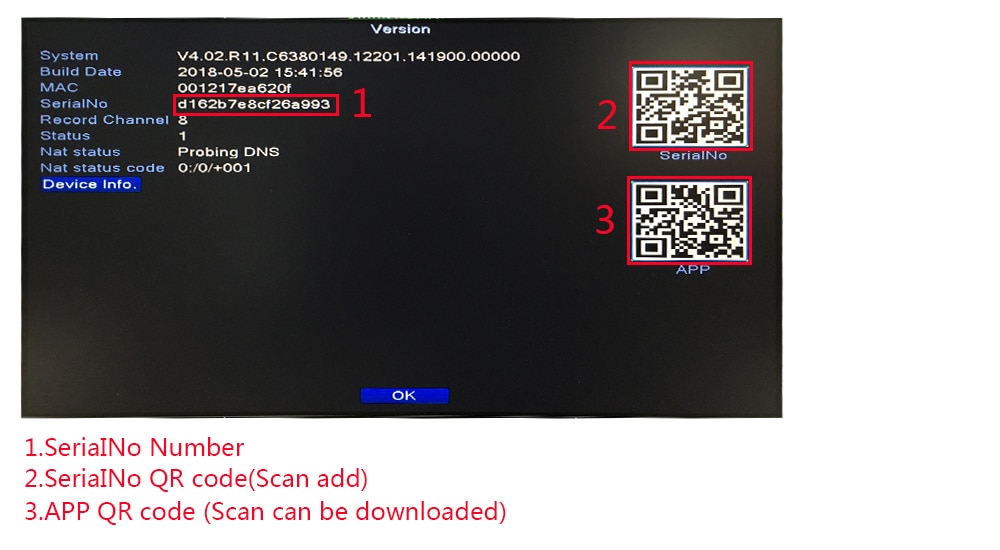

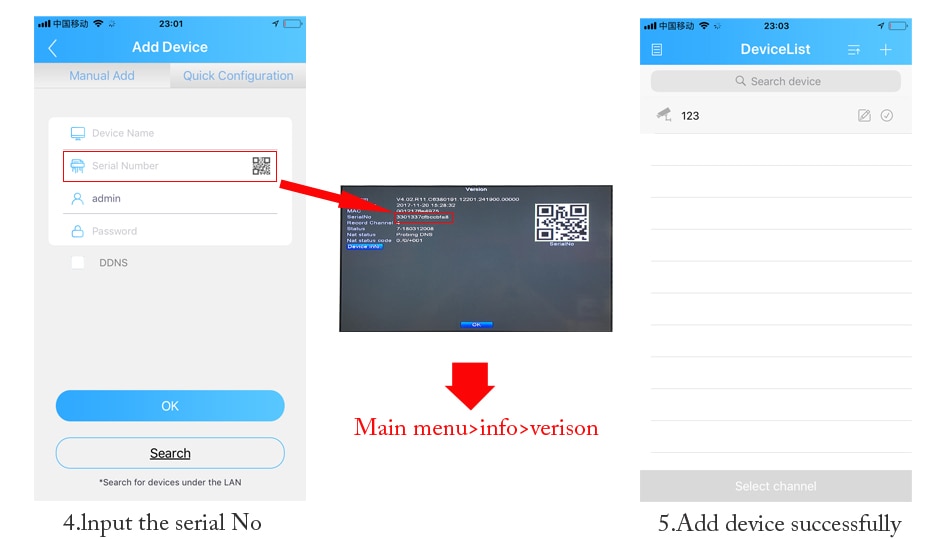

Device information in DVR can be seen, App/seriaino's QR code, Seriaino's number

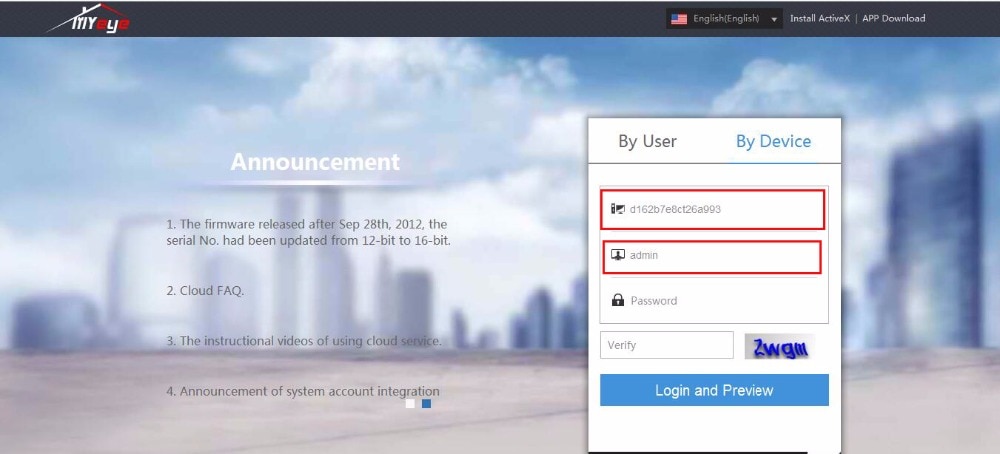

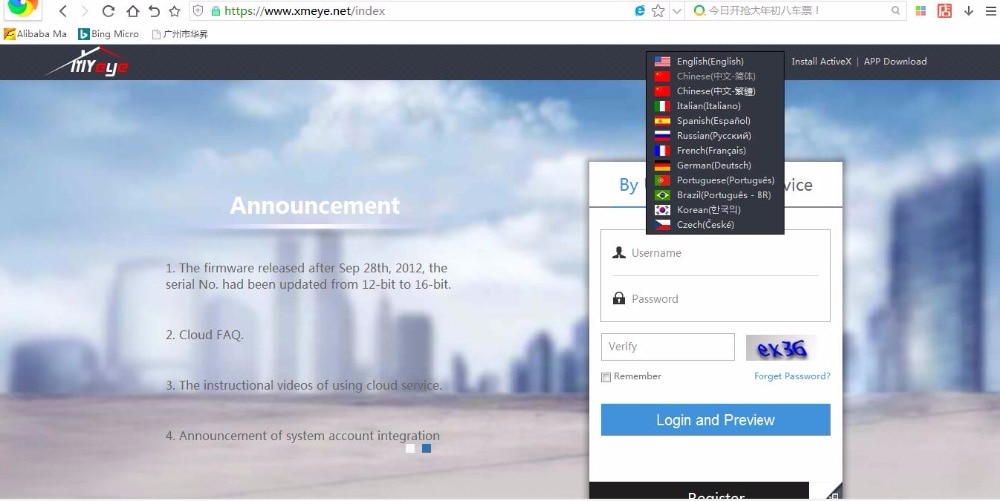

Remote view thrugh PC
Input:http:/www,xmeye.netin the browser
Page to choose your language
Input, device information inside the "Seriaino" number
Username: admin (default)
Password: none (default)

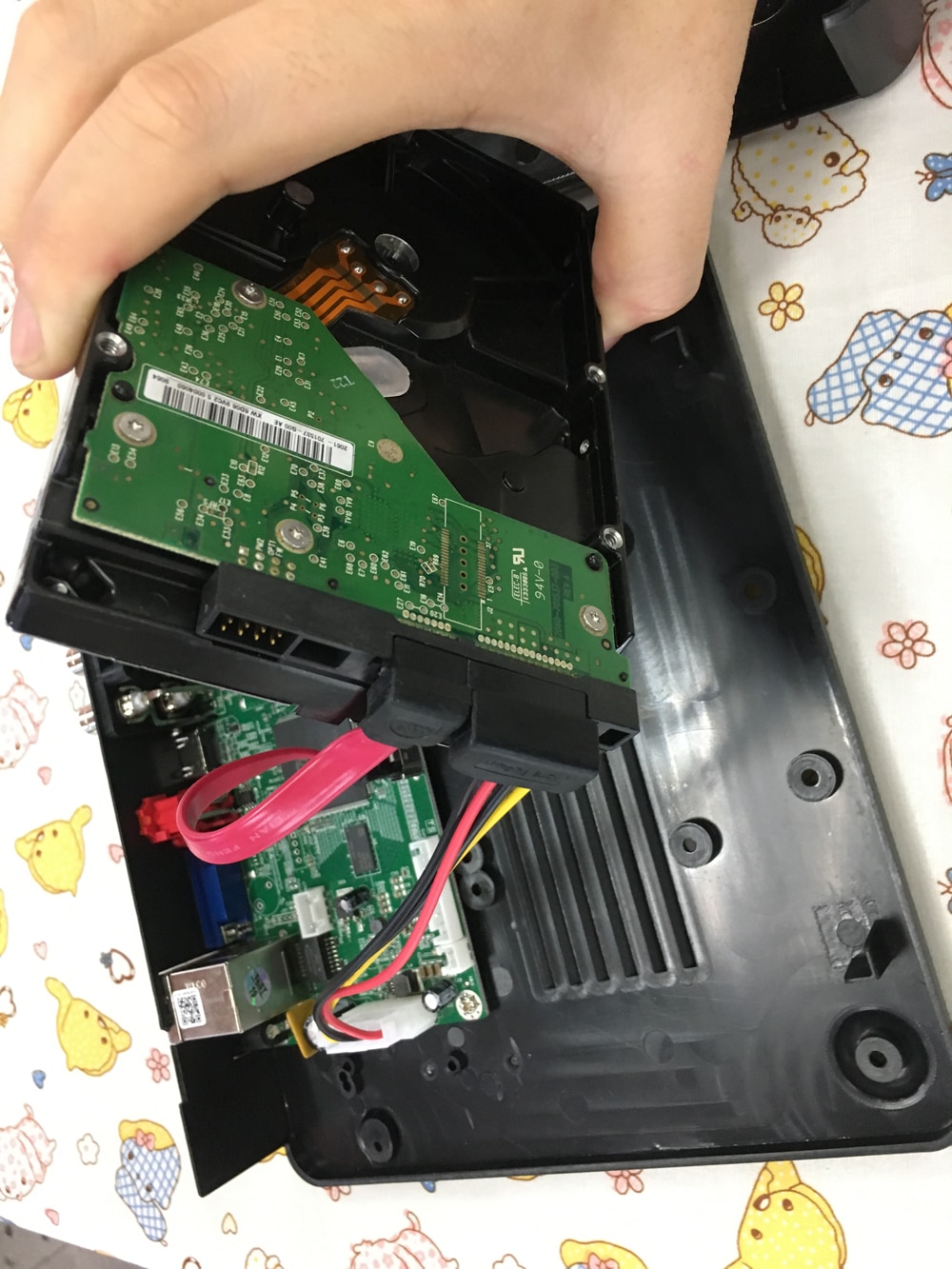

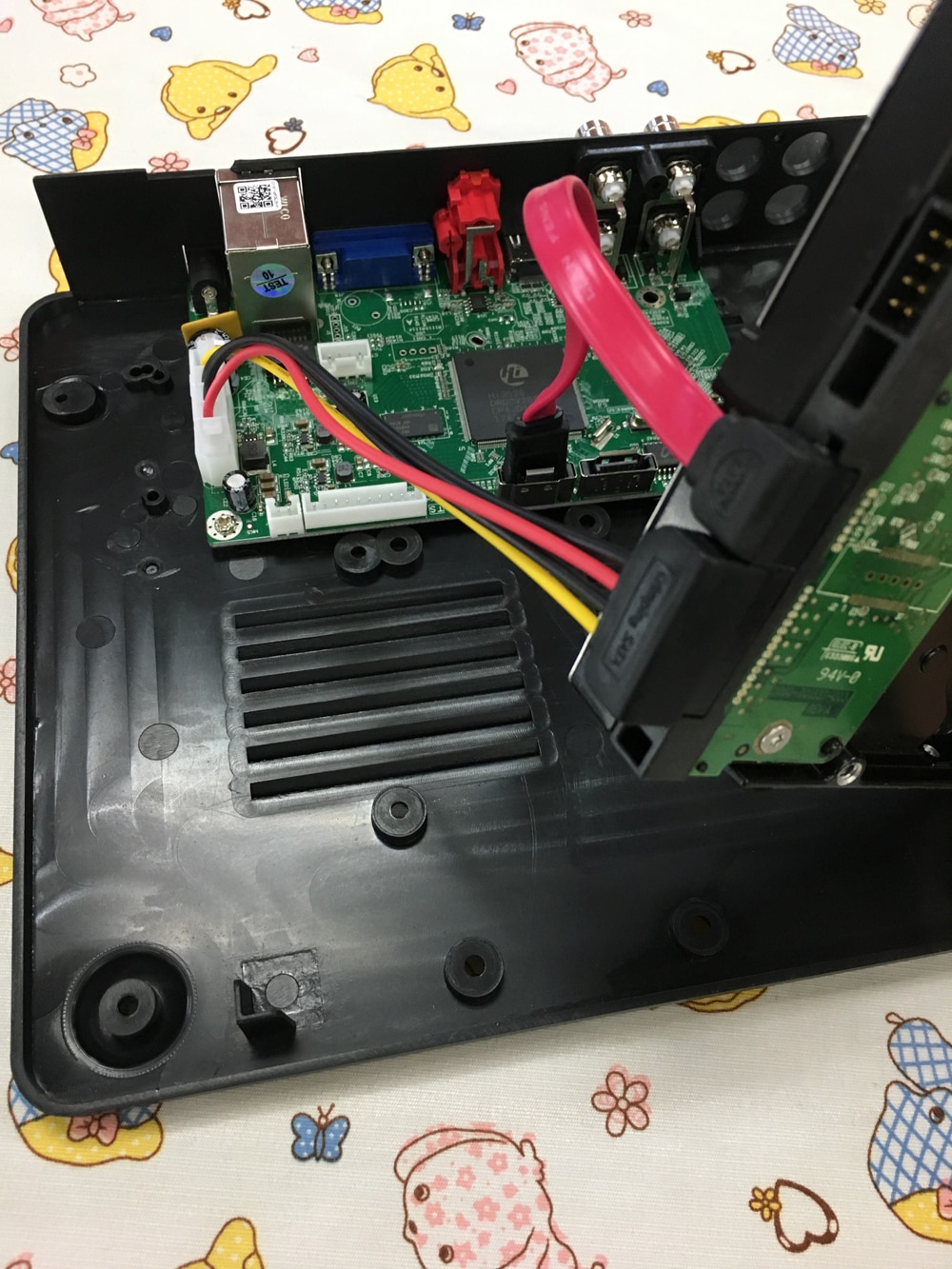

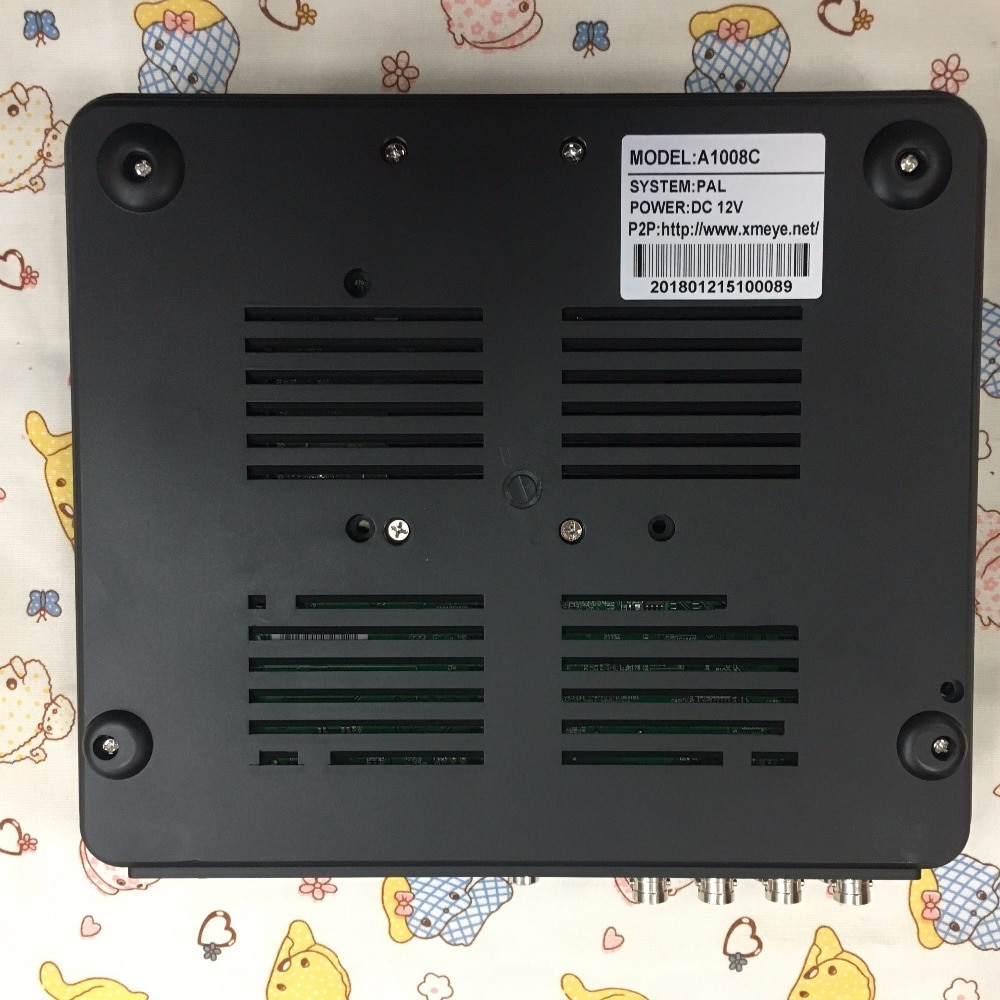

Hard disk Mounting method

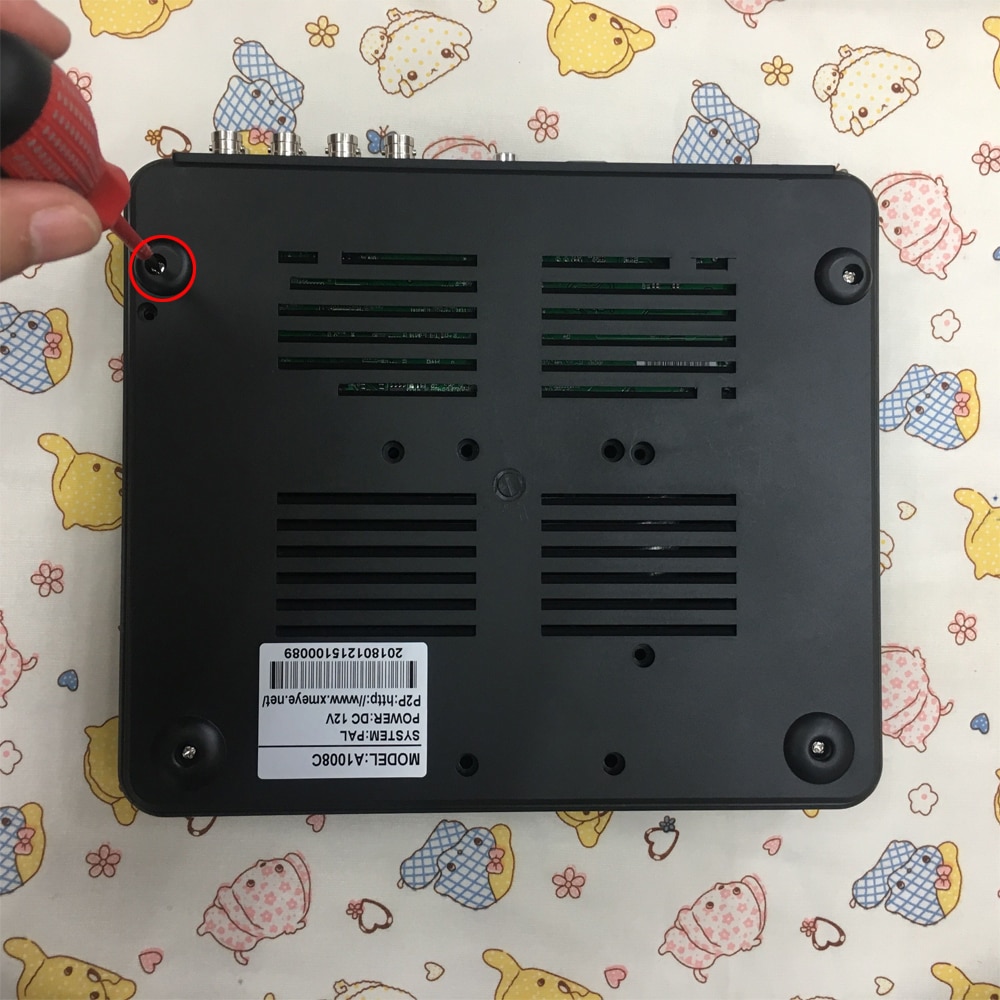

1. Open 4 screws at the bottom of the DVR and remove the lid
2. Connect the data cable and power cord to the hard disk
3. Fix 4 screws and DVR on the hard drive
4. After fixing all the screws, the hard drive is installed (you see if it is very easy)
The hard disk does not contain, after the hard disk installation is complete, the hard disk needs to be formatted so that the DVR will automatically videotape

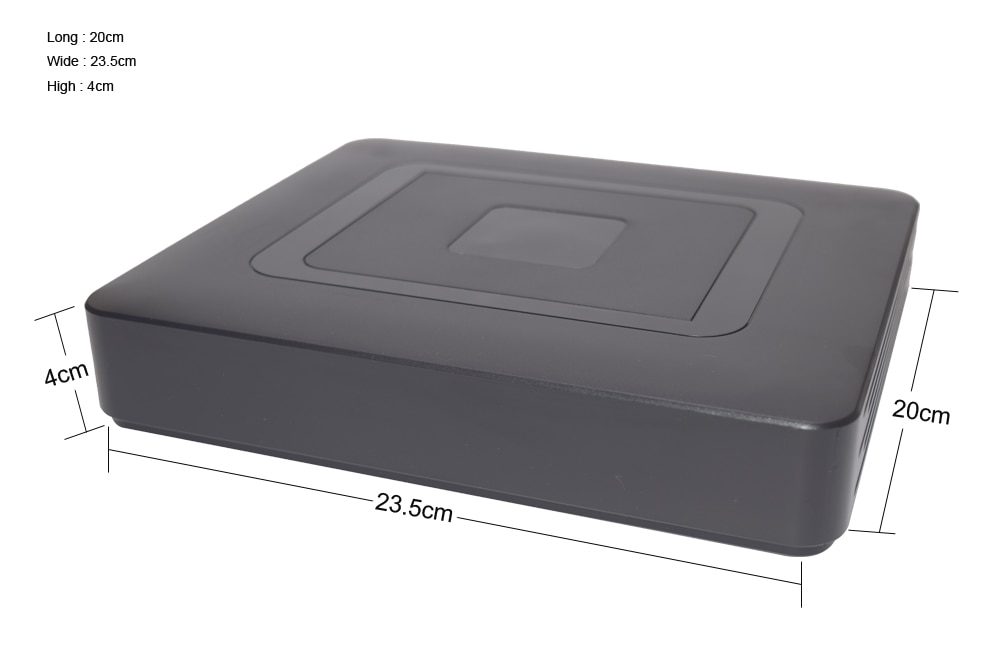

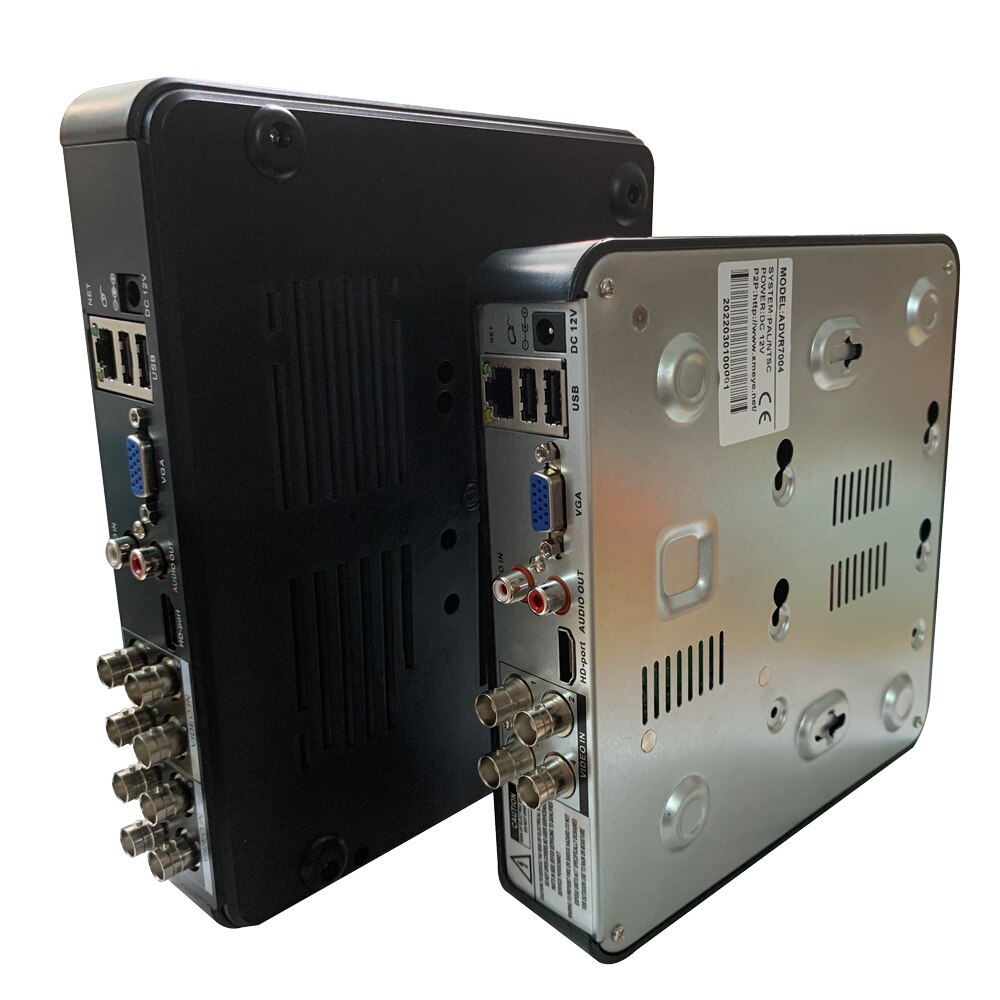

Dimensions of the product
Política de envío
1. Todos nuestros paquetes se envían a través de China POST air mail. si quieres elegir DHL, FEDEX, UPS, contáctanos, gracias.
2. El envío internacional puede tardar hasta 30 días hábiles.
3. Comprueba cuidadosamente tu dirección de envío antes del pago, no se puede cambiar si el pedido se ha completado.
4 si necesitas un tiempo más corto, contáctanos, podemos enviarlo a través de DHL/UPS/EMS y cualquier otro correo que te guste, pero tienes que pagar los gastos de envío adicionales.
Política de devolución
Todas nuestras ofertas están respaldadas por una garantía de satisfacción del 100%, y por cualquier motivo que no estés satisfecho, puedes devolvernos el artículo en su condición original para un reembolso o un cambio. Antes de enviar el artículo por correo, Contáctanos para obtener instrucciones detalladas de devolución e intercambio. Le devolveremos todo su dinero, excepto el envío y
Gastos de tramitación después de recibir su artículo de devolución.
Comentarios
1) Tus comentarios son muy importantes para nosotros, tómate unos segundos para dejar un excelente comentario si estás satisfecho con nuestro producto o servicio, ¡Muchas gracias!
2) Siempre ofrecemos el precio más bajo para los mejores productos y servicios para usted.
3) ponte en contacto con nosotros antes de dejar un comentario neutral (3 estrellas) o negativo (1-2 Estrellas). haremos todo lo posible para resolver el problema y dejar un ambiente de compra feliz aquí. ¡Gracias!
- DVR Power Supply: DC12V
- e-Cloud(P2P): YES
- Two-way Audio: No
- Alarm Action: Email Photo
- Backup Type: USB Flash Divers
- Supported Operating Systems: Microsoft Windows 2000,Microsoft Windows XP,Microsoft Windows 7
- Supported Mobile Systems: iPhone OS,Android
- IP Mode: Static IP address
- Network Protocol: DNS
- Network Interface: RJ45 10/100M
- Hard Drive Size: 3.5''
- Hard drive Interface Type: SATA
- Video Adjustment: Auto White Balance
- Audio Output: 1CH RCA
- Video Standard: NTSC/PAL
- Audio Compression Format: G711A
- Audio Input: 1 RCA
- Video Input Interface: BNC (1.0 Vp-p, 75Ω)
- Compression Format: H.264
- HDD Capacity: None
- Technology: HDTVI,Analog,HDCVI,AHD,Network
- Model Number: ADVR7004/A6X08K
- Brand Name: SIMICAM
- Origin: Mainland China
- Smart home platform: Xmeye
- Certification: CE
- DVR Language: Support for multiple languages
- Hard disk maximum support: 1TB-6TB
- Style: mini DVR
- CCTV Recorder 6in1: for Onvif camera AHD camera IP camera analogue camera
- Video Recorder Plug: US,EU,UK,AU,
- Voltage: 100V-240V
- DVR App: Free download
- App Name: Xmeye
- Hard disk: Hard disk not included
- Compressed format: H.264

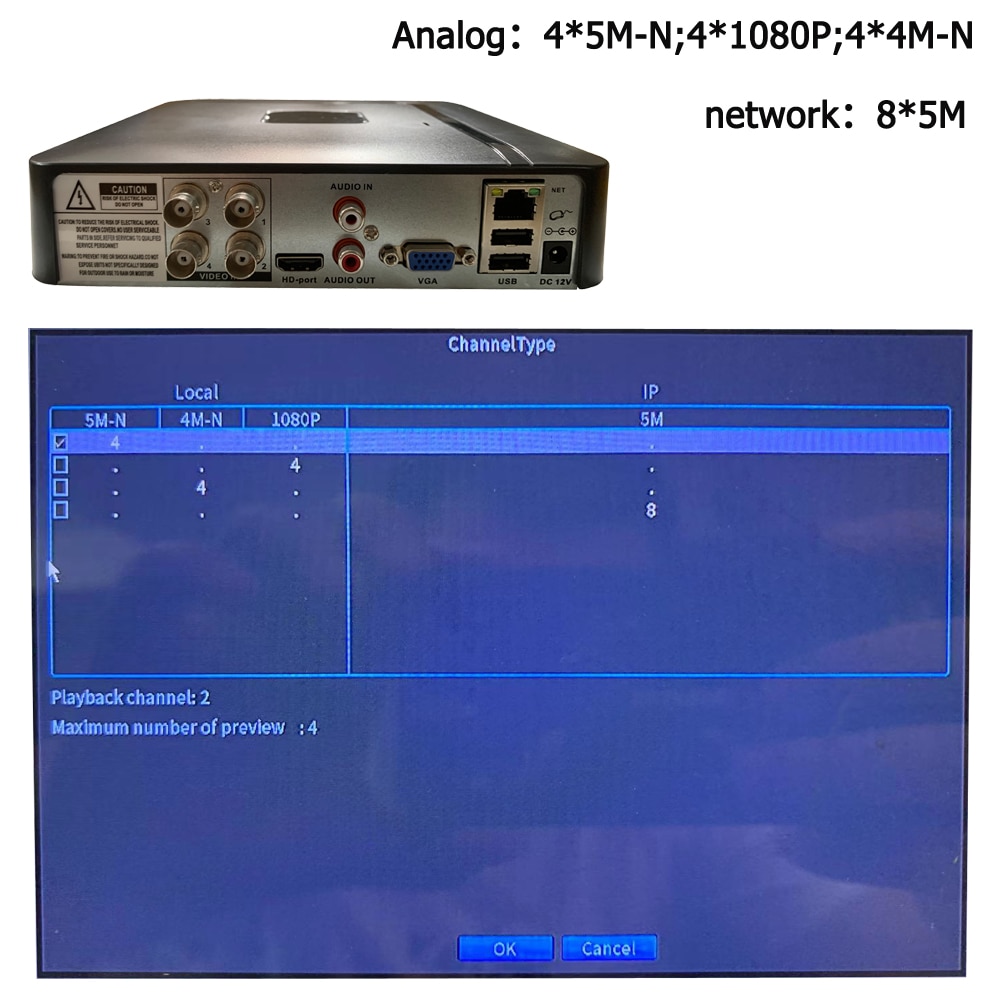

- AHD Camera Resolution support: 4Channel 5M-N/1080P/1080N/960P/720P

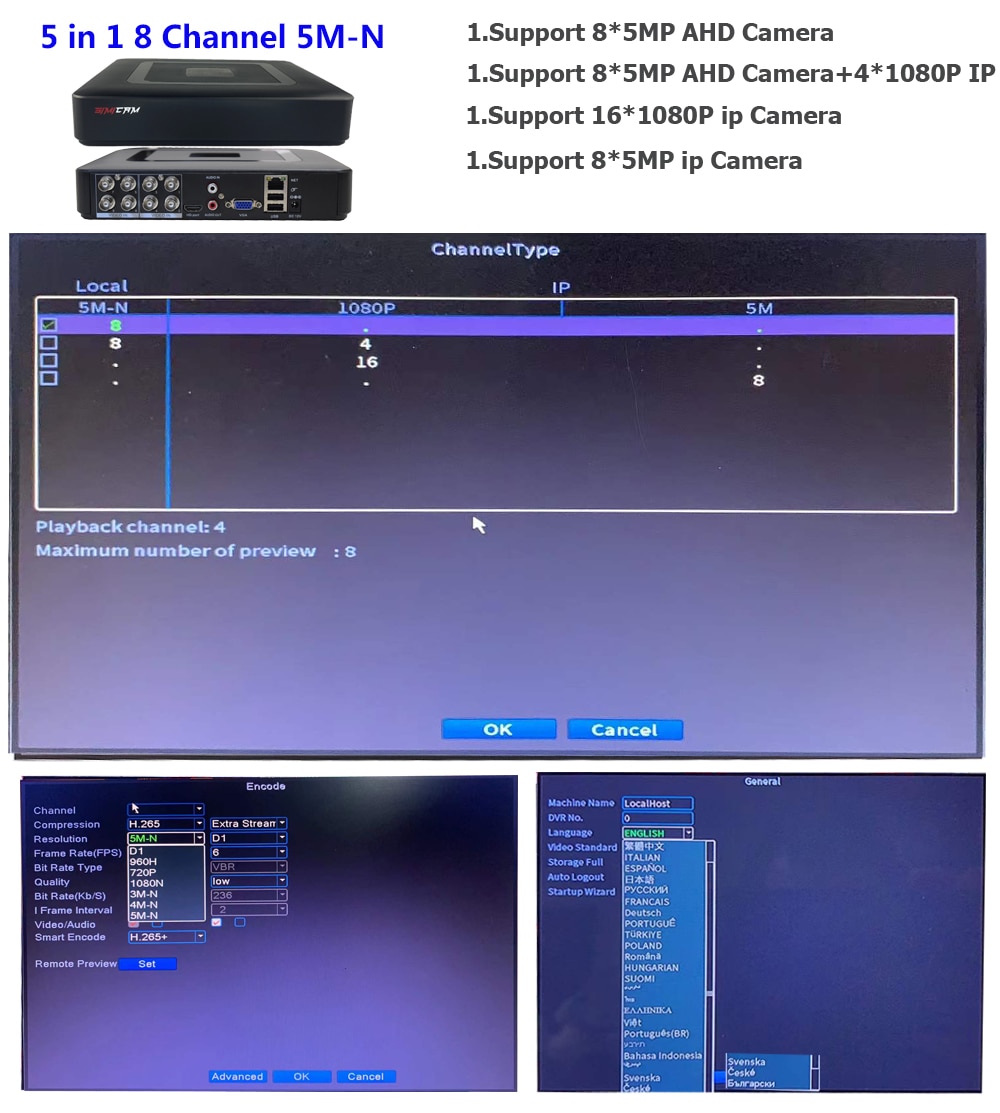

- AHD Camera Resolution support 2: 8Channel 1080P/1080N/960P/720P
- IP Camera Resolution support: 5M/1080P/960P/720P
- 8CH Video coding technology: Support H.265+ encoding
- 4CH Video coding technology: Support H.265+ encoding
