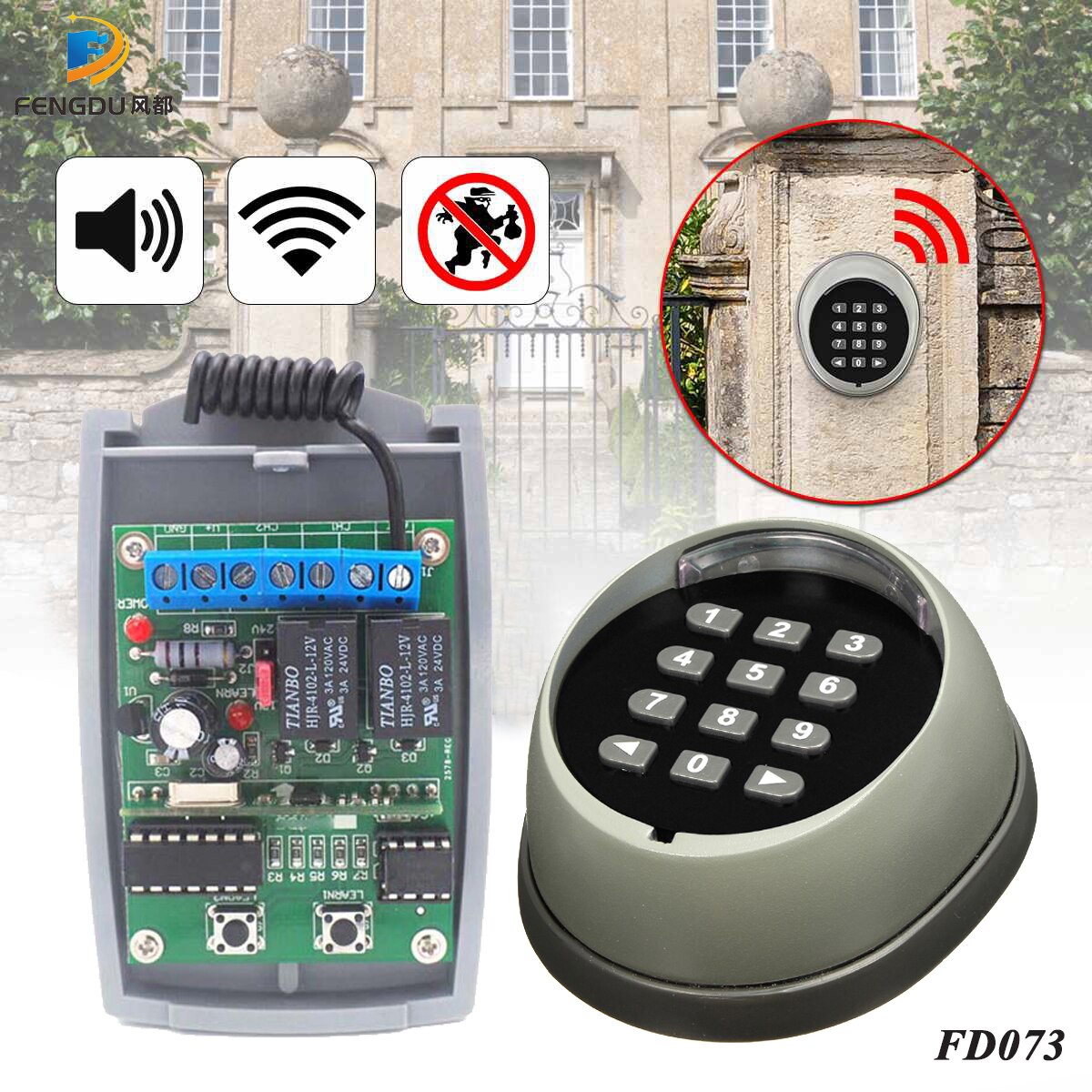

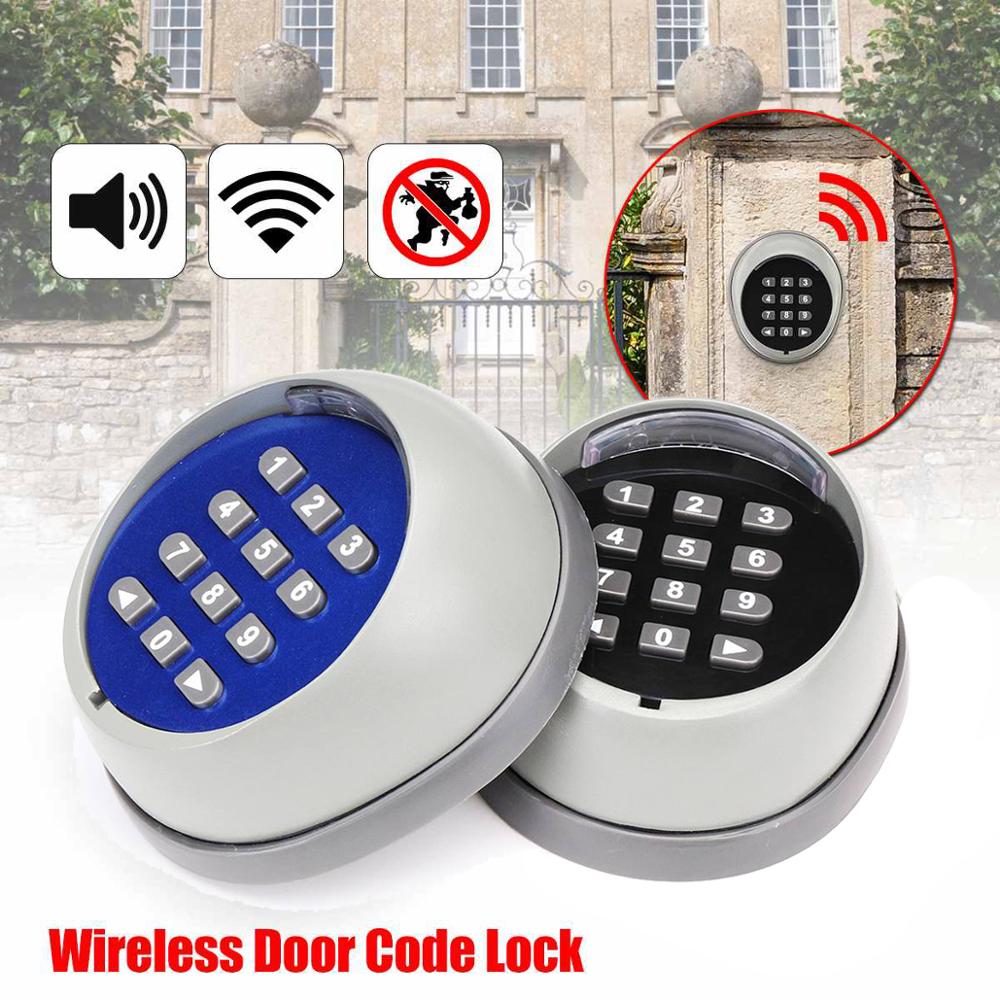

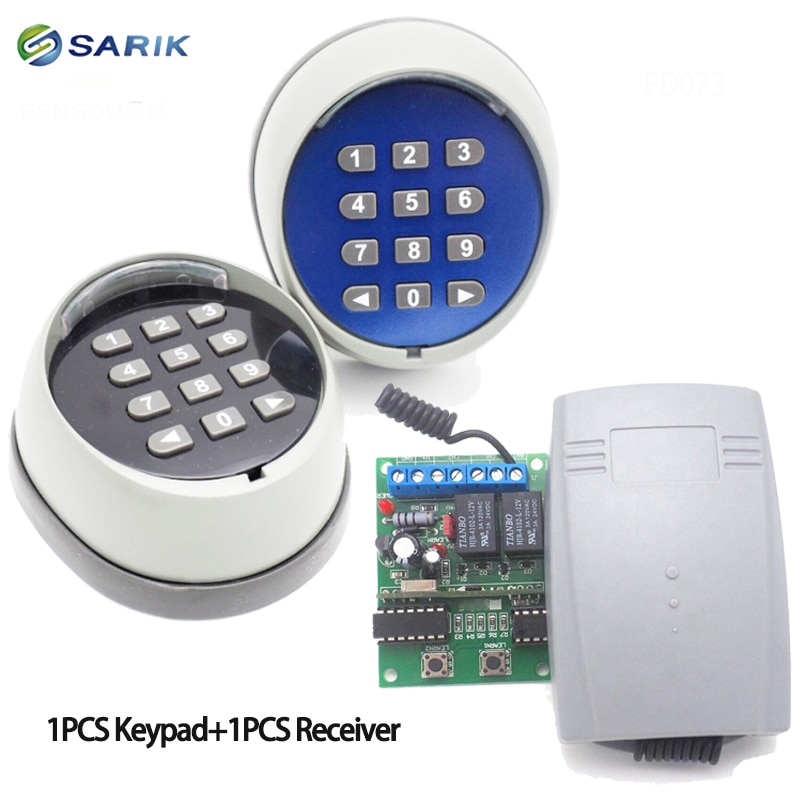

Access Control password Multi Function Wireless Keypad garage door opener gate opener transmitter 433MHz receiver

This is a dual channel transmitters that are activated only after having entered a Suitable combination. The units are designed for installation in indoor or outdoor locations that ensures the utmost security because the transmitted code is changed at each transmission session. The estimated transmission range is 200M in open space and 35M indoors. The units are designed to ensure battery life equivalent to an estimated 2 years of operation considering 10 transmissions/day.

Technical Specifications:

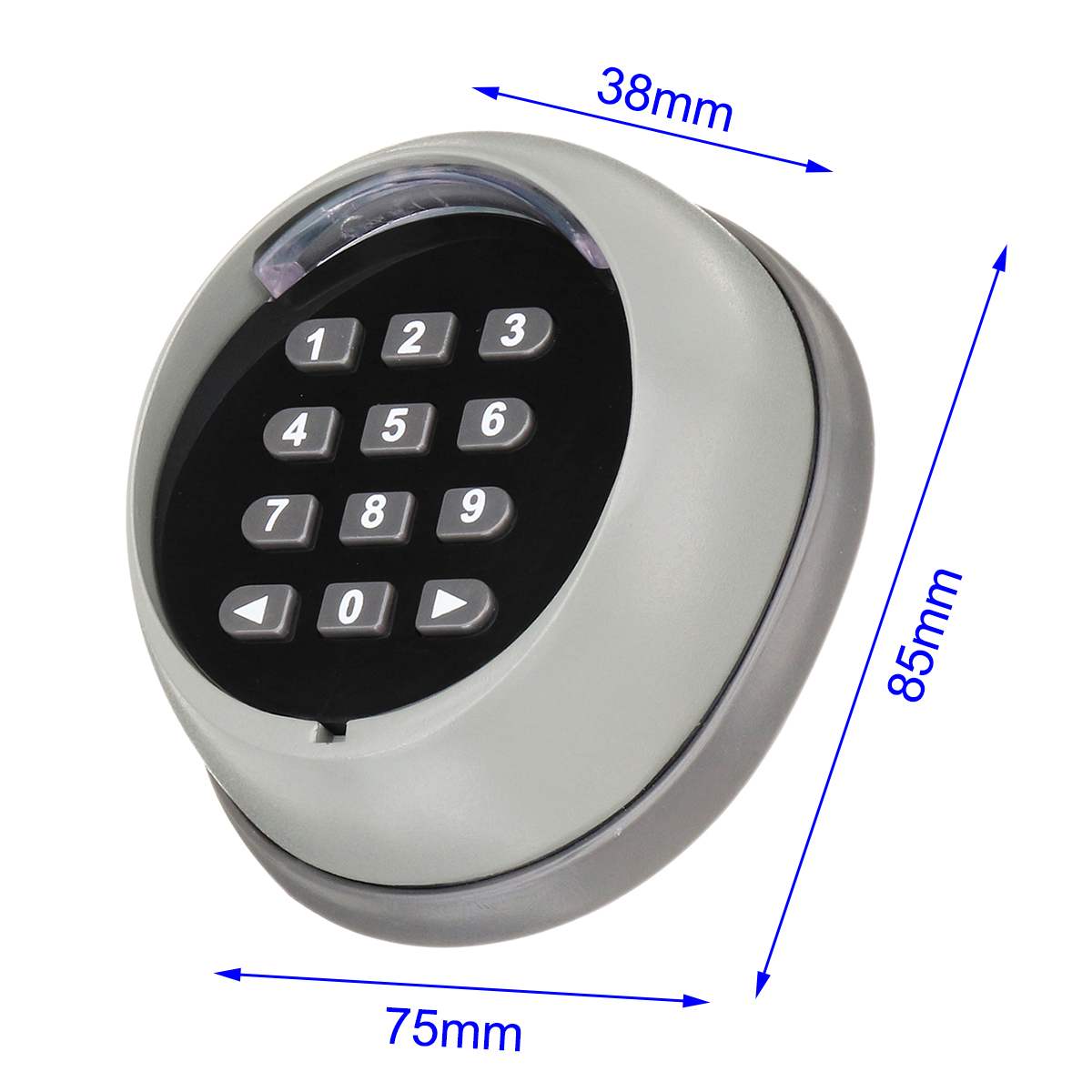

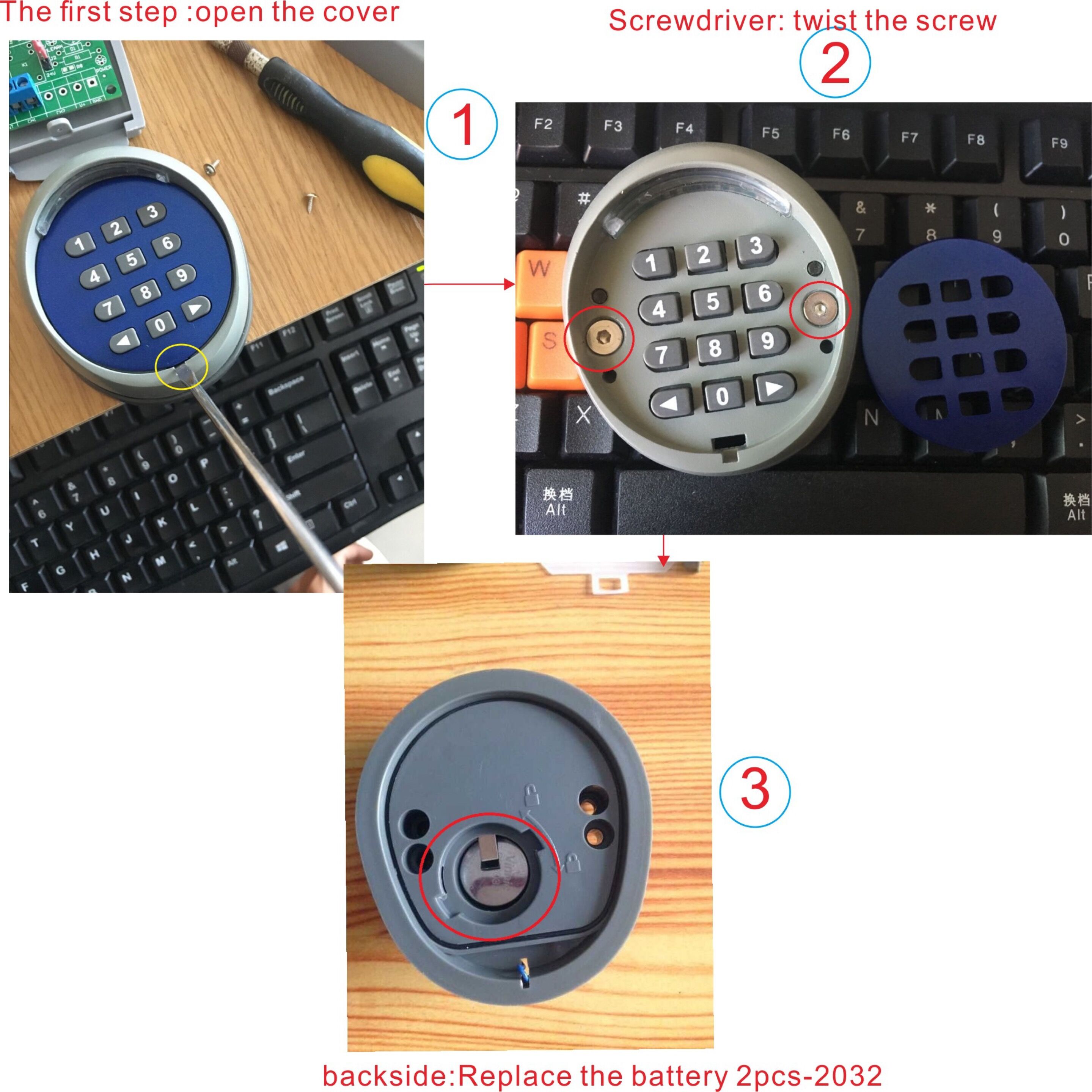

Color: Black/Blue Material: Plastic Size: 85x75x38mm/3.34"x2.95"x1.49" Power: 2 x CR2032 (230mAh) Batteries 6V DC Battery life: about 2 years, 10 times a day. Working frequency: 433MHz +/-75KH Emission power: about 1mW Encoding format: HCS101 standard format Working temperature: -10~+55 C Digit number: 0 to 8 bits Launch distance: Open Distance 200 meters; indoor distance 35 meters. Protection grade: IP54

Audible Signal/Status

1 Short beep:Keypad tone 1 Long beep:Modification of combination confirmed (or send the signal after enter the correct password ) 5 Short beeps:Error during combination input or combination edit operation 2 Low beeps:Battery low warning signal New batteries required

2)Installation

Before physically installing the it in their mouning position it is good practice to perform a practical test to assess their functionality and effective range. Consider that range may be up to 25 or 30% less when battery power is low . 2.1) positioning Apart from the distance from the receiver, the units should not be positioned in the vicinity of or-worsestill-in contact with metal structures, which could otherwise exert a signal shielding effect. Thanks to the enclosure protection rating of IP 54, the digital selectors can be installed outdoors if required.

3)Method of use

The use of the keypad is based on "combinations", i.e. numbers of from 1 to 9 digits that the user is required to key in by means of the keys.Once the combination has been Entered the user then presses confirm key3or4to transmit the activation FOR command to, respectively. -receiver channel 1 if the user presses3 -receiver channel 2 if the user presses4 The FOR command will be transmitted only when a valid combination has been entered - if an incorrect combination has been entered the selector will emit an error, warning signal when the confirom key is pressed . The combination entered must be exact,if, for example ,the correct combination is 0422, the following attempts will be interpreted as errors: 422, 10422, 04222. Therefore, if the user inadvertently presses the wrong key when entering a combination, combination key3or4should be pressed immedliately to generate the error tone , after which the correct combination can be entered starting from the beginning again. While entering the combination no more than 6 seconds can be allowed to elapse between keystrokes,after which interval the combination must be re-entered starting from the beginning. The units are factory programmed with a standard combination to activate channel one and a standar combination for channel two. The factory set combinations are as follows: 1a combination to transmit the code associated with the 3key. When the unit is used for the first time this combination is11 2a combination to transmit the code associated with the 4key. When the unit is used for the first time this combination is 22.


  • Model Number: FD073
  • Certification: CE
  • Origin: Mainland China
