AC 220V 10000W SCR Digital Control Electronic Voltage Regulator Speed Control Dimmer Thermostat + Digital Meters Power Supply

4.9 (34 votes) | 152 orders
Price: US $30.48 / piece
Discount Price:
US $ 26.01 / piece
-15%
Quantity

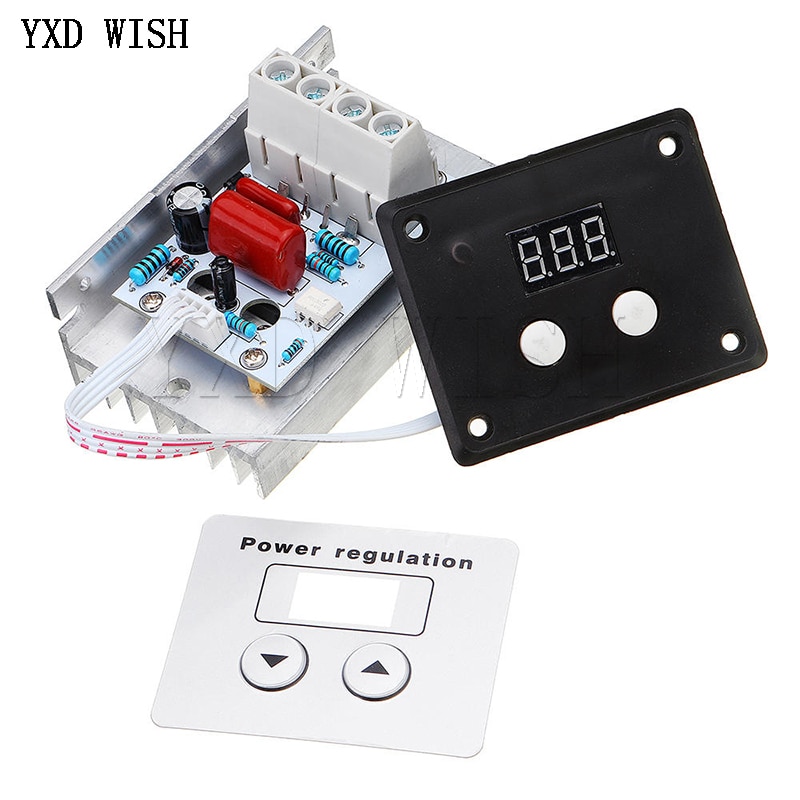

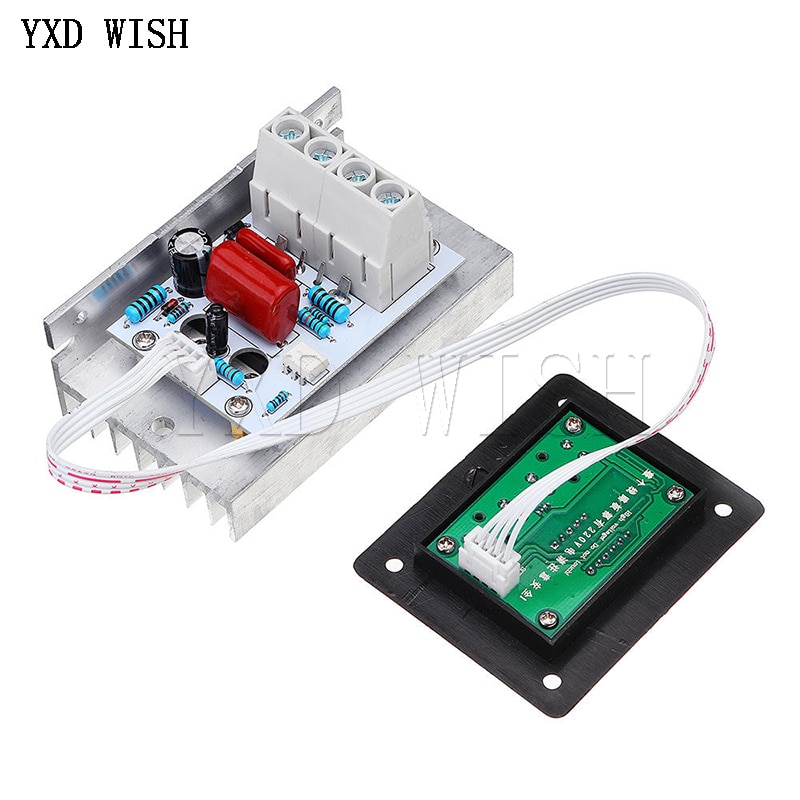

AC 220V 10000W SCR Digital Control Electronic Voltage Regulator Speed Control Dimmer Thermostat + Digital Meters Power Supply


Specifications:
Voltage: AC 220V
Max Power: 10000W(instantaneous limit power for impedance load; for long time use, 5000w or lower is recommended)
Voltage Adjustment: 0-100% (nonlinear)
Controller Size: 95.7*56.7*53.8mm/3.76*2.23*2.11"
Panel Size: 74.6*59.8*2.3mm/2.93*2.35*0.09"

Cable Length: 287mm/11.3"



Note:


1, AC input, AC output, output voltage is lower than(or equal to) input voltage; voltage can be adjusted only when connected to load; mainly used for resistive load.



2, It can not replace electric bicycles' battery charger, nor drive electric appliances which use switch power supply (such as 110V TV, speaker, refrigerator, air conditioner, rice cooker with a computer), and cannot drive induction cooker, energy saving lamp.



This Product has a Green PCB Board and White PCB Board, The Function is the Same, It's the Color of PCB Board Different only,And the Panel We Has 2 Different Version(Swithch & Without), We Will Randomly,Please Note.



Features:

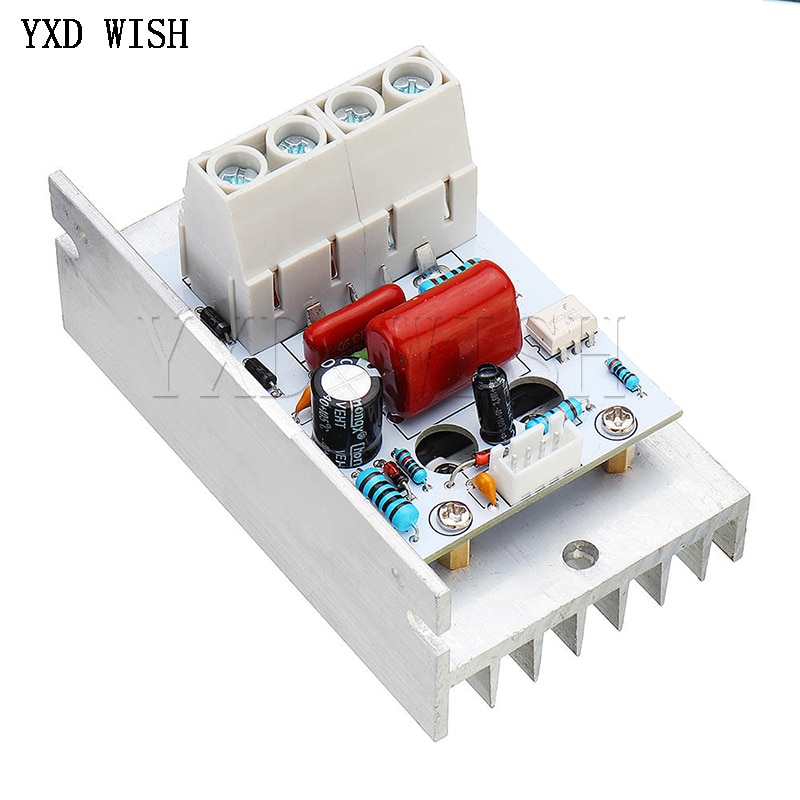

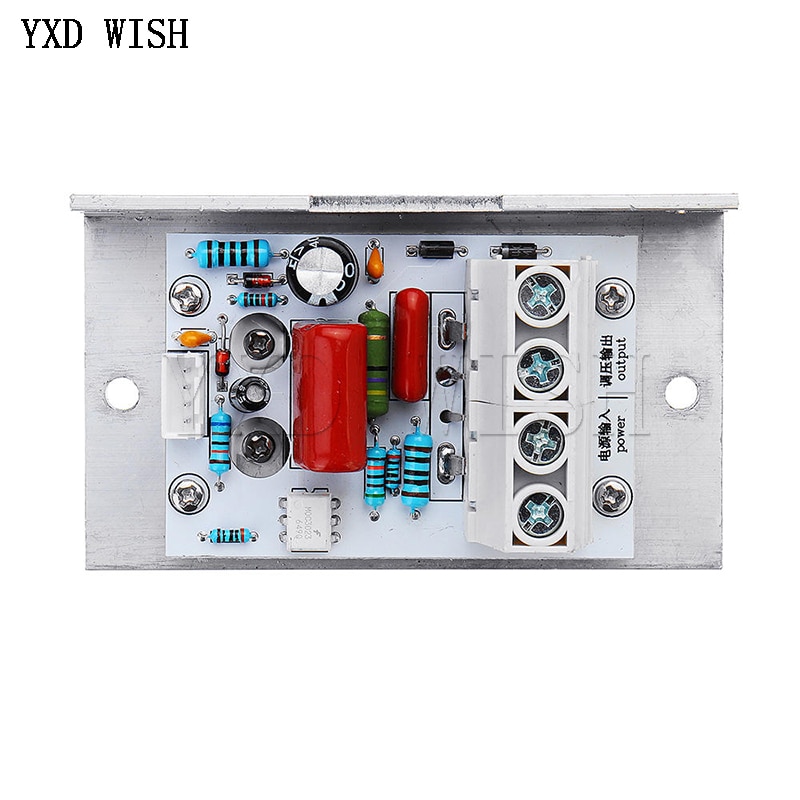

  • This item has new two-way large power silicon controlled rectifier and the current can be up to 80A, which is a good solution to over-current of electric stove wire caused by low resistance during cooling.
  • It can easily adjust the output voltage on a scale of 0-100% (nonlinear) to power electric device.
  • Designed with large and thick heat sink that would enhance heat dissipation.
  • This voltage regulator is adjusted with button which is much more stable than potentiometer.
  • Voltage regulator has wave voltage absorbing circuit and effective protects large power silicon controlled rectifier, longer service life and more durable.
  • It can be used as power supply for large electrical devices of less than 10000W, enough for household appliances or for small factory.
  • Could be widely used as heat controller on electric stoves, water heaters, light dimmer on lamps, speed controller on small motors, or temperature controller on electric soldering iron.



Package Includes:
1 x SCR Controller
1 x ABS Panel
1 x Panel Sticker
1 x Cable







  • is_customized: Yes
  • Model Number: 10000 W High Power SCR BTA10 Electronic Voltage Regulator
  • Current Type: AC
  • Phase: single phase
  • Brand Name: YXD WISH
  • Origin: Mainland China
  • Certification: CE,RoHS
  • Model Number: SCR Controller
  • Fuction 1: scr voltage regulator
  • Fuction 2: ac voltage regulator
  • Fuction 3: ac power adjustable
  • Fuction 4: speed controller ac
