8MP CCTV Security Camera Tester IV8W 5Inch CCTV Monitor AHD/CVI/TVI CVBS Analog Camera Tester CCTV Cameras Tester HDMI VGA Input
4.5 (8 votes) | 39 orders
Price:
US $501.05 - 531.04
Discount Price:
US $
231.46 -
245.20
-54%
- Color
-
-

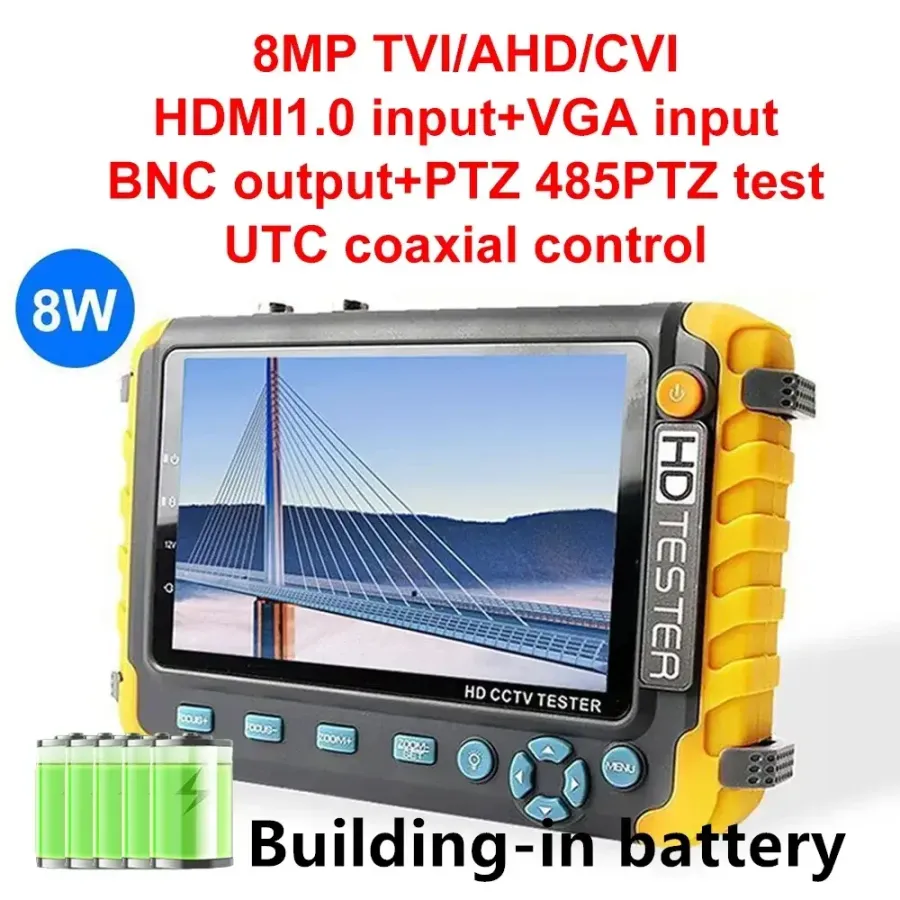

8MP CCTV Security Camera Tester IV8W 5Inch CCTV Monitor AHD/CVI/TVI CVBS Analog Camera Tester CCTV Cameras Tester HDMI VGA Input
Parameter comparison table
Note:
This tester cannot be used under overload, and it prompts that the battery is insufficient.
Please charge it immediately.
It cannot be used during the charging process. Use it after fully charged.

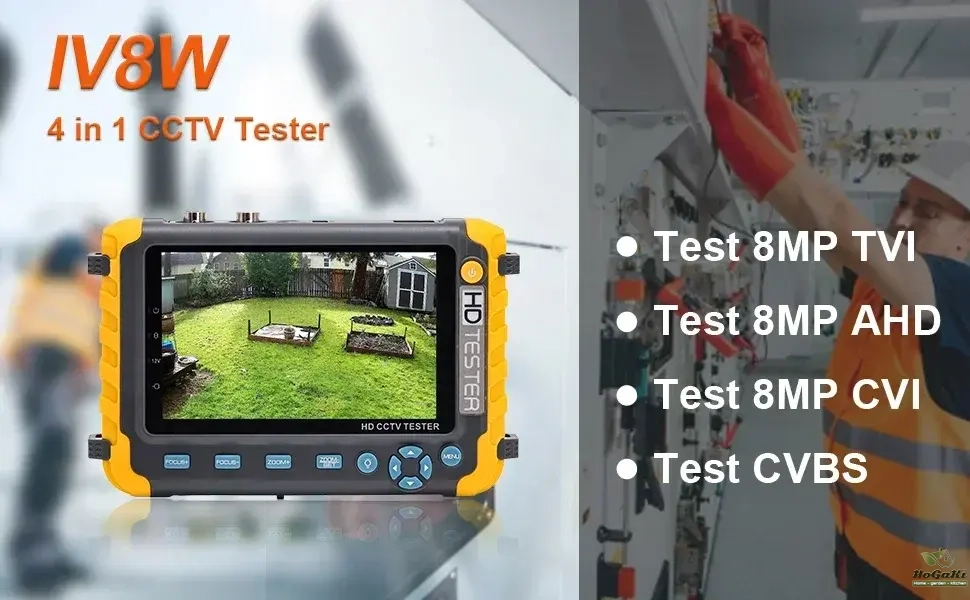

IV8W Application
The new HD Coaxial tester is developed for the on-site installation and maintenance of Analog Camera (CVBS) and HD Coaxial Camera, having AHD. (NOT Support IP Camera). It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, LED lamp etc.

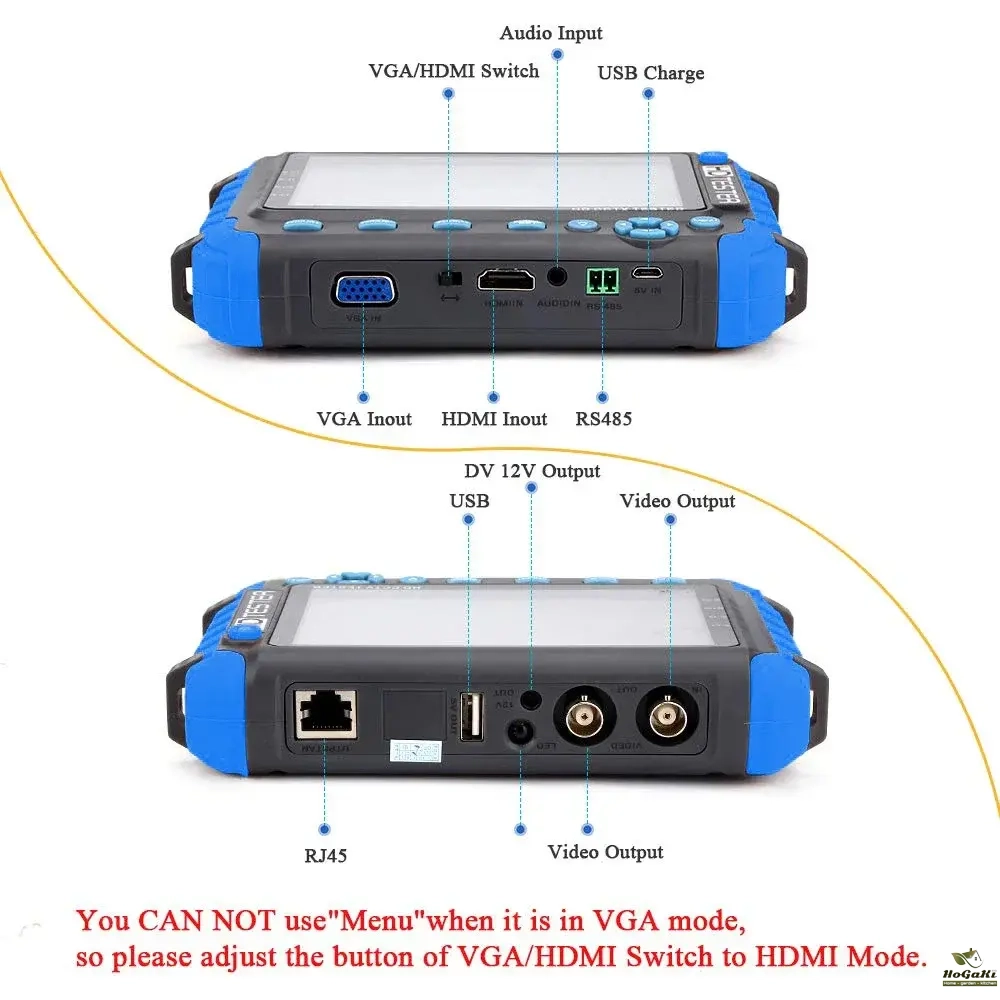

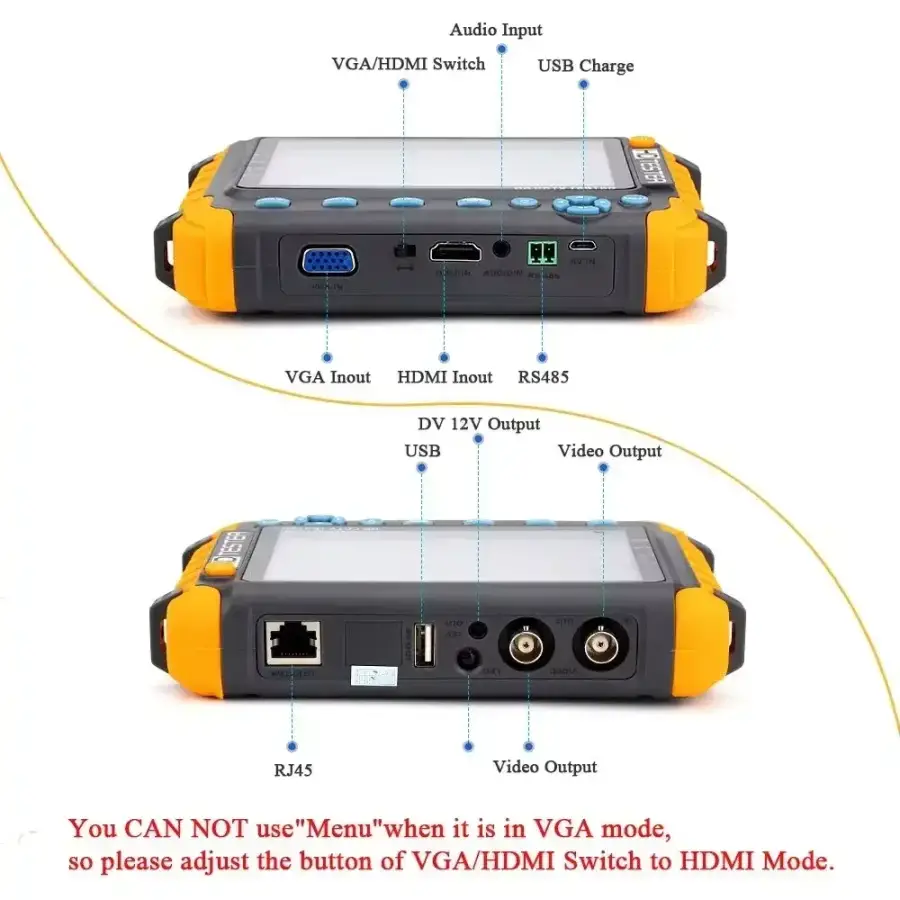

HDMI &VGA Input
VGA/HDMI Input,it support VGA/HDMI 1:1 compliant digital input,once connect VGA/HDMI video,please switch selector to select VGA/HDMI Mode,The maximum resolution is 1920*1440. Video monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality. Support PAL/NTSC standard video signal.
PTZ controller
Video monitor tester built-in Pelco-D / P PTZ control protocol,etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus,aperture size.
DC12V 1A output power for camera
The tester support DC12V (1A) power output for camera. It is helpful for demo and testing when the power supply is not available.

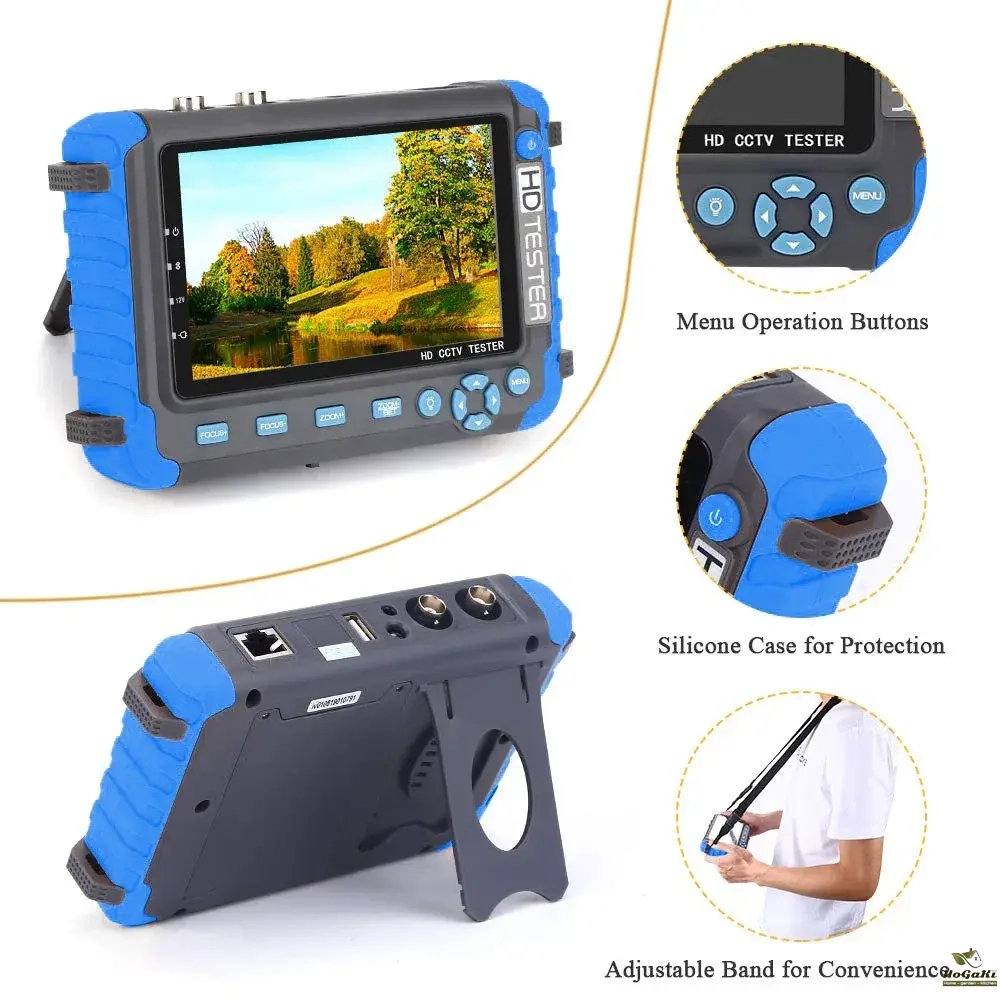

LCD Screen
Vedio monitor tester support High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality.
PTZ controller
Video monitor tester built-in Pelco-D / P PTZ control protocol, etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.
Image generator
Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section
Audio testing
Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.
Enhanced network cable testing
By UTP CABLE TEST port on the meter, you can test the connection of network cable.

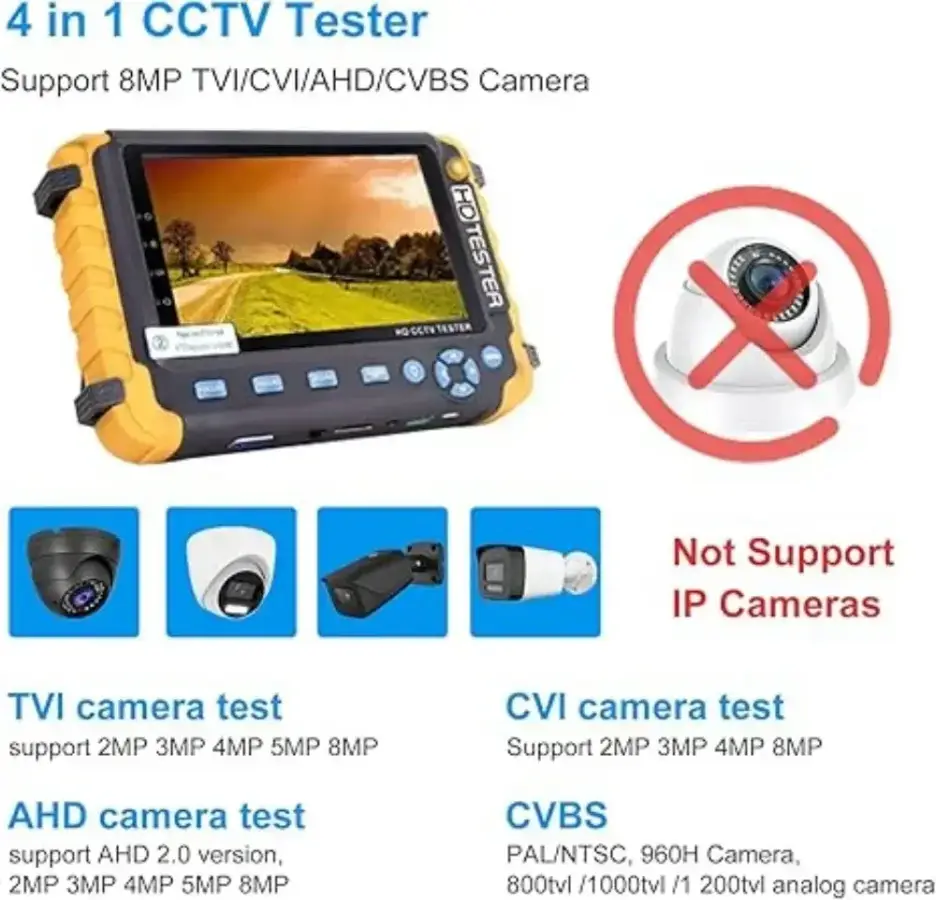

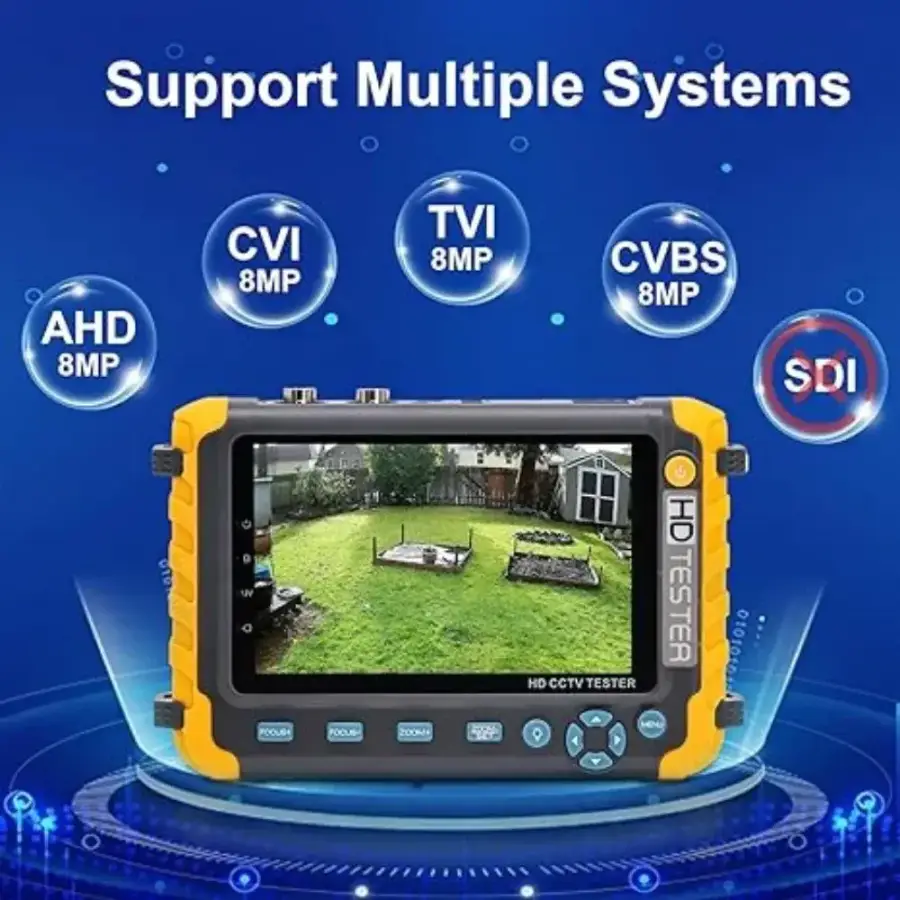

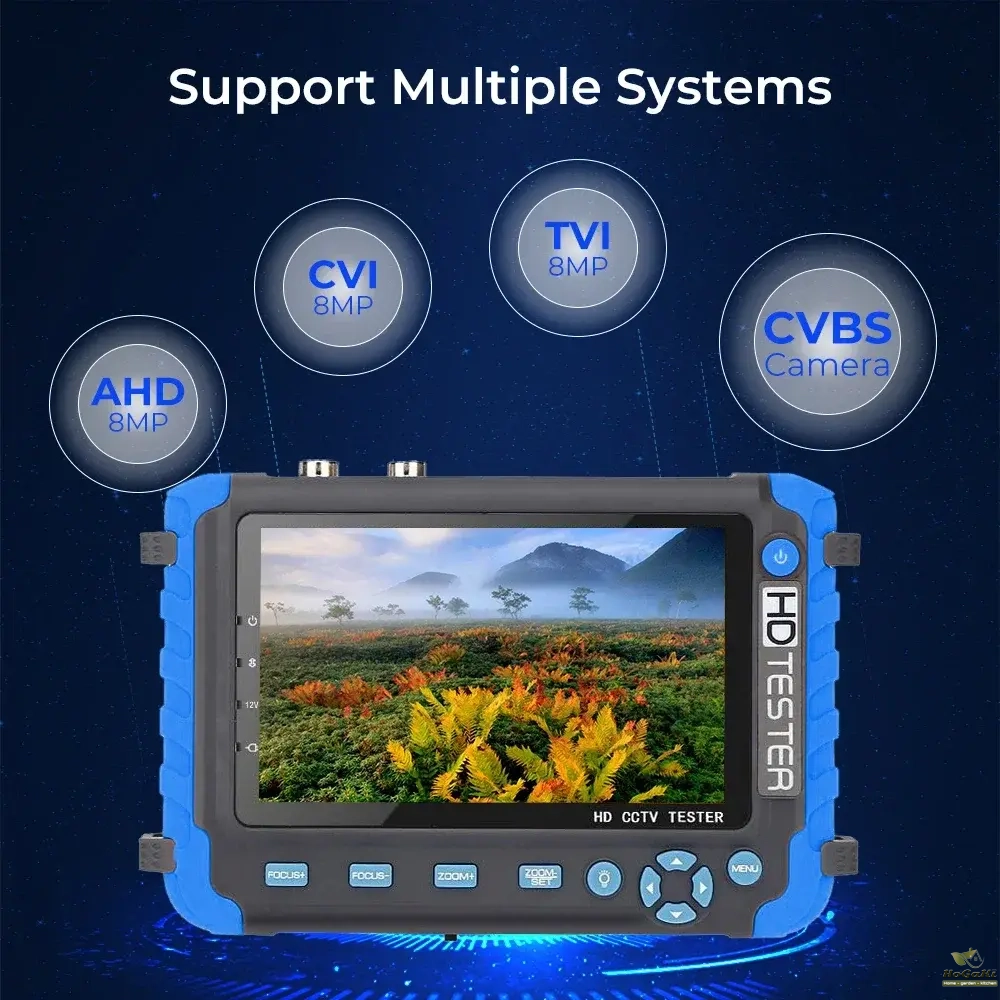

TVI input
1 channel TVI input(BNC interface), support 720P25/30/50/60,1080P3MP/4MPand 5MP 25/30,8MP

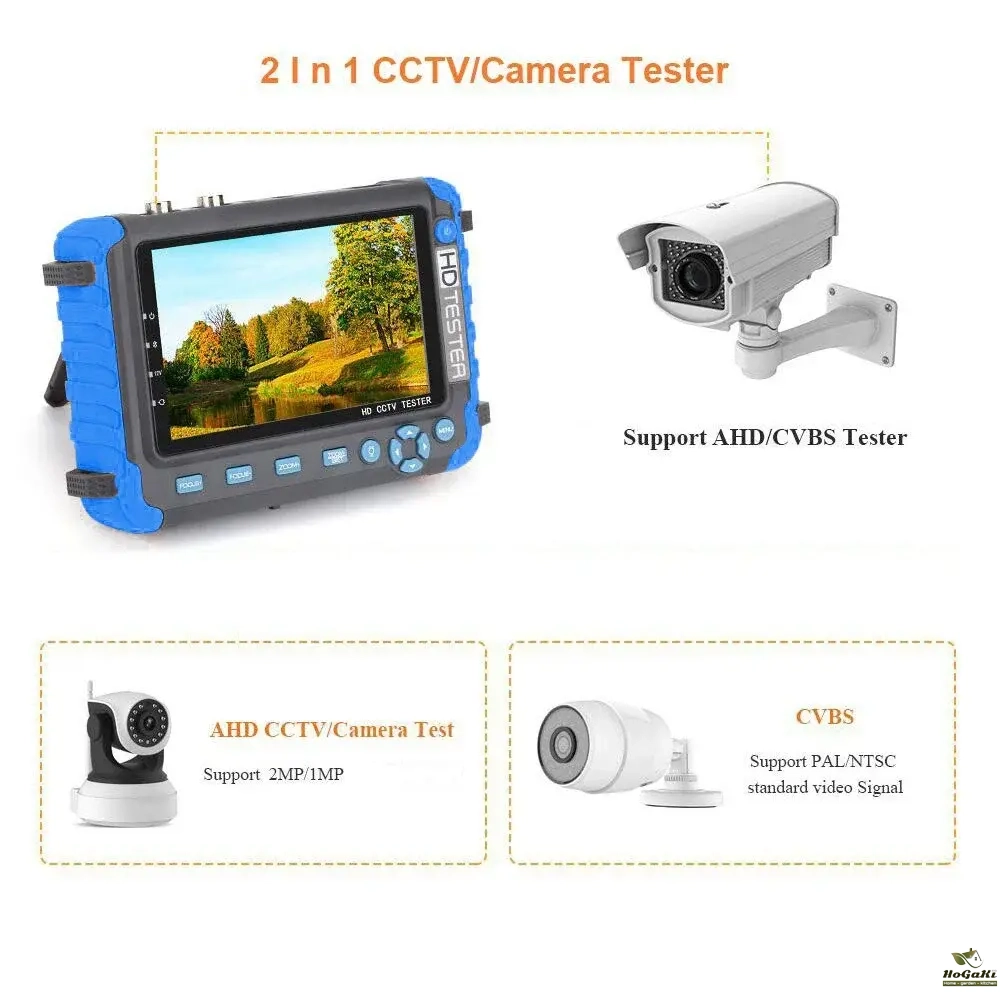

AHD camera test
support 1 channel AHD input (BNC interface), 720P25/30/50/60,1080P3MP/4MP and 5MP 25/30,8MP When AHD signal input, the tester will display the AHD camera image.
CVI camera test
1 channel CVI input(BNC interface), support 720P25/30/50/60,1080P25/30,3MP and 4MP12.5/20,5MP, 8MP CVI camera input

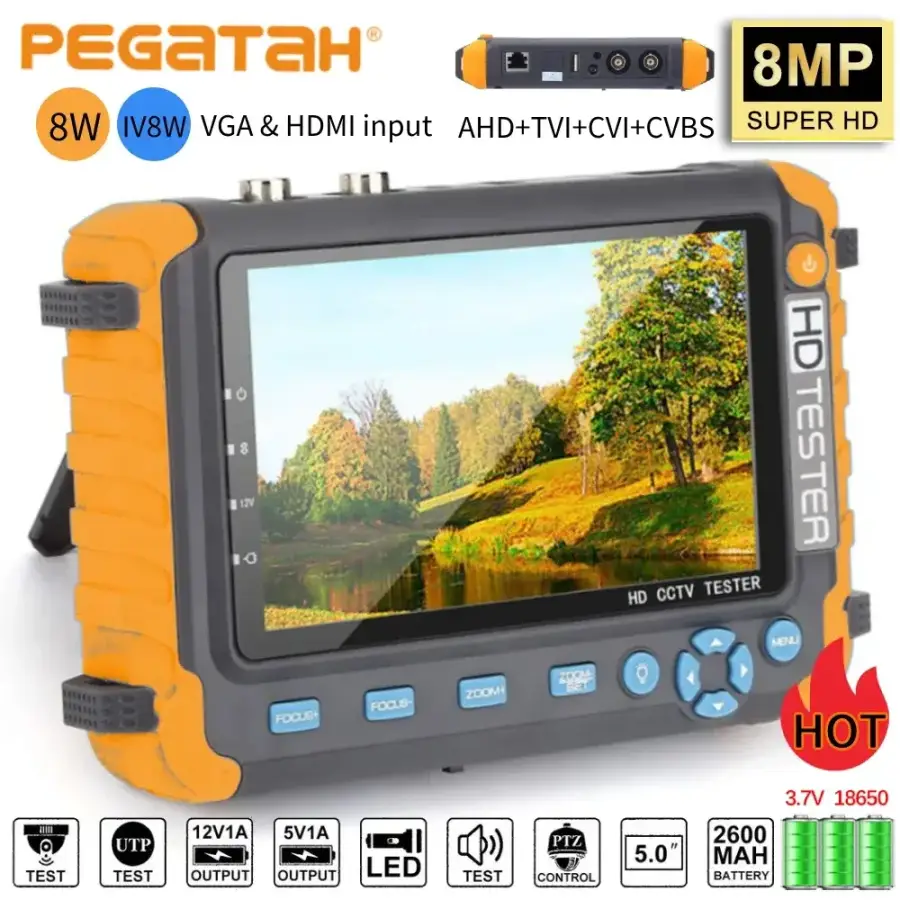

Key Feature:
● 4.3-inch LCD 480 * RGB * 272 (QVGA) resolution, 64K color(IV5 800 RGB *480P)
● Support PAL/NTSC standard video signal. CVBS testing.
● RS485 PTZ controller (7A /7S/7W)
●RS485 PTZ controller and UTC control PTZ,BNC coaxial control PTZ,But cant call the camera menu information(IV5) Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.
Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.
● Audio testing Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.
● UTP Network cable testing
Display UTP cable connection status , cable type and the sequence of wires as well as read the number of the test box.
● TVI camera test
HD TVI video surveillance testing, When TVI signal input, the tester will display HD TVI camera image.
● CVI camera test
HD CVI video surveillance testing, When CVI signal input, the tester will display HD CVI camera image.
● AHD camera test
HD video surveillance testing. When AHD signal input, the tester will display the AHD camera image.
● LED lamp
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.

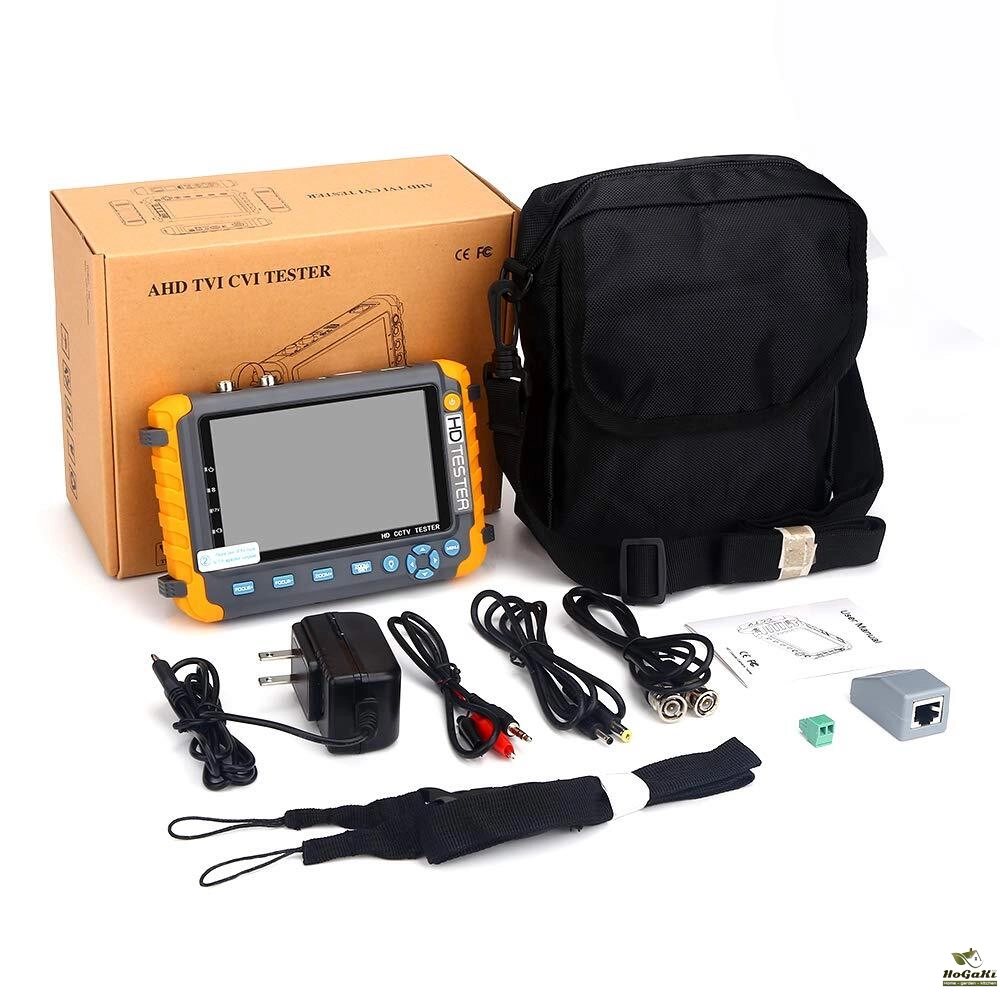

Packaging Details
- Unit Type:
- Package Weight: 0.848
- Package Size: 19x12x24
- Brand Name: PEGATAH
- Lens: 3.6mm
- Origin: Mainland China
- Hign-concerned Chemical: None
- Sensor Size: 1/4 inch
- Maximum IR Distance(m): 30M
- Sensor Type: Sony CCD

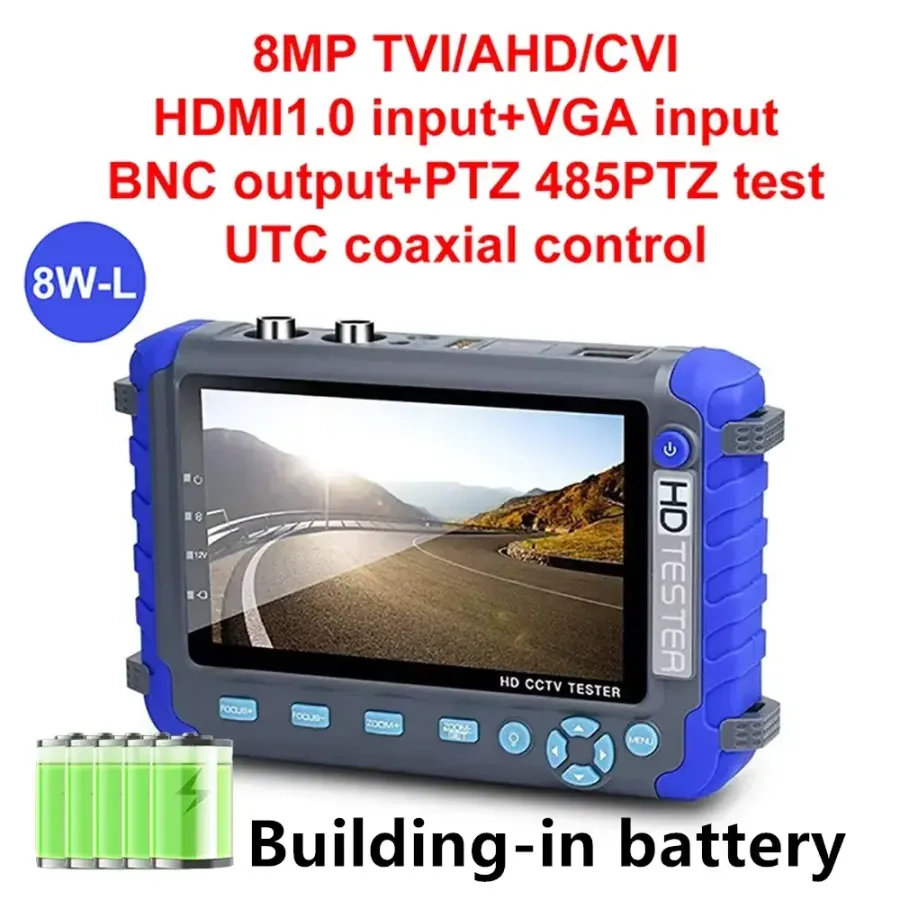

- Model Number: IV8W-L
- Certification: CE
- Sensor Size: 1/4 inch
- Plug Type: EU Plug

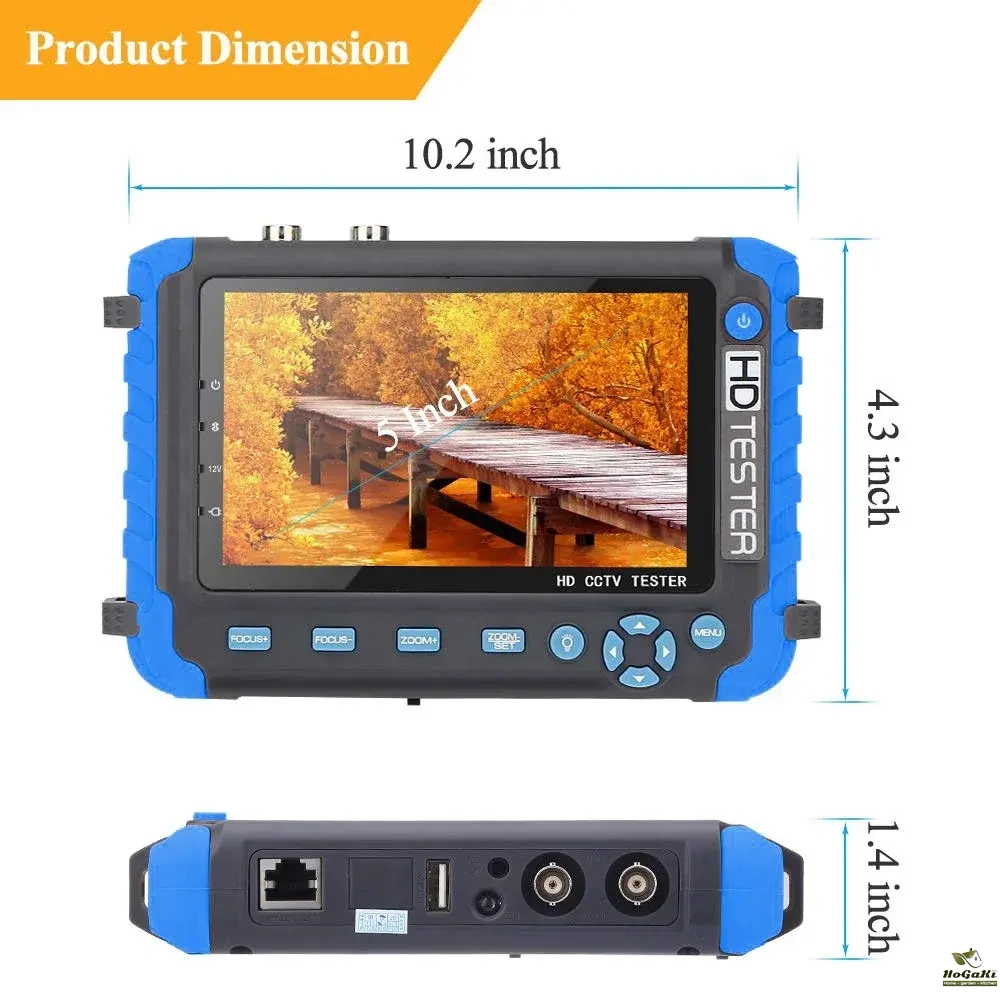

- Display screen: 5.0 inch 800*480 resolution TFT-LCD
- AHD camera test: Support 720P/1080P3MP/5MP/8MP
- CVI camera test: Support 720P/1080P3MP/4MP/5MP/8MP
- TVI camera test: Support 720P/1080P3MP/5MP/8MP
- IPC camera test: Not support
- HDMI/VGA input: 1920X1080 video input
- Video input: 1ch Analog signal input
- BNC output: support PAL / NTSC formats standard color bar output
- UTP Cable Tester: Support RJ45 cable test
- LED lamp: Support
- DC 12V/1A output for camera: Support
- Audio Input Test: 1 channel audio signal input
- Power Adapter: DC 5V 1.5A

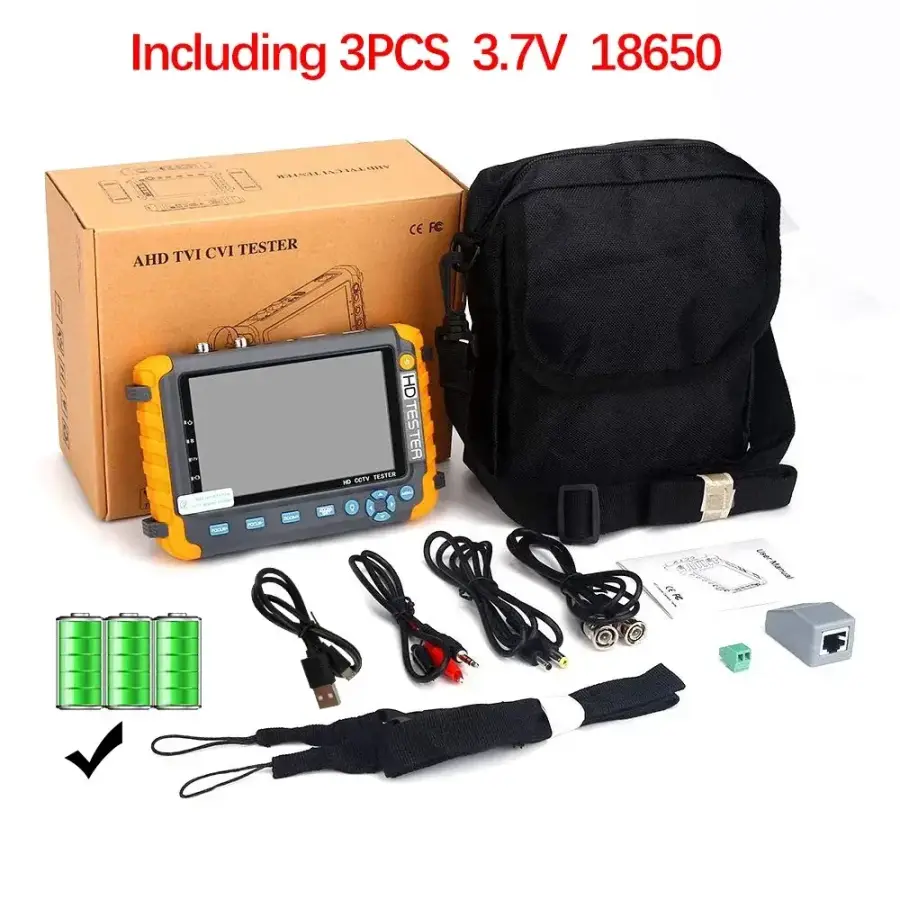

- Battery: Rechargeable 18650 Battery
- PTZ Controller: Support RS485
- PTZ Protocol: Compatible with protocols PELCO-D/P
- Baud Rate: 600,1200, 2400, 4800, 9600,14400bps
- IP camera input: Not Support
- Security Camera Monitor: Video Surveillance
- CCTV Display: CCTV Monitor
- Choice: yes
