8mm 10mm 12mm 16mm Shank Lathe Turning Tool Holder Boring Bar Lathe Tool Lathe Cutter CNC Metal Turning Rod Holders and Inserts
4.9 (319 votes) | 2000 orders
Price:
US $167.17 - 277.40
Discount Price:
US $
57.67 -
94.26
-66%
- Color
-
-

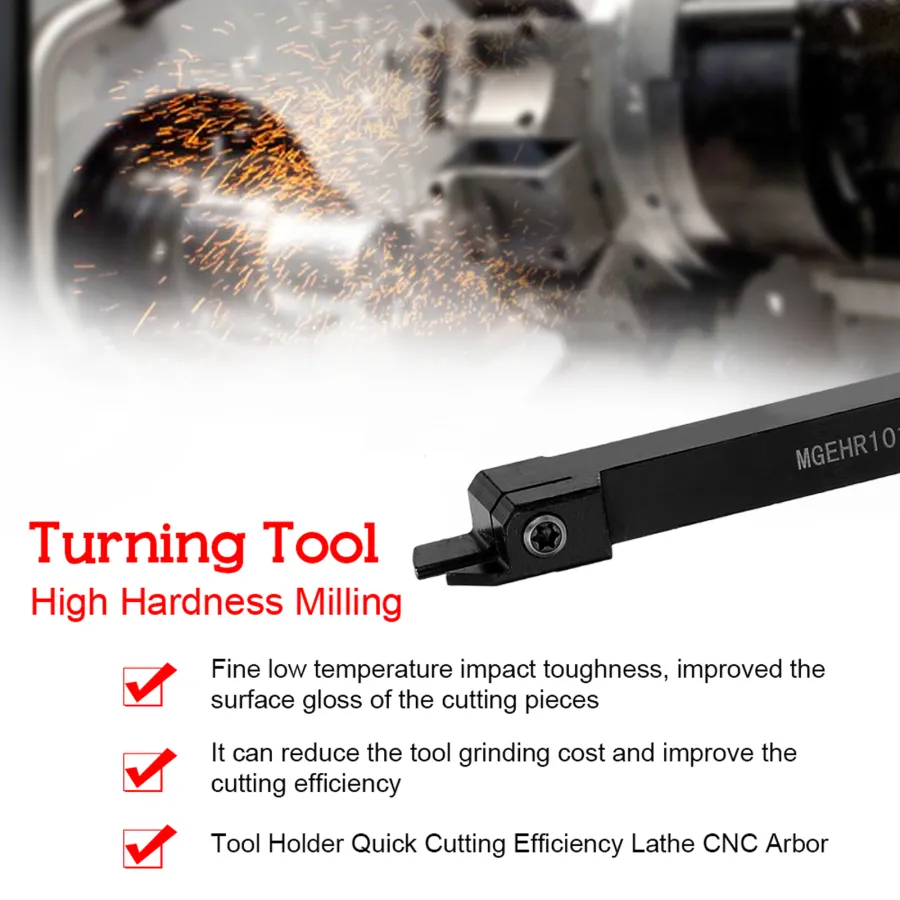

This is a kind of fine quality CNC arbor, made of fine toughness and hardness material, can provides long service life. Fine low temperature impact toughness, improved the surface gloss of the cutting pieces. It can reduce the tool grinding cost and improve the cutting efficiency. You can have a try.
Features:
1. High grip strength, impact resistance and strong, clear speed advantage in cutting off a large margin and processing.
2. Fine toughness and hardness, long service life.
3. It can reduce the tool grinding cost and improve the cutting efficiency.
4. Fine low temperature impact toughness, improved the surface gloss of the cutting pieces.
5. To maintain tight tolerances unmatched performance.
6. User clamping and convenient way to replace, only a wrench to complete the replacement of the insert and pad.
Warning:
- Use safety precaution such as guards and eye-protections device before using the tool.
- Exchange a tool when it occurs problem such as a noise, vibrations and a flame.

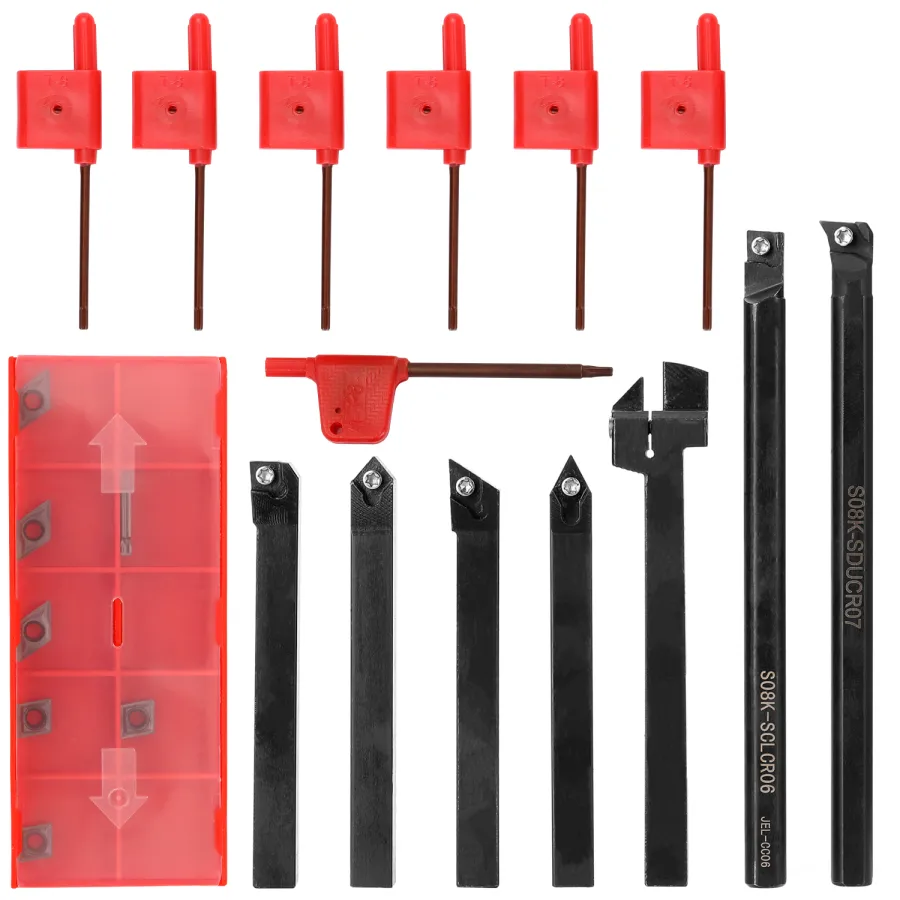

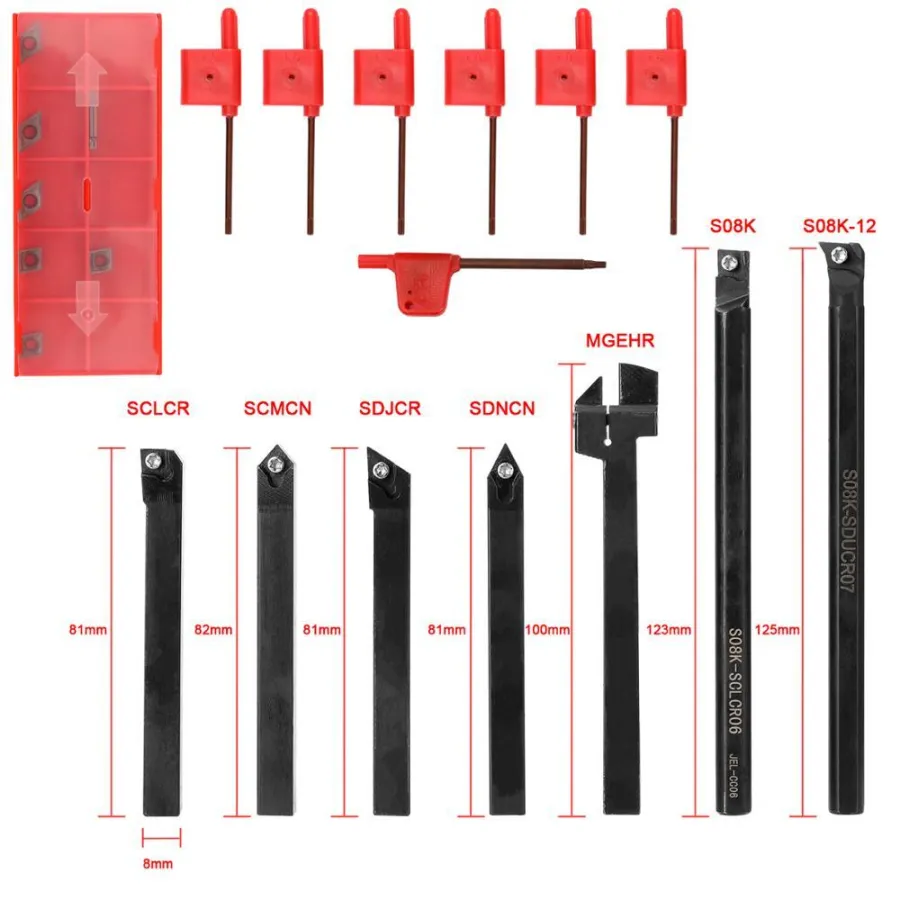

8mm:
Specifications:
Name: Milling Tool Holder
Material: stainless steel + plastics
Model(turning tool+insert): S08K-12+SDUCR07, S08K+SCLCR06, SCMCN+0808F06, SCLCR+0808F06, SDJCR+0808F07, SDNCN+0808F07, MGEHR+0808-02 (ALL)
Wrench:
MGEHR: T10
SDJCR: T8
S08K-12: T8
SDNCN: T8
SCLCR: T8
SCMCN: T8
S08K: T8
Turning tool size:
MGEHR: 100 * 8 * 8mm / 3.94 * 0.31 * 0.31in
SDJCR: 81 * 8 * 8mm / 3.19 * 0.31 * 0.31in
S08K-12: 125 * 8 * 8mm / 4.92 * 0.31 * 0.31in
SDNCN: 81 * 8 * 8mm / 3.19 * 0.31 * 0.31in
SCLCR: 81 * 8 * 8mm / 3.19 * 0.31 * 0.31in
SCMCN: 82 * 8 * 8mm / 3.23 * 0.31 * 0.31in
S08K: 123 * 8 * 8mm / 4.84 * 0.31 * 0.31in
Turning tool with box weight:
MGEHR: 72g / 2.54ounce
SDJCR: 60g / 2.12ounce
S08K-12: 71g / 2.50ounce
SDNCN: 60g / 2.12ounce
SCLCR: 63g / 2.22ounce
SCMCN: 61g / 2.15ounce
S08K: 65g / 2.29ounce
Insert with box weight: 20g / 0.71ounce
Package size: 222 * 150 * 45mm / 8.74 * 5.91 * 1.77in
Package weight: 542g / 19.12ounce / 1.19lb
Packing List:
7 * 8mm Milling Tool Holder
7 * Wrench
7 * Insert

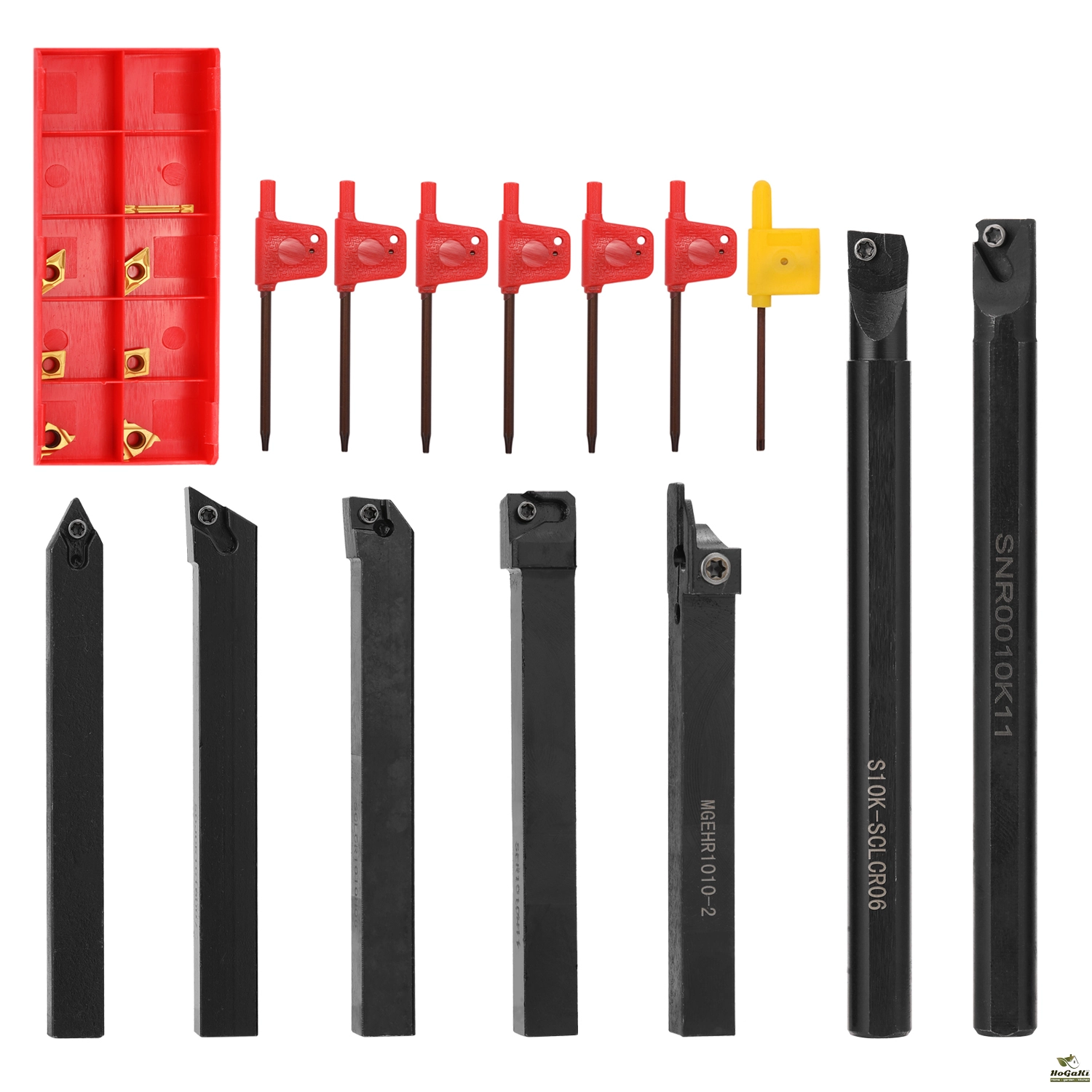

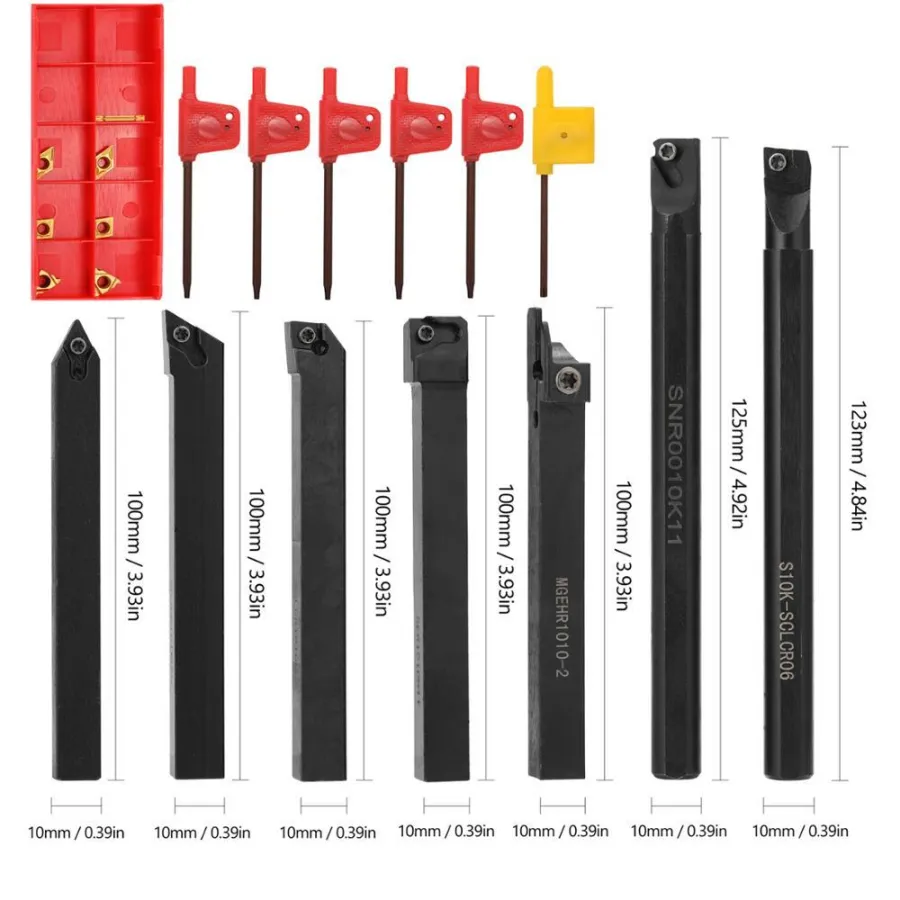

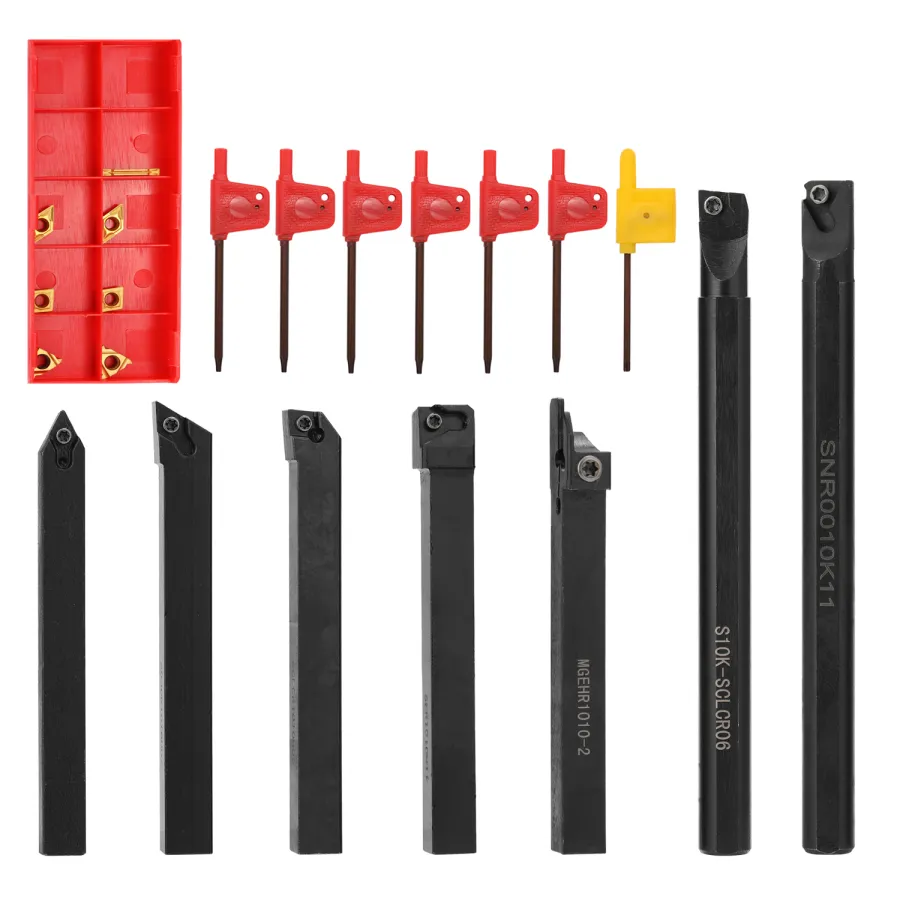

10mm A:
Specifications:
Name: Turning Tool Set
Model: MGEHR1010-2 / SER1010H11 / SCLCR1010H06 / SDJCR1010H07 / SDNCN1010H07 / S10K-SCLCR06 / SNR0010K11
Material: 42cr
Package size: 220 * 150 * 40mm / 8.66 * 5.91 * 1.57in
Package weight: 778g / 1.72lb
No./Model/Shank Diameter(mm)/Overal Length(mm)/Insert：
1 MGEHR1010-2 10 100 MGMN200
2 SER1010H11 10 100 11 ER
3 SCLCR1010H06 10 100 CCMT060204
4 SDJCR1010H07 10 100 DCMT070204
5 SDNCN1010H07 10 100 DCMT070204
6 S10K-SCLCR06 10 125 CCMT060204
7 SNR0010K11 10 125 11 IR
Package list:
7 * Holders
7 * T8 Screw Driver
7 * Inserts

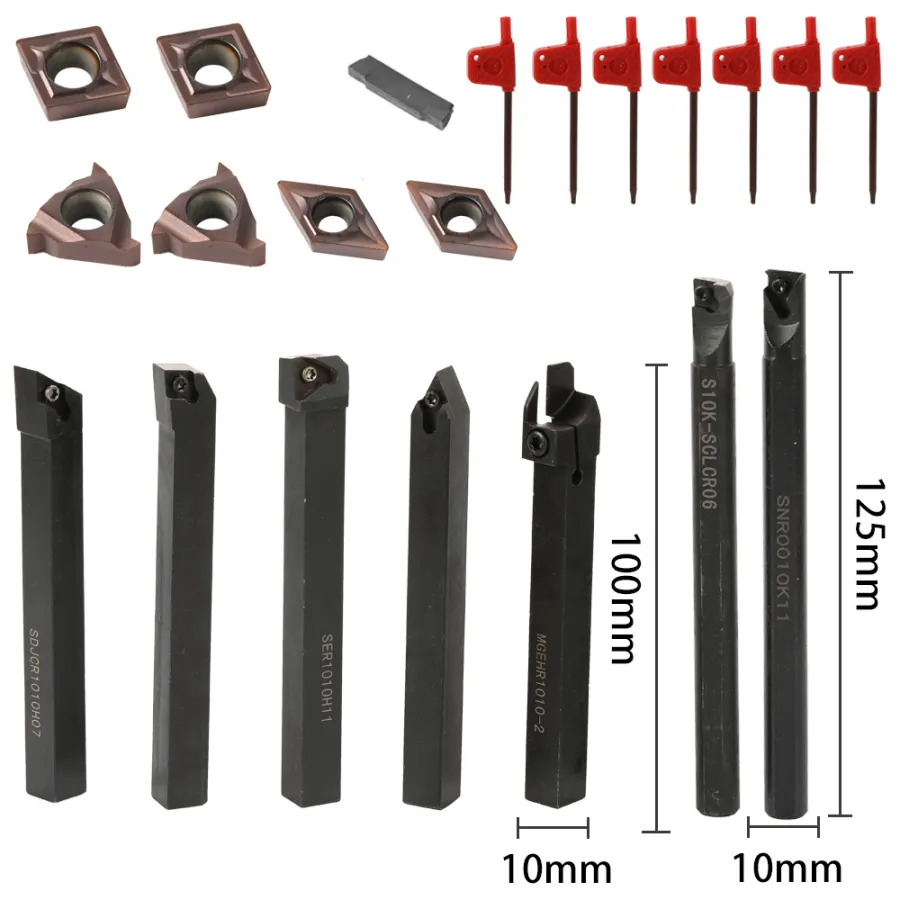

10mm B:
Specifications:
Holder model: SDJCR1010H07, SER1010H11, MGEHR1010-2, S10K-SCLCR06, SNROO10K11, SCLCR1010H06, SDNCN1010H07
Package Weight: 757g / 26.70ounce
Package Size: 220 * 150 * 40mm / 8.66 * 5.91 * 1.57in
Package List:
7 * Holders
7 * Inserts
7 * Wrenches

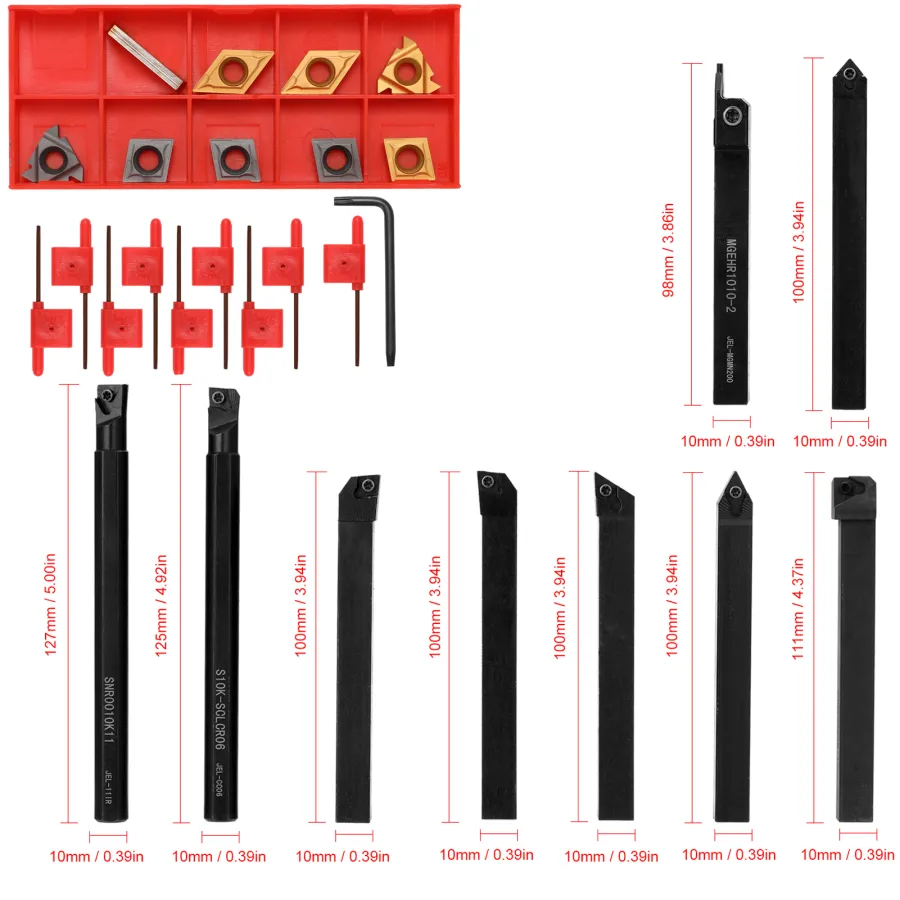

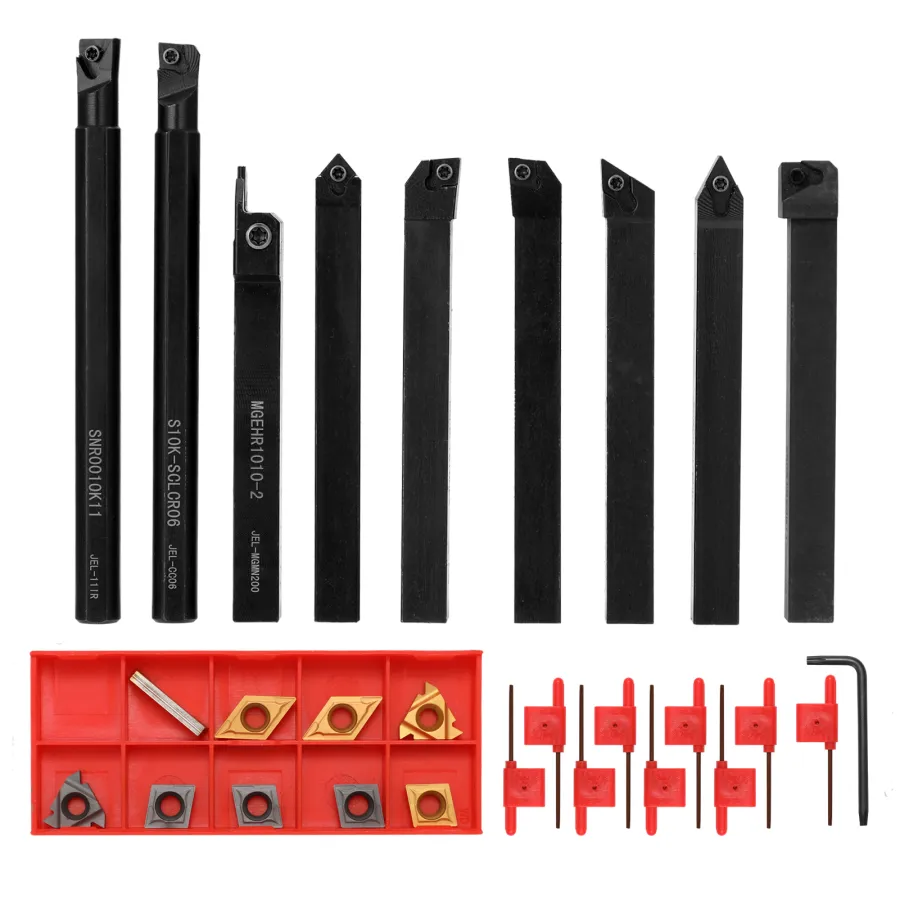

10mm C:
Specifications:
Name: Milling Tool Holder
Material: metal + plastics
Turning tool model: SER1010H11, S10K-SCLCR06, SCMCN1010H06, SCLCL1010H06, SDJCR1010H07, SCLCR1010H06, SNR0010K11, SDNCN1010H07, MGEHR1010-2 (ALL)
Turning tool size:
SER1010H11: 12 * 12 * 100mm / 0.47 * 0.47 * 3.94in
S10K-SCLCR06: 10 * 10 * 125mm / 0.39 * 0.39 * 4.92in
SCMCN1010H06: 10 * 10 * 100mm / 0.39 * 0.39 * 3.94in
SCLCL1010H06: 10 * 11 * 100mm / 0.39 * 0.43 * 3.94in
SDJCR1010H07: 10 * 12 * 100mm / 0.39 * 0.47 * 3.94in
SCLCR1010H06: 10 * 11 * 100mm / 0.39 * 0.43 * 3.94in
SNR0010K11: 10 * 10 * 127mm / 0.39 * 0.39 * 5.00in
SDNCN1010H07: 10 * 10 * 111mm / 0.39 * 0.39 * 4.37in
MGEHR1010-2: 10 * 20 * 98mm / 0.39 * 0.79 * 3.86in
Item weight: 894g / 1.97lb
Package size: 260 * 147 * 39mm / 10.24 * 5.79 * 1.54in
Package weight: 945g / 2.08lb
Packing List:
9 * Milling Tool Holder
9 * Wrench
9 * Insert

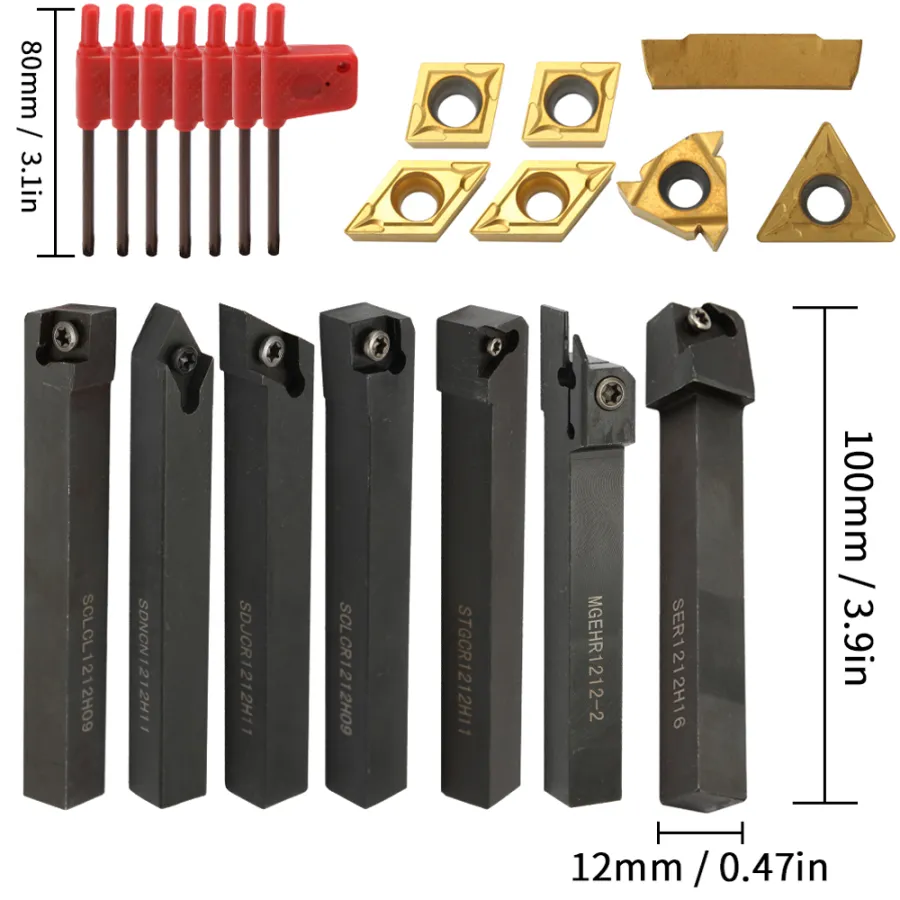

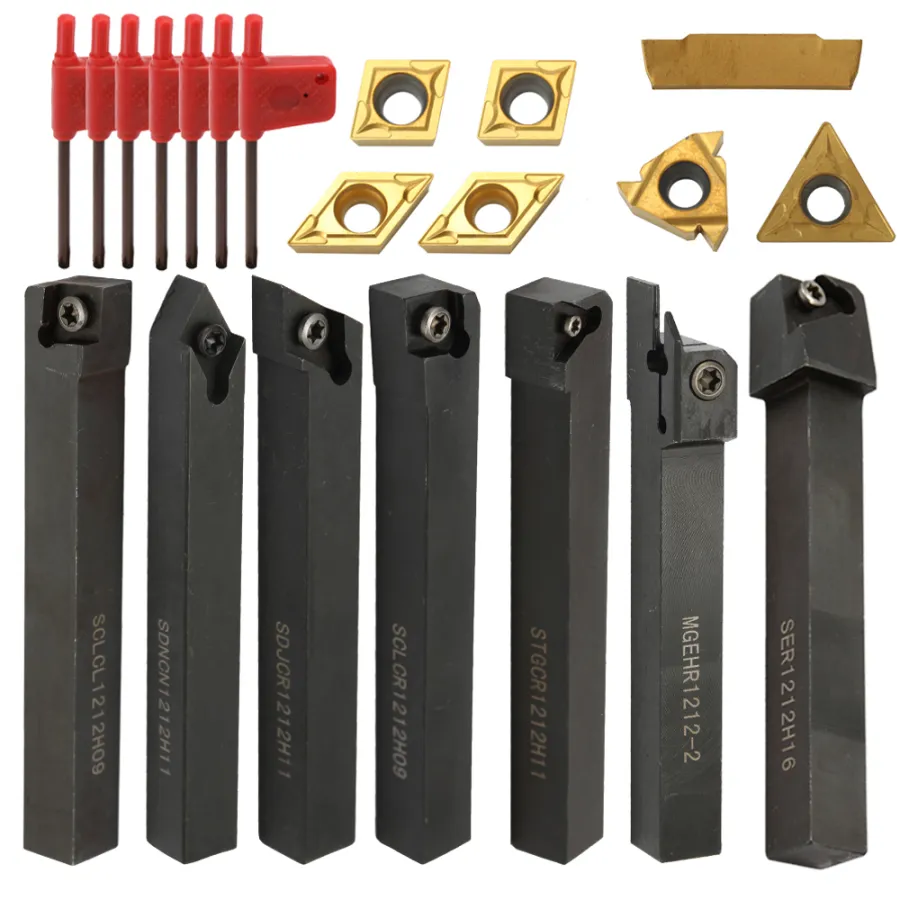

12mm A:
Specifications:
Model: SCLCR1212H09, SCLCL1212H09, SDNCN1212H11, SDJCR1212H11, MGHER1212-2, SER1212H16, STGCR1212H11
Shank Diameter: 12 * 12mm / 0.47 * 0.47in
Length: 100mm / 3.94in
Package Weight: 1035g / 36.51ounce
Package Size: 220 * 150 * 40mm / 8.66 * 5.91 * 1.57in
Package List:
7 * Holders
7 * Inserts
7 * Wrenches

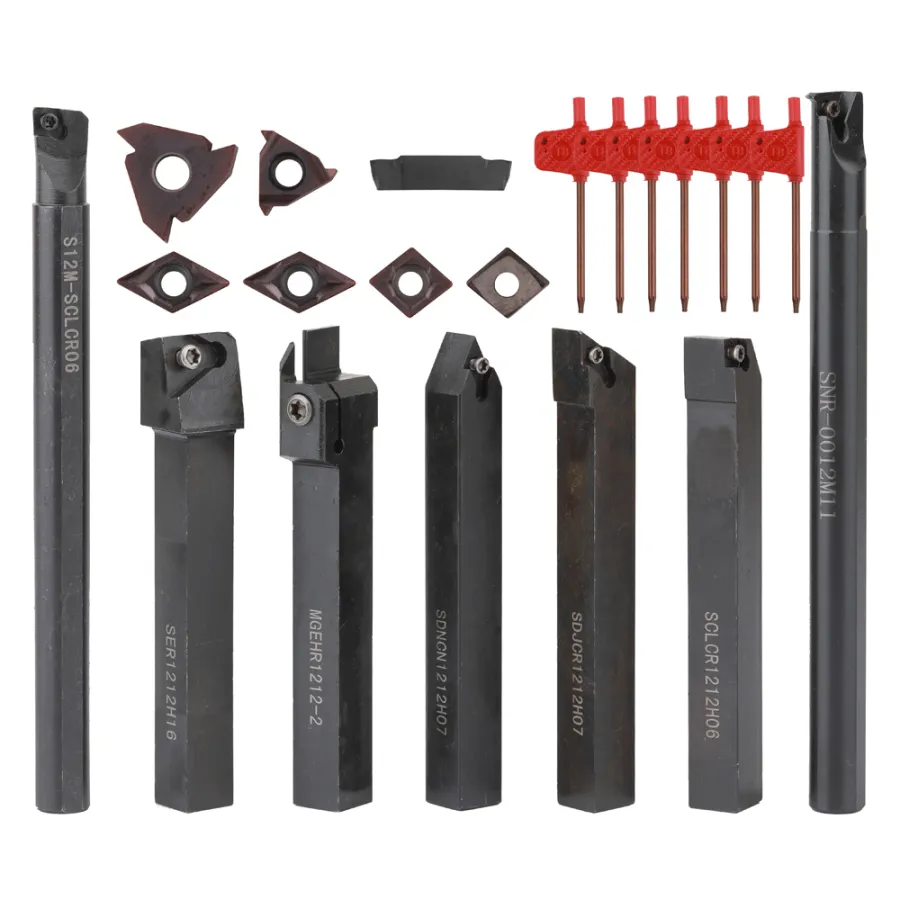

12mm B:
Specifications:
Included:
7 * Holders
7 * Inserts
7 * Wrenches
Package Weight: 1048g / 2.3lb
Package Size: 220 * 150 * 40mm / 8.66 * 5.91 * 1.57in
Package List:
1 * One Set Of Turning Tool

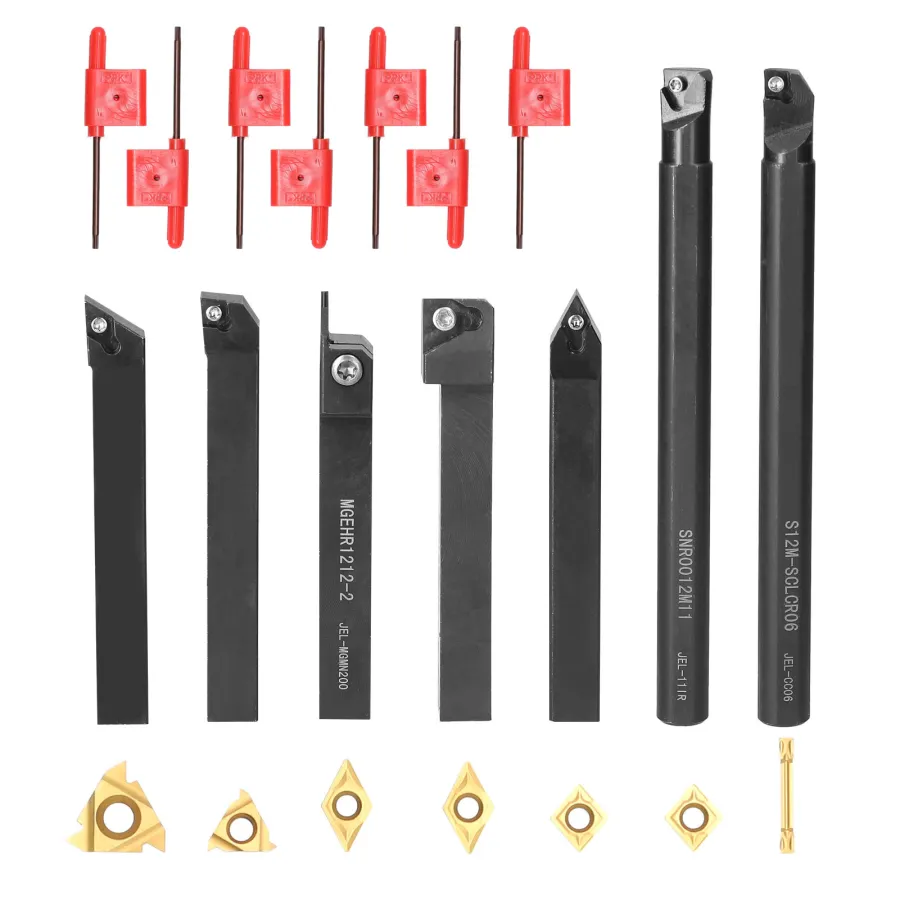

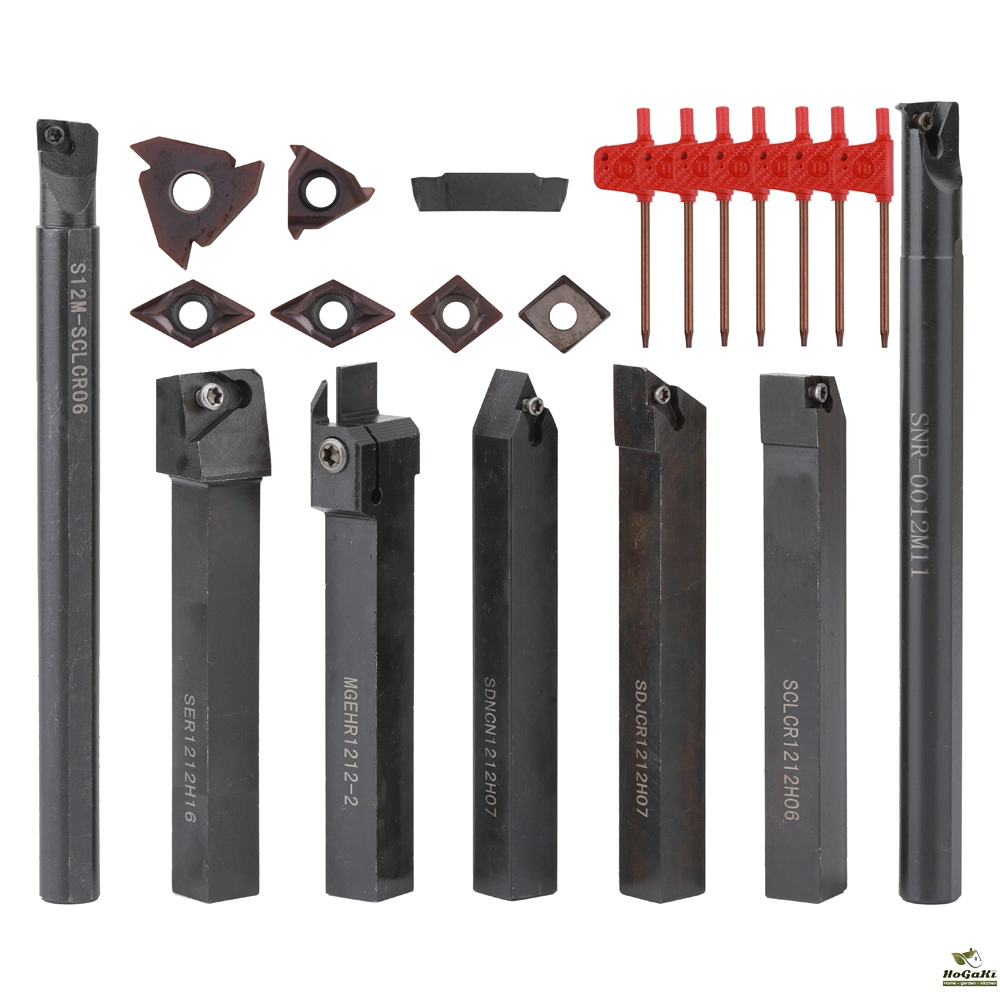

12mm C:
Specifications:
Name: Turning Tool Set
Material: 40CR
Model:S12M-SCLCR06/SER1212H16/SCL1212H06/
MGEHR1212-2/SNR0012M11/SDNCN1212H07/SDJCR1212H07
Wrench: T-8

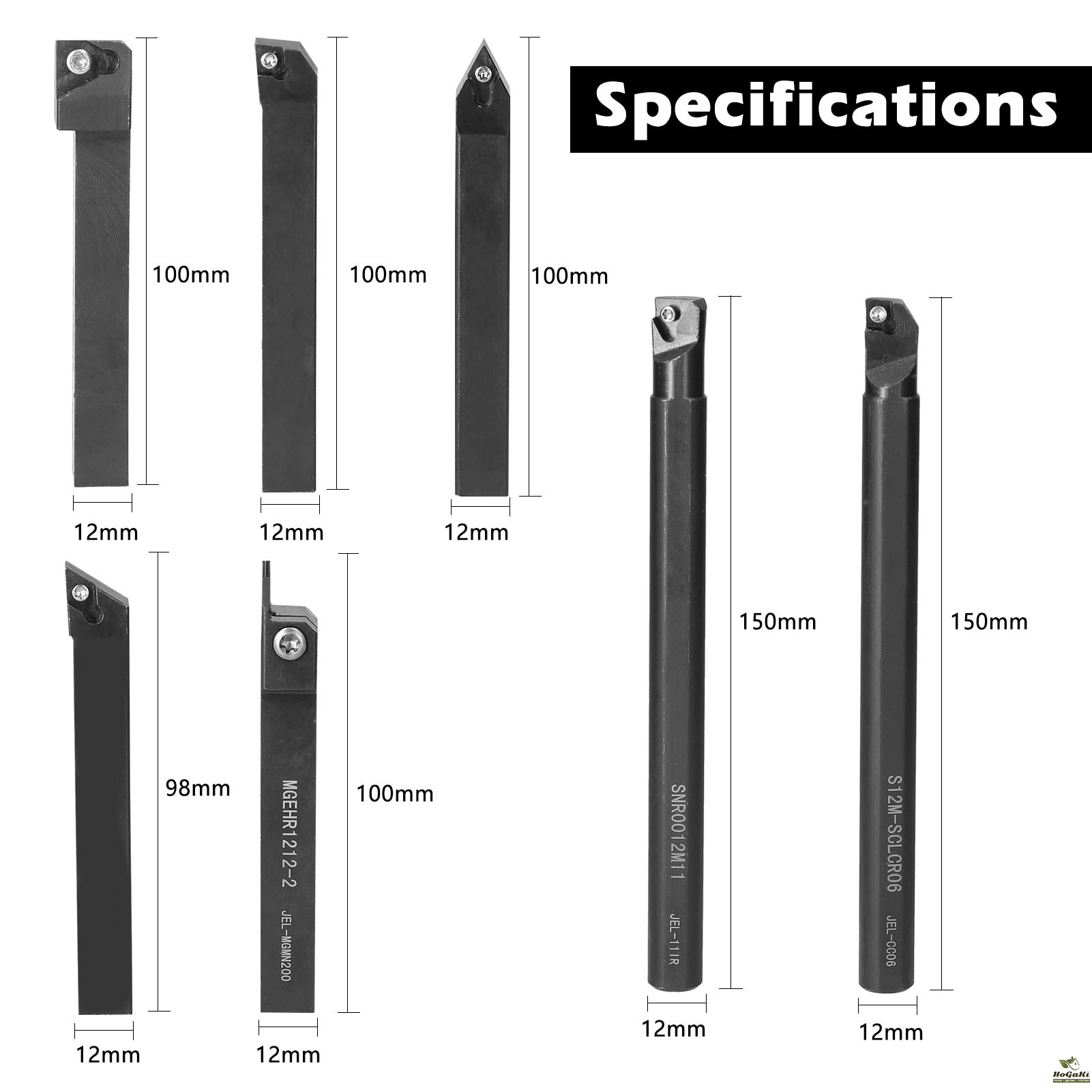

Model: Shank Diameter(mm)/Length(mm)
S12M-SCLCR06: 12(mm)/150(mm)
SNR0012M11: 12(mm)/150(mm)
SER1212H16: 12(mm)/100(mm)
SCL1212H06: 12(mm)/100(mm)
MGEHR1212-2: 12(mm)/100(mm)
SDNCN1212H07: 12(mm)/100(mm)
SDJCR1212H07: 12(mm)/98(mm)
Item weight: 944g / 2.08lb
Package size: 132 * 151 * 43mm / 5.20 * 5.94 * 1.69in
Package weight: 1016g / 2.24lb
Packing List:
7 * Turning Tool Holders
7 * Small Wrench

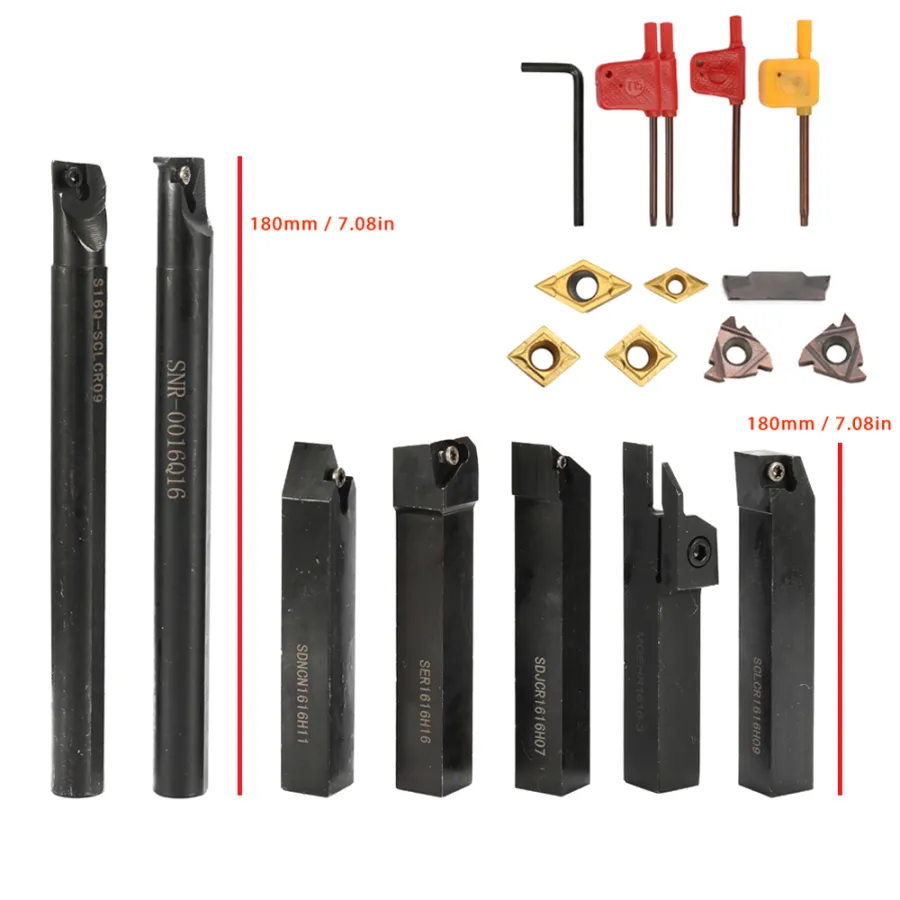

16mm:
Specifications:
Included
MGEHR 1616-3, SDJCR 1616H07, SDNCN 1616H11, SER 1616H16, SCLCR 1616H09, S16Q SCLCR09, SNR-0016Q16
Material: hard alloy
MGEHR 1616-3
Shank Diameter: 16mm / 0.63in
Length: 100mm / 3.94in
SDJCR 1616H07
Shank Diameter: 16mm / 0.63in
Length: 100mm / 3.94in
SDNCN 1616H11
Shank Diameter: 16mm / 0.63in
Length: 100mm / 3.94in
SER 1616H16
Shank Diameter: 16mm / 0.63in
Length: 100mm / 3.94in
SCLCR 1616H09
Shank Diameter: 16mm / 0.63in
Length: 100mm / 3.94in
S16Q SCLCR09
Shank Diameter: 16mm / 0.63in
Length: 180mm / 7.09in
SNR-0016Q16
Shank Diameter: 16mm / 0.63in
Length: 180mm / 7.09in
Package Size: 190 * 180 * 50mm / 7.48 * 7.09 * 1.97in
Package Weight: 1714g / 3.78lb
Note:
- Please allow 1-5mm errors due to manual measurement.
- Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
Package List:
7 * Turning Tool
7 * Wrench
7 * Insert
Packaging Details
- Unit Type:
- Package Weight: 0.773
- Package Size: 16x4x21
- Brand Name: meterk
- Hign-concerned Chemical: None
- Origin: Mainland China
- Material: Hard Alloy
- Hardness: High solidity tool
- Use: External Turning Tool
- Certification: CE
- Model Number: turning lathe tools
- Choice: yes
