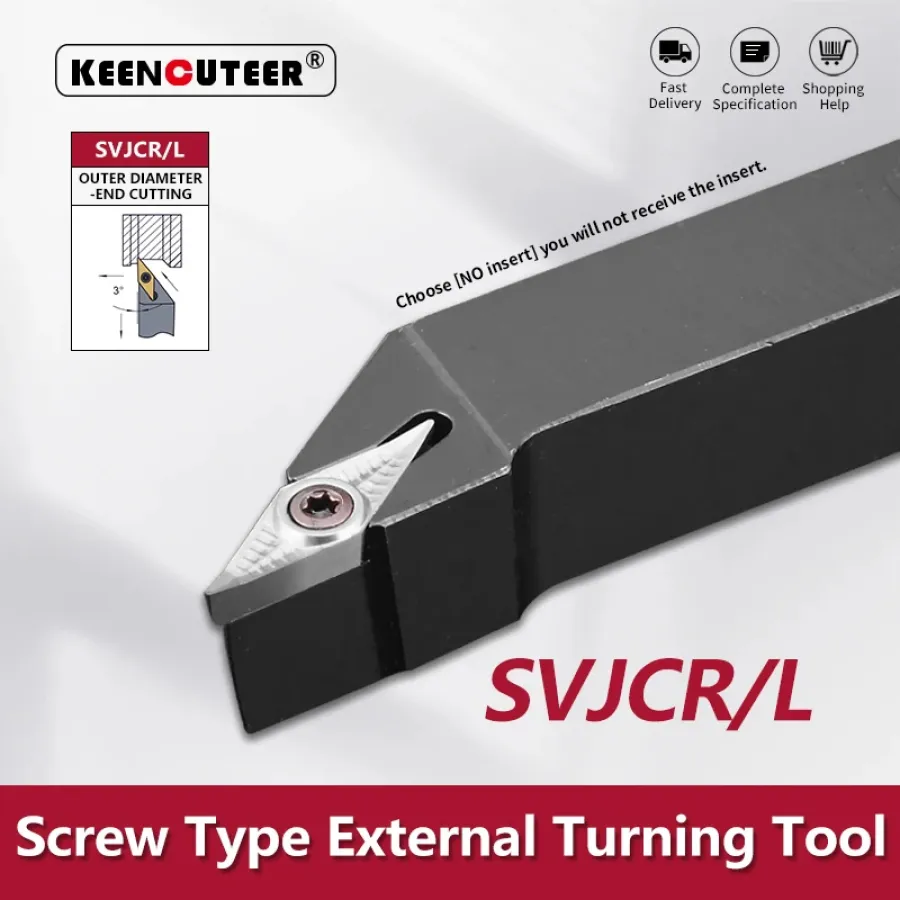

SVJCR1212 SVJCR1616 SVJCR2020 SVJCR2525 External Turning Tool SVJCR SVJCL Lathe Bar Turning Holder CNC Cutter Bar
4.8 (167 votes) | 600 orders
Price:
US $
13.83 -
31.84
Specification
Name: External Turning Tool
Brand: KEENCUTEER
Item No.: SVJCR/L
Material quality: 40Cr
Hardness: HRC42~46
Accessories: screw , wrench
Suitable insert: VCMT
Pack: High-grade PE outer box
Feature
1.Not easy to stick tools, more smooth chip removal.
2.The cutter bar is hardened and durable.
3.Refined polishing, fine luster.
4.Imported matrix, tool rod imported 40Cr material.
Package Included
Cutter bar and accessories including 1pc screw, wrench.
Note that insert is not included, which needs to be purchased separately.

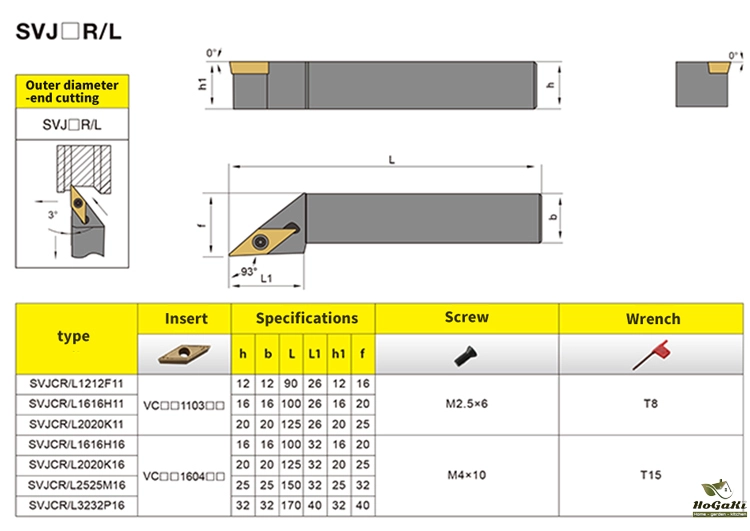

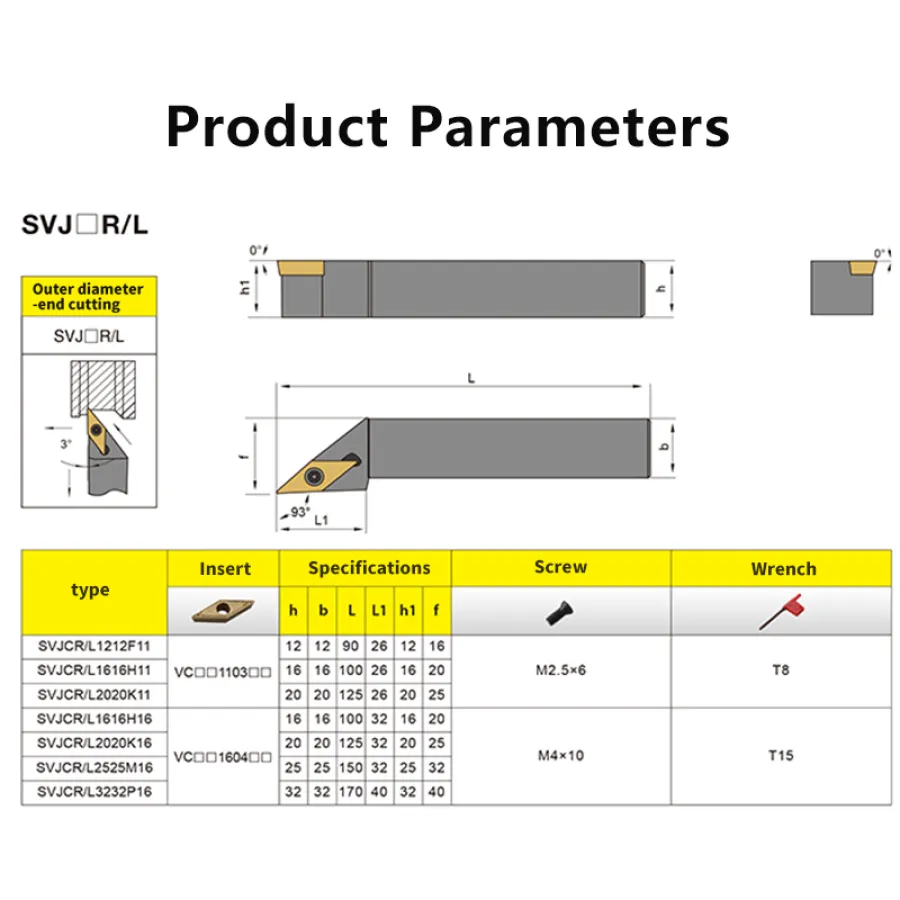

Product Parameters

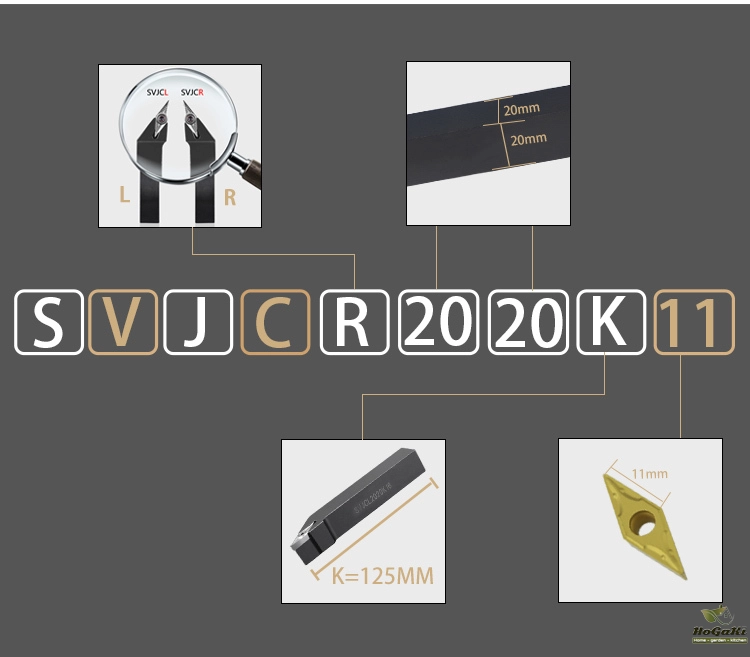

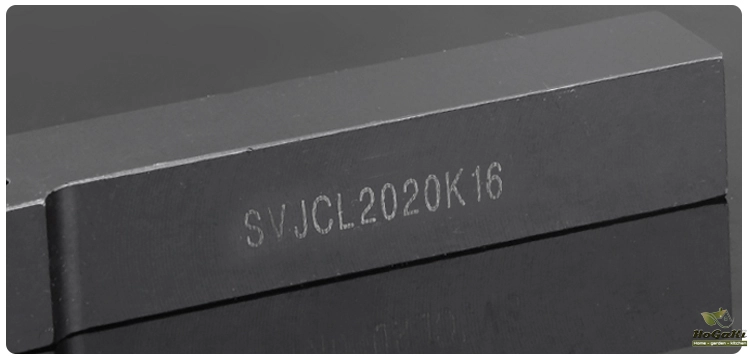

Product Model Explanation
For example : SVJCR2020K11
S - Screw type
V - Insert shape
J - Main declination
C - Rear corner of the blade
R - Right hand tool
2020 - Tool size
K - Tool length
11 - Insert width

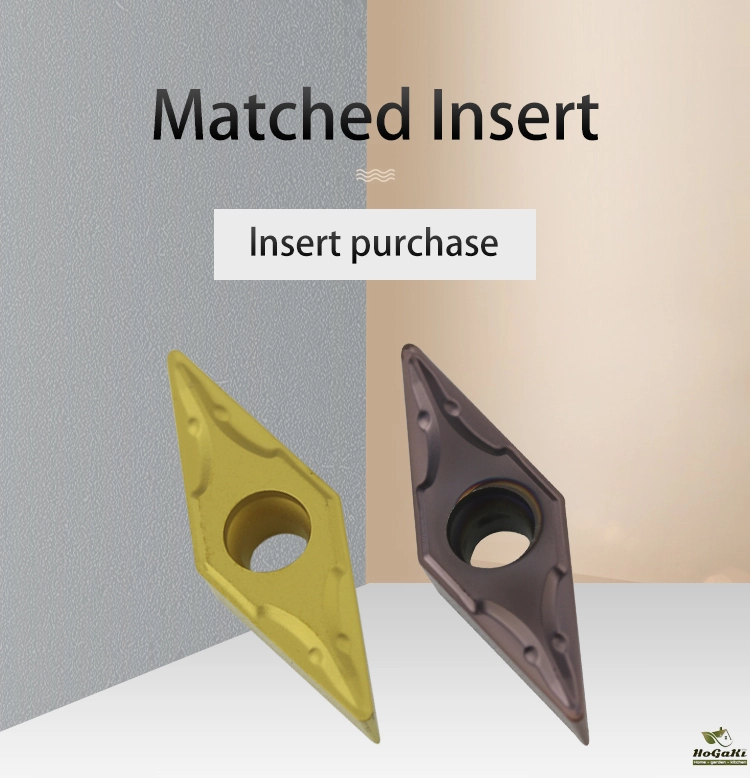

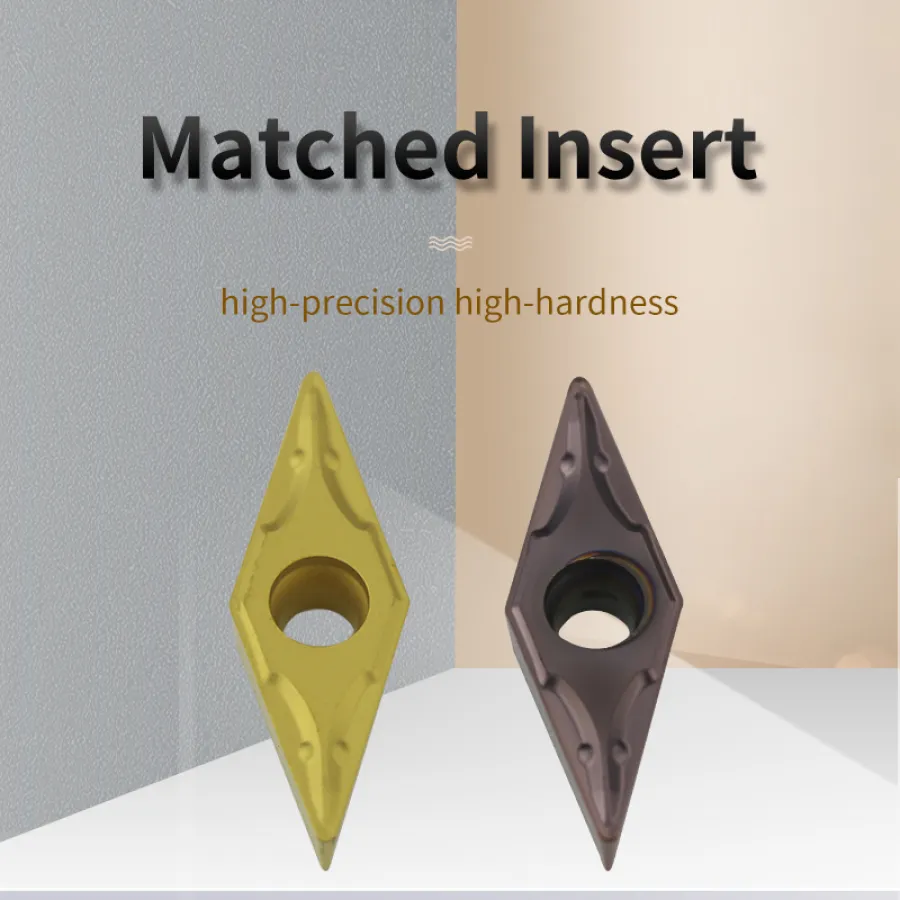

How to Match Insert
We have a complete series of high-precision, high-hardness and super cost-effective CNC inserts.
Using the tools matched with our own inserts will bring excellent effect.
Note that insert needs to be purchased separately.

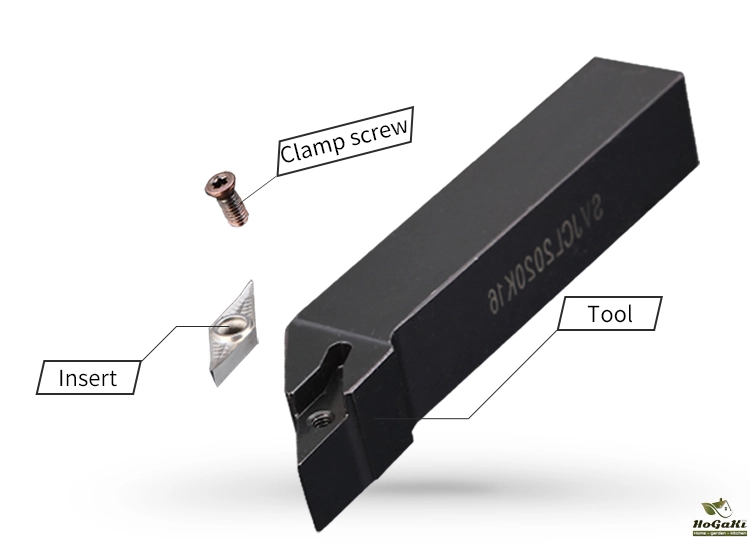

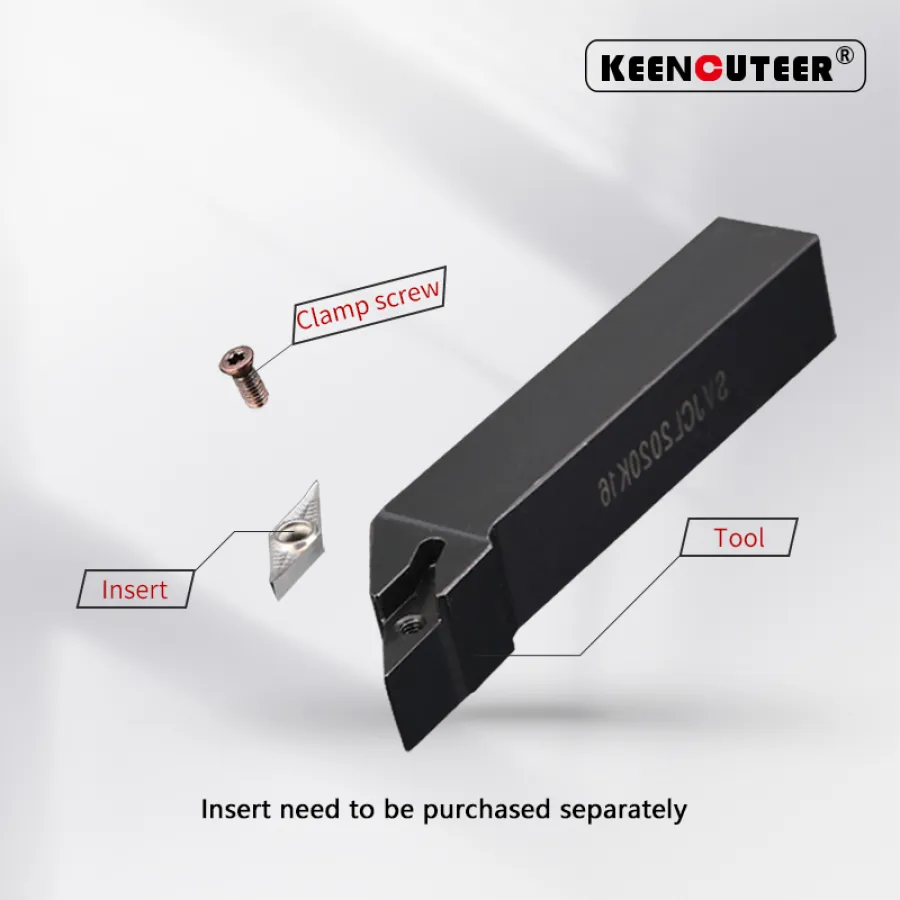

Split Diagram

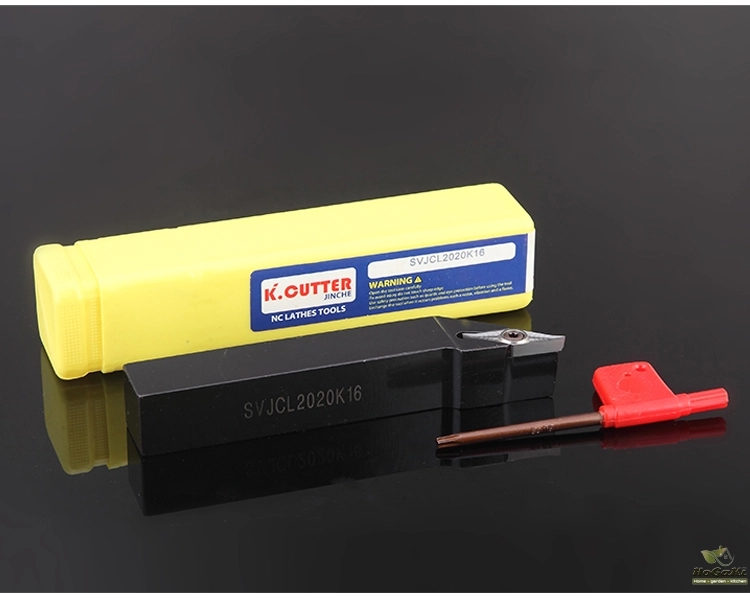

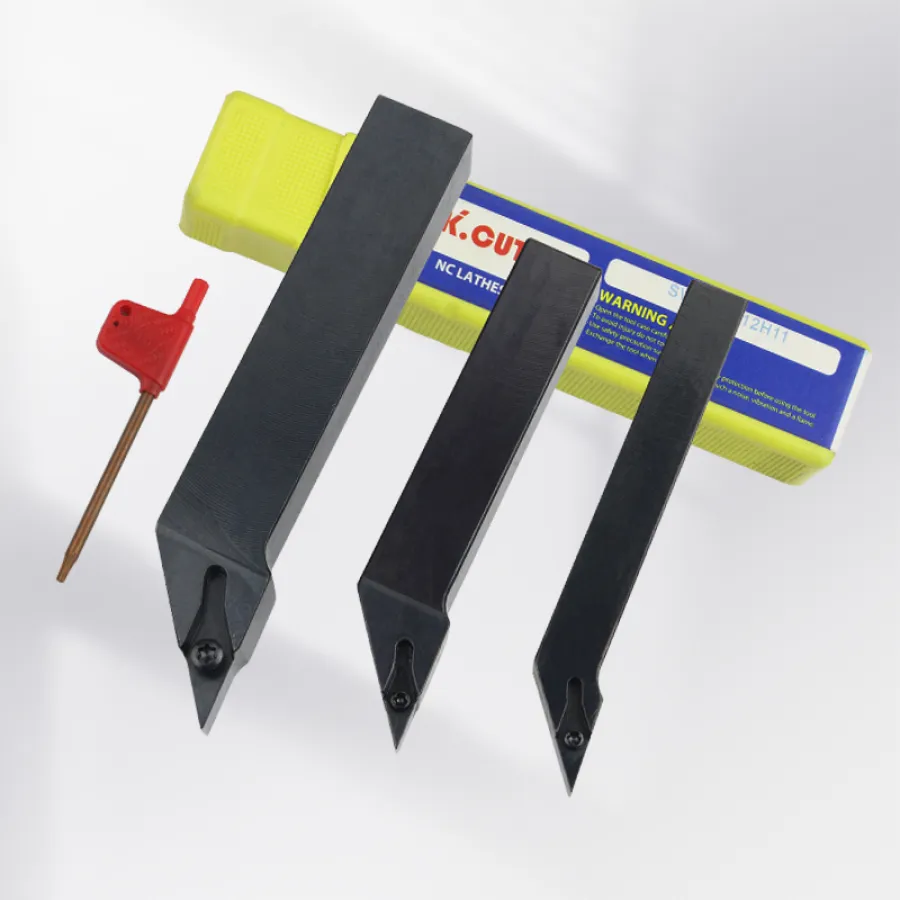

Packing Info
Cutter bar and accessories including screw, wrench except insert
Product Details
More item details make you purchase assuredly

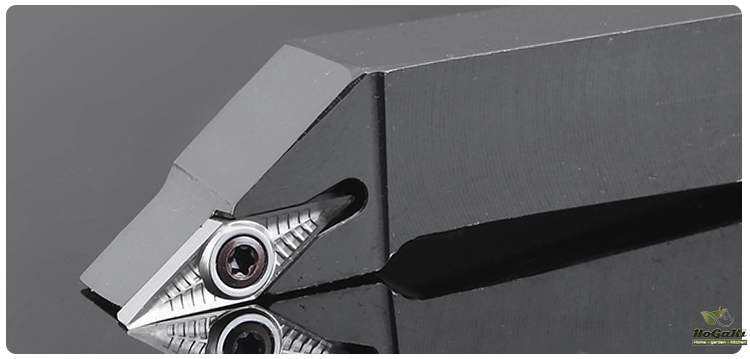

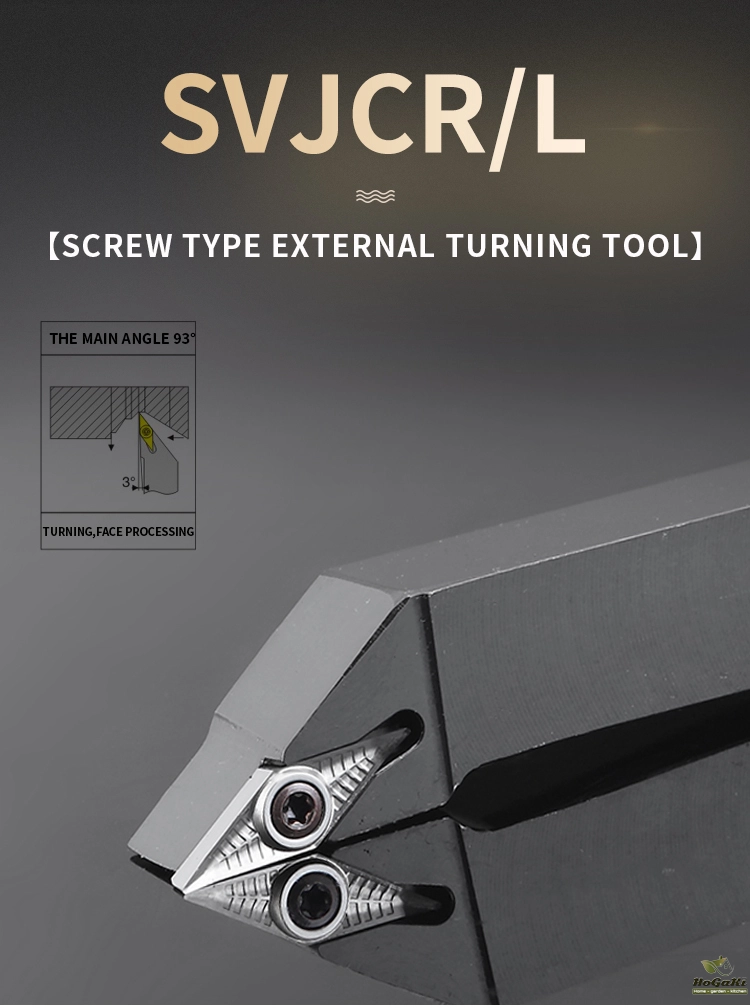

Screw Type Turning Tool
The Screw structure makes the insert not easy to loosen and more firm.

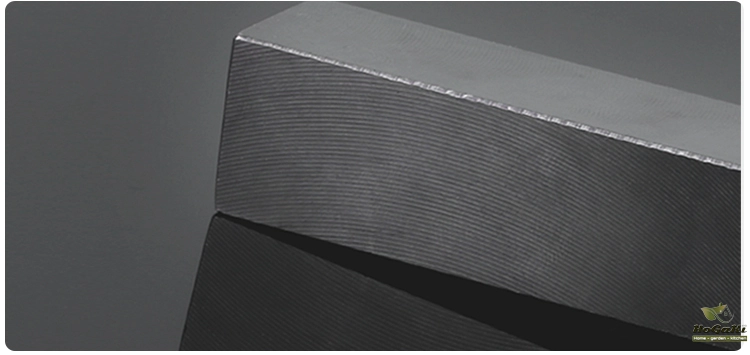

Fine Polishing Fine Luster
The surface of the tool body is polished with imported diamond, which makes it fine
and glossy.
High Quality Tool Body
The turning tool is made of high-quality 40CrMo material, with good anti-seismic and
more wear-resistant.
Packaging Details
- Unit Type:
- Package Weight: 0.400
- Package Size: 11x10x17
- Brand Name: KEENCUTEER
- Hign-concerned Chemical: None
- Origin: Mainland China
- Material: 40Cr
- Hardness: HRC42~46
- Use: External Turning Tool
- Certification: None
- Model Number: SVJCR/L
- Suitable Blade Type: VCMT
- Pack: High-grade PE outer box
- Product name: CNC lathe tool
- Choice: yes
- semi_Choice: yes
