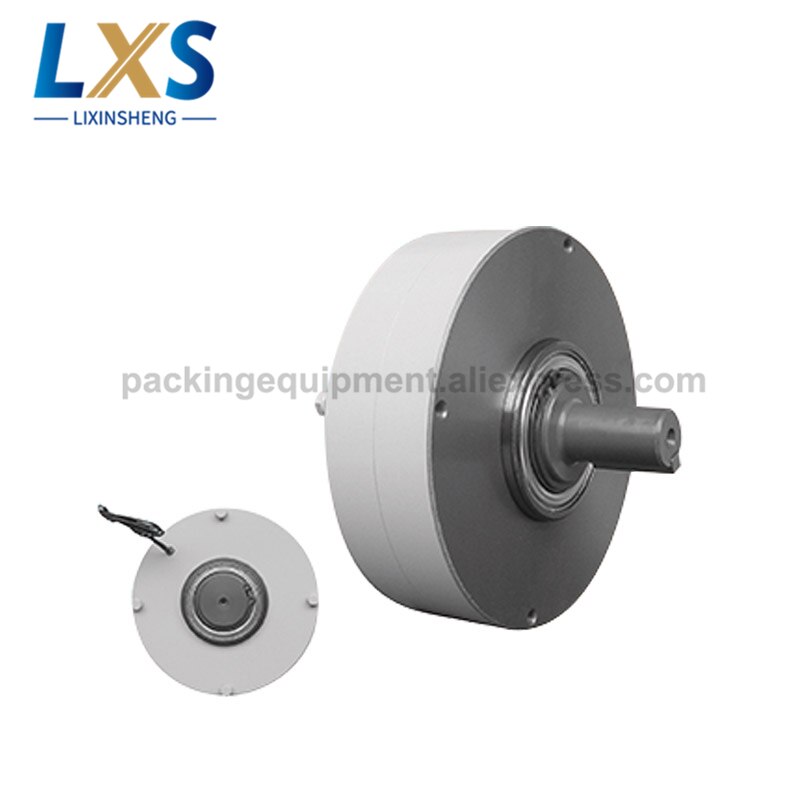

600 R/Min Single Shaft ZX-2.5YS Magnetic Powder Brake For Printing And Dyeing Machinery

0.0 ( votes)
Price:
US $ 1483.50 / piece
Rated Torque
Quantity

Welcome to Lixinsheng Packaging Equipment Store

600 R/Min Single Shaft ZX-2.5YS Magnetic Powder Brake For Printing And Dyeing Machinery

1

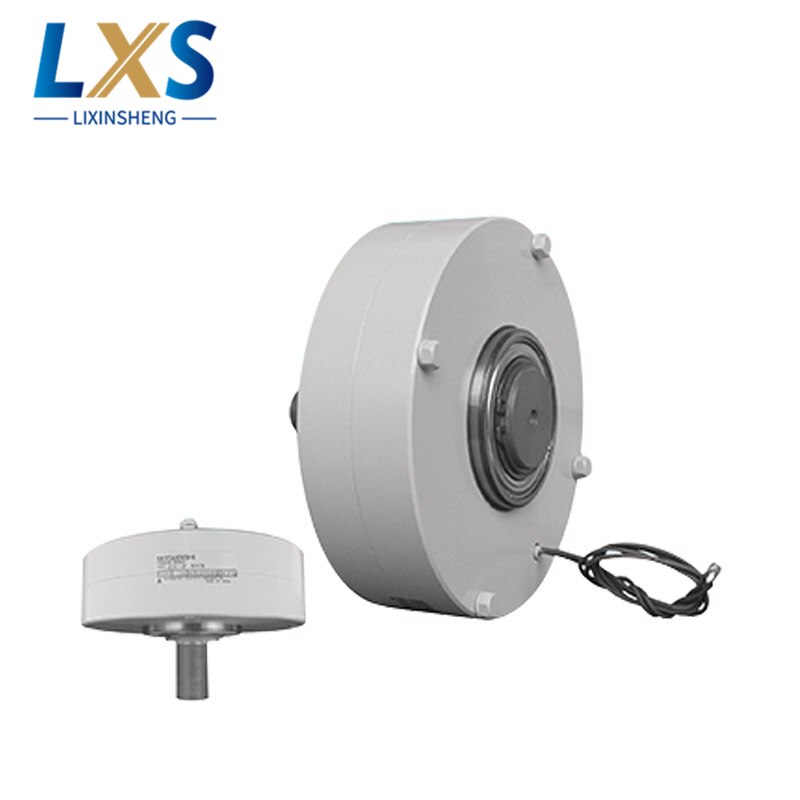

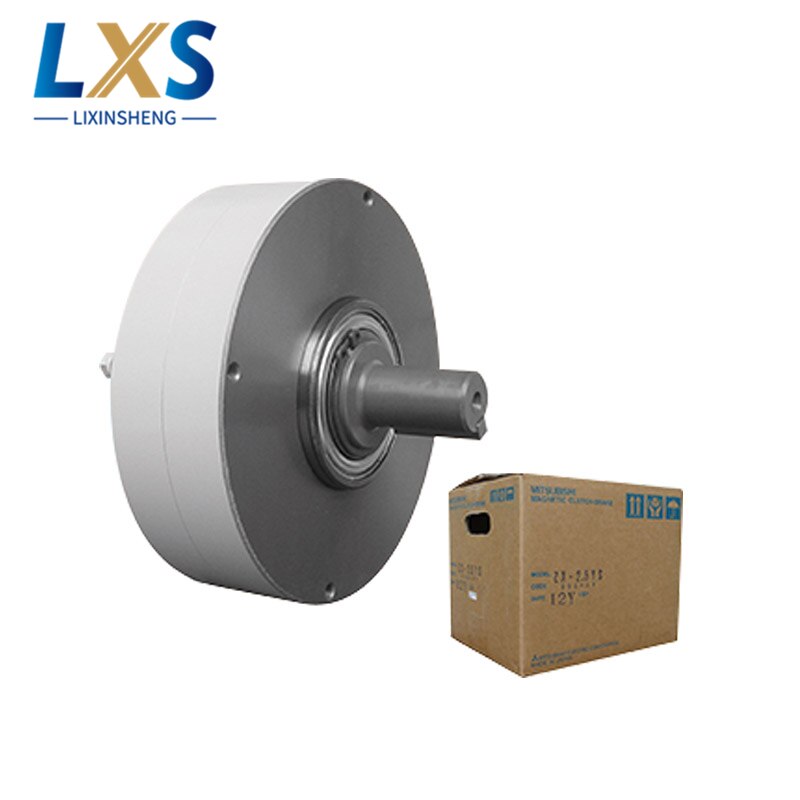

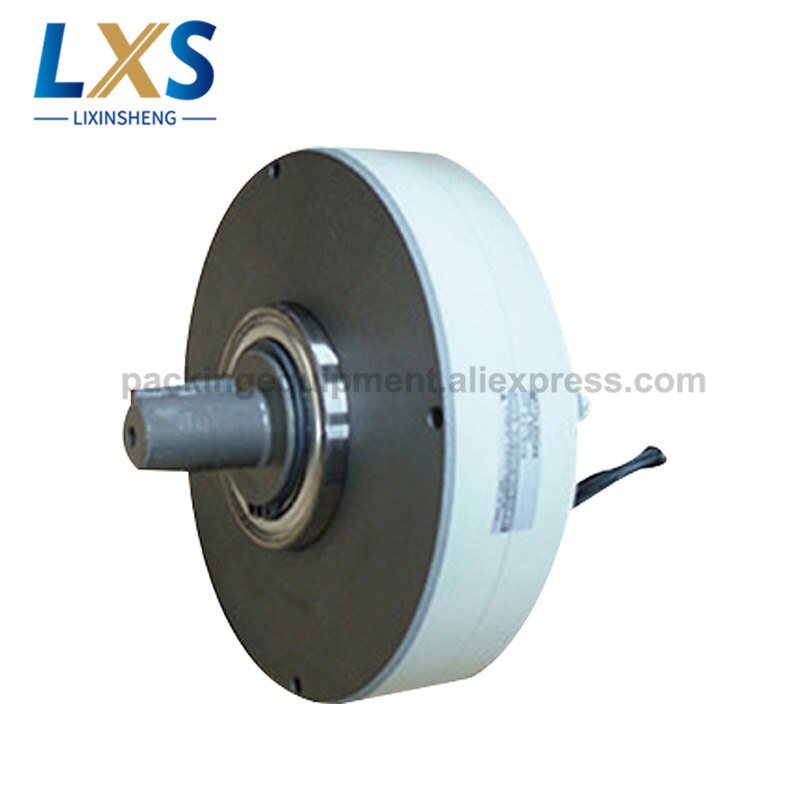

ZX-YS-type magnetic powder brake

Brand: Mitsubishi

Origin: Japan



Feature

Rated torque: 25 to 100 (N · m)

Natural cooled projecting shaft type

  1. 5 r / min from available

  2. Rated voltage DC24V



Specification





Model

Rated torque

(N·m)

  Coil(75℃)



Inertia moment J

(kgm⊃2;)





Allowable heat loss power

(W)

Max. allowable speed

(r/min)

Weight

(kg)



Voltage

(V)



Current

(A)



Impedance

(Ω)



Power

(W)

ZX-2.5YS

25

24

1.1

21.9

26.4

3×10^(-4)

150

600

4.9

ZX-5YS

50

24

1.35

17.8

32.4

11×10^(-4)

200

600

9.3

ZX-10YS

100

24

1.5

15.6

36

40×10^(-4)

300

600

19



Application

Magnetic powder clutch suitable for tension control, overload protection, torque loader. Such as printing presses, paper machine, rewinding machine, wire drawing machine, metal rolling machine, film processing machines, textile machinery;

Another example is the motor, engine, hydraulic Restarder on the loading device do loading experiments.

It is based on the electromagnetic theory and using magnetic powder brake transmission torque. It has the excitation current and the torque is transmitted to a substantially linear relationship.

Transfer torque with slip-independent case, has the advantages of fast response, simple structure, no pollution, no noise, no shock and vibration energy conservation. It is a versatile, superior performance of automatic control components. The powder brake widely different purposes of brake power test load applied to a variety of mechanical unwinding tension control.

ZA-2.5YS  (9)ZA-2.5YS  (10)ZA-2.5YS  (11)

ZA-2.5YS  (2)

1

More products pls kindly click here  : Lixinsheng Packing Equipment Co.,Ltd Store

As the following is a table of other spec. , pls choose the perfect match standard you need.

 _20181017223723

HTB1s_YJaovrK1RjSspcq6zzSXXal





  • Voltage: 24V
  • Material: Aluminium-copper Alloy
  • Model Number: ZX-2.5YS
  • Product Name: ZX-2.5YS Magnetic Powder Brake
  • Suitable industries: Printing machine, paper machine, rewinding machine, drawing machine, f
  • Magnetic powder clutch used in: Tension control, overload protector, torque loader, etc
  • Feature: With fast response speed, simple structure, no pollution, no noise
  • Weight: 4.9kg
  • Available Speed: 600 r/min
  • Suitable for: Motor, engine, hydraulic press reducer when loading experiment of load
  • Type: Spontaneous cooling through shaft type
  • Current: 1.1A

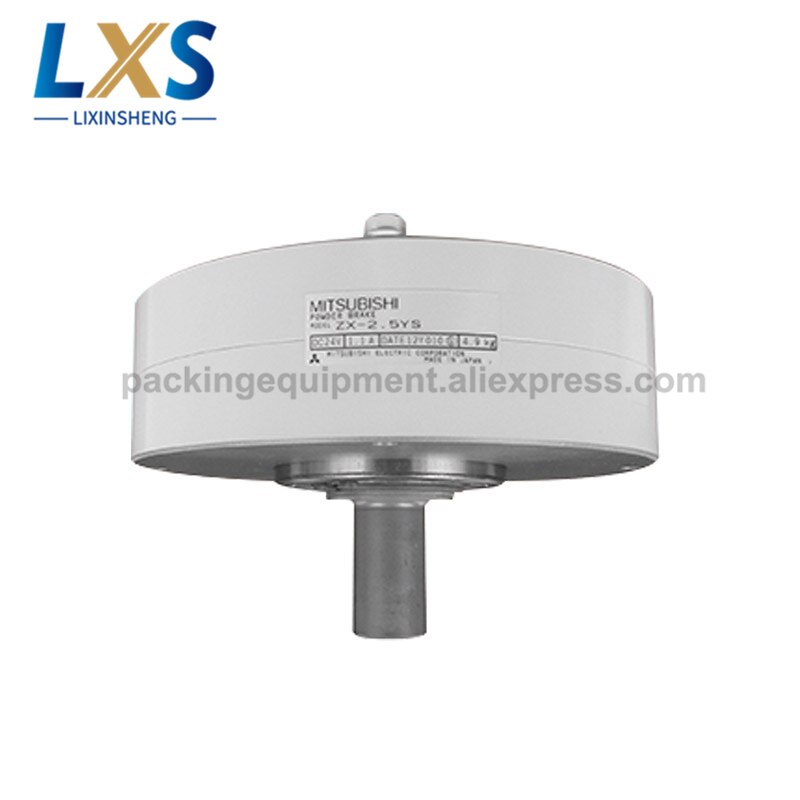

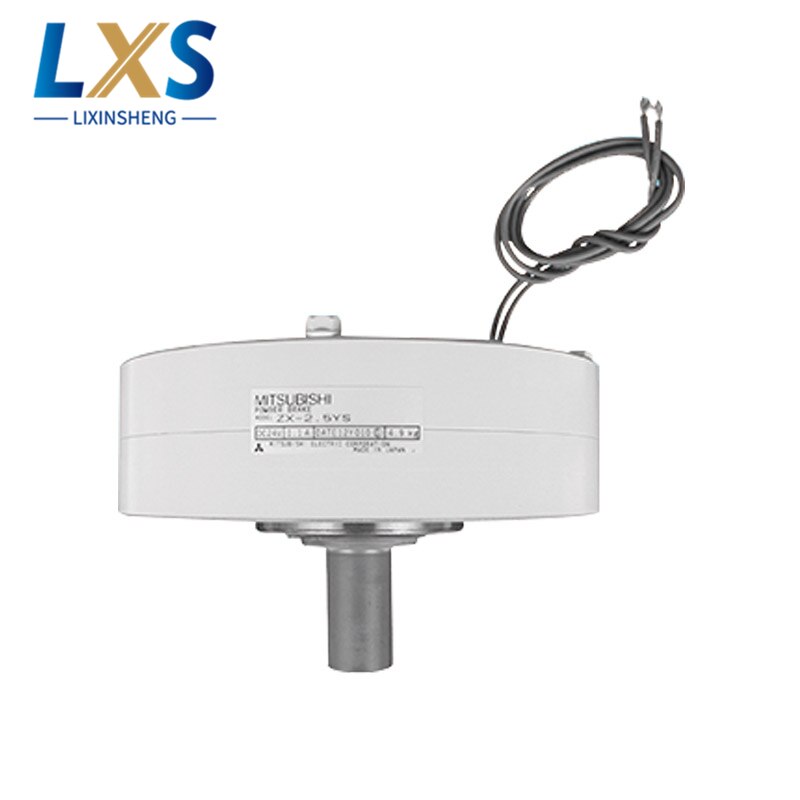

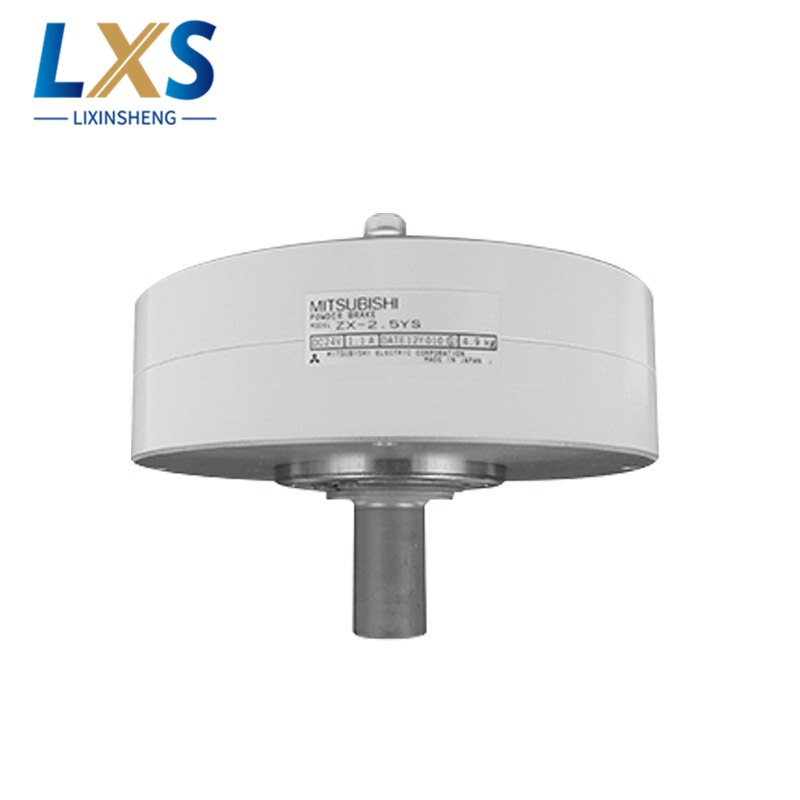

  • Original: Japan Mitsubishi ZX-2.5YS Magnetic Powder Brake
  • Power: 26.4W
