4x LED Array IR 20-50M 42mil PCB Board Size 90 Infrared Night Vision 850nm for CCTV Security Waterproof Bullet Camera Case
0.0 ( votes) | 7 orders
Price:
US $
20.30
4x LED Array IR 20-50M 42mil PCB Board Size 90 Infrared Night Vision 850nm for CCTV Security Waterproof Bullet Camera Case
Notice:
1. This 4xLED array IR board is for below IR bullet camera case use.
2. CCTV IR lens (IR pass lens) is required to work with IR LED board to collect IR light.
Features:
1. Array IR LED PCB board for IR bullet camera case (Please refer to the suitable camera case below).
2. This LED board is for working with our designated camera case model of array IR LED board.
3. Power supply exceeds DC 13V may greatly reduce the LEDs' service life.

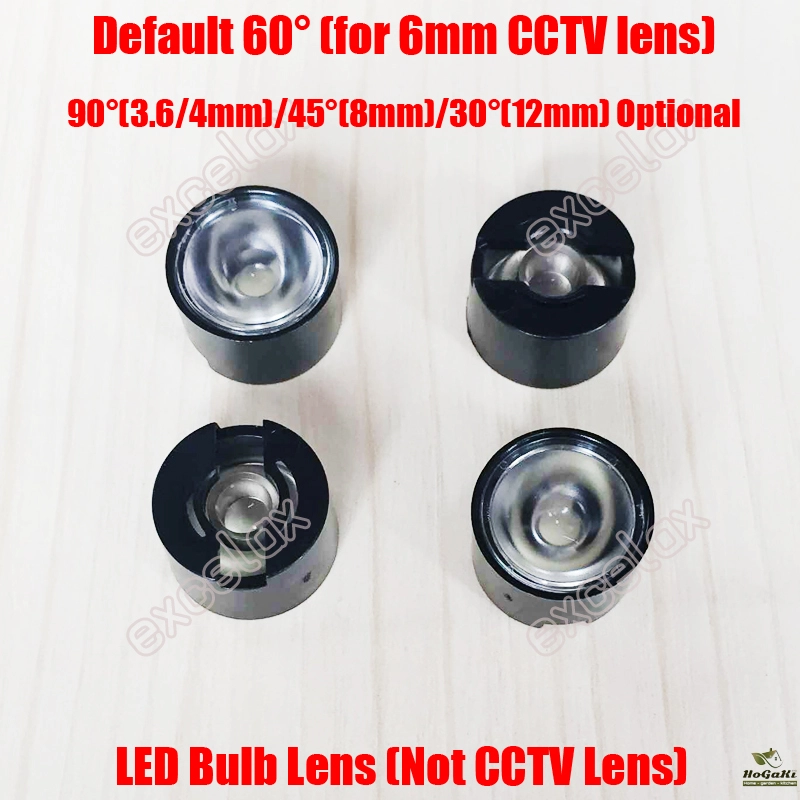

4. Matching Lens: 90 degrees - 3.6/4mm, 60 degrees - 6mm, 45 degrees - 8mm (Please leave message of your lens' angle of view so that we send the suitable LED board, or else, we will send default 60 degrees LED board for 6mm lens or send subject to stock.The default is normally the best configuration.) --- VERY IMPORTANT!
5. Constant current and voltage design.
6. Adopt imported high quality lens for even lighting.
7. Working temperature control under 50C degrees.
8. Array LED service life up to 20,000 hours.
Remarks:
1. DIY CCTV camera parts are only sold to experienced users. If you are not familiar with CCTV camera assembly, we don't suggest you place order.
2. If you are not sure about the parts size to match each other, please consult us before you place orders.
3. The product picture is subject to change without prior notice.

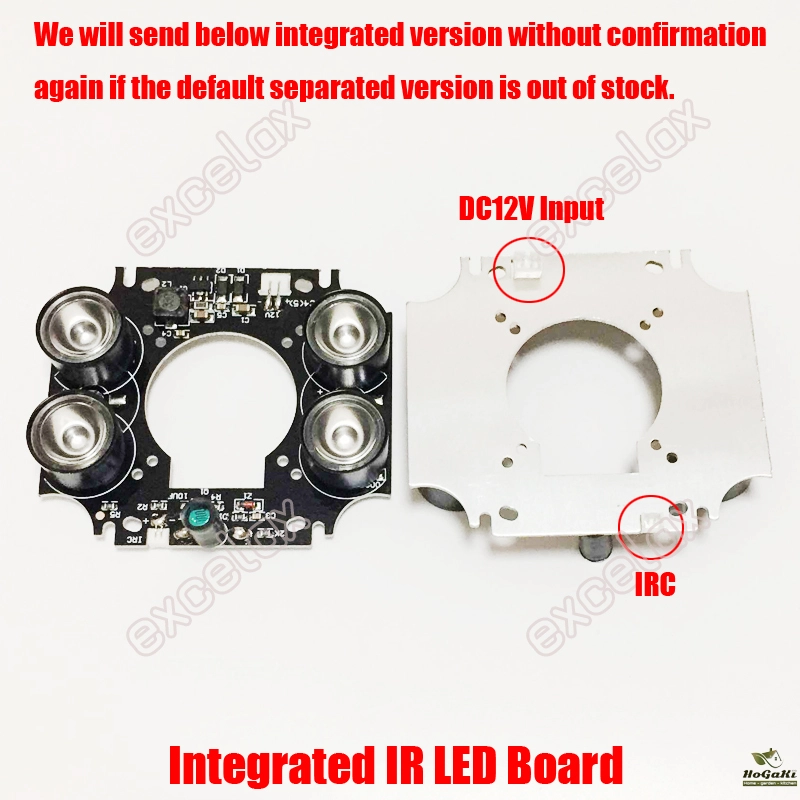

4. How to use: (a) Connect LED board IR CUT/ICR/IRC/CDS connector to CCTV camera module CDS connector by jump wire. (b) Connect camera pigtail power input connector to LED board GND and DC12V connector.
Package Content:
1* IR LED Board (1PC/Lot)
Waterproof IR Bullet Camera Case for the array IR LED board(Sold Separately):
Packaging Details
- Unit Type:
- Package Weight: 0.090
- Package Size: 15x4x20
- Brand Name: SankiView
- Hign-concerned Chemical: None
- Origin: Mainland China
- Certification: None
- IR LED Angle: 60 Degrees

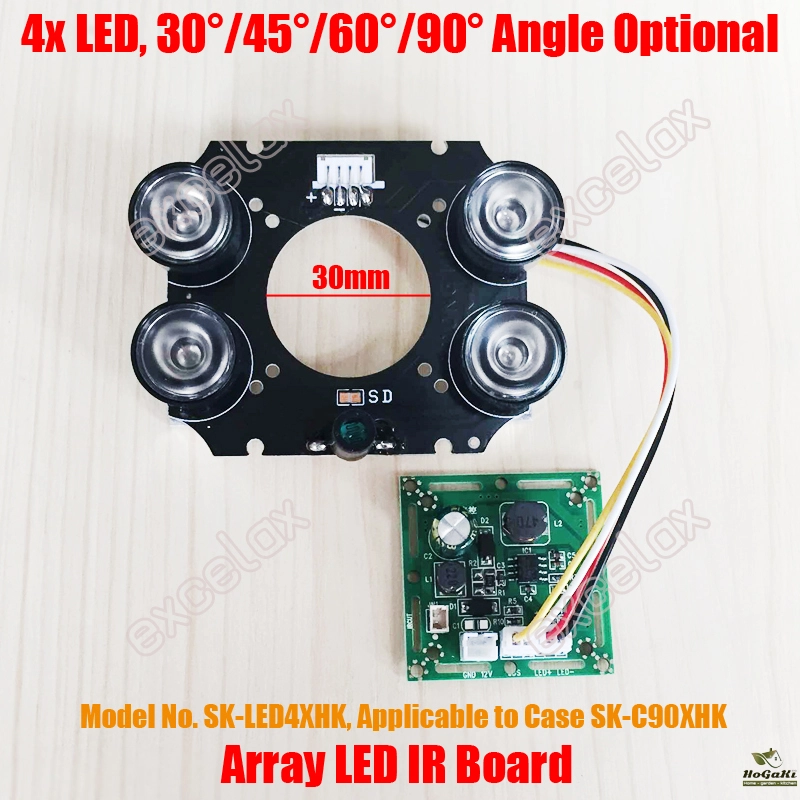

- Model Number: SK-LED4HIK

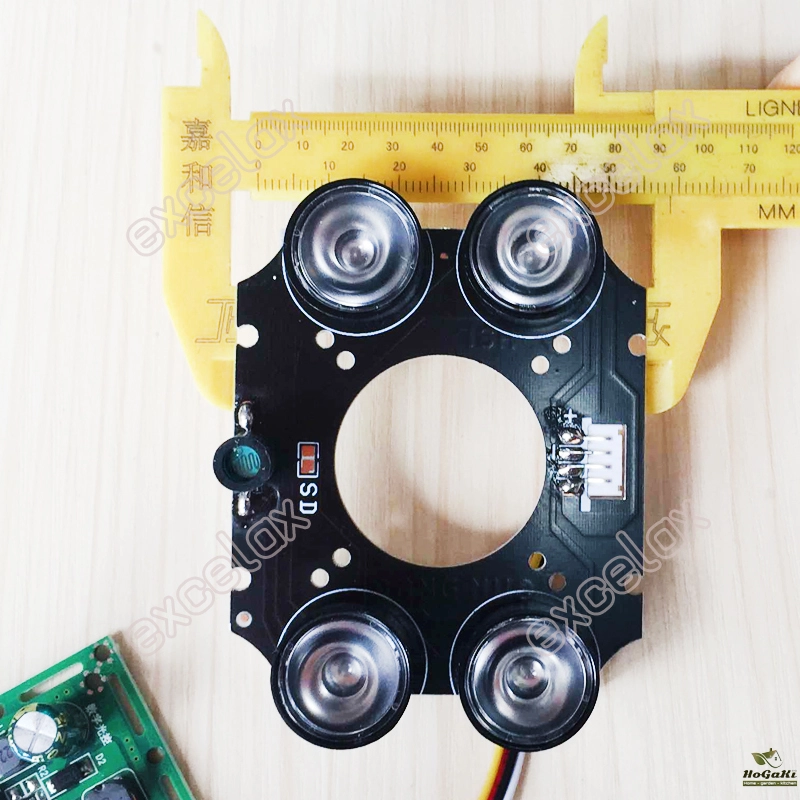

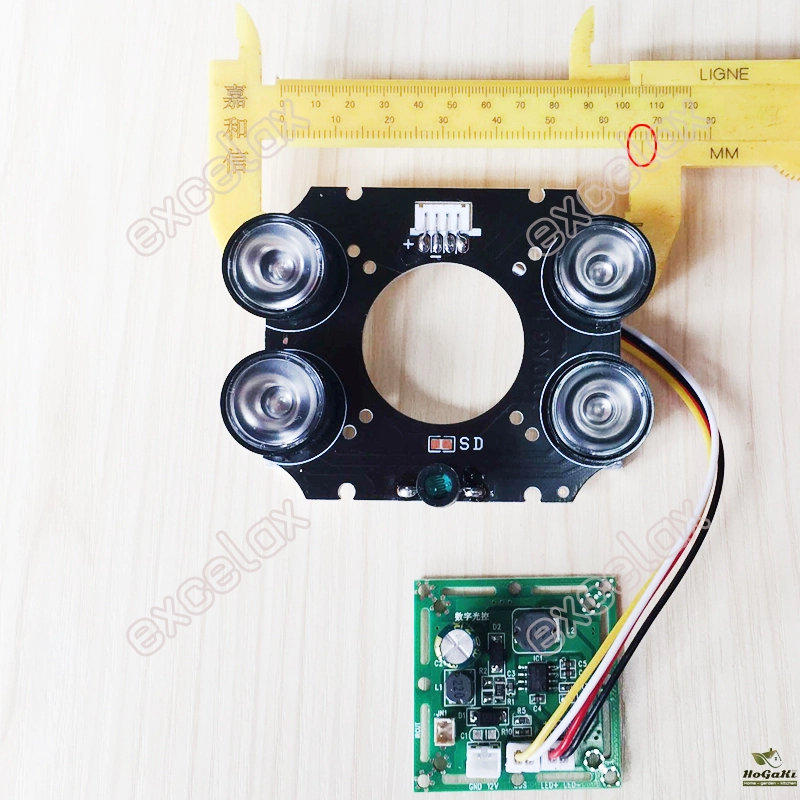

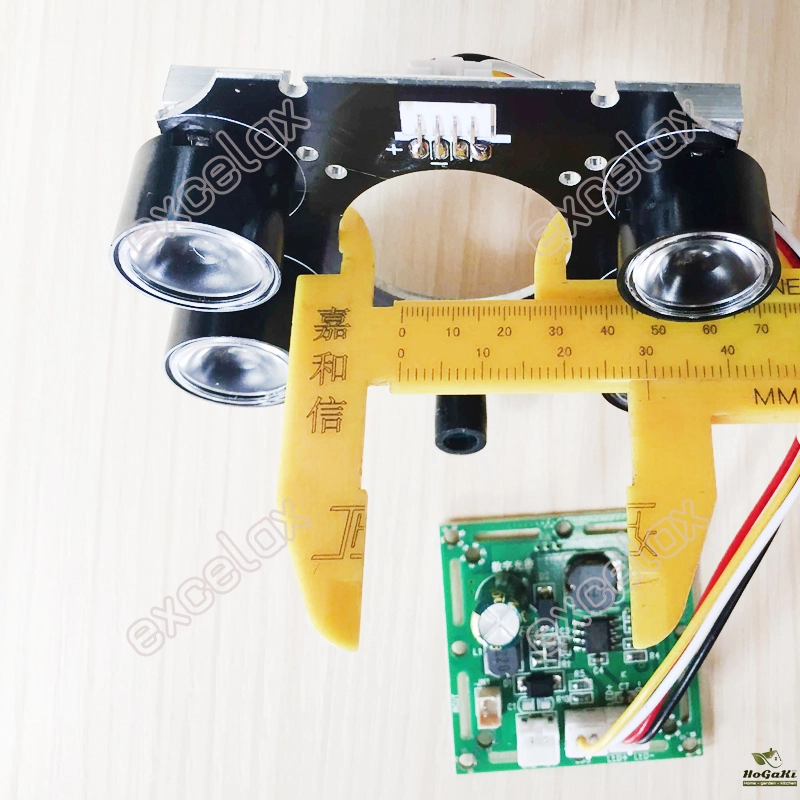

- Size: Inner 30mm, Outer 76x59mm
- IR LED Quantity: 4x LED
- Packing Quantity: 1x LED Board
