E27 To E14 Lamp Light Socket Converter LED Light Bulb Adapter Adapter E14 E27 Accessories To White Extension Socke 1pc
9.95 $
ID: 165871
Quantity
4pcs CFL 4pin GX24Q to E27 LED Lamp Holder Light Socket Bulb Base Converter G24q-1,-2, -3 to E27/e26 Adapter Need Remove Ballast
4.5 (2 votes) | 40 orders
Price:
US $
26.38
4pcs CFL 4pin GX24Q to E27 LED Lamp Holder Light Socket Bulb Base Converter G24q-1,-2, -3 to E27/e26 Adapter Need Remove Ballast
For Converting the lamps with E27 Base to G24Q or GX24Q Lamp Holder
E27 Lamp Holder: Female
G24Q/GX24Q Lamp Base: Male 4pin
Working Votage: 100-250V AC 50/60HzRated Current: 2A
Color: White housing
Material: Flame Retardant PBT, Phosphor Bronze
Application:
Works for 4-Pin CFL Socket with
G24q-1 Base: 10w 13w Quad Tube
GX24q-1 Base: 10w 13w Triple Tube
G24q-2 Base: 18w Quad Tube
GX24q-2 Base: 18w Triple Tube
G24q-3 Base: 26W 32w Quad Tube
GX24q-3 Base: 26w 32w Triple Tube

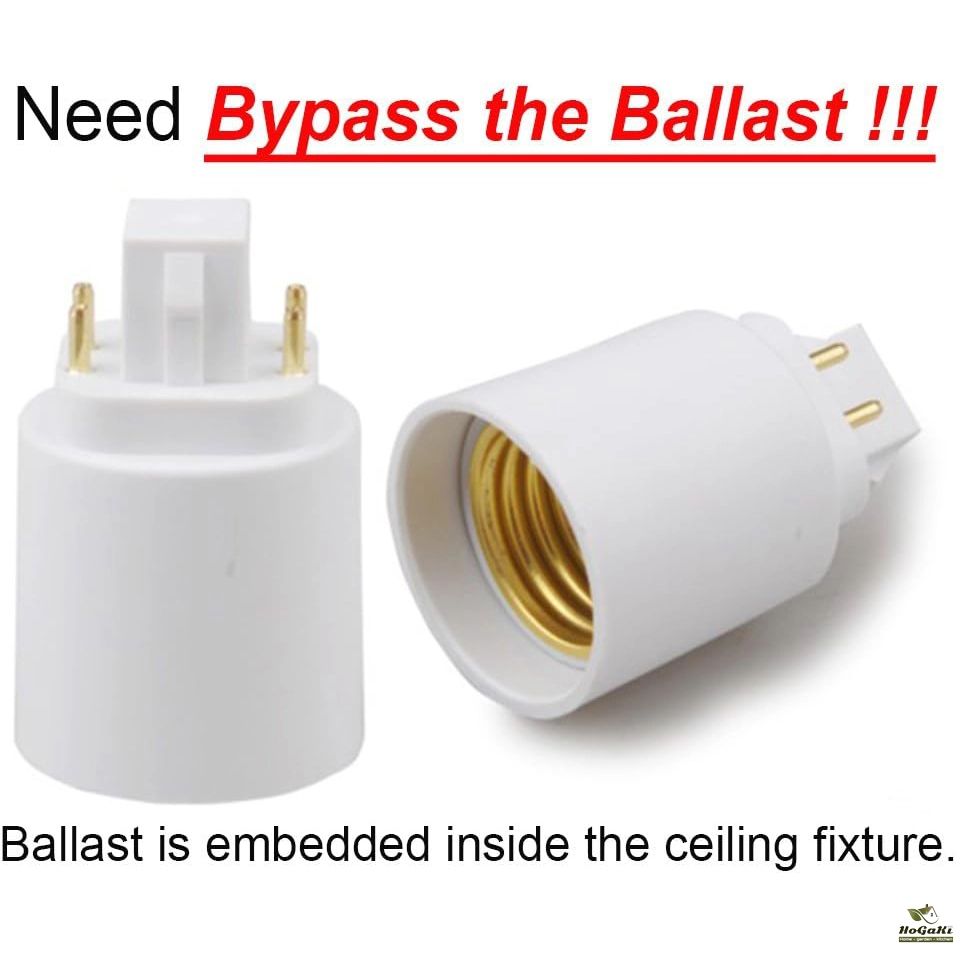

This lamp base converter don't change any voltage or current. If there is a ballast connected, dismantle ballast before install the LED light, otherwise the ballast will make resonance high voltage which destroy the light. Note: It is 100% that PL-C downlight fixture has ballast inside.

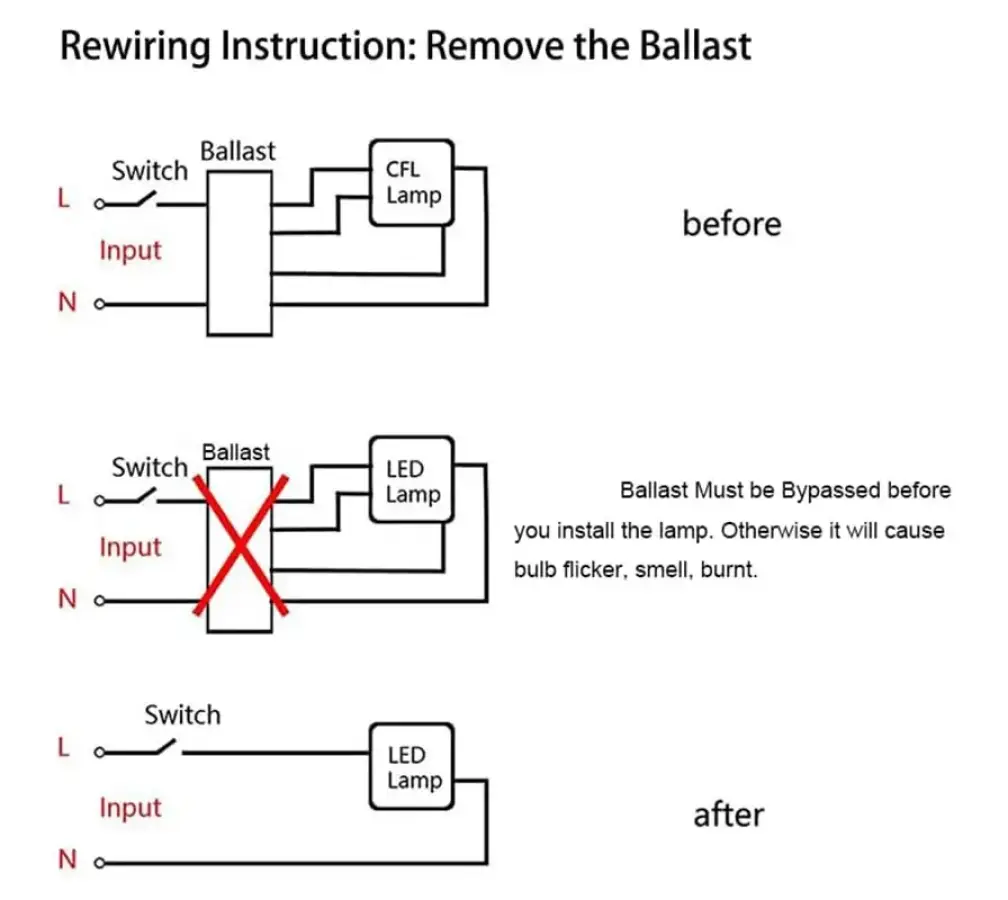

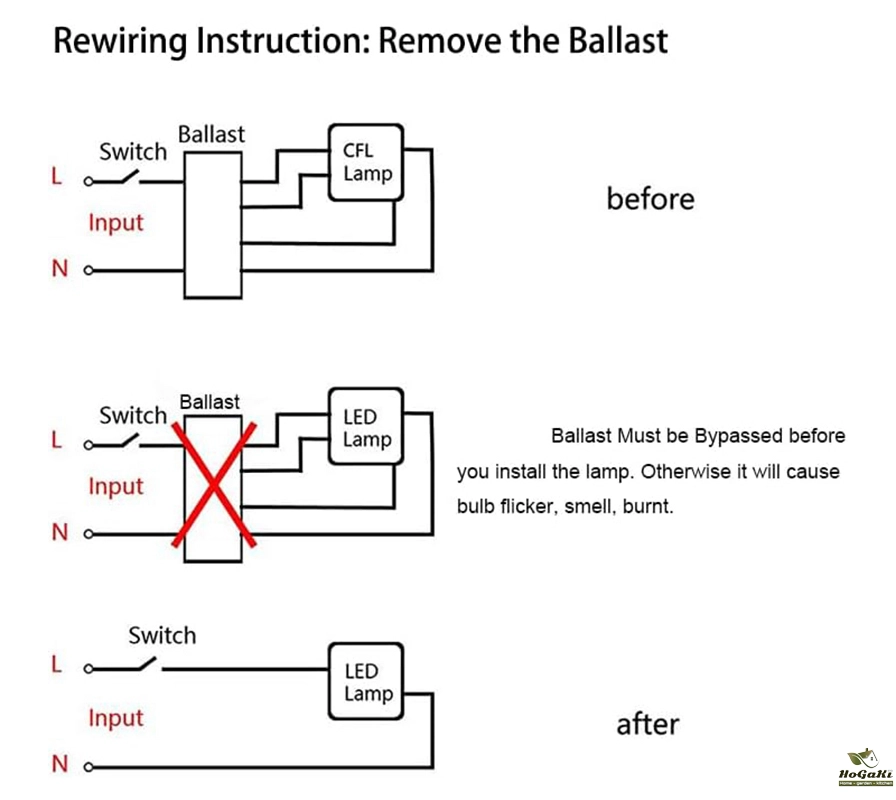

3. How to bypass the ballast?
1). Turn Off the Power.
2). Find the Ballast. Usually it is embedded inside the ceiling fixture. Pls pull off the existing PL lamp, reflector. Leave wire in junction box. and find the ballast.
3). Normally, the Ballast has a black and white wire on the input side (AC input side, 100V -120V for North America). It also has two red and two blue output wires. To bypass this ballast, please cut all the Input and output wires, so total 6 wires cut.
4). Then, you can connect the two red wires to the black wire.
5). Next, connect the two blue wires to the white wire. now ballast is bypassed.
4. Every piece are tested before ship. No chance screw out or defective. 100% guarantee work if you BYPASS the ballast
Packaging Details
- Unit Type:
- Package Weight: 0.150
- Package Size: 10x5x10
- is_customized: Yes
- Type: Adapter
- Application: Lighting, Lamp base Converter
- Brand Name: E-SIMPO
- Item Type: Lamp Holder Converter
- Model Number: GX24Q-E27
- Material: PBT Copper
- Hign-concerned Chemical: None
- Origin: Mainland China
- Choice: yes
- semi_Choice: yes
