H.265/H.264 Network Video Decoder HDMI HD 1080P ONVIF Decoder with USB Decoding RTSP 4K NVR/DVR/XVR Monitoring split screen
376.79 229.84 $
ID: 160128
Quantity
4K H.265/H.264 IP Stream Decoder and USB Files Player HDMI Output By ONVIF RTMP RTSP UDP HTTP Protocol
5.0 (1 votes) | 13 orders
Price:
US $
164.78

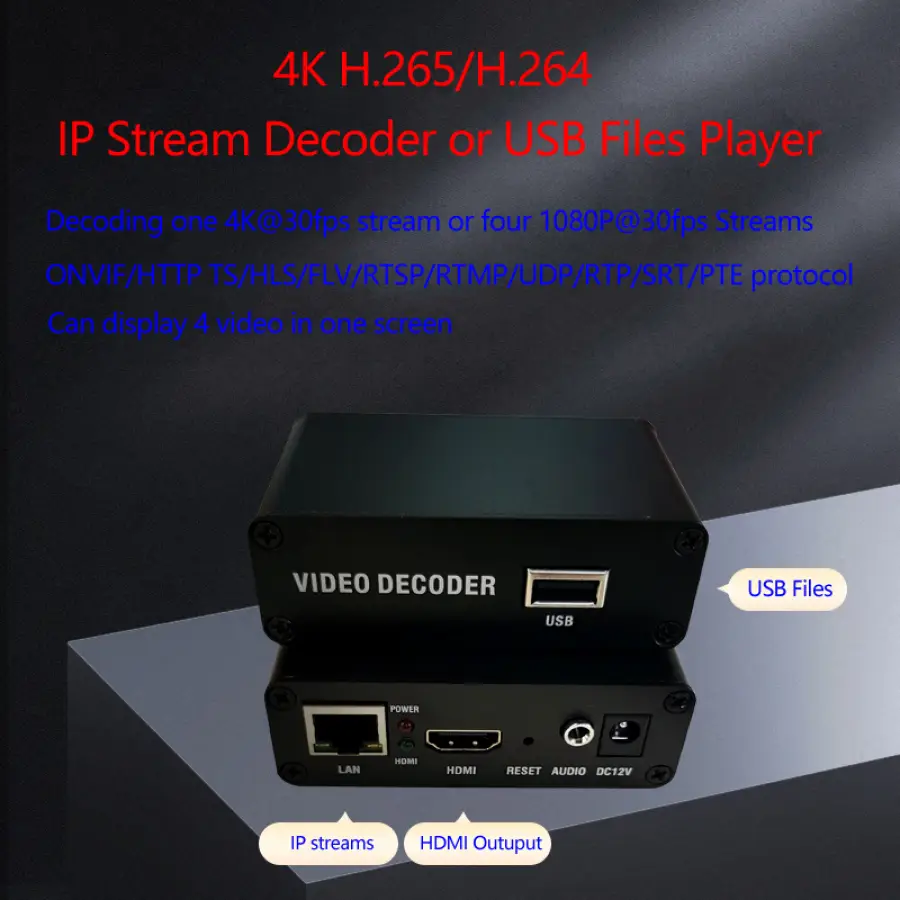

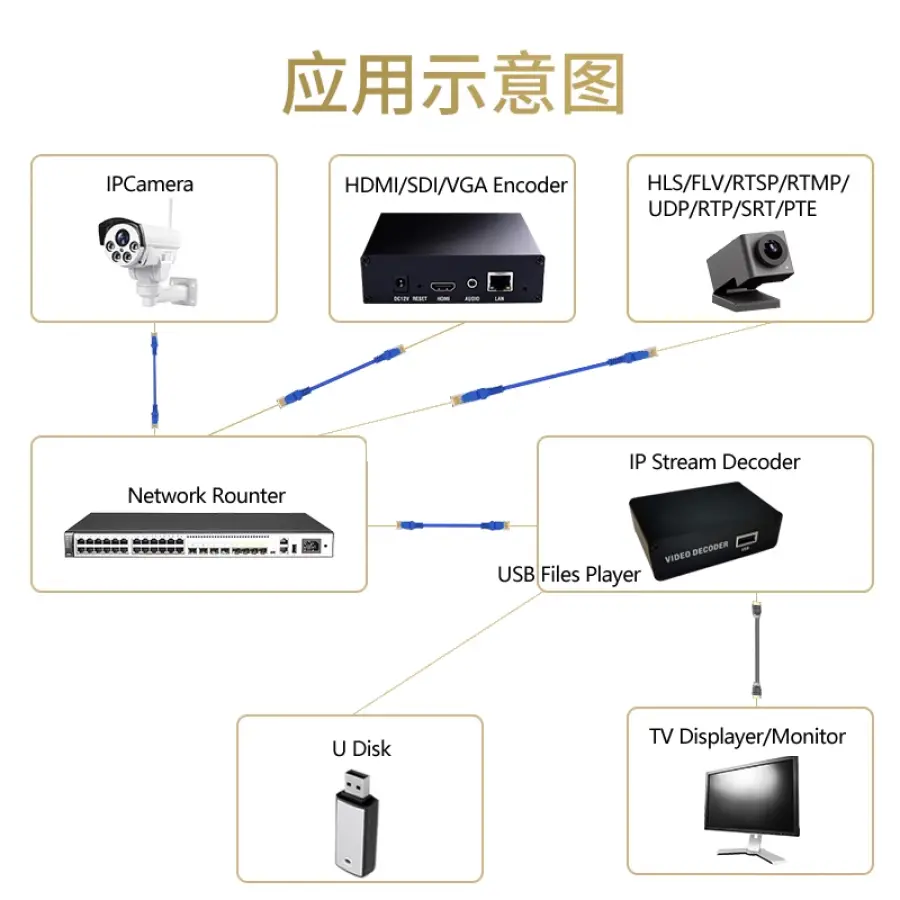

4K H.265/H.264 IP Stream Decoder and USB Files Player
CEL-DEC501MINI uses SigmaStar high-performance video processing chip to realize network media video stream decoding,
support H.265/H.264 video codec algorithm, support multiple stream protocols such as HTTP/HLS/FLV/RTSP/RTMP/SRT/UDT/RTP/PTE,
and ensure clearer and smoother video transmission effect.
also, Using another firmware, it support play multiple USB files one by one with the rotating mode.
Features

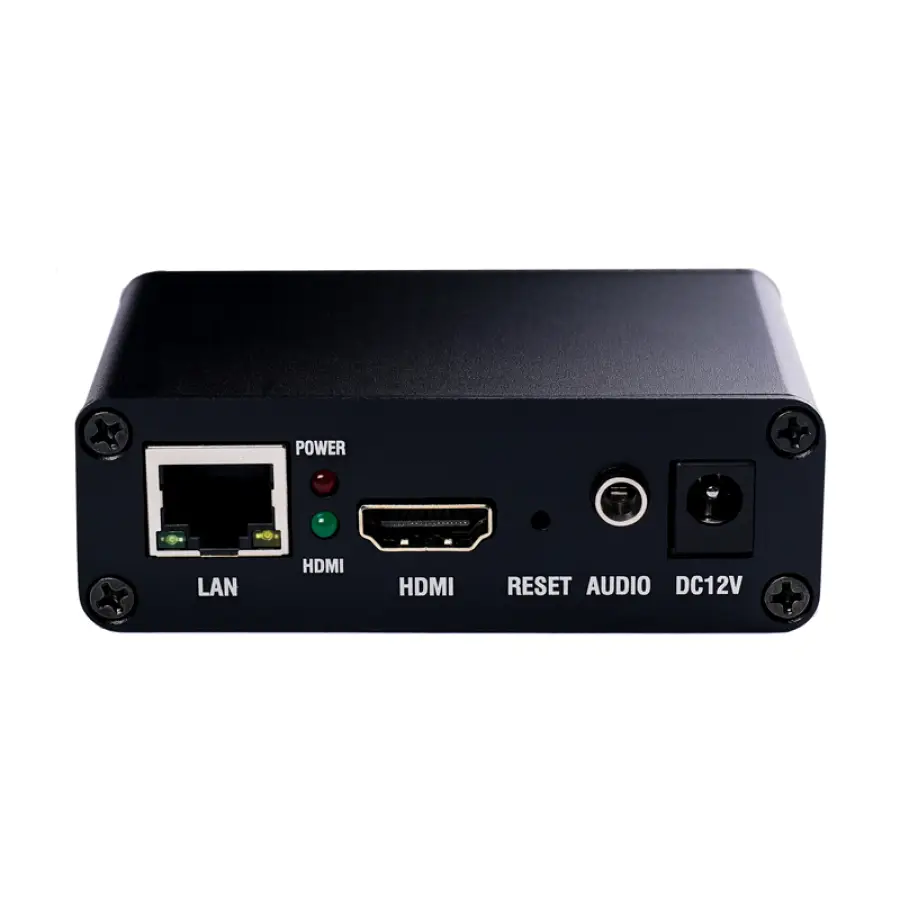

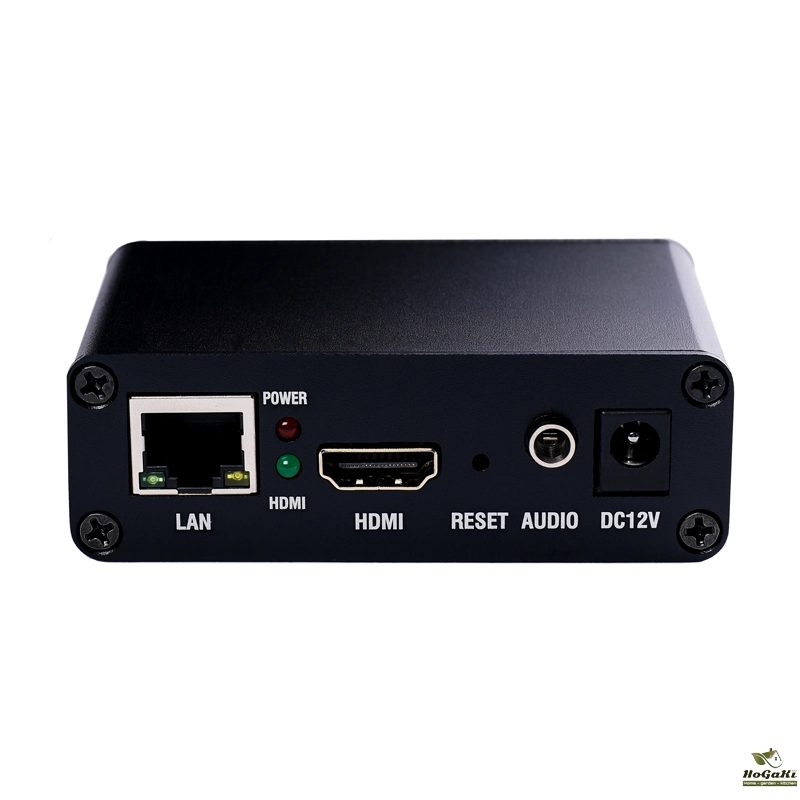

- Output one HDMI signal and one 3.5mm audio signal
- Highest decoding 4K@30 Frame screen
- Decoding video formats H.265/H.264, audio formats AAC, AC3, MP3, MP2, etc
- Supports decoding with the highest possible 4K@30fps stream, or decode 4 channels of up to 1080P@30fps stream at the same time
- Single screen, multi screen display or layout setting
- Decoding multiple streaming protocols HTTP/HLS/FLV/RTSP/RTMP/RTMPS/SRT/UDT/RTP/PTE
- Decode all IP cameras of ONVIF protocol, such as Dahua, Haikang, Xiongmai, etc.

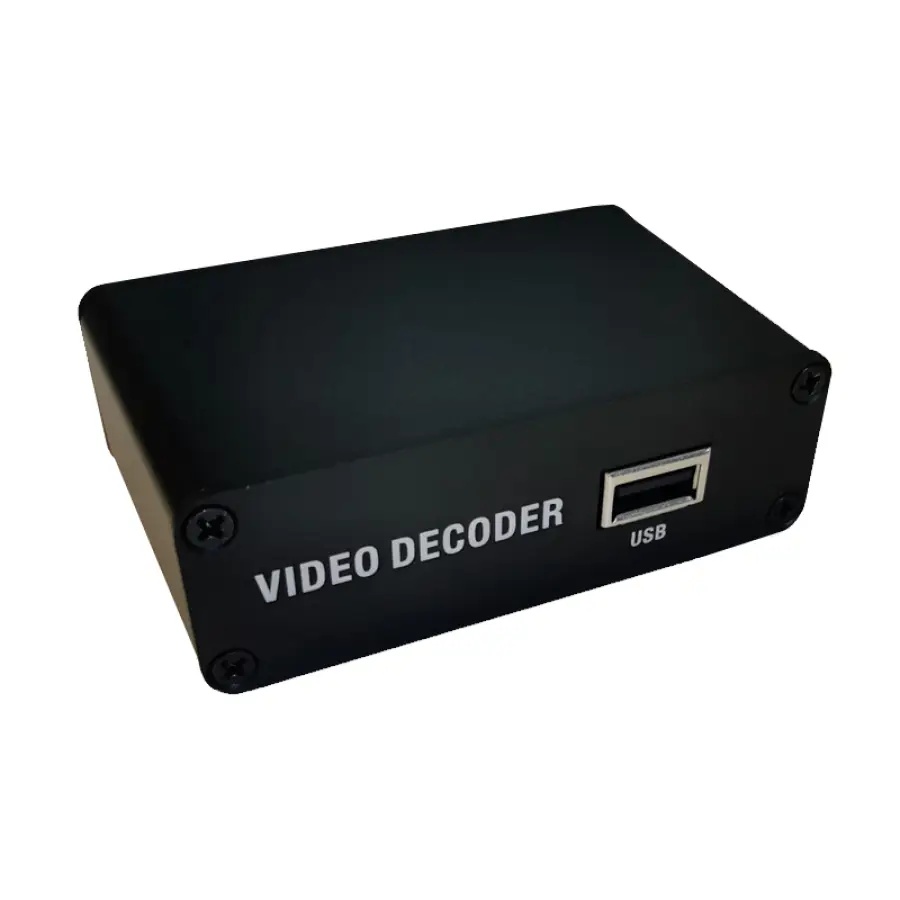

- Using another firmware, One USB interface, supporting polling and playback of video files (ts, ps, mp4, mov, mkv, flv formats) on the USB drive.
- The decoding delay of this product is small; Small size, light weight, easy to install, and easy to operate.
Pay attention, the device can't decode the B frame.

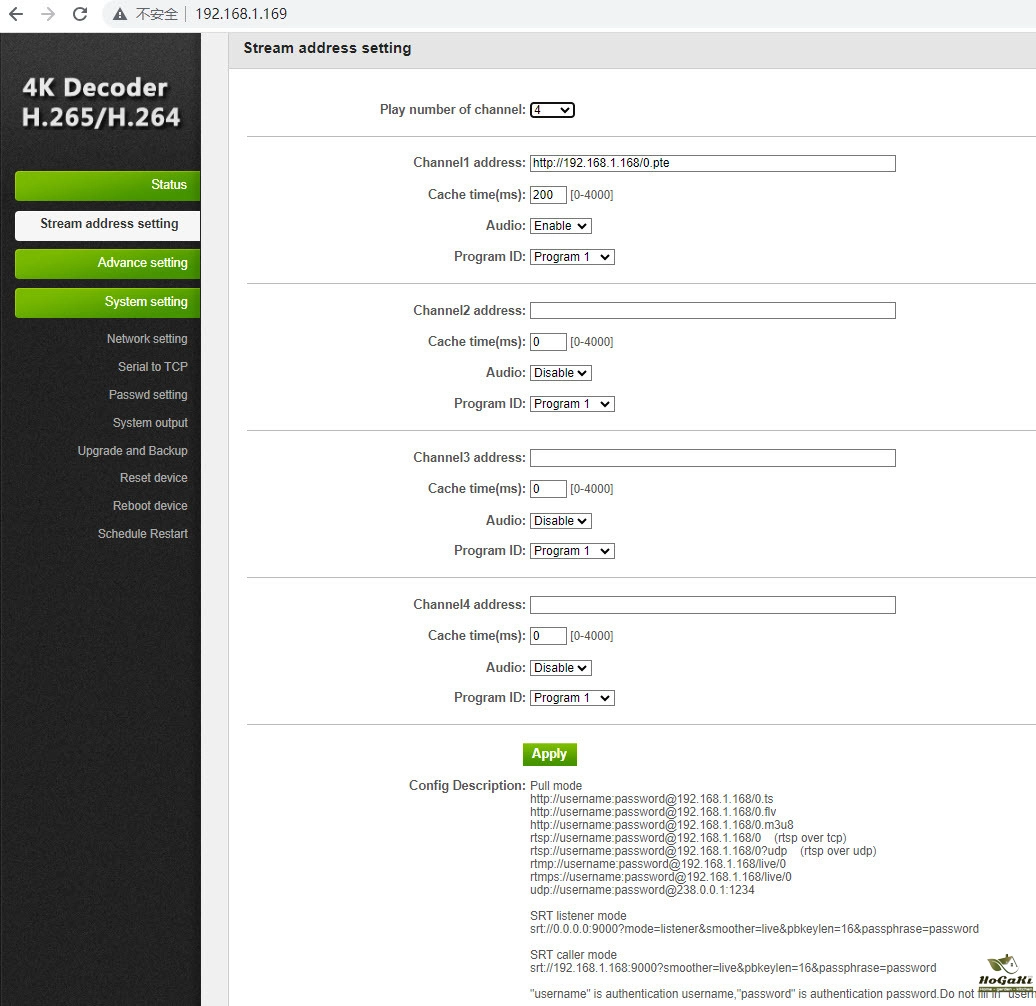

Config Description: Pull mode
http://username:password@192.168.1.168/0.ts
http://username:password@192.168.1.168/0.flv
http://username:password@192.168.1.168/0.m3u8
rtsp://username:password@192.168.1.168/0 (rtsp over tcp)
rtsp://username:password@192.168.1.168/0?udp (rtsp over udp)
rtmp://username:password@192.168.1.168/live/0
rtmps://username:password@192.168.1.168/live/0
udp://username:password@238.0.0.1:1234
SRT listener mode
srt://0.0.0.0:9000?mode=listener&smoother=live&pbkeylen=16&passphrase=password
SRT caller mode
srt://192.168.1.168:9000?smoother=live&pbkeylen=16&passphrase=password
"username" is authentication username,"password" is authentication password.Do not fill in "username:password@" or “&pbkeylen=16&passphrase=password” if application don`t need authentication.

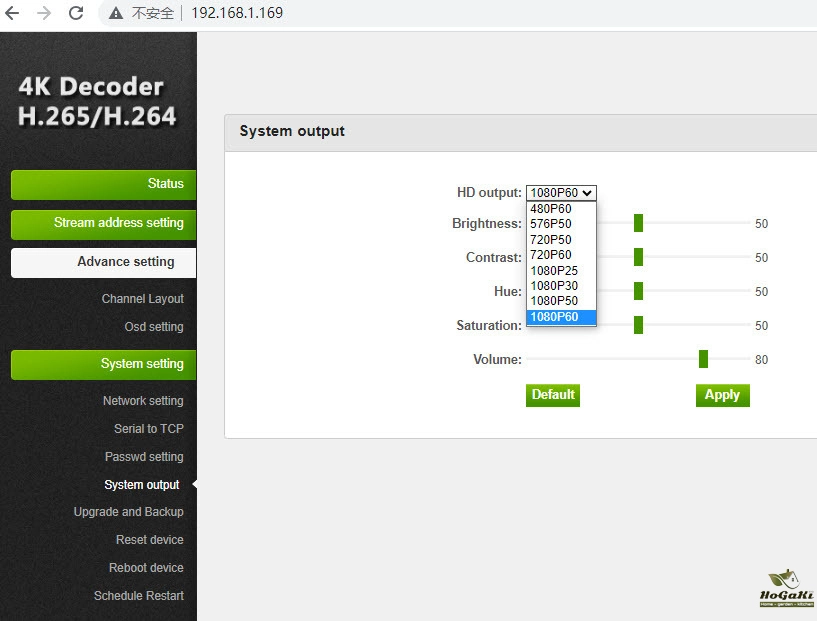

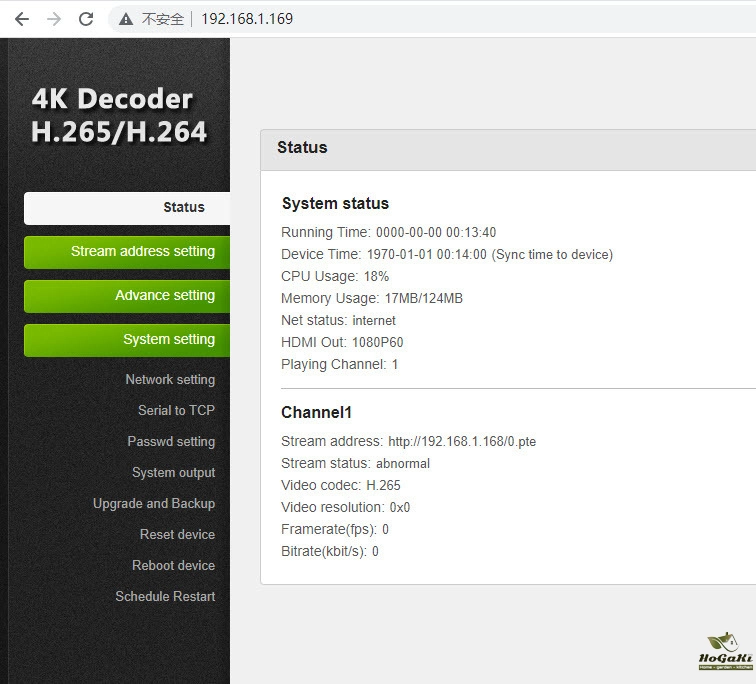

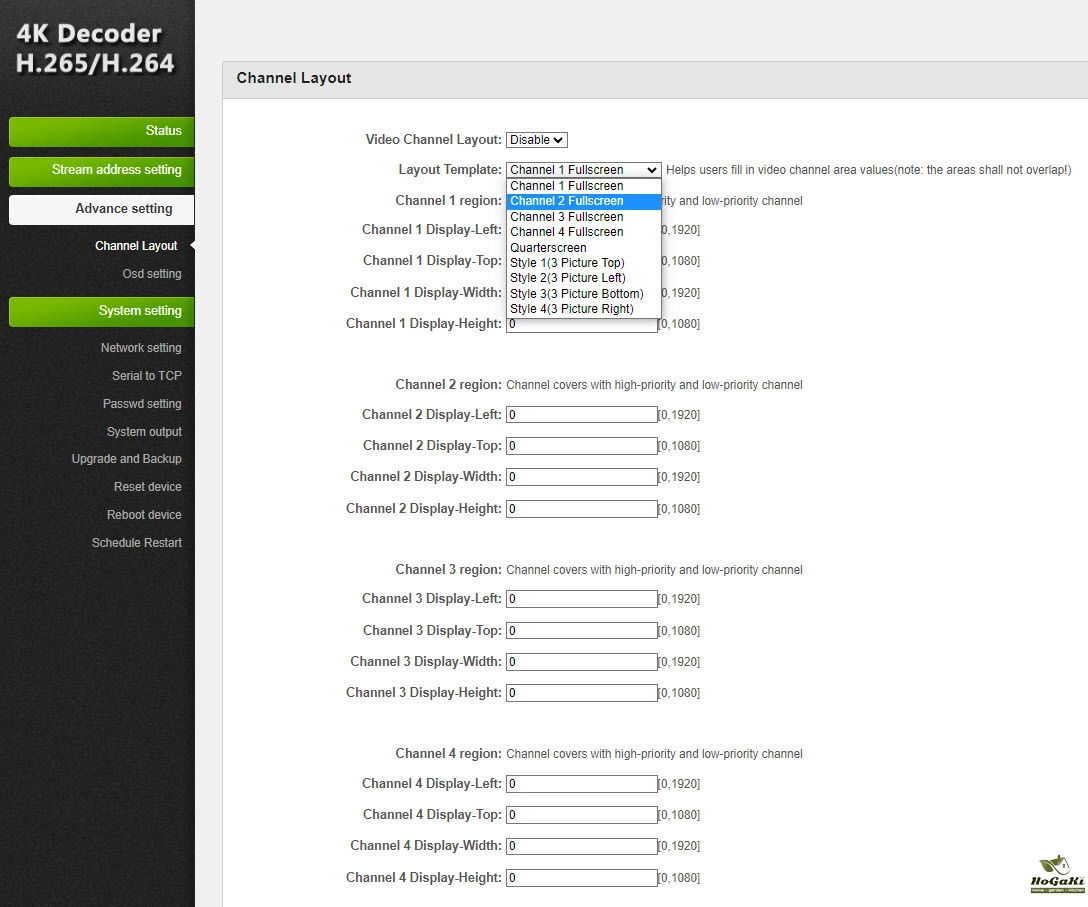

Web Configuration
enter 192.168.1.169 in your google browser, about account and password, both are admin.

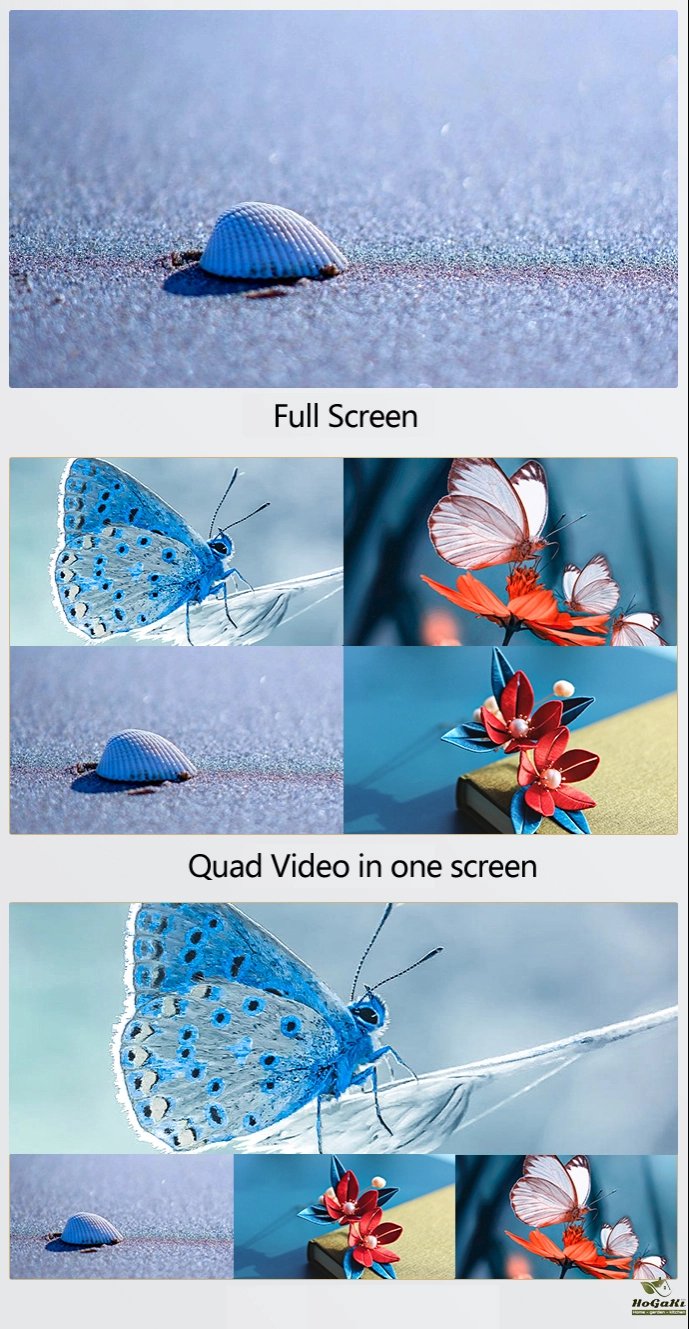

Display of HDMI output
Packaging Details
- Unit Type:
- Package Weight: 0.400
- Package Size: 16x8x16
- Brand Name: VBCTECHNOLOGY
- Origin: Mainland China
- Model Number: CEL-DEC501MINI
