3D AHD Analog PTZ Speed Dome Cameras Matrix Switch Control Systems Keyboard Controller RS485 Communication PELCO-D DVR Joystick

5.0 (2 votes) | 25 orders
Price: US $147.65 / piece
Discount Price:
US $ 110.74 / piece
-25%
Quantity

3 Axis CCTV Camera RS485 Controller For Analog AHD High Speed Dome PTZ Camera System Equipment Keyboard Controller Joystick 3KD LCD DISPLAY



The keyboard is a powerful multi-function operating keyboard the operational matrix switch / control various functions of the system, shell programming matrix system; variety of DVR functions with centralized control; high speed dome and decoder can directly control. Keyboard operation protective function.

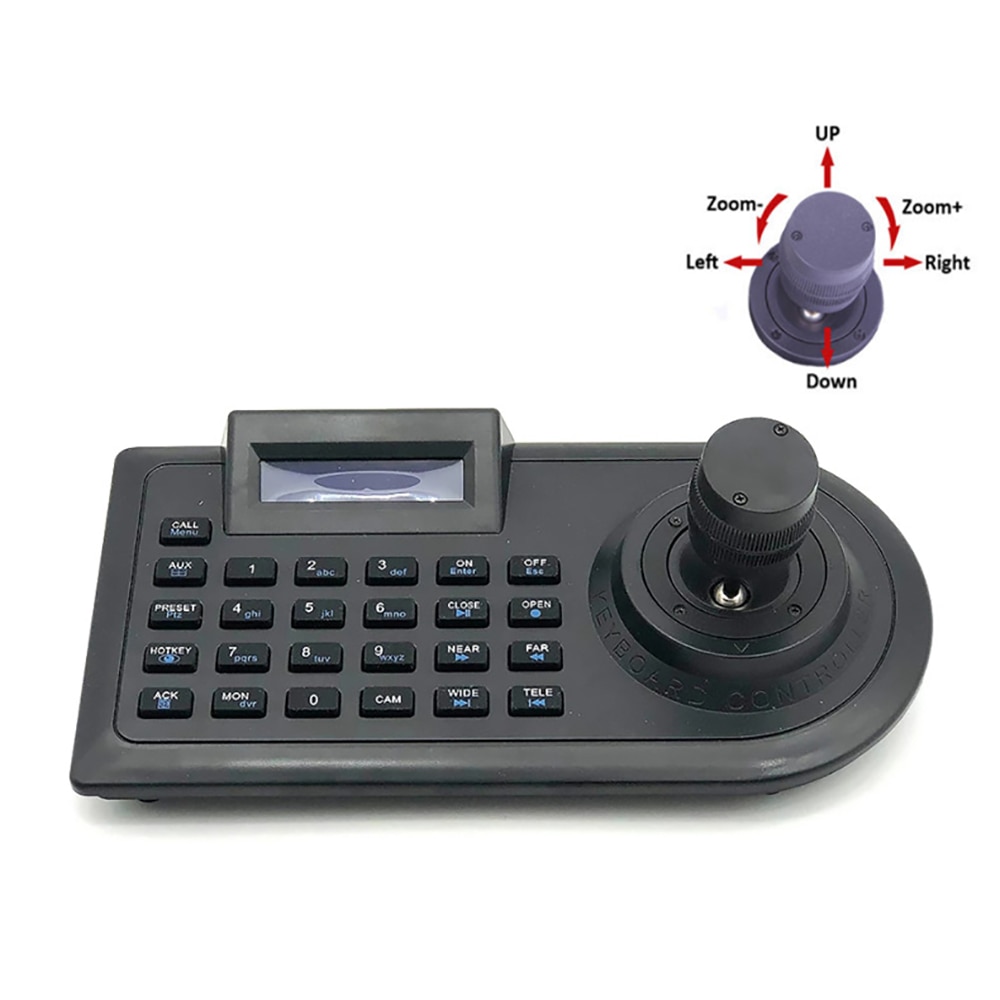

The digital intelligent control keyboard is a supporting product for terminal receivers such as digital hard disk video recorders, high-speed domes and decoders. The EIA/RS-485 communication interface is used between the control keyboard and the receiver. After the control keyboard is connected to the hard disk video recorder, the function control of the corresponding hard disk video recorder is realized, and up to 16 units of hard disk video recorders can be controlled at the same time. Without driving, a keyboard can control up to 64 pieces of dome cameras and decoders, and the maximum communication distance between the keyboard and the receiver can reach 1.2KM. The control keyboard can be used to conveniently control and set the hard disk video recorder and the variable speed smart dome camera. The control keyboard can also directly control the terminal decoder to realize the control of the front-end equipment such as the pan/tilt, lens, light, and wiper. And multiple keyboards can control a same terminal device.In addition to all the functions of a 2 axis keyboard, the 3 axis keyboard also has the function of rotating the joystick handle to reduce or enlarge the lens field of view.


Important: this keyboard controller is for controlling Analog or AHD PTZ cameras, it CAN NOT control network PTZ IP Cameras.



Technical Parameters:

1. Communication method: point-to-multipoint half-duplex communication

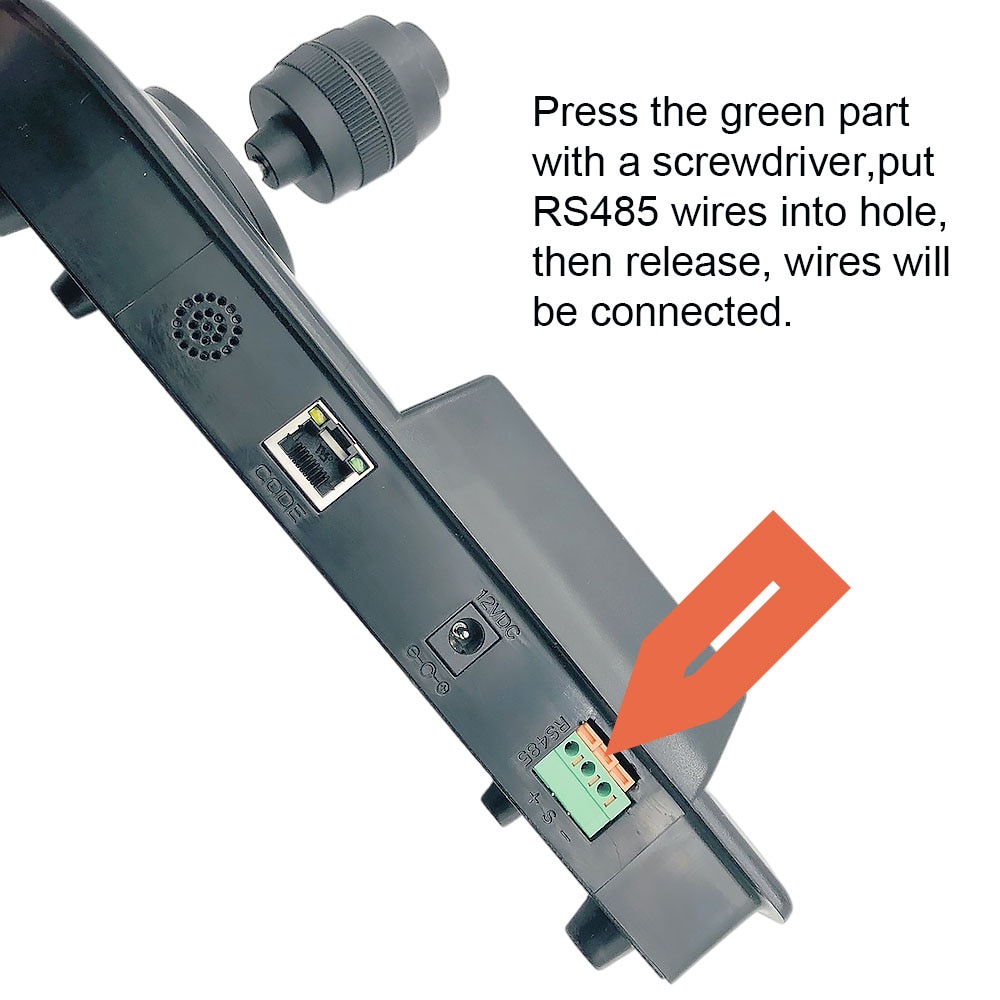

2. Interface standard: RS-485

3. Baud rate: 1200bps, 2400bps, 4800bps, 9600bps optional

4. Protocol: PELCO-D and PELCO-P two kinds

5. It can be connected to Haikang, Hanbang DVR and Dahua hard disk video recorder

6. Maximum communication distance: 1.2KM,

7. Power supply: DC9V-12V

8. Control the number of hard disk video recorders: up to 16

9. Control the number of dome cameras and decoders: up to 64

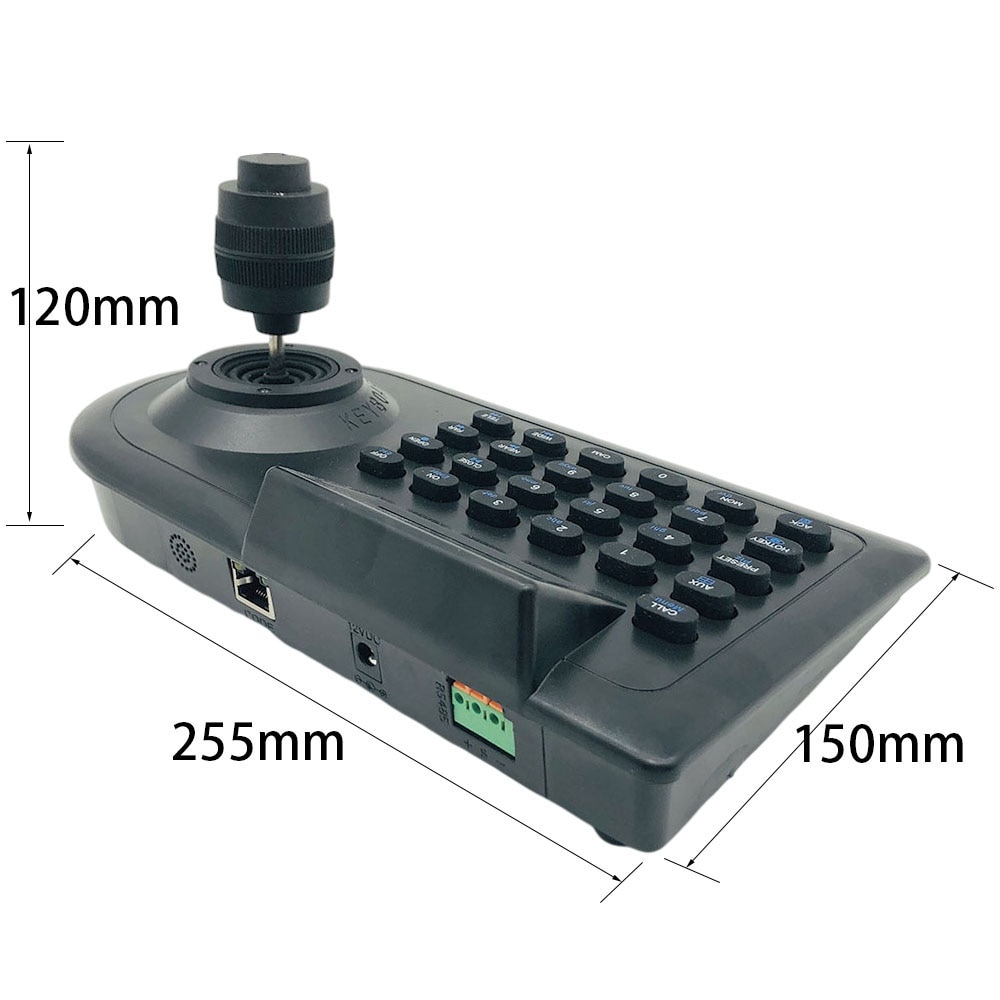

10. Dimensions: 255 x 150 x 120mm, net weight 0.6KG

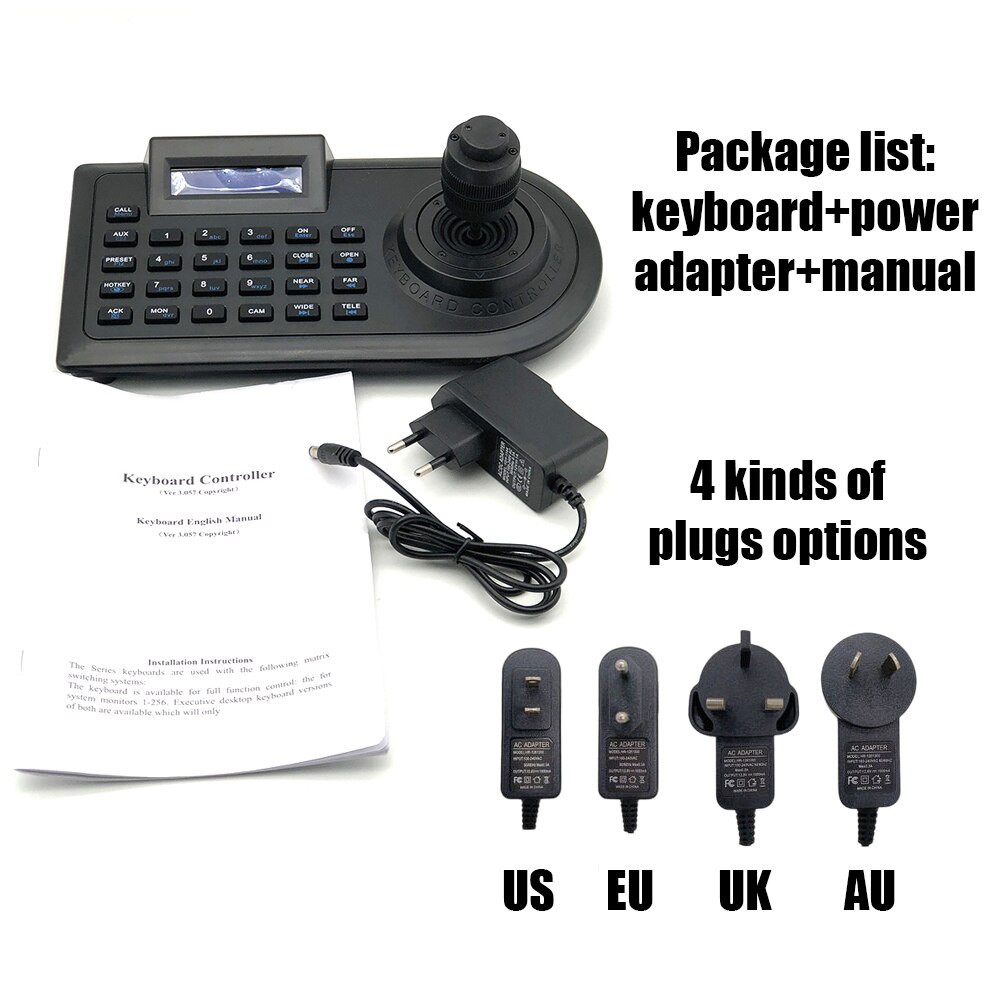

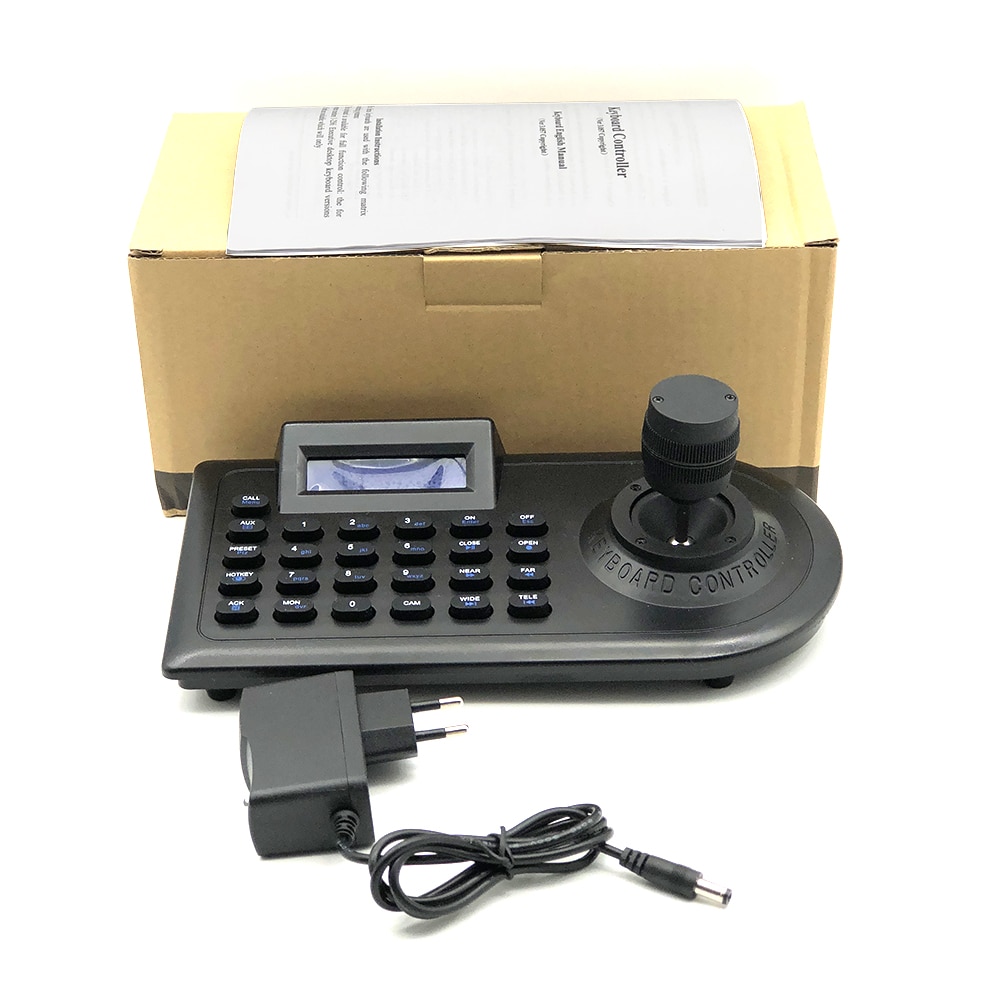

Item Package includes:

  • 1 x CCTV System Multi-function Controlling Keyboard

  • 1 x DC12V Power adapter (EU / UK / US / AU power plug available)

  • 1 x English Manual

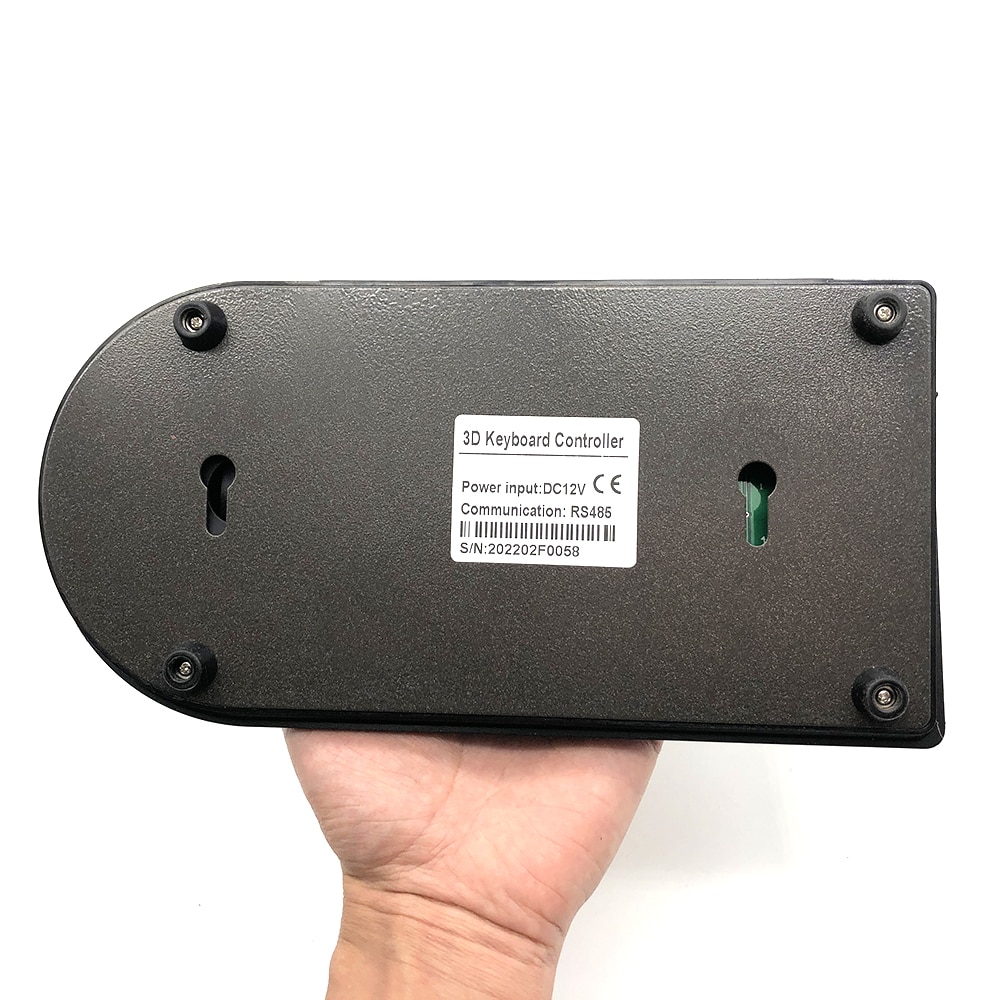

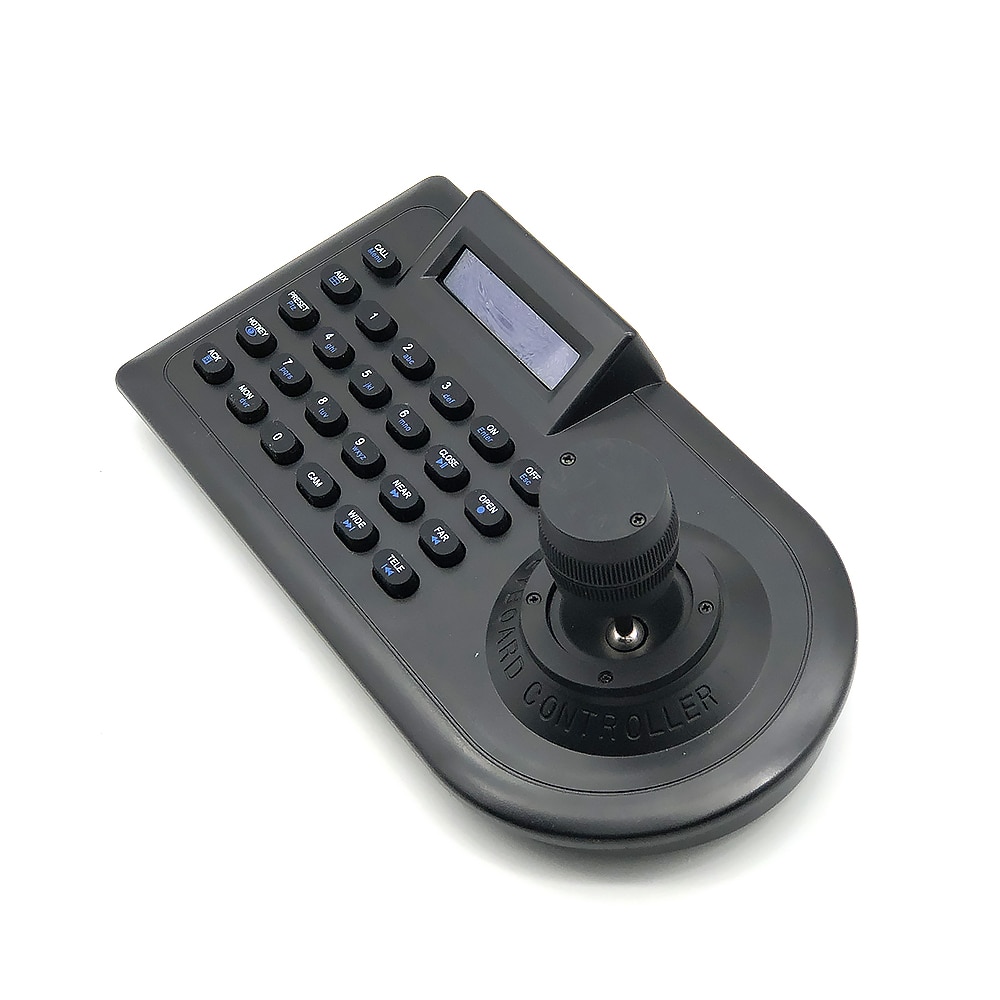

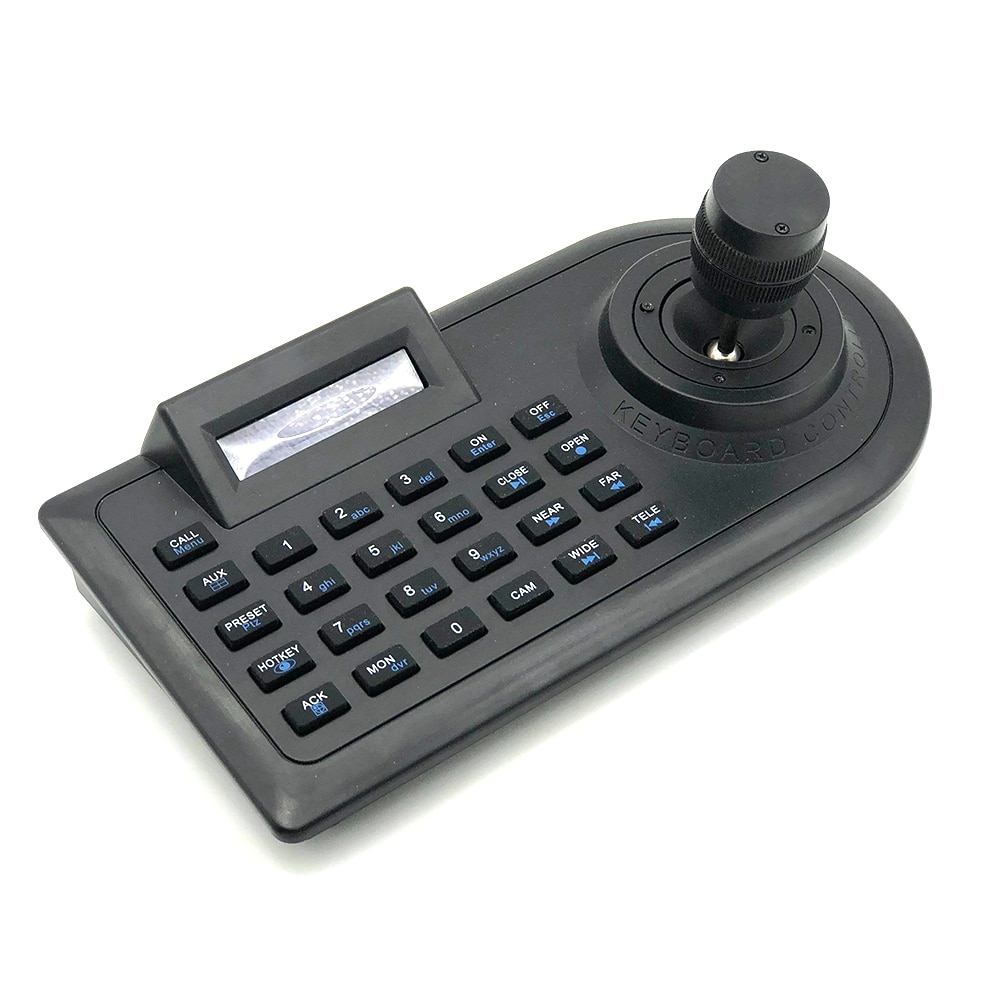

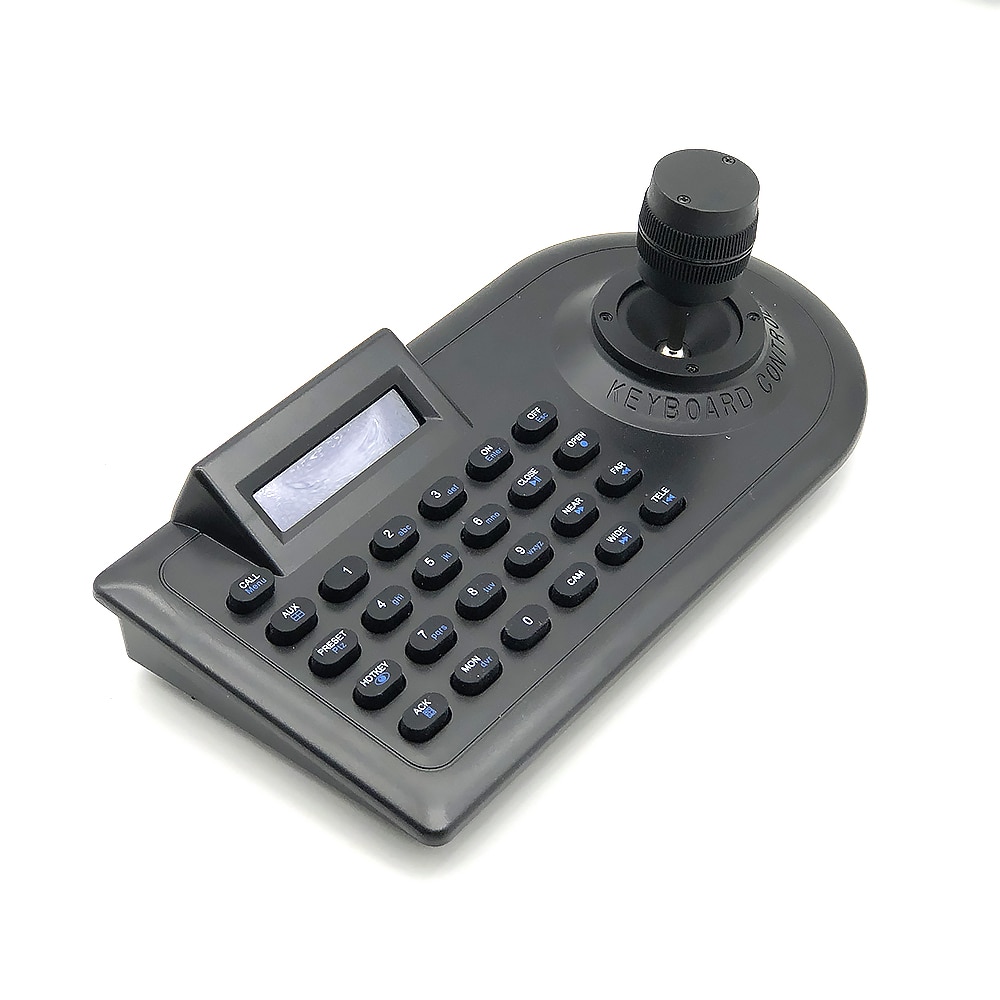

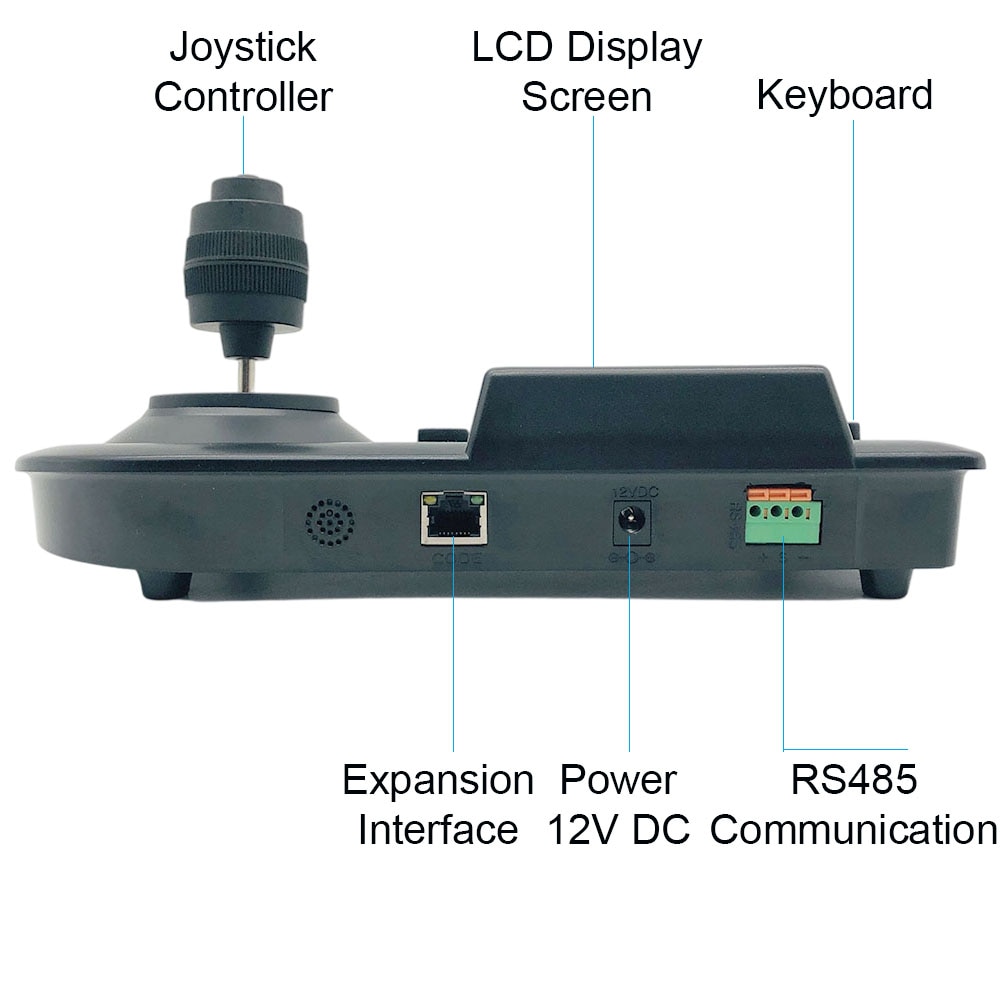

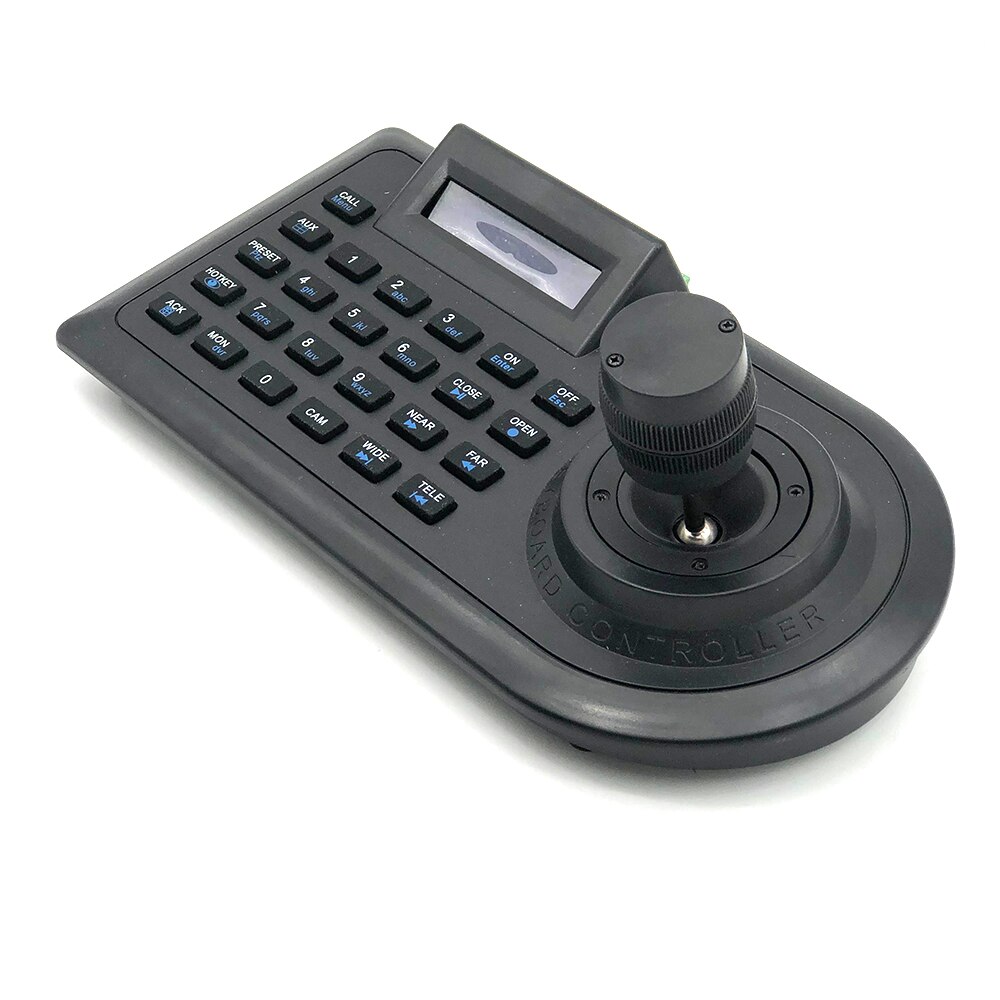

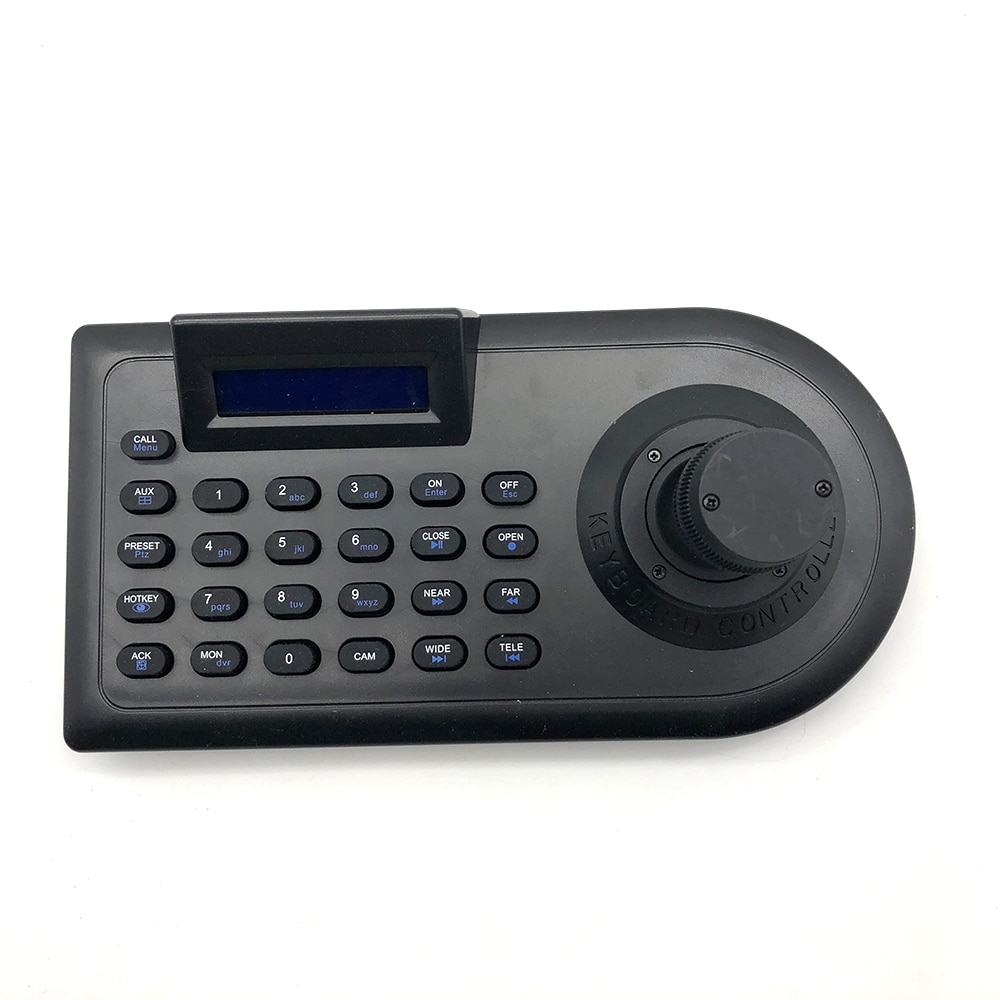

Product real shot pictures:



I have another 4 Axis joystick control keyboard, if you like you can click below link to buy:





  • Model Number: 8003C
  • Brand Name: OwlCat
  • Origin: Mainland China
  • Smart home platform: NONE
  • Certification: CE
  • Technology: Analog / AHD
  • Warning !!!: It doesn't work with network IP PTZ cameras
