2P 20A DC 440V Direct Current Circuit breaker MCB C curve
0.0 (6 votes) | 12 orders
Price:
US $
286.20
/ piece
Application
TOBIZ-63 Series DC Miniature Circuit Breaker, apply to rating current 63A or less, Direct current rating voltage 220V
and 440V. It is mainly used for the overloading and short circuit protection in DC distribution system Equipment and
electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields. In
present China, our products in the case grade rating voltage is highest compared to the same products. Products
according IEC60898-1, GB14048.2 standard.
Characteristic
TOBIZ-63 DC circuit breaker is made up of case, operation mechanism, thermal overloading trip, electromagnetic trip
contact system, arc system etc. It has overloading and short circuit protection, unique-design structure and strong
permanent magnetism arc system make the product has 6KA short circuit capability. Long mechanical life over 20000
times and beautiful shape. It can be connected with din rail named TH35-7.5 standard stainless type and has the below
personality: the handle is designed on the top of the front, people will feel safe and comfortable when operating. When
connecting, pay attention to "+, -" poles; The power goes in from the top and comes out from the underside which is
applied with power entrance character. Convenient for installation and saving cables. It is used for 440V circuit 3 poles
circuit breaker to connect front loop for two poles serial connection.

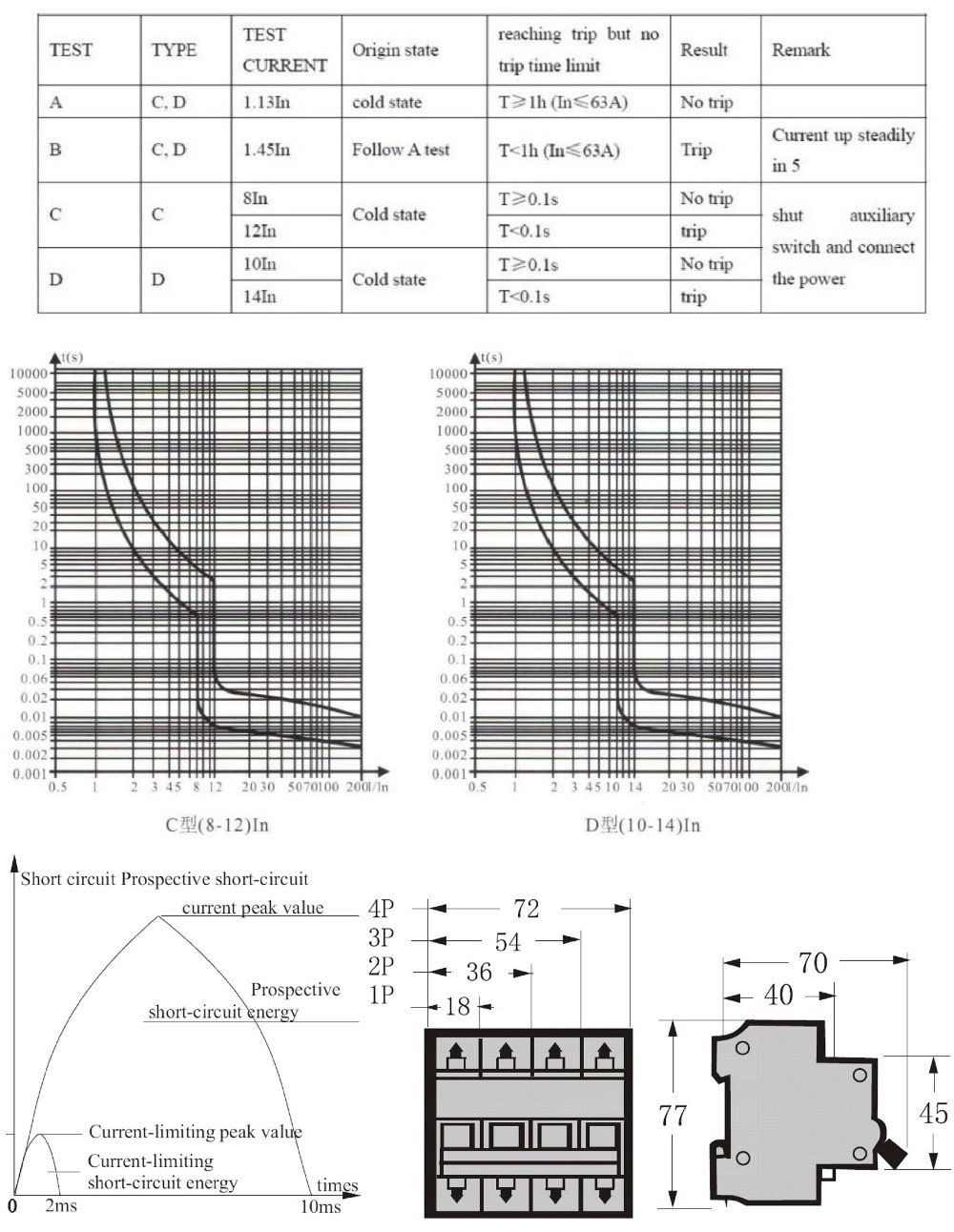

B Curve (3-5In) protection for people and big length cables in TN and IT systems
C Curve (5-10In) protection for resistive and inductive loads with low inrush current.
D Curve (10-14In) protection for circuits which supply loads with high inrush current at the circuit closing (LV/LV transformers, breakdown lamps)
- is_customized: Yes
- Model Number: TOB1Z-63
- Type: Mini
- Brand Name: TOMZN
- Origin: Mainland China
- Certification: CE
- Standard: IEC60947, IEC60898
- Poles Number: 2
- Rated current: DC 20A
- Mounting: 35mm din rail
- Breaking Capacity: 6KA
- Charcteristic Curve: C Type
- Rated Voltage: DC 440V
