C45N 2 Pole 3A/6A/10A/16A/20A/32A/40A/50A/63A 400V~ C Type Mini Circuit Breaker Mcb Mounting 35mm Din Rail Breaking Capacity 6KA
10.76 9.95 $
Notice:
This is relay type, have no short circuit ,overload protection
18mm Din Rail WIFI Smart Switch Remote control by eWeLink APP for Smart home
Feature
1.Remote control at anytime from anywhere
2.Timer ON/OFF
3.Scene setting,
home scene（Turn on the light, turn on the water heater, turn on the TV, turn on the air conditioner,）,
going out scene(Turn off the lights, turn off the water heater, turn off the TV, turn off the air conditioner, etc.）
4.Sharing devices with family and friends
5.18 mm Din Rail install
WIFI connection
Various home appliances
The circuit breaker is connected to the Internet via WIFI wireless network
You can check the on/off status of the circuit breaker through the eWelink APP
Make home appliances smart

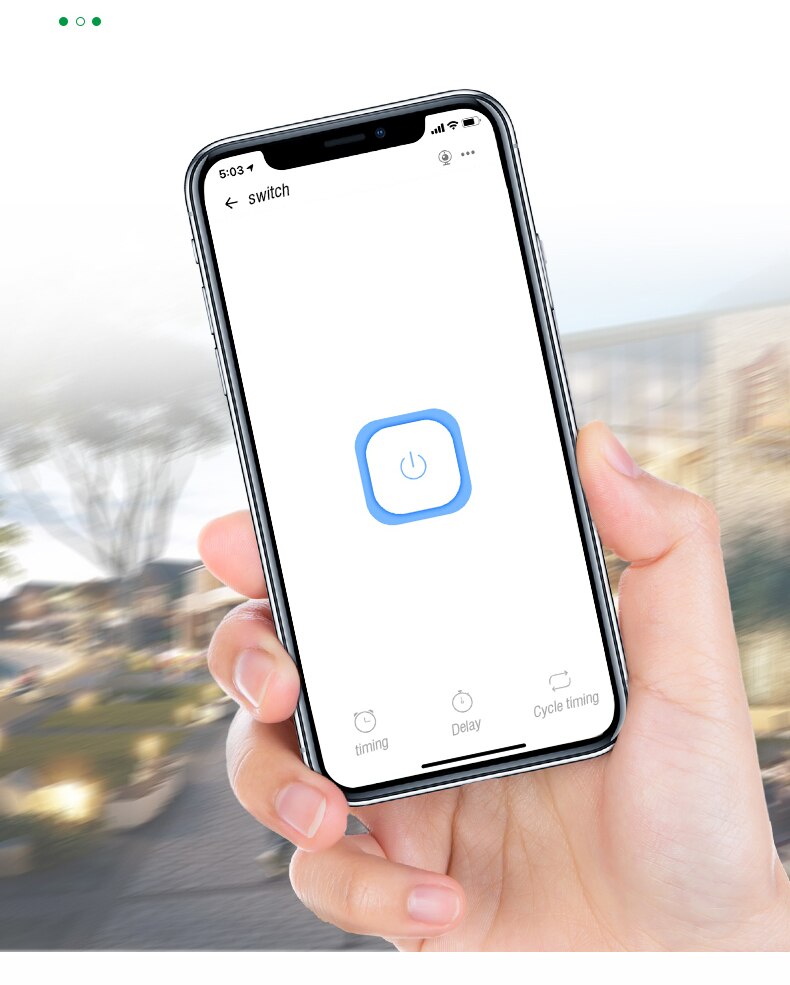

EWelink APP direct connection
Mobile phone remote control
Remotely control socket power on/off through eWelink APP
Forget to turn off the light, just one click to turn off
Voice control supports
Google and Alexa
Timing setting cycle switch
You can set the timing on the APP, you can also set the countdown and cycle timing,
Voice timing can be used

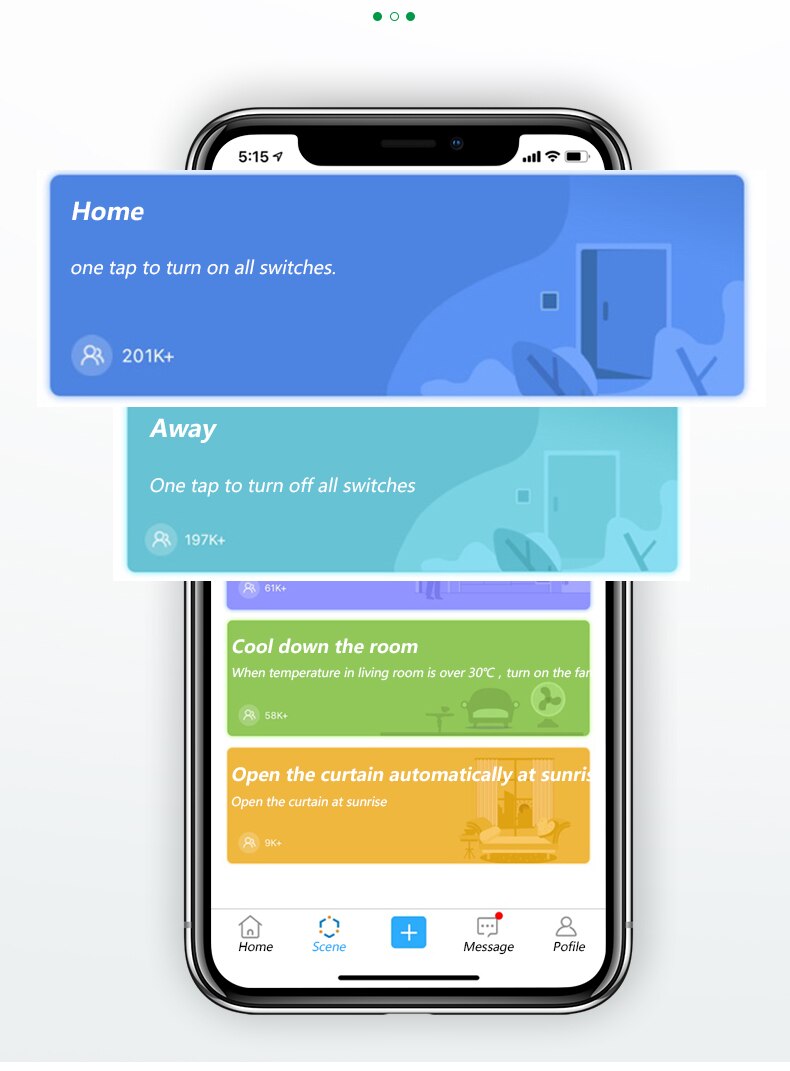

Intelligent scene linkage
Support custom scenes, intelligent voice control, convenient and fast
Offline timing
Disconnected memory
No need to worry in case of sudden network disconnection, the circuit breaker has a memory function
Timing can still be performed in the disconnected state
Independent communication chip
Using a powerful chip core, high-speed computing and fast processing of information
Fast networking
No gateway required
Large load capacity, cold coil, no temperature rise pulse trigger to improve service life

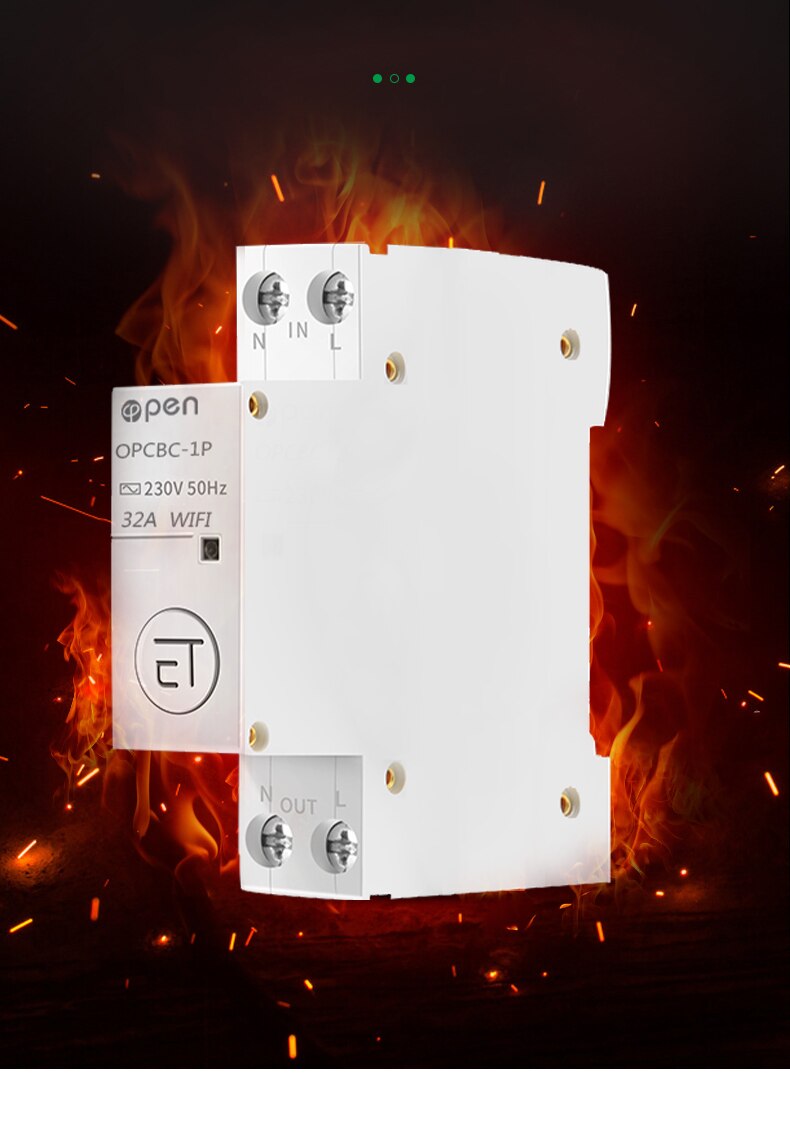

PC flame retardant shell
Using PC flame-retardant material, it has good heat resistance and abrasion resistance
Product parameter

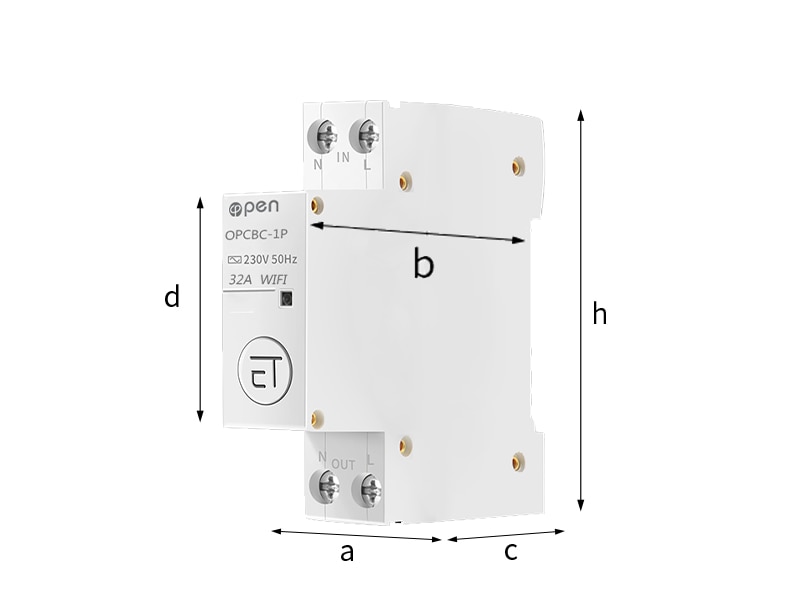

MODEL | Product Size | ||||
a | b | h | c | d | |
1P+N | 19mm | 70mm | 78mm | 46mm | 46mm |
2P | 36mm | 66mm | 81mm | 50mm | 45mm |
4P | 72mm | 66mm | 81mm | 50mm | 45mm |
Product Name | Smart WIFI Circuit Breaker |
Switch type | energy-saving magnetic holding |
Working voltage | AC220V 1P/2P; AC220V*380V 4P50Hz |
Rated voltage | AC230V 1P/2P; AC400V 4P |

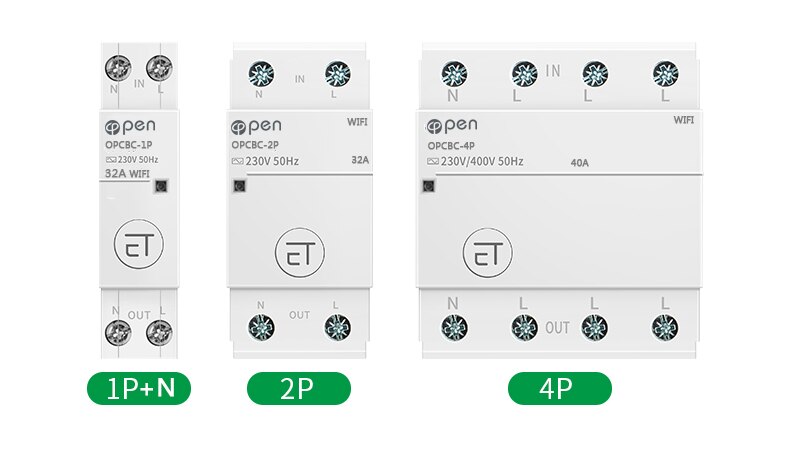

Product magnetic pole | 1P+N/2P/4P |
Working current | 6A~100A |
Control method | Yiweilian APP/smart speaker |
Connection method | 2.4GWIFI |
Meet the standard | GB10963.1 IEC60898-1 |
Protection level | IP20 |

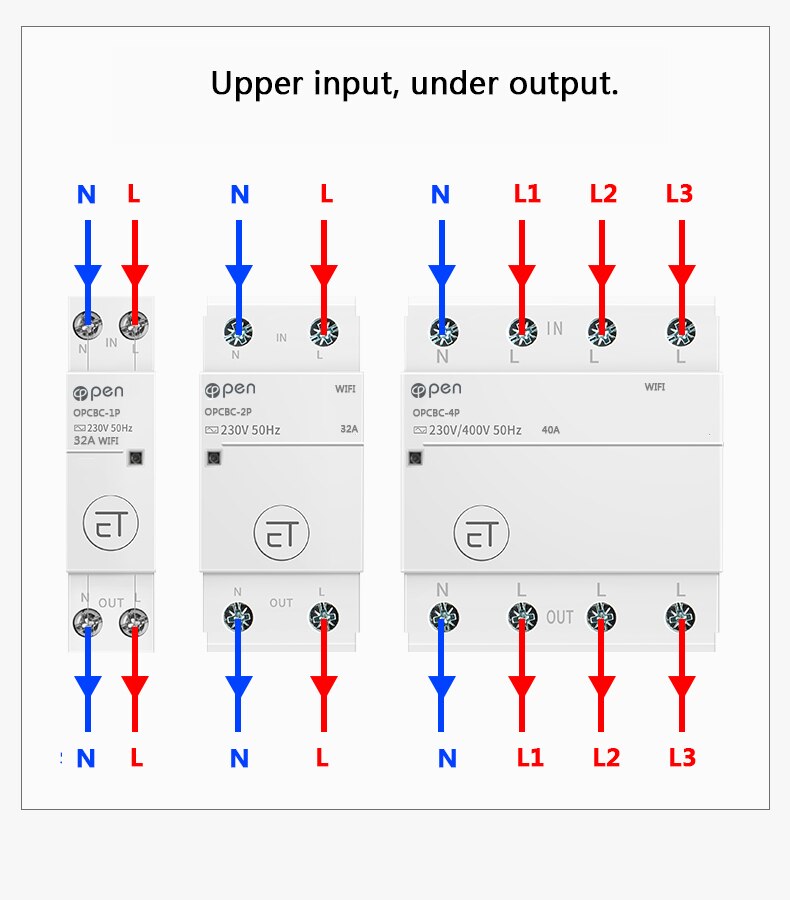

Product wiring
Connect the power supply above and load below
(Note: Live installation is strictly prohibited)
Instructions

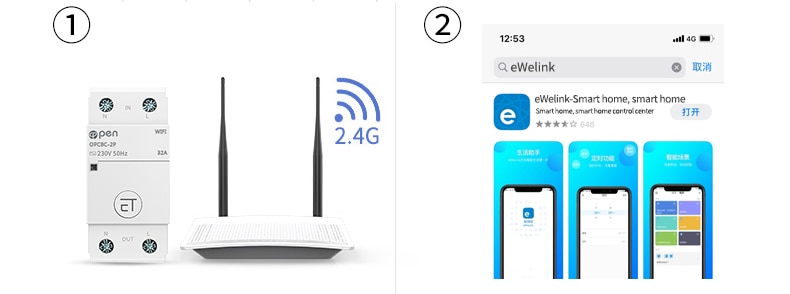

1.Connect the product and turn on the WIFI 2. Download the "eWelink" APP

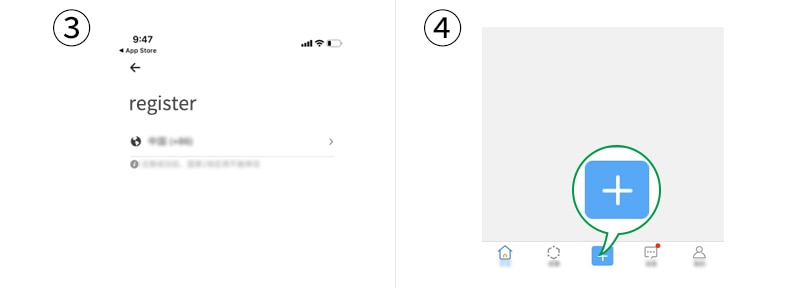

3.Register a login account 4.Click "+" to add a device

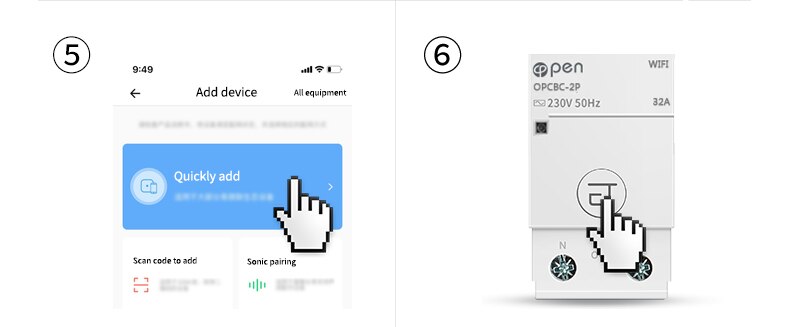

5.Click "Quick add" 6.Long press for 8 seconds, wait for the indicator light to flashConnect the device

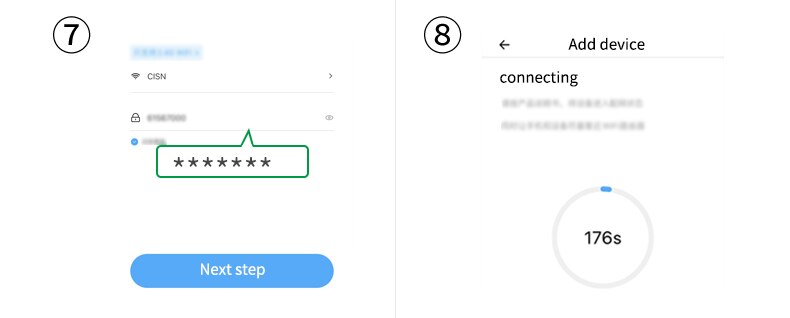

7.Enter wireless password 8.The device is connecting, wait for the prompt that the connection is successful

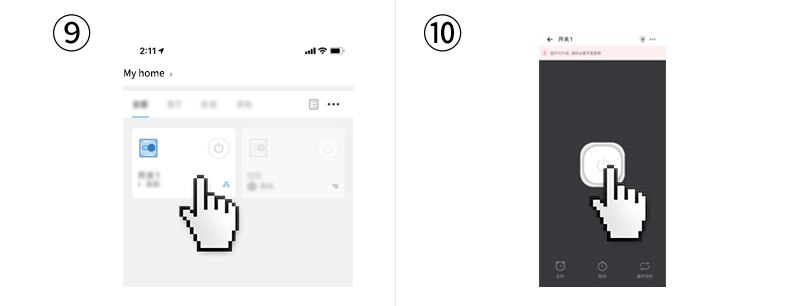

9.Click on the successfully connected device 10.Can start to control
- is_customized: Yes
- Model Number: RDCBC-1P
- Type: Vacuum
- Origin: Mainland China
- Certification: CE
- feature: Remote control at anytime from anywhere
- control way: Smart phone/ eWeLink APP
- connect: WIFI
- feedback: real time status feedback
- Share: Share with all family mebmer
- set: Scene Set/go out home / arrive home
- APP: eWelink
- function: smart switch
