25N.M /2.5KG without shaft magnetic powder clutch for Printing machine, Winding machinery

0.0 ( votes)
Price:
US $ 694.48 / piece
Quantity

25N.M /2.5KG Hollow shaft magnetic powder clutch for Printing machine, Winding machine

TB2oYbSqACWBuNjy0FaXXXUlXXa_!!2808410340





model

Technical parameters

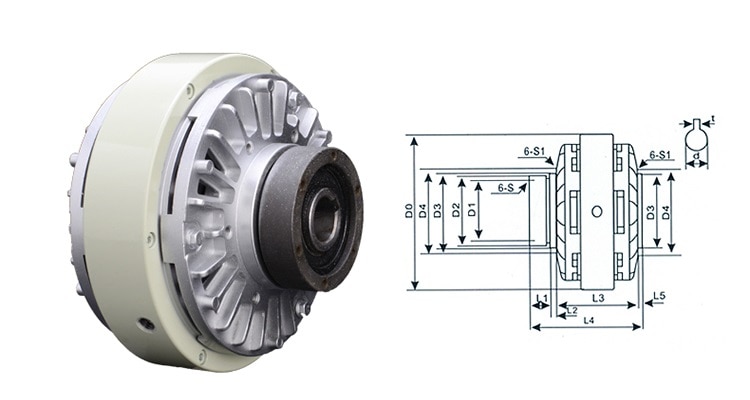

dimension

Net weight

(kg)

Torque (N.m)

voltage

Rotate

speed

Max

current

D0

D1

D2*L1

D3*L2

D4

L3

L4

L5

d

t

6-S

6-S1

FL-B-6

6

24V

1400

0.8A

130

50

60*16

62*16

70

64

91

3

16

5

M4

M5

4

FL-B-12

12

1.0A

157

63

70*18

72*7

80

77

107

3

20

6

M4

M5

6.5

FL-B-25

25

1.5A

182

71

80*20

82*10

97

88

129

4

25

8

M5

M6

9.5

FL-B-50

50

1000

1.8A

219

85

95*22

97*11

110

105

147

4

30

8

M6

M6

15

FL-B-100

100

2.0A

290

105

125*24

128*14

145

134

182

5

35

10

M8

M8

32

FL-B-200

200

2.5A

335

125

140*28

145*17

165

145

200

5

45

14

M8

M10

50



345

Product introduction

The magnetic powder clutch is a combination of a transmission unit (input shaft) and a driven unit (output shaft). The space between the two sets of cells is filled with granular magnetic powder (recessed about 40 microns). When the magnetic coil is not conductive, the torque will not be transmitted from the transmission shaft to the driven shaft. However, if the coil is electromagnetically energized, the magnetic powder will attract hardening due to the action of the magnetic force, and the torque will be transmitted between successive slidings.



Scope of application

Printing machinery, paper machinery, bag making machinery, paper making machinery, wire and cable machinery, winding machinery, wire machinery, bale bag machinery, textile machinery, weaving machinery, woodworking machinery, test equipment, simulation load, various Mechanical precision tension control, general industrial equipment, and other general industrial machinery.


  • Voltage: 24V
  • Material: Cast Iron
  • Model Number: FL-B-25
  • Certification: NONE
  • Origin: Mainland China
